CAUTION

•

Do not ground accessories directly to
the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.

•

Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.

Your vehicle is equipped with a variable
voltage control system. This system mea-
sures the amount of electrical discharge
from the battery and controls voltage gen-
erated by the generator.

The current sensor

is located near the

battery along the negative battery cable.
If you add electrical accessories to your
vehicle, be sure to ground them to a suit-
able body ground such as the frame or
engine block area.

Automatic tensioner pulley

Generator pulley

Water pump pulley

Air conditioner compressor pulley

Crankshaft pulley

WARNING

Be sure the ignition switch is placed in
the OFF or LOCK position before servic-
ing drive belt. The engine could rotate
unexpectedly.

LDI3246

LDI3028

VARIABLE VOLTAGE CONTROL
SYSTEM

DRIVE BELT

8-14

Do-it-yourself

1. Visually inspect the belt for signs of un-

usual wear, cuts, or fraying. If the belt is
in poor condition, have it replaced or ad-
justed. It is recommended that you visit a
NISSAN dealer for this service.

2. Have the belt checked regularly for

condition.

REPLACING SPARK PLUGS

Iridium-tipped spark plugs

It is not necessary to replace iridium-
tipped

spark plugs as frequently as con-

ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the “Maintenance and sched-
ules” section of this manual. Do not service
iridium-tipped spark plugs by cleaning or
regapping.
•

Always replace spark plugs with rec-
ommended or equivalent ones.

WARNING

Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.

CAUTION

Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can damage the spark plugs.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

SDI1895

SPARK PLUGS

Do-it-yourself

8-15

WARNING

•

Operating the engine with the air
cleaner filter off can cause you or
others to be burned. The air cleaner
filter not only cleans the intake air,
it also stops the flame if the engine
backfires. If the air cleaner is not in-
stalled and the engine backfires, you
could be burned. Never drive with
the air cleaner filter off. Be cautious
working on the engine when the air
cleaner is off.

•

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

To remove the filter from the air cleaner,
release the retaining clips

and pull the

cover upward.

The viscous paper type filter element
should not be cleaned and reused. Replace
the air filter according to the maintenance
log shown in the “Maintenance and sched-
ules” section of this manual.

When replacing the air filter, wipe the inside
of the air cleaner housing and the cover
with a damp cloth.

NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is
seated in the housing and latch the
clips

IN-CABIN MICROFILTER (if so
equipped)

Your vehicle may be equipped with an in-
cabin microfilter which collects dirt, pollen,
dust, etc. and reduces some objectionable
outside odors.

The in-cabin microfilter is located within
the instrument panel. Replace the filter in
accordance with the specified mainte-
nance intervals listed in the "Maintenance
and schedules" section of this manual.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service

The filter should be replaced if the air
flow decreases significantly or if win-
dows fog up easily when operating the
heater or air conditioner.

LDI3439

AIR CLEANER

8-16

Do-it-yourself

CLEANING

If your windshield is not clear after using
the windshield–washer or if a wiper blade
chatters when running, wax or other mate-
rial may be on the blade or windshield.

Clean the outside of the windshield with a
washer fluid or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer fluid or a mild deter-
gent. Then rinse the blades with clear wa-
ter. If your windshield is still not clear after
cleaning the blades and using the wiper,
install new windshield wiper blades.

CAUTION

Worn windshield wiper blades can dam-
age the windshield and impair driver
vision.

REPLACING

Replace the wiper blades if they are worn.

To replace the windshield wiper blades, fol-
low the procedure below:
1. Lift the wiper arm away from the wind-

shield.

2. Push the release tab

3. Move the wiper blade

down and re-

move.

4. Insert the new wiper blade onto the

wiper arm until it clicks into place.

5. Push wiper on to windshield.

CAUTION

•

After wiper blade replacement, re-
turn the wiper arm to its original po-
sition; otherwise it may be damaged
when the hood is opened.

•

Make sure the wiper blades contact
the glass; otherwise the arms may be
damaged from wind pressure.

LDI2757

WINDSHIELD WIPER BLADES

Do-it-yourself

8-17

If you wax the surface of the hood, be care-
ful not to let wax get into the washer nozzle

. This may cause clogging or improper

windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this
service.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front disc-type brakes self-adjust
every time the brake pedal is applied. The
rear drum-type brakes self-adjust every
time the parking brake is applied.

WARNING

Have your brake system checked if the
brakes pedal height does not return to
normal. It is recommended that you
visit a NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake
pad requires replacement, a high pitched
scraping or screeching sound will be heard
when the vehicle is in motion. The noise will
be heard whether or not the brake pedal
is depressed. Have the brakes checked
as soon as possible if the wear indicator
sound is heard.

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed.

For additional information

regarding brake inspections, refer to the
appropriate maintenance schedule infor-
mation in the "Maintenance and sched-
ules" section of this manual.

LDI2731

BRAKES

8-18

Do-it-yourself

If any electrical equipment does not oper-
ate, check for an open fuse.

Fuses are used in the passenger compart-
ment. Spare fuses are provided and can be
found in the passenger compartment fuse
box.

When installing a fuse make sure the fuse is
installed in the fuse box securely.

ENGINE COMPARTMENT

CAUTION

Never use a fuse of higher or lower am-
perage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not come
on, check for an open fuse.

1. Be sure the ignition switch and the head-

light switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing

the tab and lifting the cover up.

4. Remove the fuse with the fuse puller.

The fuse puller is located in the center
of the fuse block in the passenger
compartment.

LDI2997

LDI3527

FUSES

Do-it-yourself

8-19

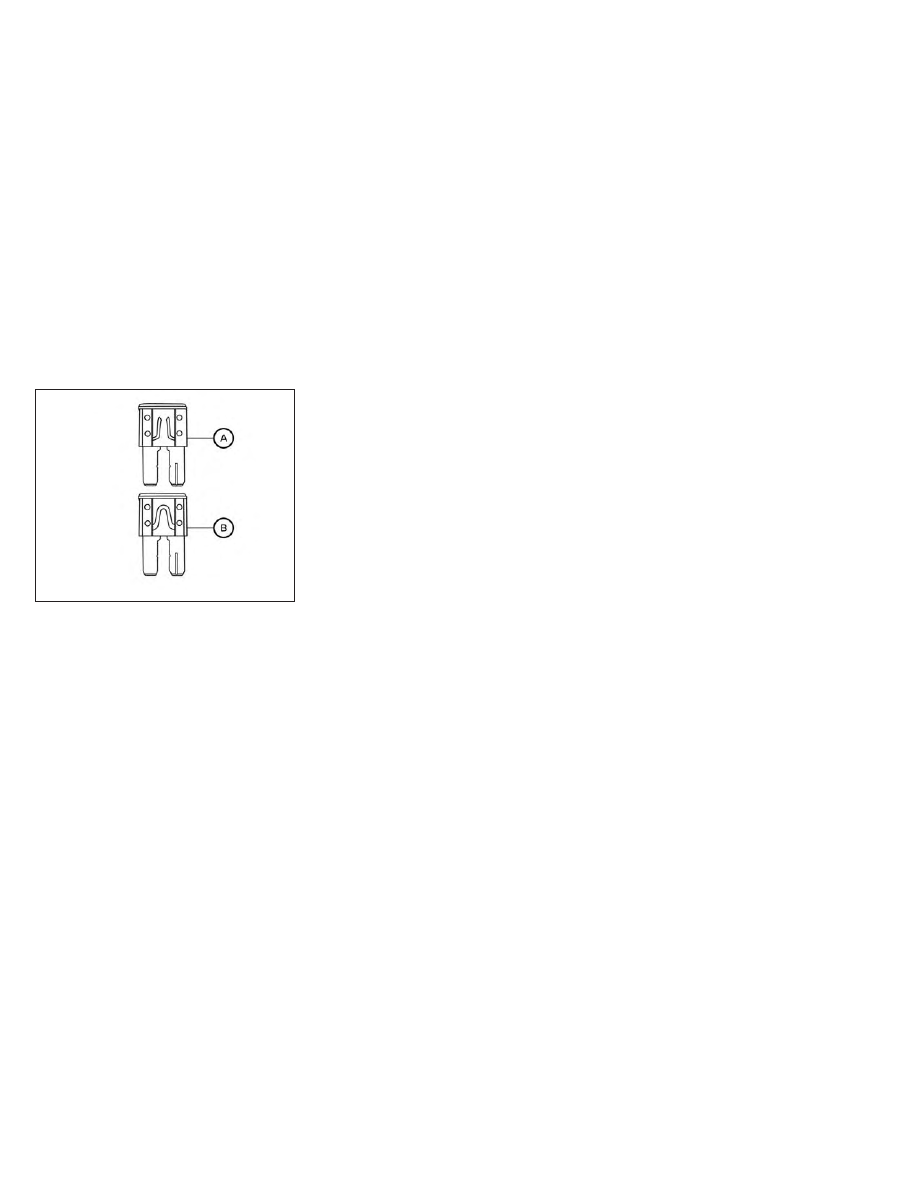

5. If the fuse is open

, replace it with a

new fuse

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

Fusible links

If any electrical equipment does not oper-
ate and the fuses are in good condition,
check the fusible links in the holder. If any of
the fusible links are melted, replace only
with Genuine NISSAN parts.

For checking and replacing the fusible links,
it is recommended that you visit a NISSAN
dealer for this service.

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI3232

8-20

Do-it-yourself

PASSENGER COMPARTMENT

CAUTION

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

NOTE:

The fuse box is located on the driver's
side of the instrument panel.

1. Be sure the ignition switch and the head-

light switch are OFF.

2. Remove the fuse box cover

with a

suitable tool. Use a cloth to avoid dam-
aging the trim.

3. Locate the fuse that needs to be re-

placed.

4. Remove the fuse with the fuse puller

5. If the fuse is open

, replace it with an

equivalent good fuse

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI3087

LDI2998

Do-it-yourself

8-21

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

NISSAN INTELLIGENT KEY® (if so
equipped)

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small flathead screwdriver

into the slit

of the corner and twist it

to separate the upper part from the
lower part. Place a cloth over the screw-
driver to protect the casing.

LDI3685

BATTERY REPLACEMENT

8-22

Do-it-yourself

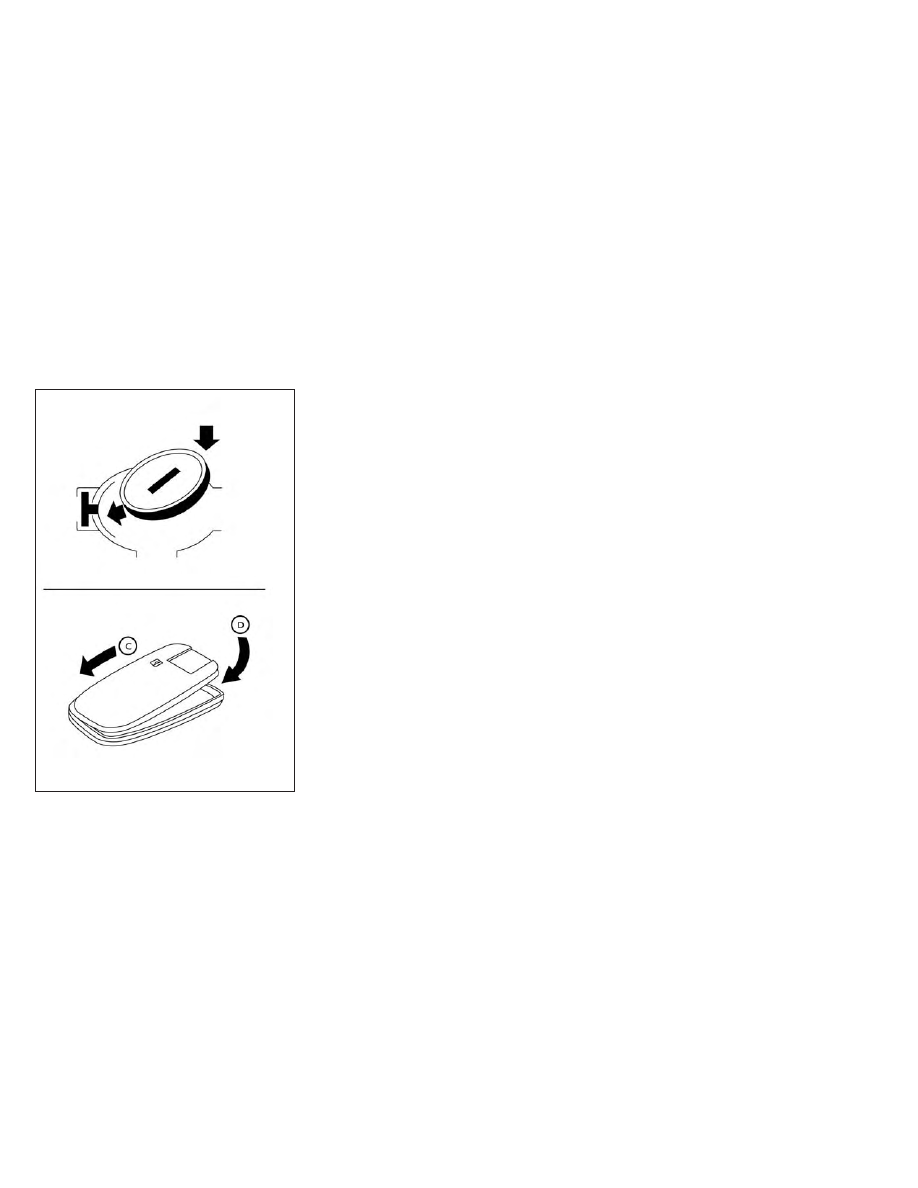

3. Replace the battery with a new one.

Recommended

battery:

CR2032

equivalent.

• Do not touch the internal circuit and elec-

tric terminals as doing so could cause a
malfunction.

• Hold the battery by the edges. Holding

the battery across the contact points will
seriously deplete the storage capacity.

• Make sure that the + side faces the bot-

tom of the lower part.

4. Close the lid securely as illustrated with

and

5. Operate the buttons to check the

operation.

If you need assistance for replacement, it is
recommended that you visit a NISSAN
dealer for this service.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any inter-
ference received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause interference. (2) This de-
vice must accept any interference, in-
cluding interference that may cause un-
desired operation of the device.

LDI3686

Do-it-yourself

8-23

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb (if so equipped)

If bulb replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

CAUTION

•

Aiming is not necessary after replac-
ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

•

Do not leave the headlight assembly
open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

•

Only touch the base when handling
the bulb. Never touch the glass
envelope. Touching the glass could
significantly affect bulb life and/or
headlight performance.

•

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

•

Use the same number and wattage
as shown in the chart.

Fog may temporarily form inside the
lenses of the exterior lights in the rain or in
a car wash. A temperature difference be-
tween the inside and the outside of the
lens causes the fog. This is not a malfunc-
tion. If large drops of water collect inside
the lens, it is recommended that you visit a
NISSAN dealer for this service.

Replacing the LED headlight bulb
(if so equipped)

If LED headlight bulb replacement is re-
quired, it is recommended that you visit a
NISSAN dealer for this service.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

If fog light bulb replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.

CAUTION

•

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

•

When handling the bulb, do not touch
the glass envelope.

•

Use the same number and wattage
as originally installed as shown in the
chart.

•

Do not leave the bulb out of the fog
light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

LIGHTS

8-24

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly (Type A) (if so equipped)*

High

Low

H11

Turn/Position

28/8

7442NA

Side marker

W5W

Headlight assembly (Type B) (if so equipped)*

High/Low

—

Position/Daytime running light (if so equipped)

—

Turn/Position

28/8

7444NA

Side marker

W5W

Fog light (Type A) (if so equipped)*

Fog light assembly (Type B) (if so equipped)*

Fog

Daytime running light

W21W

Door mirror turn signal light (if so equipped)*

—

Map light*

W10W

Room light*

—

Trunk light

3.4

158

High-mounted stop light*

—

Rear combination light*

Turn

WY21W

Stop/Tail

21/5

W21/5W

Side marker

W5W

Backup (reversing) light assembly*

Tail

W5W

Backup (reversing)

W16W

License plate light*

—

Always check with the Parts Department
at a NISSAN dealer for the latest parts
information.

* It is recommended that you visit a NISSAN
dealer for replacement.

Do-it-yourself

8-25

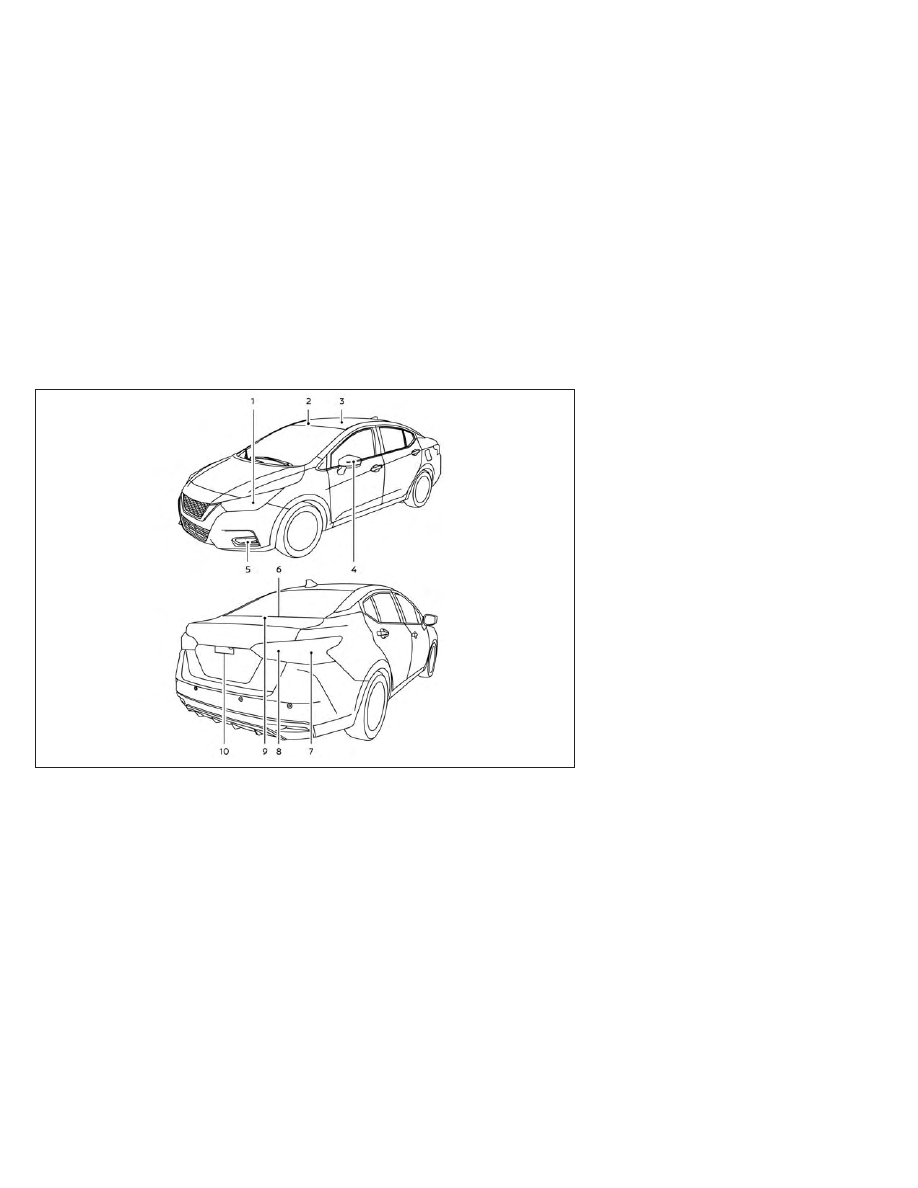

Headlight assembly

Map light

Room light

Door mirror turn signal light (if so
equipped)

Fog light/Fog light assembly (if so
equipped)

High-mounted stop light

Rear combination light

Backup (reversing) light assembly

Trunk light

10.

License plate light

LDI3441

8-26

Do-it-yourself

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal
Indicates bulb installation

If you have a flat tire, see “Flat tire” (P. 6-3).

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio

waves

could

adversely

affect electric medical equipment.
Those

who

use

pacemaker

should contact the electric medi-
cal equipment manufacturer for
the possible influences before use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information
display, one or more of your tires is
significantly under-inflated.

SDI1805

LDI2135

Trunk light

WHEELS AND TIRES

Do-it-yourself

8-27

The TPMS will activate only when the
vehicle is driven at speeds above 16
mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, see “Low
tire pressure warning light” (P. 2-18),
“Tire Pressure Monitoring System
(TPMS)” (P. 5-5), and “Flat tire” (P. 6-3).

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior
to long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is

affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

• Most tires naturally lose air over

time.

• Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.

The

tire

pressures

should

checked when the tires are cold.
The tires are considered COLD after
the vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert
provides visual and audible signals
outside the vehicle for inflating tires
to the recommended COLD tire
pressure. For additional information,
see “TPMS with Easy-Fill Tire Alert”
(P. 5-8).

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

WARNING

•

Improperly inflated tires can
fail suddenly and cause an
accident.

•

The Gross Vehicle Weight Rating
(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S. certification
label. The vehicle weight capac-
ity is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also

8-28

Do-it-yourself

lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

•

Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.

•

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

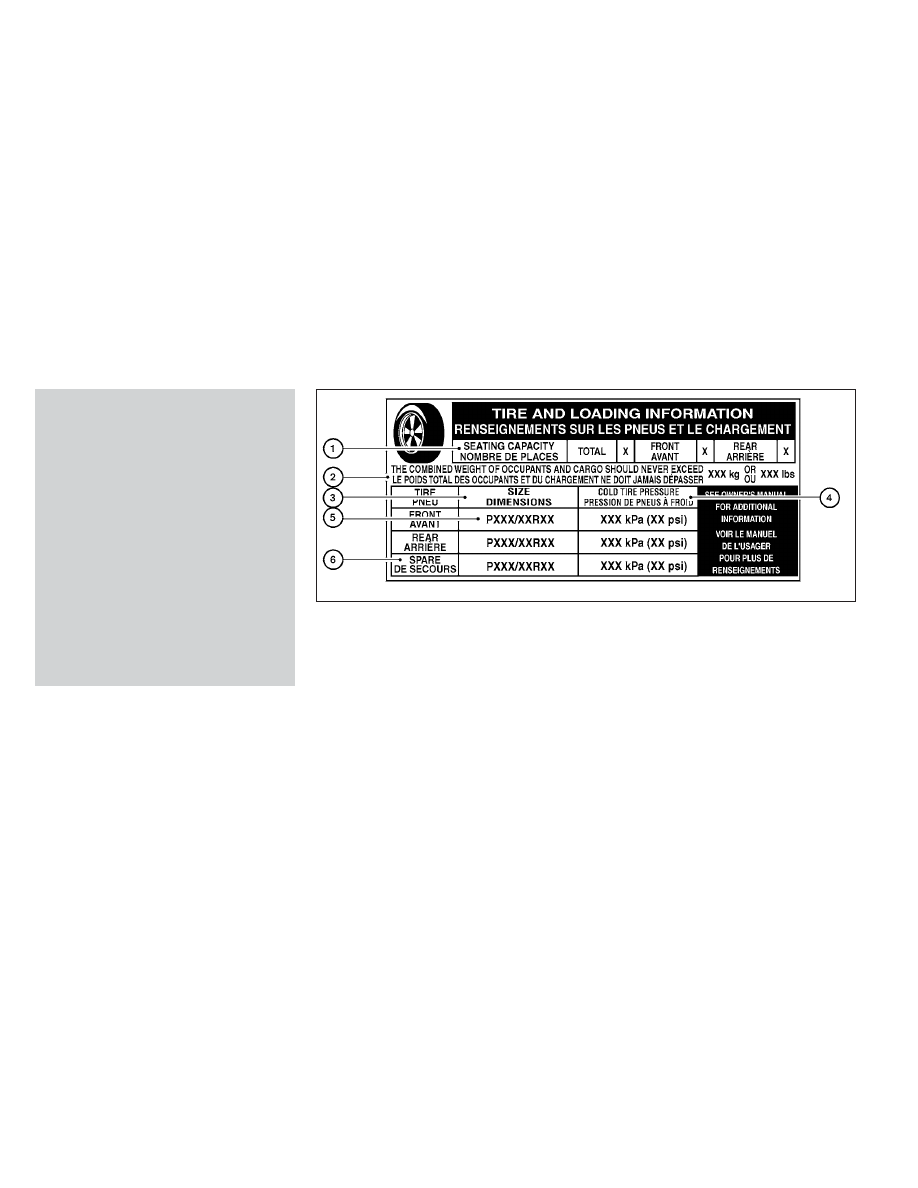

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: For additional
information, see “Vehicle loading
information” (P. 10-15).

䊊

Tire size: See “Tire labeling” (P. 8-31).

䊊

Cold tire pressure: Inflate the tires
to this pressure when the tires
are cold. Tires are considered
COLD after the vehicle has been
parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds. The recom-
mended cold tire inflation is set by
the manufacturer to provide the
best balance of tire wear, vehicle
handling, driveability, tire noise,
etc., up to the vehicle's GVWR.

LDI2007

Do-it-yourself

8-29

䊊

Original tire size: The size of the
tires originally installed on the ve-
hicle at the factory.

䊊

Spare tire size.

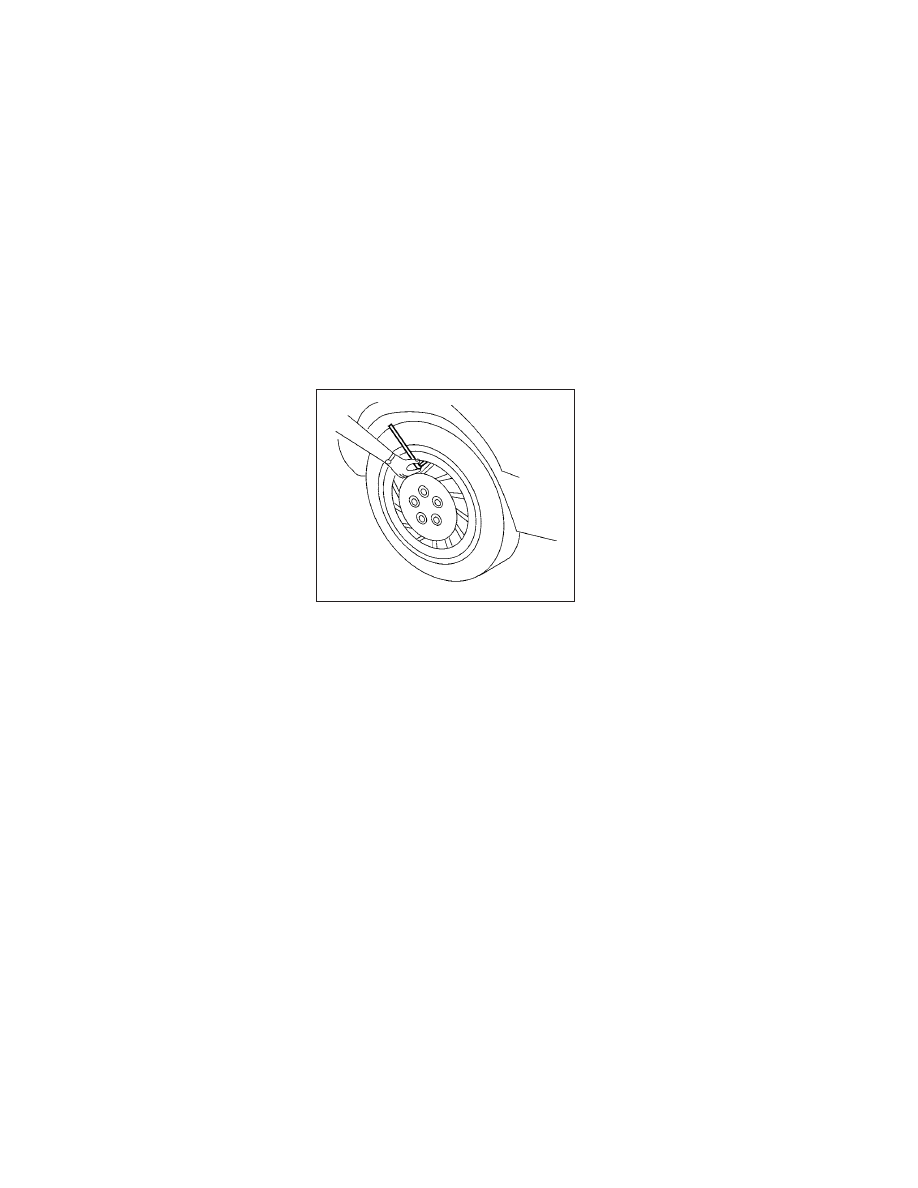

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If too

much air is added, press the core
of the valve stem briefly with the
tip of the gauge stem to release
pressure. Recheck the pressure
and add or release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

LDI0393

8-30

Do-it-yourself

Size

Cold Tire Inflation

Pressure

kPa

PSI

Front and
Rear
Original
Tires:
195/65R15

230

Front and
Rear
Original
Tires:
205/55R16

230

Front and
Rear
Original
Tires:
205/50R17

230

Spare Tire:
T125/
70D15

420

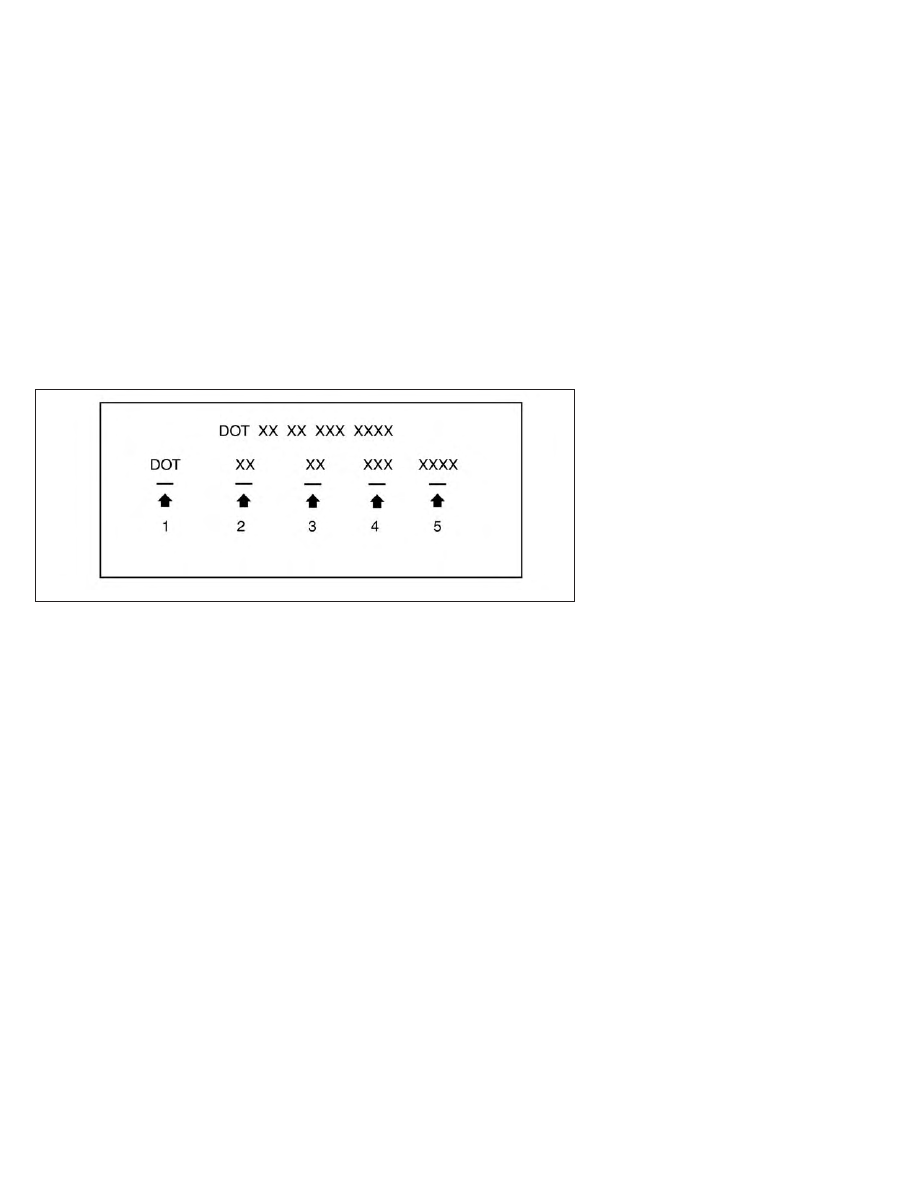

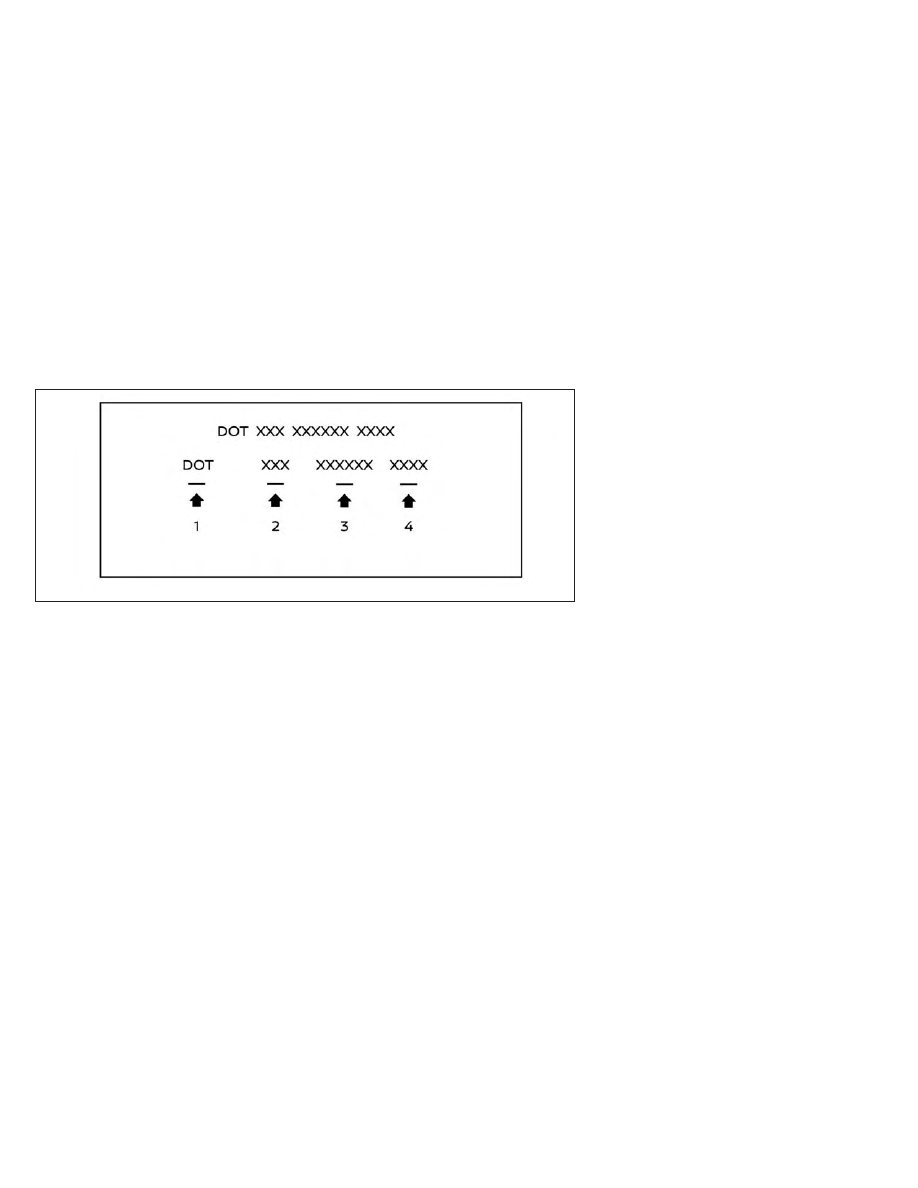

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

WDI0394

Example

Do-it-yourself

8-31

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles (not
all tires have this information).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit number (65): This num-

ber, known as the aspect ratio,
gives the tire's ratio of height to
width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter in
inches.

6. Two- or three-digit number (95):

This number is the tire's load in-
dex. It is a measurement of
how much weight each tire can
support.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

WDI0395

Example

8-32

Do-it-yourself

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment

Transportation”.

The

symbol can be placed above, be-
low or to the left or right of the Tire
Identification Number.

2. Two-digit code: Manufacturer's

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four

numbers

represent

the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

LDI2786

Example (Type A) (if so equipped)

Do-it-yourself

8-33

TIN (Tire Identification Number)

for a new tire (example: DOT XXX
XXXXXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The sym-
bol can be placed above, below or
to the left of the Tire Identification
Number.

2. Three-digit code: Manufacturer's

identification mark.

3. Six-digit code: Descriptive code

used to identify significant char-
acteristics of the tire.

4. Four

numbers

represent

the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003.

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate
the materials in the tire, which in-
clude steel, nylon, polyester and
others.

Maximum permissible inflation

pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

Maximum load rating

This number indicates the maxi-
mum load in kilograms and pounds
that can be carried by the tire. When
replacing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.

LDI3639

Example (Type B) (if so equipped)

8-34

Do-it-yourself

Term of “tubeless” or “tube type”

Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).

The word “radial”

The word “radial” is shown if the tire
has radial structure.

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other Tire-related Terminology

In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1)
the sidewall that contains a white-
wall, bears white lettering or bears
manufacturer, brand, and/or model
name molding that is higher or
deeper than the same molding on
the other sidewall of the tire, or (2)
the outward facing sidewall of an

asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounted on a vehicle.

TYPES OF TIRES

WARNING

•

When changing or replacing tires, be
sure all four tires are of the same type
(i.e., Summer, All Season or Snow)
and construction. A NISSAN dealer
may be able to help you with infor-
mation about tire type, size, speed
rating and availability.

•

Replacement tires may have a lower
speed

rating

than

the

factory

equipped tires, and may not match
the

potential

maximum

vehicle

speed. Never exceed the maximum
speed rating of the tire.

•

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the low
tire pressure warning system.

•

Always use tires of the same type,
size, brand, construction and tread
pattern on all four wheels. Failure to
do so may result in a circumference
difference between tires on the front
and rear axles which can cause the
Vehicle Dynamic Control (VDC) sys-
tem to malfunction resulting in per-
sonal injury or death, excessive tire
wear and may damage the transmis-
sion and differential gears.

•

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.

All season tires

NISSAN specifies All Season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than
All Season tires and may be more appropri-
ate in some areas.

Do-it-yourself

8-35

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, stud-
ded tires may be used. However, some U.S.
states and Canadian provinces prohibit
their use. Check local, state and provincial
laws before installing studded tires. Skid
and traction capabilities of studded snow
tires on wet or dry surfaces may be poorer
than that of non-studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited ac-
cording to location. Check the local laws
before installing tire chains. When installing
tire chains, make sure they are the proper
size for the tires on your vehicle and are
installed according to the chain manufac-
turer's suggestions.

Use only SAE class “S”

chains.

Class “S” chains are used on ve-

hicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains
are designed to meet the minimum clear-
ances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a win-
ter traction device (tire chains or cables).
The minimum clearances are determined
using the factory equipped tires. Other
types may damage your vehicle. Use chain
tensioners when recommended by the tire
chain manufacturer to ensure a tight fit.

Loose end links of the tire chain must be
secured or removed to prevent the possi-
bility of whipping action damage to the
fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains.
In addition, drive at a reduced speed. Oth-
erwise, your vehicle may be damaged
and/or vehicle handling and performance
may be adversely affected.

Tire chains must be installed only on the
front wheels and not on the rear wheels.

Never install tire chains on a TEMPORARY
USE ONLY spare tire.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

NOTE:

Tire chains are not permitted for use
with 17 in wheels.

8-36

Do-it-yourself

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the
tires every 7,500 miles (12,000 km).

For additional information on tire
replacing procedures, see “Flat tire”
(P. 6-3).

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.

WARNING

•

After rotating the tires, check
and adjust the tire pressure.

•

Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

•

Do not include the spare tire in
the tire rotation.

•

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

Tire wear and damage

1. Wear indicator

2. Location mark

WDI0258

WDI0259

Do-it-yourself

8-37

WARNING

•

Tires should be periodically
inspected for wear, cracking,
bulging or objects caught in
the tread. If excessive wear,
cracks, bulging or deep cuts
are found, the tire(s) should be
replaced.

•

The original tires have built-in
tread wear indicators. When
the wear indicators are visible,
the tire(s) should be replaced.

•

Tires degrade with age and
use. Have tires, including the
spare, over 6 years old checked
by a qualified technician be-
cause some tire damage may
not be obvious. Replace the
tires as necessary to prevent
tire failure and possible per-
sonal injury.

•

Improper service of the spare
tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, it is rec-
ommended that you visit a
NISSAN dealer for this service.

•

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. For ad-
ditional information, see “Wheels and tires”
(P. 10-10).

WARNING

•

The use of tires other than those rec-
ommended or the mixed use of tires
of

different

brands,

construction

(bias, bias-belted or radial), or tread
patterns can adversely affect the
ride, braking, handling, Vehicle Dy-
namic Control (VDC) system, ground
clearance,

body-to-tire

clearance,

tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.

•

your

vehicle

was

originally

equipped with four tires that were
the same size and you are only re-
placing two of the four tires, install
the new tires on the rear axle. Placing
new tires on the front axle may cause
loss of vehicle control in some driving
conditions and cause an accident
and personal injury.

8-38

Do-it-yourself

•

If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear, de-
grade vehicle handling characteris-
tics, affect the VDC system and/or
interference with the brake discs/
drums. Such interference can lead to
decreased braking efficiency and/or
early brake pad wear. For additional
information on wheel off-set dimen-
sions,

see

“Wheels

and

tires”

(P. 10-10).

•

When using a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light will
remain on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN
dealer for this service.

•

Replacing tires with those not origi-
nally specified by NISSAN could affect
the proper operation of the TPMS.

•

The TPMS sensor may be damaged if
it is not handled correctly. Be careful
when handling the TPMS sensor.

•

When replacing the TPMS sensor,
the ID registration may be required.
It is recommended that you visit a
NISSAN dealer for ID registration.

•

Do not use a valve stem cap that is
not specified by NISSAN. The valve
stem cap may become stuck.

•

Be sure that the valve stem caps are
correctly fitted. Otherwise the valve
may be clogged up with dirt and cause
a malfunction or loss of pressure.

•

Do not install a damaged or de-
formed wheel or tire even if it has
been repaired. Such wheels or tires
could have structural damage and
could fail without warning.

•

The use of retread tires is not
recommended.

•

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked
and corrected as necessary. It is recom-
mended that you visit a NISSAN dealer for
this service.

Wheel balance

Unbalanced wheels may affect vehicle
handling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

•

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-39

Care of wheels

• Wash the wheels when washing the ve-

hicle to maintain their appearance.

• Clean the inner side of the wheels when

the wheel is changed or the underside of
the vehicle is washed.

• Do not use abrasive cleaners when

washing the wheels.

• Inspect wheel rims regularly for dents or

corrosion. Such damage may cause loss
of pressure or poor seal at the tire bead.

• NISSAN recommends waxing the road

wheels to protect against road salt in ar-
eas where it is used during winter.

Spare tire (TEMPORARY USE ONLY
spare tire)

When using a wheel without the TPMS such
as the spare tire, the TPMS will not function.

Observe the following precautions if the
TEMPORARY USE ONLY spare tire must
be used. Otherwise, your vehicle could be
damaged or involved in an accident:

WARNING

•

The spare tire should be used for
emergency use only. It should be re-
placed with the standard tire at the
first opportunity to avoid possible
tire or differential damage.

•

Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.

•

Periodically check spare tire inflation
pressure. Always keep the pressure
of the TEMPORARY USE ONLY spare
tire at 60 psi (420 kPa, 4.2 bar).

•

With the TEMPORARY USE ONLY spare
tire installed do not drive the vehicle
at speeds faster than 50 mph (80
km/h).

•

When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on the
rear wheels and the original tire used
on the front wheels (drive wheels).

•

Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.

•

Do not use the spare tire on other
vehicles.

•

Do not use more than one spare tire
at the same time.

•

Do not tow a trailer when the TEMPO-
RARY USE ONLY spare tire is installed.

CAUTION

•

Do not use tire chains on a TEMPO-
RARY USE ONLY spare tire. Tire chains
will not fit properly and may cause
damage to the vehicle.

•

Because the TEMPORARY USE ONLY
spare tire is smaller than the original
tire, ground clearance is reduced. To
avoid damage to the vehicle, do not
drive over obstacles. Also, do not
drive the vehicle through an auto-
matic car wash since it may get
caught.

8-40

Do-it-yourself

Some day-to-day and regular mainte-
nance is essential to maintain your vehicle
good mechanical condition, as well as its
emissions and engine performance.

It is the owner's responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.

As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in
the maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal
day-to-day operation. They are essential
for proper vehicle operation. It is your re-
sponsibility to perform these procedures
regularly as prescribed.

Performing general maintenance checks
requires minimal mechanical skill and only
a few general automotive tools.

These checks or inspections can be done
by yourself, a qualified technician or, if you
prefer, a NISSAN dealer.

SCHEDULED MAINTENANCE

The maintenance items listed in this sec-
tion are required to be serviced at regular
intervals. However under severe driving
conditions, additional or more frequent
maintenance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced. It is recom-
mended that you visit a NISSAN dealer for
this service.

NISSAN technicians are well-trained spe-
cialists and are kept up-to-date with the
latest service information through techni-
cal bulletins, service tips and training pro-
grams. They are fully qualified to work on
NISSAN vehicles

before

work begins.

If your vehicle is involved in a collision, it is
recommended that you ask your NISSAN
dealer where the nearest NISSAN Certi-
fied Collision Center is located, or go to
http://collision.nissanusa.com.

You can be confident that a NISSAN deal-
er's service department can perform the
service needed to meet the maintenance
requirements on your vehicle.

During the normal day-to-day operation of
the vehicle, general maintenance should
be performed regularly as prescribed in
this section. If you detect any unusual
sounds, vibrations or smells, be sure to
check for the cause or have it checked
promptly. In addition, it is recommended
that you visit a NISSAN dealer if you think
that repairs are required.

When performing any checks or mainte-
nance work, closely observe the “Mainte-
nance precautions” (P. 8-2).

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

WARNING

Failure to follow the procedures listed
within this section may result in per-
sonal injury.

Additional information on the following
items with “ * ” is found in the “Do-it-
yourself ” section of this manual.

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

9-2

Maintenance and schedules

Outside the vehicle

The maintenance items listed here should
be performed from time to time, unless
otherwise specified.

Doors and engine hood:

Check that the

doors and engine hood operate properly.
Also ensure that all latches lock securely.
Lubricate hinges, latches, latch pins, rollers
and links if necessary. Make sure that the
secondary latch keeps the hood from open-
ing when the primary latch is released.

When driving in areas using road salt or
other corrosive materials, check lubrica-
tion frequently.

Check that the gas stays or struts properly
and securely hold the hood, trunk, or rear
hatch fully open. If the hood, trunk, or rear
hatch is not held open, have the gas stays
or struts replaced.

Lights*:

Clean the headlights on a regular

basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and in-
stalled securely. Also check headlight aim.

Road wheel nuts (lug nuts)*:

When check-

ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.

Tire rotation*:

Rotate tires at the specified

interval shown in the maintenance schedule.

Tires*:

Check the pressure with a gauge

often and always prior to long distance
trips. If necessary, adjust the pressure in all
tires, including the spare, to the pressure
specified. Check carefully for damage, cuts
or excessive wear.

Tire Pressure Monitoring System (TPMS)
tire pressure sensor:

It is recommended

that you replace the tire pressure sensor
assembly when the tires are replaced due
to wear or age.

Wheel alignment and balance:

If the ve-

hicle should pull to either side while driving
on a straight and level road, or if you detect
uneven or abnormal tire wear, there may
be a need for wheel alignment. If the steer-
ing wheel or seat vibrates at normal high-
way speeds, wheel balancing may be
needed.

For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.

Windshield:

Clean the windshield on a

regular basis. Check the windshield at least
every six months for cracks or other dam-
age. Have a damaged windshield repaired

by a qualified repair facility. It is recom-
mended that you have a damaged wind-
shield repaired by a NISSAN dealer, or a
NISSAN Certified Collision Center. To locate
a collision center in your area, refer to
http://collision.nissanusa.com.

Windshield wiper blades*:

Check for

cracks or wear if they do not wipe properly.

Inside the vehicle

The maintenance items listed here should
be checked on a regular basis, such as
when performing scheduled maintenance,
cleaning the vehicle, etc.

Accelerator pedal:

Check the pedal for

smooth operation and make sure the
pedal does not catch or require uneven
effort. Keep the floor mat away from the
pedal.

Brake pedal:

Check the pedal for smooth

operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer
to stop, have your vehicle checked imme-
diately. It is recommended that you visit a
NISSAN dealer for this service. Keep the
floor mat away from the pedal.

Brakes:

Check that the brakes do not pull

the vehicle to one side when applied.

Maintenance and schedules

9-3

Continuously

Variable

Transmission

(CVT) P (Park) position mechanism (if so
equipped):

On a fairly steep hill check that

the vehicle is held securely with the shift
lever in the P (Park) position without apply-
ing any brakes.

Parking brake:

Check the parking brake

operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjustment, it is recom-
mended that you visit a NISSAN dealer for
this service.

Seats:

Check seat position controls such

as seat adjusters, seatback recliner, etc., to
ensure they operate smoothly and all
latches lock securely in every position.
Check that the head restraints/headrests
move up and down smoothly and the locks
(if so equipped) hold securely in all latched
positions.

Seat belts:

Check that all parts of the seat

belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Steering wheel:

Check for changes in the

steering system, such as excessive free
play, hard steering or strange noises.

Warning lights and chimes:

Make sure all

warning lights and chimes are operating
properly.

Windshield defroster:

Check that the air

comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.

Windshield wiper and washer*:

Check

that the wipers and washer operate prop-
erly and that the wipers do not streak.

Under the hood and vehicle

The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel).

Battery*:

This vehicle is equipped with a

sealed maintenance free battery. It is rec-
ommended that you visit a NISSAN dealer
for service.

NOTE:
Care should be taken to avoid situa-
tions that can lead to potential battery
discharge and potential no-start con-
ditions such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (Phone chargers, GPS, DVD
players, etc.).

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

Brake and clutch (if so equipped) fluid
level*:

Make sure that the brake and clutch

fluid levels are between the MIN and MAX
lines on the reservoir.

Engine coolant level*:

Check the coolant

level when the engine is cold.

Engine drive belts*:

Make sure the drive

belts are not frayed, worn, cracked or oily.

9-4

Maintenance and schedules

Engine oil level*:

Check the level after

parking the vehicle on a level surface with
the engine off. Wait more than 15 minutes
for the oil to drain back into the oil pan.

Exhaust system:

Make sure there are no

loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, immedi-
ately have the exhaust system inspected.
It is recommended that you visit a NISSAN
dealer for this service. For additional infor-
mation, see “Exhaust gas (carbon monox-
ide)” (P. 5-4).

Fluid leaks:

Check under the vehicle for

fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use
is normal. If you should notice any leaks or if
fuel fumes are evident, check for the cause
and have it corrected immediately.

Radiator and hoses:

Check the front of the

radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.

Underbody:

The underbody is frequently

exposed to corrosive substances such as
those used on icy roads or to control dust.
It is very important to remove these sub-
stances from the underbody, otherwise
rust may form on the floor pan, frame, fuel
lines and exhaust system. At the end of
winter, the underbody should be thor-
oughly flushed with plain water, in those
areas where mud and dirt may have accu-
mulated. For additional information, see
“Cleaning exterior” (P. 7-2).

Windshield-washer fluid*:

Check that

there is adequate fluid in the reservoir.

The following descriptions are provided
to give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The
maintenance schedule indicates at which
mileage/time intervals each item requires
service.

In addition to scheduled maintenance,
your vehicle requires that some items be
checked during normal day-to-day opera-
tion. For additional information, see “Gen-
eral maintenance” (P. 9-2).

Items marked with

“*”

are recommended

by NISSAN for reliable vehicle operation.
You are not required to perform mainte-
nance on these items in order to maintain
the warranties which come with your
NISSAN. Other maintenance items and in-
tervals are required.

When applicable, additional information
can be found in the “Do-it-yourself ” section
of this manual.

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

Maintenance and schedules

9-5

Nissan Versa (2024 year). Manual in english - page 14
