CAUTION

•

Running the engine with the engine
oil pressure warning indicator on
could cause serious damage to the
engine almost immediately. Such
damage is not covered by warranty.
Turn off the engine as soon as it is
safe to do so.

•

The engine oil pressure warning indi-
cator is not designed to indicate oil
level. The oil level should be checked
using the dipstick. For additional in-
formation, see “Engine oil” (P. 8-7 ).

Low Outside Temperature

This warning appears if the outside tem-
perature is below 37°F (3°C). The tempera-
ture can be changed to display in Celsius or
Fahrenheit. For additional information, see
“Driver Assistance” (P. 2-30).

Low tire pressure indicator

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

The low tire pressure indicator warns of low
tire pressure or indicates that the TPMS is
not functioning properly.

After the ignition switch is placed in the ON
position, this indicator appears for about 1
second and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display.

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver's door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

The “Tire Pressure Low - Add Air” warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire

pressure

warning

light

remains

illuminated.

For additional information, see “Vehicle in-
formation display—12.3 inch (31 cm) Type B”
(P. 2-49), “Tire Pressure Monitoring System
(TPMS)” (P. 5-5) or (P. 6-3).

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

For additional information, see “Tire Pres-
sure Monitoring System (TPMS)” (P. 5-5) and
“Tire pressure” (P. 8-29).

2-68

Instruments and controls

WARNING

•

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

•

If the light does not illuminate with
the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

•

If the light illuminates while driving,
avoid sudden steering maneuvers
or abrupt braking, reduce vehicle
speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as
possible. Driving with under-inflated
tires may permanently damage the
tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an acci-
dent and could result in serious per-
sonal injury or death. Check the tire
pressure for all four tires. Adjust the
tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label lo-
cated in the driver’s door opening to
turn the low tire pressure warning
light off. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat or the
TPMS may be malfunctioning. If you
have a flat tire, replace it with a spare
tire as soon as possible. If no tire is
flat and all tires are properly inflated,
have the vehicle checked. It is recom-
mended that you visit a NISSAN
dealer for this service.

•

When using a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light will
remain on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN
dealer for these services.

•

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

CAUTION

•

The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.

•

If the vehicle is being driven at
speeds of less than 16 mph (25 km/h),
the TPMS may not operate correctly.

•

Be sure to install the specified size of
tires to the four wheels correctly.

Instruments and controls

2-69

Low Washer Fluid

This warning appears when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional
information, see “Windshield-washer fluid”
(P. 8-12).

Malfunction Indicator (MIL)

If this indicator appears steady or blinks
while the engine is running, it may indicate
a potential emission control malfunction.

The MIL may also come on steady if the
vehicle runs out of fuel. Check to make sure
that the vehicle has at least 3 gallons (11.4
liters) of fuel in the fuel tank.

After a few driving trips, the

indicator

should turn off if no other potential emis-
sion control system malfunction exists.

If this indicator appears steady for 20 sec-
onds and then blinks for 10 seconds when
the engine is not running, it indicates that
the vehicle is not ready for an emission
control system inspection/maintenance
test. For additional information, see “Readi-
ness for Inspection/Maintenance (I/M) test”
(P. 10-35).

Operation
The MIL will come on in one of two ways:
• MIL on steady — An emission control sys-

tem malfunction has been detected.
Have the vehicle inspected. It is recom-
mended that you visit a NISSAN dealer for
this service. You do not need to have your
vehicle towed to the dealer.

• MIL blinking — An engine misfire has been

detected which may damage the emis-
sion control system. To reduce or avoid
emission control system damage:

– do not drive at speeds above 45 mph

(72 km/h).

– avoid hard acceleration or decelera-

tion.

– avoid steep uphill grades.
– if possible, reduce the amount of cargo

being hauled or towed.

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Master warning indicator

When the ignition is in the ON position, the
master warning indicator appears with
various other warning messages.

For additional information, see “Vehicle in-
formation display–7 inch (18 cm) Type A”
(P. 2-24) or “Vehicle information display—12.3
inch (31 cm) Type B” (P. 2-49).

Neutral Hold Mode has been
activated

This message appears when the Neutral
hold mode is activated. To exit the Neutral
hold mode, place the vehicle in any other
shift position other than N (Neutral). For
additional information, see “Neutral hold
mode function” (P. 5-23).

2-70

Instruments and controls

Neutral Hold Mode was not activated

This message appears when the Neutral
hold mode is unavailable. To activate the
Neutral hold mode, wait for a while without
shifting and then perform the operations
again. For additional information, see “Neu-
tral hold mode function” (P. 5-23).

Neutral Hold Mode guidance

This message appears after approxi-
mately 5 seconds when the shift position is
in the N (Neutral) position (Neutral hold
mode is available). For additional informa-
tion, see “Neutral hold mode function”
(P. 5-23).

Parking Sensor Error: See Owner’s
Manual

This warning appears when there is an er-
ror with the system. For additional informa-
tion, see “Front and rear sonar system”
(P. 5-184).

Power will turn off to save the battery

Under the specific conditions, this warning
may appear in the vehicle information dis-
play after a period of time if the ignition
switch is in the ON position and if the ve-
hicle is in P (Park). For additional informa-
tion, see “Push-button ignition switch posi-
tions” (P. 5-14).

Power turned off to save the battery

Under the specific conditions, this warning
may appear after the ignition switch is au-
tomatically turned off. For additional infor-
mation, see “Push-button ignition switch
positions” (P. 5-14).

Press Brake Pedal

This warning appears in the following situ-
ations:
• The driver tries to release the electronic

parking brake manually without depress-
ing the brake pedal.

Press brake pedal to
prevent rolling

This warning appears in the following situ-
ations:
• The vehicle is stopped on a steep hill and

there is a possibility of moving backward,
even if the electronic parking brake is
applied.

• This warning appears and chime sounds

if the vehicle moves while the automatic
brake hold function is activated. Apply the
foot brake to stop the vehicle moving.

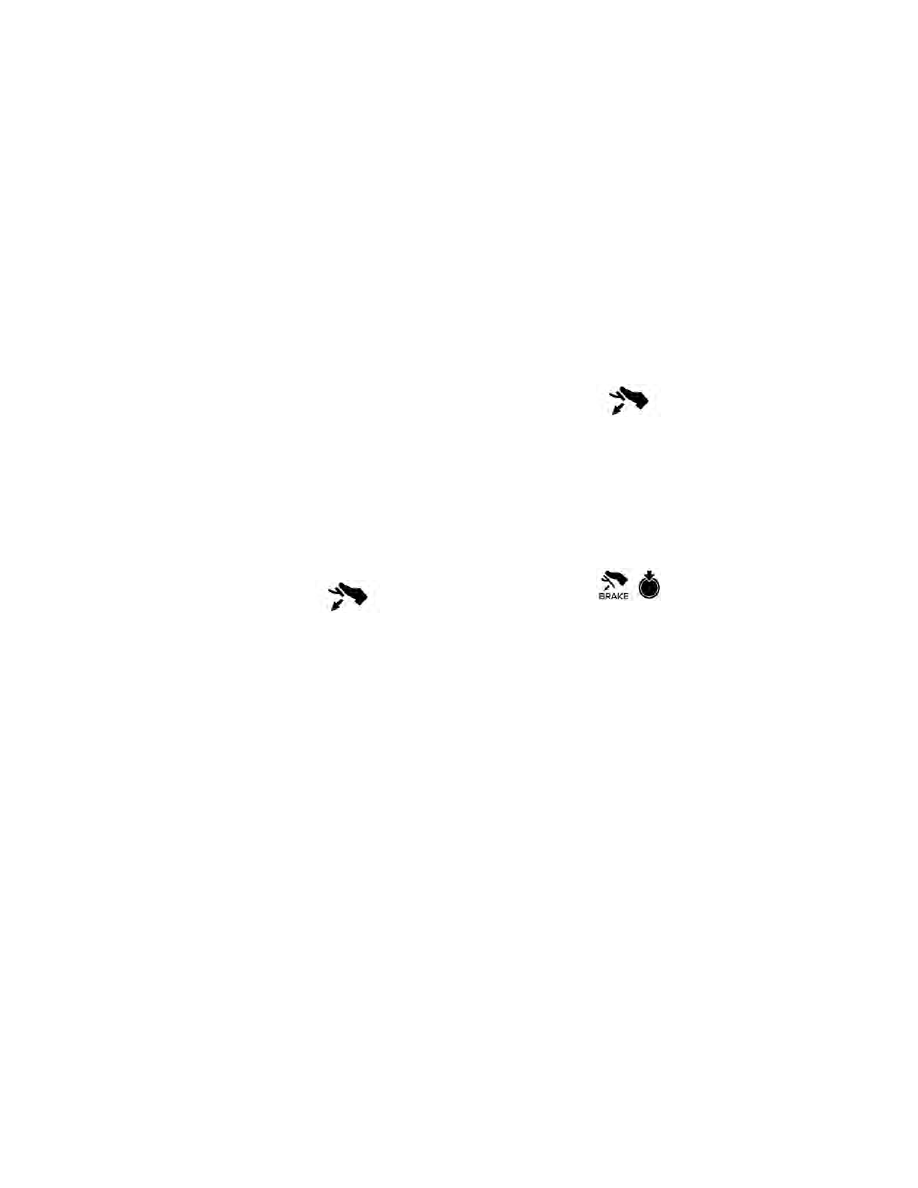

Press brake to operate
switch

This indicator appears if the automatic
brake hold switch is pushed without de-
pressing the brake pedal while the auto-
matic brake hold function is activated. De-
press the brake pedal and push the switch
to deactivate the automatic brake hold
function.

For additional information, see “Automatic
brake hold” (P. 5-28).

Push brake and start
switch to drive

This indicator appears when the shift posi-
tion is in the P (Park) position.

This indicator also appears when the ve-
hicle has been started using the Remote
Engine Start (if so equipped) function.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine from any position of the ignition
switch.

Instruments and controls

2-71

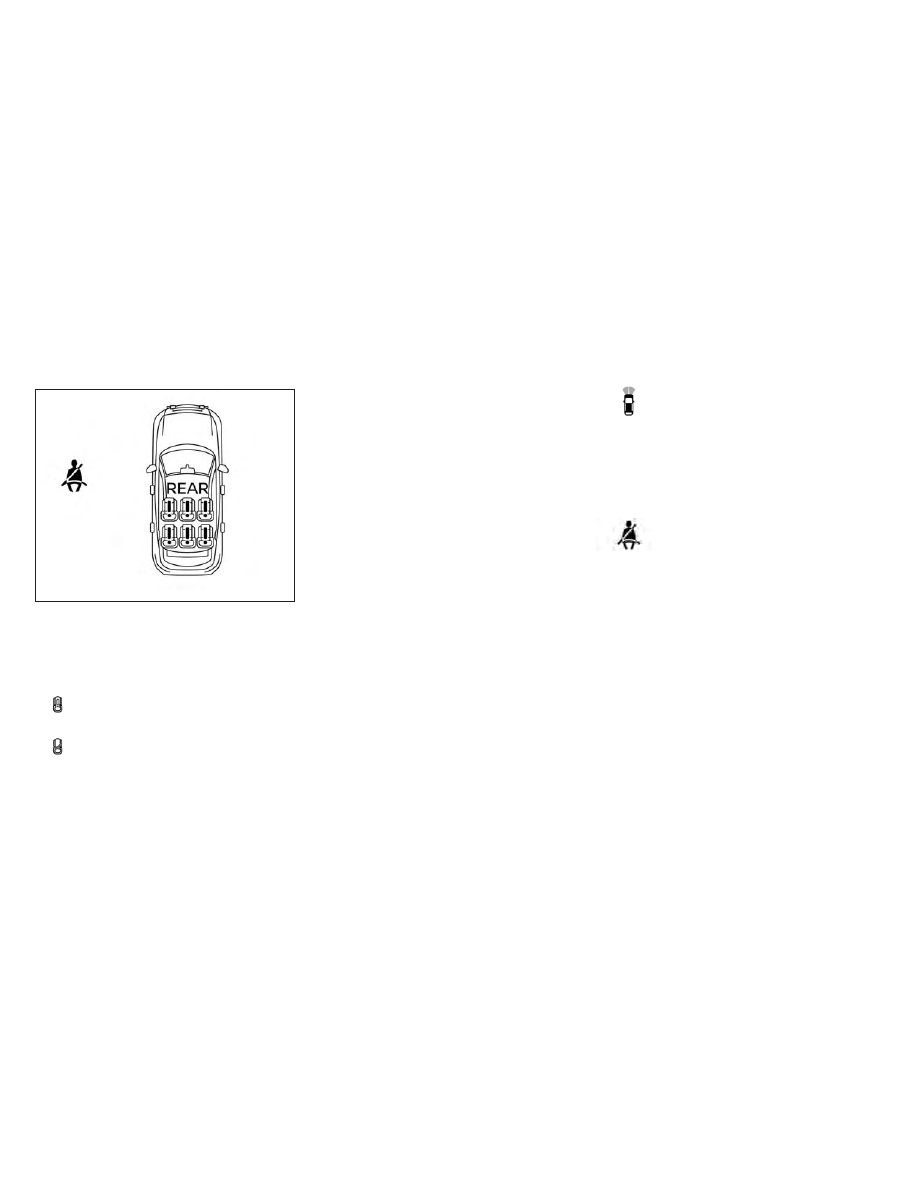

Rear seat belt warning

The rear seat warning indicator will vary
depending on the seat layout of your
vehicle.

Red seat with exclamation symbol:
The corresponding seat belt is not
fastened.
Green seat with tick symbol: The cor-
responding seat belt is fastened.

• This warning includes display of the seat

belts for rear seating positions only. Rear
seat belts that are unfastened will appear
red.

• If any rear seat belts are unfastened

when the ignition switch is placed in the
ON position, this warning will display for
approximately 1 minute, or until dis-
missed by pushing the scroll dial.

• When a rear seat belt is changed from

fastened to unfastened, this warning will
display for over 1 minute, or until dis-
missed, and the seat belt warning light
will turn ON.

• If the vehicle is driven above 9 mph (15

km/h) during or after the rear passenger
seat belt buckle status change, this
warning will display, the seat belt warning
light will blink, and the chime will sound
for over 1 minute. During this time, the
warning and chime cannot be dismissed
unless the rear seat belt is fastened
again. Once the seat belt warning light
and chime have turned off, the display will
remain until dismissed.

NOTE:

•

While it appears, this message will also
display the status of all doors and
liftgate.

•

Opening and closing a rear door while
stopped will reset this warning, similar
to pushing the ignition switch to ON
again.

Reminder: Turn OFF
headlights

This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the
OFF or AUTO position. For additional infor-
mation, see “Headlight and turn signal
switch” (P. 2-85).

Seat belt indicator and
chime

• The indicator and chime remind you to

fasten the seat belts.

• The seat belt indicator appears when the

ignition switch is pushed to the ON posi-
tion if the driver’s seat belt is not fastened,
or if the front passenger seat belt is not
fastened when occupied.

• The seat belt indicator will also illuminate

when the ignition switch is placed in the
ON position if any rear passenger’s seat
belt is unfastened while the rear seat belt
warning is shown.

• The seat belt indicator also appears if a

rear passenger seat belt is changed from
fastened to unfastened.

• If the driver’s seat belt is not fastened

when the ignition switch is pushed to the
ON position, the chime will sound shortly.

LIC5506

Display with rear seats only

2-72

Instruments and controls

• If the vehicle is driven above 9 mph (15

km/h) in the conditions that illuminate
the seat belt indicator, the indicator will
begin to blink and the chime will sound
for over one minute, or until the seat belt
is fastened again.

NOTE:

•

The indicator and/or chime may acti-
vate if an object is placed in the unoc-
cupied front passenger seat. In this
case, please remove the object from
the front passenger seat.

•

The indicator and/or chime may acti-
vate if any seat belt is unfastened be-
fore the vehicle comes to a complete
stop. Please remain fastened until the
vehicle has come to a complete stop.

Shipping Mode On Push Storage Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended
storage switch to turn off the warning. For
additional information, see “Extended stor-
age switch” (P. 2-109).

Side light and headlight
indicator (green)

The side indicator and headlight indicator
appears when the side light or headlights
are on (not including the Daytime Running
Lights (DRL) system or signature lights). If
the headlight switch is in the AUTO posi-
tion, the side indicator and headlight indi-
cator will appear when the headlights turn
on. For additional information, see “Head-
light and turn signal switch” (P. 2-85).

Steep Slope Apply foot brake

This indicator appears, and chime sounds
if the “Caution Steep slope” indicator has
appeared over about 3 minutes. Then the
parking brake will automatically be applied
and the brake force of the automatic brake
hold will be released, and the vehicle may
move or roll away unexpectedly. Apply the
foot brake to stop the vehicle moving.

For additional information, see “Automatic
brake hold” (P. 5-28).

Time for a break?

This indicator appears when the set time is
reached. The time can be set up to six
hours. For additional information, see “Set-
tings” (P. 2-55).

Tire Pressure Low - Add Air

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated. If this warning appears,
stop the vehicle and adjust the tire pres-
sures of all four tires to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. For additional
information, see “Low tire pressure warning
light” (P. 2-19) and “Tire Pressure Monitoring
System (TPMS)” (P. 5-5).

Transmission Shift Position
indicator

This indicator shows the transmission shift
position.

Turn signal/hazard
indicators (green)

The appropriate indicator flashes when the
turn signal switch is activated.

Both indicators flash when the hazard
switch is turned on.

Instruments and controls

2-73

When parked apply parking
brake

This message appears when a malfunc-
tion occurs in the electric shift control sys-
tem below 6 mph (10 km/h).

Have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

4WD Error: See Owner’s Manual

This warning appears when the 4-Wheel
Drive (4WD) system is not functioning prop-
erly while the engine is running. Reduce
vehicle speed and have your vehicle
checked by a NISSAN dealer as soon as
possible. For additional information, see
“Intelligent 4x4 (I-4x4)” (P. 5-171).

4WD High Temp. Stop Vehicle

This warning appears when the oil tem-
perature of the powertrain parts will in-
crease due to the difference in rotation be-
tween the front and rear wheels is large
(wheel slip), such as when driving the ve-
hicle on rough roads, through sand or mud,
or freeing a stuck vehicle. If this warning is
displayed, stop the vehicle with the engine
idling, as soon as it is safe to do so. In these
cases, the 4WD changes to 2WD to protect
the powertrain parts. Then if the warning
turns off, you can continue 4WD driving.

Tire Size Incorrect See Owner’s
Manual

This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes, brand, construction and
tread patterns are the same, that the tire
pressure is correct and that the tires are
not excessively worn. If you have any prob-
lems, please change tires or adjust to the
correct tire pressure. Do not select the
SNOW or SAND or MUD/RUT (if so equipped)
mode with the Drive Mode Selector and do
not drive fast. For additional information,
see “Intelligent 4x4 (I-4x4)” (P. 5-171).

Automatic Emergency
Braking (AEB) with
Pedestrian Detection
system warning indicator

This warning appears when the ignition
switch is placed in the ON position. After
starting the engine, the AEB with Pedes-
trian Detection system warning indicator
turns off.

This warning appears when the AEB with
Pedestrian Detection system is set to OFF
in the vehicle information display.

If the warning appears when the AEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional

information, see

“Automatic

Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-138).

Automatic Emergency
Braking (AEB) with
Pedestrian Detection
emergency warning
indicator

This indicator appears along, with an au-
dible warning, when the system detects
the possibility of a forward collision.

For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-138).

Blind Spot Warning
(BSW)/Intelligent Blind
Spot Intervention (I-BSI)
indicator

This indicator appears when the BSW
and/or I-BSI systems are engaged.

This indicator also appears when the I-BSI
system is unavailable.

For additional information, see “Blind Spot
Warning (BSW)” (P. 5-52) or “Intelligent Blind
Spot Intervention (I-BSI)” (P. 5-65).

2-74

Instruments and controls

Cruise control indicator

This indicator shows the cruise control sys-
tem status.
When cruise control is activated, a green
circle will illuminate to indicate it is set. The
vehicle information display will also display
the speed the cruise control was set at. If
you accelerate past the set speed, the
speed will blink until you either cancel
cruise control or go back to the set speed. If
cruise control is on and canceled, the
speed will be displayed to show the speed
the vehicle will return to if the resume but-
ton is activated.

Currently not available

This message may appear when the Pro-
PILOT Assist system, Intelligent Blind Spot
Intervention (I-BSI) or the Intelligent Lane
Intervention (I-LI) system is engaged.

Under the following conditions, the ProPI-
LOT Assist, Intelligent Blind Spot Interven-
tion (I-BSI) or the Intelligent Lane Interven-
tion (I-LI) system is automatically canceled:
• When the VDC system is turned off
• The SNOW mode or the SAND or MUD/

RUT mode is selected (4WD models).

The above system cannot be used in some
situations (VDC operates, wheel slip and
VDC system is off.)

Driver Alertness Malfunction

This warning appears when the Intelligent
Driver Alertness (I-DA) system is not function-
ing properly. For additional information, see
“Intelligent Driver Alertness (I-DA)” (P. 5-165).

Take a Break?

This alert appears when the Intelligent
Driver Alertness (I-DA) system has de-
tected that the driver may be displaying
fatigue or a lack of attention.

Forward Driving Aids temporarily
disabled Front Sensor blocked See
Owner’s Manual

This message appears when the front
radar sensor may be obstructed due to:
• mud, dirt, snow, ice, etc.
• inclement weather (rain, fog, snow, etc.).

All forward driving aids are temporarily dis-
abled until the system detects that the
front radar sensor is no longer obstructed.

For additional information, see:
• Automatic Emergency Braking (AEB) with

Pedestrian Detection (P. 5-138)

• ProPILOT Assist (P. 5-88)
• Intelligent Forward Collision Warning

(I-FCW) (P. 5-150)

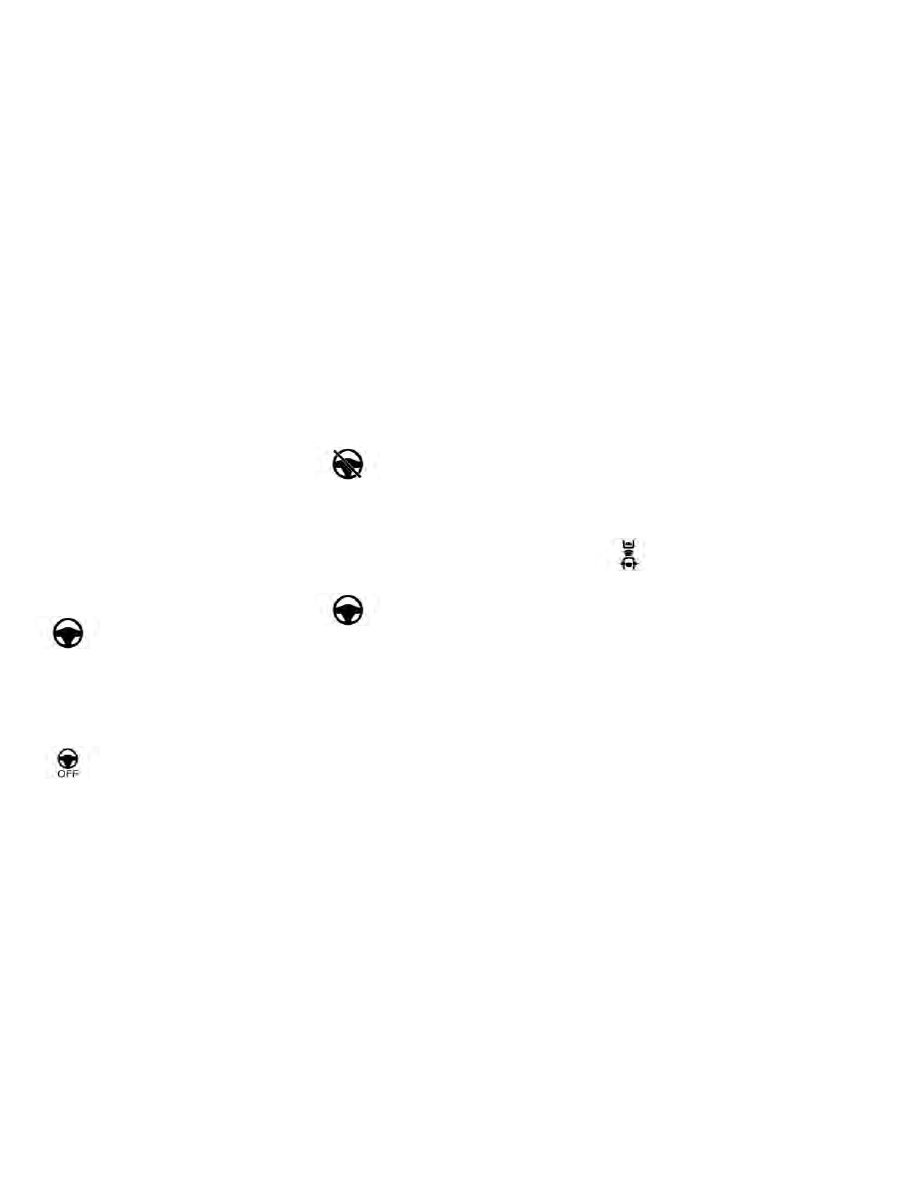

Hands on detection
warning

This warning appears when the Steering
Assist system is engaged and the following
condition(s) occur:
• When not holding the steering wheel
• When there is no steering wheel operation

Hold onto the steering wheel immediately.
When the steering operation is detected,
the warning turns off and the Steering As-
sist function is automatically restored.

For additional information, see “ProPILOT
Assist” (P. 5-88).

Intelligent Lane
Intervention (I-LI)/
Intelligent Blind Spot
Intervention (I-BSI)/
ProPILOT Assist status
indicator

This indicator shows when the I-LI, I-BSI or
ProPILOT Assist system is engaged.

For additional information, see “Intelligent
Lane Intervention (I-LI)” (P. 5-45), “Intelligent
Blind Spot Intervention (I-BSI)” (P. 5-65) or
“ProPILOT Assist” (P. 5-88).

Instruments and controls

2-75

Idling Stop System

This indicator shows the Idling Stop Sys-
tem status.

For addition information, see “Idling Stop
System” (P. 5-190).

Lane Departure Warning
(LDW) indicator

This indicator appears when the I-LI or LDW
system is engaged.

This indicator also appears when the I-LI
system is unavailable.

For additional information, see “Intelligent
Lane Intervention (I-LI)” (P. 5-45) or “Lane
Departure Warning (LDW)” (P. 5-38).

Malfunction: See Owner’s Manual

This warning appears when one or more of
the following systems (if so equipped) is
not functioning properly:
• Rear Automatic Braking (RAB)
• Traffic Sign Recognition (TSR)

If one or more of these warning appears,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Malfunction

This warning appears when one or more of
the following systems (if so equipped) mal-
function:
• Rear Cross Traffic Alert (RCTA)
• Automatic Emergency Braking (AEB) with

Pedestrian Detection

• Intelligent

Forward

Collision

Warning

(I-FCW)

If one or more of these warning appears,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Not Available Bad Weather

This message may appear when the Steer-
ing Assist system is engaged.

Under the following conditions, the Steering
Assist system is automatically canceled:
• When the wiper (HI) operates.
• When lane markers in the traveling lane

cannot be correctly detected for a period
of time due to such items as a snow rut,
reflection of light on a rainy day or several
unclear lane markers are present.

If you want to use the Steering Assist sys-
tem again, cancel the ProPILOT Assist sys-
tem and set it again when lane markers are
clearly visible, or push the Steering Assist
switch once.

Not Available Front Camera
Obstructed

This message may appear when the Steer-
ing Assist system is engaged.

Under the following condition, the Steering
Assist system is automatically canceled:
• The camera area of the windshield is

fogged up or covered with dirt, water
drops, ice, snow, etc.

Not Available Parking Brake On

This message may appear when the ProPI-
LOT Assist system is engaged.

Under the following condition, the ProPILOT
Assist system is automatically canceled:
• The electronic parking brake is applied.

The above system cannot be used when
the electronic parking is activated.

For additional information, see "ProPILOT
Assist (P. 5-88) and “Parking brake” (P. 5-26).

2-76

Instruments and controls

Not Available Poor Road Conditions

This message may appear when the Pro-
PILOT Assist system, Intelligent Blind Spot
Intervention (I-BSI) or the Intelligent Lane
Intervention (I-LI) system is engaged.

Under the following conditions, the Pro-
PILOT Assist system, Intelligent Blind Spot
Intervention (I-BSI) or the Intelligent Lane
Intervention (I-LI) system is automatically
canceled:
• When the VDC system operates
• When a wheel slips

The above system cannot be used in some
situations (VDC operates, wheel slip and
VDC system is off.)

Not Available Seat Belt Not Fastened

This message may appear when the Pro-
PILOT Assist system is engaged.

Under the following condition, the ProPILOT
Assist system is automatically canceled:
• When the driver’s seat belt is not fastened

The above system cannot be used when
the driver’s seat belt is not fastened.

Not Available System Malfunction

This warning appears when one or more of
the following systems (if so equipped) is
not functioning properly.
• ProPILOT Assist
• Blind Spot Warning (BSW)
• Intelligent Blind Spot Intervention (I-BSI)
• Lane Departure Warning (LDW)
• Intelligent Lane Intervention (I-LI)

If one or more of these warnings appear,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

For additional information, see ProPILOT
Assist” (P. 5-88), Intelligent Blind Spot Inter-
vention (I-BSI)” (P. 5-65), “Blind Spot Warning
(BSW)” (P. 5-52), “Lane Departure Warning
(LDW)” (P. 5-38) or “Intelligent Lane Interven-
tion (I-LI)” (P. 5-45).

ProPILOT Assist indicators

These indicators show the ProPILOT Assist
system status. The status is shown by
color. For additional information, see “Pro-
PILOT Assist” (P. 5-88).

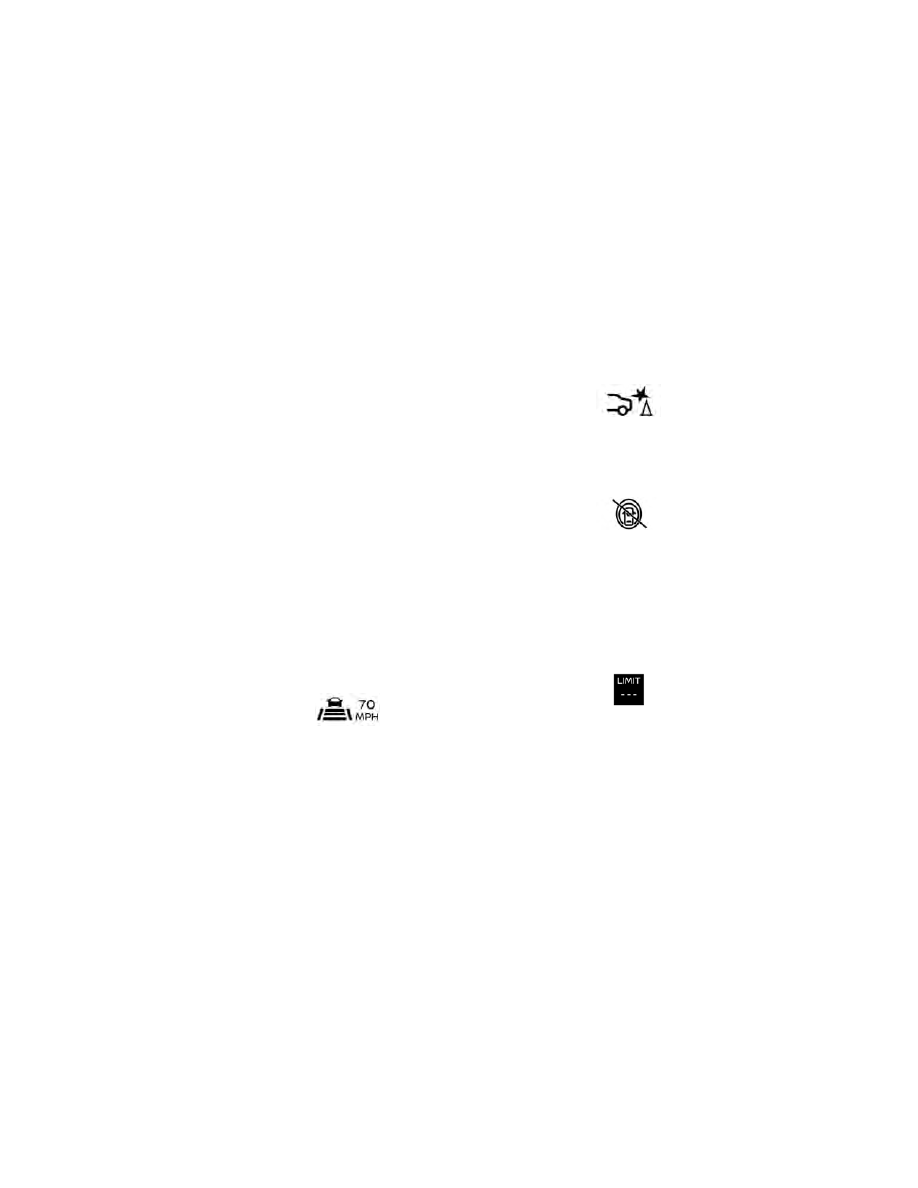

Rear Automatic Braking
(RAB) system warning
indicator

This indicator appears to indicate the sta-
tus of the Rear Automatic Braking (RAB)
system. For additional information, see
“Rear Automatic Braking (RAB)” (P. 5-131).

Press Brake Pedal

This message may appear when the Intel-
ligent Cruise Control (ICC) (with ProPILOT
Assist) system is engaged and the follow-
ing condition occurs:
• While the vehicle is stopped by the Pro-

PILOT Assist, the driver’s door is opened
but the electronic parking brake was not
activated.

Step on the brake pedal immediately.

Speed Limit Sign indicator

This message may appear when the Traffic
Sign Recognition system is engaged.

For additional information, see “Traffic Sign
Recognition (TSR)” (P. 5-35).

Instruments and controls

2-77

Steering Assist Not Available Cannot
Detect Lane

This indicator may appear when the Steer-
ing Assist system is engaged. The Steering
Assist system is automatically canceled
when the lane markers in the traveling lane
cannot be correctly detected for a period
of time due to such items as a snow rut,
reflection of light on a rainy day or several
unclear lane markers are present.

If you want to use the Steering Assist sys-
tem again, cancel the ProPILOT Assist sys-
tem and set it again when lane markers are
clearly visible, or push the Steering Assist
switch once.

Steering Assist ON

This indicator appears when the Steering
Assist system is turned on.

For additional information, see “Intelligent
Cruise Control (ICC) (for vehicles with Pro-
PILOT Assist” (P. 5-104) and “Steering Assist”
(P. 5-120).

Steering Assist OFF

This indicator appears when the Steering
Assist system is turned off.

For additional information, see “Intelligent
Cruise Control (ICC) (for vehicles with Pro-
PILOT Assist” (P. 5-104) and “Steering Assist”
(P. 5-120).

Only Available with Cruise
Control ON

This message appears when the Steering
Assist switch has been pushed while the
cruise control is not switched on.

For additional information, see “Intelligent
Cruise Control (ICC) (for vehicles with Pro-
PILOT Assist” (P. 5-104) and “Steering Assist”
(P. 5-120).

Steering Assist status

This indicator appears when the Steering
Assist system is engaged.

For additional information, see “ProPILOT
Assist” (P. 5-88).

Unavailable: High Cabin Temperature

This message appears when the camera
detects an interior temperature of more
than 104°F (40°C). For additional informa-
tion, see “ProPILOT Assist” (P. 5-88), “Intelli-
gent Lane Intervention (I-LI)” (P. 5-45), “Lane
Departure Warning (LDW)” (P. 5-38) or “Intel-
ligent

Blind

Spot

Intervention

(I-BSI)”

(P. 5-65).

Unavailable Side Radar Obstruction

This message appears when the Blind
Spot Warning (BSW), Intelligent Blind Spot
Intervention (I-BSI), or Rear Cross Traffic
Alert (RCTA) systems become unavailable
because a radar blockage is detected.
For additional information, see “Blind Spot
Warning (BSW)” (P. 5-52), “Intelligent Blind
Spot Intervention (I-BSI)” (P. 5-65) or “Rear
Cross Traffic Alert (RCTA)” (P. 5-77).

Vehicle ahead detection
indicator

This indicator shows when the following
systems are engaged and have detected a
vehicle:
• Automatic Emergency Braking (AEB) with

Pedestrian Detection

• Intelligent

Forward

Collision

Warning

(I-FCW)

• ProPILOT Assist

For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-138), “Intelligent Forward
Collision Warning (I-FCW)” (P. 5-150), or “Pro-
PILOT Assist” (P. 5-88).

2-78

Instruments and controls

Your vehicle has two types of security
systems:
• Vehicle security system
• NISSAN Vehicle Immobilizer System

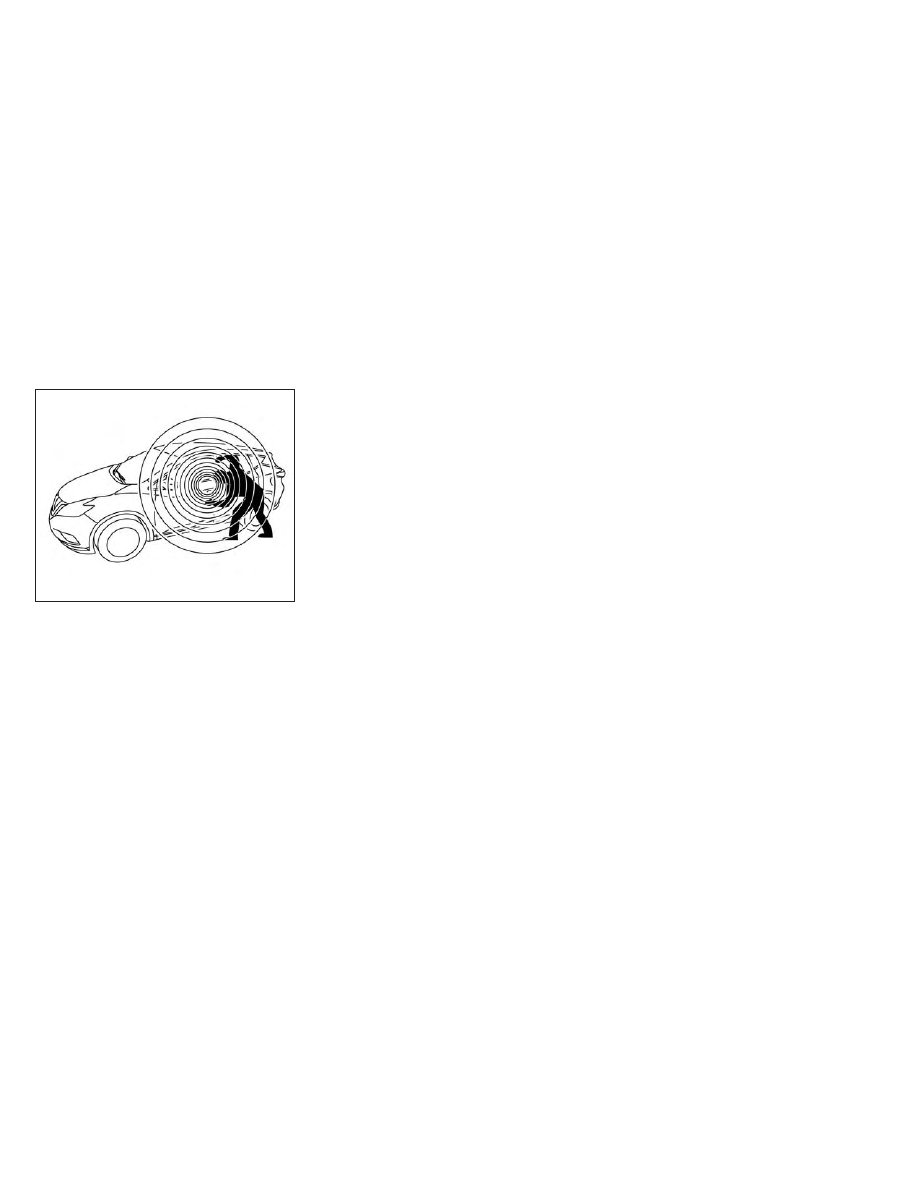

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, hood or liftgate when the
system is armed. It is not, however, a mo-
tion detection type system that activates
when a vehicle is moved or when a vibra-
tion occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows and the moonroof

(if so equipped).

The system can be

armed even if the windows and moon-
roof are open.

2. Remove the Intelligent Key from the

vehicle.

3. Close all doors, hood and liftgate. Lock

all doors. The doors can be locked with
the Intelligent Key, door capacitive touch
pad (if so equipped) or power door lock
switch.

4. Wait 30 seconds for the system to com-

plete the pre-armed phase. If during the
pre-armed phase one of the following
occurs, the system will not arm:

• Any door is unlocked with the Intelligent

Key or door capacitive touch pad (if so
equipped).

• The ignition switch is placed in the ON

position.

•

Even when the driver and/or passen-
gers are in the vehicle, the system will
activate when all the doors, hood and
liftgate are locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in
the ON position, the system will be
released.

LIC2930

SECURITY SYSTEMS

Instruments and controls

2-79

Vehicle security system activation

The vehicle security system will give the
following alarm:
• The headlights blink and the horn sounds

intermittently.

• The alarm automatically turns off after a

period of time. However, the alarm reacti-
vates if the vehicle is tampered with
again. The alarm can be shut off by un-
locking the driver's door by pressing the

button on the Intelligent Key or plac-

ing the ignition switch in the ON position.

The alarm is activated by:
• opening a door without using the Intelli-

gent Key (even if the door is unlocked by
using the inside lock knob or the power
door lock switch).

How to stop an activated alarm

The alarm stops only by unlocking the driv-
er’s door or the liftgate by pressing the

button on the Intelligent Key or push-

ing

the

capacitive

touch

pad

(if

equipped) on the driver's or passenger's
door with the Intelligent Key in range of the
door handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:

1. Leave the ignition switch in the ON posi-

tion for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the de-

vice (which may have caused the interfer-
ence) separate from the registered key.

If the no start condition reoccurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's author-
ity to operate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause interference. (2) This de-
vice must accept any interference, in-
cluding interference that may cause un-
desired operation of the device.

2-80

Instruments and controls

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may
lead to an accident. Warm the wind-
shield with the defroster before you
wash the windshield.

CAUTION

•

Do not operate the washer continu-
ously for more than 30 seconds.

•

Do not operate the washer if the
windshield-washer fluid reservoir is
empty.

•

Do not fill the windshield-washer
fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

•

Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer’s recommended levels
before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.

NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. After
approximately 1 minute, turn the switch
on again to operate the wiper.

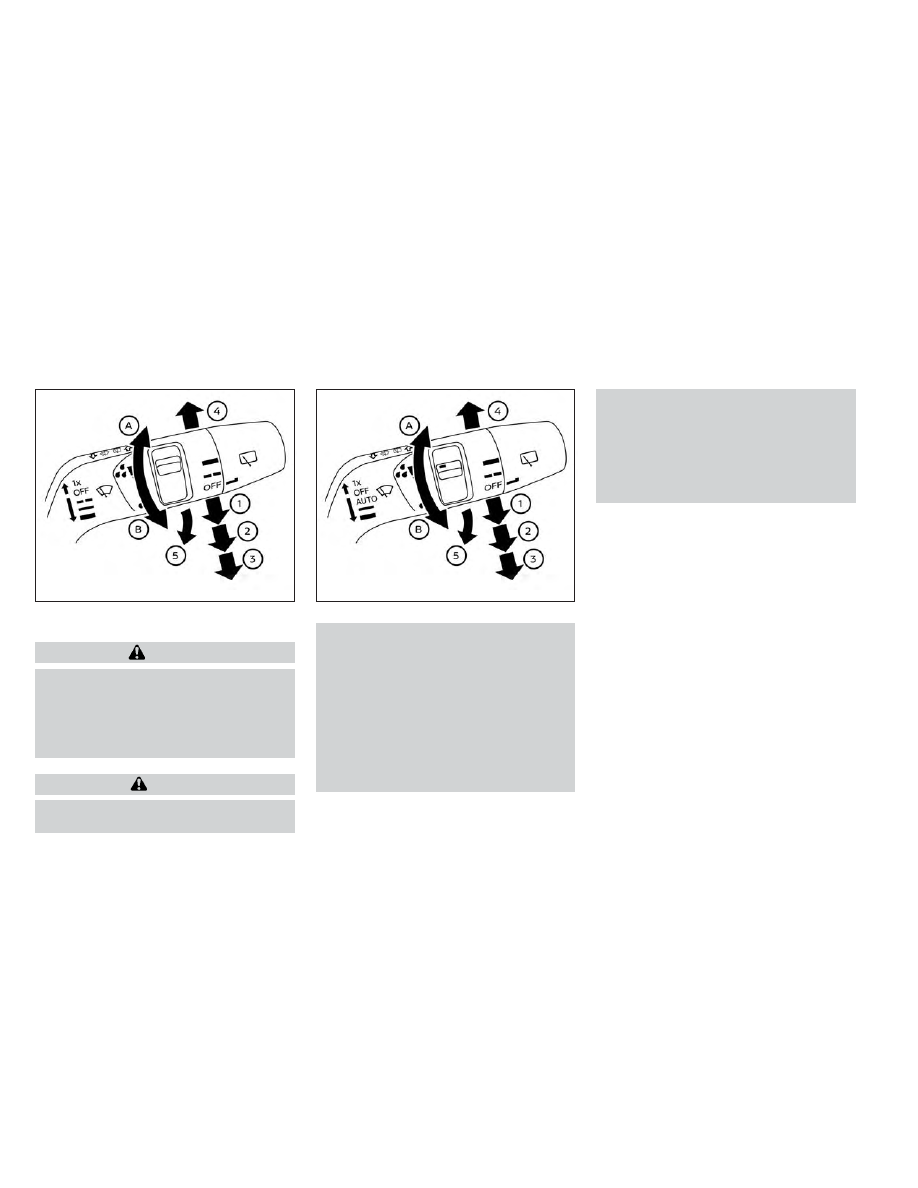

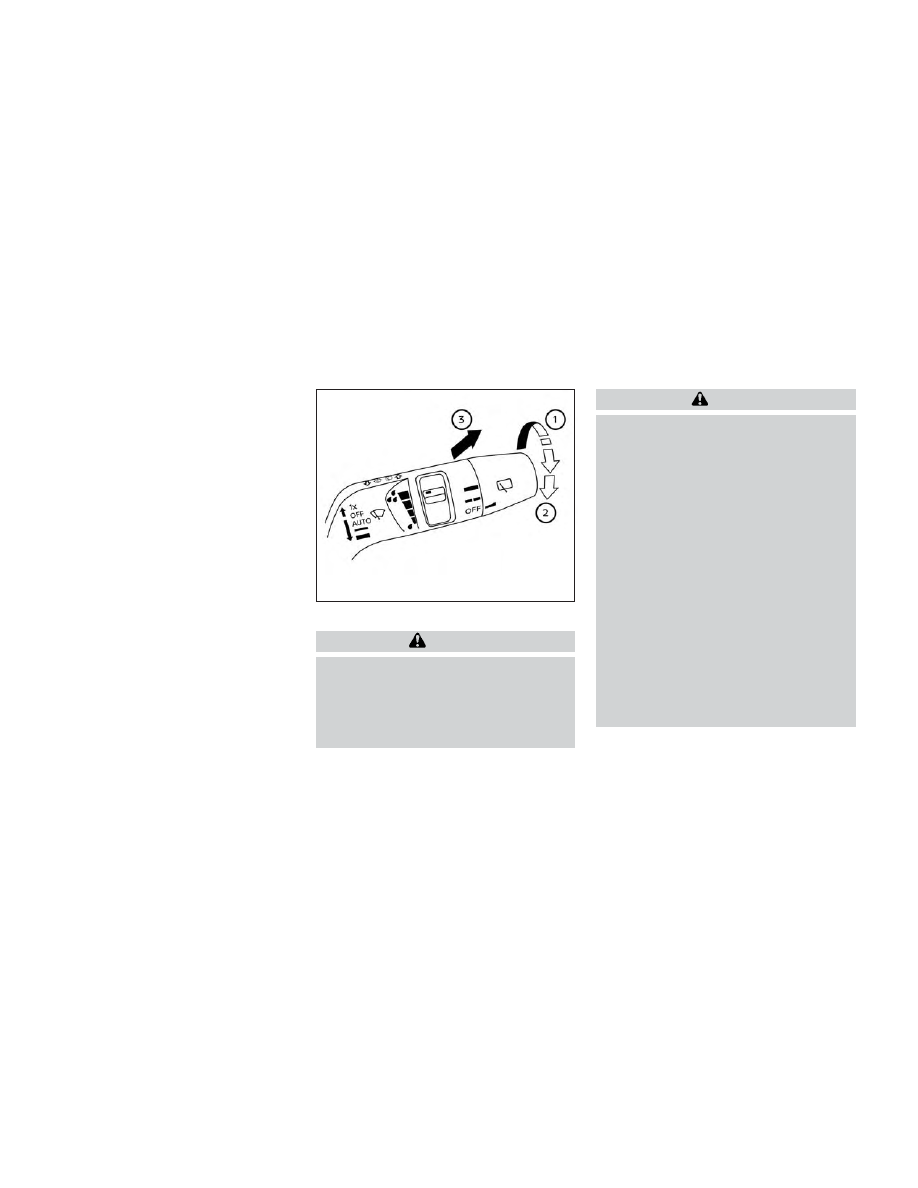

The windshield wiper and washer operates
when the ignition switch is in the ON
position.

Push the lever down to operate the wiper
at the following speed:

䊊

Intermittent (INT) — intermittent opera-
tion can be adjusted by turning the
knob toward

(faster) or

(slower).

Also, the intermittent operation speed
varies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent opera-
tion speed will be faster.)

LIC4679

Type A (if so equipped)

LIC4680

Type B (if so equipped)

WIPER AND WASHER SWITCH

Instruments and controls

2-81

䊊

Low (LO) — continuous low speed
operation

䊊

High (HI) — continuous high speed
operation

Push the lever up

to have one sweep

operation (MIST) of the wiper.

Pull the lever toward you

to operate the

washer. The wiper will also operate several
times.

NOTE:

The Wiper with Speed feature and wiper
guidance may be disabled. For addi-
tional information, see “Vehicle informa-
tion display–7 inch (18 cm) Type A”
(P. 2-24) or “Vehicle information display—
12.3 inch (31 cm) Type B” (P. 2-49).

WARNING

Do not operate the windshield wiper
while the wiper arm is pulled up. The
wiper arm may be damaged.

RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)

CAUTION

•

Do not touch the rain sensor and
around it when the wiper switch is in
the AUTO position and the ignition
switch is in the ON position. The wip-
ers may operate unexpectedly and
cause an injury or may damage a
wiper.

•

The rain-sensing auto wipers are in-
tended for use during rain. If the
switch is left in the AUTO position, the
wipers may operate unexpectedly
when dirt, fingerprints, oil film or
insects are stuck on or around the
sensor. The wipers may also operate
when exhaust gas or moisture affect
the rain sensor.

•

When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be
higher even though the amount of
the rainfall is small.

•

Be sure to turn off the rain-sensing
auto wiper system when you use a
car wash.

•

The rain-sensing auto wipers may
not operate if rain does not hit the
rain sensor even if it is raining.

•

Using Genuine NISSAN wiper blades is
recommended for proper operation of
the rain-sensing auto wiper system.
For additional information, see “Wind-
shield wiper blades” (P. 8-19).

LIC4681

2-82

Instruments and controls

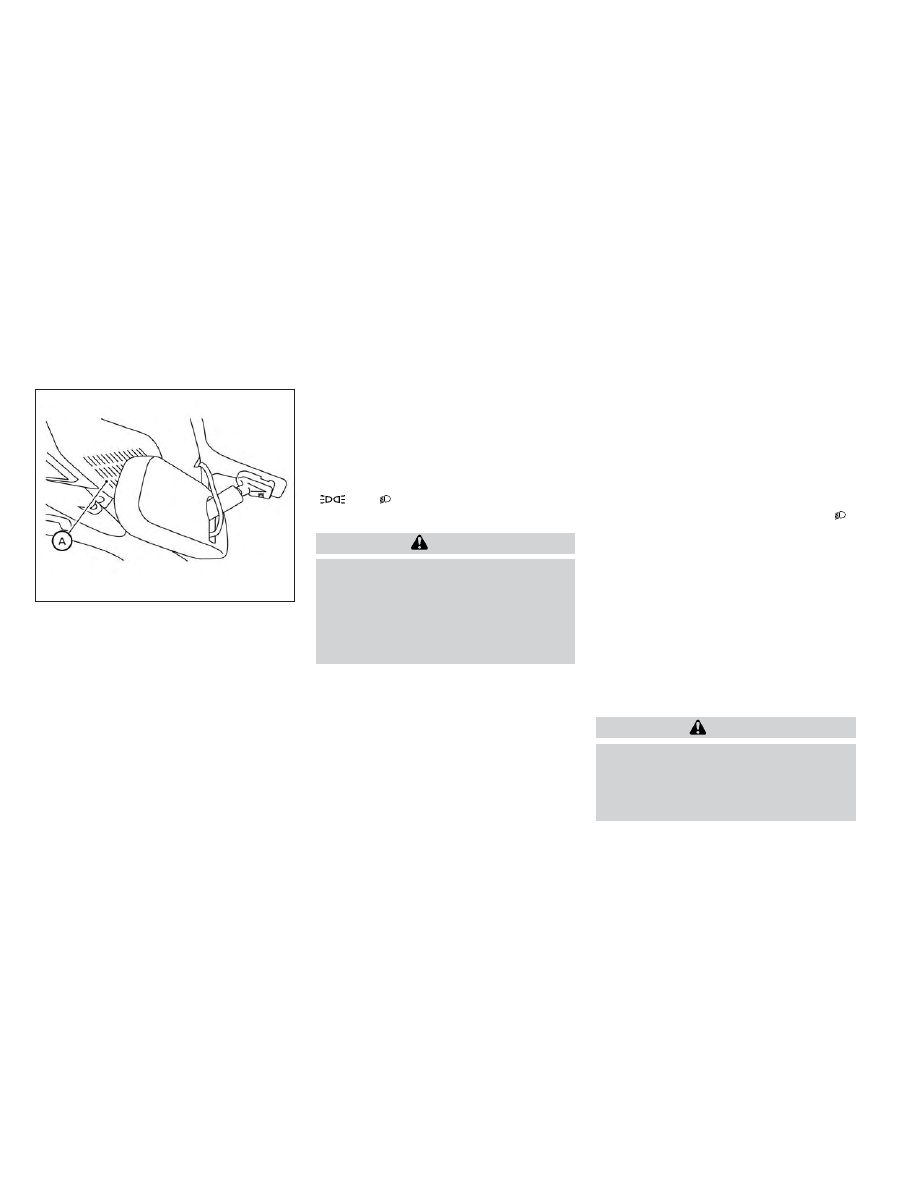

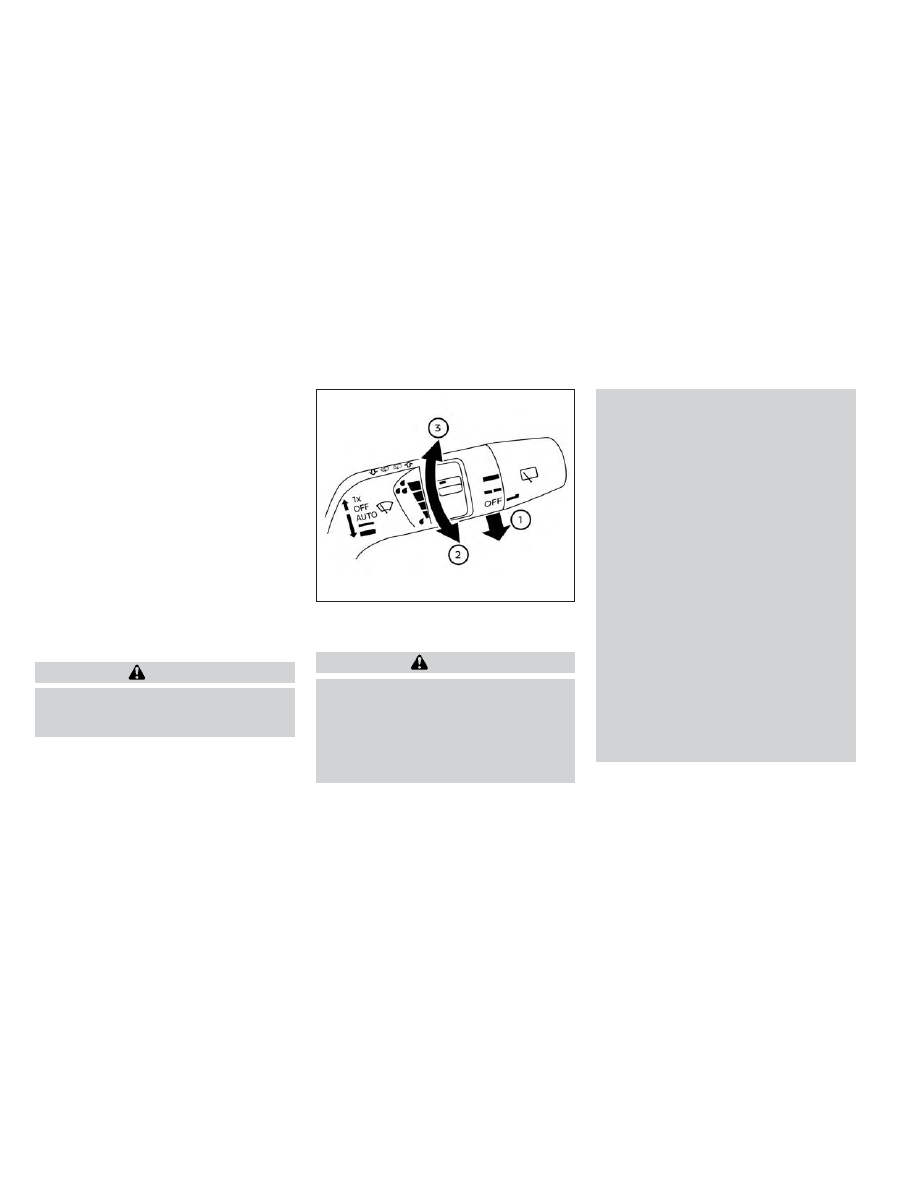

The rain-sensing auto wiper system can
automatically turn on the wipers and ad-
just the wiper speed depending on the
rainfall and the vehicle speed by using the
rain sensor located on the upper part of
the windshield.

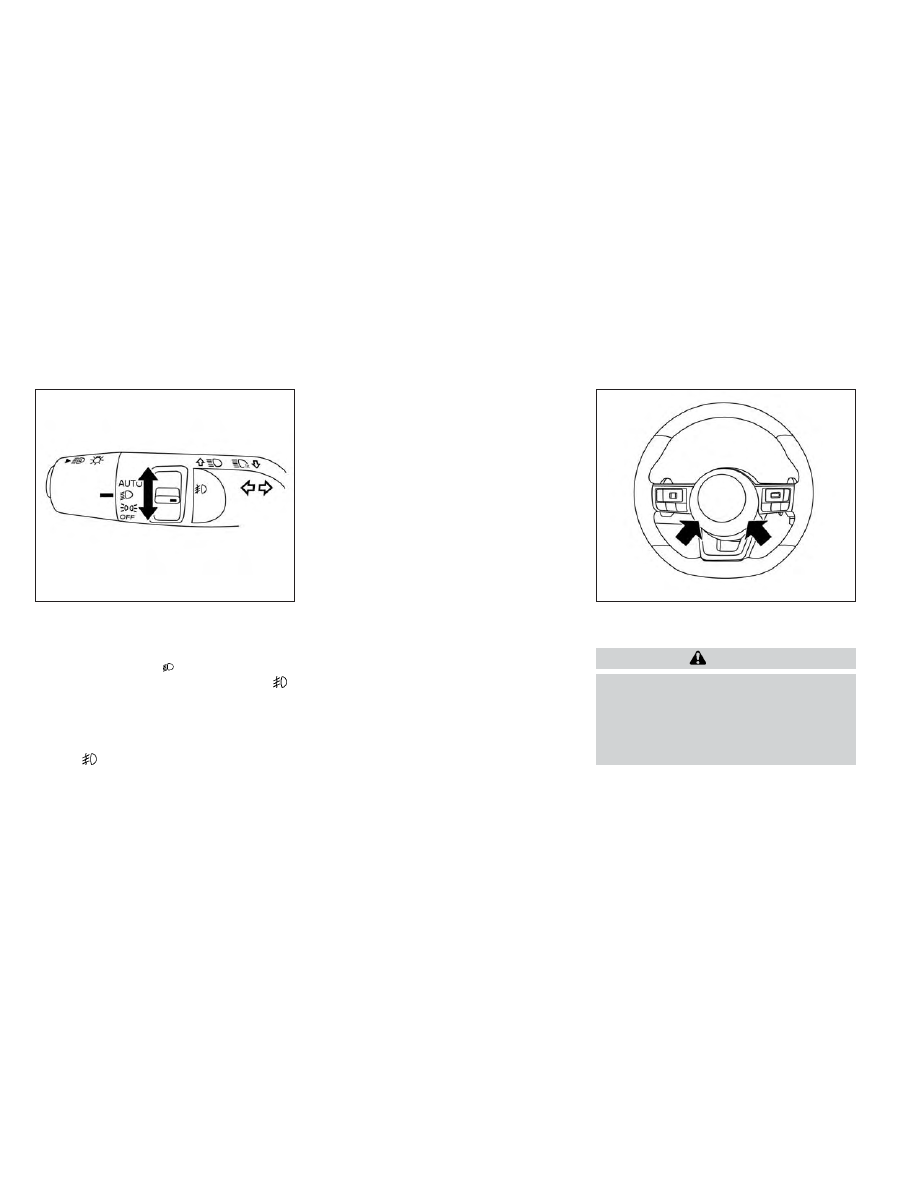

To set the rain-sensing auto wiper system,
place the lever in the AUTO position

. The

wiper will sweep once while the ignition
switch is in the ON position.

The rain sensor sensitivity level can be ad-
justed by turning the knob toward the rear

(Low) or toward the front

(High).

– High — High sensitive operation
– Low — Low sensitive operation

To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the low or high position.

The rain-sensing feature may be disabled.
For additional information, see “Vehicle in-
formation display–7 inch (18 cm) Type A”
(P. 2-24) or “Vehicle information display—12.3
inch (31 cm) Type B” (P. 2-49).

REAR SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the rear window
and obscure your vision which may
lead to an accident. Warm the rear win-
dow with the defroster before you
wash the rear window.

CAUTION

•

Do not operate the washer continu-
ously for more than 30 seconds.

•

Do not operate the washer if the
windshield-washer fluid reservoir is
empty.

•

Do not fill the windshield-washer
fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

•

Pre-mix

windshield-washer

fluid

concentrates

with

water

the

If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove
the snow, etc. on and around the wiper
arms. After about 1 minute, turn the switch
on again to operate the wiper.

LIC4682

Instruments and controls

2-83

The rear window wiper and washer oper-
ate when the ignition switch is in the ON
position. Turn the switch clockwise from
the OFF position to operate the wiper.

䊊

Intermittent (INT) — intermittent opera-
tion (not adjustable)

䊊

Low (ON) — continuous low speed
operation

Push the switch forward

to operate the

washer. The wiper will also operate several
times.

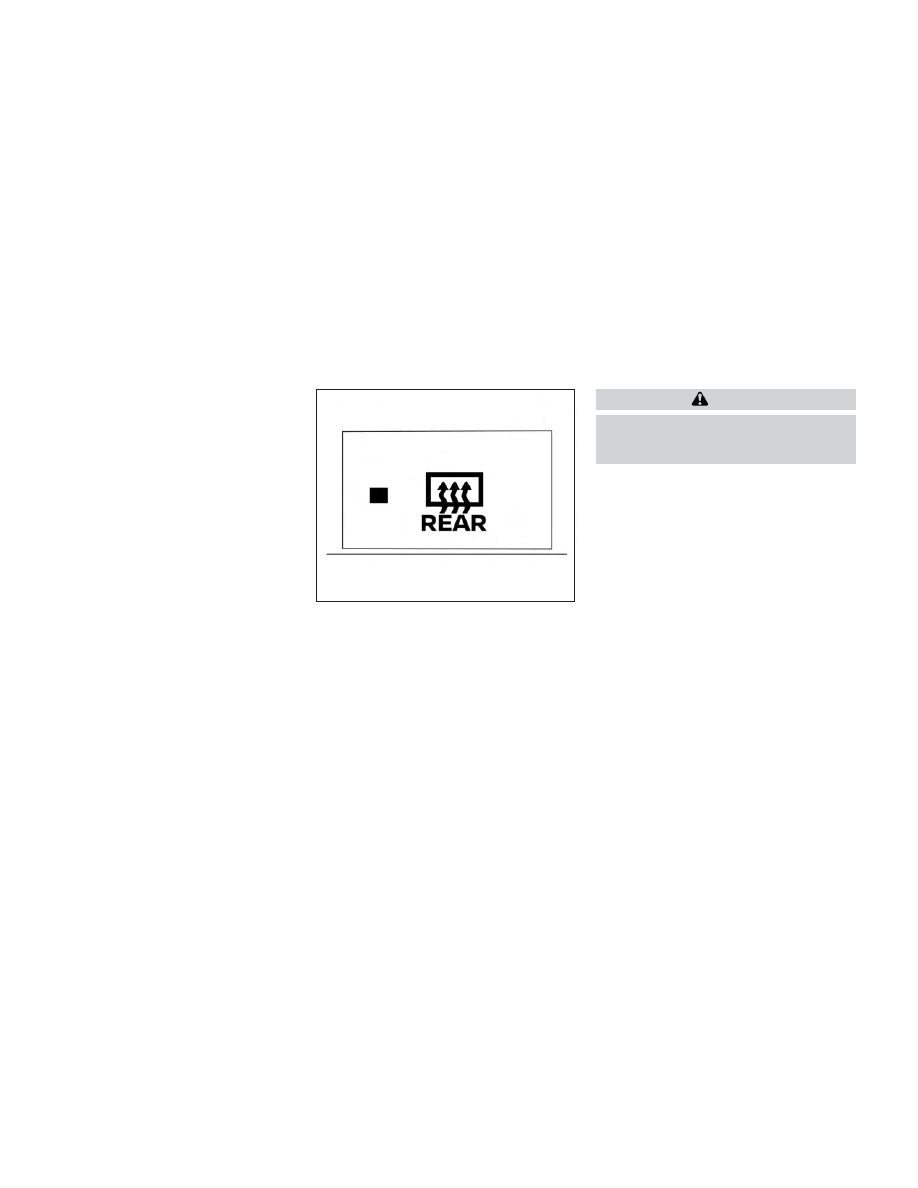

To defrost the rear window glass and out-
side mirrors (if so equipped), start the en-
gine and push the rear window defroster
switch on. The rear window defroster indi-
cator light on the switch comes on. Push
the switch again to turn the defroster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

The rear window defroster switch also ac-
tivates the heated washer nozzles (if so
equipped).

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

NOTE:

The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio
system.

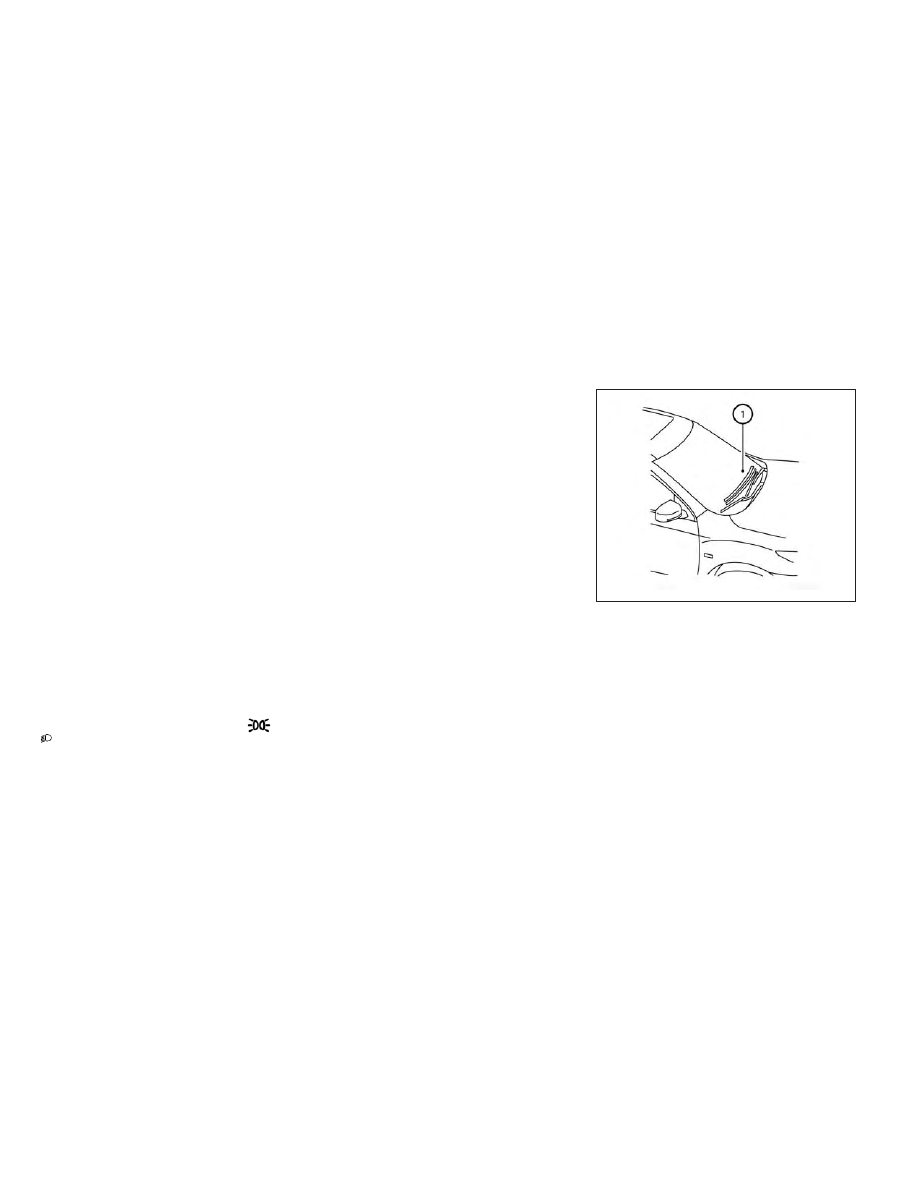

LIC4683

REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH

2-84

Instruments and controls

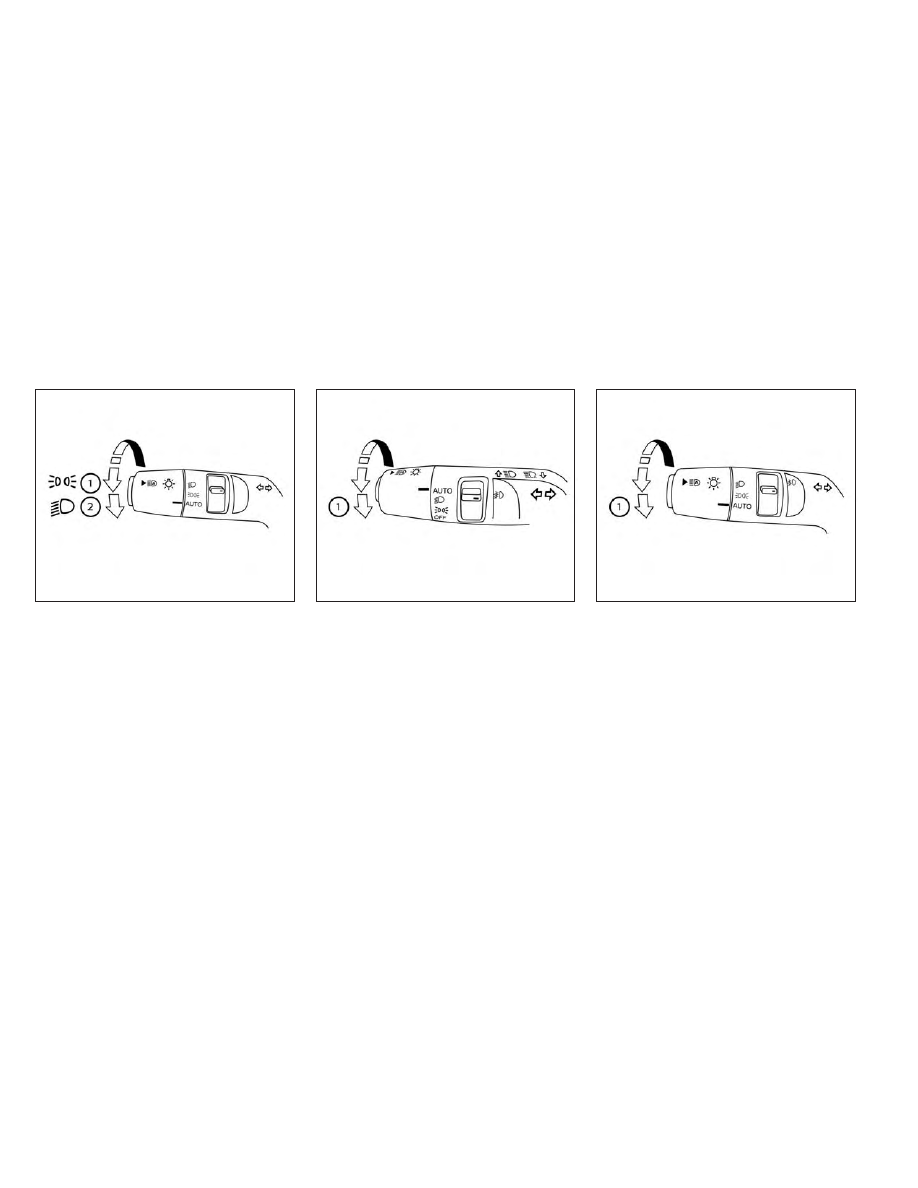

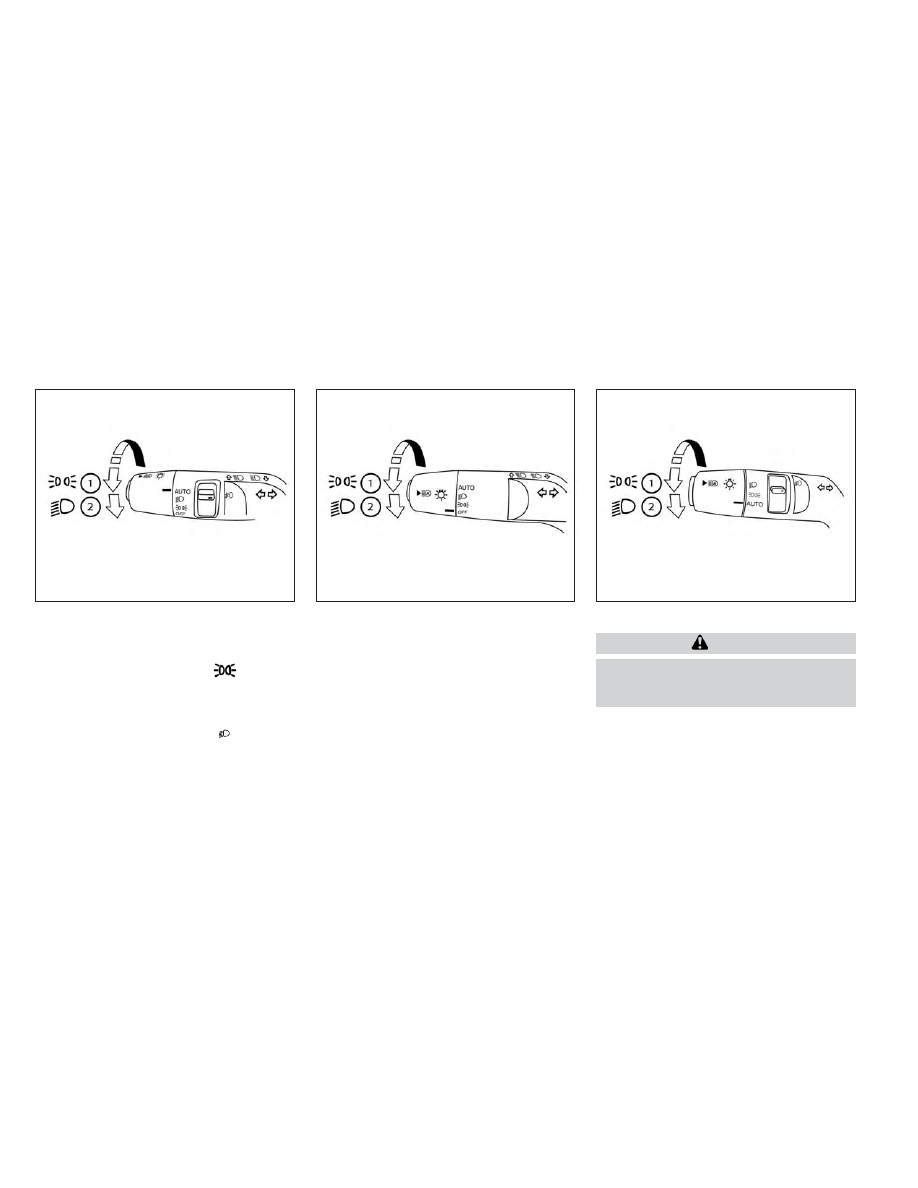

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come
on.

䊊

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

NOTE:

The Lights mode guidance feature may
be disabled. For additional information,
see “Vehicle information display–7 inch
(18 cm) Type A” (P. 2-24) or “Vehicle infor-
mation display—12.3 inch (31 cm) Type B”
(P. 2-49).

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

LIC4684

Type A (if so equipped)

LIC4685

Type B (if so equipped)

LIC5439

Type C (if so equipped)

HEADLIGHT AND TURN SIGNAL
SWITCH

Instruments and controls

2-85

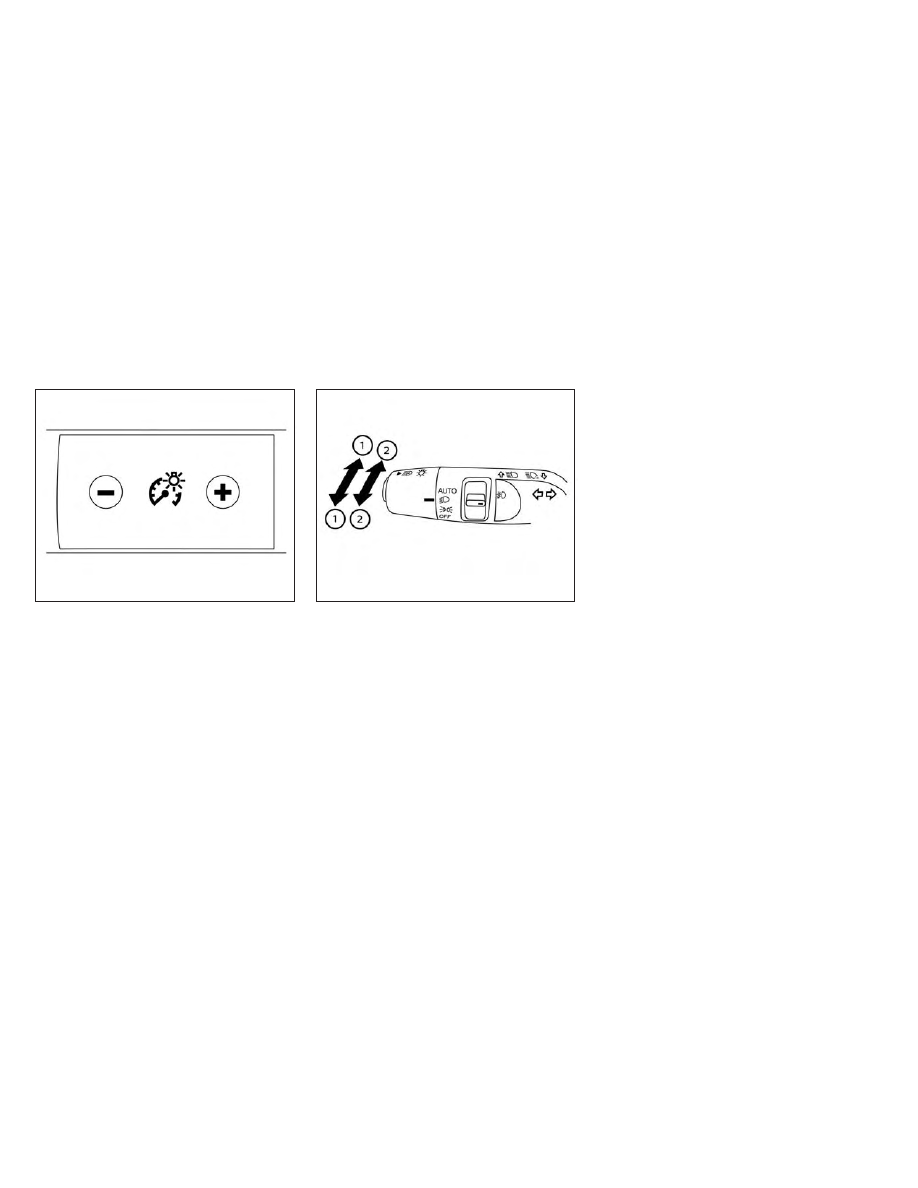

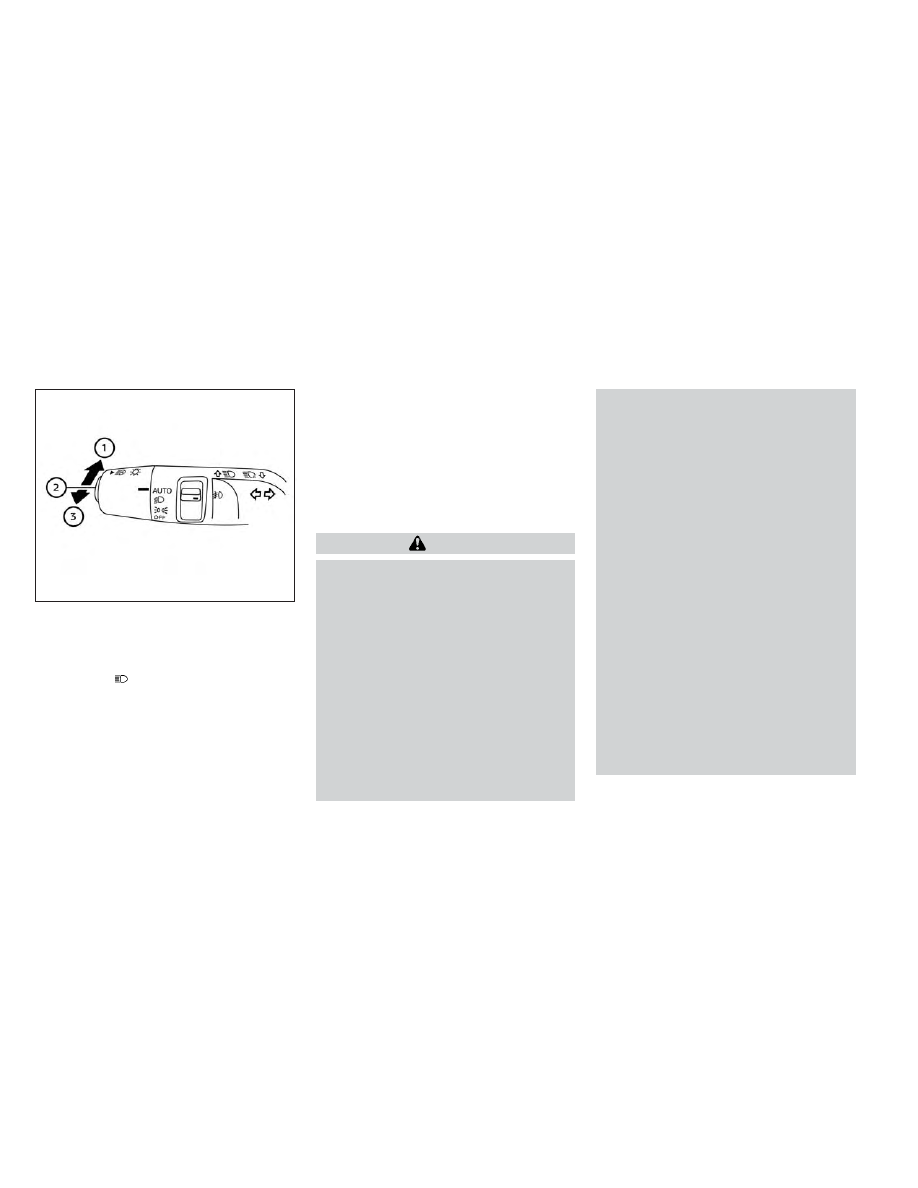

Autolight system

The autolight system allows the headlights
to turn on and off automatically. The auto-
light system can:
• Turn on the headlights, front parking, tail,

license plate and instrument panel lights
automatically when it is dark.

• Turn off all the lights when it is light.
• Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

• Turn on the headlights if the windshield

wipers make multiple continuous passes
within approximately one minute of the
first pass (if so equipped). The headlights
remain on until the wipers are turned off
for a short period of time.

LIC5438

Type D (if so equipped)

LIC4686

Type A (if so equipped)

LIC5440

Type B (if so equipped)

2-86

Instruments and controls

NOTE:
Autolight activation sensitivity (if so
equipped) and the time delay for auto-
light shutoff can be adjusted. For addi-
tional information, see “Vehicle infor-
mation display–7 inch (18 cm) Type A”
(P. 2-24) or “Vehicle information display
—12.3 inch (31 cm) Type B” (P. 2-49).

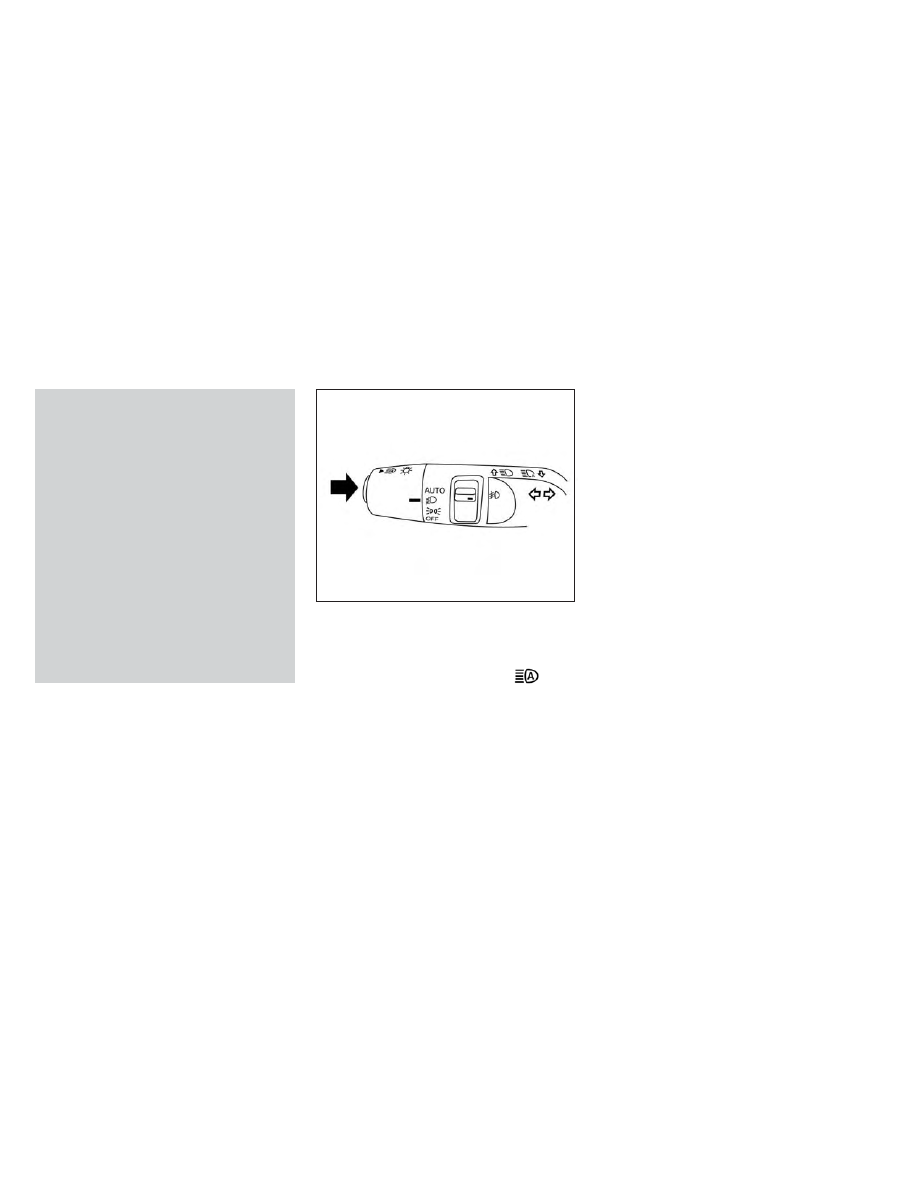

To turn on the autolight system:
• Place the headlight switch in the AUTO

position

• Place the ignition switch in the ON

position.

• The autolight system automatically turns

the headlights on and off.

Initially, if the ignition switch is turned OFF
and a door is opened and left open, the
headlights remain ON for a period of time. If
another door is opened while the head-
lights are on, then the timer is reset.

To turn the autolight system off, place the
switch in the OFF (if so equipped),

, or

position.

The headlights will turn on automatically at
twilight or in rainy weather (when the wind-
shield wiper is operated continuously).

If the ignition switch is placed in the OFF
position and one of the doors is opened
and this condition is continued, the head-
lights remain on for 5 minutes.

Be sure you do not put anything on top
of the autolight sensor located in the top
side of the instrument panel

. The au-

tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts
as if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your ve-
hicle's battery could become discharged.

LIC4687

Instruments and controls

2-87

Headlight beam select

䊊

To select the high beam function, push
the lever forward while the low beams
are on. The high beam lights come on
and the

indicator light illuminates.

䊊

Pull the lever back to return to the low
beam.

䊊

Pulling and releasing the lever flashes
the headlight high beams on and off.
The low beams do not need to be on
for this to function.

High Beam Assist

The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above.
If an oncoming vehicle or leading vehicle
appears in front of your vehicle when the
headlight high beam is on, the headlight
will

switched

the

low

beam

automatically.

WARNING

•

The High Beam Assist system is a
convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times, en-
sure

safe

driving

practices

and

switch the high beams and low beam
manually when necessary.

•

The high beam or low beam may not
switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.

–

During bad weather (rain, fog,
snow, wind, etc.).

–

When a light source similar to a
headlight or tail light is in the vi-
cinity of the vehicle.

–

When the headlights of the on-
coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of
position.

–

When there is a sudden, continu-
ous change in brightness.

–

When driving on a road that
passes over rolling hills, or a road
that has level differences.

–

When driving on a road with many
curves.

–

When a sign or mirror-like surface
is reflecting intense light towards
the front of the vehicle.

–

When the container, etc. being
towed by a leading vehicle is re-
flecting intense light.

–

When a headlight on your vehicle
is damaged or dirty.

–

When the vehicle is leaning at an
angle due to a punctured tire, be-
ing towed, etc.

LIC4688

2-88

Instruments and controls

•

The timing of switching the low
beam and high beam may change
under the following situations.

–

The brightness of the headlights
of the oncoming vehicle or leading
vehicle.

–

The movement and direction of
the oncoming vehicle and the
leading vehicle.

–

When only one light on the on-
coming vehicle or the leading ve-
hicle is illuminated.

–

When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.

–

Road conditions (incline, curve,
the road surface, etc.).

–

The number of passengers and
the amount of luggage.

High Beam Assist operation

To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition and push the switch as illustrated
with the engine running. The

High

Beam Assist indicator light in the meter will
illuminate while the headlights are turned
on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is
recommended that you visit a NISSAN
dealer for this service.

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.

To turn off the High Beam Assist system,
push the switch again..

LIC4689

Instruments and controls

2-89

Ambient image sensor maintenance

The ambient image sensor

for the High

Beam Assist system is located in front of
the inside mirror. To maintain the proper
operation of the high beam assist system
and prevent a system malfunction, be sure
to observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans-

parent material) or install an accessory
near the ambient image sensor.

• Do not strike or damage the areas

around the ambient image sensor. Do
not touch the sensor lens that is located
on the ambient image sensor.

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN dealer.

Battery saver system

If the ignition switch is placed in the OFF
position while the headlight switch is in the

position, the headlights will

turn off after a period of time.

CAUTION

Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF or AUTO
position when the engine is not run-
ning to avoid discharging the vehicle
battery.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM

The LED portion of the headlights auto-
matically illuminate at 100% intensity when
the engine is started and the parking brake
is released. The LED Daytime Running
Lights (DRL) operate with the headlight
switch in the OFF or AUTO position. When
you turn the headlight switch to the
position for full illumination, the LED lights
switch from LED DRL to the park function.

If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL re-
main on until the ignition is placed in the
OFF position.

It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF or AUTO position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

LIC4690

2-90

Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button to increase the bright-
ness of instrument panel lights.

Press the “-” button to decrease the bright-
ness of instrument panel lights.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels auto-
matically.

Lane change signal

䊊

Move the lever up or down until the turn
signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

LIC4691

LIC4692

Instruments and controls

2-91

FOG LIGHT SWITCH (if so
equipped)

To turn the fog lights on, rotate the head-
light switch to the

position, then ro-

tate the fog light switch to the
position.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then rotate the fog light switch
to the

position.

To turn the fog lights off, rotate the fog light
switch to the OFF position.

The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are
selected.

To sound the horn, push the center pad
area of the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering

with

the

supplemental

front air bag system may result in seri-
ous personal injury.

LIC4693

LIC4694

HORN

2-92

Instruments and controls

WARNING

Do not use or allow occupants to use
the climate controlled seats if you or
the occupants cannot monitor seat
temperatures or have an inability to
feel pain in those body parts in contact
with the seat. Use of the climate con-
trolled seats by such people could re-
sult in serious injury.

CAUTION

•

The battery could run down if the cli-
mate control seat is operated while
the engine is not running.

•

Do not use the climate control seat
for extended periods or when no one
is using the seat.

•

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise, the seat may become over-
heated.

•

Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar objects. This may result in
damage to the climate controlled
seat.

•

Any liquid spilled on the seat should
be removed immediately with a dry
cloth

•

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

•

If any malfunctions are found or the
climate controlled seat does not oper-
ate, turn the switch off and have the
system checked. It is recommended
that you visit a NISSAN dealer for this
service.

The climate controlled seats cool down the
front seats by ventilating air into the seats.
The climate control switch is located by the
air conditioning controls.

The climate controlled seat can be oper-
ated as follows:

1. Start the engine.

2. Push the switch to adjust the desired

intensity. The indicator light on the
switch will illuminate.

3. When the vehicle's interior is cooled, or

before you leave the vehicle, be sure to
push the switch to turn off the climate
controlled seats. The indicator light on
the switch will turn off. The climate con-
trolled seats will retain the current set-
tings even if the engine is restarted.

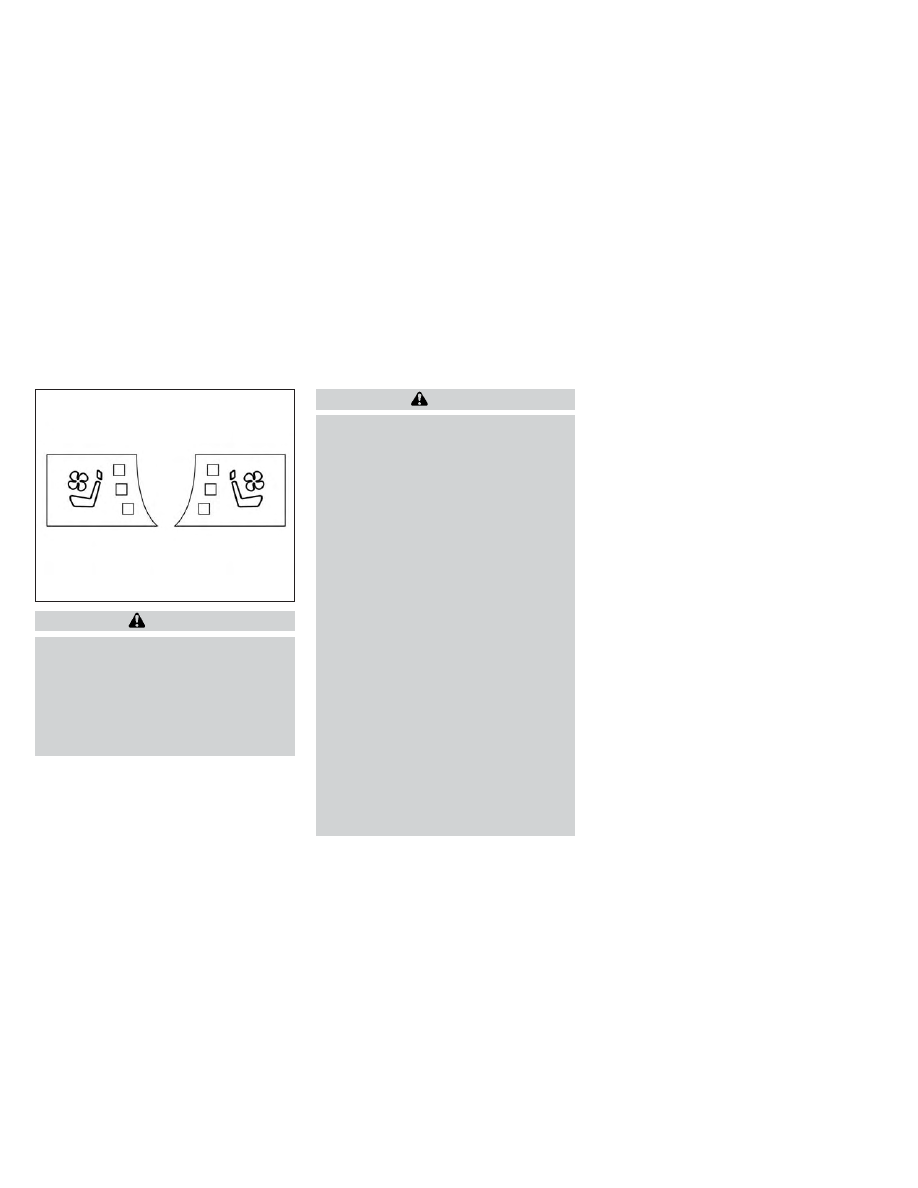

LIC4695

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

Instruments and controls

2-93

WARNING

Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tem-
peratures or have an inability to feel
pain in body parts that contact the
seat. Use of the seat heater by such
people could result in serious injury.

CAUTION

•

The battery could run down if the
seat heater is operated while the en-
gine is not running.

•

Do not use the seat heater for ex-
tended periods or when no one is us-
ing the seat.

•

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise, the seat may become over-
heated.

•

Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.

•

Any liquid spilled on the heated seat
should be removed immediately with
a dry cloth.

•

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

•

If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

The front seats are warmed by built-in
heaters.

1. Start the engine.

2. Push the switch, as desired. The indica-

tor light in the switch will illuminate.

The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.

3. When the seat is warmed or before you

leave the vehicle, be sure to push the
switch to turn it off. The heated seats will
retain the current settings even if the
engine is restarted.

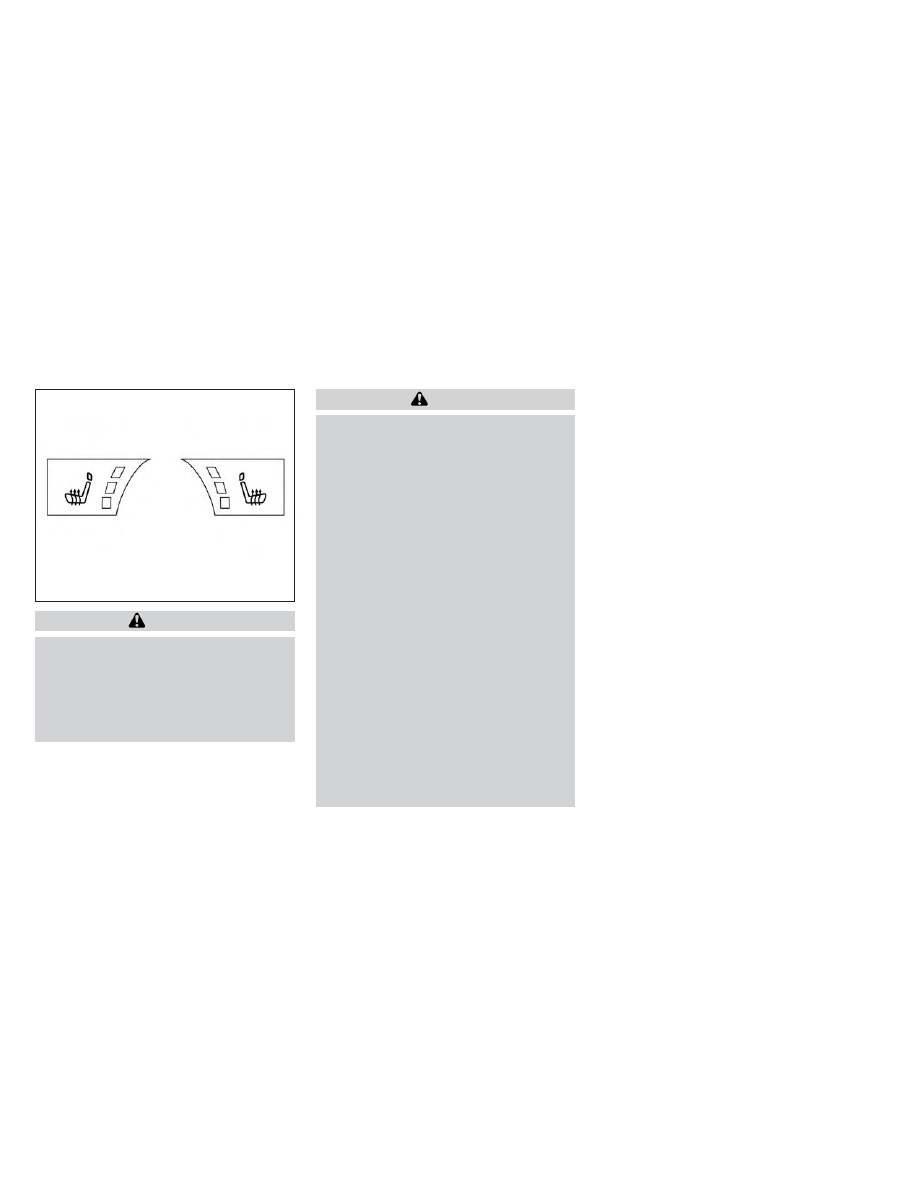

LIC4696

HEATED SEAT SWITCHES (if so
equipped)

2-94

Instruments and controls

WARNING

CAUTION

•

The battery could run down if the
seat heater is operated while the en-
gine is not running.

•

Do not use the seat heater for ex-
tended periods or when no one is us-
ing the seat.

•

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise, the seat may become over-
heated.

•

Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.

•

Any liquid spilled on the heated seat
should be removed immediately with
a dry cloth.

•

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

•

If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

The 2nd row outboard seats are warmed
by built-in heaters. The switches are lo-
cated on the rear of the front center con-
sole and can be operated independently of
each other.

1. Start the engine.

2. Push the switch, as desired. The indica-

tor light in the switch will illuminate.

The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.

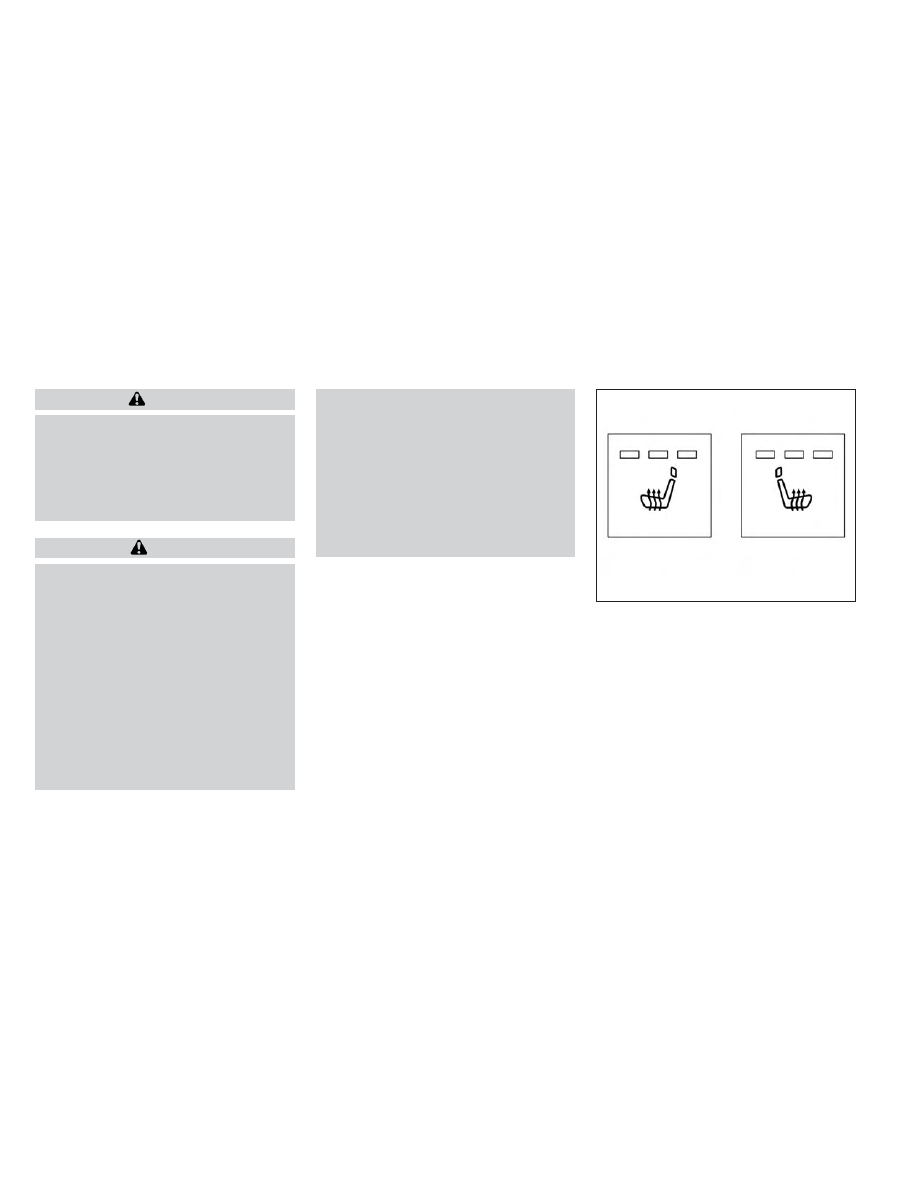

LIC4697

HEATED 2ND ROW SEAT SWITCHES (if
so equipped)

Instruments and controls

2-95

3. When the seat is warmed or before you

leave the vehicle, be sure to turn the
switch off.

Push the heated steering wheel switch to
warm the steering wheel after the ignition
switch is placed in the ON position. The
indicator light will come on.

If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and
on to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on (approximately 30
minutes).

Push the switch again to turn the heated
steering wheel system off manually. The
indicator light will go off.

NOTE:
• Once activated, your heated steering

wheel will automatically turn on and
off to maintain a temperature above
68°F (20°C).

• When the temperature of the steering

wheel is above 122°F (50°C) and the
heated steering wheel switch is turned
on, the system will not heat the steer-
ing wheel. This is not a malfunction.

LIC4698

HEATED STEERING WHEEL SWITCH (if
so equipped)

2-96

Instruments and controls

The Steering Assist switch is used to en-
able and disable the Steering Assist sys-
tem that is activated using the settings
menu of the vehicle information display.

The Steering Assist system controls the
steering system, when ProPILOT Assist is
engaged, to help keep your vehicle near
the center of the lane when driving. For
additional information, see ”ProPILOT As-
sist” (P. 5-88) and “Intelligent Lane Interven-
tion (I-LI)” (P. 5-45).

WARNING

•

Never rely solely on the hill descent
control system to control vehicle
speed when driving on steep down-
hill grades. Always drive carefully
when using the hill descent control
system and decelerate the vehicle
speed by depressing the brake pedal
if necessary. Be especially careful
when driving on frozen, muddy or ex-
tremely steep downhill roads. Failure
to control vehicle speed may result in
a loss of control of the vehicle and
possible serious injury or death.

•

The hill descent control may not con-
trol the vehicle speed on a hill under
all load or road conditions. Always be
prepared to depress the brake pedal
to control vehicle speed. Failure to do
so may result in a collision or serious
personal injury.

CAUTION

When the hill descent control system
operates continuously for a long time,
the temperature of the brake pads may
increase and the hill descent control
system may be temporarily disabled
(the indicator light will blink). If the indi-
cator light does not come on continu-
ously after blinking, stop using the
system.

The hill descent control system is designed
to reduce driver workload when going
down steep hills. The hill descent control
system helps to control vehicle speed so
the driver can concentrate on steering the
vehicle.

To activate the hill descent control system:
• the vehicle speed must be under 15 mph

(25 km/h)

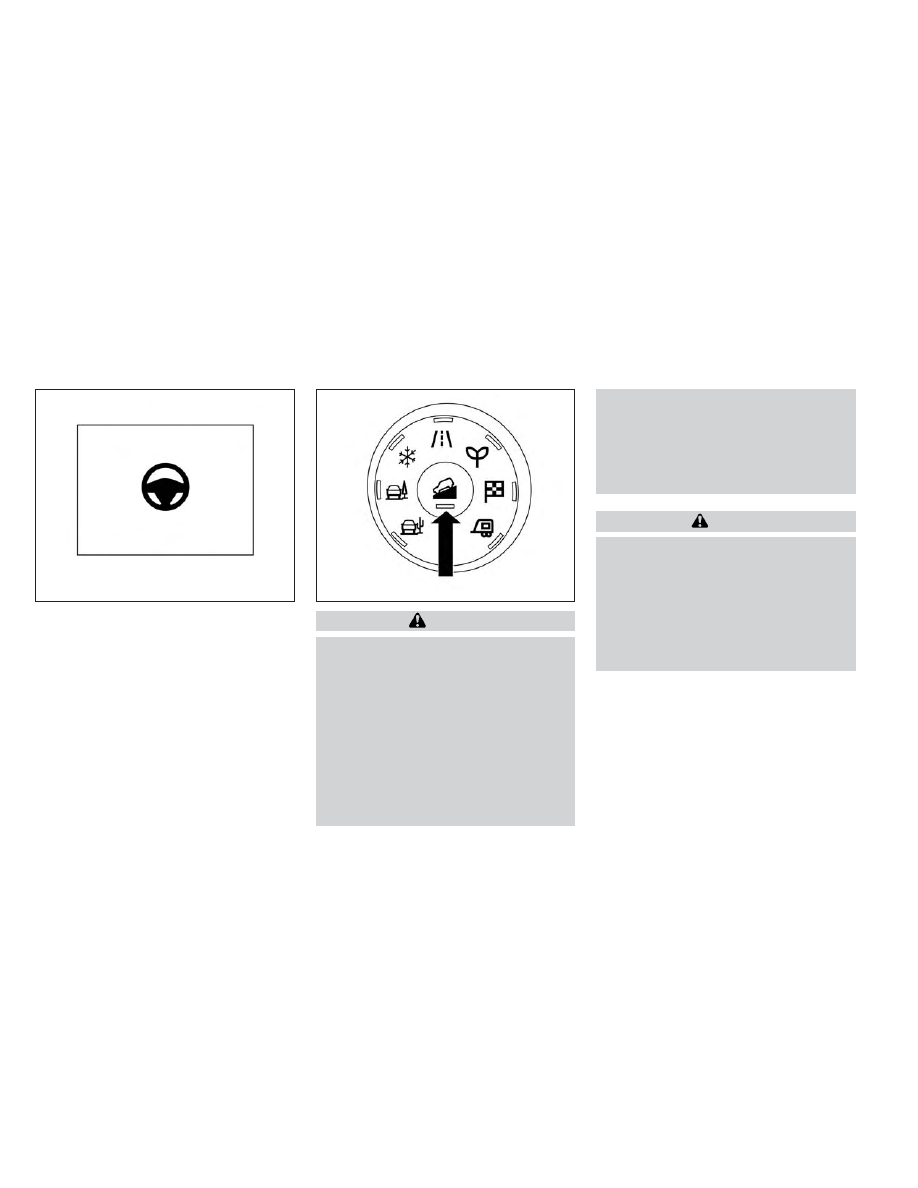

LIC4101

LIC4699

STEERING ASSIST SWITCH (for
vehicles with ProPILOT Assist) (if so
equipped)

HILL DESCENT CONTROL SWITCH (if
so equipped)

Instruments and controls

2-97

• the hill descent control system switch

must be ON.

The hill descent control system ON indica-
tor light will come on when the system is
activated. Also, the stop/tail lights illumi-
nate while the hill descent control system
applies the brakes to control vehicle speed.

If the accelerator or brake pedal is de-
pressed while the hill descent control sys-
tem is on, the system will stop operating
temporarily. As soon as the accelerator or
brake pedal is released, the hill descent
control system begins to function again if
the hill descent control operating condi-
tions are fulfilled.

The hill descent control system ON indica-
tor light blinks if the switch is on and all
conditions for system activation are not
met or if the system becomes disengaged
for any reason.

To turn off the hill descent control system,
push the switch to the OFF position.

For additional information, see “Hill descent
control system ON indicator light” (P. 2-19)
or “Hill descent control system” (P. 5-182).

WARNING

•

Failure to properly adjust the bright-
ness and position of the displayed
image may interfere with the drivers
ability to see through the windshield
which could cause an accident lead-
ing to severe injury or death.

•

Do not use the head up display for
extended periods of time as that can
cause you to not see other vehicles,
pedestrians or objects, which could
cause an accident leading to severe
injury or death.

The HUD can display one or more of the
following features (if so equipped):

䊊

Navigation/Warning

䊊

Audio

䊊

TEL/SMS

䊊

Vehicle speed display

䊊

Traffic Sign Recognition

䊊

Driving Aids

NOTE:

•

Do not place any type of liquid on or
near the projector. Doing so may cause
malfunction of the equipment.

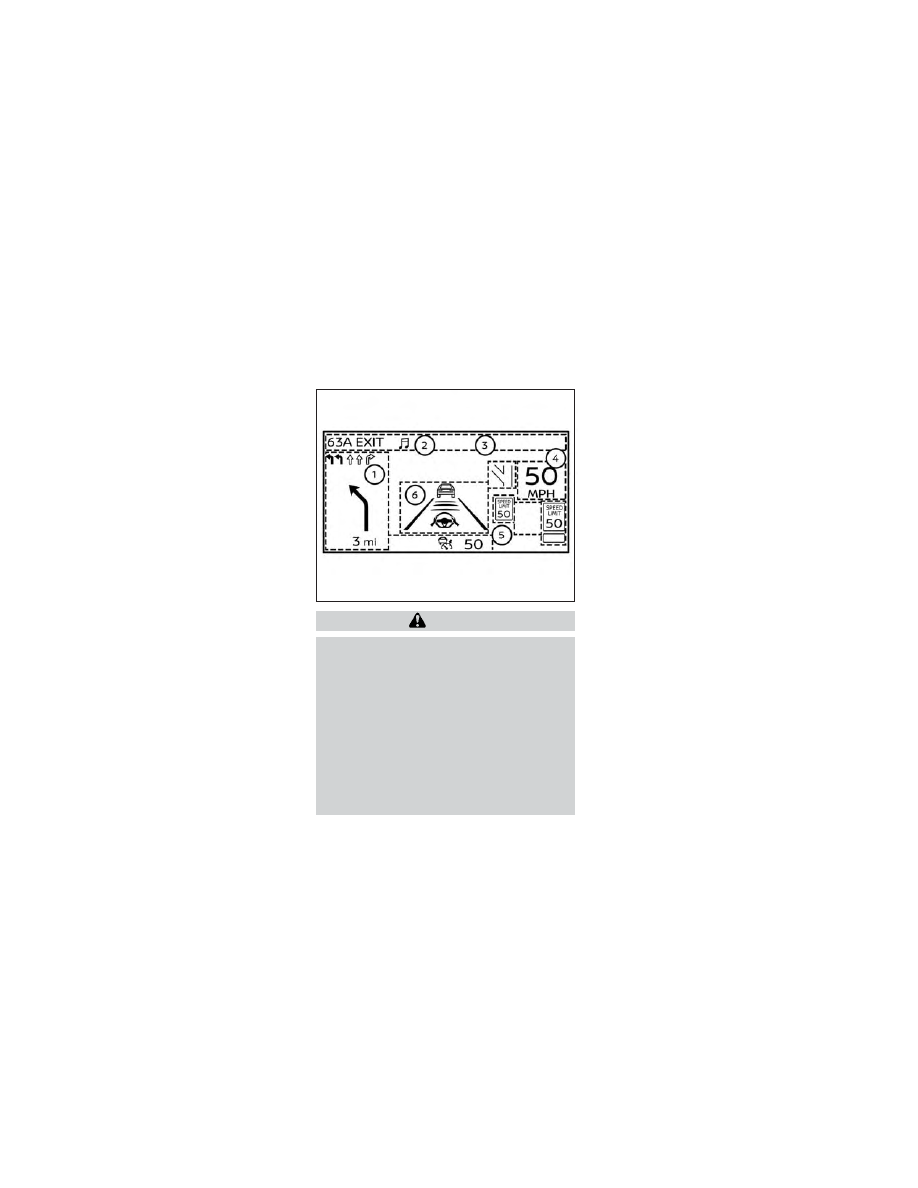

LIC4700

HEAD UP DISPLAY (HUD) (if so
equipped)

2-98

Instruments and controls

NOTE:
• Do not touch any internal parts of the

projector. Doing so may cause mal-
function of the equipment.

• To prevent scratches to the projector

glass, do not place any sharp objects
on or near the projector opening.

• Do not place any objects on the instru-

ment panel which may obstruct the
display of the HUD.

• If you wear polarized sunglasses the

display may be difficult to see. Increase
the brightness of the HUD in the vehicle
information display or remove your
sunglasses.

• Depending

weather

conditions

(rain, snow, sunlight, etc.), the display
may be difficult to see.

• For cleaning, use a dry soft clean cloth.

If dirt, etc. cannot be removed, use a
clean, soft cloth dampened with water
and then use a clean, dry soft cloth.
Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or
paper towel with a chemical cleaning
agent. They will scratch or cause dis-
coloration to the projector lens. Do not
spray any liquid such as water on the
projector lens. Spraying liquid may
cause the system to malfunction.

• If the displayed image appears dis-

torted, it is recommended that you
have the system checked by a NISSAN
dealer or qualified workshop.

• The HUD has a special windshield to

allow the image to be displayed clearly.
If your windshield needs replacing, this
should be completed by a NISSAN
dealer.

HOW TO USE THE HUD

To turn the HUD on, push the HUD switch.
To turn the HUD off, push the switch again.

If the HUD is turned off, it will remain off even
if the vehicle is restarted.

The following settings can be changed in
the vehicle information display:
• Brightness
• Height
• Rotation
• Contents selection

–– Navigation
–– Driving Assist

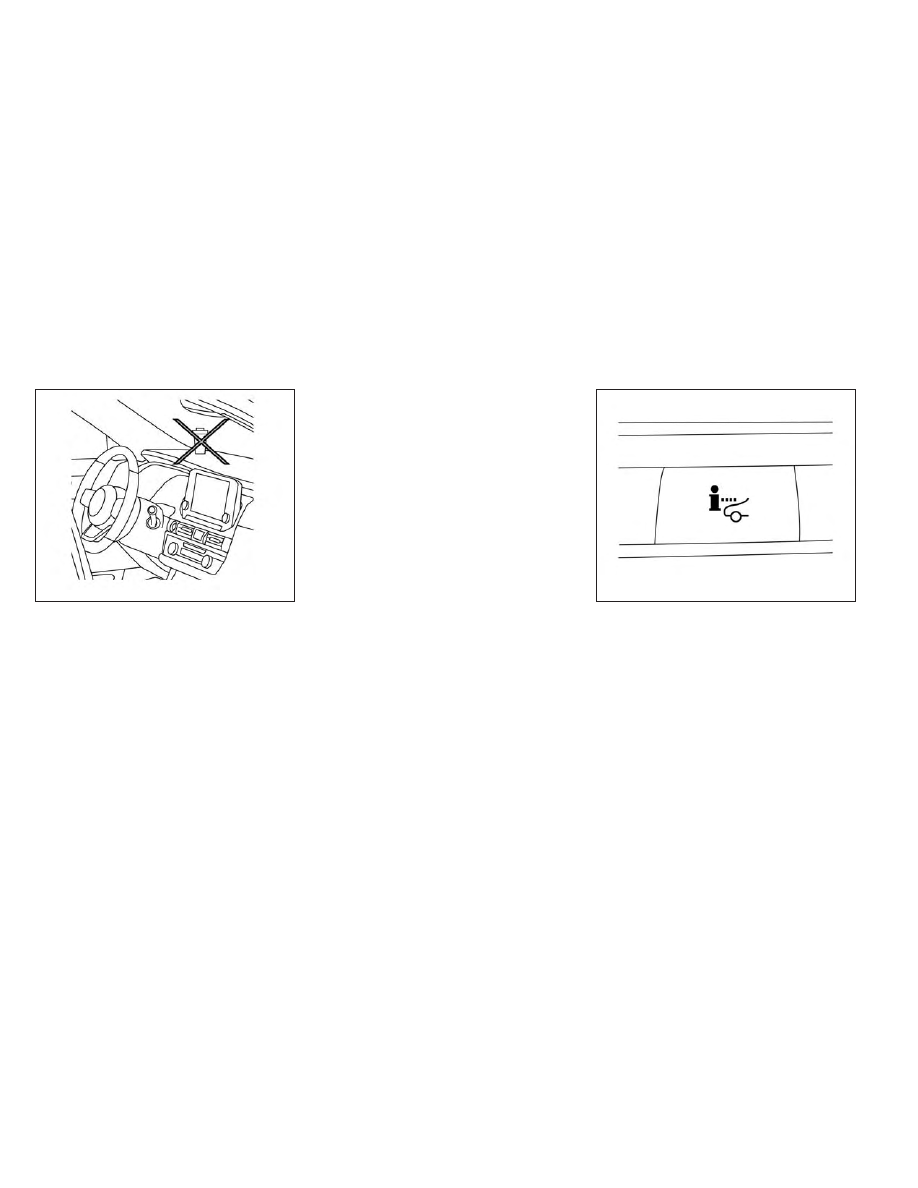

LIC4780

LIC3829

Instruments and controls

2-99

Nissan Pathfinder (2024 year). Manual in english - page 6
