Nissan Versa Sedan (2015 year). Instruction

SXM settings:

To view the SXM settings:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the “SXM” key.

The signal strength, activation status and other
information are displayed on the screen.

FM/AM/SAT radio operation

FM·AM button:

Press the FM·AM button to change the band as
follows:

→ FM1 → FM2 → AM

If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.

The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.

SXM band select:

Pressing the SXM button will change the band as
follows:

SXM1*

→ SXM2* → SXM3*→ SXM1* (satellite,

if so equipped)

When the SXM button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the last station played.

The last station played will also come on when
the ON-OFF/VOL control knob is pressed.

*When the SXM button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
SiriusXM® Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.

If a compact disc is playing when the SXM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the “Channels” key to display a list of
channels. Touch a channel displayed on the list to
change to that channel. Touch the “Categories”

key to display a list of categories. Touch a cat-
egory displayed on the list to display options
within that category.

Tuning with the touch-screen:

When in AM or FM mode, the radio can be tuned
using the touch-screen. To bring up the visual
tuner, touch the “Tune” key on the lower right
corner of the screen. A screen appears with a bar
running from low frequencies on the left to high
frequencies on the right. Touch the screen at the
location of the frequency you wish to tune and the
station will change to that frequency. To return to
the regular radio display screen, touch the “OK”
key.

Tuning with the TUNE control knob:

The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE control knob to the left for lower frequen-
cies or to the right for higher frequencies. When
in SXM mode, turn the TUNE control knob to
change the channel.

Monitor, climate, audio, phone and voice recognition systems

4-45

SEEK tuning:

When in FM or AM mode, press the seek

buttons

to tune from low to high

or high to low frequencies and to stop at the next
broadcasting station.

When

SXM

mode,

press

the

seek

buttons

to change the category.

1 to 6 Station memory operations:

Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. Twelve stations can be set for the
SXM band (6 for SXM1, 6 for SXM2).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or choose
the radio band SXM1, SXM2 using the SXM
button.

2. Tune to the desired station using manual or

seek tuning. Touch and hold any of the de-
sired station memory keys (1 – 6) until a
beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other keys can be set in the same manner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Presets can also be selected by touching the
desired preset number on the screen.

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button:

When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play.

LHA2899

4-46

Monitor, climate, audio, phone and voice recognition systems

CD/MP3 display mode:

Menu item

CD/MP3 display mode

While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a CD encoded with text is
being used). Depending on how the CD or MP3/WMA CD is encoded, the text is displayed listing the artist,
album and song title. There are other keys displayed on the screen when a CD is playing:

Random

Touch the “Random” key to apply a random play pattern to the CD. If an MP3 CD is playing, touching “Ran-
dom” or alternates between Random Folder, and Random All. This text will appear on the display. To cancel
Random mode, touch the “Random” key until the key is no longer highlighted.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the CD. If an MP3 CD is playing, touching “Repeat”
alternates between repeating the current song and repeating the current folder. This text will appear on the
display. To cancel Repeat mode, touch the “Repeat” key until the key is no longer highlighted

Browse

Touch the “Browse” key to display the titles on the CD in list format. Touch the title of a song in the list to begin
playing that song. If an MP3 CD is playing, touching the “Browse” key will also list the folders on the disc. Fol-
low the procedure for selecting a song with the touch-screen to choose a folder.

Monitor, climate, audio, phone and voice recognition systems

4-47

SEEK (Reverse or Fast

Forward) buttons:

Press and hold the seek buttons

for 1.5 seconds while the compact disc is playing
to reverse or fast forward the track being played.
The compact disc plays at an increased speed
while reversing or fast forwarding. When the but-
ton is released, the compact disc returns to nor-
mal play speed.

SEEK buttons:

Press the seek button

while a CD or

MP3/WMA CD is playing to return to the begin-
ning of the current track. Press the seek
button

several times to skip backward sev-

eral tracks.

Press the seek button

while a CD or

MP3/WMA CD is playing to advance one track.
Press the seek button

several times to skip

forward several tracks. If the last track on a CD is
skipped, the first track on the disc is played. If the
last track in a folder of an MP3/WMA CD is
skipped, the first track of the next folder is played.

AUX button:

The AUX IN audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette tape/CD player, MP3 player or a laptop
computer. Press the AUX button to play a com-
patible device plugged into the AUX IN jack.

EJECT button:

When the

button is pressed with a com-

pact disc loaded, the compact disc will eject and
the last source will be played.

If the disc is not removed within 10 seconds, the
disc will reload.

Additional features

For more information about the iPod® player
available with this system, see “iPod® player
operation with Navigation System” in this section.

For more information about the USB interface
available with this system, see “USB interface
(models with Navigation System)” in this section.

For more information about the Bluetooth® audio
interface

available

with

this

system,

see

“Bluetooth® streaming audio with Navigation
System” in this section.

USB INTERFACE (models without
Navigation System) (if so equipped)

Connecting a device to the USB input
jack

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

LHA3037

4-48

Monitor, climate, audio, phone and voice recognition systems

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB input jack is located in the center con-
sole. Insert the USB device into the jack.

When a compatible storage device is plugged
into the jack, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.

Audio file operation

AUX button:

Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If a CD is playing or another
audio source is plugged in through the AUX IN
jack, the AUX button toggles between the three
sources.

Play information:

Information about the audio files being played
can be displayed on the display screen of the
vehicle’s audio system. Depending on how the
audio files are encoded, information such as
Folder, Song and Artist will be displayed.

The track number and number of total tracks in
the folder are displayed on the screen as well.

SEEK/CAT (Reverse or

Fast Forward) buttons:

Press and hold the SEEK/CAT buttons
or

for 1.5 seconds while an audio file on

the USB device is playing to reverse or fast
forward the track being played. The track plays at
an increased speed while reversing or fast for-
warding. When the button is released, the audio
file returns to normal play speed.

SEEK/CAT buttons:

Press the SEEK/CAT button

while an au-

dio file on the USB device is playing to return to
the beginning of the current track. Press the
SEEK/CAT button

several times to skip

backward several tracks.

Press the SEEK/CAT button

while an au-

dio file on the USB device is playing to advance
one track. Press the SEEK/CAT button
several times to skip forward several tracks. If the
last track in a folder on the USB device is
skipped, the first track of the next folder is played.

RDM button:

When the RDM button is pressed while an audio
file on the USB device is playing, the play pattern
can be changed as follows:

All Random

→ 1 Folder Random → OFF

All Random: all tracks on the USB device will be
played randomly.

1 Folder Random: all tracks in the current folder
will be played randomly.

OFF: No random play pattern is applied. The
indicator on the display will turn off.

Monitor, climate, audio, phone and voice recognition systems

4-49

The current play pattern of the USB device is
displayed on the screen unless no pattern is
applied.

RPT button:

When the RPT button is pressed while an audio
file on the USB device is playing, the play pattern
can be changed as follows:

1 Folder Repeat

→ 1 Track Repeat → OFF

1 Track Repeat: the current track will be re-
peated.

1 Folder Repeat: the current folder will be re-
peated.

OFF: No repeat play pattern is applied. The indi-
cator on the display will turn off.

The current play pattern of the USB device is
displayed on the screen unless no pattern is
applied.

TUNE/SCROLL knob:

If there are multiple folders with audio files on the
USB device, turn the TUNE/SCROLL knob to
change folders. Turn the knob to the left to skip
back a folder. Turn the knob to the right to skip
ahead a folder. If there is only one folder of audio
files

the

USB

device,

turning

the

TUNE/SCROLL knob in either direction will re-
turn to the first track on the USB device.

USB INTERFACE (models with
Navigation System) (if so equipped)

Connecting a device to the USB input
jack

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB input jack is located in the center con-
sole. Insert the USB device into the jack.

When a compatible storage device is plugged
into the jack, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.

LHA3037

4-50

Monitor, climate, audio, phone and voice recognition systems

Audio file operation

AUX button:

Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button until the center display
changes to the USB memory mode.

If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.

Play information:

Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of folders and files on the USB device. Touch the
name of a song on the screen to begin playing
that song.

Seeking buttons:

Press the

button while an audio file on the

USB device is playing to return to the beginning
of the current track. Press the

button sev-

eral times to skip backward several tracks.

Press the

button while an audio file on the

USB device is playing to advance one track.
Press the

button several times to skip for-

ward several tracks. If the last track in a folder on
the USB device is skipped, the first track of the
next folder is played.

Random and repeat play mode:

While files on a USB device are playing, the play
pattern can be altered so that songs are repeated
or played randomly.

Random:
Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which random pattern is applied. To cancel Ran-
dom mode, touch the “Random” key until
no

icon is displayed.

Repeat:
Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which repeat pattern is applied. To cancel Repeat
mode, touch the “Repeat” key until no

icon

is displayed.

LHA1496

Monitor, climate, audio, phone and voice recognition systems

4-51

iPod®* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

To connect an iPod® to the vehicle so that the
iPod® can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Connect the
iPod®-specific end of the cable to the iPod®
and the USB end of the cable to the USB jack on
the vehicle. If your iPod® supports charging via a
USB connection, its battery will be charged while
connected to the vehicle with the ignition switch
in the ACC or ON position.

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
jack on the vehicle, then remove the cable from
the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod® 5th Generation (firmware version 1.3

or later)

● iPod® Classic (80GB) (firmware version

1.1.2PC or later)

● iPod® Classic (120GB) (firmware version

2.0.1PC or later)

● iPod® nano - 1st generation (firmware ver-

sion 1.3.1 or later)

● iPod® nano - 2nd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 3rd generation (firmware ver-

sion 1.1.3PC or later)

● iPod® nano - 4th generation (firmware ver-

sion 1.0PC or later)

LHA3037

4-52

Monitor, climate, audio, phone and voice recognition systems

● iPod® nano - 5th generation (8GB) (firm-

ware version 1.0.2PC or later)

● iPod® nano - 5th generation (16GB) (firm-

ware version 1.0.1PC or later)

● iPod® nano - 6th generation (8GB) (firm-

ware version 1.2PC or later)

● iPod® nano - 6th generation (8GB) (firm-

ware version 1.1PC or later)

● iPod® Touch - 1st generation (firmware ver-

sion 2.2.1 or later)

● iPod® Touch - 2nd generation (firmware

version 2.2.1 or later)

● iPod® Touch - 3rd generation (firmware ver-

sion 3.1.3 or later)

● iPod® Touch - 4th generation (firmware ver-

sion 4.3.5 or later)

● iPhone® 3G (firmware version 4.1 or later)
● iPhone® 3GS (firmware version 4.3 or later)
● iPhone® 4 (firmware version 5.0 or later)
● iPhone® 4S (firmware version 5.1 or later)
● iPad® (firmware version 4.3.2 or later)
● iPad® 2 (firmware version 4.3.3 or later)

Make sure that your iPod® firmware is updated to
the version indicated above.

Audio main operation

Place the ignition switch to the ACC or ON
position. Then, press the AUX or MEDIA button
repeatedly to switch to the iPod® mode.

If the audio system is turned off while the iPod® is
playing, the iPod® plays when the audio system
is turned back on.

If the audio system is off, pressing the AUX or
MEDIA button turns the audio system on and
plays the iPod®.

If the audio system is on, the audio system auto-
matically begins playing tracks from the iPod®
when it is plugged into the jack.

SEEK/CAT buttons:

Press the SEEK/CAT buttons

skip backward or forward one track.

Press and hold the SEEK/CAT buttons
or

for 1.5 seconds while a track is playing

to reverse or fast forward the track being played.
The track plays at an increased speed while
reversing or fast forwarding. When the button is
released, the track returns to normal play speed.

(RPT) REPEAT:

When the RPT button is pressed while a track is
being played, the play pattern can be changed as
follows:

Repeat Off

→ 1 Track Repeat → All Repeat →

Repeat Off

1 Track Repeat: the current track will be re-
peated.

All Repeat: all songs in the current list are re-
peated.

Repeat Off: no repeat play pattern is applied.

(RDM) RANDOM:

When the RDM button is pressed while a track is
being played, the play pattern can be changed as
follows:

Shuffle Off

→ Track Shuffle → Album Shuffle →

Shuffle Off

Track Shuffle: the tracks in the current list will be
played randomly.

Album Shuffle: the albums in the current list will
be played randomly.

Shuffle Off: no random play pattern is applied.

Monitor, climate, audio, phone and voice recognition systems

4-53

BACK button:

When the

BACK button is pressed, it re-

turns to the previous menu.

iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

LHA3037

4-54

Monitor, climate, audio, phone and voice recognition systems

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
jack on the vehicle, then remove the cable from
the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod® Classic 5th generation (firmware ver-

sion 1.3.0 or later)

● iPod® Classic 6th generation (firmware ver-

sion 2.0.1 or later)

● iPod® Classic 7th generation (firmware ver-

sion 2.0.4 or later)

● iPod® Touch 2nd generation (firmware ver-

sion 4.2.1 or later)*

● iPod® Touch 3rd generation (firmware ver-

sion 5.1 or later)

● iPod® Touch 4th generation (firmware ver-

sion 5.1 or later)

● iPod® nano - 1st generation (firmware ver-

sion 1.3.1 or later)

● iPod® nano - 2nd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 3rd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 4th generation (firmware ver-

sion 1.0.4 or later)

● iPod® nano - 5th generation (firmware ver-

sion 1.0.2 or later)

● iPod® nano - 6th generation (firmware ver-

sion 1.1 or later)

● iPhone® 3G (firmware version 4.2.1 or later)
● iPhone® 3GS (firmware version 5.1 or later)
● iPhone® 4 (firmware version 5.1 or later)
● iPhone® 4S (firmware version 5.1 or later)

* Some features of this iPod® may not be fully
functional.

Make sure that your iPod® firmware is updated to
the version indicated above.

Audio main operation

Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly to
switch to the iPod® mode.

If the system has been turned off while the iPod®
was playing, pressing the VOL/ON·OFF control
knob will start the iPod®.

AUX button:

When the AUX button is pressed with the system
off and the iPod® connected, the system will turn
on. If another audio source is playing and the
iPod® is connected, press the AUX button re-
peatedly until the center display changes to the
iPod® mode.

LHA1494

Monitor, climate, audio, phone and voice recognition systems

4-55

Interface:

The interface for iPod® operation shown on the
vehicle’s audio system display screen is similar to
the iPod® interface. Use the touch-screen,
BACK button or the scrolling knob to navigate
the menus on the screen.

When the iPod® is playing, touch the “Menu” key
to bring up the iPod® interface.

Depending on the iPod® model, the following
items may be available on the menu list screen.
For further information about each item, see the
iPod® Owner’s Manual.

● Playlists
● Artists
● Albums
● Genres
● Songs
● Composers
● Audiobooks
● Podcasts

Shuffle and repeat play mode:

Item

Result

Shuffle and repeat play mode

While the iPod® is playing, the play pattern can be altered so that songs are repeated or played randomly.

Shuffle

Touch the “Shuffle” key to apply a random play pattern to the iPod®. When the shuffle mode is active it will
appear on the screen. To cancel Shuffle mode, touch the “Shuffle” key until it is not displayed.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the iPod®. When the repeat mode is active it will ap-
pear on the screen. To cancel Repeat mode, touch the “Repeat” key until it is not displayed.

LHA1495

4-56

Monitor, climate, audio, phone and voice recognition systems

Seek buttons:

Press the seek button

to skip

backward or forward one track.

Press and hold the seek button

for 1.5 seconds while a track is playing to reverse
or fast forward the track being played. The track
plays at an increased speed while reversing or
fast forwarding. When the button is released, the
track returns to normal play speed.

Scrolling menus:

While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first character in the name. To
activate character indexing, touch and hold the
“A-Z” key in the upper right corner of the screen.
Turn the TUNE knob to choose the number or
letter to jump to in the list and then press the
ENTER button.

If no character is selected after two seconds, the
display returns to normal.

BLUETOOTH® STREAMING AUDIO
WITHOUT NAVIGATION SYSTEM (if
so equipped)

If you have a compatible Bluetooth® audio de-
vice that is capable of playing audio files, the
device can be connected to the vehicle’s audio
system so that the audio files on the device play
through the vehicle’s speakers.

Connecting Bluetooth® audio

To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:

1. Press the

button. The system an-

nounces the available commands.

2. Say “Connect Phone”. The system acknowl-

edges the command and announces the
next set of available commands.

3. Say “Add Phone”. The system acknowl-

edges the command and asks you to initiate
connecting from the phone handset. The
connecting procedure of the cellular phone
varies according to each cellular phone
model. See the cellular phone Owner’s
Manual for details. You can also visit
www.nissanusa.com/bluetooth for instruc-
tions on connecting NISSAN recommended
cellular phones.

LHA2279

Monitor, climate, audio, phone and voice recognition systems

4-57

4. When prompted for a Passkey code, enter

“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.

Audio main operation

To switch to the Bluetooth® audio mode, press
the AUX button repeatedly until the Bluetooth®
audio mode is displayed on the screen.

Use the vehicle audio controls or the Bluetooth®
device’s controls to play, pause, skip or reverse
tracks.

BLUETOOTH® STREAMING AUDIO
WITH NAVIGATION SYSTEM (if so
equipped)

Connecting Bluetooth® audio

To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the “Phone & Bluetooth” key.

4. Touch the “Connect New Device” key.

5. The system acknowledges the command

and asks you to initiate connecting from the
phone handset. The connecting procedure
of the cellular phone varies according to
each cellular phone model. See the cellular
phone Owner’s Manual for details. You can
also visit www.nissanusa.com/bluetooth for
instructions on connecting NISSAN recom-
mended cellular phones.

LHA2924

LHA2844

4-58

Monitor, climate, audio, phone and voice recognition systems

Audio main operation

To switch to the Bluetooth® audio mode, press
the AUX button repeatedly until the Bluetooth®
audio mode is displayed on the screen.

The controls for the Bluetooth® audio are dis-
played on the screen.

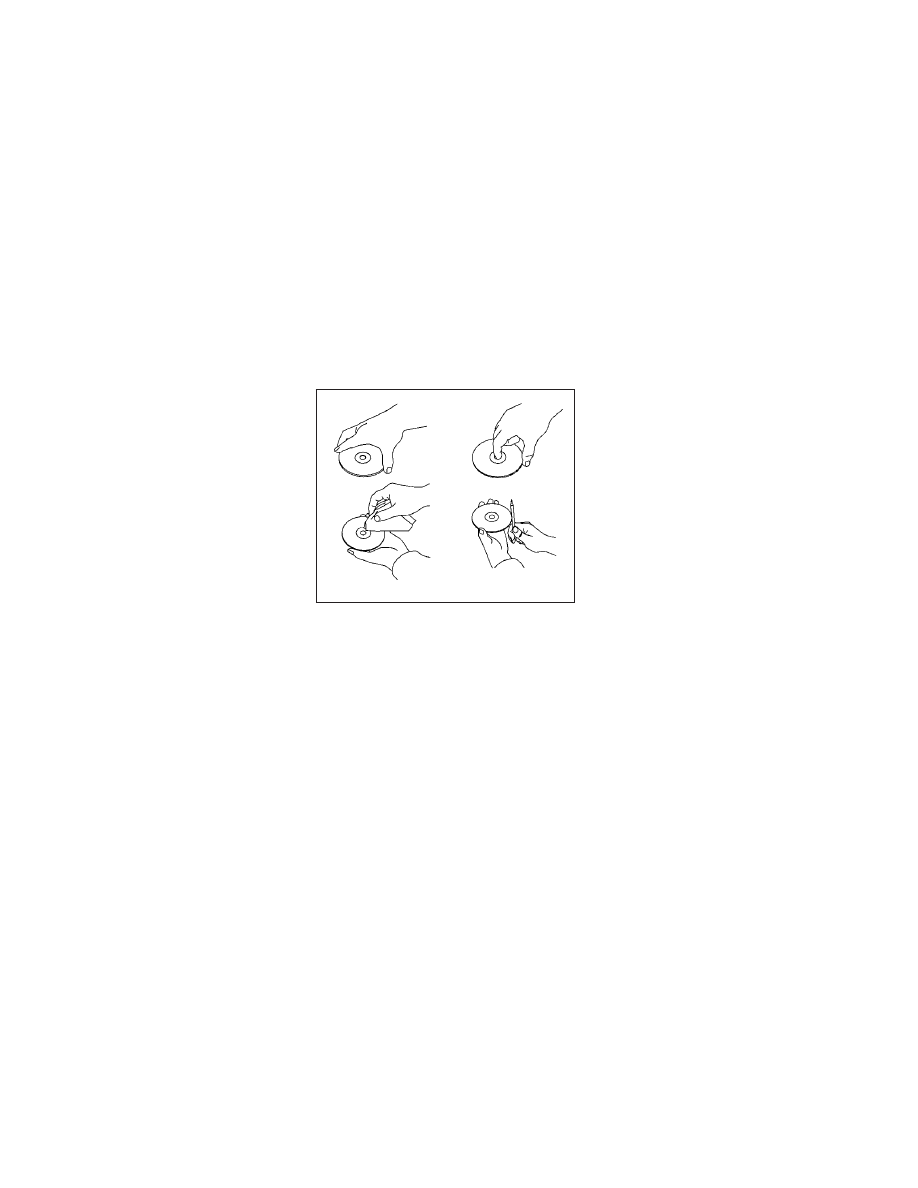

CD CARE AND CLEANING

● Handle a CD by its edges. Do not bend the

disc. Never touch the surface of the disc.

● Always place the discs in the storage case

when they are not being used.

● To clean a disc, wipe the surface from the

center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.

● Do not use a conventional record cleaner or

alcohol intended for industrial use.

● A new disc may be rough on the inner and

outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

The audio system can be operated using the
controls on the steering wheel.

LHA0049

Monitor, climate, audio, phone and voice recognition systems

4-59

SOURCE select switch

Tuning switch

Volume control switch

SOURCE select switch

Push the source select switch to change the
mode in the following sequence:

→ FM1 → FM2 → CD* → USB/iPod®*→

Bluetooth® Audio* (if so equipped)

→ AUX* →

AM.

* These modes are only available when compat-
ible media storage is inserted into the device or
connected to the system.

Volume control switch

Push the volume control switch up or down to
increase or decrease the volume.

Tuning switch

For most audio sources, pushing the tuning
switches for more than 1.5 seconds provides a
different function than pressing for less than
1.5 seconds.

AM and FM:

● Push the

switch for less than 1.5 sec-

onds to increase or decrease the preset
station.

● Push the

switch for more than

1.5 seconds to seek up or down to the next
station.

XM (if so equipped):

● Push the

switch for less than 1.5 sec-

onds to increase or decrease the preset
station.

● Push the

switch for more than

1.5 seconds to go to the next or previous
category.

iPod® (if so equipped):

● Push the

switch for less than 1.5 sec-

onds to increase or decrease the track number.

CD:

● Push the

switch for less than 1.5 sec-

onds to increase or decrease the track number.

● Push the

switch for more than

1.5 seconds to increase or decrease the
folder number (if playing compressed audio
files).

USB (if so equipped):

● Push the

switch for less than 1.5 sec-

onds to increase or decrease the track number.

● Push the

switch for more than

1.5 seconds to increase or decrease the
folder number.

Bluetooth®Audio:

● Push the

switch for less than 1.5 sec-

onds to skip ahead or back to the next song.

● Push the

switch for more than

1.5 seconds to reverse or fast forward the
current song.

LHA2054

4-60

Monitor, climate, audio, phone and voice recognition systems

Nissan Versa Sedan (2015 year). Instruction - part 12
