Nissan Versa Note (2019 year). Instruction

1. Head restraints/headrests (P. 1-6)

2. Roof-mounted curtain side-impact

and rollover supplemental air bag
(P. 1-44)

3. Front seat belt with pretensioner(s)

and shoulder height adjuster
(P. 1-10, 1-44)

4. Seats (P. 1-2)

5. Supplemental air bags (P. 1-44)
6. Occupant classification sensor

(weight sensor) (P. 1-44)

7. Front seat-mounted side-impact

supplemental air bag (P. 1-44)

8. LATCH (Lower Anchors and Tethers

for CHildren) system (P. 1-23)

9. Rear seat belts (P. 1-10)

Refer to the page number indicated in
parentheses for operating details.

LIC3884

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

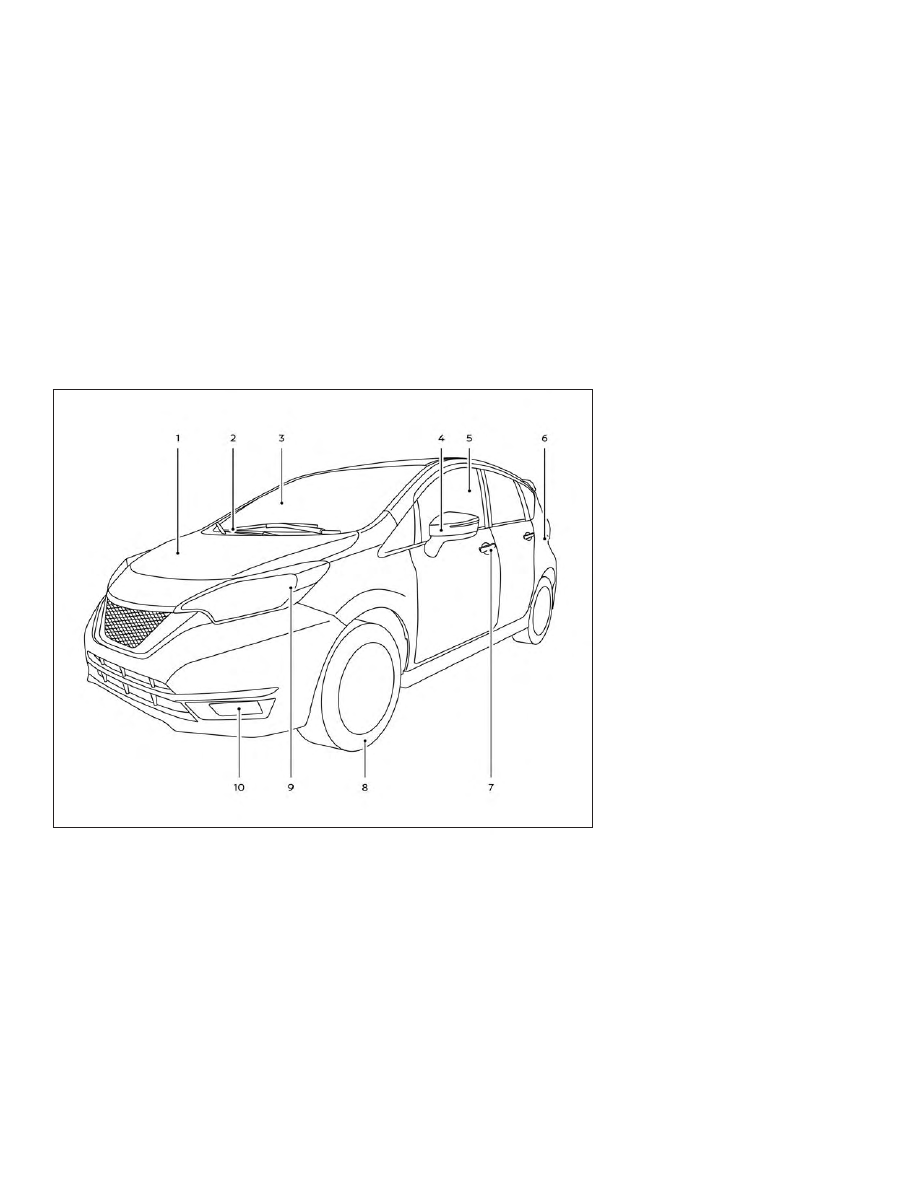

Engine hood (P. 3-26)

Wiper and washer switch (P. 2-26)

Windshield (P. 8-16)

Mirrors (P. 3-32)

Power windows (if so equipped)
(P. 2-41)

Fuel-filler door (P. 3-28)
Fuel-filler cap (P. 3-28)
Recommended fuel (P. 10-2)

Door locks (P. 3-5)
NISSAN Intelligent Key®
(if so equipped) (P. 3-12)
Keys (P. 3-2)

Tire pressure (P. 8-30)
Flat tire (P. 6-3)
Tire chains (P. 8-30)

Headlight and turn signal switch
(P. 2-28)
Daytime Running Lights (DRL)
system (if so equipped) (P. 2-28)
Replacing bulbs (P. 8-25)

10.

Fog light switch (if so equipped)
(P. 2-28)

Refer to the page number indicated in
parentheses for operating details.

LII2557

EXTERIOR FRONT

Illustrated table of contents

0-3

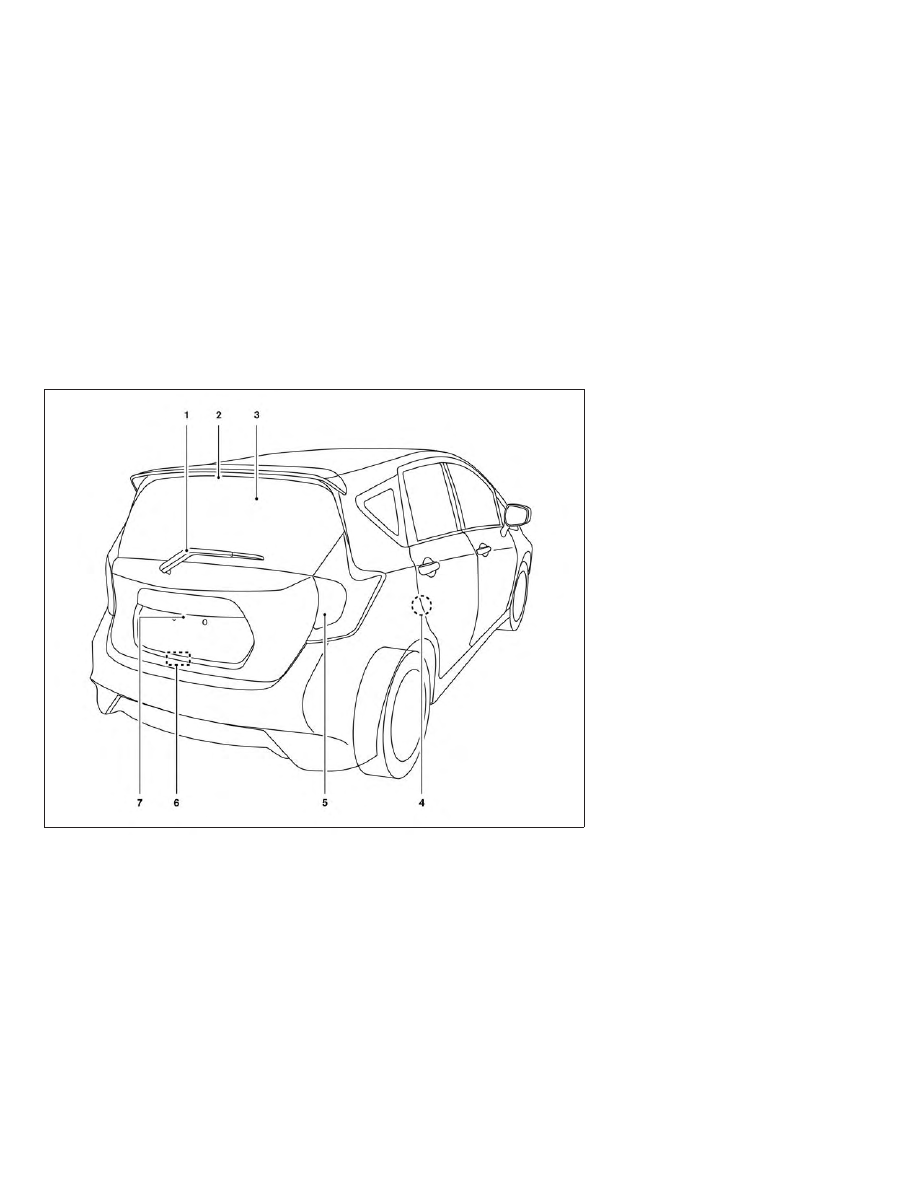

Rear wiper and washer switch
(P. 2-26)

Rear window washer nozzle
(P. 2-26)

Rear window defroster switch
(P. 2-28)

Child safety rear door lock (P. 3-5)

Replacing bulbs (P. 8-25)

Interior hatch release (P. 3-27)

Rear hatch opener (P. 3-27)
Rearview camera (if so equipped)
(P. 4-8)

Refer to the page number indicated in
parentheses for operating details.

LII2511

EXTERIOR REAR

0-4

Illustrated table of contents

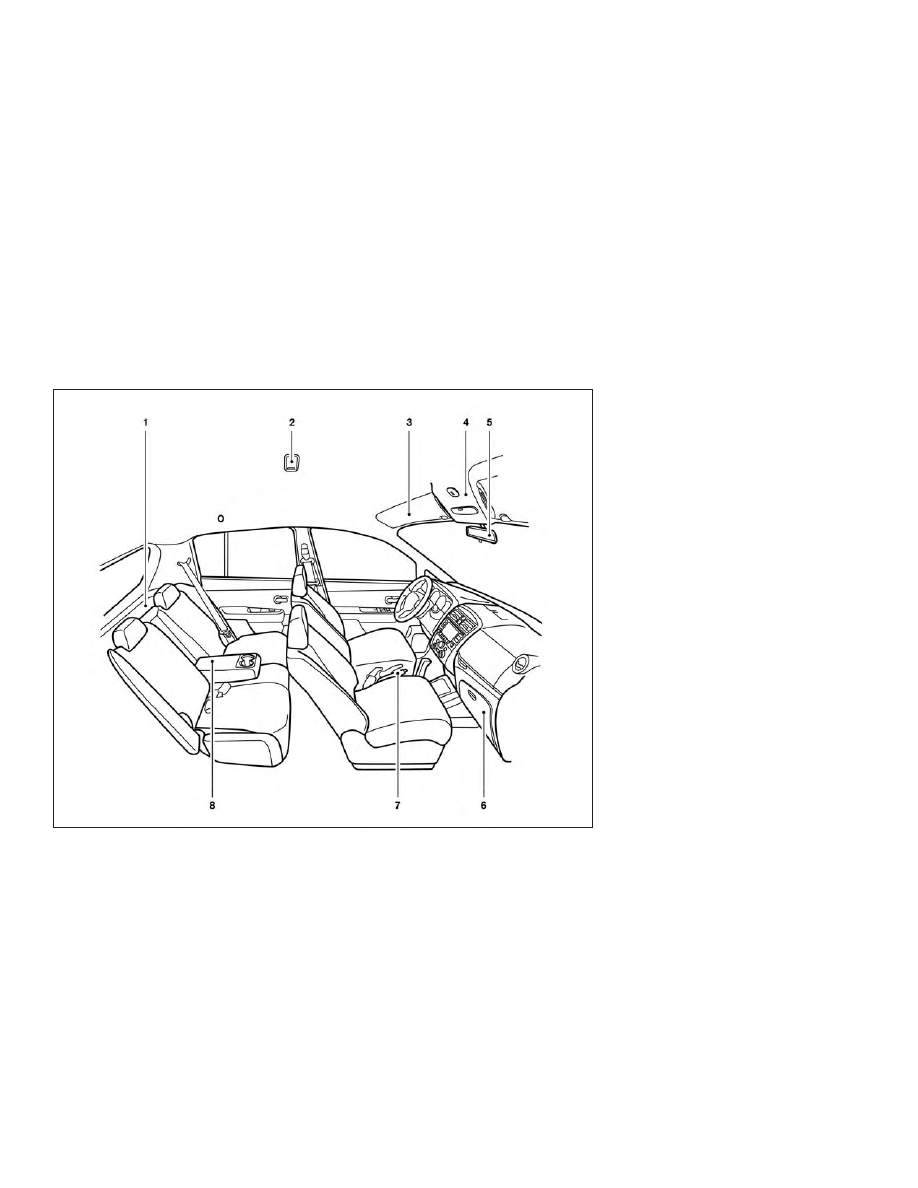

Cargo cover (if so equipped)
(P. 2-35)

Interior lights (P. 2-43)

Sun visors (P. 3-31)

Map lights (P. 2-44)

Rearview mirror (P. 3-32)

Glove box (P. 2-35)

Parking brake (P. 5-23)

Rear armrest (if so equipped) (P. 1-2)

Refer to the page number indicated in
parentheses for operating details.

LII2520

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

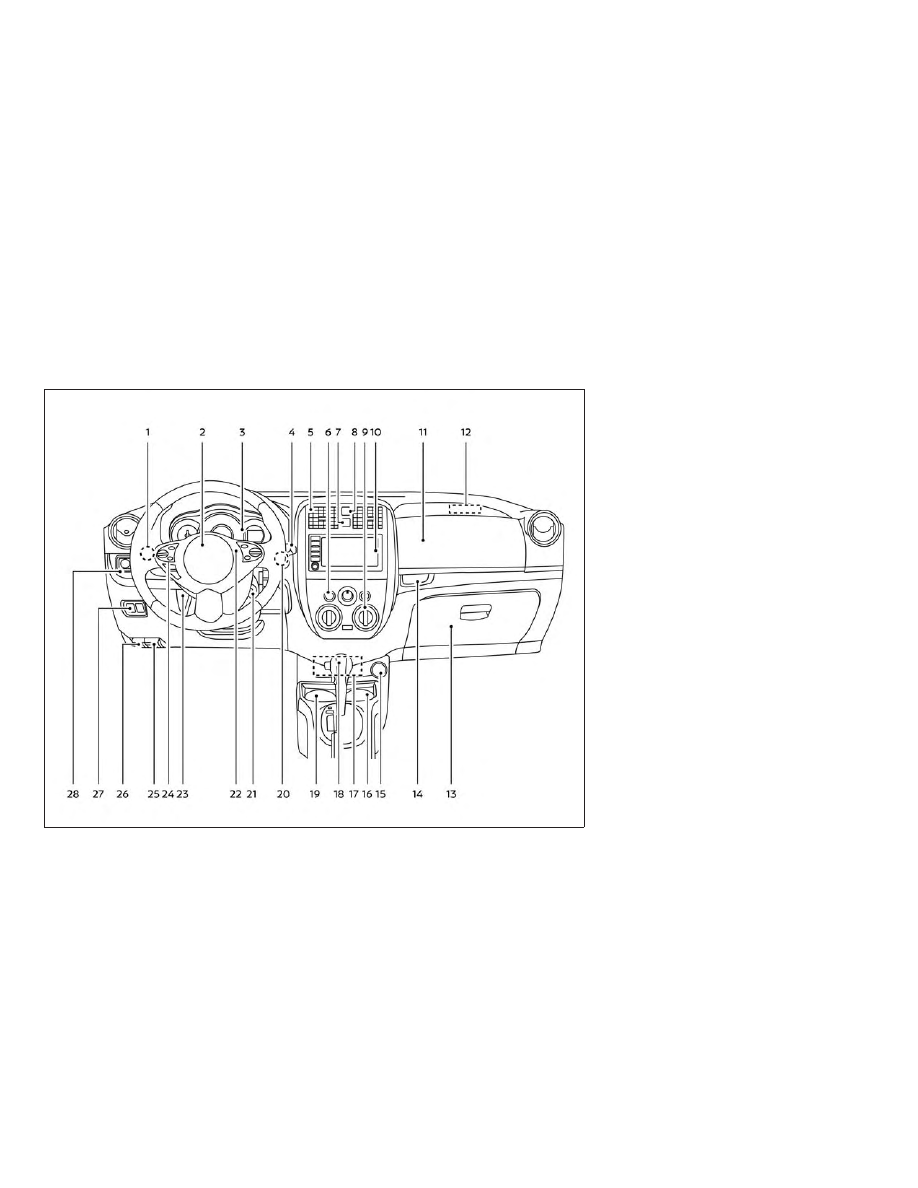

Headlight/fog light (if so
equipped)/turn signal switch
(P. 2-28)

Driver’s supplemental air bag
(P. 1-44)
Horn (P. 2-32)

Meters and gauges (P. 2-3)
Trip computer control switches
(if so equipped) (P. 2-3)

Wiper and washer switch (P. 2-26)

Vents (P. 4-14)

Rear window and outside mirror
(if so equipped) defroster switch
(P. 2-28)

Hazard warning flasher switch
(P. 6-2)

Front passenger air bag status
light (P. 1-44)

Climate control (P. 4-15)

10.

Audio system (P. 4-23)

11.

Upper glove box (P. 2-35)

12.

Passenger’s supplemental air bag
(P. 1-44)

13.

Lower glove box (P. 2-35)

14.

Upper glove box release handle
(P. 2-35)

15.

Power outlet (P. 2-34)

16.

Cup holders (P. 2-35)

LII2556

INSTRUMENT PANEL

0-6

Illustrated table of contents

17.

USB connection port
(if so equipped) (P. 4-23)
AUX IN jack (if so equipped) (P. 4-23)

18.

Shift lever (P. 5-17)

19.

Cup holders (P. 2-35)

20.

Push-button ignition switch
(if so equipped) (P. 5-11)

21.

Ignition switch (if so equipped)
(P. 5-9)

22.

Cruise control switches
(if so equipped) (P. 5-24)

23.

Tilt steering (P. 3-31)

24.

Bluetooth® Hands-Free Phone
System (P. 4-2, 4-46)
Audio control switches (P. 4-23)
Trip computer control switches
(if so equipped) (P. 2-3)

25.

Hood release lever (P. 3-26)

26.

Fuel-filler door release lever
(P. 3-28)

27.

Vehicle Dynamic Control (VDC) OFF
switch (P. 2-33)

28.

Outside mirror control switch
(P. 3-33)

Refer to the page number indicated in
parentheses for operating details.

Illustrated table of contents

0-7

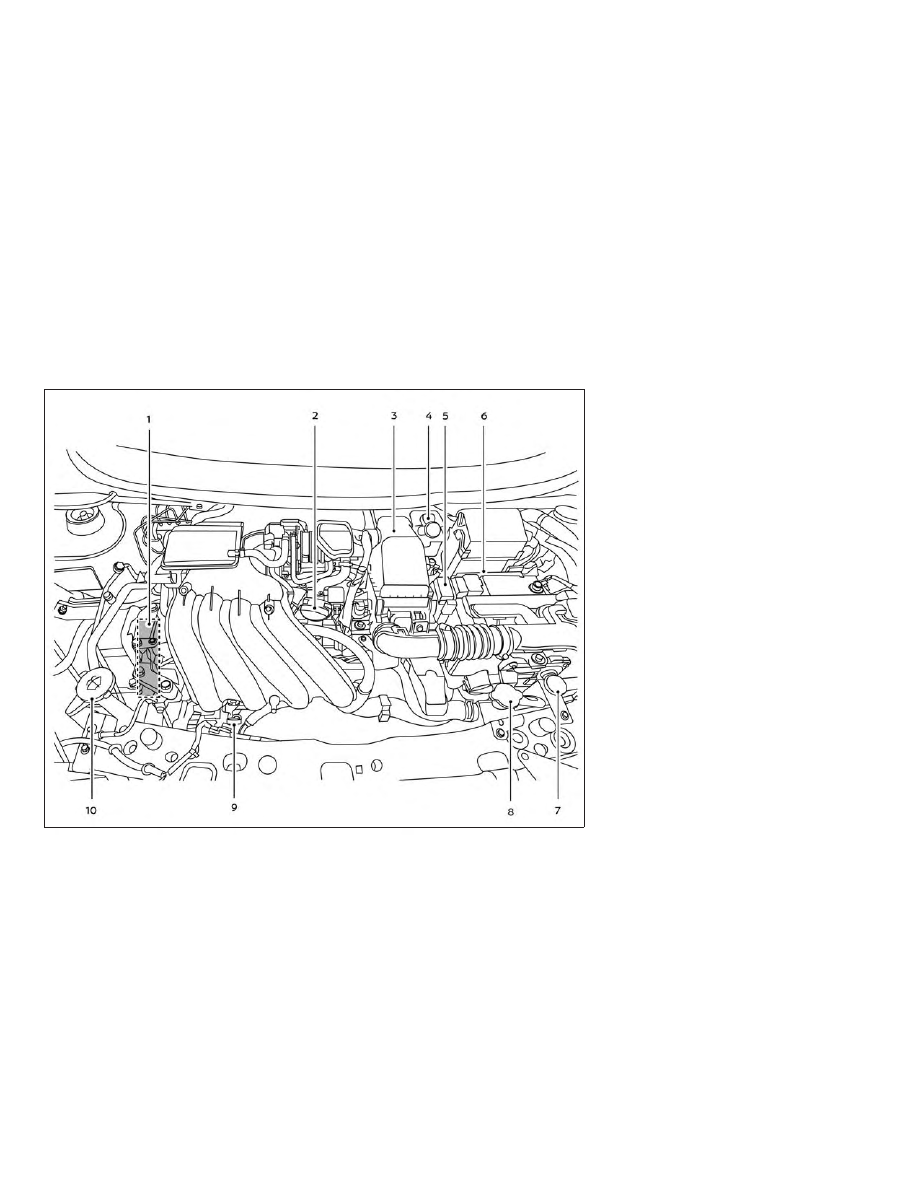

HR16DE engine

Drive belt location (P. 8-14)

Engine oil filler cap (P. 8-6)

Air cleaner (P. 8-16)

Brake and clutch (if so equipped)
fluid reservoir (P. 8-9)

Fusible link (P. 8-19)

Battery (P. 8-12)

Engine coolant reservoir (P. 8-4)

Radiator cap (P. 8-4)

Engine oil dipstick (P. 8-6)

10.

Windshield-washer fluid reservoir
(P. 8-10)

Refer to the page number indicated in
parentheses for operating details.

LDI3283

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking
System (ABS)
warning light

2-15

Brake warning
light

2-15

Charge warning
light

2-16

Door open warn-
ing light

2-16

Engine oil pres-
sure warning light

2-16

High temperature
warning light (red)
(if so equipped)

2-16

Warning

light

Name

Page

Low fuel warning
light

2-17

Low tire pressure
warning light (if so
equipped)

2-17

Low windshield-
washer fluid
warning light (if so
equipped)

2-19

NISSAN Intelligent
Key® warning light
(if so equipped)

2-19

P position select-
ing warning light
(if so equipped)

2-19

Power steering
warning light

2-19

Seat belt warning
light and chime

2-20

Warning

light

Name

Page

Supplemental air
bag warning light

2-20

Indicator

light

Name

Page

Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light (if so
equipped)

2-21

CRUISE indicator
light (if so
equipped)

2-21

Engine start op-
eration indicator
light (if so
equipped)

2-21

Front fog light in-
dicator light (if so
equipped)

2-21

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

Indicator

light

Name

Page

Front passenger
air bag status
light

2-21

High beam indi-
cator light (blue)

2-21

Malfunction Indi-
cator Light (MIL)

2-21

Overdrive OFF
indicator light (if
so equipped)

2-22

Security indicator
light (if so
equipped)

2-22

SET indicator light
(if so equipped)

2-23

Side light and
headlight indica-
tor light (green) (if
so equipped)

2-23

Indicator

light

Name

Page

Slip indicator light

2-22

Turn signal/
hazard indicator
lights

2-23

Vehicle Dynamic
Control (VDC) OFF
indicator light

2-23

0-10

Illustrated table of contents

WARNING

∙ Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

∙ For the most effective protection

when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.

∙ After adjustment, gently rock in the

seat to make sure it is securely locked.

∙ Do not leave children unattended in-

side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

∙ Do not adjust the driver’s seat while

driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

∙ The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

FRONT MANUAL SEAT
ADJUSTMENT

Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.

Forward and backward

Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.

Reclining

To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift

LRS2708

LRS2709

Safety—Seats, seat belts and supplemental restraint system

1-3

lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.

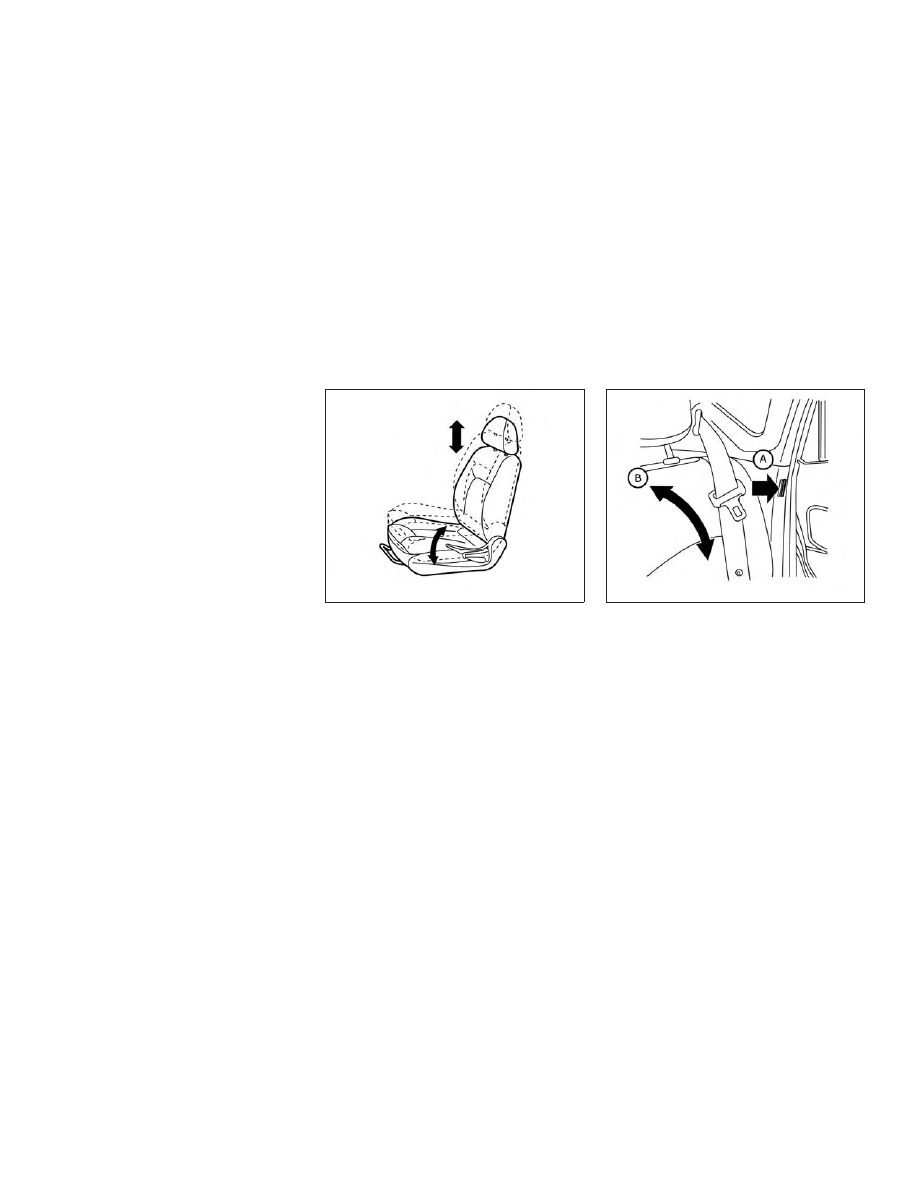

Seat lifter (if so equipped for
driver’s seat)

Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.

FOLDING REAR SEAT

1. Ensure the rear outboard seat belt

tongue is properly stowed in the rear
trim slot next to the door

䊊

before

moving the rear seatback

䊊

in order to

prevent the outboard seat belt from
getting caught behind the rear seat-
back.

LRS2710

LRS2954

1-4

Safety—Seats, seat belts and supplemental restraint system

2. Pull the knob

䊊

and fold

䊊

the rear

seatback down.

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

CENTER ARMREST (if so equipped)

Pull the armrest down as shown.

LRS2701

LRS2733

Safety—Seats, seat belts and supplemental restraint system

1-5

ARMREST (if so equipped for
driver’s side only)

To use the armrest, pull it down as shown.

䊊

Stowed position

䊊

Resting position

WARNING

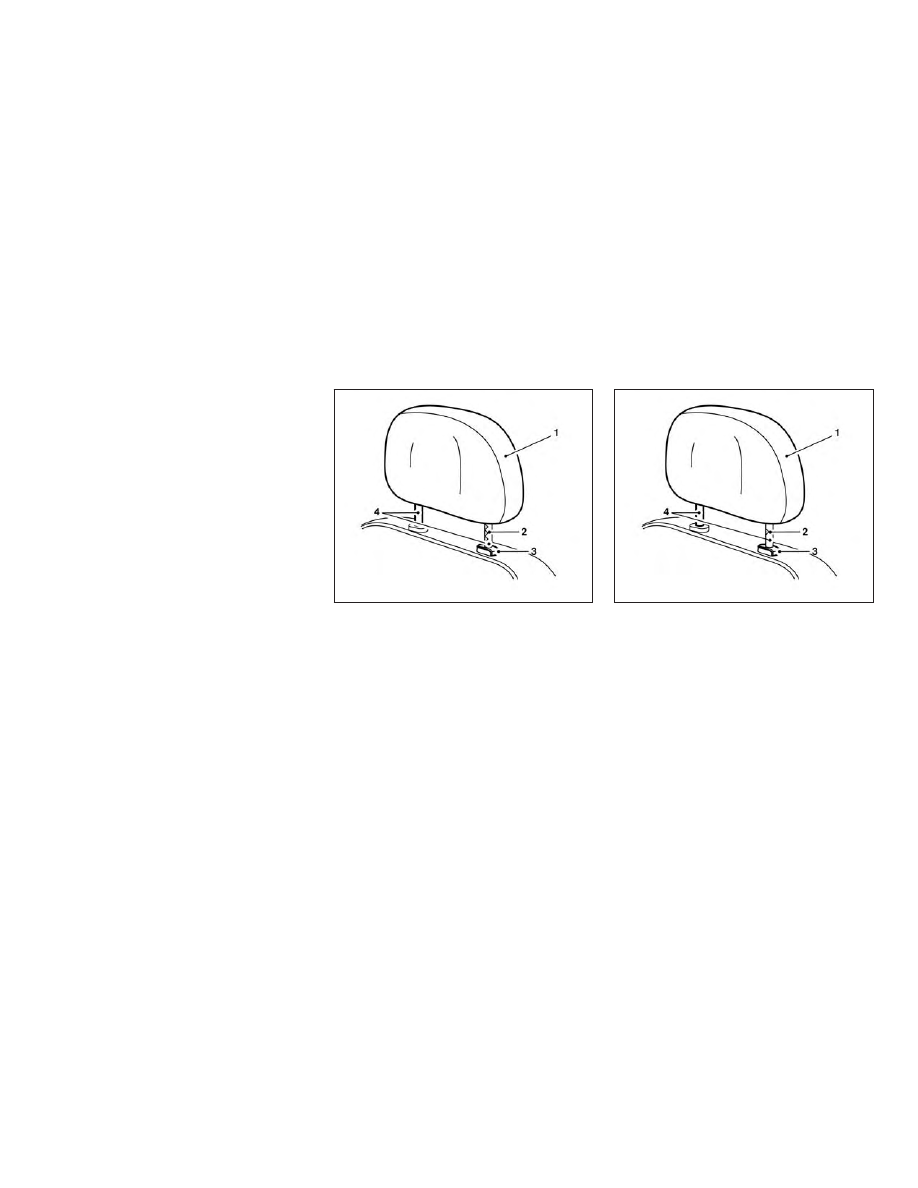

Head restraints/headrests supplement
the other vehicle safety systems. They
may

provide

additional

protection

against injury in certain rear end colli-
sions.

Adjustable

head

restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment after someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks

remove

the

head

restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests.

This

may

in-

crease the risk of serious injury or death
in a collision.

The illustration shows the seating posi-
tions

equipped

with

head

restraints/headrests.

䉱 Indicates the seating position is
equipped with a head restraint.

䡲 Indicates the seating position is equipped
with a headrest.

+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).

∙ Your vehicle is equipped with a head

restraint/headrest that may be inte-
grated, adjustable or non-adjustable.

LRS2454

LRS2000

HEAD RESTRAINTS/HEADRESTS

1-6

Safety—Seats, seat belts and supplemental restraint system

∙ Adjustable head restraints/headrests

have multiple notches along the stalk(s)
to lock them in a desired adjustment
position.

∙ The non-adjustable head restraints/

headrests have a single locking notch
to secure them to the seat frame.

∙ Proper Adjustment:

– For the adjustable type, align the

head restraint/headrest so the cen-
ter of your ear is approximately level
with

the

center

the

head

restraint/headrest.

– If your ear position is still higher than

the recommended alignment, place
the head restraint/headrest at the
highest position.

∙ If the head restraint/headrest has been

removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

LRS2300

LRS2299

Safety—Seats, seat belts and supplemental restraint system

1-7

Nissan Versa Note (2019 year). Instruction - part 1
