This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For details, see “LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem” later in this section.

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind:

● Choose only a restraint with a label certifying

that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

● Check the child restraint in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

● If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated an-
chor point on the vehicle.

LATCH (Lower Anchors and Tethers

for CHildren) SYSTEM

Your vehicle is equipped with special anchor
points that are used with LATCH (Lower Anchors
and Tethers for CHildren) system compatible
child restraints. This system may also be referred
to as the ISOFIX or ISOFIX compatible system.
With this system, you do not have to use a vehicle
seat belt to secure the child restraint.

LATCH system lower anchor locations

WRS0756

1-18

Safety—Seats, seat belts and supplemental restraint system

LATCH lower anchor

WARNING

Failure to follow the warnings and instruc-
tions for proper use and installation of
child restraints could result in serious in-
jury or death of a child or other passen-
gers in a sudden stop or collision:

– Attach LATCH system compatible

child restraints only at the locations
shown in the illustration.

– Do not secure a child restraint in the

center rear seating position using
the LATCH lower anchors. The child
restraint will not be secured properly.

– Inspect the lower anchors by insert-

ing your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such
as seat belt webbing or seat cushion
material. The child restraint will not
be secured properly if the lower an-
chors are obstructed.

LATCH lower anchor location

The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH lower anchors.

Installing child restraint LATCH lower
anchor attachments

LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this sys-
tem, you do not have to use a vehicle seat belt to
secure the child restraint. Check your child re-
straint for a label stating that it is compatible with
LATCH. This information may also be in the in-
structions provided by the child restraint manu-
facturer.

LATCH lower anchor location

WRS0700

LATCH webbing-mounted attachment

LRS0661

Safety—Seats, seat belts and supplemental restraint system

1-19

When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.

Top tether anchor

WARNING

● If the cargo cover (if so equipped) con-

tacts the top tether strap when it is
attached to the top tether anchor, re-
move the cargo cover from the vehicle
or secure it on the cargo floor below its
attachment location. If the cargo cover
is not removed, it may damage the top
tether strap during a collision. A child
could be seriously injured or killed in a
collision if the child restraint top tether
strap is damaged.

Top tether anchor point locations

Anchor points are located on the back of the rear
seats .

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before in-
stalling a child restraint.

LATCH rigid-mounted attachment

LRS0662

WRS0759

1-20

Safety—Seats, seat belts and supplemental restraint system

Follow these steps to install a rear-facing child
restraint using the LATCH system:

1. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is prop-
erly attached to the lower anchors.

Rear-facing web-mounted – step 2

WRS0801

Rear-facing rigid-mounted – step 2

WRS0802

Safety—Seats, seat belts and supplemental restraint system

1-21

3. For child restraints that are equipped with

webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

4. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch (25
mm), from side to side. Try to tug it forward
and check to see if the LATCH attachment
holds the restraint in place. If the restraint is
not secure, tighten the LATCH attachment
as necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint or try installing by
using the vehicle seat belt (if applicable).
Not all child restraints fit in all types of ve-
hicles.

5. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.

Rear-facing – step 3

LRS0673

Rear-facing – step 4

LRS0674

1-22

Safety—Seats, seat belts and supplemental restraint system

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

WARNING

● The three-point seat belt with Auto-

matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger
air bag and status light” later in this
section.

● When installing a child restraint system

in the rear center position, both the
center seat belt connector tongue and
buckle tongue must be secured. See
“Attaching the center seat belt” in this
section.

Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before in-
stalling a child restraint.

Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the seat.
Always follow the restraint manufacturer’s
instructions.

WRS0256

Rear-facing – step 1

WRS0256

Safety—Seats, seat belts and supplemental restraint system

1-23

2. Route the seat belt tongue through the child

restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

4. Allow the seat belt to retract. Pull up on the

shoulder belt to remove any slack in the belt.

Rear-facing – step 2

WRS0761

Rear-facing – step 3

LRS0669

Rear-facing – step 4

LRS0670

1-24

Safety—Seats, seat belts and supplemental restraint system

5. Remove any additional slack from the seat

belt; press downward and rearward firmly in
the center of the child restraint to compress
the vehicle seat cushion and seatback while
pulling up on the seat belt.

6. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm), from
side to side. Try to tug it forward and check
to see if the belt holds the restraint in place.
If the restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may need
to try a different child restraint. Not all child
restraints fit in all types of vehicles.

7. Check to make sure that the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.

After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before in-
stalling a child restraint.

Follow these steps to install a forward-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

Rear-facing – step 5

WRS0762

Rear-facing – step 6

WRS0763

Safety—Seats, seat belts and supplemental restraint system

1-25

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is prop-
erly attached to the lower anchors.

If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap” in this
section. Do not install child restraints that
require the use of a top tether strap in seat-
ing positions that do not have a top tether
anchor.

3. The back of the child restraint should be

secured against the vehicle seatback.

See “Head restraints” in this section

for head restraint adjustment information.

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.

4. For child restraints that are equipped with

webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

5. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

Forward-facing web-mounted – step 2

WRS0799

Forward-facing rigid-mounted – step 2

WRS0800

Forward-facing – step 4

LRS0671

1-26

Safety—Seats, seat belts and supplemental restraint system

6. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch (25
mm), from side to side. Try to tug it forward
and check to see if the LATCH attachment
holds the restraint in place. If the restraint is
not secure, tighten the LATCH attachment
as necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the opera-
tion of the front passenger air bag. See
“Front passenger air bag and status light”
later in this section.

When installing a child restraint system in
the rear center position, both the center
seat belt connector tongue and buckle
tongue must be secured. See “Attaching
the rear center seat belt” in this section.

Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before in-
stalling a child restraint.

Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and, there-
fore, must not be used in the front seat.

Forward-facing – step 6

WRS0697

Forward-facing (front passenger seat) –

step 1

WRS0699

Safety—Seats, seat belts and supplemental restraint system

1-27

2. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

The back of the child restraint should be
secured against the vehicle seatback.

If necessary, adjust or remove the head re-
straint to obtain the correct child restraint fit.
If the head restraint is removed, store it in a
secure place. Be sure to reinstall the
head restraint when the child restraint
is removed. See “Head restraints” in this
section for head restraint adjustment, re-
moval and installation information.

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.

3. Route the seat belt tongue through the child

restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.

If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only). See “In-
stalling top tether strap” in this section. Do
not install child restraints that require the use
of a top tether strap in seating positions that
do not have a top tether anchor.

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

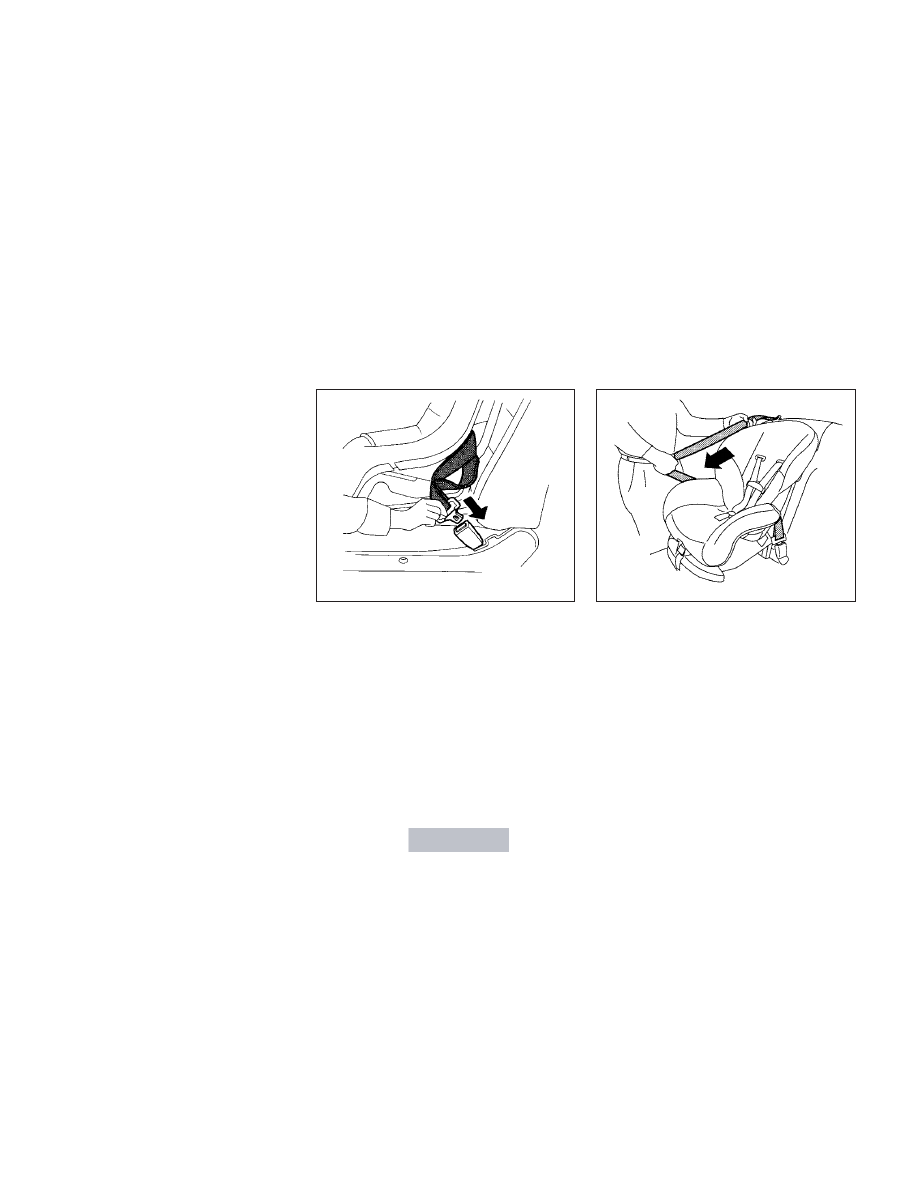

Forward-facing – step 3

WRS0680

Forward-facing – step 4

LRS0667

1-28

Safety—Seats, seat belts and supplemental restraint system

5. Allow the seat belt to retract. Pull up on the

shoulder belt to remove any slack in the belt.

6. Remove any additional slack from the seat

belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.

7. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

8. After attaching the child restraint, test it be-

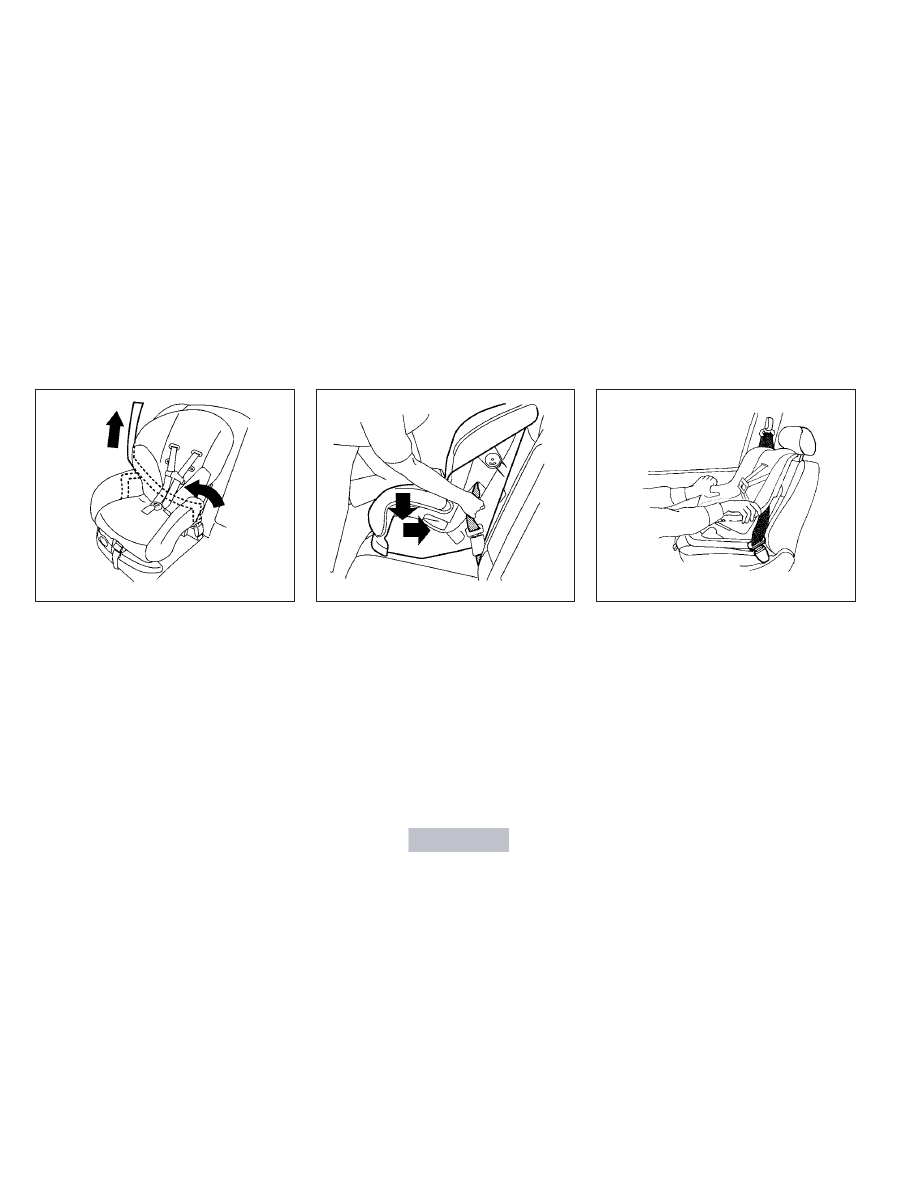

Forward-facing – step 5

LRS0668

Forward-facing – step 6

WRS0681

Forward-facing – step 8

WRS0698

Safety—Seats, seat belts and supplemental restraint system

1-29

9. Check to make sure the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.

10. If the child restraint is installed in the front

passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light

should illuminate. If this

light is not illuminated see,

⬙Front passenger

air bag and status light

⬙ in this section.

Move the child restraint to another
seating

position.

Have

the

system

checked by a NISSAN dealer.

After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child re-
straint mode) is canceled.

INSTALLING TOP TETHER STRAP

First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions only)
or the seat belt, as applicable.

1. If necessary, raise or remove the head re-

straint to position the top tether strap over
the top of the seatback. If the head restraint
is removed, store it in a secure place. Be
sure to reinstall the head restraint when the
child restraint is removed. See “Head re-
straints” in this section for head re-
straint adjustment, removal and instal-
lation information.

Forward-facing – step 10

WRS0475

WRS0759

1-30

Safety—Seats, seat belts and supplemental restraint system

2. Secure the tether strap to the tether anchor

point on the seat directly behind the child
restraint.

3. Refer to the appropriate child restraint in-

stallation procedure steps in this section
before tightening the tether strap.

If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.

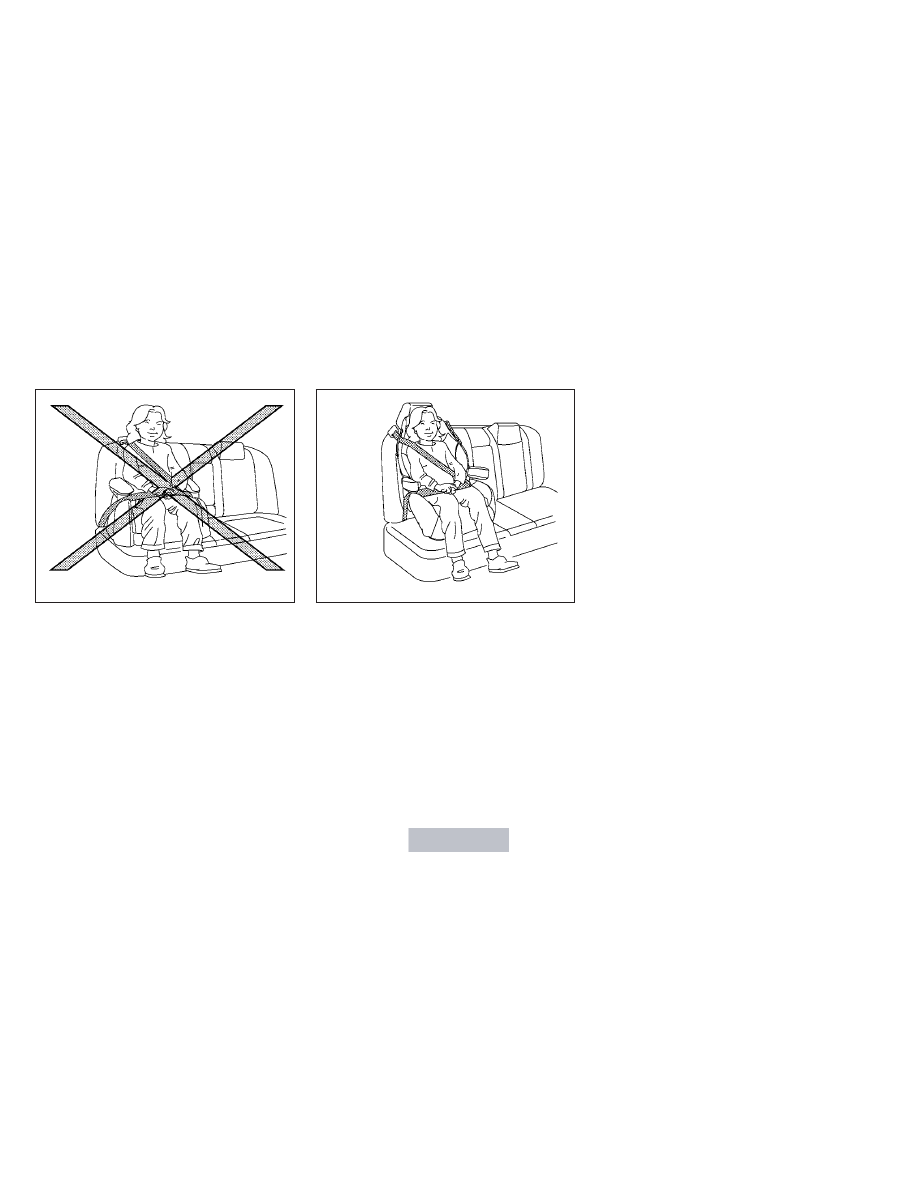

BOOSTER SEATS

Precautions on booster seats

WARNING

If a booster seat and seat belt are not used
properly, the risk of a child being injured
in a sudden stop or collision greatly
increases:

– Make sure the shoulder portion of

the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.

– Make sure the shoulder belt is not

behind the child or under the child’s
arm.

– A booster seat must only be installed

in a seating position that has a
lap/shoulder belt.

LRS0455

Safety—Seats, seat belts and supplemental restraint system

1-31

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

● Choose only a booster seat with a label

certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

● Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat

䊊

is chosen, the

vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat

䊊

should be used.

● If the booster seat is compatible with your

vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended pro-
cedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.

LRS0453

LRS0464

1-32

Safety—Seats, seat belts and supplemental restraint system

Booster seat installation

CAUTION

Do not use the lap/shoulder belt in the
Automatic Locking Retractor mode when
using a booster seat with the seat belts.

Refer to all Warnings and Cautions in the “Child
safety”, “Child restraints” and “Booster seats”
sections before installing a child restraint.

Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:

1. If you must install a booster seat in the

front seat, move the seat to the rear-
most position.

2. Position the booster seat on the seat. Only

place it in a front-facing direction. Always
follow the booster seat manufacturer’s in-
structions.

3. The booster seat should be positioned on

the vehicle seat so that it is stable.

If necessary, adjust or remove the head re-
straint to obtain the correct booster seat fit. If
the head restraint is removed, store it in a
secure place. Be sure to reinstall the
head restraint when the booster seat is
removed. See “Head restraints” in this sec-
tion for head restraint adjustment, removal
and installation information.

WRS0699

Front passenger position

LRS0454

Safety—Seats, seat belts and supplemental restraint system

1-33

Nissan Versa Hatchback (2012 year). Instruction - part 3
