Nissan Titan (2019 year). Instruction

∙ Always use tires of the same type,

size, brand, construction (bias, bias-
belted, or radial), and tread pattern on
all four wheels. Install tire chains on
the rear wheels when driving on slip-
pery roads and drive carefully.

∙ Be sure to check the brakes immedi-

ately after driving in mud or water. For
additional information, refer to “Wet
brakes” in this section.

∙ Avoid parking your vehicle on steep

hills. If you get out of the vehicle and it
rolls forward, backward or sideways,
you could be injured.

∙ Whenever you drive off-road through

sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. For additional
information, refer to “Maintenance
schedules” in the “Maintenance and
schedules” section of this manual.

WARNING

Do not operate the push-button igni-
tion switch while driving the vehicle ex-
cept in an emergency. (The engine will
stop when the ignition switch is pushed
three consecutive times in quick suc-
cession or the ignition switch is pushed
and held for more than 2 seconds.) If the
engine stops while the vehicle is being
driven, this could lead to a crash and
serious injury.

When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch position will illuminate as follows:

Push center:

∙ Once to change to ACC.

∙ Two times to change to ON.

∙ Three times to return to OFF.

The ignition switch will automatically re-
turn to the LOCK position when any door is
either opened or closed with the switch in
the OFF position.

The ignition lock is designed so that the
ignition switch position cannot be placed
in the OFF position until the shift lever is
moved to the P (Park) position.

When the ignition switch cannot be pushed
toward the OFF position, proceed as fol-
lows:

1. Move the shift lever into the P (Park)

position.

2. Push the ignition switch. The ignition

switch position will change to the ON
position.

3. Push the ignition switch again to the

OFF position.

LSD2014

PUSH-BUTTON IGNITION SWITCH

Starting and driving

5-11

The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

If the battery of the vehicle is discharged,
the push-button ignition switch cannot
be moved from the LOCK position.

Some indicators and warnings for opera-
tion are displayed in the meter. For addi-
tional information, refer to “Vehicle infor-
mation display warnings and indicators” in
the “Instruments and controls” section of
this manual.

OPERATING RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range.

When the Intelligent Key battery is almost
discharged or strong radio waves are pres-
ent near the operating location, the Intelli-
gent Key system’s operating range be-
comes narrower and may not function
properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key,
to push the ignition switch to start the en-
gine.

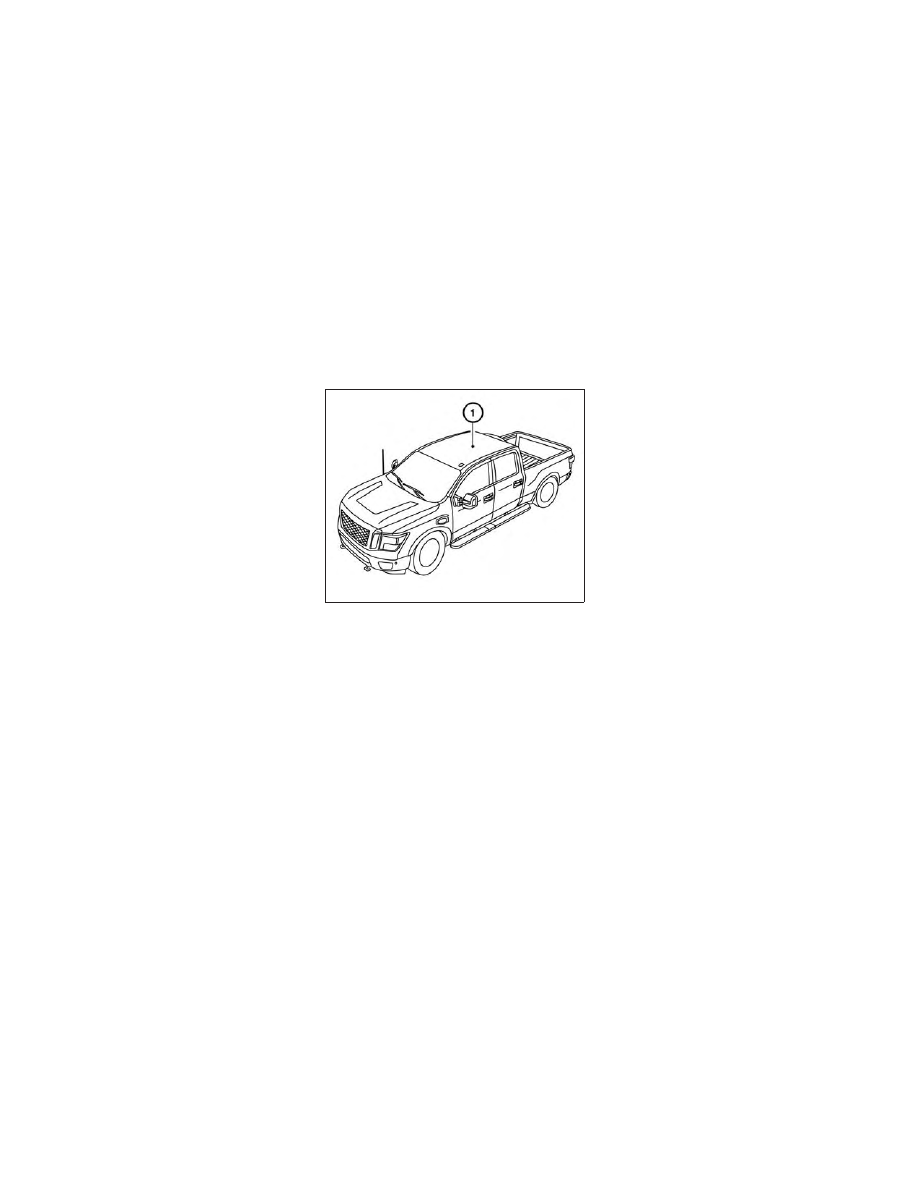

The operating range of the engine start
function is inside of the vehicle

䊊

∙ The luggage area is not included in the

operating range, but the Intelligent Key
may function.

∙ If the Intelligent Key is placed on the

instrument panel or inside the glove
box, storage bin or door pocket, the In-
telligent Key may not function.

∙ If the Intelligent Key is placed near the

door or window outside the vehicle, the
Intelligent Key may function.

PUSH-BUTTON IGNITION SWITCH
POSITIONS

LOCK (Normal parking position)

The ignition switch can only be locked in
this position.

The ignition switch will be unlocked when it
is pushed to the ACC position while carry-
ing the Intelligent Key.

LSD2456

5-12

Starting and driving

The ignition switch will lock when any door
is opened or closed with the ignition
switched off.

ACC (Accessories)

This position activates electrical accesso-
ries, such as the radio, when the engine is
not running.

ACC has a battery saver feature that will
place the ignition switch in the OFF position
after a period of time under the following
conditions:

∙ All doors are closed.

∙ The shift lever is in P (Park).

∙ The hazard lamps are off.

∙ The turn signals are off.

The battery saver feature will be canceled if
any of the following occur:

∙ Any door is opened.

∙ The shift lever is moved out of the P

(Park) position.

∙ The ignition switch changes position.

∙ The hazard lamps are turned on.

ON (Normal operating position)

This position turns on the ignition system
and electrical accessories.

ON has a battery saver feature that will
place the ignition switch in the OFF posi-
tion, if the vehicle is not running, after some
time under the following conditions:

∙ All doors are closed.

∙ The shift lever is in P (Park).

∙ The hazard lamps are off.

∙ The turn signals are off.

The battery saver feature will be canceled if
any of the following occur:

∙ Any door is opened.

∙ The shift lever is moved out of the P

(Park) position.

∙ The ignition switch changes position.

∙ The hazard lamps are turned on.

∙ The turn signals are turned on.

CAUTION

Do not leave the vehicle with the igni-
tion switch in the ACC or ON position
when the engine is not running for an
extended period. This can discharge the
battery.

OFF

The ignition switch is in the OFF position
when the engine is turned off using the
ignition switch.

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

∙ Rapidly push the ignition switch three

consecutive times in less than 1.5 sec-
onds, or

∙ Push and hold the ignition switch for

more than 2 seconds.

Starting and driving

5-13

NISSAN INTELLIGENT KEY®
BATTERY DISCHARGE

If the battery of the NISSAN Intelligent Key®
is discharged, or environmental conditions
interfere with the Intelligent Key operation,
start the engine according to the following
procedure:

1. Place the shift lever in the P (Park) posi-

tion.

2. Firmly apply the foot brake.

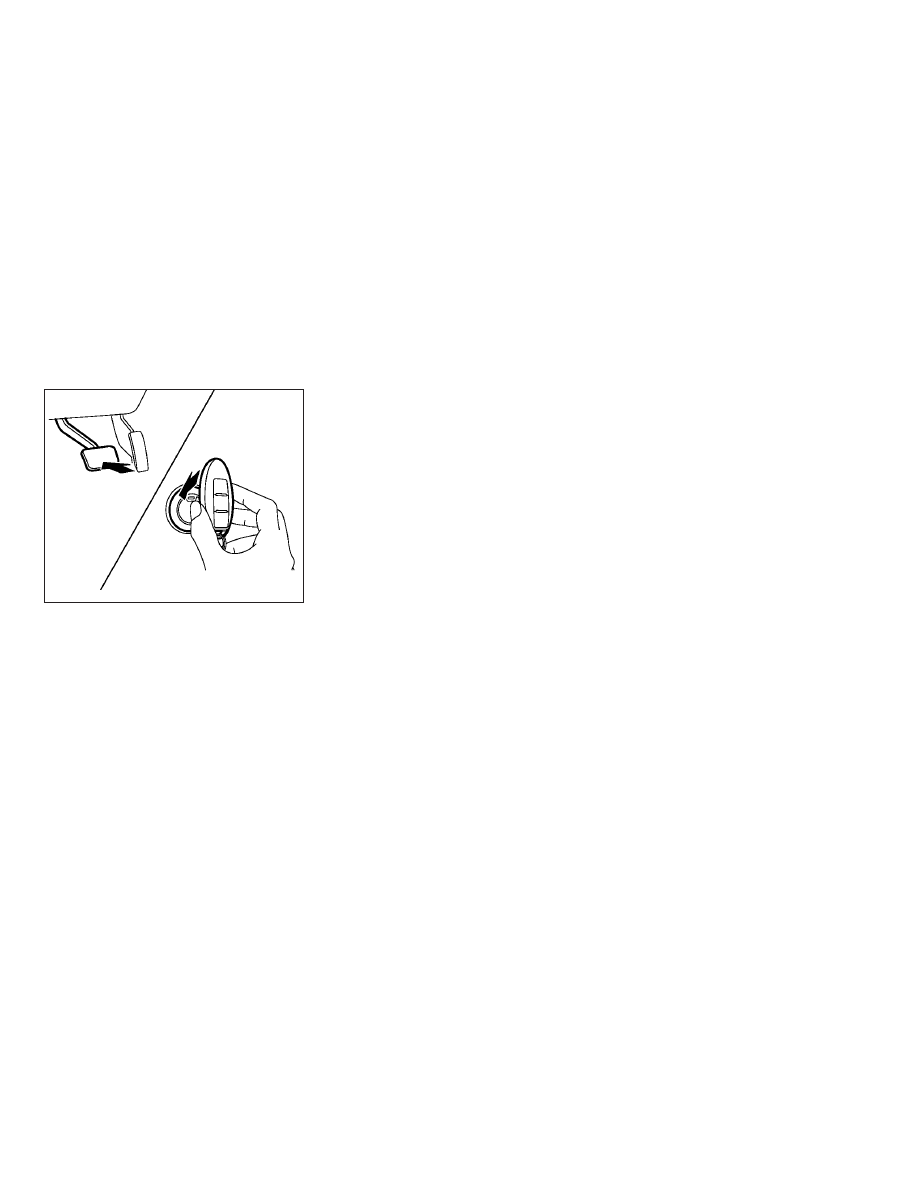

3. Touch the ignition switch with the Intel-

ligent Key as illustrated. (A chime will
sound.)

After step 3 is performed, when the
ignition switch is pushed without de-
pressing the brake pedal, the ignition
switch position will change to the ON
position.

4. Push the ignition switch while depress-

ing the brake pedal within 10 seconds
after the chime sounds. The engine will
start.

NOTE:

∙ When the ignition switch is pushed to

the ON position or the engine is
started by the above procedure, the
Intelligent Key battery discharge in-
dicator appears in the vehicle infor-
mation display even when the Intelli-
gent Key is inside the vehicle. This is
not a malfunction. To turn off the In-
telligent Key battery discharge indi-
cator, touch the ignition switch with
the Intelligent Key again.

∙ If the Intelligent Key battery dis-

charge indicator appears, replace the
battery as soon as possible. For addi-
tional information, refer to “Battery
replacement” in the “Do-it-yourself ”
section of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:

1. Leave the ignition switch in the ON po-

sition for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

SSD0860

5-14

Starting and driving

∙ Make sure the area around the vehicle is

clear.

∙ Check fluid levels such as engine oil,

coolant, brake fluid, Diesel Exhaust Fluid
(Diesel only) and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.

∙ Check that all windows and lights are

clean.

∙ Visually inspect tires for their appear-

ance and condition. Also check tires for
proper inflation.

∙ Check that all doors are closed.

∙ Position

seat

and

adjust

head

restraints/headrests.

∙ Adjust inside and outside mirrors.

∙ Fasten seat belts and ask all passen-

gers to do likewise.

∙ Check the operation of warning lights

when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual.

1. Apply the parking brake.

2. Move the shift lever to P (Park) or N

(Neutral). P (Park) is recommended.
The starter is designed not to oper-
ate unless the shift lever is in either P
(Park) or N (Neutral).

3. Push the ignition switch to the ON po-

sition. Depress the brake pedal and
push the ignition switch to start the
engine.

To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal with the
ignition switch in any position.

∙ If the engine is very hard to start in

extremely cold weather or when re-
starting, depress

the

accelerator

pedal a little (approximately 1/3 to the
floor) and while holding, crank the en-
gine. Release the accelerator pedal
when the engine starts.

∙ If the engine is very hard to start be-

cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Push the ignition switch
to the ON position to start cranking
the engine. After 5 or 6 seconds, stop
cranking by pushing the ignition

switch to the LOCK position. After
cranking the engine, release the ac-
celerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and pushing the ignition switch to
start the engine. If the engine starts,
but fails to run, repeat the above pro-
cedure.

CAUTION

Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to the OFF position and wait 10 seconds
before cranking again, otherwise the
starter could be damaged.

4. Warm-up

Allow the engine to idle for at least
30 seconds after starting. Do not race
the engine while warming it up. Drive at
a moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 to 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.

BEFORE STARTING THE ENGINE

STARTING THE ENGINE (gasoline
engine only)

Starting and driving

5-15

5. To stop the engine, move the shift lever

to the P (Park) position and push the
ignition switch to the OFF position.

In preparation for the next engine start, the
engine may have a slightly delayed shutoff
after placing the ignition switch in the OFF
position, depending on the driving condi-
tions.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (phone chargers, GPS, DVD
players, etc.).

2. The vehicle is not driven regularly

and/or only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

REMOTE ENGINE START (if so
equipped)

Vehicles started with the Remote Engine
Start require the ignition switch to be
placed in the ON position before the shift
lever can be moved from the P (Park) posi-
tion. To place the ignition switch in the ON
position, follow these steps:

1. Make sure that the Intelligent Key is on

you.

2. Apply the brake.

3. Push the ignition switch once to the ON

position.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

For additional information on starting your
diesel engine, refer to the Titan Diesel Own-
er’s Manual.

STARTING THE ENGINE (diesel only)

5-16

Starting and driving

ENGINE PROTECTION MODE

The engine has an engine protection mode
to reduce the chance of damage if the
coolant temperature becomes too high
(for example, when climbing steep grades
in high temperatures with heavy loads,
such as when towing a trailer). When the
engine temperature reaches a certain
level:

∙ The engine coolant temperature gauge

will move toward the H position.

∙ Engine power may be reduced.

∙ The air conditioning cooling function

may be automatically turned off for a
short time (the blower will continue to
operate).

Engine power and, under some conditions,
vehicle speed will decrease. Vehicle speed
can be controlled with the accelerator
pedal, but the vehicle may not accelerate at
the desired speed. The transmission will
downshift or upshift as it reaches pre-
scribed shift points. You can also shift
manually.

As driving conditions change and engine
coolant temperature is reduced, vehicle
speed can be increased using the accel-

erator pedal, and the air conditioning cool-
ing function will automatically be turned
back on.

The Malfunction Indicator Light (MIL) may
also come on if the engine coolant tem-
perature is not reduced or the air condi-
tioning cooling function does not turn back
on. If only it remains on, you do not need to
have your vehicle towed, but have it in-
spected soon. It is recommended that you
visit a NISSAN dealer for this service. For
additional information, refer to “Malfunc-
tion Indicator Light (MIL)” in the “Instru-
ments and controls” section of this manual.

WARNING

Overheating can result in reduced en-
gine power and vehicle speed. The re-
duced speed may be lower than other
traffic, which could increase the chance
of a collision. Be especially careful when
driving. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. Allow the engine to
cool and return to normal operation. For
additional information, refer to “If your
vehicle overheats” in the “In case of
emergency” section of this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

AUTOMATIC TRANSMISSION (A/T)

WARNING

∙ Do not depress the accelerator pedal

while shifting from P (Park) or N (Neu-
tral) to R (Reverse) or D (Drive). Always
depress the brake pedal until shifting
is completed. Failure to do so could
cause you to lose control and have an
accident.

∙ Cold engine idle speed is high, so use

caution when shifting into a forward
or reverse gear before the engine has
warmed up.

∙ Never shift to either the P (Park) or R

(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.

DRIVING THE VEHICLE

Starting and driving

5-17

∙ Except in an emergency, do not shift

to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.

∙ Do not downshift abruptly on slippery

roads. This may cause a loss of
control.

CAUTION

To avoid possible damage to your ve-
hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

The A/T in your vehicle is electronically con-
trolled to produce maximum power and
smooth operation.

The recommended operating procedures
for this transmission are shown on the fol-
lowing pages. Follow these procedures for
maximum vehicle performance and driv-
ing enjoyment.

Starting the vehicle

WARNING

∙ Do not depress the accelerator pedal

∙ Cold engine idle speed is high, so use

caution when shifting into a forward
or reverse gear before the engine has
warmed up.

∙ Never shift to either the P (Park) or R

(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.

∙ Except in an emergency, do not shift

to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.

∙ Do not downshift abruptly on slippery

roads. This may cause a loss of
control.

CAUTION

To avoid possible damage to your ve-
hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

1. After starting the engine, fully depress

the foot brake pedal before moving the
shift lever out of the P (Park) position.

2. Keep the foot brake pedal depressed

and move the shift lever into a driving
gear.

3. Release the foot brake, then gradually

start the vehicle in motion.

The automatic transmission is designed
so the foot brake pedal MUST be de-
pressed before shifting from P (Park) to
any drive position while the ignition
switch is in the ON position.

The shift lever cannot be moved out of
the P (Park) position and into any of the
other gear positions if the ignition
switch is placed in the LOCK or OFF posi-
tion.

5-18

Starting and driving

To move the shift lever:

: Shift while depressing the brake

pedal

: Shift without depressing the brake

pedal

Shifting

After starting the engine, fully depress the
brake pedal and move the shift lever out of
the P (Park) position.

WARNING

Apply the parking brake if the shift lever
is in any position while the engine is not
running. Failure to do so could cause
the vehicle to move unexpectedly or roll
away and result in serious personal in-
jury or property damage.

If the ignition switch is placed in the OFF or
ACC position for any reason while the ve-
hicle is in N (Neutral), or any D (Drive) posi-
tion, the ignition switch cannot be placed in
the LOCK position. Move the shift lever to
the P (Park) position, then the ignition
switch can be placed in the LOCK position.

P (Park)

CAUTION

To prevent transmission damage, use
the P (Park) position only when the ve-
hicle is completely stopped.

Use the P (Park) shift lever position when
the vehicle is parked or when starting the
engine. Make sure the vehicle is completely
stopped.

The brake pedal should be depressed to
move the shift lever from N (Neutral) or
any drive position to P (Park).

Apply the parking brake. When parking on a
hill, apply the parking brake first, then move
the shift lever into the P (Park) position.

R (Reverse)

CAUTION

To prevent transmission damage, use
the R (Reverse) position only when the
vehicle is completely stopped.

Use the R (Reverse) position to back up.
Make

sure

the

vehicle

completely

stopped before selecting the R (Reverse)
position. The brake pedal must be de-
pressed to move the shift lever from P
(Park), N (Neutral) or any drive position to
R (Reverse).

N (Neutral)

Neither forward nor reverse gear is en-
gaged. The engine can be started in this
position. You may shift to N (Neutral) and
restart a stalled engine while the vehicle is
moving.

D (Drive)

Use this position for all normal forward
driving.

LSD2468

Starting and driving

5-19

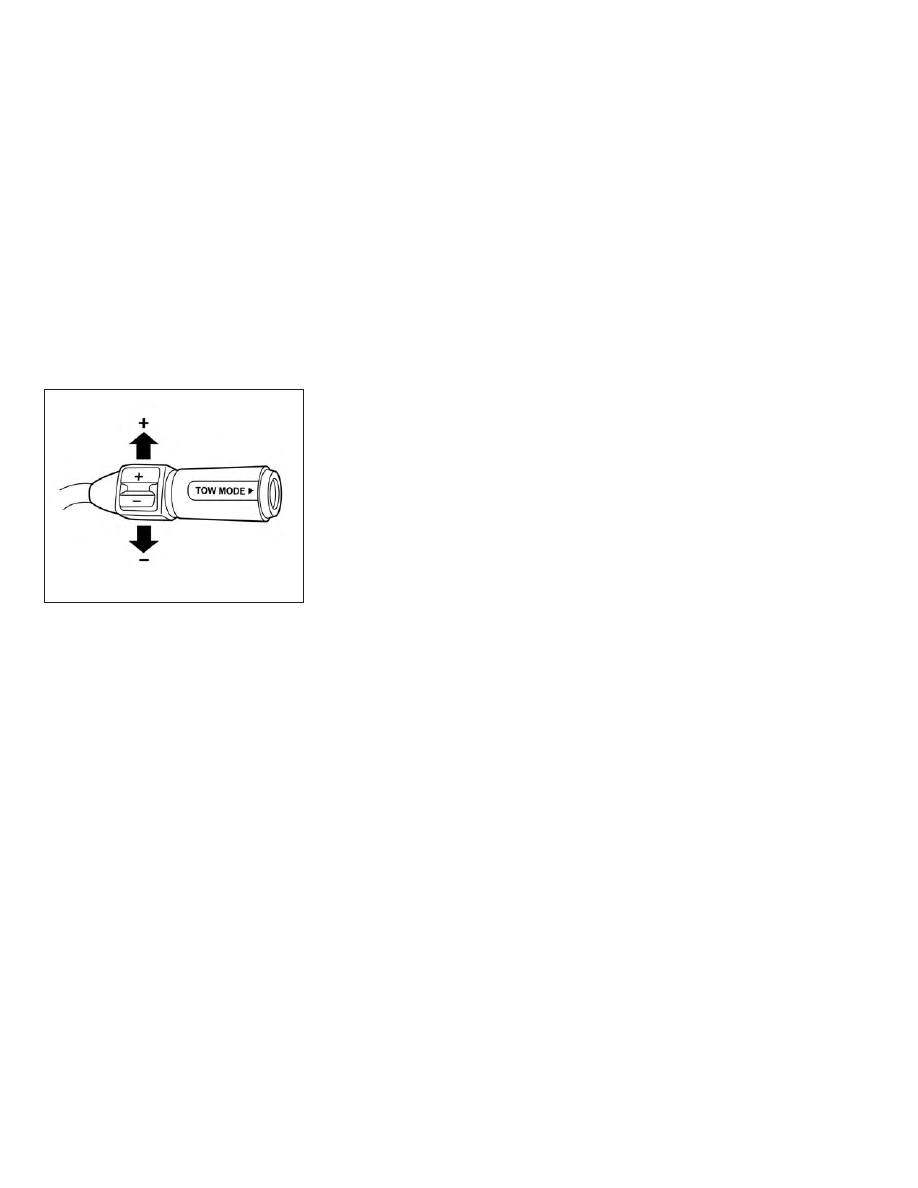

Manual shift mode

When the manual shift mode switch is
pushed while driving, the transmission en-
ters the manual shift mode. Shift ranges
can be selected manually.

In the manual shift mode, the shift range is
displayed on the position indicator in the
meter. After pushing the manual shift
mode switch, the position indicator varies
depending on the gear position and ve-
hicle speed.

Shift ranges up or down one by one as
follows:

←→ M2 ←→ M3 ←→ M4 ←→ M5 ←→ M6

←→ M7* ←→ D

*If so equipped

M7 (Seventh) (if so equipped)

Use this position for all normal forward
driving at highway speeds.

←→ M2 ←→ M3 ←→ M4 ←→ M5 ←→ M6

←→ M7

M7 will be displayed on the position indica-
tor in the meter.

M6 (Sixth)

Use this position for all normal forward
driving at highway speeds.

←→ M2 ←→ M3 ←→ M4 ←→ M5 ←→ M6

M6 will be displayed on the position indica-
tor in the meter

M5 (Fifth)

Use this position for all normal forward
driving at highway speeds.

←→ M2 ←→ M3 ←→ M4 ←→ M5

M5 will be displayed on the position indica-
tor in the meter.

M4 (Fourth)

For driving up or down long slopes where
engine braking would be advantageous.

Shift ranges up or down one by one as
follows:

←→ M2 ←→ M3 ←→ M4

M4 will be displayed on the position indica-
tor in the meter.

M3 (Third)

Use for hill climbing or engine braking on
downhill grades.

Shift ranges up or down one by one as
follows:

←→ M2 ←→ M3

M3 will be displayed on the position indica-
tor in the meter.

M2 (Second)

Use for hill climbing or engine braking on
downhill grades.

Shift ranges up or down one by one as
follows:

←→ M2

M2 will be displayed on the position indica-
tor in the meter.

LSD2457

5-20

Starting and driving

M1 (First)

Use this position when climbing steep hills
slowly or driving slowly through deep snow,
sand or mud, or for maximum engine brak-
ing on steep downhill grades.

M1 will be displayed on the position indica-
tor on the meter.

∙ Remember not to drive at high speeds

for extended periods of time in lower
than

range. This

reduces

fuel

economy.

When shifting up

Push the shift switch to the + (up) side.
(Shifts to higher range.)

When shifting down

Push the shift switch to the

⫺ (down) side.

(Shifts to lower range.)

∙ The transmission will automatically

downshift the gears. (For example, if you
select the 3rd range, the transmission
will shift down between the 3rd and 1st
gears.)

∙ Pushing the shift switch rapidly will shift

the ranges in succession.

When canceling the manual shift mode

Press and hold the +(UP) button to return
the transmission to the normal driving
mode.

∙ In the manual shift mode, the trans-

mission may not shift to the selected
gear immediately because of vehicle
speed. The transmission will upshift
or downshift when vehicle speed
matches the programmed transmis-
sion shift points. This helps maintain
driving performance and reduces the
chance of vehicle damage or loss of
control.

∙ In the manual shift mode, the trans-

mission will not upshift to a higher
gear than is manually selected. When
the vehicle speed decreases, the
transmission

automatically

shifts

down and shifts to 1st gear before the
vehicle comes to a stop.

Shift lock release

If the battery is discharged, the shift lever
may not be moved from the P (Park) posi-
tion even with the brake pedal depressed.

To move the shift lever, release the shift
lock. The shift lever can be moved to N
(Neutral). However, for models without the
NISSAN Vehicle Immobilizer System, the
steering wheel will be locked unless the
ignition switch is placed in the ON position.
This allows the vehicle to be moved if the
battery is discharged.

LSD2594

Starting and driving

5-21

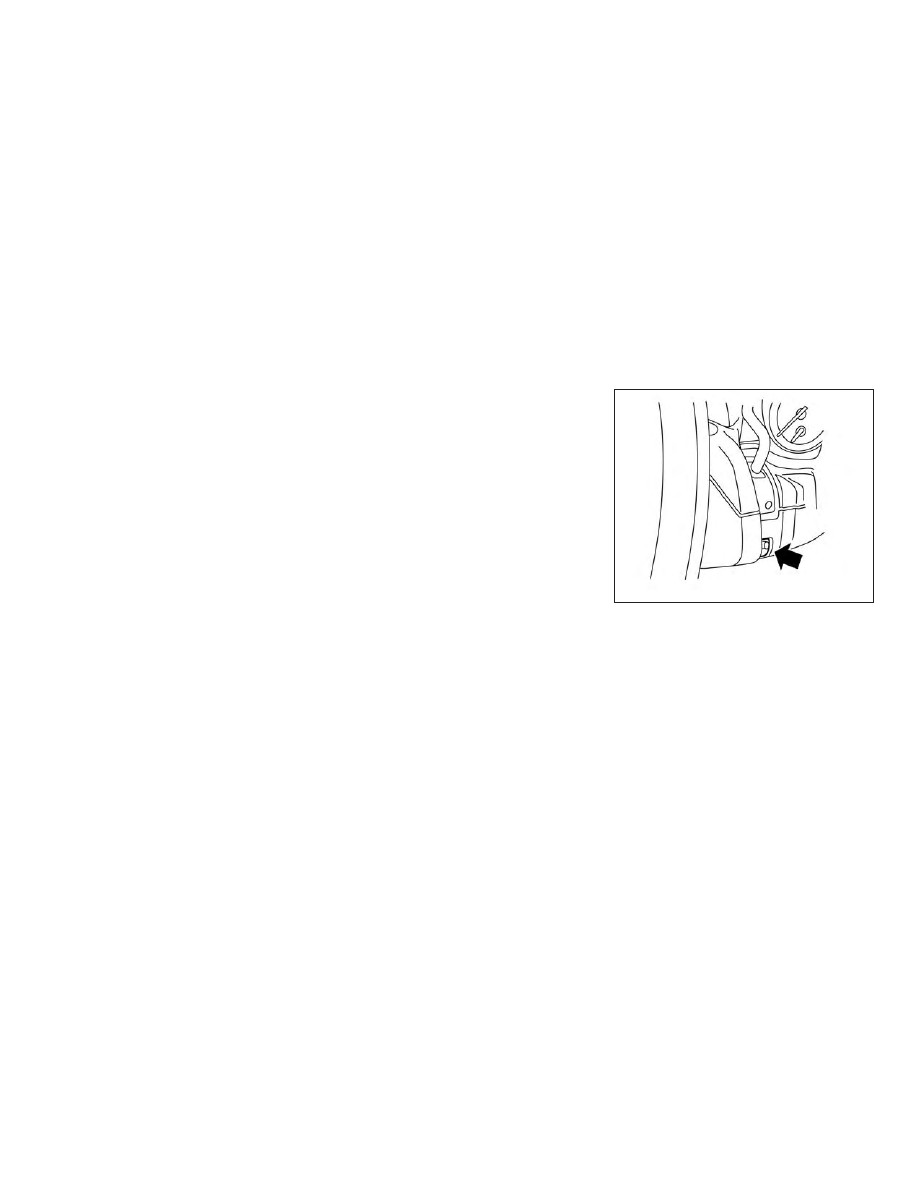

To push the shift lock release, complete the
following procedure:

1. Place the ignition switch in the LOCK

position.

2. Apply the parking brake.

3. Remove the shift lock release cover. If a

screwdriver is used to remove the
cover, it should be wrapped in a protec-
tive cloth to prevent damage to the
cover and surrounding plastic.

4. Insert a small object or finger in the

shift lock release slot and push.

5. Move the shift lever to the N (Neutral)

position while holding the shift lock re-
lease.

6. Now the vehicle may be moved to the

desired location.

If the shift lever cannot be moved out of P
(Park), have the automatic transmission
system checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

WARNING

If the shift lever cannot be moved from
the P (Park) position while the engine is
running and the brake pedal is de-
pressed, the stop lights may not work.
Malfunctioning stop lights could cause
an

accident

injuring

yourself

and

others.

Accelerator downshift
— in D (Drive) position —

For passing or hill climbing, depress the
accelerator pedal to the floor. This shifts
the transmission down into a lower gear,
depending on the vehicle speed.

Fail-safe

When the fail-safe operation occurs, please
note that the transmission will be locked in
any of the forward gears according to the
condition.

If the vehicle is driven under extreme
conditions, such as excessive wheel
spinning and subsequent hard braking,
the fail-safe system may be activated.
This will occur even if all electrical cir-
cuits are functioning properly. In this
case, place the ignition switch in the OFF
position and wait for 3 seconds. Then
place the ignition switch back in the ON
position. The vehicle should return to its
normal operating condition. If it does not
return to its normal operating condition,
have the transmission checked and re-
paired, if necessary. It is recommended
that you visit a NISSAN dealer for this
service.

5-22

Starting and driving

WARNING

∙ Be sure the parking brake is fully re-

leased before driving. Failure to do so
can cause brake failure and lead to an
accident.

∙ Do not release the parking brake from

outside the vehicle.

∙ Do not use the shift lever in place of

the parking brake. When parking, be
sure

the

parking

brake

fully

engaged.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

To engage: Firmly depress the parking
brake.

To release:

1. Firmly apply the foot brake.

2. Move the shift lever to the P (Park) po-

sition.

3. Firmly depress the parking brake pedal

and it will release.

4. Before driving, be sure the brake warn-

ing light goes out.

WARNING

Failure to follow the warnings and in-
structions for proper use of the BSW
system could result in serious injury or
death.

∙ The BSW system is not a replacement

for proper driving procedures and is
not designed to prevent contact with
vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the direc-
tion your vehicle will move to ensure it
is safe to change lanes. Never rely
solely on the BSW system.

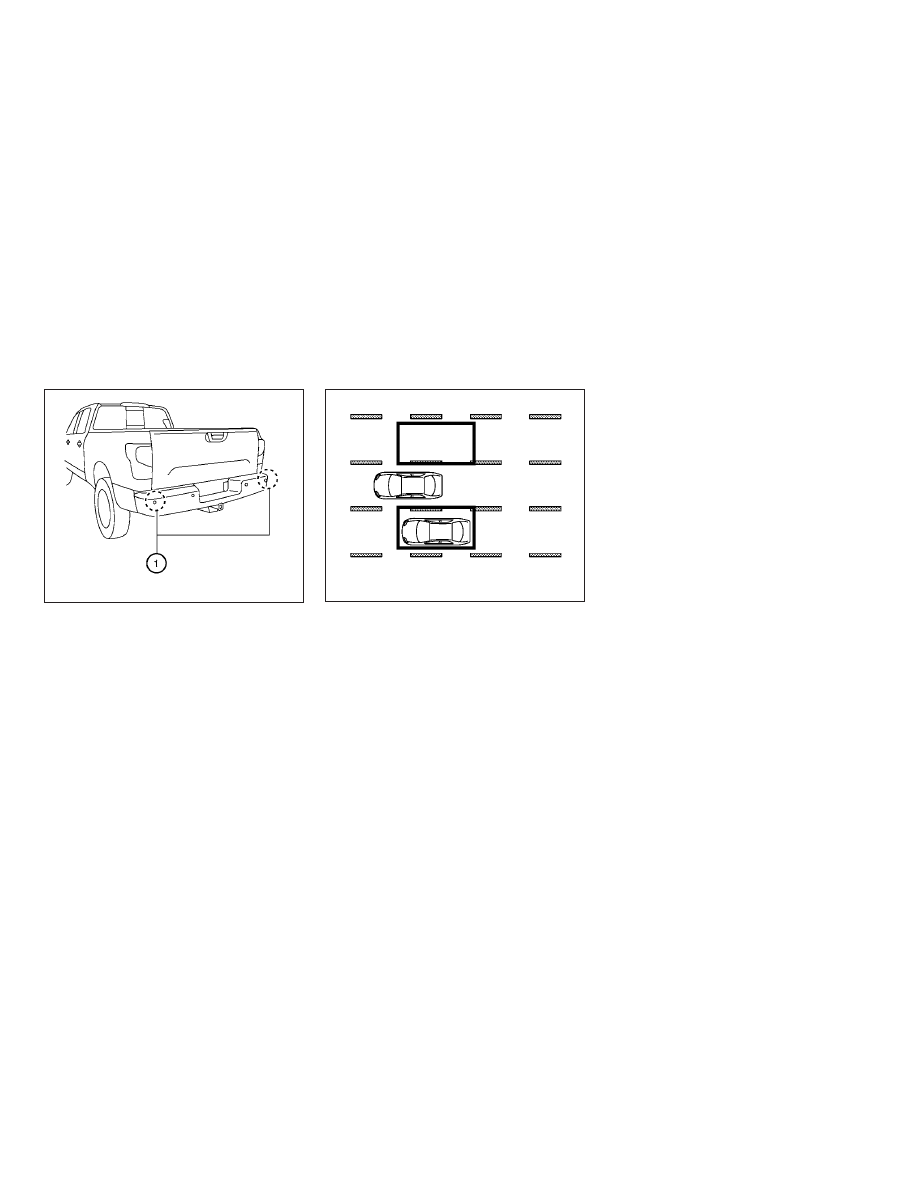

The BSW system helps alert the driver of
other vehicles in adjacent lanes when
changing lanes.

LSD0158

PARKING BRAKE

BLIND SPOT WARNING (BSW) (if so
equipped)

Starting and driving

5-23

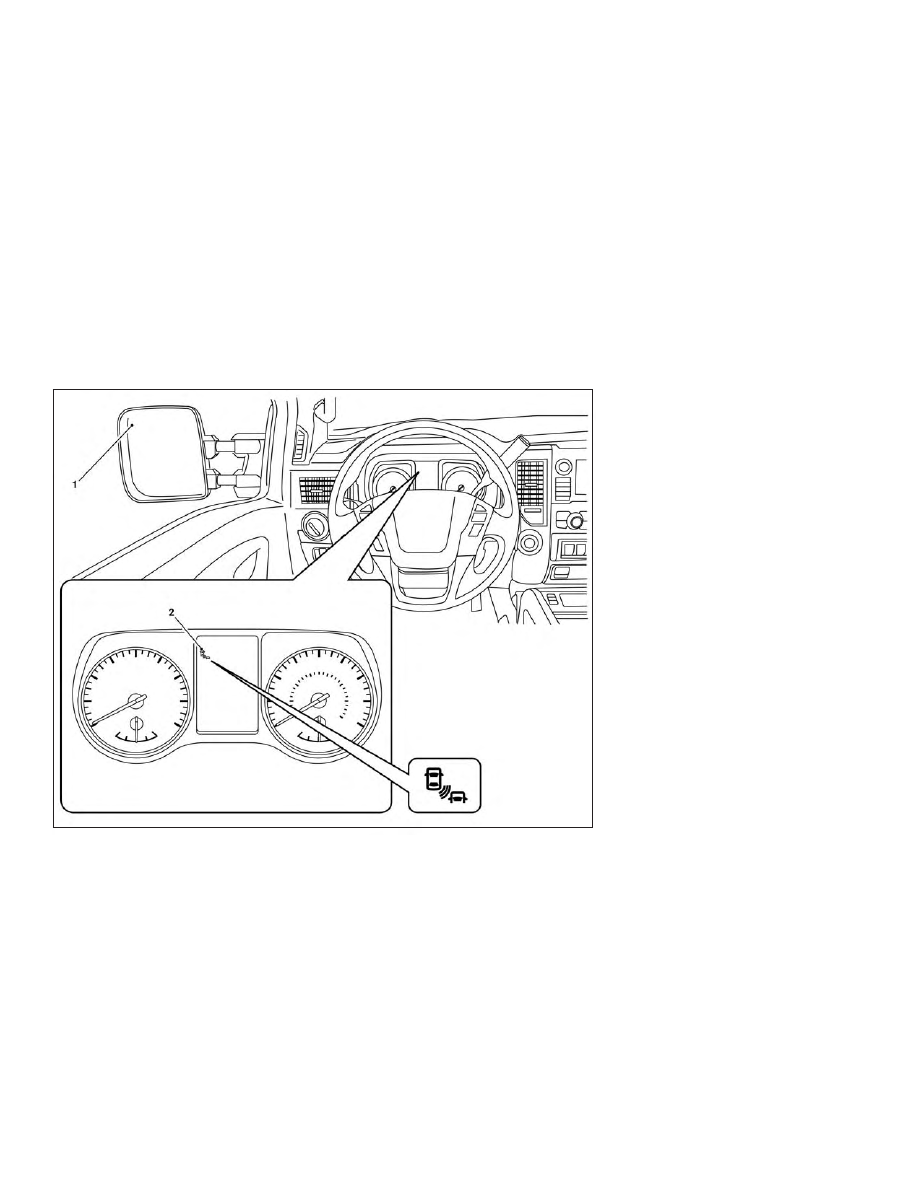

1. Side BSW/RCTA Indicator Light

2. BSW/RCTA Indicator

BSW SYSTEM OPERATION

The BSW system operates above approxi-
mately 20 mph (32 km/h).

If the radar sensors detect a vehicle in the
detection zone, the side BSW/RCTA indica-
tor light (1) illuminates. If the turn signal is
then activated, the system chimes (twice)
and the side BSW/RCTA indicator light
flashes. The side BSW/RCTA indicator light
continues to flash until the detected ve-
hicle leaves the detection zone.

The side BSW/RCTA indicator light illumi-
nates for a few seconds when the ignition
switch is placed in the ON position.

The brightness of the side BSW/RCTA indi-
cator light is adjusted automatically de-
pending on the brightness of the ambient
light.

If a vehicle comes into the detection zone
after the driver activates the turn signal,
then only the side BSW/RCTA indicator light
flashes and no chime sounds. For addi-
tional information, refer to “BSW driving
situations” in this section.

LSD2605

Starting and driving

5-25

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

When the BSW system is enabled in the
vehicle information display, the system can
be turned off temporarily by pushing the
warning systems switch. For additional in-
formation,

refer

“Warning

systems

switch” in the “Instruments and controls”
section of this manual.

Perform the following steps to enable or
disable the BSW system:

1. Press the

button until “Settings”

displays in the vehicle information dis-
play. Use the

button to select

“Driver Assistance” and press ENTER.
Select “Driving Aids” and press ENTER.

2. Select “Blind Spot (BSW)” and press the

ENTER button.

NOTE:

∙ When enabling/disabling the system,

the system will retain current set-
tings even if the engine is restarted.

∙ When the BSW system is turned on,

the BSW/RCTA indicator (white) in the
vehicle information display illumi-
nates.

LSD2607

5-26

Starting and driving

Nissan Titan (2019 year). Instruction - part 22
