INTELLIGENT AROUND VIEW
MONITOR SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for Intelligent Around View Monitor.
Failure to operate the vehicle in accor-
dance with these system limitations
could result in serious injury or death.

∙ Do not use the Intelligent Around View

Monitor with the outside mirrors in
the stored position, and make sure
that the tailgate is securely closed
when operating the vehicle using the
Intelligent Around View Monitor.

∙ The apparent distance between ob-

jects viewed on the Intelligent Around
View Monitor differs from the actual
distance.

∙ The cameras are installed on the front

grille, the outside mirrors and above
the rear license plate. Do not put any-
thing on the vehicle that covers the
cameras.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the cameras. Otherwise, wa-
ter may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the cameras. They are

precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.

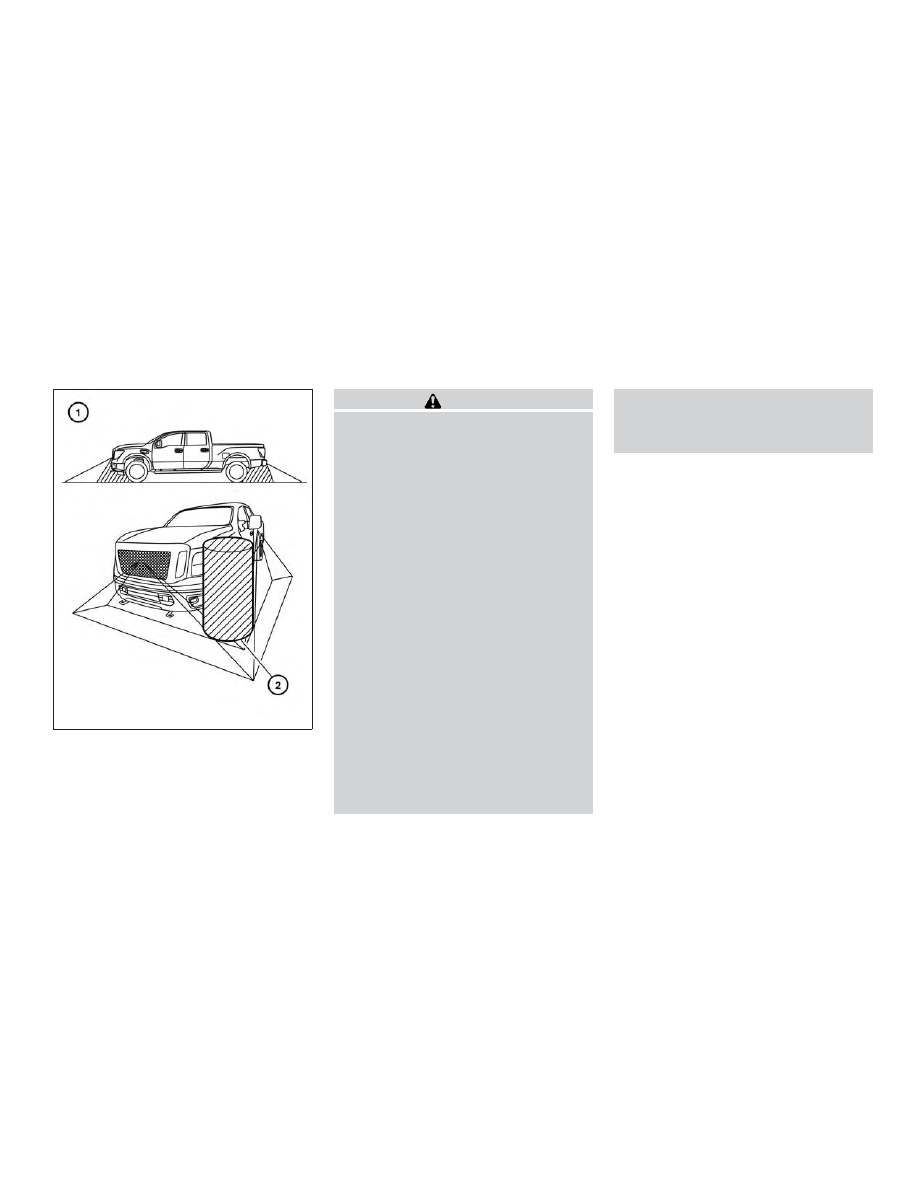

There are some areas where the system
will not show objects and the system does
not warn of moving objects. When in the
front or rear view display, an object below
the bumper or on the ground may not be
viewed

䊊

. When in the bird’s-eye view, a tall

object near the seam

䊊

of the camera

viewing areas will not appear in the moni-
tor.

The following are operating limitations and
do not represent a system malfunction:

∙ There may be a delay when switching

between views.

∙ When the temperature is extremely

high or low, the screen may not display
objects clearly.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ The screen may flicker under fluores-

cent light.

LHA3807

Monitor, climate, audio, phone and voice recognition systems

4-21

∙ The colors of objects on the Intelligent

Around View Monitor may differ some-
what from the actual color of objects.

∙ Objects on the Intelligent Around View

Monitor may not be clear and the color
of the object may differ in a dark envi-
ronment.

∙ There may be differences in sharpness

between each camera view of the
bird’s-eye view.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth that
has been dampened with a diluted mild
cleaning agent, then wipe with a dry
cloth.

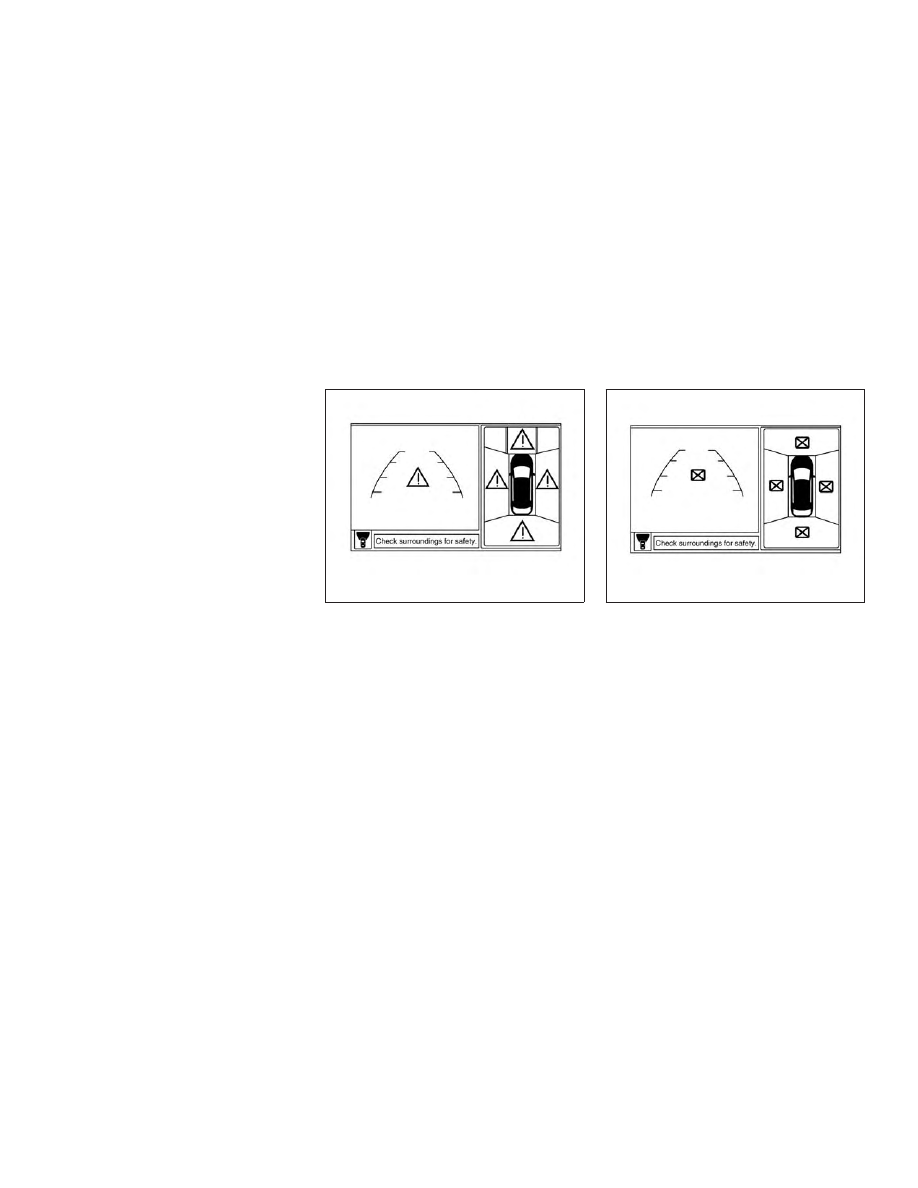

System temporarily unavailable

When the “!” icon is displayed on the screen,
there are abnormal conditions in the Intel-
ligent Around View Monitor. This will not
hinder normal driving operation but it is
recommended that the system be in-
spected. It is recommended that you visit a
NISSAN dealer for this service.

When the “[X]” icon is displayed on the
screen, the camera image may be receiv-
ing temporary electronic disturbances
from surrounding devices. This will not hin-
der normal driving operation but it is rec-
ommended that the system be inspected
if it occurs frequently. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

LHA3591

LHA3592

4-22

Monitor, climate, audio, phone and voice recognition systems

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the cameras as the

monitor screen may be adversely
affected.

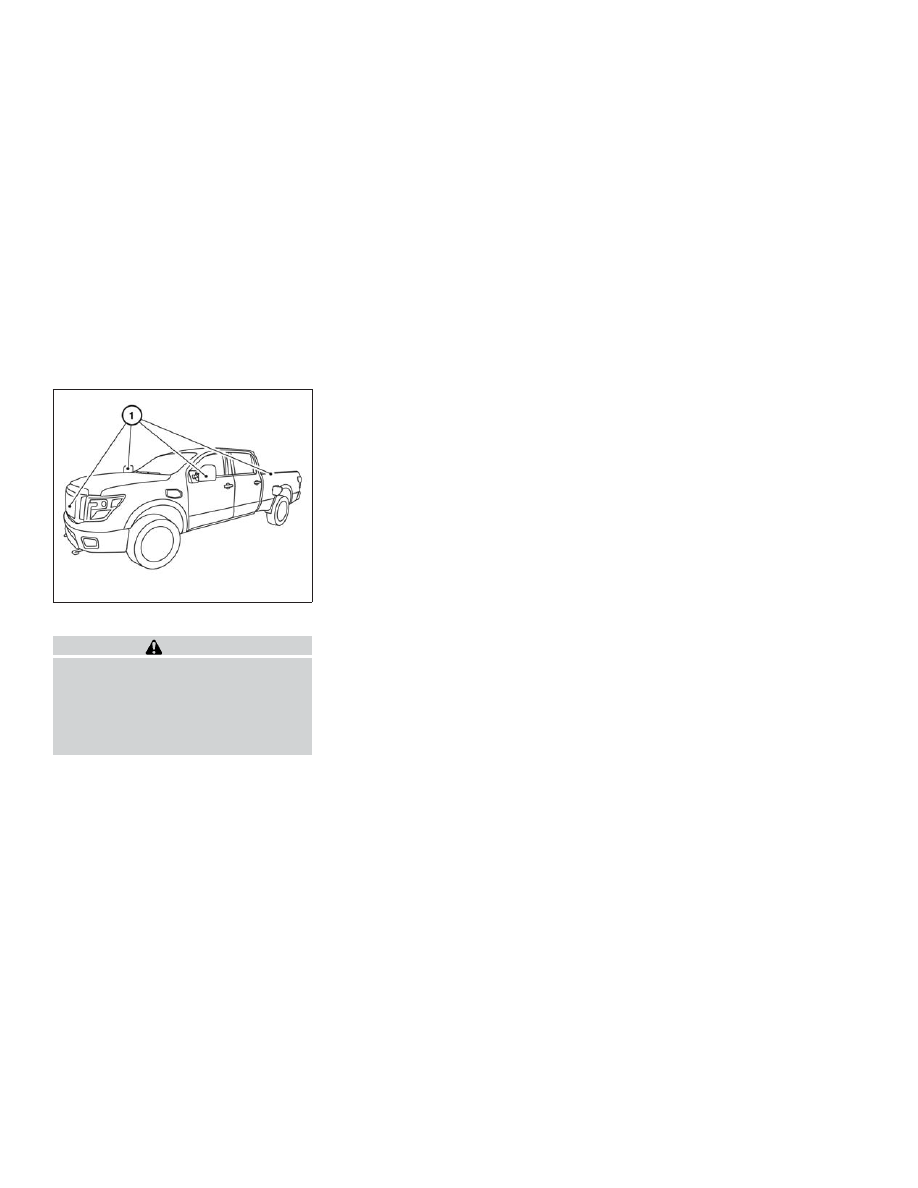

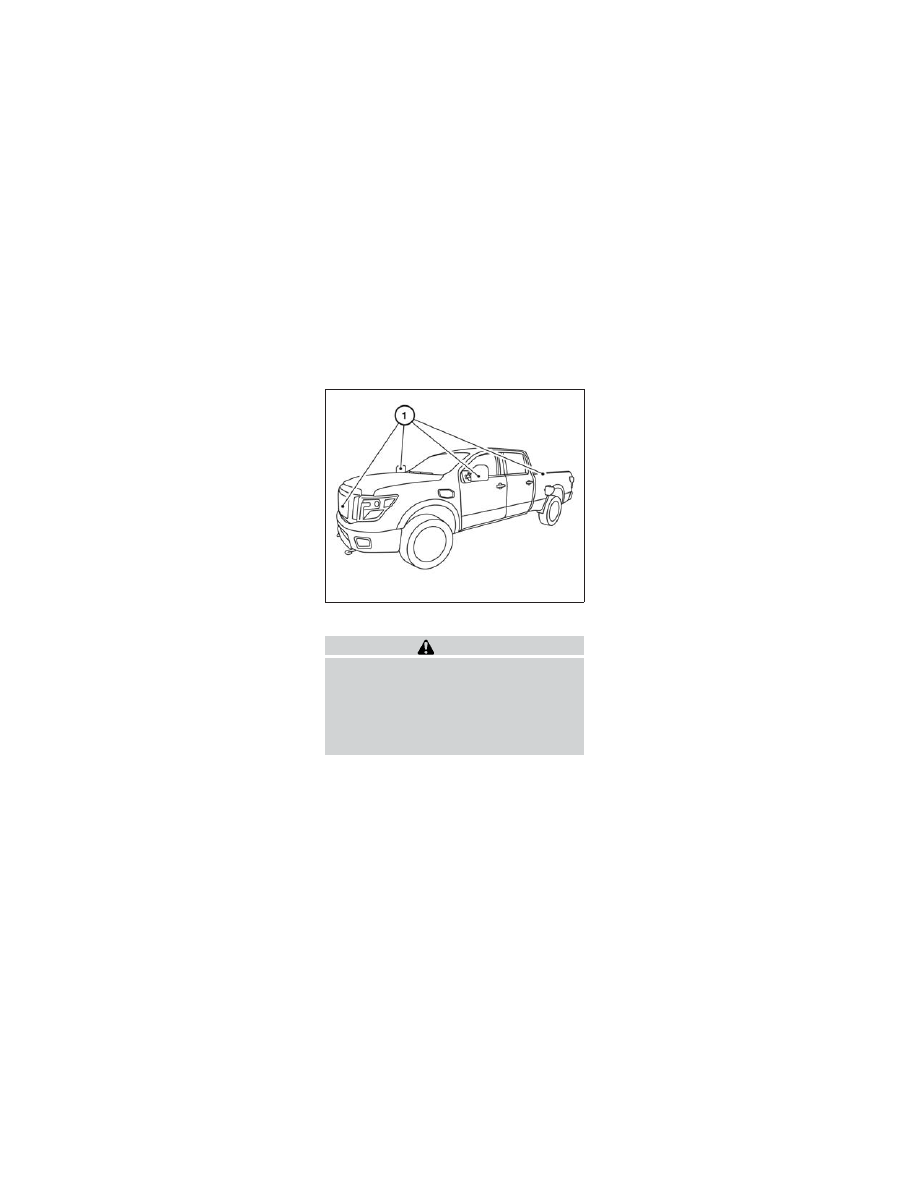

If dirt, rain or snow accumulates on any of
the cameras

䊊

, the Intelligent Around View

Monitor may not display objects clearly.
Clean the camera by wiping with a cloth
dampened with a diluted mild cleaning
agent and then wiping with a dry cloth.

LHA3909

Monitor, climate, audio, phone and voice recognition systems

4-23

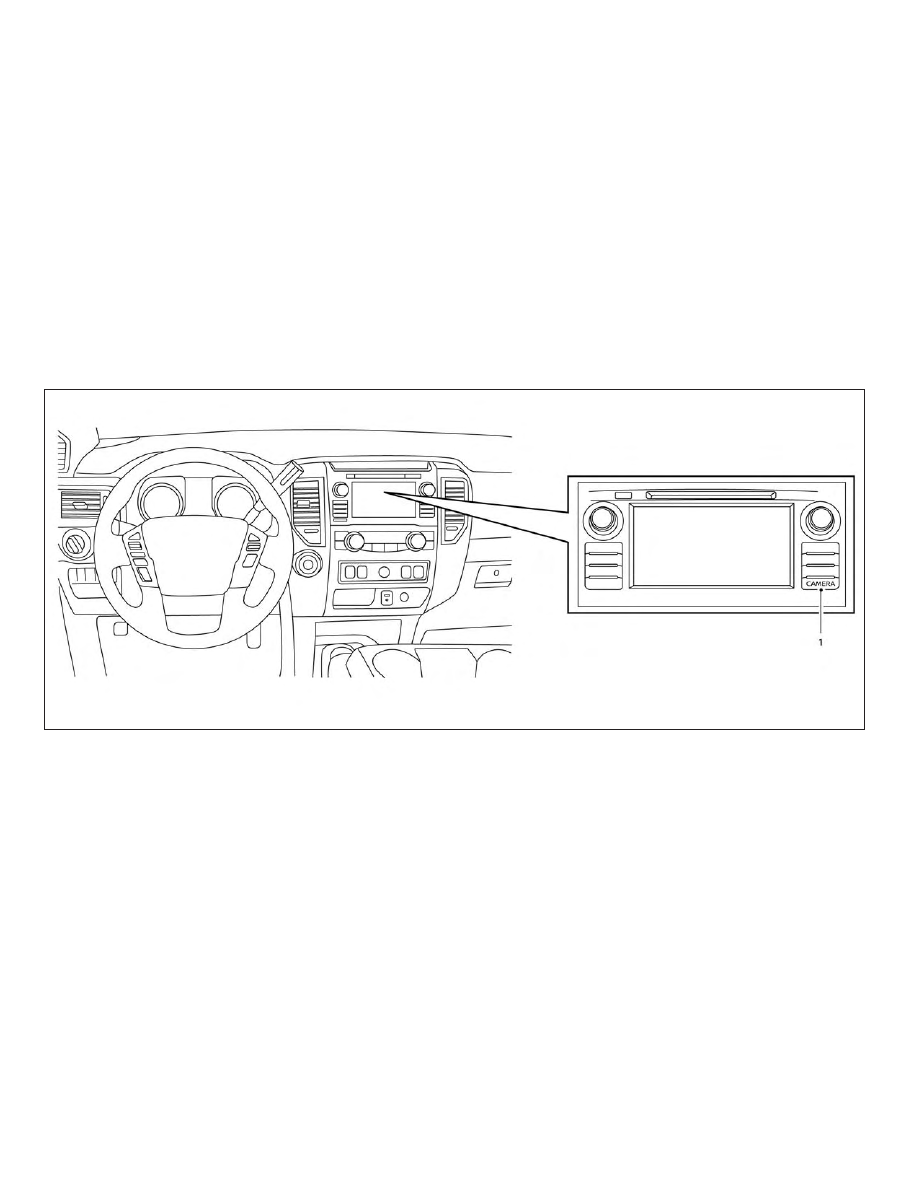

1. CAMERA button

LHA4859

MOVING OBJECT DETECTION (MOD)
(if so equipped)

4-24

Monitor, climate, audio, phone and voice recognition systems

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Mov-
ing Object Detection system could re-
sult in serious injury or death.

∙ The MOD system is not a substitute

for proper vehicle operation and is not
designed to prevent contact with ob-
jects surrounding the vehicle. When
maneuvering, always use the outside
mirrors and rearview mirror and turn
and check the surroundings to ensure
it is safe to maneuver.

∙ The system is deactivated at speeds

above 6 mph (10 km/h). It is reacti-
vated at lower speeds.

∙ The MOD system is not designed to

detect

surrounding

stationary

objects.

The MOD system can inform the driver of
moving objects near the vehicle when
backing out of garages, maneuvering in
parking lots and in other such instances.

The MOD system detects moving objects
by using image processing technology on
the image shown in the display.

MOD SYSTEM OPERATION

The MOD system will turn on automatically
under the following conditions:

∙ When the shift lever is in the R (Reverse)

position.

∙ When vehicle speed decreases below

approximately 6 mph (10 km/h) and the
camera screen is displayed.

The MOD system operates in the following
conditions when the camera view is dis-
played:

∙ When the shift lever is in the P (Park) or N

(Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.

Front and bird’s-eye views

LHA4190

Monitor, climate, audio, phone and voice recognition systems

4-25

∙ When the shift lever is in the D (Drive)

position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the front view.

∙ When the shift lever is in the R (Reverse)

position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the rear view. The MOD system will not
operate if the tailgate is open.

The MOD system does not detect moving
objects in the front-side view. The MOD
icon is not displayed on the screen when in
this view.

When the MOD system detects moving ob-
jects near the vehicle, a chime will be heard
and a yellow frame will be displayed on the
view where the objects are detected. While
the MOD system continues to detect mov-
ing objects, the yellow frame continues to
be displayed.

NOTE:

While the RCTA chime (if so equipped) is
beeping, the MOD system will not chime.

In the bird’s-eye view, the yellow frame

䊊

displayed on each camera image (front,
rear, right, left) depending on where mov-
ing objects are detected.

The yellow frame

䊊

is displayed on each

view in the front view and rear view modes.

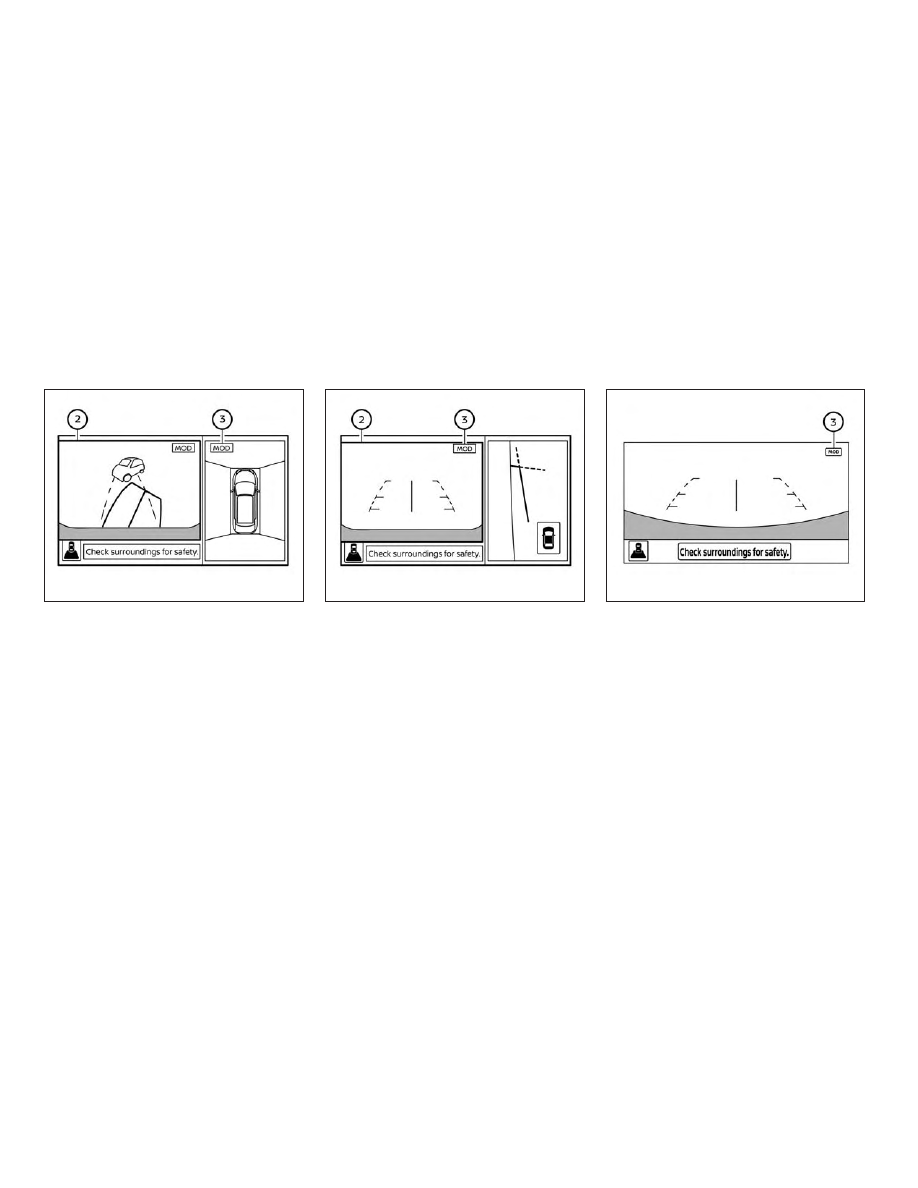

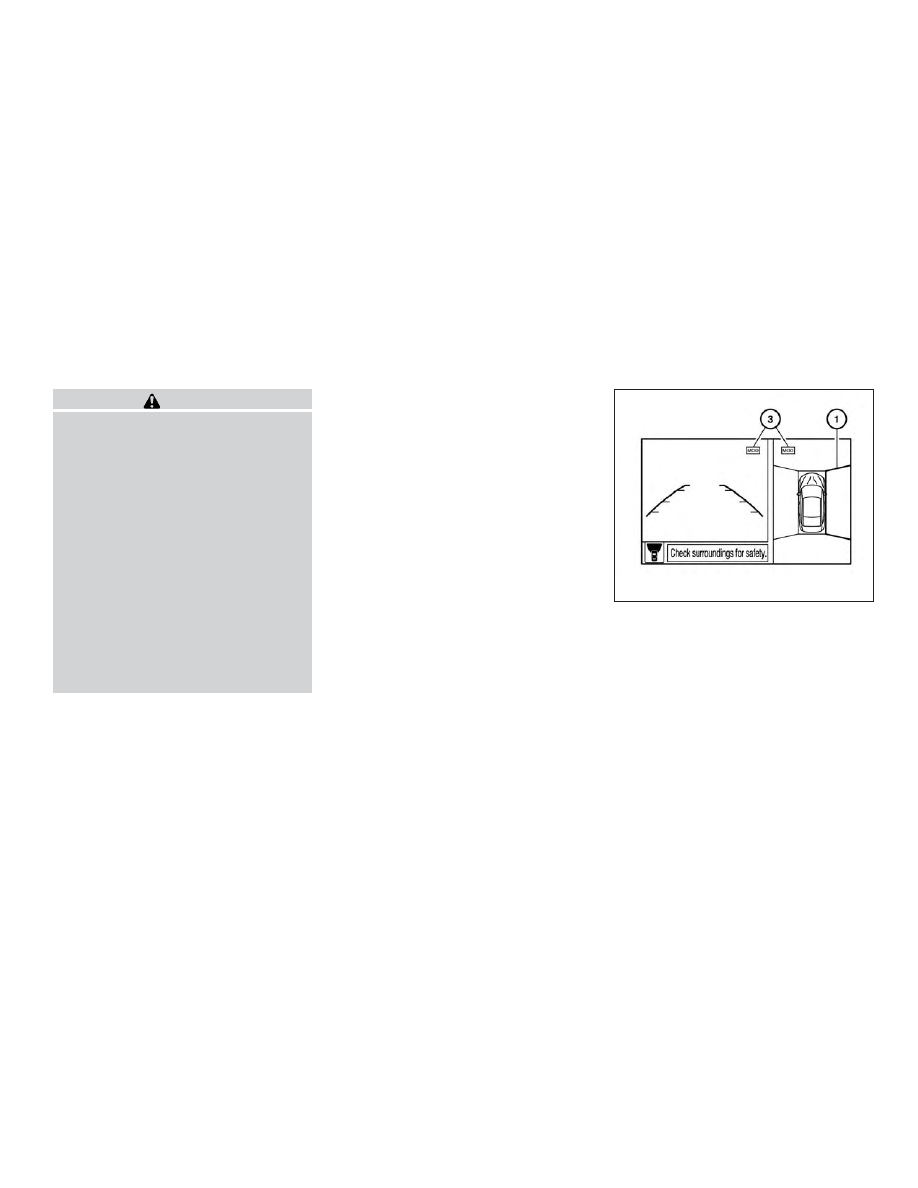

Rear and bird’s-eye views

LHA4863

Rear and front-side views

LHA4990

Rear-wide view

LHA4991

4-26

Monitor, climate, audio, phone and voice recognition systems

A blue MOD icon

䊊

is displayed in the view

where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.

If the MOD system is turned off, the MOD
icon

䊊

is not displayed.

TURNING MOD ON AND OFF (if so
equipped)

Some vehicles include the option to allow
the MOD system to be turned on or off.

To turn the MOD system on or off:

1. Press the

button on the

steering wheel and select “Settings” in
the vehicle information display.

2. Using the

buttons, select “Driver

Assistance” and press the OK button.

3. Select “Parking Aids”.

4. Toggle ON or OFF “Moving Object” us-

ing the OK button.

MOD SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for MOD. Failure to operate the vehicle
in accordance with these system limita-
tions could result in serious injury or
death.

∙ Do not use the MOD system when

towing a trailer. The system may not
function properly.

∙ Excessive noise (for example, audio

system volume or open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.

∙ The MOD system performance will be

limited according to environmental
conditions and surrounding objects
such as:

– When there is low contrast be-

tween background and the moving
objects.

– When there is a blinking source of

light.

– When strong light such as another

vehicle’s headlight or sunlight is
present.

– When camera orientation is not in

its usual position, such as when a
mirror is folded.

– When there is dirt, water drops or

snow on the camera lens.

– When the position of the moving

objects

the

display

not

changed.

∙ The MOD system might detect flowing

water droplets on the camera lens,
white smoke from the muffler, mov-
ing shadows, etc.

∙ The MOD system may not function

properly depending on the speed, di-
rection, distance or shape of the mov-
ing objects.

∙ If your vehicle sustains damage to the

parts where the camera is installed,
leaving it misaligned or bent, the
sensing zone may be altered and the
MOD system may not detect objects
properly.

∙ When the temperature is extremely

high or low, the screen may not dis-
play objects clearly. This is not a
malfunction.

Monitor, climate, audio, phone and voice recognition systems

4-27

NOTE:

The blue MOD icon will change to orange
if one of the following has occurred:

∙ When the system is malfunctioning.

∙ When the component temperature

reaches a high level (icon will blink).

∙ When the Rear View camera has de-

tected a blockage (icon will blink).

If the icon light continues to illuminate
orange, have the MOD system checked. It
is recommended that you visit a NISSAN
dealer for this service.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

䊊

, the MOD system may not

operate properly. Clean the camera by wip-
ing with a cloth dampened with a diluted
mild cleaning agent and then wiping with a
dry cloth.

LHA3909

4-28

Monitor, climate, audio, phone and voice recognition systems

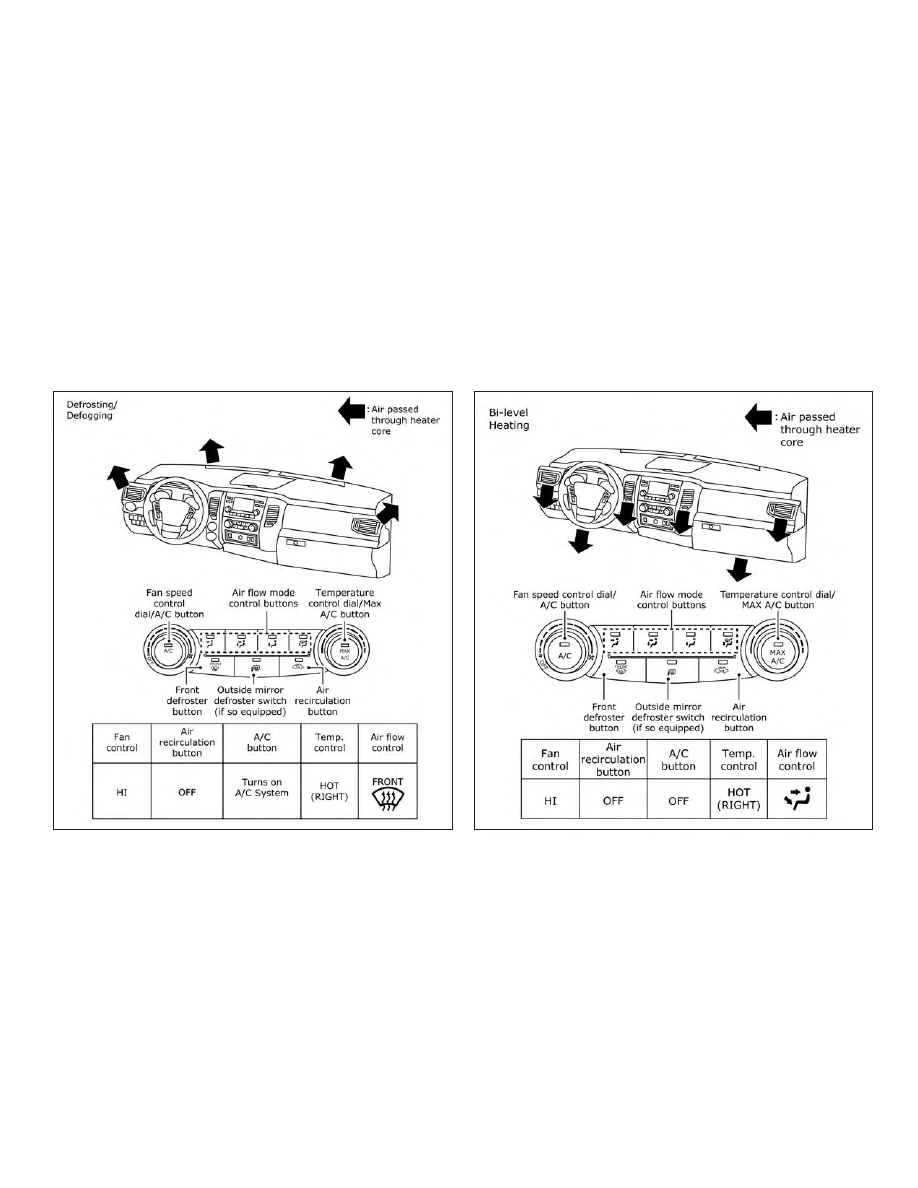

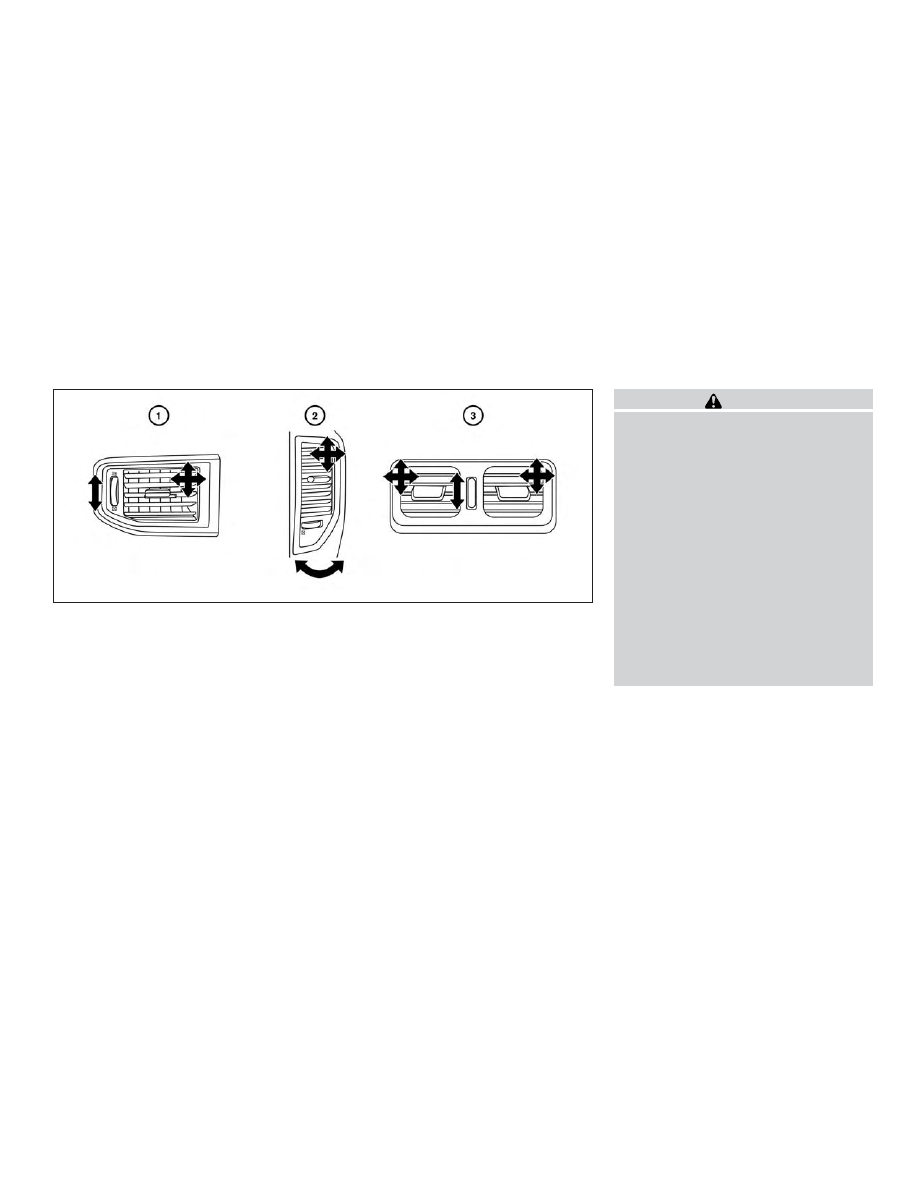

Adjust air flow direction for the driver’s and
passenger’s side vents

䊊

, center vents

䊊

and rear passengers’ vents (if so equipped)

䊊

by moving the vent slide and/or vent

assemblies.

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air condi-
tioner unit. Odor can enter the pas-
senger compartment through the
vents.

LHA3772

VENTS

HEATER AND AIR CONDITIONER
(manual) (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-29

∙ When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

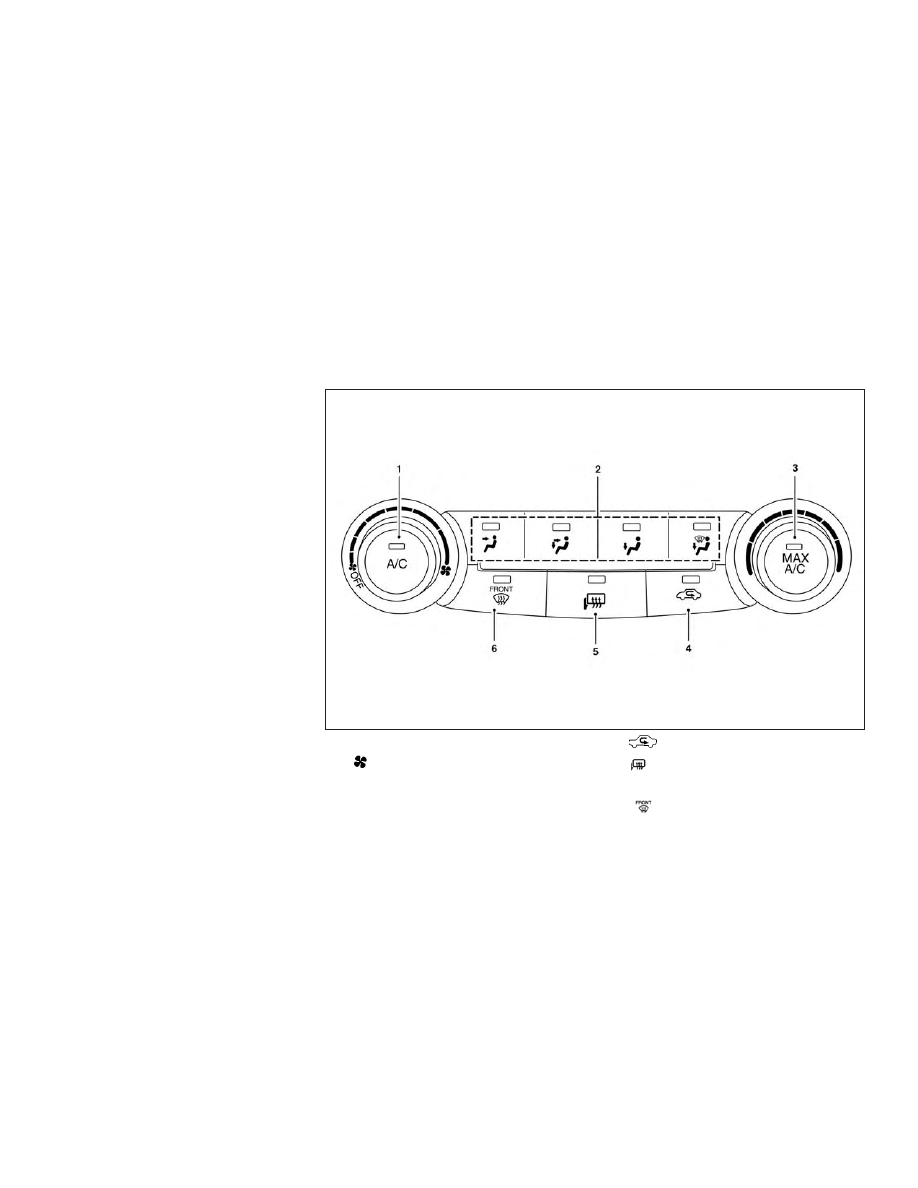

CONTROLS

Fan speed control dial / system

OFF dial / A/C (air conditioning) button

2. Air flow control buttons
3. Temperature control dial / MAX A/C

button

Air recirculation button

Outside mirror (if so equipped) de-

froster switch

Front windshield defrost button

LHA4127

4-30

Monitor, climate, audio, phone and voice recognition systems

Fan speed control dial

The

fan speed control dial turns the

fan on and off and controls fan speed.

Fan speed control dial — OFF mode

Setting the

fan speed control dial to the

off position will turn off the fan and the air
recirculation indicator light will turn on. To get
fresh air in fan off mode, press the

air

recirculation button to turn off the indicator.
In fan off mode, the mode buttons can be
selected to change the air vent distribution (if
the air recirculation mode is off).

Air flow control buttons

The air flow control buttons allow you to
select the air flow outlets.

MAX
A/C

— Air flows from center and side

vents with maximum cooling.

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot

outlets.

— Air flows from defroster out-

lets and foot outlets.

— Air flows mainly from defroster

outlets.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right.

Air recirculation button

ON position (Indicator light on)
Interior air is recirculated inside the vehicle.

Press the

button to the ON position

when:

∙ driving on a dusty road.

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioner.

OFF position (Indicator light off)
If outside air is desired in off mode, press
the recirculation button until the indicator
turns off.

If fogging occurs, press the

front

windshield defrost button.

A/C (air conditioner) button

Start the engine, turn the

fan speed

control dial to the desired position and
press the

button to turn on the air

conditioner. To turn off the air conditioner,
press the

button again.

The air conditioner cooling function op-
erates only when the engine is running.

Outside mirror defroster (if so
equipped)

For additional information, refer to “Rear
window

and/or

outside

mirror

(if

equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.

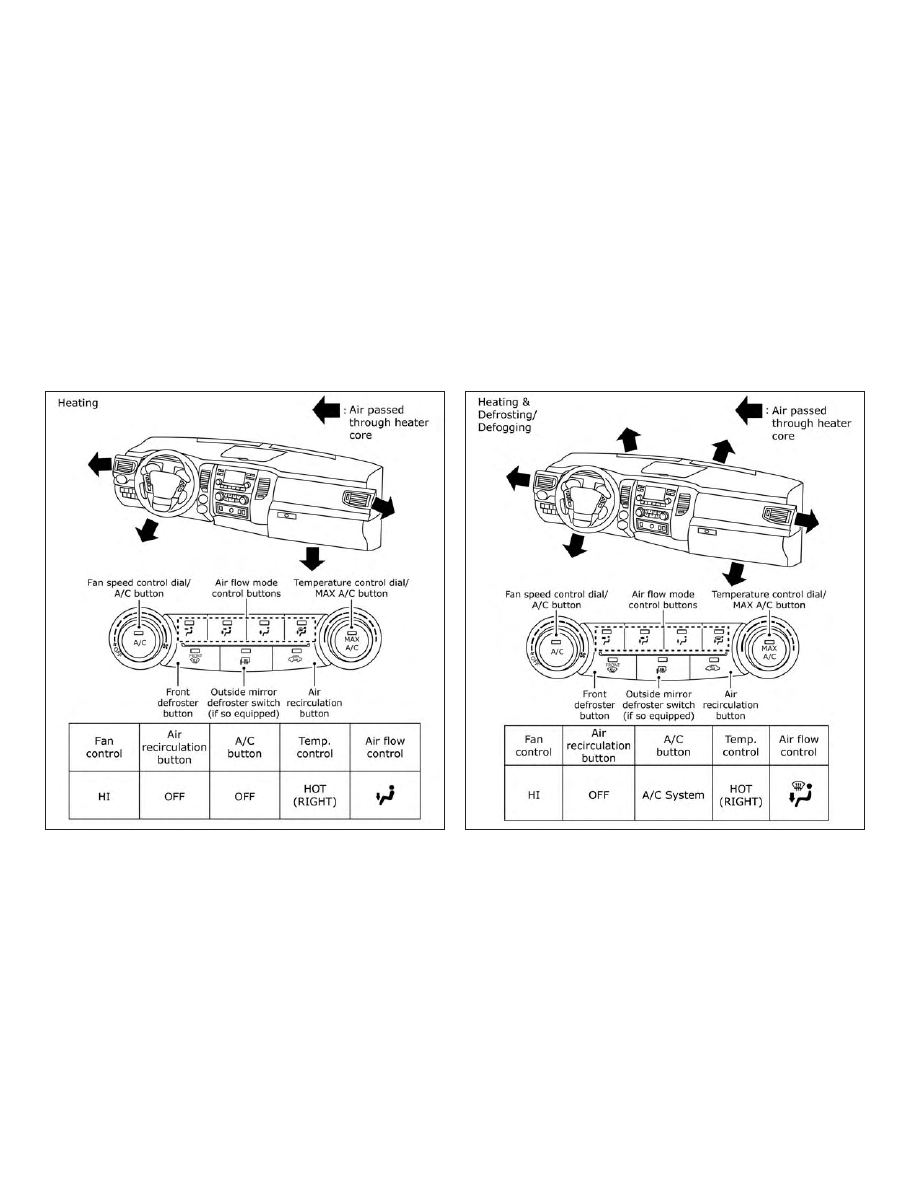

HEATER OPERATION

Heating

This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.

1. Press the

button to the OFF posi-

tion for normal heating. The indicator
light on the

button will go off.

2. Press the

air flow control button.

Monitor, climate, audio, phone and voice recognition systems

4-31

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Ventilation

This mode directs outside air to the side
and center vents.

1. Press the

button to the off posi-

tion. The indicator light on the
button will go off.

2. Press the

air flow control button.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position.

Defrosting or defogging

This mode directs the air to the defrost
outlets to defrost/defog the windows.

1. Press the

defrost/defog button.

2. Turn the

fan speed control dial to

the desired position.

3. Turn the temperature control dial to

the

desired

position

between

the

middle and the hot position.

∙ To quickly remove ice or fog from the

windows, turn the

fan speed con-

trol dial to the highest setting and the
temperature control to the full HOT po-
sition.

∙ When the

position is selected, the

air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). This dehumidifies the air which
helps defog the windshield. The
mode automatically turns off, allowing
outside air to be drawn into the passen-
ger compartment to further improve the
defogging performance. Under this con-
dition, the indicator light on the A/C but-
ton indicator will not turn on if the user
had selected the A/C off. Turning off the
air conditioning via the A/C button is not
allowed In this mode. If the A/C button
indicator was on when entering this
mode, and the A/C button is selected in
this mode, the A/C button indicator will
turn off, but the A/C compressor will still
be automatically enabled. The recircula-
tion button indicator will not illuminate if
the button is pressed in this mode.

Bi-level heating

The bi-level mode directs warmed air to
the side and center vents and to the front
and rear floor outlets.

1. Press the

button to the off posi-

tion.

The

indicator

light

the

button will go off.

2. Press the

air flow control button.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position.

Heating and defogging

This mode heats the interior and defogs
the windshield.

1. Press the

air flow control button.

2. Turn the

fan speed control dial to

the desired position.

3. Turn the temperature control dial to

the

desired

position

between

the

middle and the hot position.

4-32

Monitor, climate, audio, phone and voice recognition systems

∙ When the

position is selected, the

air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). If the

air flow control

button is selected for more than 1 min-
ute, the air conditioning system will
continue to operate until the

fan

speed control dial is turned to OFF, the
vehicle is shut off, or the A/C button is
used to turn off the compressor even if
the air flow control dial is turned to a
position other than the

position.

This dehumidifies the air which helps
defog the windshield. Under this condi-
tion, the indicator light on the A/C but-
ton indicator will not turn on if the user
had selected A/C off. Turning off the air
conditioning via the A/C button is not
allowed in this mode. If the A/C button
indicator was on when entering this
mode, and the A/C button is selected in
this mode, the A/C compressor will still
be automatically enabled. It is recom-
mended that

mode be turned off

for maximum defogging. The recircula-
tion button can be selected in this
mode to block outside odors. However,
for maximum defogging in this mode, it
is recommended to turn recirculation
off when possible.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.

AIR CONDITIONER OPERATION

Start the engine, turn the

fan speed

control dial to the desired position, and
press the

button to activate the air

conditioner. When the air conditioner is on,
cooling and dehumidifying functions are
added to the heater operation.
The air conditioner cooling function op-
erates only when the engine is running.

Cooling

This mode is used to cool and dehumidify
the air.

1. Press the

button to the off posi-

tion.

2. Press the

air flow control button.

3. Turn the

fan speed control dial to

the desired position.

4. Press the

button.

5. Turn the temperature control dial to

the desired position between the
middle and the cold position.

∙ For quick cooling when the outside

temperature is high, press the
button to the on position. Be sure to
return the

to the off position for

normal cooling. The indicator light on
the

button will go off. You may

also select MAX A/C for quick cooling.

Dehumidified heating

This mode is used to heat and dehumidify
the air.

1. Press the

button to the off posi-

tion. The indicator light on the
button will go off.

2. Press the

air flow control button.

3. Turn the

fan speed control dial to

the desired position.

4. Press the

button on.

5. Turn the temperature control dial to

the desired position.

Dehumidified defogging

This mode is used to defog the windows
and dehumidify the air.

1. Press the

front defroster button.

Monitor, climate, audio, phone and voice recognition systems

4-33

2. Turn the

fan speed control dial to

the desired position.

When the

positions are se-

lected, the air conditioner automatically
turns on if the outside temperature is more
than 36°F (2°C). The air conditioning system
will continue to operate until the

fan

speed control dial is turned to OFF, the air
conditioner is turned OFF, or the vehicle is
shut off. If a position other than the
front defrost air flow button is selected, the
A/C compressor will not turn off even if the
user had selected A/C off prior to entering

defrost. In

front defrost or

foot

defrost the indicator light on the A/C but-
ton will not turn on if the user had selected
A/C off. Turning off the air conditioning via
the A/C button is not allowed in this mode.
If the A/C button indicator was on when
entering this mode, and the A/C button is
selected in this mode, the A/C button indi-
cator will turn off, but the A/C compressor
will still be automatically enabled. This de-
humidifies the air which helps defog the
windshield. The

mode automatically

turns off, allowing outside air to be drawn
into the passenger compartment to fur-
ther improve the defogging performance.

3. Turn the temperature control dial to

the desired position.

Operating tips

∙ Keep the windows closed while the air

conditioner is in operation.

∙ After parking in the sun, drive for 2 or

3 minutes with the windows open to
vent hot air from the passenger com-
partment. Then, close the windows.
This allows the air conditioner to cool
the interior more quickly.

∙ The air conditioning system should

operated

for

approximately

10 minutes at least once a month.
This helps prevent damage to the
system due to lack of lubrication.

∙ A visible mist may be seen coming from

the ventilators in hot, humid conditions
as the air is cooled rapidly. This does not
indicate a malfunction.

∙ If the engine coolant temperature

gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. For additional
information, refer to “If your vehicle
overheats” in the “In case of emer-
gency” section of this manual.

AIR FLOW CHARTS

The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating, cooling or defrosting. For addi-
tional information on heating and cooling,
refer

“Heater

and

air

conditioner

(manual)” in this section. The air recircula-
tion (

) button should always be in

the OFF position for heating and defrost-
ing.

4-34

Monitor, climate, audio, phone and voice recognition systems
