Nissan Titan (2019 year). Instruction

Maintenance

The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Do-it-yourself ”
section of this manual. Many factors in-
cluding tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be re-
placed. Setting the tire replacement in-
dicator for a certain driving distance

does not mean your tires will last that
long. Use the tire replacement indicator
as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pres-
sure checks could result in tire failure.
Serious vehicle damage could occur
and may lead to a collision, which could
result in serious personal injury or
death.

Menu item

Result

Maintenance

Allows user to cycle through various maintenance items and set reminders to perform maintenance at spe-
cific intervals.

Oil Control System (if so equipped)

Allows user to view the oil control system maintenance interval.

Oil Filter (if so equipped)

Allows user to set an oil filter reminder at a specific interval or reset the current one.

Oil and Filter (if so equipped)

Allows user to set an oil and filter reminder at a specific interval or reset the current one.

Air Filter

Allows user to set an air filter reminder at a specific interval or reset the current one.

Tire

Allows user to set a tire reminder at a specific interval or reset the current one.

Brake Pad

Allows user to set a brake pad reminder at a specific interval or reset the current one.

Brake Fluid

Allows user to set a brake fluid reminder at a specific interval or reset the current one.

Battery

Allows user to set a battery reminder at a specific interval or reset the current one.

Transmission Fluid

Allows user to set a transmission fluid reminder at a specific interval or reset the current one.

Engine Coolant

Allows user to set an engine coolant reminder at a specific interval or reset the current one.

DEF Level (if so equipped)

Allows user to set a DEF level reminder at a specific interval or reset the current one.

Spark Plug (if so equipped)

Allows user to set a spark plug reminder at a specific interval or reset the current one.

Other

Allows user to set a reminder, other than for the maintenance items listed above, at a specific interval or re-
set the current one.

Instruments and controls

2-33

Unit

The units menu allows the user to change
the units shown in the vehicle information
display.

Menu item

Result

Mileage

Displays available mileage display units.

Pressure

Displays available pressure display units.

Temperature

Displays available temperature display units.

Language

The language menu allows the user to
change the languages displayed in the ve-
hicle information display.

Menu item

Result

Language

Displays available language options for the vehicle information display.

Factory Reset

The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.

Menu item

Result

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected,
the user can confirm or deny the reset.

2-34

Instruments and controls

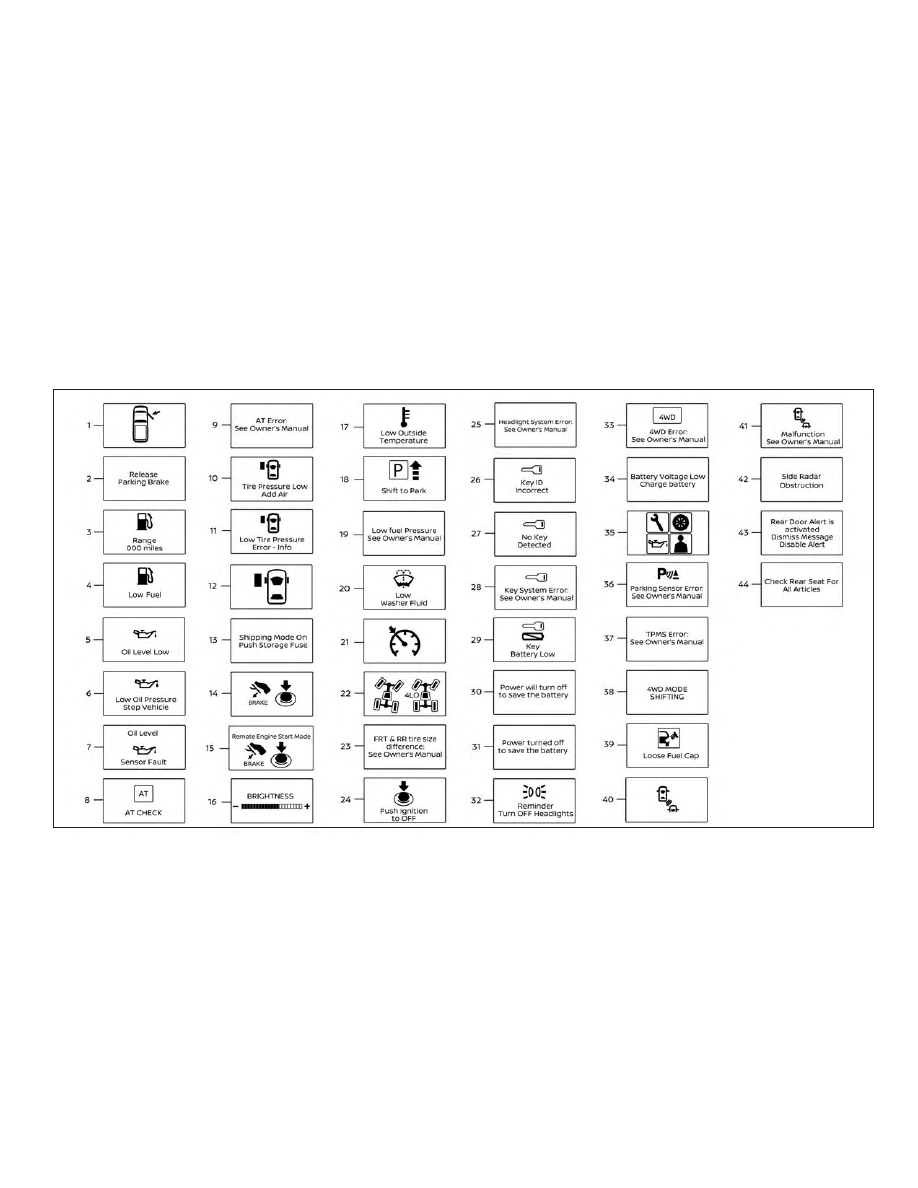

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS

1. Door Open

2. Release Parking Brake

3. Range XX miles

4. Low Fuel

5. Oil Level Low (For Diesel engines only)

6. Low Oil Pressure Stop Vehicle (For Die-

sel engines only)

7. Oil Level Sensor Fault (For Diesel en-

gines only)

8. AT (Automatic Transmission) CHECK

9. AT (Automatic Transmission) Error: See

Owner’s Manual

10. Tire Pressure Low - Add Air

11. Low Tire Pressure Error — Info

12. Flat Tire

13. Shipping Mode On Push Storage Fuse

14. Push brake and start button to drive

15. Remote Engine Start Mode (if so

equipped)

16. Brightness indicator

17. Low Outside Temperature

18. Shift to Park

19. Low fuel Pressure: See Owner’s Manual

20. Low Washer Fluid

21. Cruise control indicator

22. 4WD shift indicators (if so equipped)

23. FRT & RR tire size difference: See Own-

er’s Manual (if so equipped)

24. Push Ignition to OFF

25. Headlight System Error: See Owner’s

Manual (if so equipped)

26. Key ID Incorrect

27. No Key Detected

28. Key System Error: See Owner’s Manual

29. Key Battery Low

30. Power will turn off to save the battery

31. Power turned off to save the battery

32. Reminder: Turn OFF Headlights

33. 4WD Error: See Owner’s Manual (if so

equipped)

34. Battery Voltage Low Charge Battery

35. Maintenance indicators

36. Parking Sensor Error: See Owner’s

Manual (if so equipped)

37. TPMS Error: See Owner’s Manual

38. 4WD MODE SHIFTING (if so equipped)

39. Loose Fuel Cap (if so equipped)

40. Blind Spot Warning (BSW) and Rear

Cross Traffic Alert (RCTA) indicator (if so
equipped)

41. Malfunction: See Owner’s Manual (if so

equipped)

42. Side Radar Obstruction (if so equipped)

43. Rear Door Alert is activated (if so

equipped)

44. Check Rear Seat For All Articles (if so

equipped)

Door Open

This warning illuminates when a door has
been opened.

Release Parking Brake

This warning illuminates in the message
area of the vehicle information display
when the parking brake is set and the ve-
hicle is driven. Press the brake pedal to re-
lease the parking brake.

2-36

Instruments and controls

Range XX miles

This warning illuminates to indicate the ap-
proximate distance remaining before the
fuel reaches 0 (Empty).

Low Fuel

This warning illuminates when the fuel level
in the fuel tank is getting low. Refuel as
soon as it is convenient, preferably before
the fuel gauge reaches 0 (Empty). There
will be a small reserve of fuel in the tank
when the fuel gauge needle reaches 0
(Empty).

Oil Level Low (For Diesel engines only)

If the Oil Level Low indicator is displayed,
the engine oil level is low. If the low level
reminder is displayed, check the level using
the engine oil dipstick.

CAUTION

The oil level should be checked regu-
larly using the engine oil dipstick. Oper-
ating with an insufficient amount of oil
can damage the engine and such dam-
age is not covered by the warranty.

Low Oil Pressure Stop Vehicle (For Diesel
engines only)

This warning appears in the message area
of the vehicle information display if low oil
pressure is detected. This gauge is not de-
signed to indicate low oil level. The low oil
pressure warning is not designed to indi-
cate a low oil level. Use the dipstick to
check the oil level. For additional informa-
tion, refer to “Engine oil” in the “Do-it-
yourself ” section of this manual.

Oil Level Sensor Fault (For Diesel en-
gines only)

This warning appears in the message area
of the vehicle information display if the oil
level sensor malfunctions. It is recom-
mended that you visit a NISSAN dealer to
have this system checked.

AT (Automatic Transmission) CHECK

If the AT Check warning appears while the
engine is running, or while driving, it may
indicate that the AT is not functioning prop-
erly and may need servicing. Have the sys-
tem checked, and if necessary, repaired
promptly. It is recommended that you visit
a NISSAN dealer for this service.

AT (Automatic Transmission) Error: See
Owner’s Manual

If this message appears while the engine is
running, or while driving, it may indicate
that the AT is not functioning properly and
may need servicing. Have the system
checked,

and

necessary,

repaired

promptly. It is recommended that you visit
a NISSAN dealer for this service.

Tire Pressure Low - Add Air

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated. If this warning appears,
stop the vehicle and adjust the tire pres-
sures of all four tires to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. For additional
information, refer to “Low tire pressure
warning light” in this section and “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting

and

driving”

section

this

manual.

Instruments and controls

2-37

Low Tire Pressure Error — Info

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected.
Press the ENTER button for information
about the low tire pressure. For additional
information, refer to “Low tire pressure
warning light” in this section and “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting

and

driving”

section

this

manual.

Flat Tire

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and one or more flat tires are de-
tected while driving.

Shipping Mode On Push Storage Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended
storage switch to turn off the warning. For
additional information, refer to “Extended
storage switch” in this section.

Push brake and start button to drive

This indicator appears when the shift lever
is in the P (Park) position.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine from any position of the ignition
switch.

Remote Engine Start Mode (if so
equipped)

This warning appears in the vehicle infor-
mation display when the vehicle has been
started using the remote start function. To
start the vehicle, apply the brake and place
the ignition switch in the ON position.

Brightness indicator

This indicator appears when the vehicle
information display screen brightness is
being adjusted.

Low Outside Temperature

This warning appears if the outside tem-
perature is below 37°F (3°C). The tempera-
ture can be changed to display in Celsius or
Fahrenheit. For additional information, re-
fer to “Settings” in this section.

Shift to Park

This warning illuminates when the ignition
switch is in the ACC or OFF position and the
shift lever is not in the P (Park) position. Also,

a chime sounds when the ignition switch is
in the ACC or OFF position.

If this warning illuminates, move the shift
lever to the P (Park) position and start the
engine.

Low fuel Pressure: See Owner’s Manual

This warning appears when the fuel pres-
sure is low. Check the fuel level and refuel if
needed. If the warning remains illuminated,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service. For additional information, re-
fer to “Diesel fuel system” in the “Introduc-
tion” of the Titan Diesel Owner’s Manual.

CAUTION

Since the fuel pump is lubricated by the
fuel itself, prolonged driving with low
fuel levels may cause progressive dam-
age to the fuel pump. This may cause
the pump to fail.

Low Washer Fluid

This

warning

illuminates

when

the

windshield-washer fluid is at a low level.
Add windshield-washer fluid as necessary.
For

additional

information,

refer

“Windshield-washer fluid” in the “Do-it-
yourself ” section of this manual.

2-38

Instruments and controls

Cruise control indicator

This indicator shows the cruise control sys-
tem status.

For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.

4WD shift indicators (if so equipped)

These indicators show which 4WD mode is
selected. For additional information, refer
to “Using 4–wheel drive (4WD)” in the “Start-
ing and driving” section of this manual.

FRT & RR tire size difference: See Own-
er’s Manual (if so equipped)

This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes are the same, that the tire
pressure is correct and that the tires are
not excessively worn. For additional infor-
mation, refer to “Wheels and tires” in the
“Technical and consumer information” of
this manual.

Push Ignition to OFF

After the Push ignition to OFF warning illu-
minates, the warning will illuminate if the

ignition switch is placed in the ACC position
when the shift lever is moved to the P (Park)
position.

To turn off the Push warning, place the ig-
nition switch in the ON position and then in
the LOCK position.

Headlight System Error: See Owner’s
Manual (if so equipped)

This warning appears when the LED head-
lights are not functioning properly.

If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Key ID Incorrect

This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with
an unregistered key.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

No Key Detected

This warning appears when the Intelligent
Key is left outside the vehicle with the igni-

tion switch in the ON position. Make sure
the Intelligent Key is inside the vehicle.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Key System Error: See Owner’s Manual

After the ignition switch is pushed to the
ON position, this light comes on for a period
of time and then turns off.

The Key System Error message warns of a
malfunction with the Intelligent Key sys-
tem. If the light comes on while the engine
is stopped, it may be impossible to start
the engine.

If the light comes on while the engine is
running, you can drive the vehicle. However,
in these cases, have the system checked. It
is recommended that you visit a NISSAN
dealer for this service.

Key Battery Low

This indicator illuminates when the Intelli-
gent Key battery is running out of power.

If this indicator illuminates, replace the bat-
tery with a new one. For additional infor-
mation, refer to “Battery replacement” in
the “Do-it-yourself ” section of this manual.

Instruments and controls

2-39

Power will turn off to save the battery

This message appears in the vehicle infor-
mation display after a period of time if the
ignition switch is in the ACC or the ON po-
sition and if the vehicle is in P (Park). For
additional information, refer to “Push-
button ignition switch positions” in the
“Starting

and

driving”

section

this

manual.

Power turned off to save the battery

This warning appears after the ignition
switch is automatically turned off to save
the battery.

Reminder: Turn OFF Headlights

This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the
OFF or AUTO position. For additional infor-
mation, refer to “Headlight switch” in this
section.

4WD Error: See Owner’s Manual (if so
equipped)

This warning appears when the 4-wheel
drive system is not functioning properly
while the engine is running.

Battery Voltage Low Charge Battery

This warning appears when the battery is
low and needs to be charged.

Maintenance indicators

When engine oil service is due, one or more
of these icons will appear automatically to
remind you. For additional information, re-
fer to “Engine oil” in the “Do-it-yourself ” sec-
tion of this manual.

These will also appear when the user-set
reminders are met. For additional informa-
tion, refer to “Vehicle information display” in
this section.

Parking Sensor Error: See Owner’s
Manual (if so equipped)

This warning illuminates when there is an
error with the system. For additional infor-
mation, refer to “Front and rear sonar sys-
tem” in the “Starting and driving” section of
this manual.

TPMS Error: See Owner’s Manual

This warning appears when there is an er-
ror with your TPMS. If this warning comes
on, have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

4WD MODE SHIFTING (if so equipped)

This message appears when the vehicle is
shifting into 4WD. For additional informa-
tion, refer to “Using 4–wheel drive (4WD)” in
the “Starting and driving” section of this
manual.

Loose Fuel Cap (if so equipped)

This warning appears when the fuel-filler
cap is not tightened correctly after the ve-
hicle has been refueled. For additional in-
formation, refer to “Fuel-filler door” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.

Blind Spot Warning (BSW) and Rear
Cross Traffic Alert (RCTA) indicator (if so
equipped)

This indicator shows when the BSW and
RCTA systems are engaged.

For additional information, refer to “Blind
Spot Warning (BSW)” and “Rear Cross Traffic
Alert (RCTA)” in the “Starting and driving”
section of this manual.

Malfunction: See Owner’s Manual (if so
equipped)

This warning appears when one or more of
the following systems (if so equipped) is
not functioning properly:

2-40

Instruments and controls

∙ Blind Spot Warning (BSW)

∙ Rear Cross Traffic alert (RCTA)

If one or more of these warning appears,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Side Radar Obstruction (if so equipped)

This message appears when the Blind
Spot Warning (BSW) or Rear Cross Traffic
Alert (RCTA) systems become unavailable
because a radar blockage is detected. For
additional information, refer to “Blind Spot
Warning (BSW)” or “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section
of this manual.

Rear Door Alert is activated (if so
equipped)

When the system is enabled, this message
appears when the Rear Door Alert system
is active and can remind the driver to check
the back seat.

∙ Using the steering wheel switch, a driver

can select “Dismiss Message” to clear
the display for a period of time. If no
selection is made, this message auto-
matically turns off after a period of time.

∙ Using the steering wheel switch, a driver

can select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.

WARNING

Selecting “Dismiss Message” during a
stop within a trip temporarily dismisses
the message for that stop without turn-
ing the system off. Alerts can be pro-
vided for other stops during the trip. Se-
lecting “Disable Alert” turns off the Rear
Door Alert system for the remainder of
a trip and no audible alert will be
provided.

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, refer
to “How to use the vehicle information
display” in this section.

For additional information, refer to “Rear
Door Alert” in this section.

Check Rear Seat For All Articles (if so
equipped)

When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from
the D (Drive) position to P (Park) position,
and the driver exits the vehicle. This mes-
sage alerts the driver, after a period of time,
to check for items in the rear seat after the
audible alert has been provided.

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, refer
to “How to use the vehicle information
display” in this section.

For additional information, refer to “Rear
Door Alert” in this section.

Instruments and controls

2-41

Your vehicle has two types of security sys-
tems:

∙ Vehicle security system

∙ NISSAN Vehicle Immobilizer System

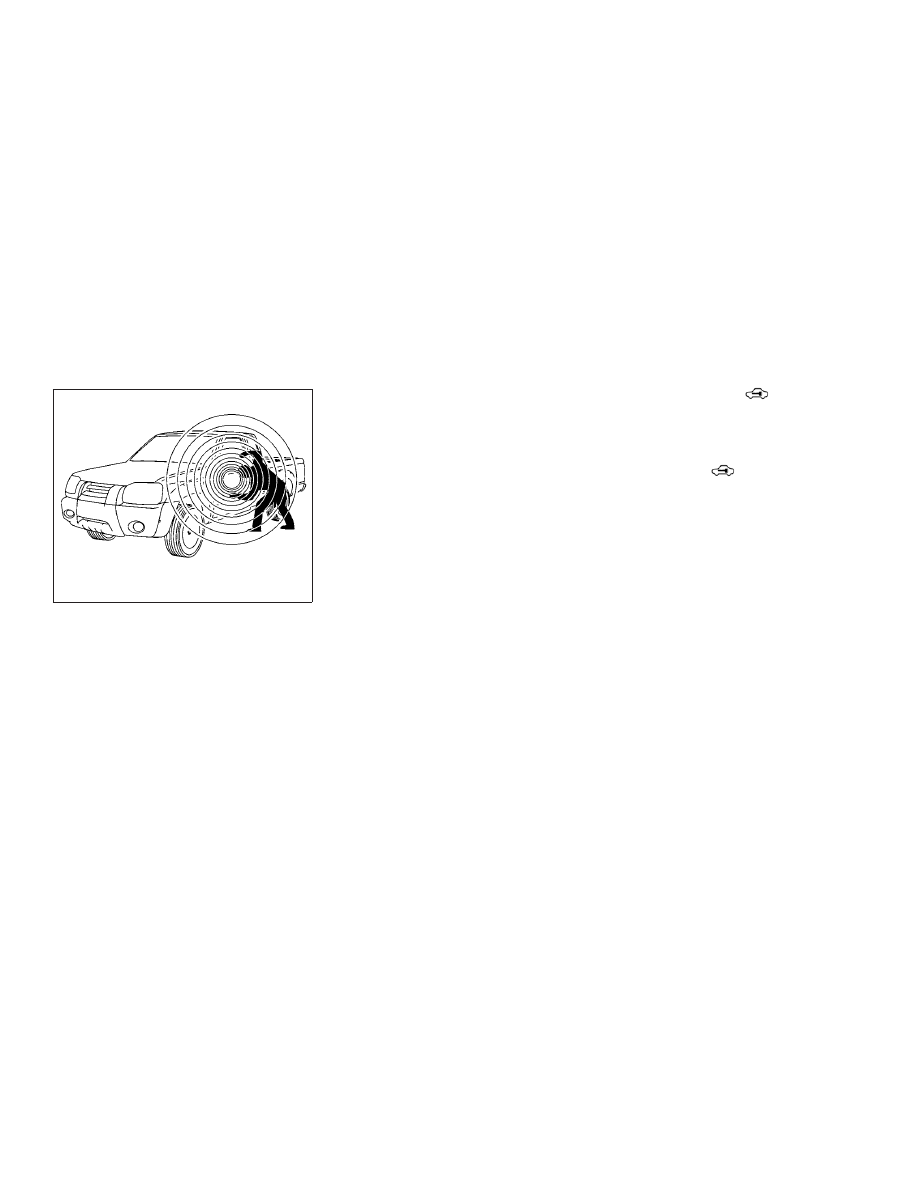

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors or hood when the system
is armed. It is not, however, a motion detec-
tion type system that activates when a ve-
hicle is moved or when a vibration occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the

theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the Intelligent Key from the ve-

hicle.

3. Close all doors. Lock all doors. The

doors can be locked with the Intelligent
Key, door handle request switch, or me-
chanical key (if so equipped).

4. Confirm that the

security indica-

tor light stays on for about 30 seconds.
The vehicle security system is now pre-
armed. The vehicle security system will
automatically shift into the armed
phase. The

security light begins

to flash once every three seconds. If
during the pre-armed phase one of the
following occurs, the system will not
arm:

∙ Any door is unlocked with the mechani-

cal key (if so equipped), the Intelligent
Key or door request switch.

∙ Ignition switch is placed in ACC or ON

position.

∙ If the key is turned slowly when lock-

ing the door, the system may not arm.
Furthermore, if the key is turned be-
yond the vertical position toward the
unlock position to remove the key,
the system may be disarmed when
the key is removed. If the indicator
light fails to glow for a period of time,
unlock the door once and lock it
again.

LIC0359

SECURITY SYSTEMS

Instruments and controls

2-43

∙ Even when the driver and/or passen-

gers are in the vehicle, the system will
activate with all the doors, hood and
locked with the ignition switch placed
in the LOCK position. When placing
the ignition switch in the ACC or ON
position, the system will be released.

∙ The lockable bedside storage com-

partment (if so equipped) is not pro-
tected by the vehicle security system.

Vehicle security system activation

The vehicle security system will give the
following alarm:

∙ The headlights blink and the horn

sounds

intermittently

but

synchro-

nously.

∙ The alarm automatically turns off after

a period of time. However, the alarm
reactivates if the vehicle is tampered
with again.

The alarm is activated by:

∙ opening any door or hood without us-

ing the key (if so equipped) or Intelligent
Key (even if the door is unlocked by re-
leasing the door inside lock knob).

How to stop an activated alarm

The alarm stops only by unlocking the driv-
er’s door with the key (if so equipped), the
key fob (if so equipped), or by pressing
the

button on the Intelligent Key (if so

equipped).

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:

1. Leave the ignition switch placed in the

ON position for approximately 5 sec-
onds.

2. Place the ignition switch in the OFF or

LOCK position and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

FCC Notice:

For USA:

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

2-44

Instruments and controls

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

Security indicator light

The security indicator light blinks whenever
the ignition switch is placed in the OFF,
LOCK or ACC position.

This function indicates the NISSAN Vehicle
Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.

If the light still remains on and/or the
engine will not start, seek service for the
NISSAN Vehicle Immobilizer System as
soon as possible. Please bring all regis-
tered keys that you have. It is recom-
mended that you visit a NISSAN dealer
for this service.

LIC0474

Instruments and controls

2-45

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm the windshield
with the defroster before you wash the
windshield.

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix windshield-washer fluid con-

centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

The windshield wiper and washer operates
when the ignition switch is in the ON posi-
tion.

Type A (if so equipped)

LIC3445

Type B (if so equipped)

LIC3035

WIPER AND WASHER SWITCH

2-46

Instruments and controls

Rotate the end of the lever to operate the
wiper at the following speed:

䊊

Intermittent (INT) — intermittent op-
eration can be adjusted by turning the
knob toward

䊊

(Slower) or

䊊

(Faster).

Also, the intermittent operation speed
varies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent opera-
tion speed will be faster.)

䊊

Low (LO) — continuous low speed op-
eration

䊊

High (HI) — continuous high speed op-
eration

Rotate the lever the opposite direction

䊊

to have one sweep operation (MIST) of the
wiper.

Press the button on the end of the lever

䊊

to operate the washer. The wiper will also
operate several times.

NOTE:

The Speed Dependent feature may be
disabled. For additional information, re-
fer to “Vehicle information display” in
this section.

RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)

CAUTION

∙ Do not touch the rain sensor and

around it when the wiper switch is in
the AUTO position and the ignition
switch is in the ON position. The wip-
ers may operate unexpectedly and
cause an injury or may damage a
wiper.

∙ The rain-sensing auto wipers are in-

tended for use during rain. If the
switch is left in the AUTO position, the
wipers may operate unexpectedly
when dirt, fingerprints, oil film or in-
sects are stuck on or around the sen-
sor. The wipers may also operate
when exhaust gas or moisture affect
the rain sensor.

∙ When the windshield glass is coated

with water repellent, the speed of the
rain-sensing auto wipers may be
higher even though the amount of the
rainfall is small.

∙ Be sure to turn off the rain-sensing

auto wiper system when you use a car
wash.

∙ The rain-sensing auto wipers may not

operate if rain does not hit the rain
sensor even if it is raining.

∙ Using Genuine NISSAN wiper blades is

recommended for proper operation
of the rain-sensing auto wiper sys-
tem. For additional information, refer
to “Windshield wiper blades” in the
“Do-it-yourself ”

section

this

manual.

LIC3446

Instruments and controls

2-47

The rain-sensing auto wiper system can
automatically turn on the wipers and ad-
just the wiper speed depending on the
rainfall and the vehicle speed by using the
rain sensor located on the upper part of
the windshield.

To set the rain-sensing auto wiper system,
rotate the lever to the AUTO position

䊊

The wiper will sweep once while the igni-
tion switch is in the ON position.

The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front

䊊

(High) or toward the rear

䊊

(Low).

– High — High sensitive operation

– Low — Low sensitive operation

To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the LO or HI position.

NOTE:

The Rain Sensor feature may be dis-
abled. For additional information, refer
to “Vehicle information display” in this
section.

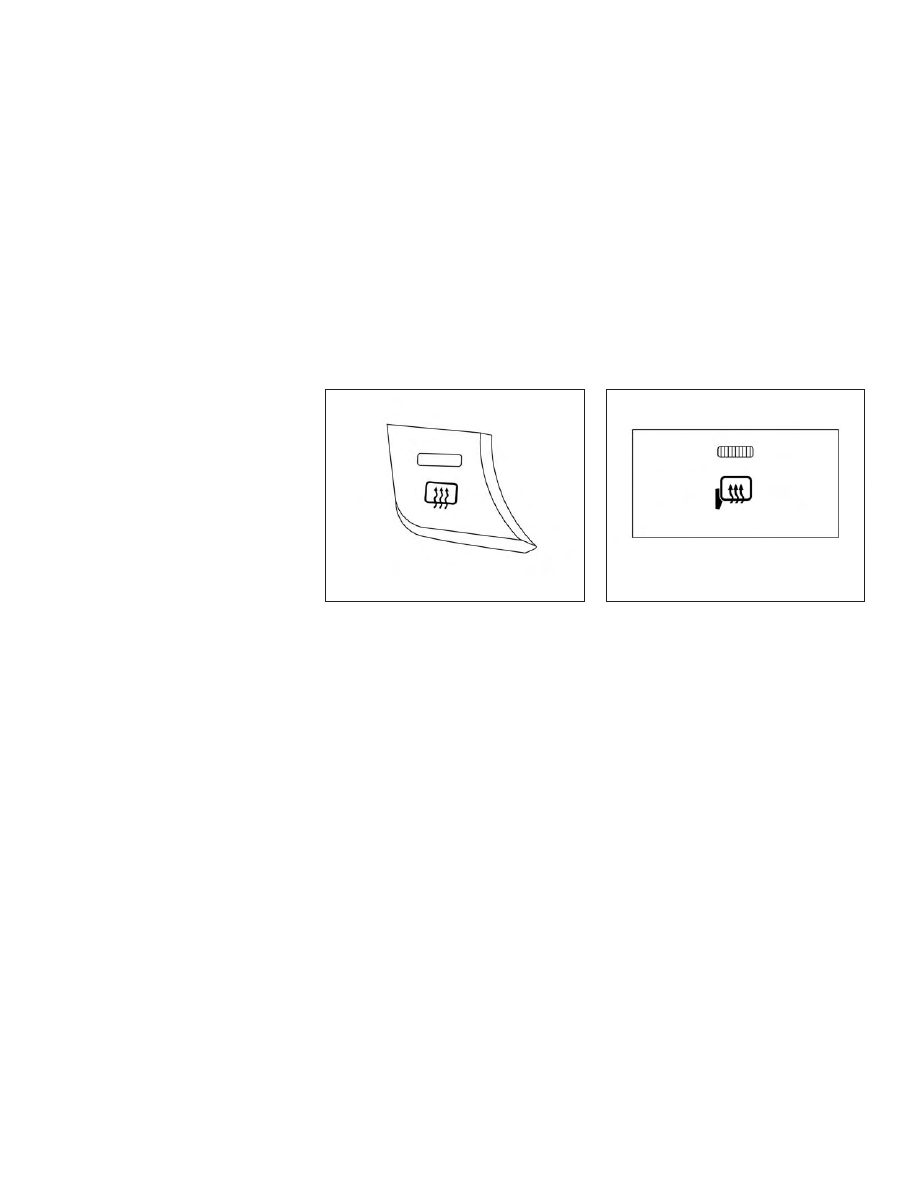

To defrost the rear window glass and/or
outside mirrors, start the engine and push
the rear window/outside mirror defroster
switch on. The indicator light on the switch
will illuminate. Push the switch again to
turn the defroster off.

The defroster automatically turns off after
approximately 15 minutes.

Type A (if so equipped)

LIC2325

Type B (if so equipped)

LIC3542

REAR WINDOW AND/OR OUTSIDE
MIRROR DEFROSTER SWITCH (if so
equipped)

2-48

Instruments and controls

Nissan Titan (2019 year). Instruction - part 9
