Nissan Titan (2019 year). Instruction

2. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

3. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to the ELR
mode when the seat belt is fully re-
tracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

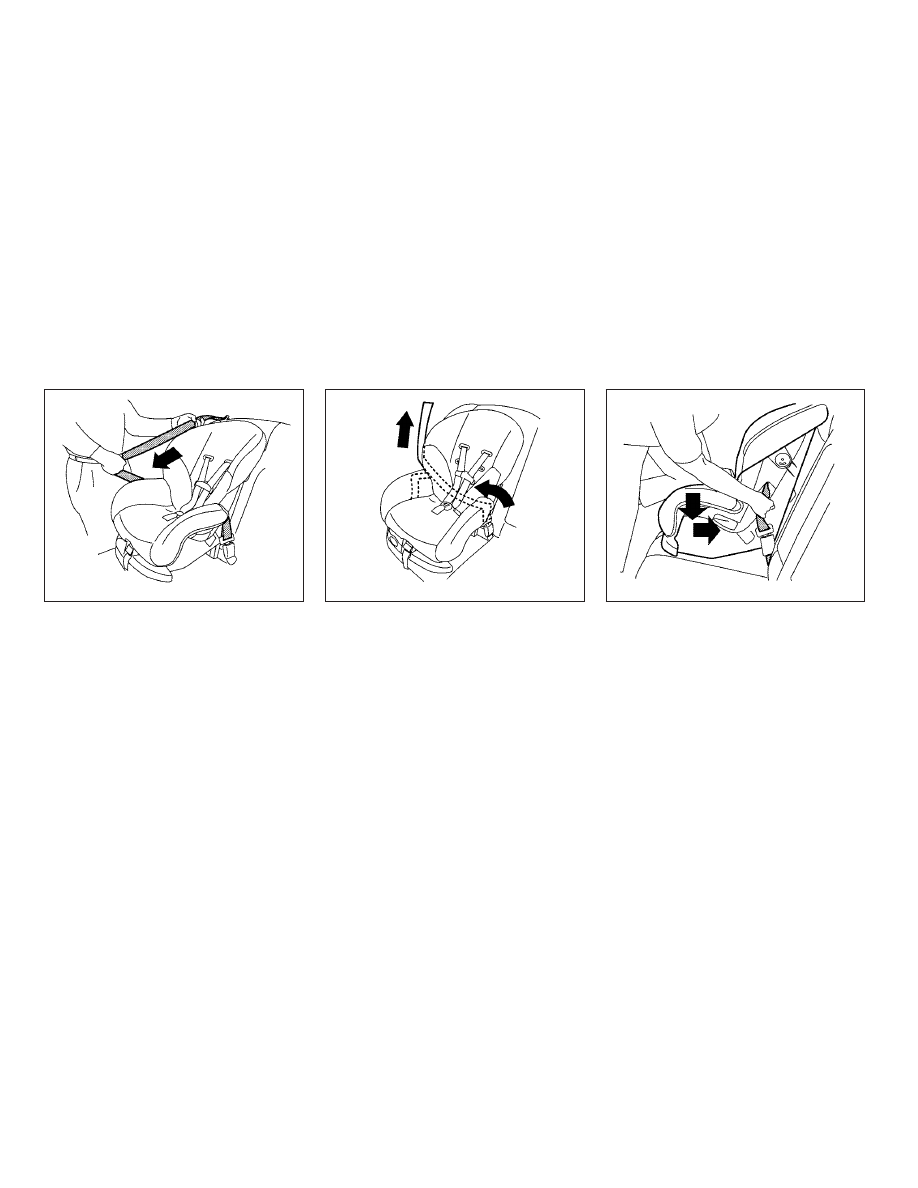

Rear-facing – step 2

WRS0761

Rear-facing – step 3

LRS2395

Rear-facing – step 4

LRS2396

Safety—Seats, seat belts and supplemental restraint system

1-35

5. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint to compress the vehicle seat
cushion and seatback while pulling up
on the seat belt.

6. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the belt holds the restraint in place. If
the restraint is not secure, tighten the
seat belt as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.

7. Check to make sure that the child re-

straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 1 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS (Single Cab models and
King Cab® Rear Seat Delete
models)

WARNING

∙ Never install a rear-facing child re-

straint in the front seat. An inflating
supplemental air bag could seriously
injure or kill your child.

∙ Never let an infant who requires the

use of a rear-facing child restraint ride
in this vehicle.

Rear-facing – step 5

WRS0762

Rear-facing – step 6

LRS2397

1-36

Safety—Seats, seat belts and supplemental restraint system

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH (Crew Cab models and
King Cab® models with rear
bench seat)

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer’s
instructions for installation.

Follow these steps to install a forward-
facing child restraint in the rear bench
seats using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point. For additional
information, refer to “Installing top
tether strap” in this section.

Do not install child restraints that re-
quire the use of a top tether strap in

seating positions that do not have a
top tether anchor.

3. The back of the child restraint should

be secured against the vehicle seat-
back.

If necessary, adjust or remove the head
restraint/headrest to obtain the cor-
rect child restraint fit. If the head
restraint/headrest is removed, store it
in a secure place. Be sure to reinstall
the head restraint/headrest when
the child restraint is removed. For ad-
ditional information, refer to “Head
restraints/headrests” in this section.

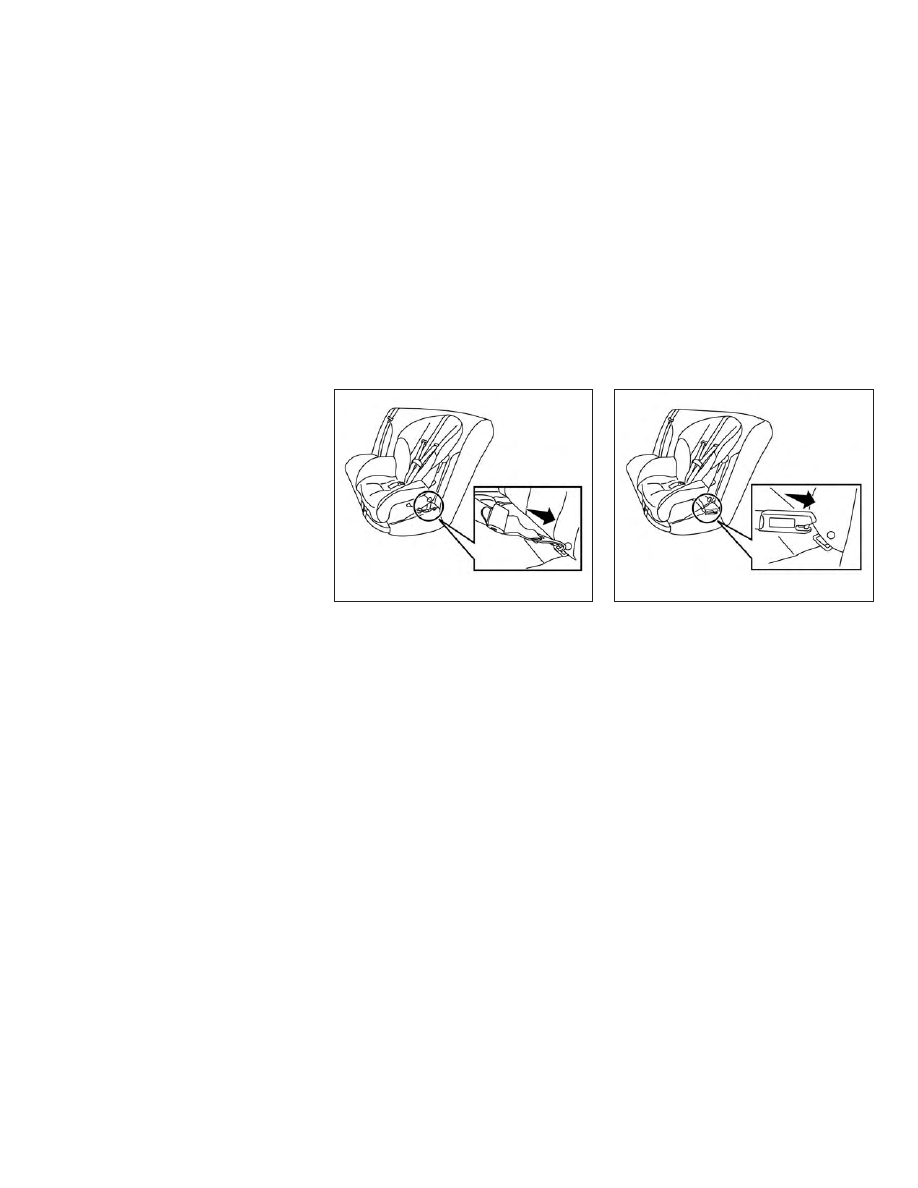

Forward-facing

webbing-mounted

–

step 2

LRS2995

Forward-facing rigid-mounted – step 2

LRS2994

Safety—Seats, seat belts and supplemental restraint system

1-37

If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.

4. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your knee to com-
press the vehicle seat cushion and
seatback while tightening the webbing
of the anchor attachments.

5. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

6. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the
restraint in another seat and test it
again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles.

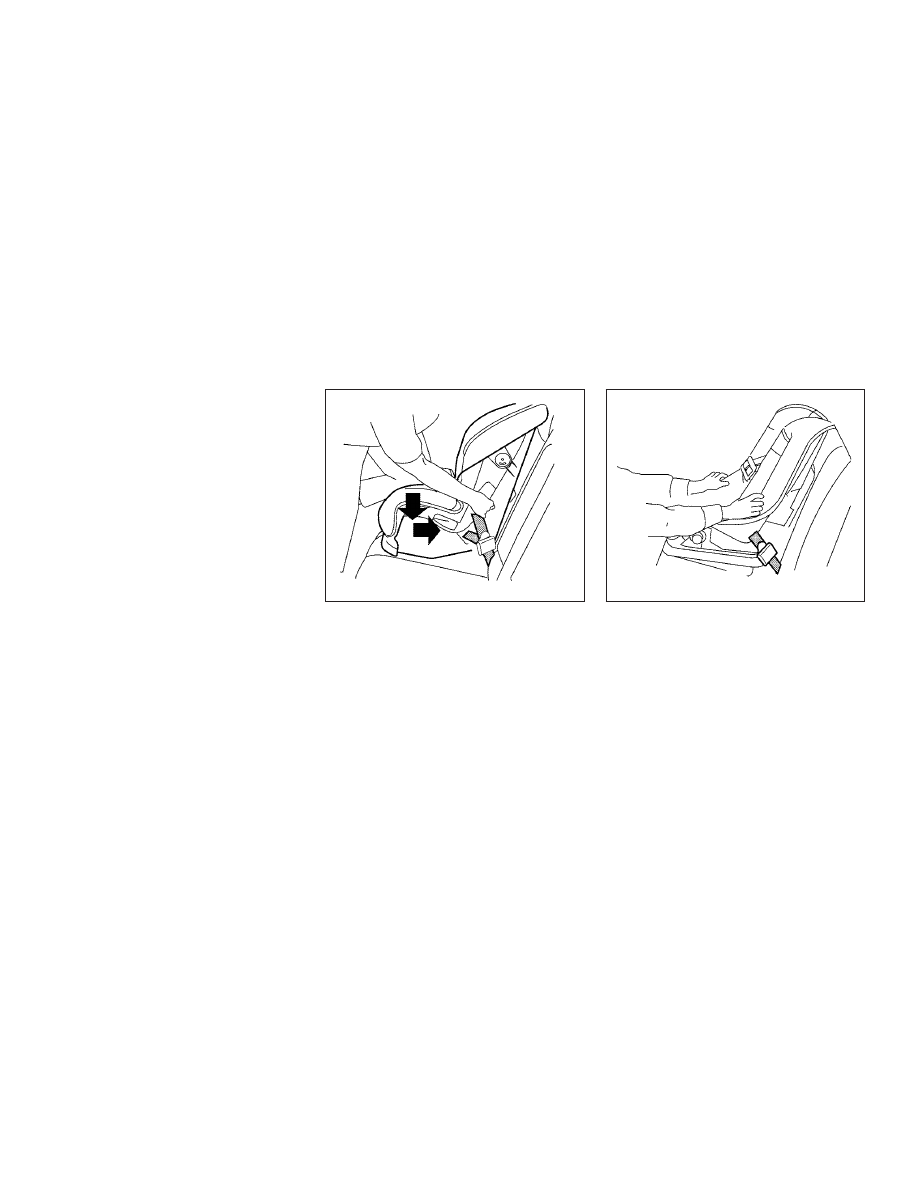

Forward-facing – step 4

LRS0671

Forward-facing – step 6

WRS0697

1-38

Safety—Seats, seat belts and supplemental restraint system

7. Check to make sure the child restraint

is properly secured prior to each use. If
the child restraint is loose, repeat
steps 3 through 6.

䊊

Anchor points

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.

First, secure the child restraint with the
LATCH lower anchors (rear bench out-
boarding seating positions only).

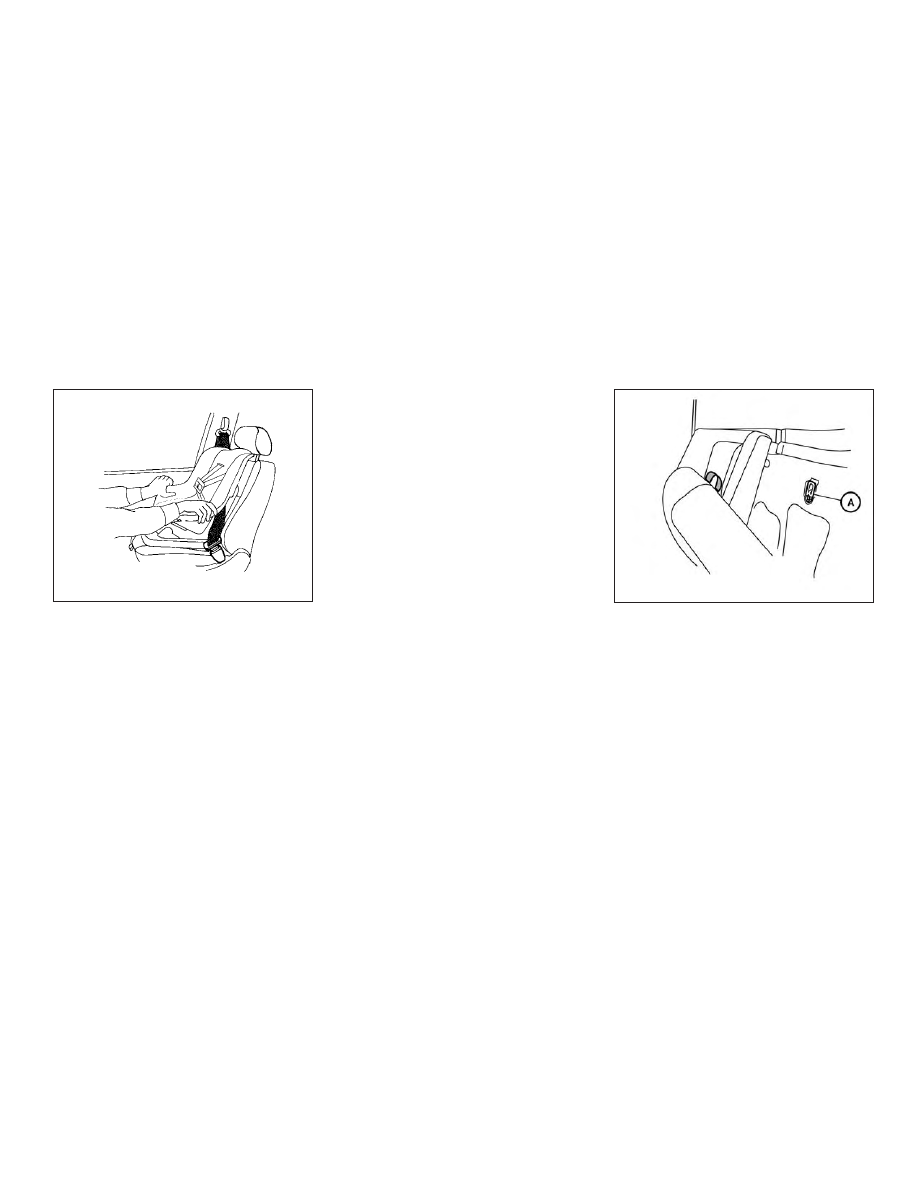

Rear bench seat

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest

and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests” in this section for
head restraint/headrest adjustment,
removal and installation information.

2. Position the top tether strap over the

seatback.

3. Secure the tether strap to the tether

anchor point as shown.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.

Rear bench seat

LRS2769

Safety—Seats, seat belts and supplemental restraint system

1-39

WARNING

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child re-
straint will not be properly installed us-
ing the damaged anchorage, and a
child could be seriously injured or killed
in a collision.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS — REAR BENCH
SEAT (Crew Cab models and King
Cab® models with rear bench
seat)

WARNING

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

to follow the child restraint manufacturer’s
instructions for installation.

Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats:

1. If you must install a child restraint in

the front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position.
Child restraints for infants must be
used in the rear-facing direction and
therefore must not be used in the
front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should
be secured against the vehicle seat-
back.

1-40

Safety—Seats, seat belts and supplemental restraint system

If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.

3. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point (rear seat in-
stallation only). For additional informa-
tion, refer to “Installing top tether strap”
in this section.

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a
top tether anchor.

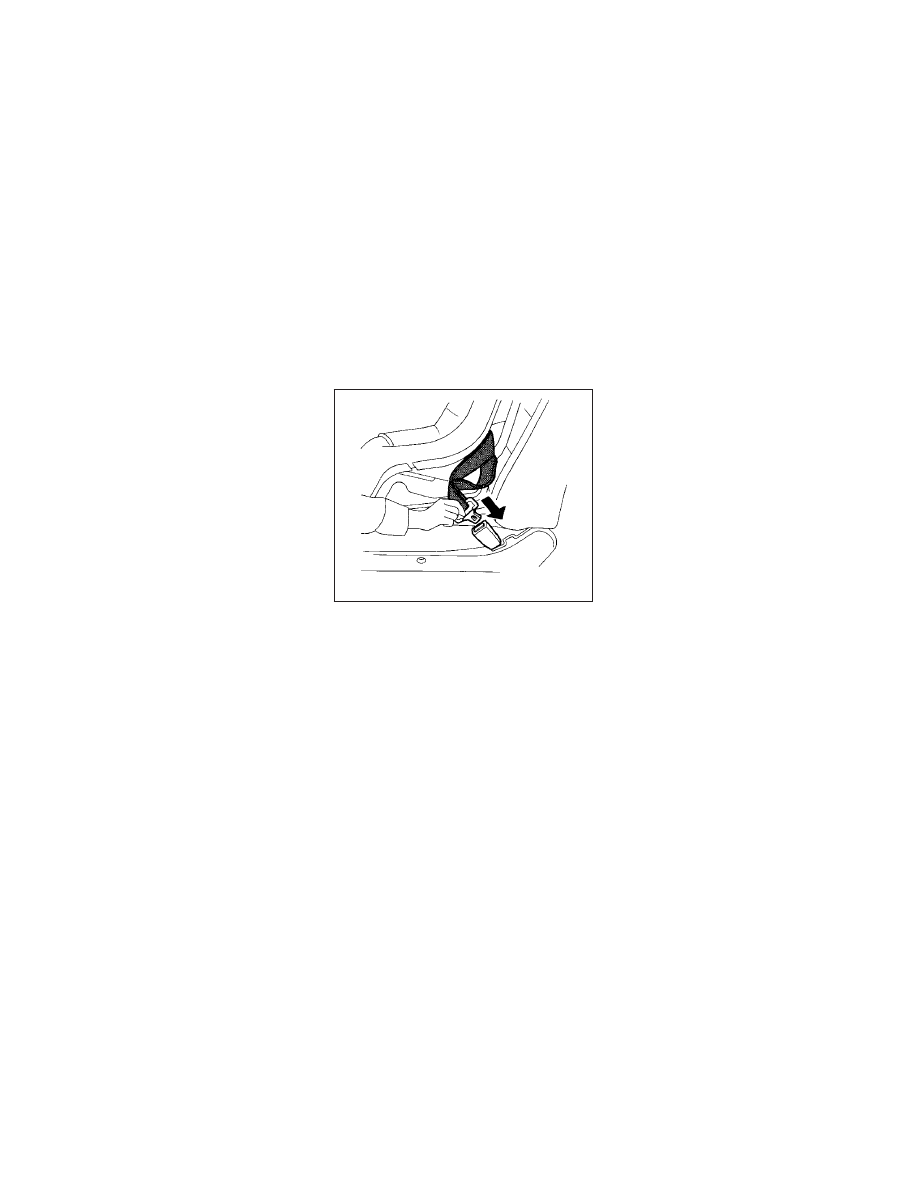

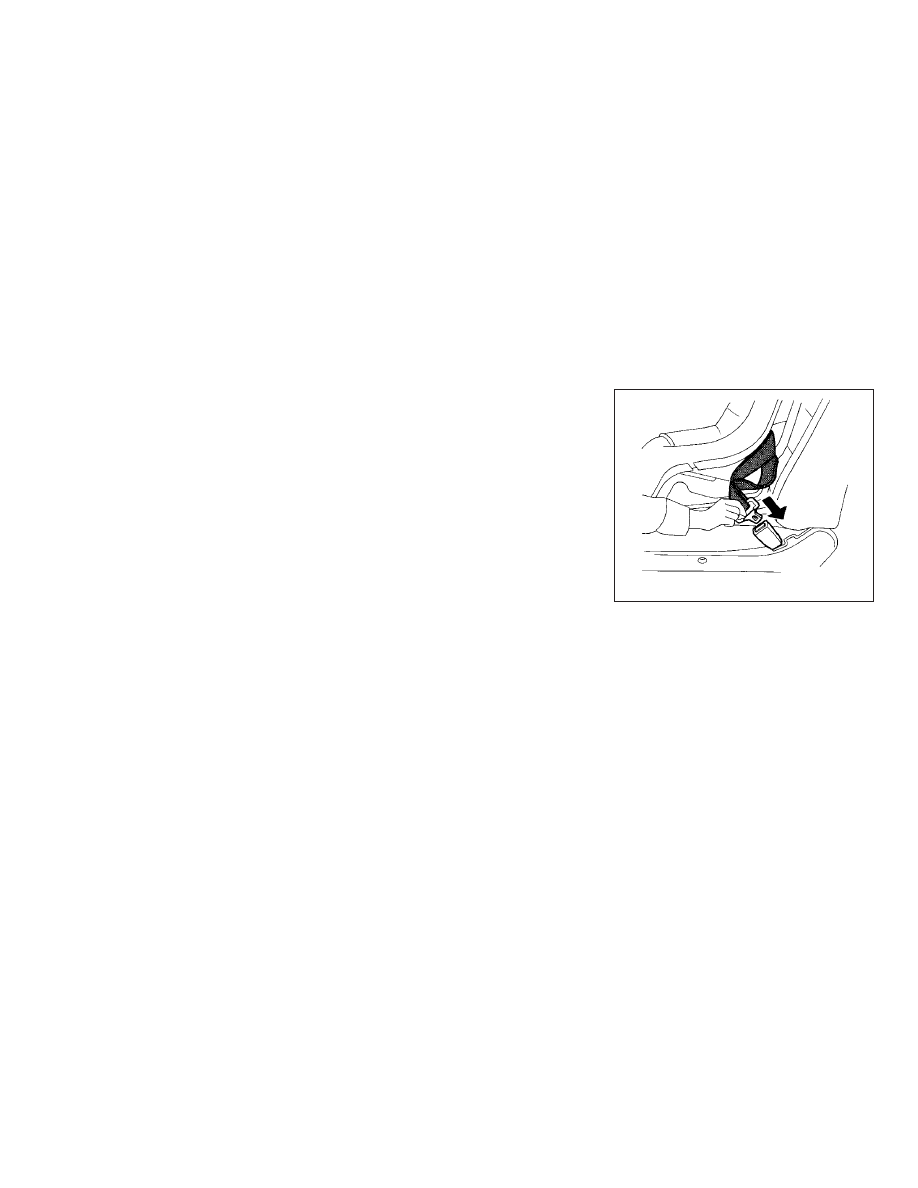

Forward-facing – step 3

WRS0680

Safety—Seats, seat belts and supplemental restraint system

1-41

4. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to ELR mode
when the seat belt is fully retracted.

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

6. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint with your knee to compress
the vehicle seat cushion and seatback
while pulling up on the seat belt.

7. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

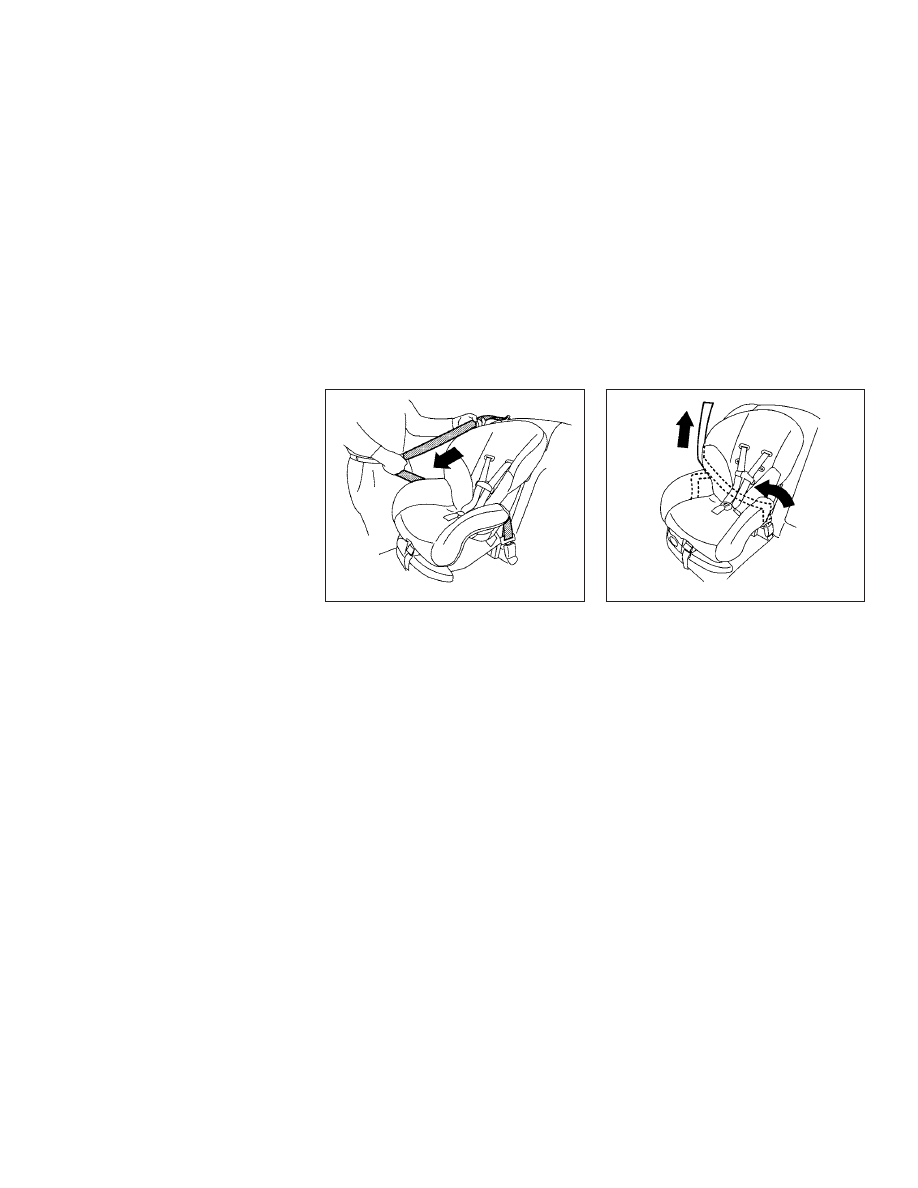

Forward-facing – step 4

LRS0667

Forward-facing – step 5

LRS0668

Forward-facing – step 6

WRS0681

1-42

Safety—Seats, seat belts and supplemental restraint system

8. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the seat belt holds the restraint in
place. If the restraint is not secure,
tighten the seat belt as necessary, or
put the restraint in another seat and
test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

9. Check to make sure the child restraint

is properly secured prior to each use. If
the seat belt is not locked, repeat
steps 3 through 8.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

䊊

Anchor points

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
seat belts.

First, secure the child restraint with the seat
belt.

Forward-facing – step 8

WRS0698

LRS2769

Safety—Seats, seat belts and supplemental restraint system

1-43

Rear bench seat

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest

2. Position the top tether strap as shown.

3. Secure the tether strap to the tether

anchor point as shown.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

CENTER SEATING POSITION

1. Position the top tether strap as shown.

2. Secure the tether strap to the tether

anchor point as shown.

3. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.

WARNING

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS — PASSENGER
SEAT AND CENTER SEAT (Single
Cab models and King Cab® Rear
Seat Delete models)

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. For additional informa-
tion, refer to “Front passenger air bag
and status light” in this section.

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

1-44

Safety—Seats, seat belts and supplemental restraint system

Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt:

1. If you must install a child restraint in

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should
be secured against the vehicle seat-
back.

If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.

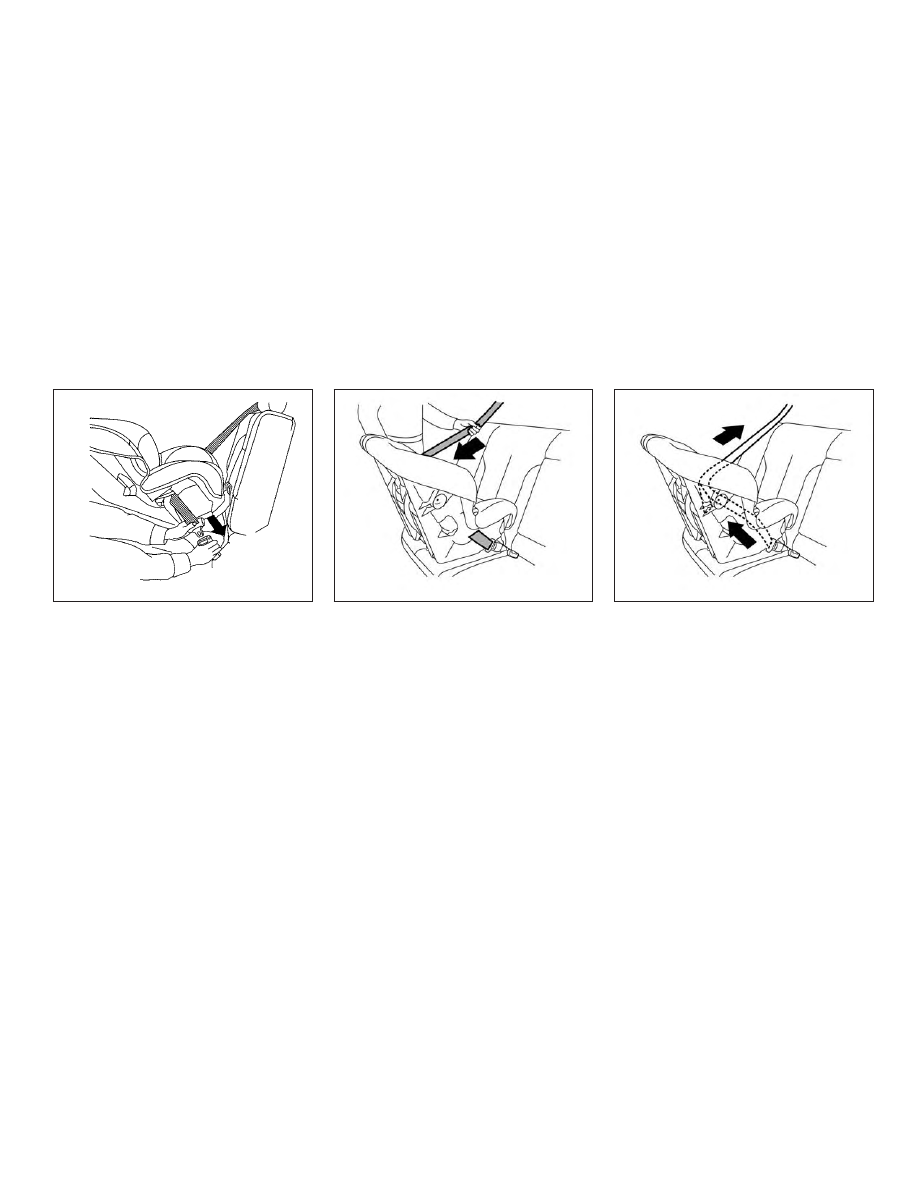

3. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

Forward-facing – step 3

WRS0680

Safety—Seats, seat belts and supplemental restraint system

1-45

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a
top tether anchor.

4. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to ELR mode
when the seat belt is fully retracted.

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

Forward-facing – step 4

LRS0667

Forward-facing – step 5

LRS0668

1-46

Safety—Seats, seat belts and supplemental restraint system

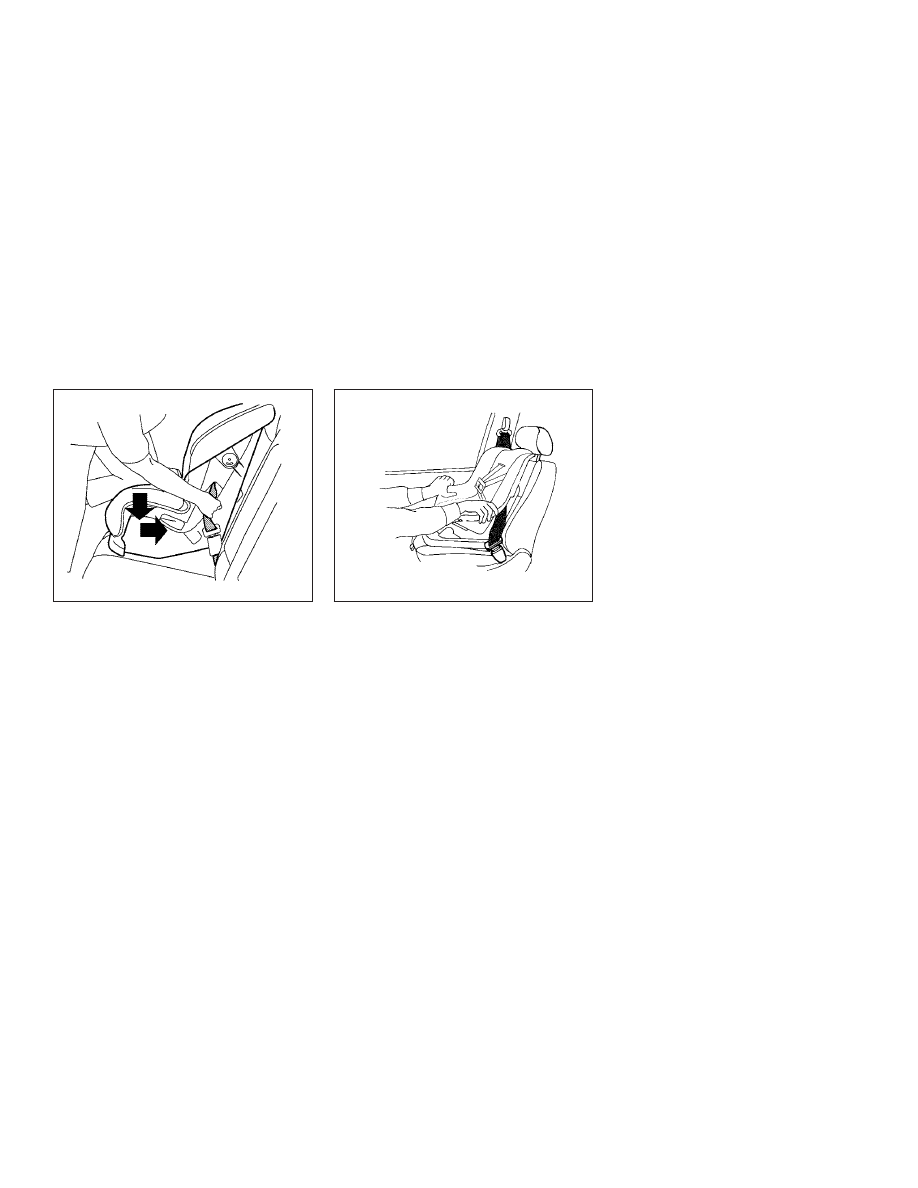

6. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint with your knee to compress
the vehicle seat cushion and seatback
while pulling up on the seat belt.

7. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

8. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the seat belt holds the restraint in
place. If the restraint is not secure,
tighten the seat belt as necessary, or
put the restraint in another seat and
test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

9. Check to make sure the child restraint

is properly secured prior to each use. If
the seat belt is not locked, repeat
steps 3 through 8.

Forward-facing – step 6

WRS0681

Forward-facing – step 8

WRS0698

Safety—Seats, seat belts and supplemental restraint system

1-47

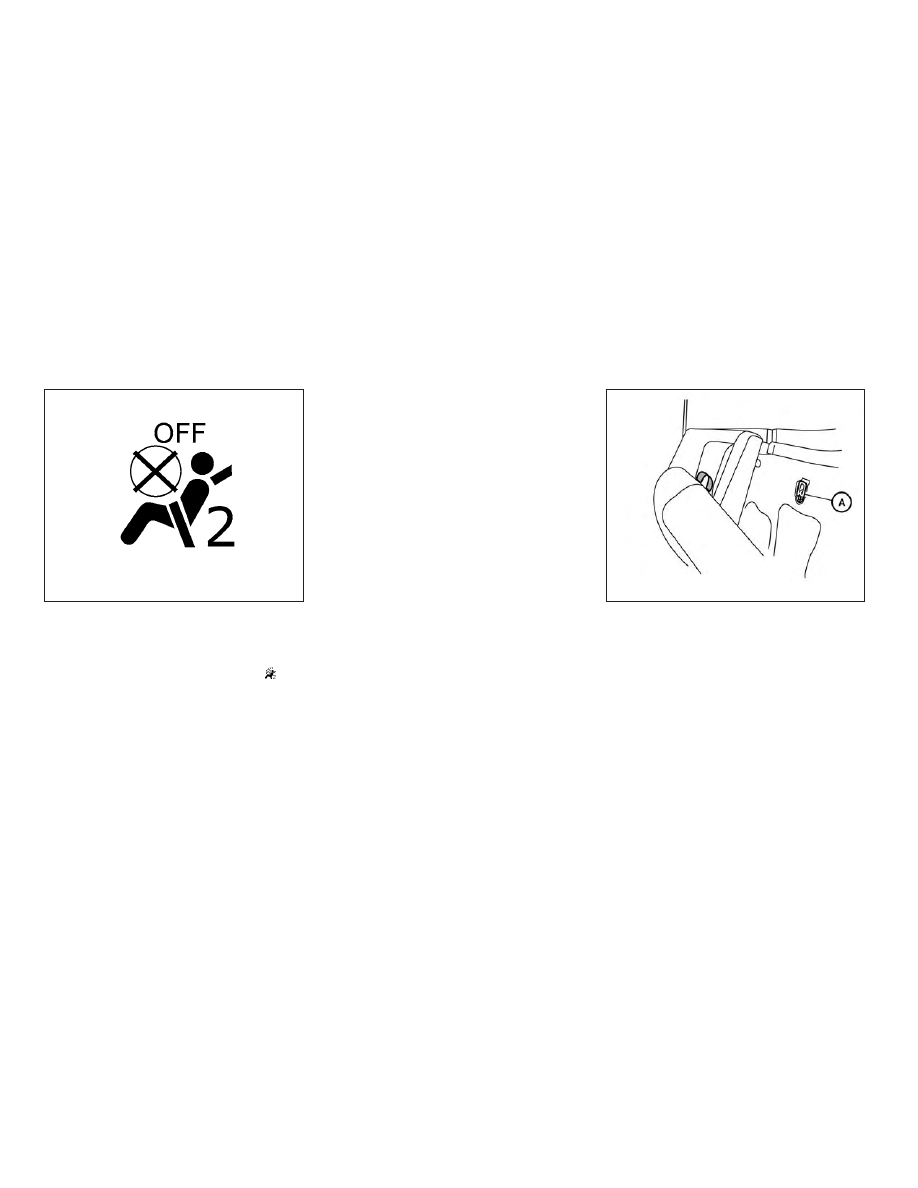

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light

(if

so equipped) may or may not illumi-
nate, depending on the size of the child
and the type of child restraint being
used. For additional information, refer
to “Front passenger air bag and status
light” in this section.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
seat belts.

First, secure the child restraint with the seat
belt.

䊊

Anchor points

Forward-facing — step 10

WRS0475

Single Cab models

LRS2769

1-48

Safety—Seats, seat belts and supplemental restraint system

䊊

Top tether straps

䊊

Anchor points

Bench seat

PASSENGER SEATING POSITION

1. Remove the head restraint/headrest

2. Position the top tether strap over the

seatback.

3. Secure the tether strap to the tether

anchor point as shown.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

CENTER SEATING POSITION

1. Position the top tether strap over the

seatback.

2. Secure the tether strap to the tether

anchor point as shown.

3. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.

WARNING

BOOSTER SEATS

For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.

Precautions on booster seats

WARNING

If a booster seat and seat belt are not
used properly, the risk of a child being
injured or killed in a sudden stop or col-
lision greatly increases:

King Cab® Rear Seat Delete models

LRS2880

Safety—Seats, seat belts and supplemental restraint system

1-49

– Make sure the shoulder portion of

the belt is away from the child’s
face and neck and the lap portion
of the belt does not cross the
stomach.

– Make sure the shoulder belt is not

behind the child or under the
child’s arm.

– A booster seat must only be in-

stalled in a seating position that
has a lap/shoulder belt.

Low back booster seat

High back booster seat

Booster seats of various sizes are offered
by several manufacturers. When selecting
any booster seat, keep the following points
in mind:

∙ Choose only a booster seat with a label

certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.

∙ Check the booster seat in your vehicle

to be sure it is compatible with the vehi-
cle’s seat and seat belt system.

LRS2479

LRS0453

1-50

Safety—Seats, seat belts and supplemental restraint system

Nissan Titan (2019 year). Instruction - part 4
