Nissan Sentra (2019 year). Instruction

PASSENGER COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

NOTE:

The fuse box is located on the driver’s
side of the instrument panel.

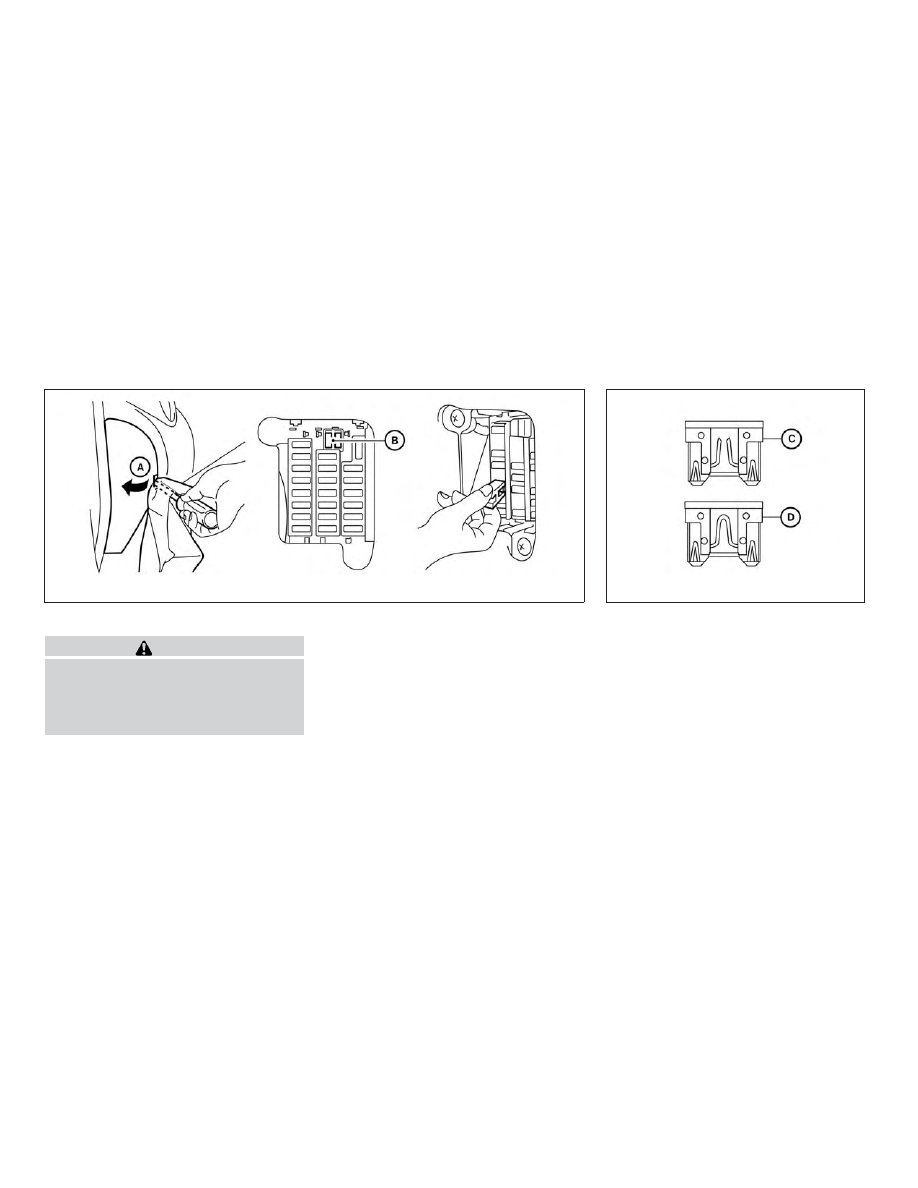

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Remove the fuse box cover

䊊

with a

suitable tool. Use a cloth to avoid dam-
aging the trim.

3. Locate the fuse that needs to be re-

placed.

4. Remove the fuse with the fuse puller

䊊

5. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI2712

LDI2713

8-24

Do-it-yourself

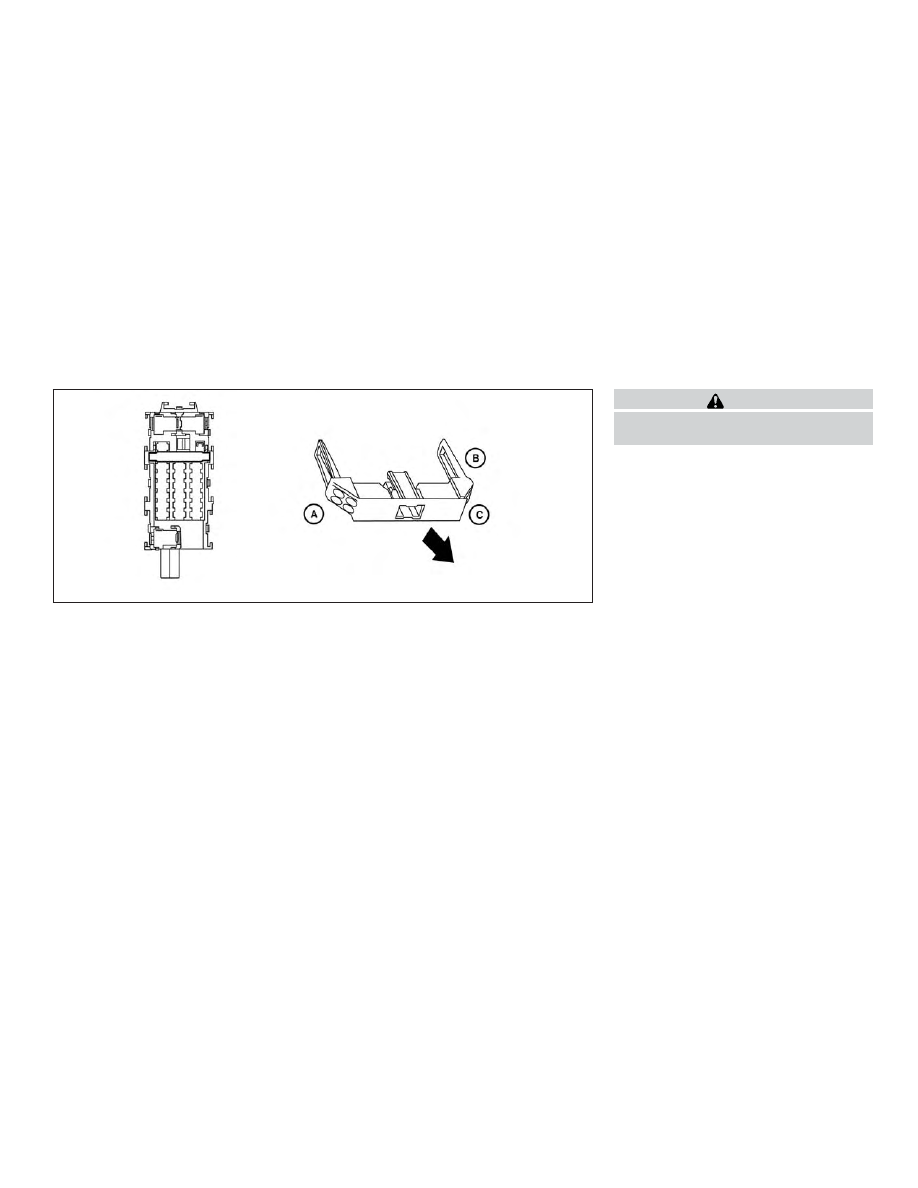

Extended storage switch

If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

How to replace the extended storage
switch:

1. To

remove

the

extended

storage

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlight switch is in the

OFF position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

䊊

and

䊊

found

on each side of the storage switch.

5. Pull the storage switch straight out

from the fuse box

䊊

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

LDI2747

BATTERY REPLACEMENT

Do-it-yourself

8-25

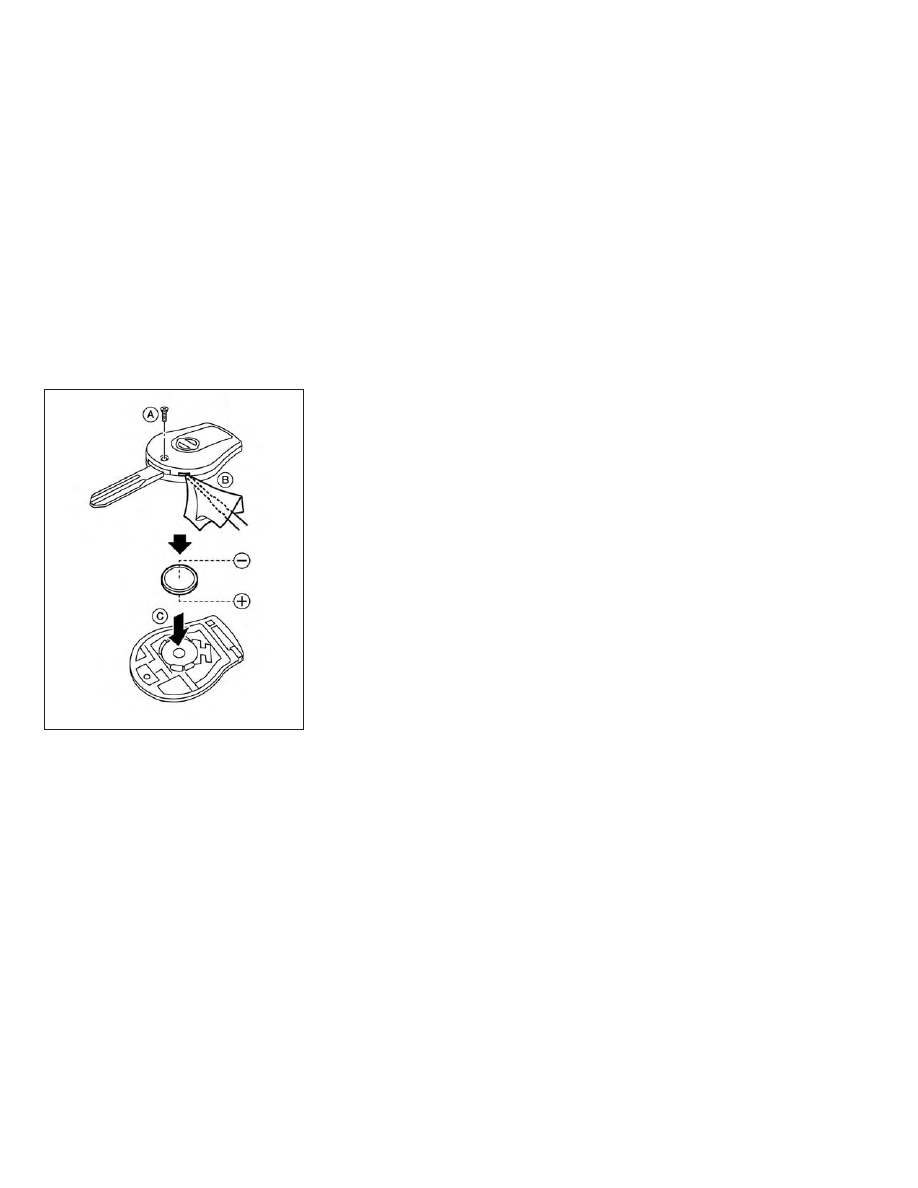

KEY FOB (if so equipped)

Replace the battery in the key fob as fol-
lows:

1. Remove the screw

䊊

2. Insert a small screwdriver into the slit of

the corner

䊊

and twist it to separate

the upper part from the lower part. Use
a cloth to protect the casing.

3. Replace the battery with a new one.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Make sure that the + side faces the

bottom of the case

䊊

Recommended battery: CR1620 or equiva-
lent.

4. Close the lid and install the screw se-

curely.

5. Operate the buttons to check its op-

eration.

If you need assistance with replacement, it
is recommended that you visit a NISSAN
dealer for this service.

If the battery is removed for any reason
other than replacement, perform step 5.

∙ An improperly disposed battery can

hurt the environment. Always con-
firm local regulations for battery dis-
posal.

∙ The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

∙ The operational range of the key fob

extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.

Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation of the device.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

LDI2219

8-26

Do-it-yourself

For Canada:
This

devise

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

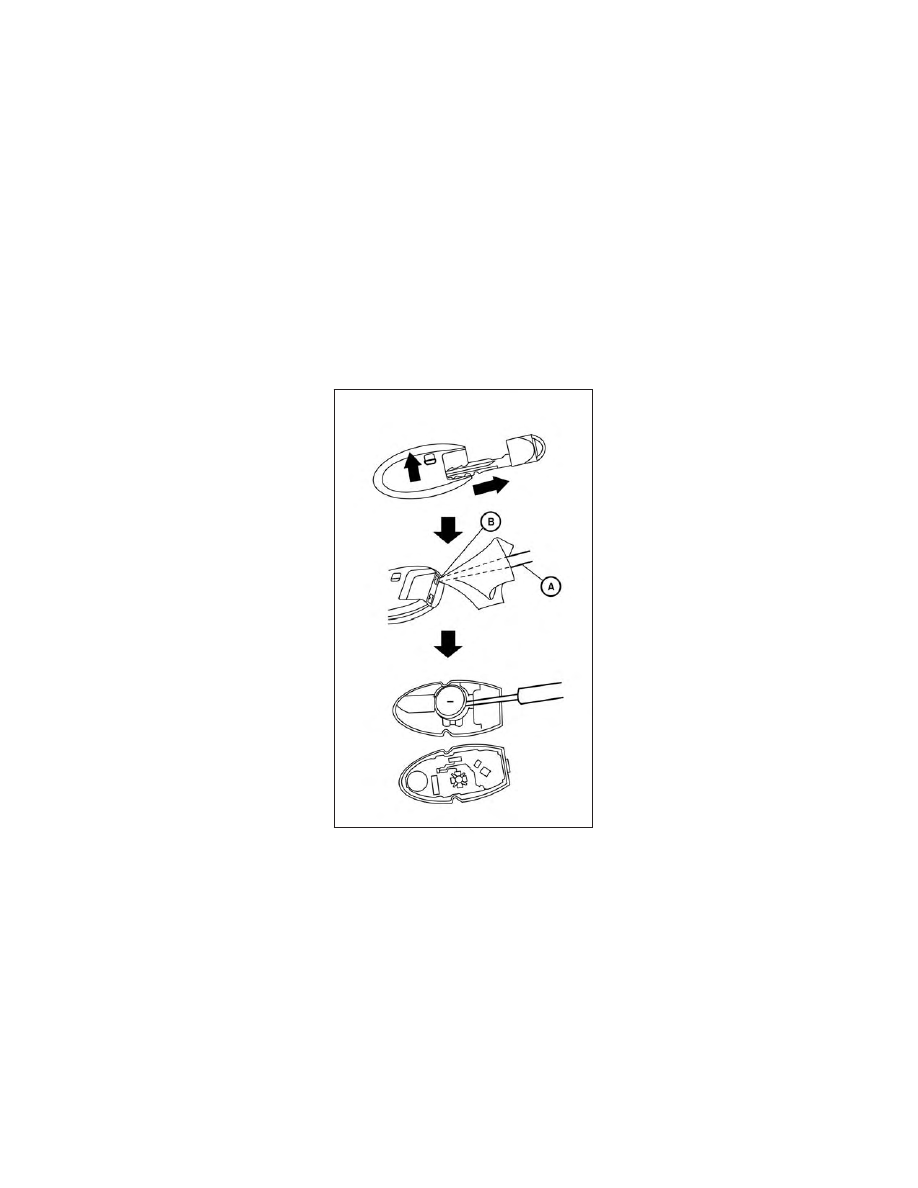

NISSAN INTELLIGENT KEY® (if so
equipped)

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small flathead screwdriver

䊊

into the slit

䊊

of the corner and twist it

to separate the upper part from the
lower part. Place a cloth over the
screwdriver to protect the casing.

LDI2001

Do-it-yourself

8-27

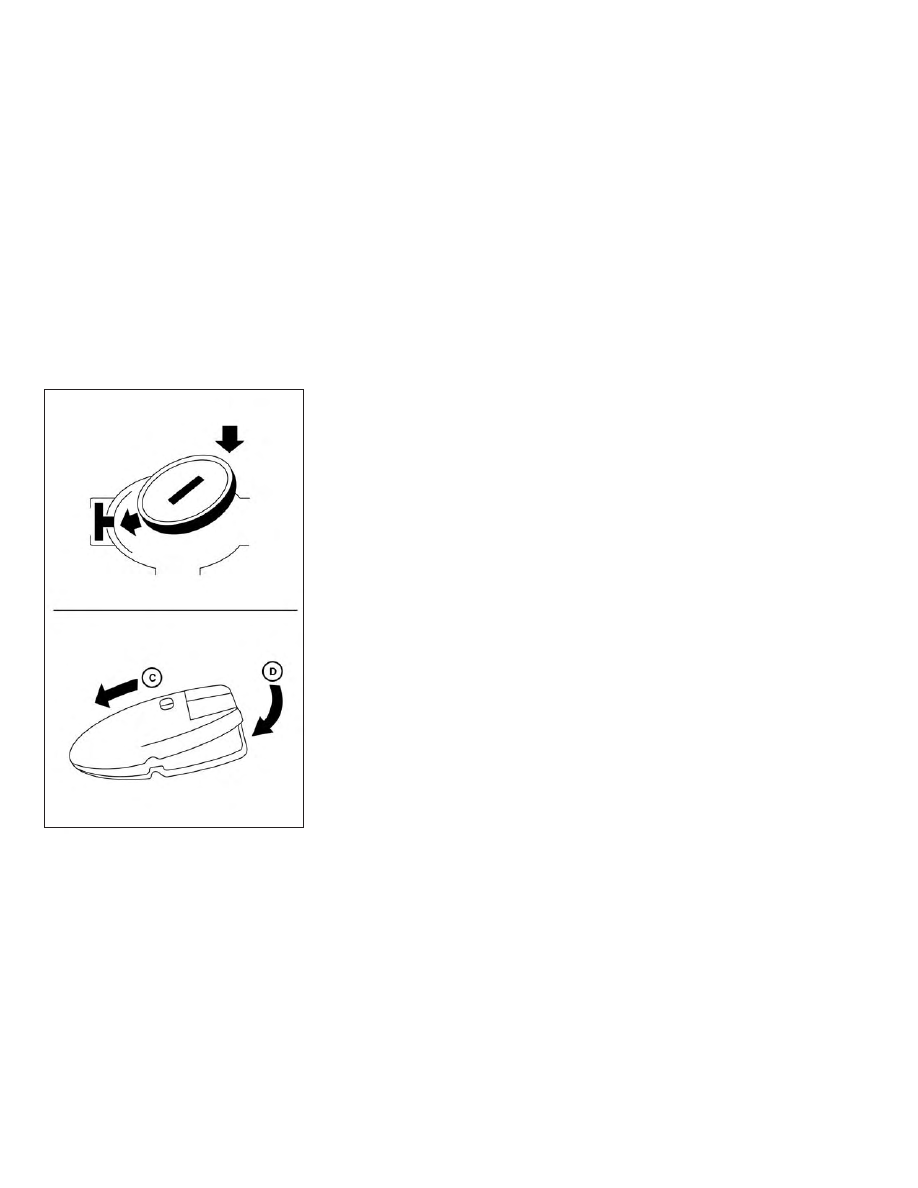

3. Replace the battery with a new one.

Recommended battery: CR2025 or
equivalent.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the stor-
age capacity.

∙ Make sure that the + side faces the

bottom of the lower part.

4. Close the lid securely as illustrated with

䊊

and

䊊

5. Operate the buttons to check the op-

eration.

If you need assistance with replacement, it
is recommended that you visit a NISSAN
dealer for this service.

FCC Notice:

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

complies

with

Industry

LDI2637

8-28

Do-it-yourself

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb (if so equipped)

NOTE:

The headlight is a semi-sealed beam type
which used a replaceable headlight (halo-
gen) bulb. They can be replaced from in-
side the engine compartment without re-
moving the headlight assembly.

CAUTION

∙ Aiming is not necessary after replac-

ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ Use the same number and wattage as

shown in the chart.

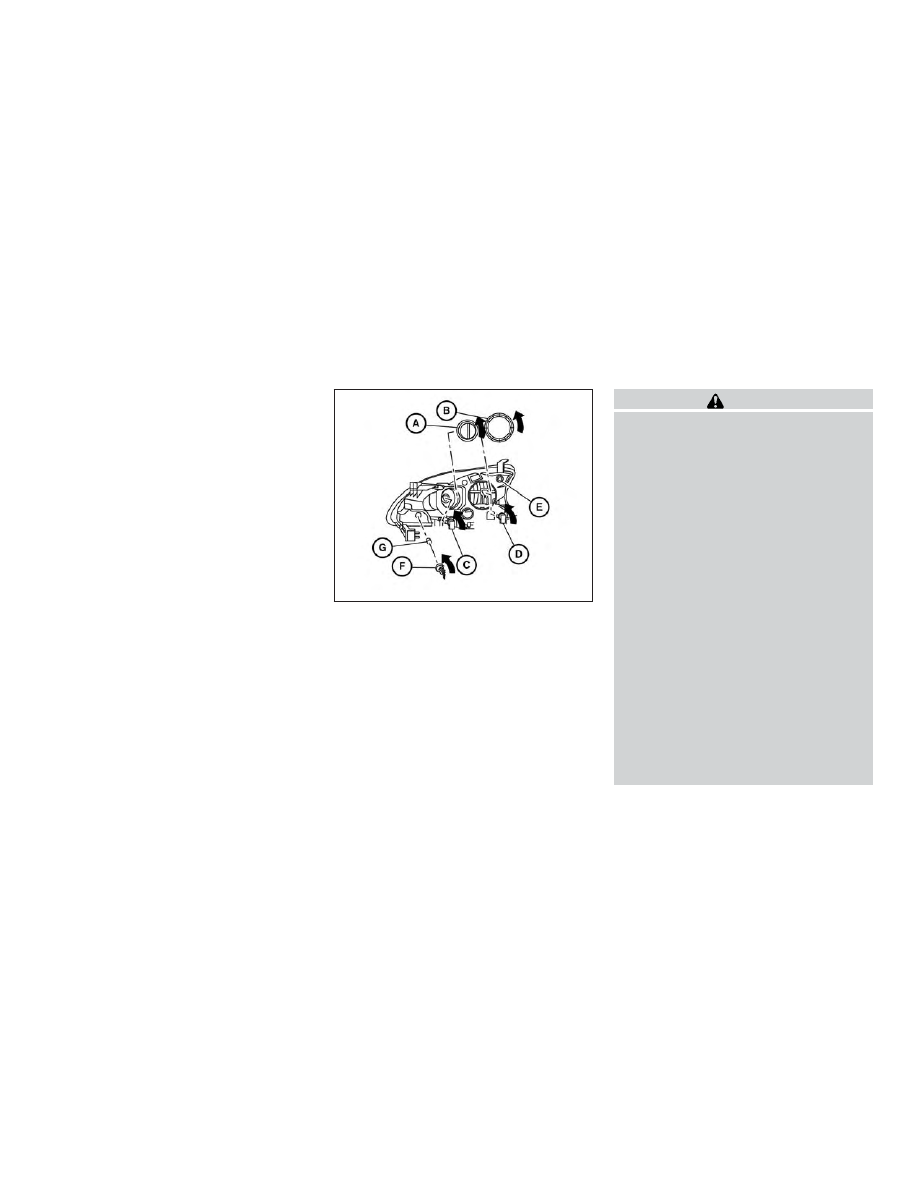

Type A (if so equipped)

LDI2980

LIGHTS

Do-it-yourself

8-29

1. Rotate the (high beam) cover

䊊

coun-

terclockwise to access the (high beam)
bulb socket

䊊

. Rotate the bulb socket

䊊

counterclockwise and remove bulb.

2. Rotate the (low beam) cover

䊊

(if so

equipped) counterclockwise to access
the (low beam) bulb socket

䊊

(if so

equipped). Rotate the bulb socket

䊊

(if

so equipped) counterclockwise and re-
move bulb.

3. Rotate the side marker bulb socket

䊊

counterclockwise and remove bulb.

4. Rotate the turn signal bulb socket

䊊

counterclockwise and remove bulb

䊊

Reverse instructions to install bulbs and
replace fender protector.

WARNING

Do not touch bulb by hand while it is lit
or right after being turned off. Burning
may result.

CAUTION

• Do not touch glass surface of the bulb
with bare hands or allow oil or grease to
get on it to prevent damage to bulb.

• Do not leave the bulb out of the lamp
reflector for a long time because dust,
moisture, smoke, etc. may affect the
performance of the lamp.

• Fog may temporarily form inside the
lens of the exterior lights in the rain or in
a car wash. A temperature difference
between the inside and the outside of
the lens causes the fog. This is not a
malfunction. If large drops of water col-
lect inside the lens, it is recommended
that you visit a NISSAN dealer for
servicing.

Replacing the LED headlight bulb
(if so equipped)

If LED headlight bulb replacement is re-
quired, it is recommended that you visit a
NISSAN dealer for this service.

TURN SIGNAL BULB

To replace the turn signal bulb follow the
instructions listed in the “Replacing the
halogen headlight bulb” found in this sec-
tion.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

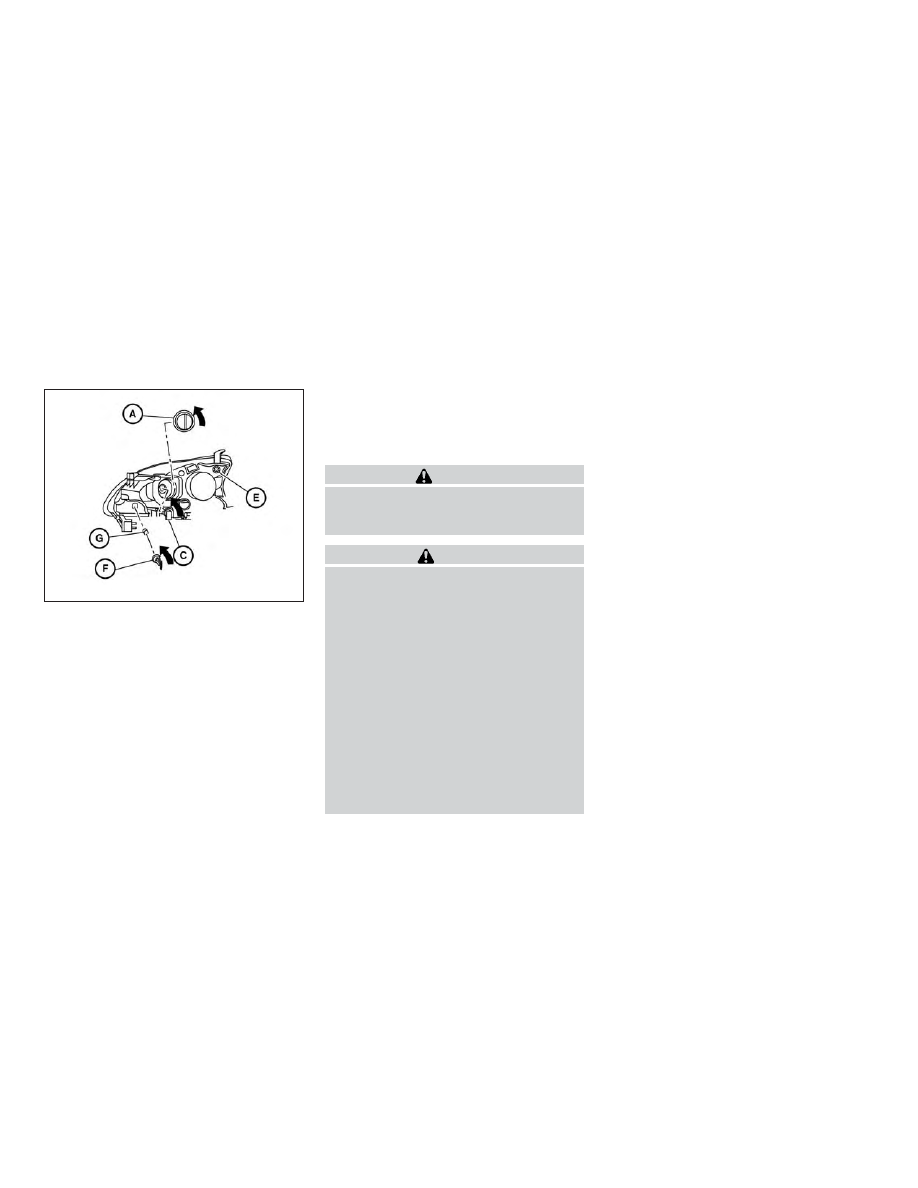

Type B (if so equipped)

LDI2981

8-30

Do-it-yourself

Replacing the fog light bulb

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

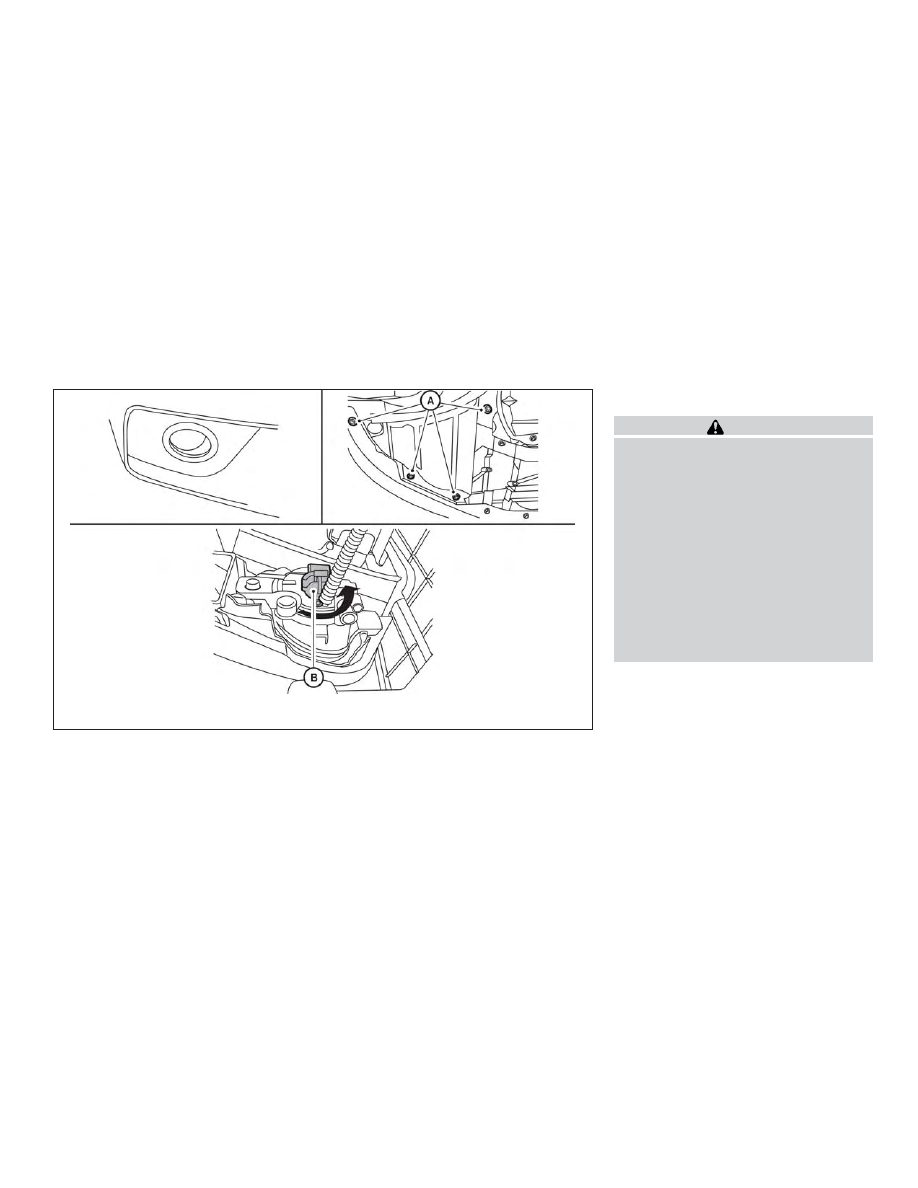

1. Disconnect the negative battery cable.

2. Access to the fog light is in front of and

behind the front tire and the fascia.

3. Remove the fasteners

䊊

; carefully pull

back the front fender protector.

4. Rotate the bulb

䊊

counterclockwise

and pull out to remove.

LDI2935

Do-it-yourself

8-31

5. Remove by pulling straight off the fog

light. Do not shake or rotate the bulb
when removing it.

6. Install the new bulb in the reverse order

of removal.

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly (Type A) (if so equipped)

Low/Daytime running (Canada only)

H11

High

Turn/Park

27/7

3157 AK

Side marker

W5W

Headlight assembly (Type B) (if so equipped)

Low/Daytime running (Canada only)

—

High**

65/—

H9/—

Turn/Park

27/7

3157 AK

Park

—

Side marker

W5W

Daytime running lights (NISMO models only)

—

Front fog light (if so equipped)

H11

Door mirror turn signal light (if so equipped)*

—

Vanity mirror light (if so equipped)*

—

Map lights*

—

Room light*

—

Trunk light*

3.4

158

High-mounted stop light*

Inside (if so equipped)

—

Spoiler (if so equipped)

—

Rear combination light*

Turn

WY21W

Tail

—

Stop/Tail

21/5

W21/5W

Backup (reversing)

W16W

Side marker

—

License plate light*

W5W

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

* It is recommended that you visit a NISSAN dealer for replacement.

** Headlight assembly (Type B) (if so equipped) uses the projector LED and the H9 bulb for
the high beam function.

8-32

Do-it-yourself

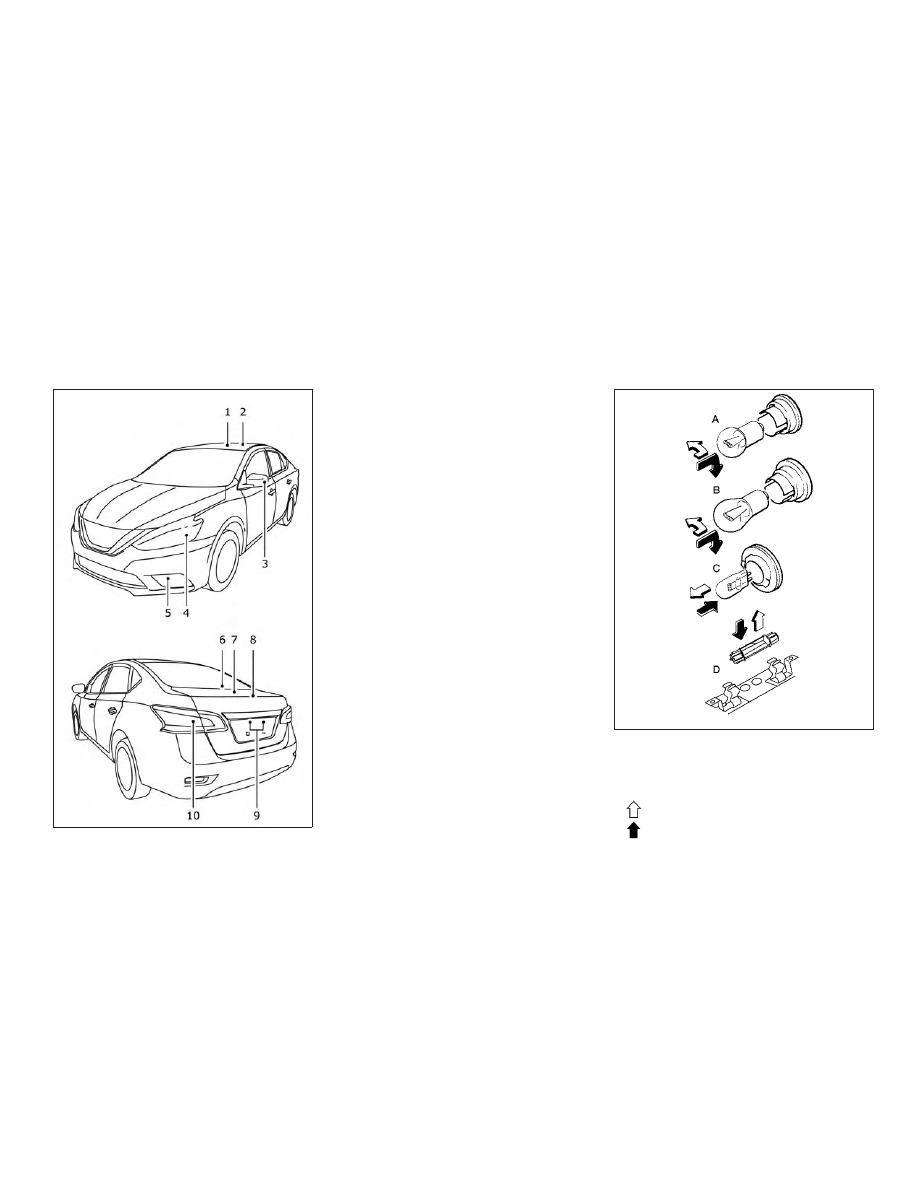

Map light

Room light

Door mirror turn signal light (if so
equipped)

Headlight assembly

Fog light (if so equipped)/ Daytime
running light (NISMO models only)

High-mount stop light (inside)(if so
equipped)

Trunk light

High-mount stop light (spoiler)(if so
equipped)

License plate light

10.

Rear combination light

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

LDI3137

WDI0263

Do-it-yourself

8-33

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely af-
fect electric medical equipment.
Those who use a pacemaker
should contact the electric medi-
cal equipment manufacturer for
the possible influences before
use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
CHECK TIRE PRES (vehicles without a
vehicle information display) warning
is displayed in the odometer, or the
“Tire Pressure Low — Add Air” (ve-
hicles with a vehicle information dis-
play) appears in the vehicle informa-

tion display, one or more of your tires
is significantly under-inflated.

The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, refer to
“Low tire pressure warning light” in
the “Instruments and controls” sec-
tion, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driv-
ing” section, and “Flat tire” in the “In
case of emergency” section of this
manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire

and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert (if
so equipped) provides visual and au-
dible signals outside the vehicle for
inflating tires to the recommended
COLD tire pressure. For additional in-
formation, refer to “TPMS with Easy-
Fill Tire Alert” in the “Starting and driv-
ing” section of this manual.

WHEELS AND TIRES

8-34

Do-it-yourself

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-35

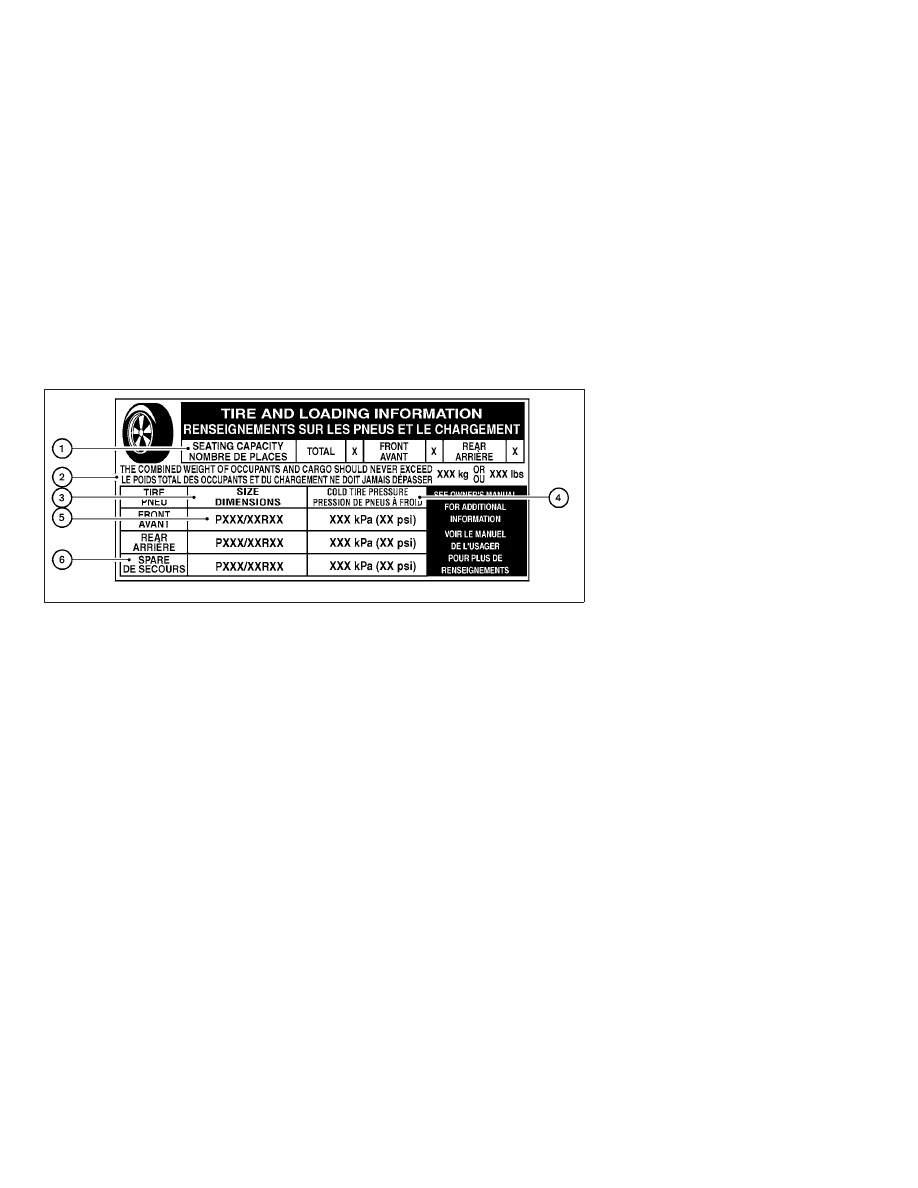

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: Refer to “Ve-
hicle loading information” in the
“Technical and consumer infor-
mation” section of this manual.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Tire size: Refer to “Tire labeling” in
this section.

䊊

Spare tire size.

LDI2007

8-36

Do-it-yourself

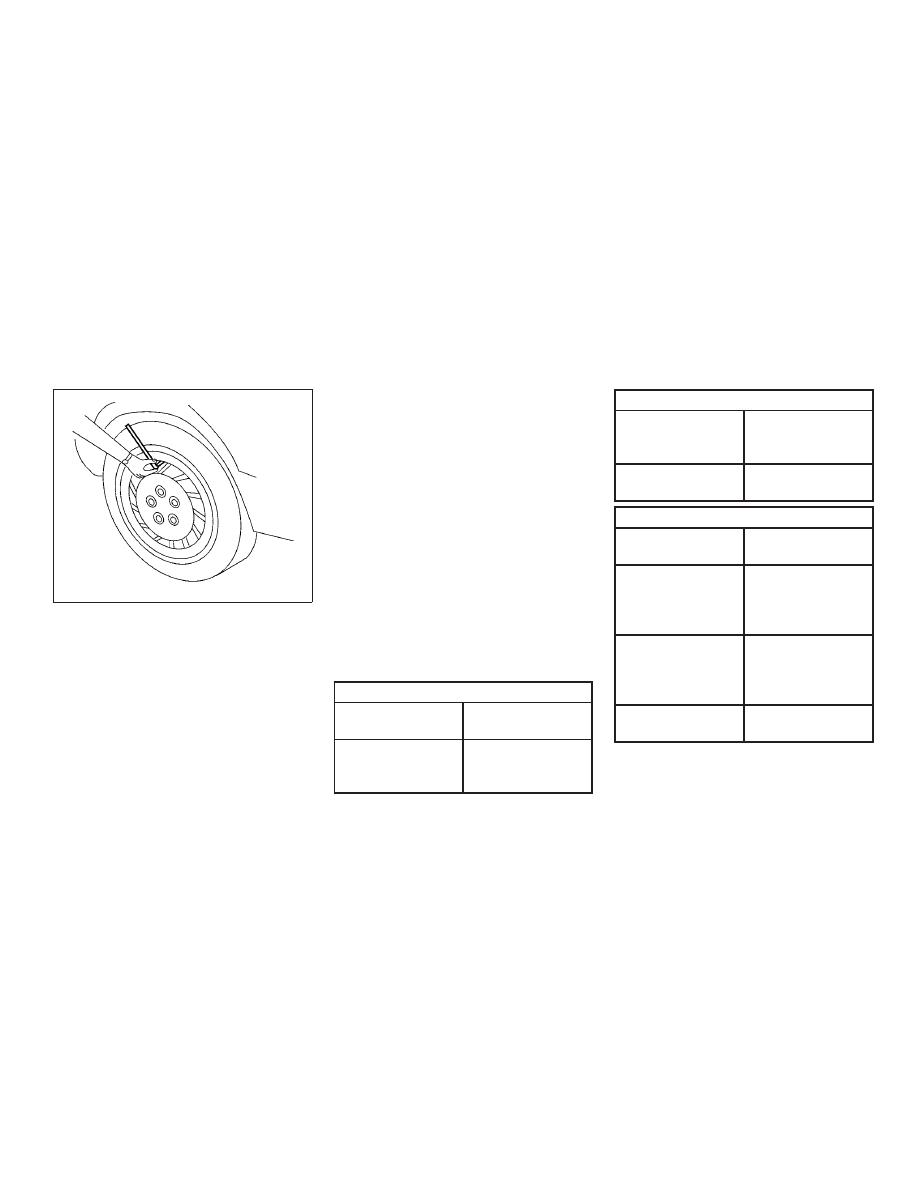

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press

the

pressure

gauge

squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

Grades: NISMO

Size

Cold Tire Infla-
tion Pressure

Front Original
Tire:
215/45ZR18

230 kPa, 33 PSI

Grades: NISMO

Rear Original
Tire:
215/45ZR18

230 kPa, 33 PSI

Spare Tire:
T125/70D16

420 kPa, 60 PSI

Grades: S, SV, SR, SL

Size

Cold Tire Infla-
tion Pressure

Front Original
Tire:
205/50R17
P205/55R16

230 kPa, 33 PSI

Rear Original
Tire:
205/50R17
P205/55R16

230 kPa, 33 PSI

Spare Tire:
T125/70D16

420 kPa, 60 PSI

LDI0393

Do-it-yourself

8-37

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

䊊

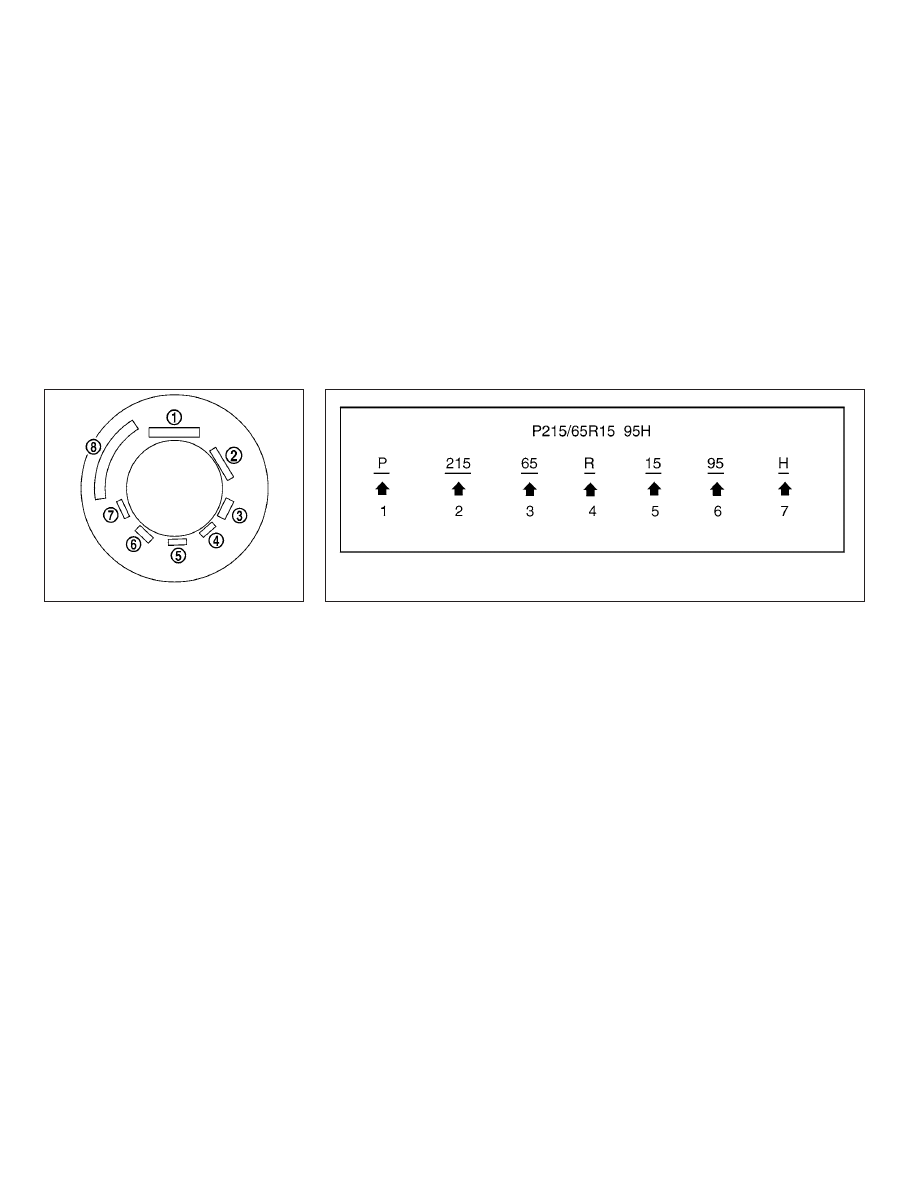

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

Example

WDI0394

Example

WDI0395

8-38

Do-it-yourself

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

䊊

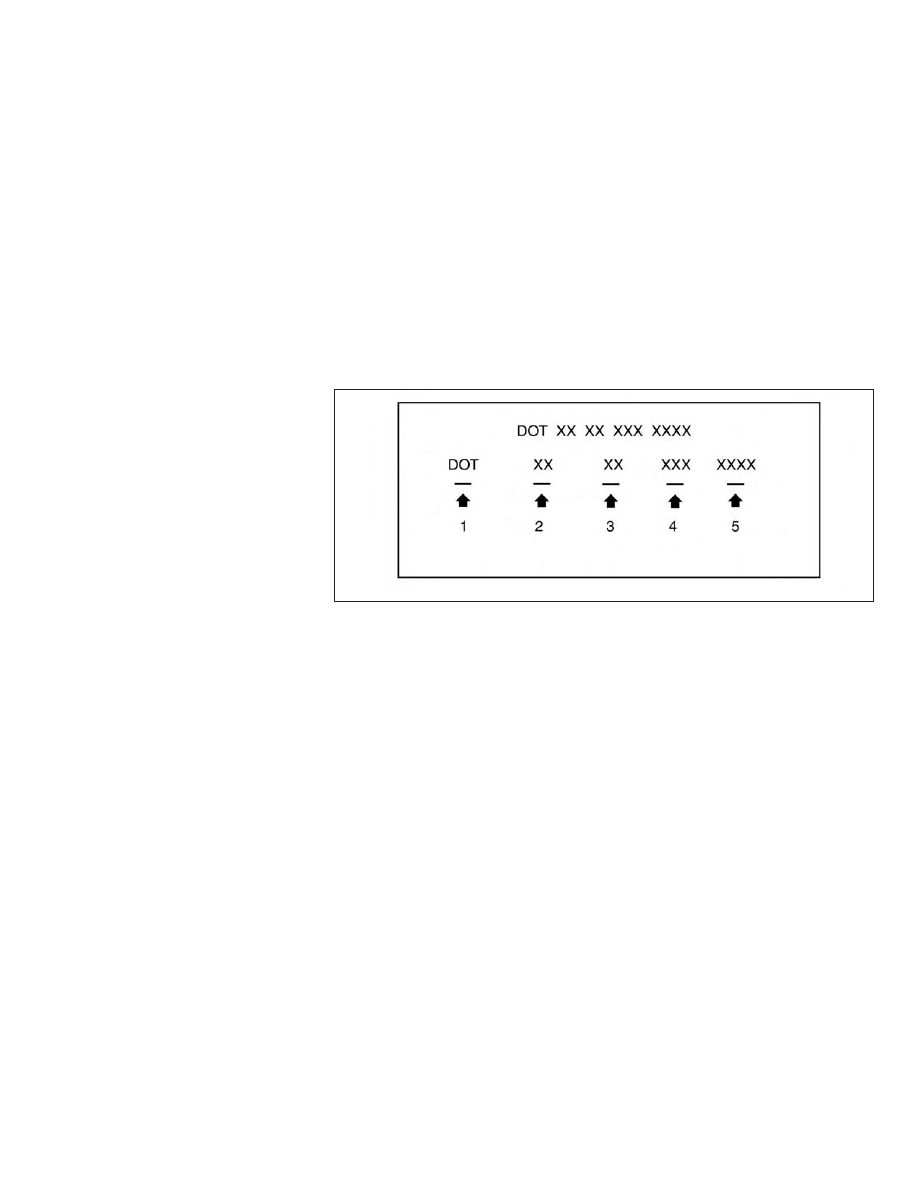

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “De-

partment

Transportation”.

The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

Example

LDI2786

Do-it-yourself

8-39

Nissan Sentra (2019 year). Instruction - part 25
