Nissan Rogue (2019 year). Instruction

CHECKING ENGINE OIL LEVEL

1. Park the vehicle on a level surface and

apply the parking brake.

2. Start the engine and let it idle until it

reaches operating temperature.

3. Turn off the engine. Wait more than

10 minutes for the oil to drain back
into the oil pan.

4. Remove the dipstick and wipe it clean.

Reinsert it all the way.

5. Remove the dipstick again and check

the oil level. It should be between the H
(High) and L (Low) marks

䊊

. This is the

normal operating oil level range. If the
oil level is below the L (Low) mark

䊊

remove the oil filler cap and pour rec-
ommended oil through the opening.
Do not overfill

䊊

6. Recheck oil level with the dipstick.

It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the sever-
ity of operating conditions.

CAUTION

Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the en-
gine, and such damage is not covered
by warranty.

LDI2811

LDI2812

ENGINE OIL

8-6

Do-it-yourself

CHANGING ENGINE OIL

1. Park the vehicle on a level surface and

apply the parking brake.

2. Start the engine and let it idle until it

reaches operating temperature, then
turn it off.

3. Remove the oil filler cap

䊊

by turning it

counterclockwise.

4. Place a large drain pan under the drain

plug

䊊

5. Remove the drain plug

䊊

with a

wrench by turning it counterclockwise
and completely drain the oil.

If the oil filter is to be changed, remove
and replace it at this time. For addi-
tional information, refer to “Changing
engine oil filter” in this section.

∙ Waste oil must be disposed of prop-

erly.

∙ Check your local regulations.

WARNING

∙ Prolonged and repeated contact with

used engine oil may cause skin
cancer.

∙ Try to avoid direct skin contact with

used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.

∙ Keep used engine oil out of reach of

children.

CAUTION

Be careful not to burn yourself. The en-
gine oil may be hot.

6. Clean and reinstall the drain plug and a

new washer. Securely tighten the drain
plug with a wrench. Do not use exces-
sive force.

Drain plug tightening torque:

25 ft-lb (34 N·m)

LDI2813

Do-it-yourself

8-7

7. Refill engine with recommended oil

through the oil filler opening, then install
the oil filler cap securely.

For additional information on drain
and refill capacity, refer to “Recom-
mended fluids/lubricants and capaci-
ties” in the “Technical and consumer
information” section of this manual.

The drain and refill capacity depends
on the oil temperature and drain time.
Use these specifications for reference
only. Always use the dipstick to deter-
mine when the proper amount of oil is
in the engine.

8. Start the engine. Check for leakage

around the drain plug and oil filter. Cor-
rect as required.

9. Turn the engine off and wait more than

10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.

CHANGING ENGINE OIL FILTER

1. Park the vehicle on a level surface and

apply the parking brake.

2. Turn the engine off.

3. Place a large drain pan under the oil

filter

䊊

4. Remove pins

䊊

from the right engine

protector located inside right wheel
well, remove protector. Remove oil filter

䊊

with an oil filter wrench by turning it

counterclockwise. Then remove the oil
filter by turning it by hand.

CAUTION

Be careful not to burn yourself. The en-
gine oil may be hot.

5. Wipe the engine oil filter sealing surface

with a clean rag.

CAUTION

∙ Be sure to remove any old gasket

material remaining on the sealing
surface of the engine. Failure to do
so could lead to an oil leak and en-
gine damage.

∙ The dipstick must be inserted in

place to prevent oil spillage from
the dipstick hole when filling the
engine with oil.

LDI2814

8-8

Do-it-yourself

6. Coat the gasket on the new filter with

clean engine oil.

7. Screw on the oil filter until a slight resis-

tance is felt, then tighten an additional
2/3 turn.

8. Start the engine and check for leakage

around the oil filter. Correct as required.

9. Turn the engine off and wait more than

10 minutes. Check the oil level. Add en-
gine oil if necessary.

CAUTION

∙ NISSAN recommends using Genuine

NISSAN CVT Fluid NS-3 (or equivalent)
ONLY in NISSAN CVTs. Do not mix with
other fluids.

∙ Do not use Automatic Transmission

Fluid (ATF) or manual transmission
fluid in a NISSAN CVT, as it may dam-
age the CVT. Damage caused by the
use of fluids other than as recom-
mended

not

covered

under

NISSAN’s

New

Vehicle

Limited

Warranty.

∙ Using fluids that are not equivalent to

Genuine NISSAN CVT Fluid NS-3 may
also damage the CVT. Damage caused
by the use of fluids other than as rec-
ommended is not covered under
NISSAN’s

New

Vehicle

Limited

Warranty.

When checking or replacement of CVT fluid
is required, it is recommended that you visit
a NISSAN dealer for this service.

WARNING

∙ Use only new fluid from a sealed con-

tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can dam-
age the brake system and affect the
vehicle’s stopping ability.

∙ Clean the filler cap before removing.

∙ Brake fluid is poisonous and should

be stored carefully in marked contain-
ers out of reach of children.

LDI2815

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID

BRAKE FLUID

Do-it-yourself

8-9

CAUTION

Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid
is spilled, immediately wash the surface
with water.

Check the fluid level in the reservoir. If the
brake fluid is below the MIN line

䊊

, the

brake warning light will illuminate. Add
brake fluid up to the MAX line

䊊

. For addi-

tional information on brake fluid type, refer
to “Recommended fluids/lubricants and
capacities” in the “Technical and consumer
information” section of this manual.

If the brake fluid must be added frequently,
the brake system should be thoroughly
checked. It is recommended that you visit a
NISSAN dealer for this service.

WINDSHIELD-WASHER FLUID
RESERVOIR

Fill the windshield-washer fluid reservoir
periodically. Add windshield-washer fluid
when the “Low Washer Fluid” warning mes-
sage (if so equipped) shows on the vehicle
information display or when there is no
fluid in the dip tube.

To check the fluid level with the dip tube,
use your finger to plug the center hole

䊊

the cap/tube assembly, then remove it
from the reservoir. If there is no fluid in the
dip tube, add fluid.

To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.

Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer’s instructions for the mix-
ture ratio.

Refill the reservoir more frequently when
driving conditions require an increased
amount of windshield-washer fluid.

Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.

LDI3130

WINDSHIELD-WASHER FLUID

8-10

Do-it-yourself

CAUTION

∙ Do not substitute engine antifreeze

coolant for windshield-washer fluid.
This may result in damage to the
paint.

∙ Do not fill the windshield-washer fluid

reservoir with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix washer fluid concentrates

with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
washer fluid concentrate and water.

Do-it-yourself

8-11

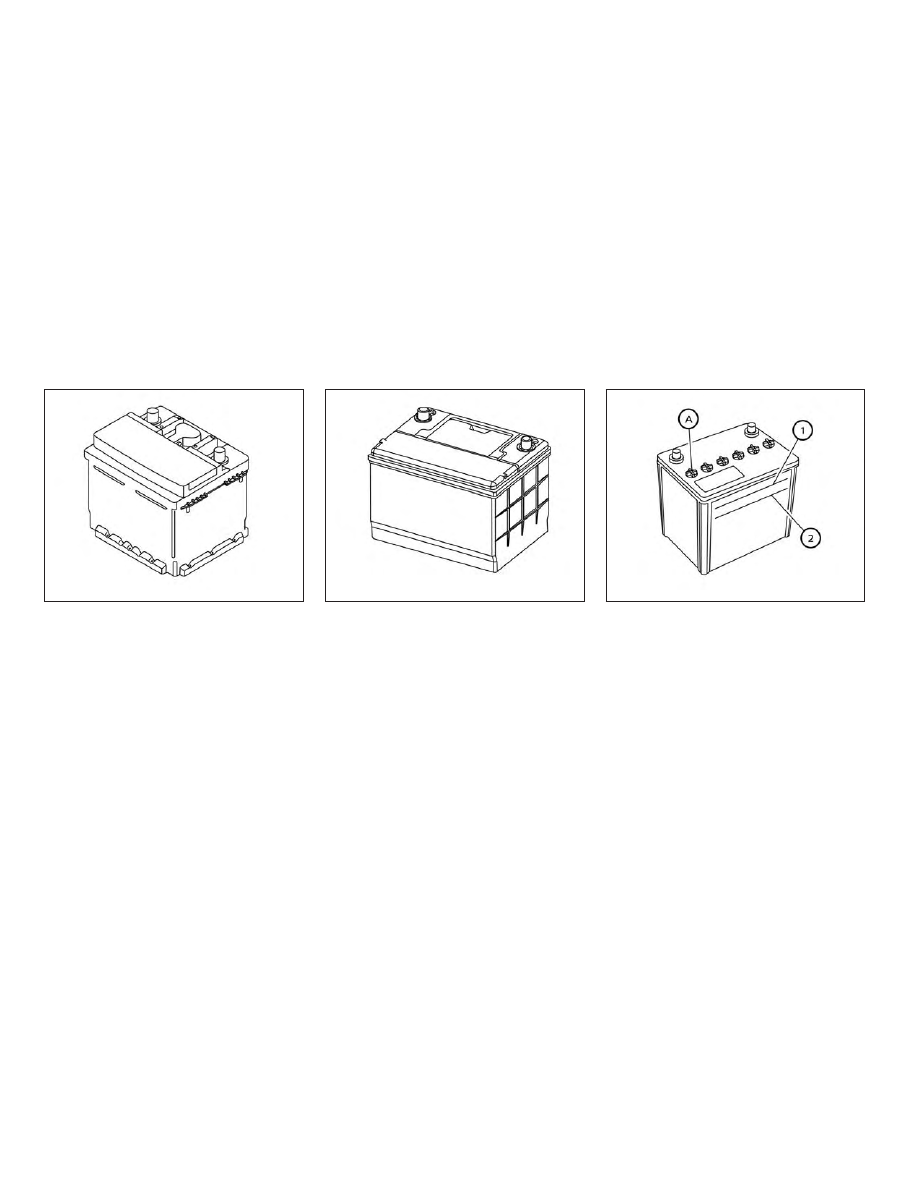

Caution symbols for battery

WARNING

䊊

No smoking, No exposed flames, No

Sparks

Do not expose the battery to electrical sparks, flames or smoking. Hydrogen gas generated by the
battery is explosive. Explosive gases can cause blindness or injury.

䊊

Shield eyes

Handle the battery cautiously. Always wear eye protection glasses to protect against explosion or
battery acid.

䊊

Keep away from children

Never allow children to handle the battery. Keep the battery out of the reach of children.

䊊

Battery acid

Do not allow battery fluid to contact your skin, eyes, fabrics, or painted surfaces. Sulfuric acid can
cause blindness or severe burns. After handling the battery or battery cap, do not touch or rub
your eyes. Thoroughly wash your hands. If the acid contacts your eyes, skin or clothing, immedi-
ately flush with water for at least 15 minutes and seek medical attention. Battery fluid is acid. If the
battery fluid gets into your eyes or onto your skin, it could cause loss of your eyesight or burns.

䊊

Note operating instructions

Before handling the battery, read this instruction carefully to ensure correct and safe handling.

䊊

Explosive gas

Hydrogen gas generated by battery fluid is explosive. Explosive gases can cause blindness or
injury.

∙ If the battery is labeled "do not open" it is maintenance free and battery fluid should not be checked. It is recommended that you visit

a NISSAN dealer or a qualified specialist workshop to confirm the battery’s performance.

∙ Keep the battery surface clean and dry. Clean the battery with a solution of baking soda and water.

∙ Make certain the terminal connections are clean and securely tightened.

∙ If the vehicle is not to be used for 30 days or longer, disconnect the negative (-) battery terminal cable to prevent discharge.

BATTERY

8-12

Do-it-yourself

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (Phone chargers, GPS, DVD
players, etc.)

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

WARNING

∙ Do not expose the battery to flames,

an electrical spark or a cigarette. Hy-
drogen gas generated by the battery
is explosive. Explosive gases can
cause blindness or injury. Do not allow
battery fluid to contact your skin,
eyes, fabrics or painted surfaces. Sul-
furic acid can cause blindness or in-
jury. After touching a battery or bat-
tery cap, do not touch or rub your
eyes. Thoroughly wash your hands. If
the acid contacts your eyes, skin or
clothing, immediately flush with wa-
ter for at least 15 minutes and seek
medical attention.

∙ Do not operate the vehicle if the fluid

in the battery is low. Low battery fluid
can cause a higher load on the battery
which can generate heat, reduce bat-
tery life, and in some cases lead to an
explosion.

∙ When working on or near a battery,

always wear suitable eye protection
and remove all jewelry.

∙ Battery posts, terminals and related

accessories contain lead and lead
compounds.

Wash

hands

after

handling.

∙ Keep battery out of the reach of

children.

∙ Do not tip the battery. Keep the vent

caps tight and the battery level.

Do-it-yourself

8-13

NOTE:

Do not try to open the top of the battery.

The Type A battery is not equipped with
removable vent caps. If low battery fluid is
suspected, it is recommended that you
visit a NISSAN dealer for this service.

NOTE:

Do not try to open the top of the battery.

The Type B battery is not equipped with
removable vent caps. If low battery fluid is
suspected, it is recommended that you
visit a NISSAN dealer for this service.

For Type C batteries, check the fluid level in
each cell. It should be between the UPPER
LEVEL

䊊

and LOWER LEVEL

䊊

lines.

If it is necessary to add fluid, add only dis-
tilled water to bring the level to the indica-
tor in each filler opening. Do not overfill.

Battery (Type A) (if so equipped)

LDI3302

Battery (Type B) (if so equipped)

LDI2817

Battery (Type C) (if so equipped)

LDI3324

8-14

Do-it-yourself

1. Remove the cell plugs

䊊

2. Add distilled water up to the UPPER

LEVEL

䊊

line. If the side of the battery is

not clear, check the distilled water level
by looking directly above the cell; con-
dition

䊊

indicates a correct fluid level

and condition

䊊

indicates that fluid

needs to be added.

3. Tighten the cell plugs

䊊

Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.

JUMP STARTING

If jump starting is necessary, refer to “Jump
starting” in the “In case of emergency” sec-
tion of this manual. If the engine does not
start by jump starting, the battery may
have to be replaced. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

CAUTION

∙ Do not ground accessories directly to

the battery terminal. Doing so will by-
pass the variable voltage control sys-
tem and the vehicle battery may not
charge completely.

∙ Use electrical accessories with the en-

gine running to avoid discharging the
vehicle battery.

Your vehicle is equipped with a variable
voltage control system

䊊

. This system

measures the amount of electrical dis-
charge from the battery and controls volt-
age generated by the generator.

LDI2854

LDI2178

VARIABLE VOLTAGE CONTROL
SYSTEM

Do-it-yourself

8-15

The current sensor is located near the bat-
tery along the negative battery cable. If you
add electrical accessories to your vehicle,
be sure to ground them to a suitable body
ground such as the frame or engine block
area.

Crankshaft pulley

Drive belt automatic tensioner pul-
ley

Water pump pulley

Generator pulley

Air conditioner compressor pulley

WARNING

Be sure the ignition switch is placed in
the OFF or LOCK position before servic-
ing drive belt. The engine could rotate
unexpectedly.

1. Visually inspect the belt for signs of un-

usual wear, cuts, fraying or looseness. If
the belt is in poor condition or is loose,
have it replaced or adjusted. It is recom-
mended that you visit a NISSAN dealer
for this service.

2. Have the belt checked regularly for

condition and tension in accordance
with the maintenance schedule found
in the "Maintenance and schedules"
section of this manual.

QR25DE engine

LDI2130

DRIVE BELT

8-16

Do-it-yourself

REPLACING SPARK PLUGS

Iridium-tipped spark plugs

It is not necessary to replace iridium-
tipped

䊊

spark plugs as frequently as con-

ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the "Maintenance and sched-
ules" section of this manual. Do not service
iridium-tipped spark plugs by cleaning or
regapping.

∙ Always replace spark plugs with rec-

ommended or equivalent ones.

WARNING

Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.

CAUTION

Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can damage the spark plugs.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

The viscous paper type filter element
should not be cleaned and reused. Replace
it according to the maintenance log shown
in the "Maintenance and schedules" sec-
tion of this manual.

To remove the air cleaner filter:

1. Pinch the retaining clips

䊊

inward to

unlock, move tab

䊊

frontward, and re-

move air duct

䊊

upward.

NOTE:

Do not bend retaining clips outward or
they may break.

SDI1895

LDI3139

SPARK PLUGS

AIR CLEANER

Do-it-yourself

8-17

2. Unlatch the retaining clips

䊊

and

move air cleaner cover

䊊

forward.

3. Remove air cleaner filter.

Follow the removal instruction in reverse
order to install air cleaner filter, air cleaner
cover and air cleaner duct.

NOTE:

After installing a new air cleaner filter,
make sure the air cleaner cover and air
cleaner duct are seated correctly and all
the retaining clips are latched.

WARNING

∙ Operating the engine with the air

cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.

∙ Never pour fuel into the throttle body

or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

IN-CABIN MICROFILTER

The in-cabin microfilter restricts the entry
of airborne dust and pollen particles and
reduces

some

objectionable

outside

odors. The filter is located behind the glove
box. For additional information, refer to the
“Maintenance and schedules” section of
this manual for change intervals.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

LDI3141

8-18

Do-it-yourself

CLEANING

If your windshield is not clear after using
the windshield-washer or if a wiper blade
chatters when running, wax or other mate-
rial may be on the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild de-
tergent. Then rinse the blades with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.

CAUTION

Worn windshield wiper blades can
damage the windshield and impair
driver vision.

REPLACING

Replace the wiper blades if they are worn.

To replace the windshield wiper blades, fol-
low the procedure below:

1. When ignition switch is ON or within

60 seconds after placing the ignition
switch from the ON to OFF position,
place the windshield wiper and washer
lever into the OFF position.

2. Rapidly lift the windshield wiper and

washer lever

䊊

upwards twice within

0.5 seconds. This action will cause the
wipers to automatically take the ser-
vice position.

LDI2476

WINDSHIELD WIPER BLADES

Do-it-yourself

8-19

3. Once the wipers are in the service po-

sition, push the release tab

䊊

4. Move the wiper blade down

䊊

and re-

move.

5. Insert the new wiper blade onto the

wiper arm until it clicks into place.

6. Rotate the wiper blade so the dimple is

in the groove.

7. Finally, lift the windshield wiper and

washer lever to the mist position

䊊

once and release. This action will cause
the wipers to resume the set position.

CAUTION

∙ After wiper blade replacement, return

the wiper arm to its original position;
otherwise it may be damaged when
the hood is opened.

∙ Make sure the wiper blades contact

the glass; otherwise the arms may be
damaged from wind pressure.

If you wax the surface of the hood, be care-
ful not to let wax get into the washer nozzle

䊊

. This may cause clogging or improper

windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin

䊊

LDI2475

LDI2477

LDI2820

8-20

Do-it-yourself

Rear window wiper blade

If checking or replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front and rear disc-type brakes self-
adjust every time the brake pedal is ap-
plied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended that you
visit a NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires

replacement,

high

pitched

scraping or screeching sound will be heard
when the vehicle is in motion. The noise will
be heard whether or not the brake pedal is
depressed. Have the brakes checked as
soon as possible if the wear indicator
sound is heard.

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information re-
garding brake inspections, refer to the ap-
propriate maintenance schedule informa-
tion in the "Maintenance and schedules"
section of this manual.

BRAKES

Do-it-yourself

8-21

Nissan Rogue (2019 year). Instruction - part 29
