Nissan Rogue (2019 year). Instruction - part 14

Refer to the NissanConnect® Owner’s
Manual that includes the following infor-
mation.

∙ NissanConnect®

Services

(if

equipped)

∙ Navigation system (if so equipped)

∙ Audio system

∙ Apple CarPlay

∙ Android Auto

∙ Bluetooth® Hands-Free Phone system

∙ Viewing information

∙ Other settings

∙ Voice recognition

∙ General system information

NISSANCONNECT® OWNER’S
MANUAL

4-2

Monitor, climate, audio, phone and voice recognition systems

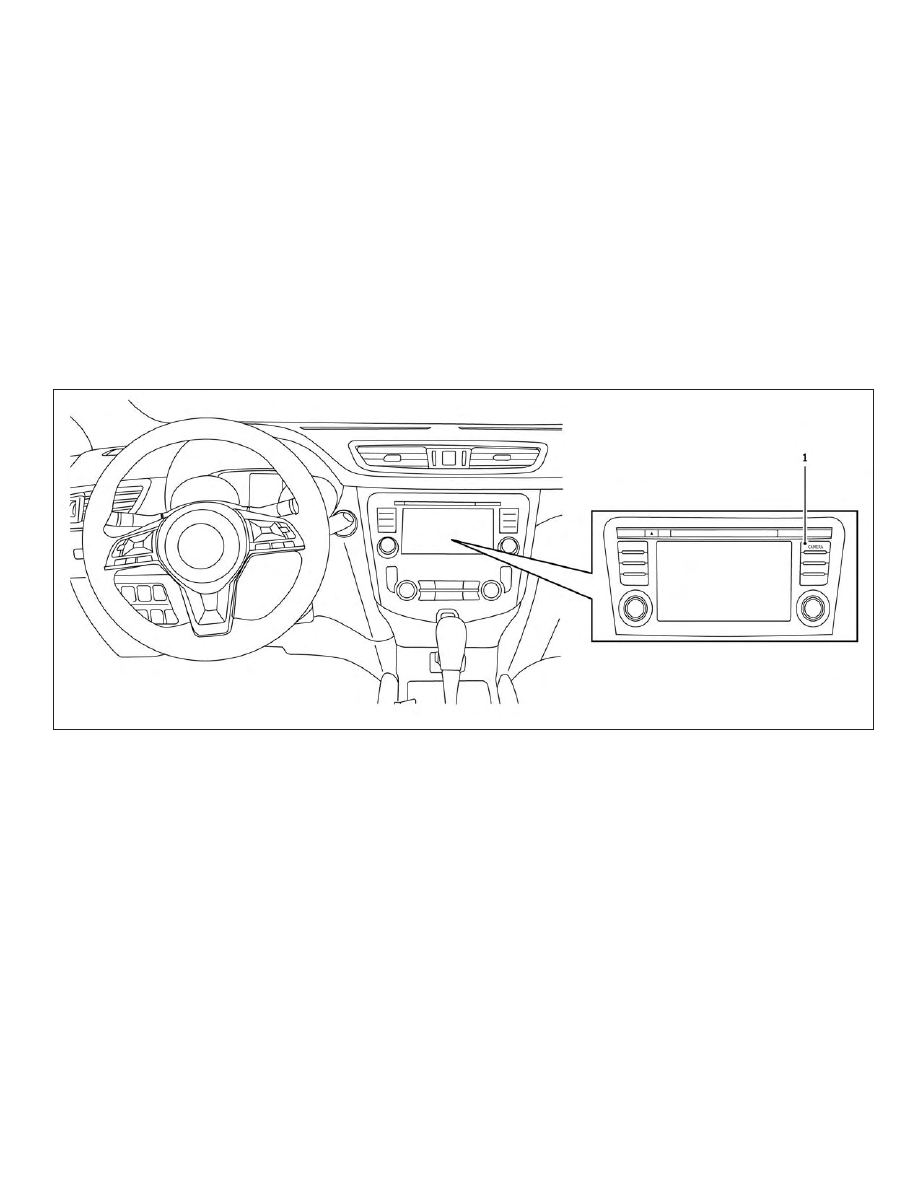

1. CAMERA button

LHA4694

REARVIEW MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-3

WARNING

Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death.

∙ RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. While in R (Reverse), pressing the
CAMERA button will cycle through guide-
line options. The radio can still be heard
while the RearView Monitor is active.

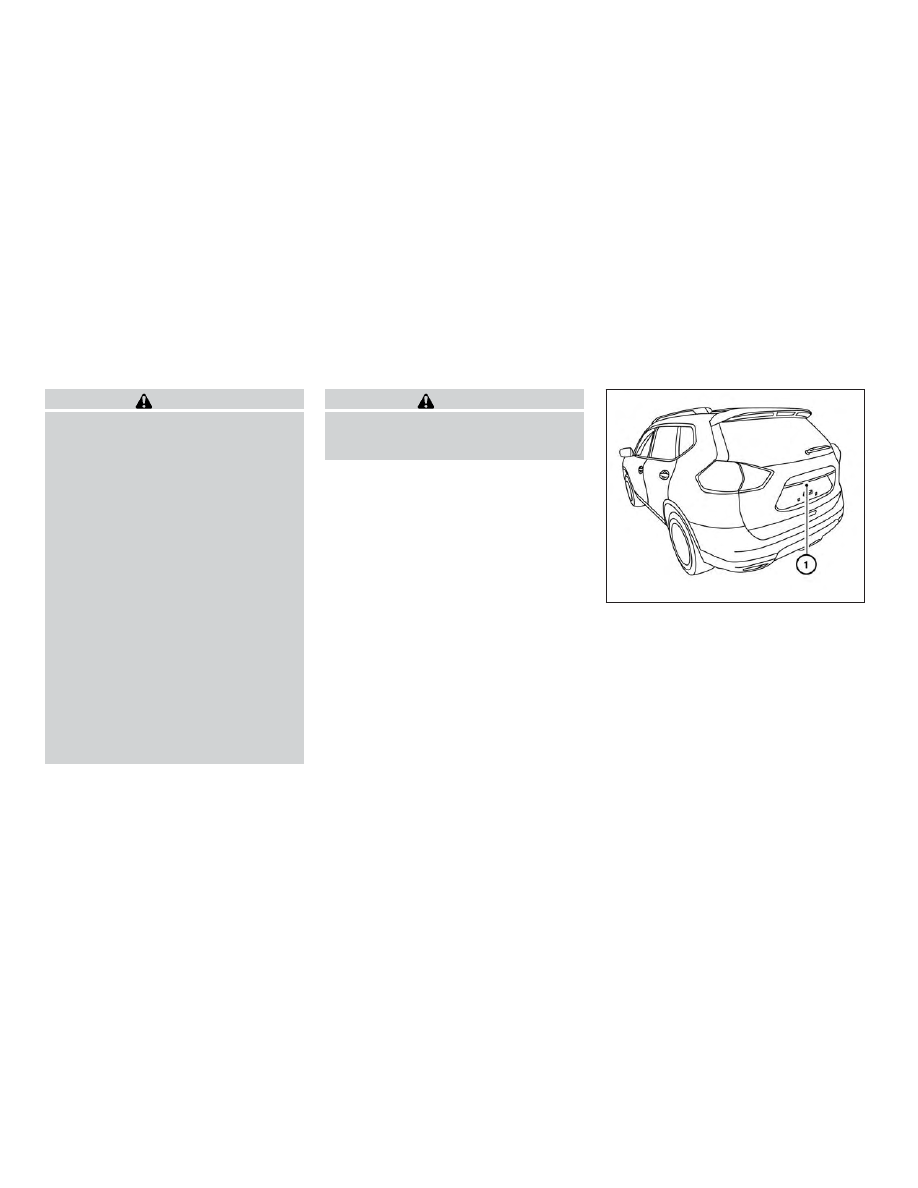

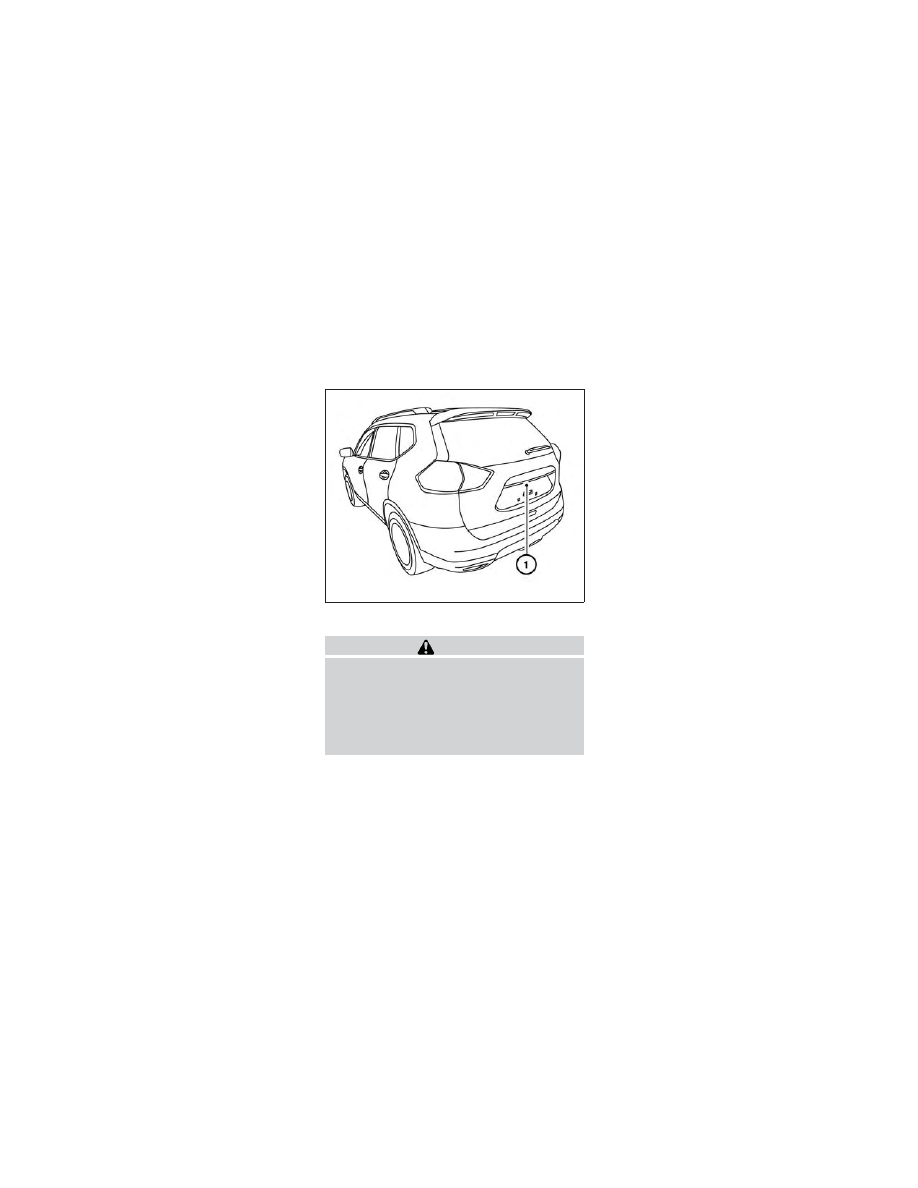

To display the rear view, the RearView Moni-
tor system uses a camera located just
above the vehicle’s license plate

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

LHA3694

4-4

Monitor, climate, audio, phone and voice recognition systems

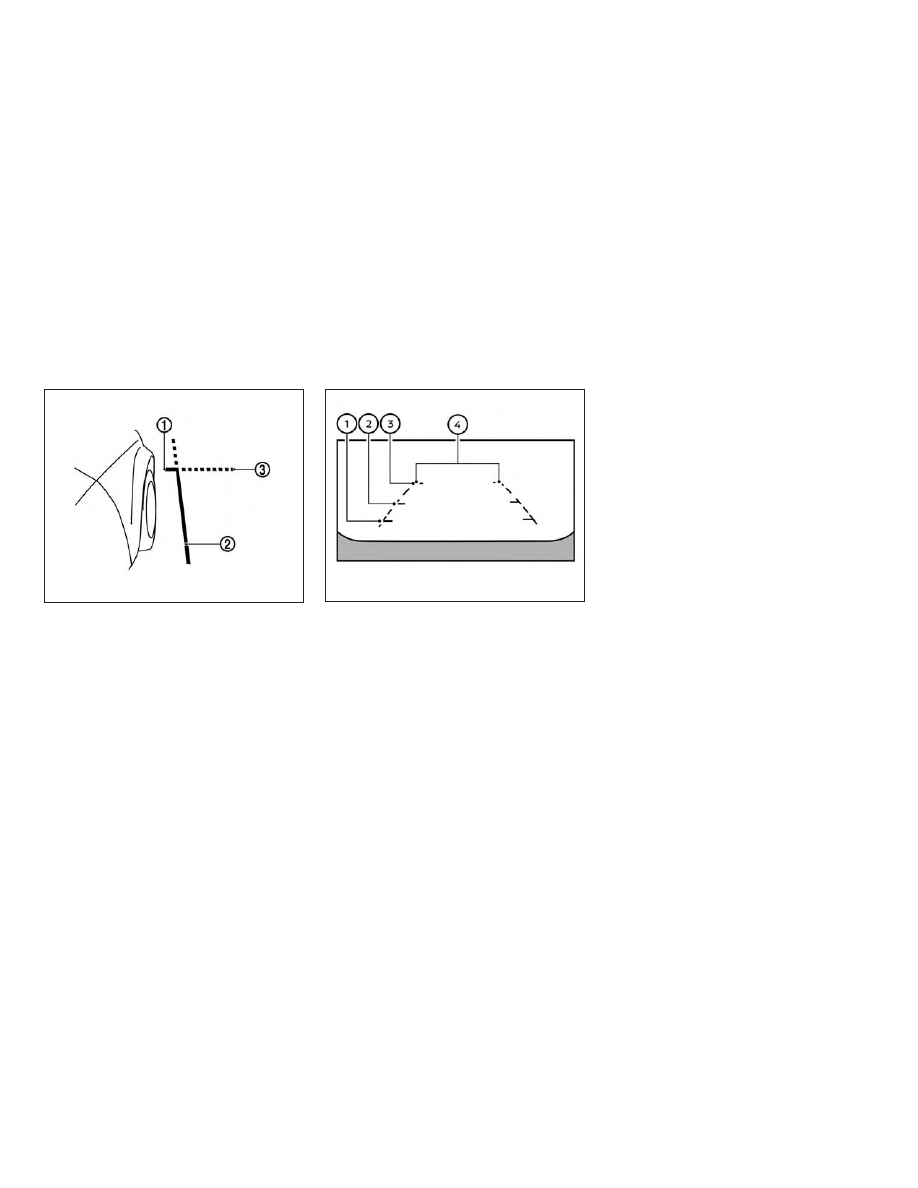

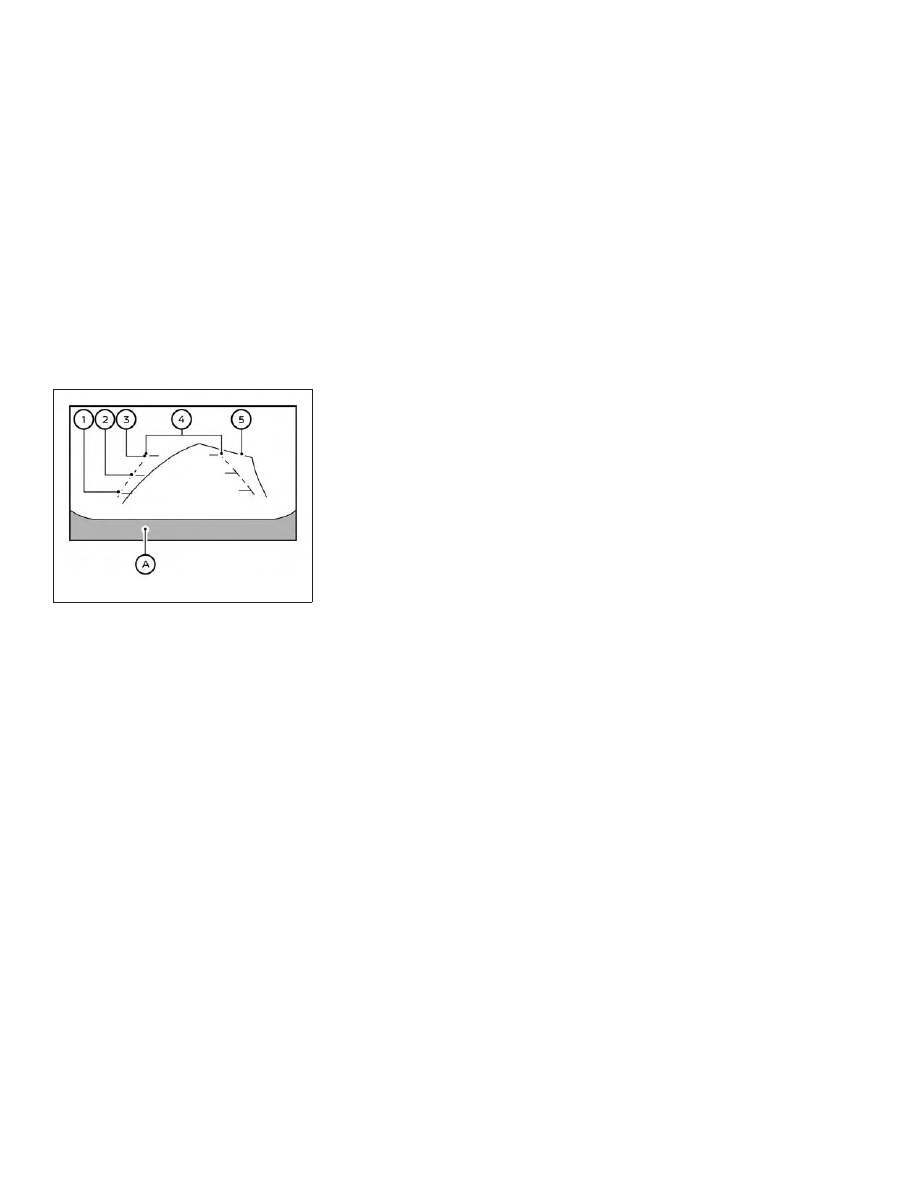

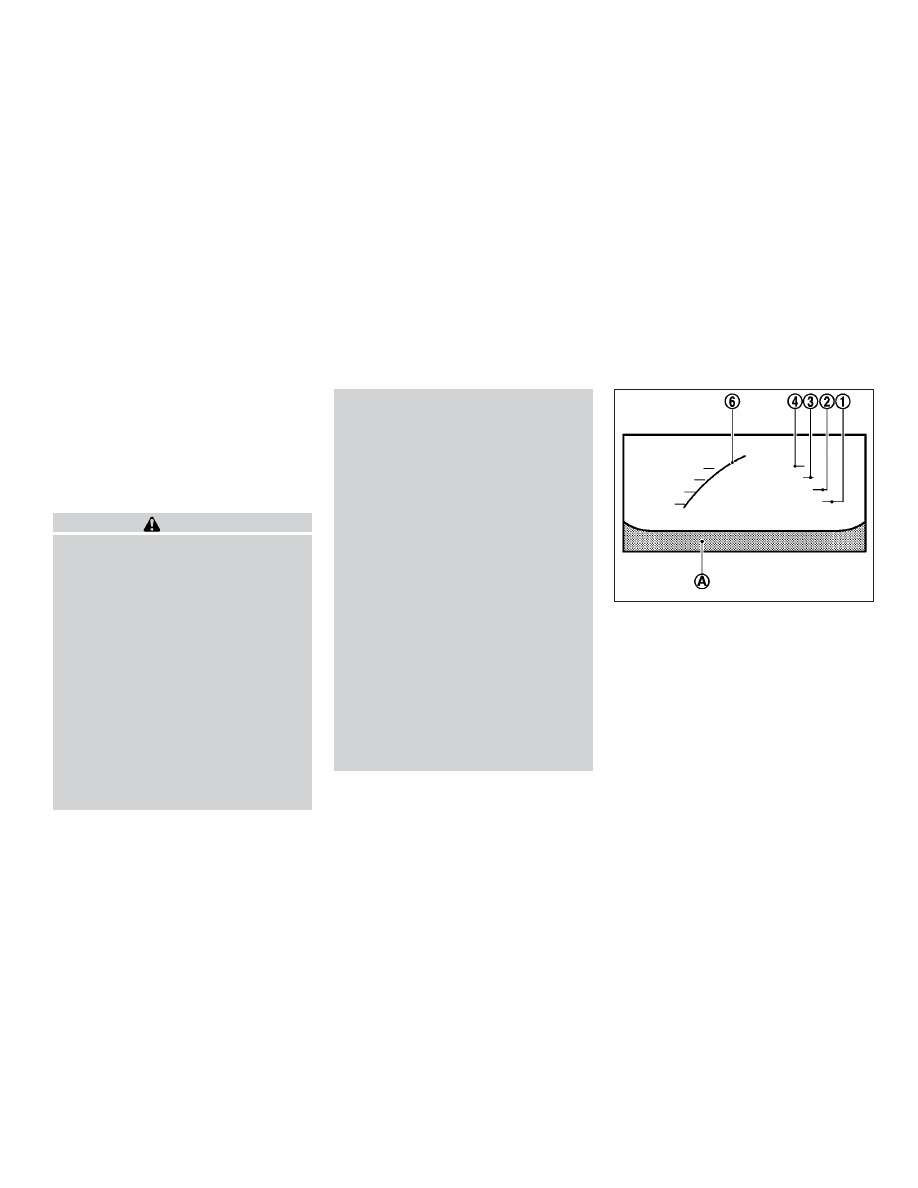

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approx. 3 ft (1 m)

∙ Green line

䊊

: approx. 7 ft (2 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

Predicted course lines

䊊

Indicate the predicted course when back-
ing up. The predicted course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The vehicle width guide lines and the width
of the predicted course lines are wider than
the actual width and course.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects

as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

LHA4805

Monitor, climate, audio, phone and voice recognition systems

4-5

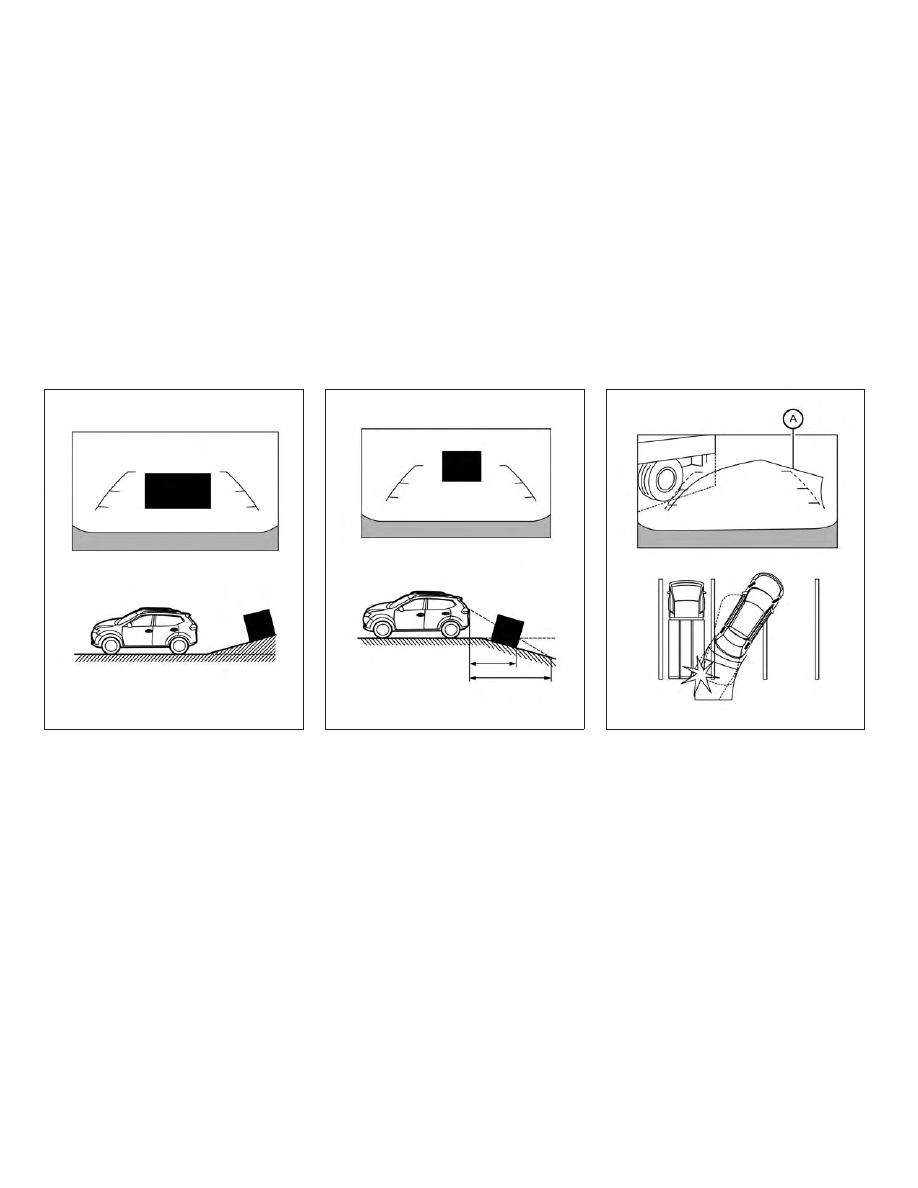

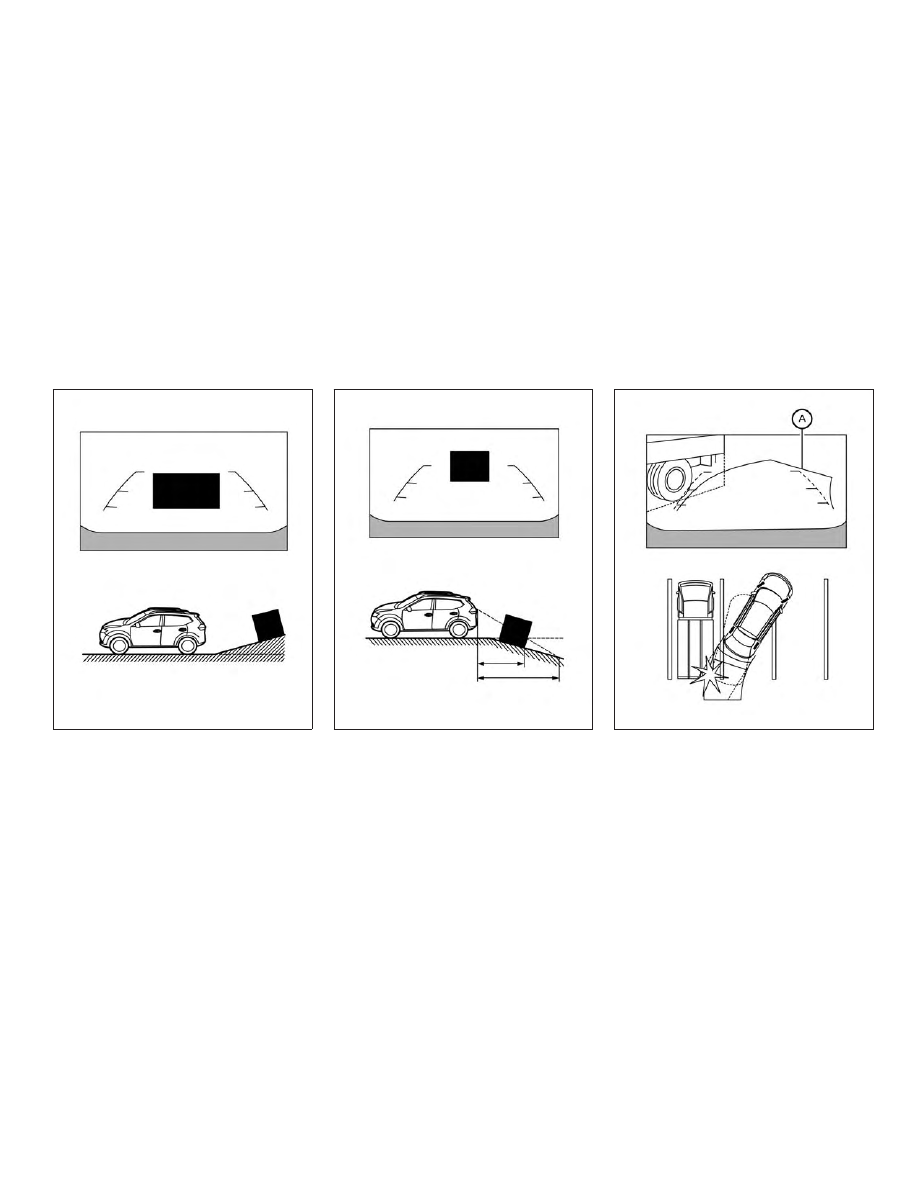

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

Backing up near a projecting
object

The predicted course lines

䊊

do not touch

the object in the display. However, the ve-
hicle may hit the object if it projects over
the actual backing up course.

LHA4993

LHA4994

LHA4995

4-6

Monitor, climate, audio, phone and voice recognition systems

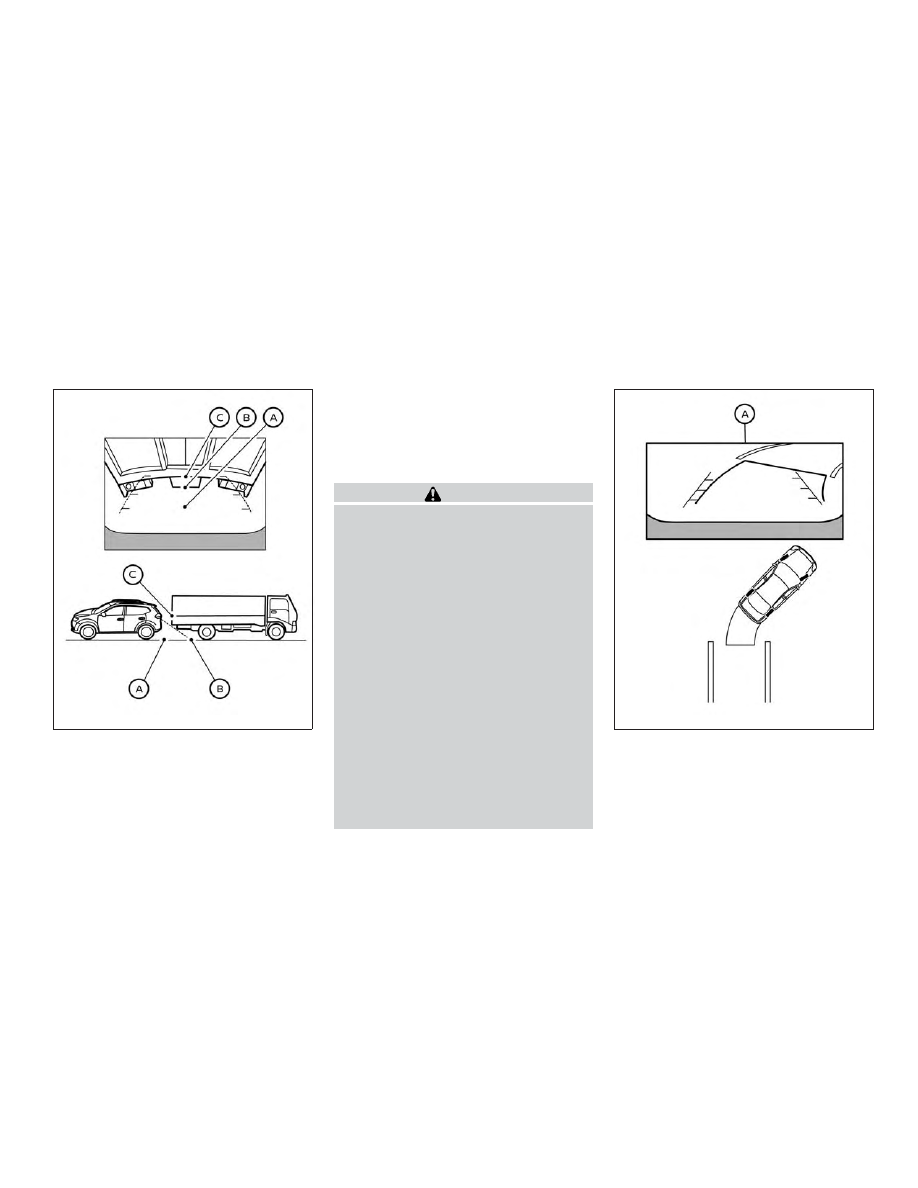

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

∙ If the tires are replaced with different

sized tires, the predicted course lines
may be displayed incorrectly.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

∙ If the battery is disconnected or be-

comes

discharged,

the

predicted

course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

– Turn the steering wheel from lock

to lock while the engine is running.

– Drive the vehicle on a straight road

for more than 5 minutes.

∙ When the steering wheel is turned

with the ignition switch in the ACC po-
sition, the predicted course lines may
be displayed incorrectly.

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

䊊

when the shift lever is

moved to the R (Reverse) position.

LHA4996

LHA4769

Monitor, climate, audio, phone and voice recognition systems

4-7

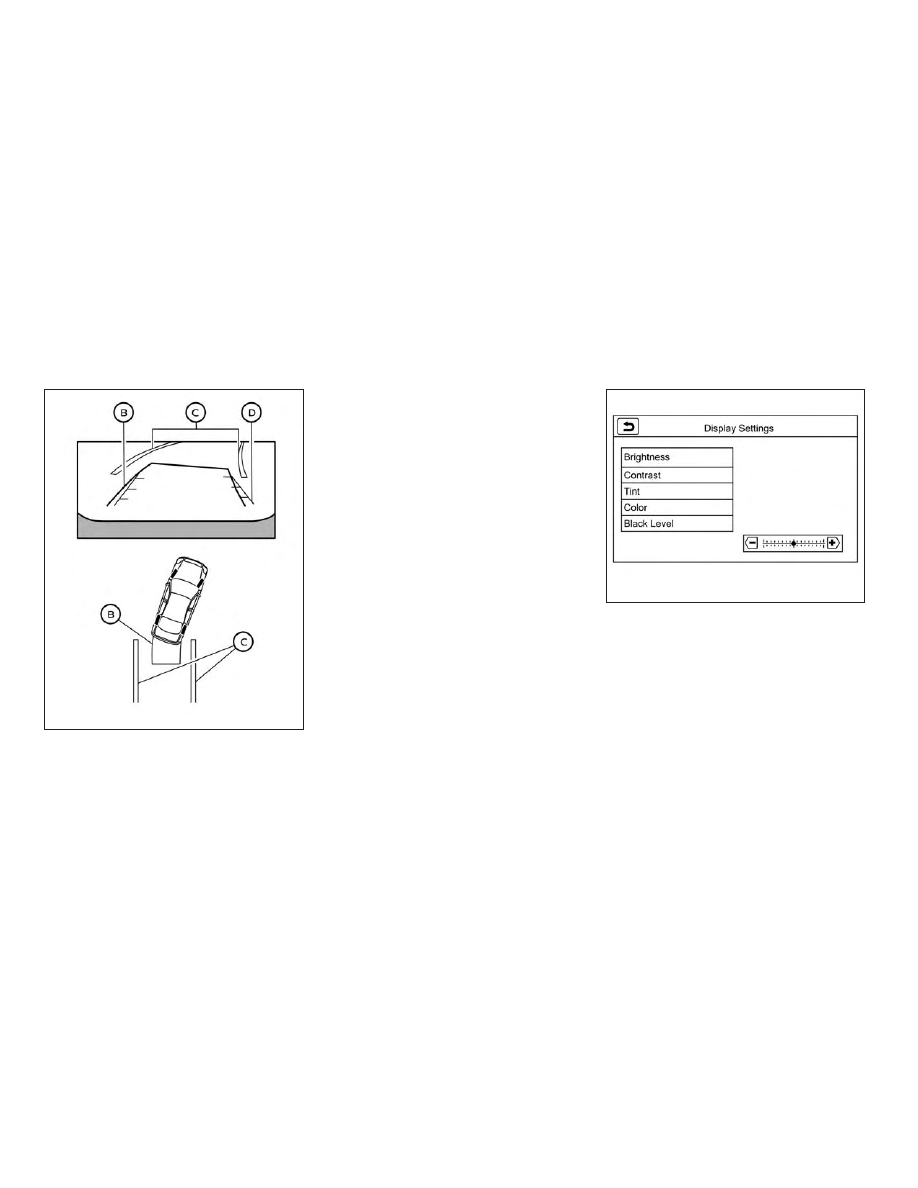

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dicted course lines

䊊

enter the park-

ing space

䊊

4. Maneuver the steering wheel to make

the vehicle width guide lines

䊊

parallel

to the parking space

䊊

while referring

to the predicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the
P (Park) position and apply the parking
brake.

ADJUSTING THE SCREEN

1. While on the main menu screen, touch

the “Settings” key.

2. Use the arrow to tab to the next screen

and touch the “Camera” key.

3. Touch the “Display Settings” key.

4. Touch the “Brightness”, “Contrast”, Tint”,

“Color”, or “Black Level” key.

5. Adjust the item by touching the “+” or “–”

key on the touch-screen display.

LHA4770

LHA3522

4-8

Monitor, climate, audio, phone and voice recognition systems

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES

To toggle ON and OFF the predicted course
lines while in the P (Park) position:

1. Press the CAMERA button.

2. Touch the “Predicted Course Lines” key

to turn the feature ON or OFF.

To toggle ON and OFF the predicted course
lines or center guide line while in the R (Re-
verse) position, press the CAMERA button.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the liftgate is securely

closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

Monitor, climate, audio, phone and voice recognition systems

4-9

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, the RearView Monitor may not
display objects clearly. Clean the cam-
era.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

LHA3694

4-10

Monitor, climate, audio, phone and voice recognition systems

1. CAMERA button

LHA4694

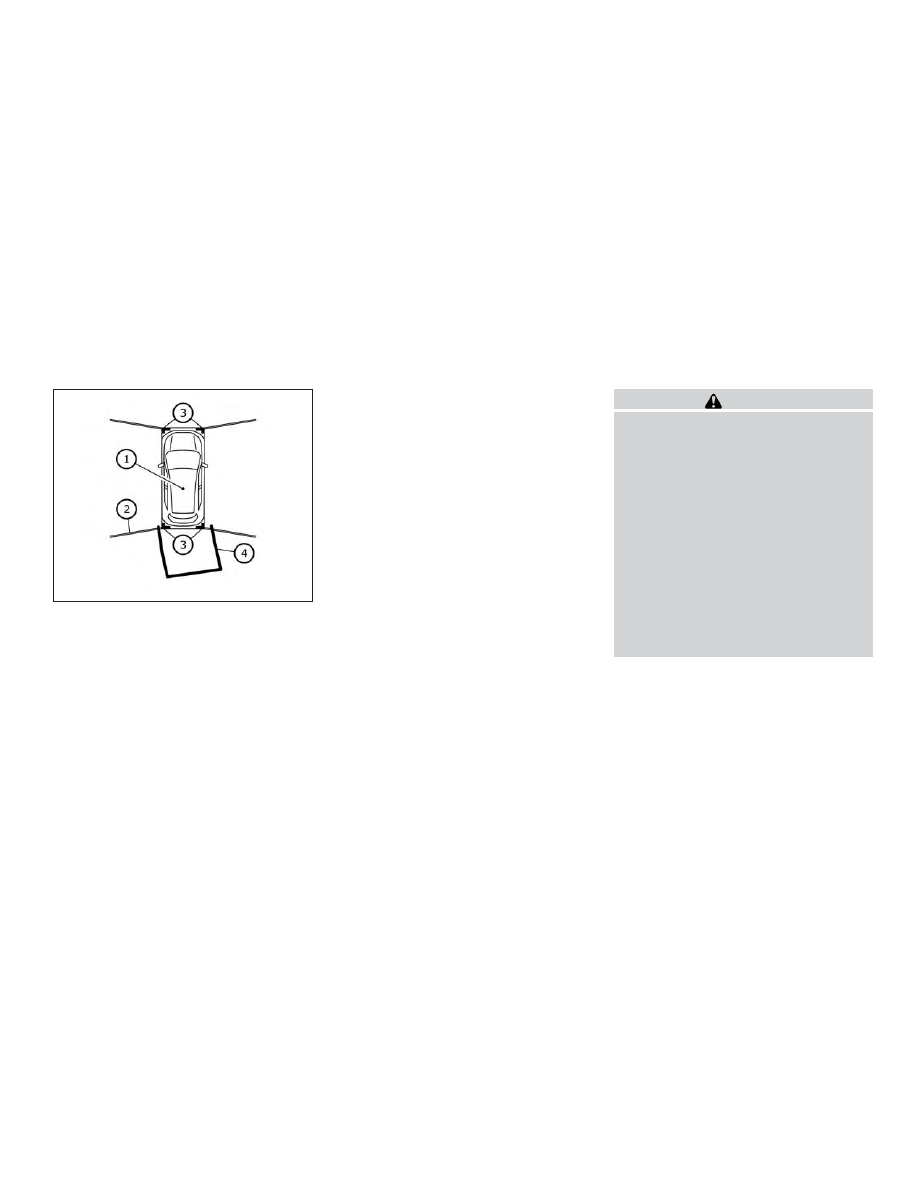

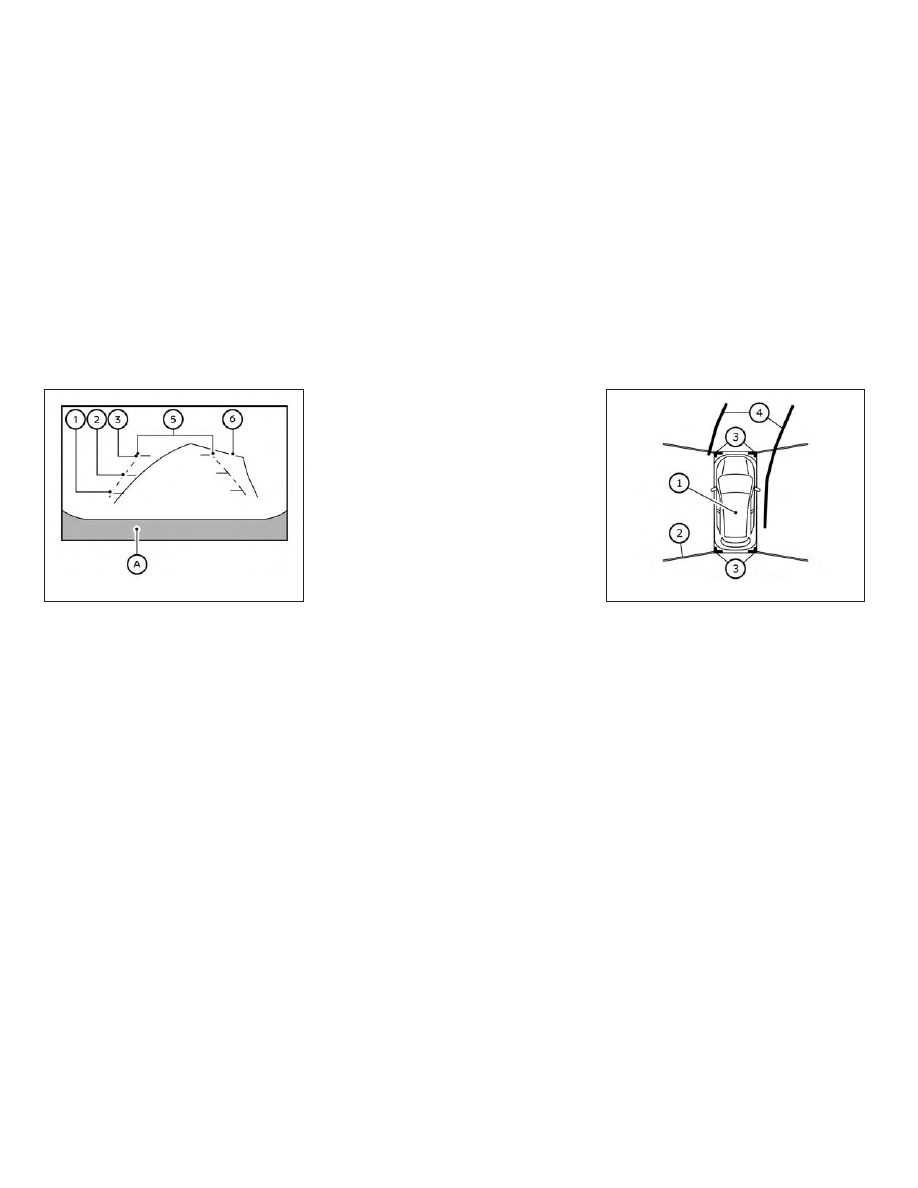

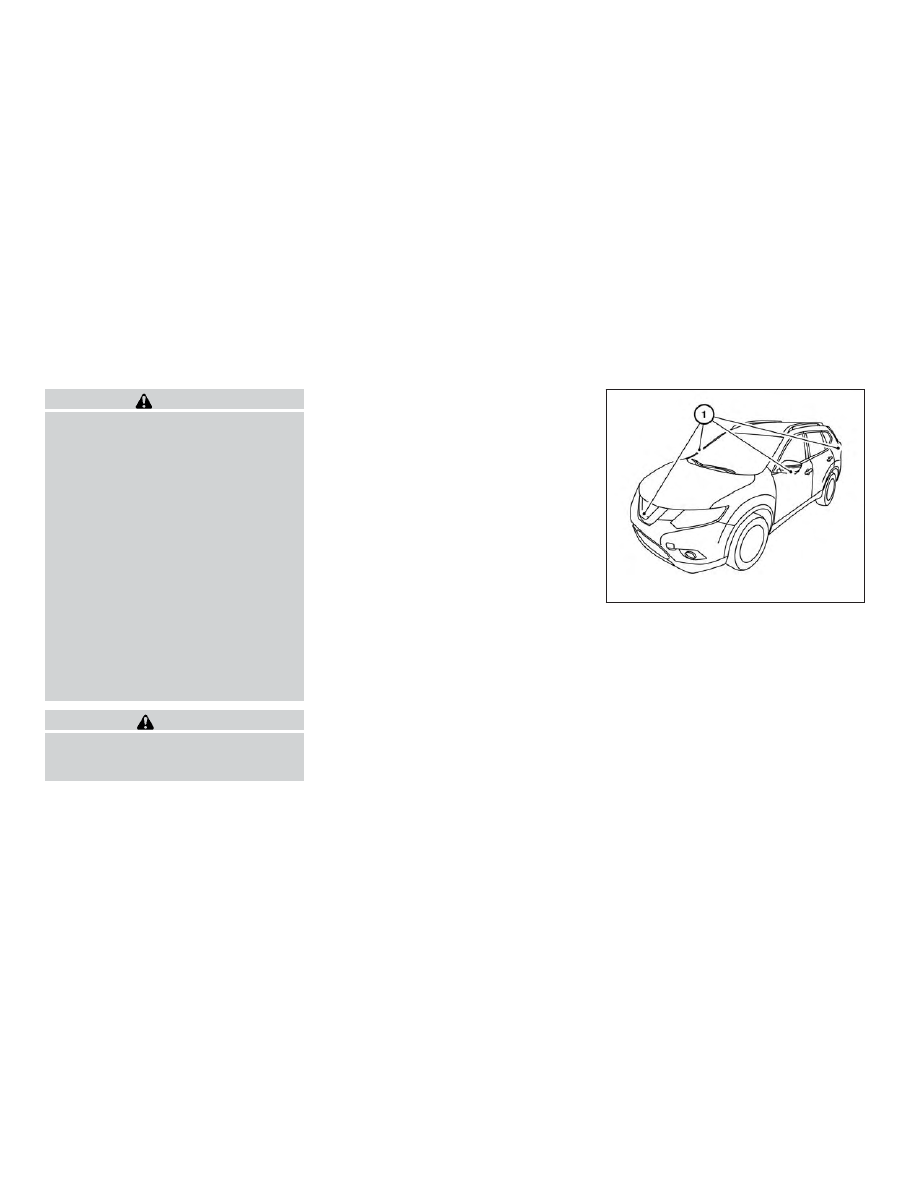

INTELLIGENT AROUND VIEW
MONITOR (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-11

WARNING

Failure to follow the warnings and in-
structions for the proper use of the In-
telligent Around View Monitor system
could result in serious injury or death

∙ The Intelligent Around View Monitor is

a convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where ob-
jects cannot be viewed. The four cor-
ners of the vehicle in particular, are
areas where objects do not always
appear in the bird’s-eye, front, or rear
views. Always check your surround-
ings to be sure that it is safe to move
before operating the vehicle. Always
operate the vehicle slowly.

∙ The driver is always responsible for

safety

during

parking

and

other

maneuvers.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The Intelligent Around View Monitor sys-
tem is designed as an aid to the driver in
situations such as slot parking or parallel
parking.

The monitor displays various views of the
position of the vehicle in a split screen for-
mat. Not all views are available at all times.

Available views:

∙ Front View

An approximately 150–degree view of
the front of the vehicle.

∙ Rear View

An approximately 150–degree view of
the rear of the vehicle.

∙ Bird’s-Eye View

The surrounding views of the vehicle
from above.

∙ Front-Side View

The view around and ahead of the front
passenger’s side wheel.

∙ Rear-Wide View

An approximately 180–degree view of
the rear of the vehicle.

To display the multiple views, the Intelligent
Around View Monitor system uses cam-
eras located in the front grille, on the vehi-
cle’s outside mirrors and one just above
the vehicle’s license plate

䊊

INTELLIGENT AROUND VIEW
MONITOR SYSTEM OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition or press the CAMERA button to oper-
ate the Intelligent Around View Monitor.

LHA3700

4-12

Monitor, climate, audio, phone and voice recognition systems

The screen displayed on the Intelligent
Around View Monitor will automatically re-
turn to the previous screen 3 minutes after
the CAMERA button has been pressed with
the shift lever in a position other than the R
(Reverse) position.

Available views

WARNING

∙ The distance guide lines and the ve-

hicle width lines should be used as a
reference only when the vehicle is on a
paved, level surface. The apparent
distance viewed on the monitor may
be different than the actual distance
between the vehicle and displayed
objects.

∙ Use the displayed lines and the bird’s-

eye view as a reference. The lines and
the bird’s-eye view are greatly af-
fected by the number of occupants,
cargo, fuel level, vehicle position, road
condition and road grade.

∙ If the tires are replaced with different

sized tires, the predicted course lines
and the bird’s-eye view may be dis-
played incorrectly.

∙ When driving the vehicle up a hill, ob-

jects viewed in the monitor are fur-
ther than they appear. When driving
the vehicle down a hill, objects viewed
in the monitor are closer than they
appear.

∙ Objects in the rear view will appear

visually opposite compared to when
viewed in the monitor and outside
mirrors.

∙ Use the mirrors or actually look to

properly judge distances to other
objects.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course lines and the ac-
tual course line.

∙ The

vehicle

width

and

predicted

course lines are wider than the actual
width and course.

∙ The

displayed

lines

will

appear

slightly off to the right, because the
rearview camera is not installed in the
rear center of the vehicle.

Front and rear view

Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body line

䊊

are

displayed on the monitor.

Distance guide lines:

Indicate distances from the vehicle body:

∙ Red line

䊊

: approximately 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approximately 3 ft (1 m)

∙ Green line

䊊

: approximately 7 ft (2 m)

∙ Green line

䊊

: approximately 10 ft (3 m)

(if so equipped)

Front view

SAA1840

Monitor, climate, audio, phone and voice recognition systems

4-13

Vehicle width guide lines

䊊

Indicate the approximate vehicle width
when backing up.

Predicted course lines

䊊

Indicate the predicted course when oper-
ating the vehicle. The predicted course
lines will be displayed on the monitor when
the steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The front view will not be displayed when
the vehicle speed is above 6 mph (10 km/h).

NOTE:

When the monitor displays the front
view and the steering wheel turns about
90 degrees or less from the straight-
ahead position, both the right and left
predicted course lines

䊊

are displayed.

When the steering wheel turns about 90
degrees or more, a line is displayed only
on the opposite side of the turn.

Bird’s-eye view

The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm the
vehicle position and the predicted course
to a parking space.

The vehicle icon

䊊

shows the position of

the vehicle. Note that the apparent dis-
tance between objects viewed in the bird’s-
eye view may differ somewhat from the
actual distance to the vehicle.

The areas that the cameras cannot cover

䊊

are indicated in black.

Rear view

LHA4992

Front view

LHA4534

4-14

Monitor, climate, audio, phone and voice recognition systems

The non-viewable area

䊊

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only
the first time after the ignition switch is
placed in the ON position.

In addition, the non-viewable corners are
displayed in red and blink for the first 3 sec-
onds

䊊

to remind the driver to be cau-

tious.

Predicted course lines

䊊

indicate the pre-

dicted course when operating the vehicle.
The predicted course lines will be displayed
on the monitor when the steering wheel is
turned. The predicted course lines will
move depending on how much the steer-
ing wheel is turned and will not be dis-
played while the steering wheel is in the
neutral position.

When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the neutral position, the
two green predicted course lines are
shown in front of the vehicle.

When the steering wheel turns about 90
degrees or more, one green predicted
course line is shown in front of the vehicle
and the other predicted course line is
shown at the side of the vehicle.

When the monitor displays the rear view,
the predicted course lines are shown at the
back of the vehicle.

WARNING

∙ Objects in the bird’s-eye view will ap-

pear further than the actual distance.

∙ Tall objects, such as a curb or vehicle,

may be misaligned or not displayed at
the seam of the views.

∙ Objects that are above the camera

cannot be displayed.

∙ The view of the bird’s-eye view may be

misaligned when the camera position
alters.

∙ A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views. The
misalignment will increase as the line
proceeds away from the vehicle.

Rear view

LHA4535

Monitor, climate, audio, phone and voice recognition systems

4-15

Front-side view

Guiding lines

Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.

The front-of-vehicle line

䊊

shows the front

part of the vehicle.

The side-of-vehicle line

䊊

shows the ap-

proximate vehicle width including the out-
side mirrors.

The extensions

䊊

of both the front

䊊

and

side

䊊

lines are shown with a green dotted

line.

Rear-wide view

The rear-wide view shows a wider area on
the entire screen and allows the checking
of the blind corners on right and left sides.
The rear-wide view displays an approxi-
mately 180-degree area.

Distance guide lines

Indicates distances from the vehicle body:

∙ Red line

䊊

: approximately 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approximately 3 ft (1 m)

∙ Green line

䊊

: approximately 7 ft (2 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

LHA2652

Rear-wide view

LHA4819

4-16

Monitor, climate, audio, phone and voice recognition systems

Backing up on a steep uphill

Backing up on a steep downhill

Backing up near a projecting
object

The predicted course lines

䊊

do not touch

the object in the display. However, the ve-
hicle may hit the object if it projects over
the actual backing up course.

LHA4993

LHA4994

LHA4995

Monitor, climate, audio, phone and voice recognition systems

4-17

Content .. 12 13 14 15 ..
