Nissan Rogue (2019 year). Instruction

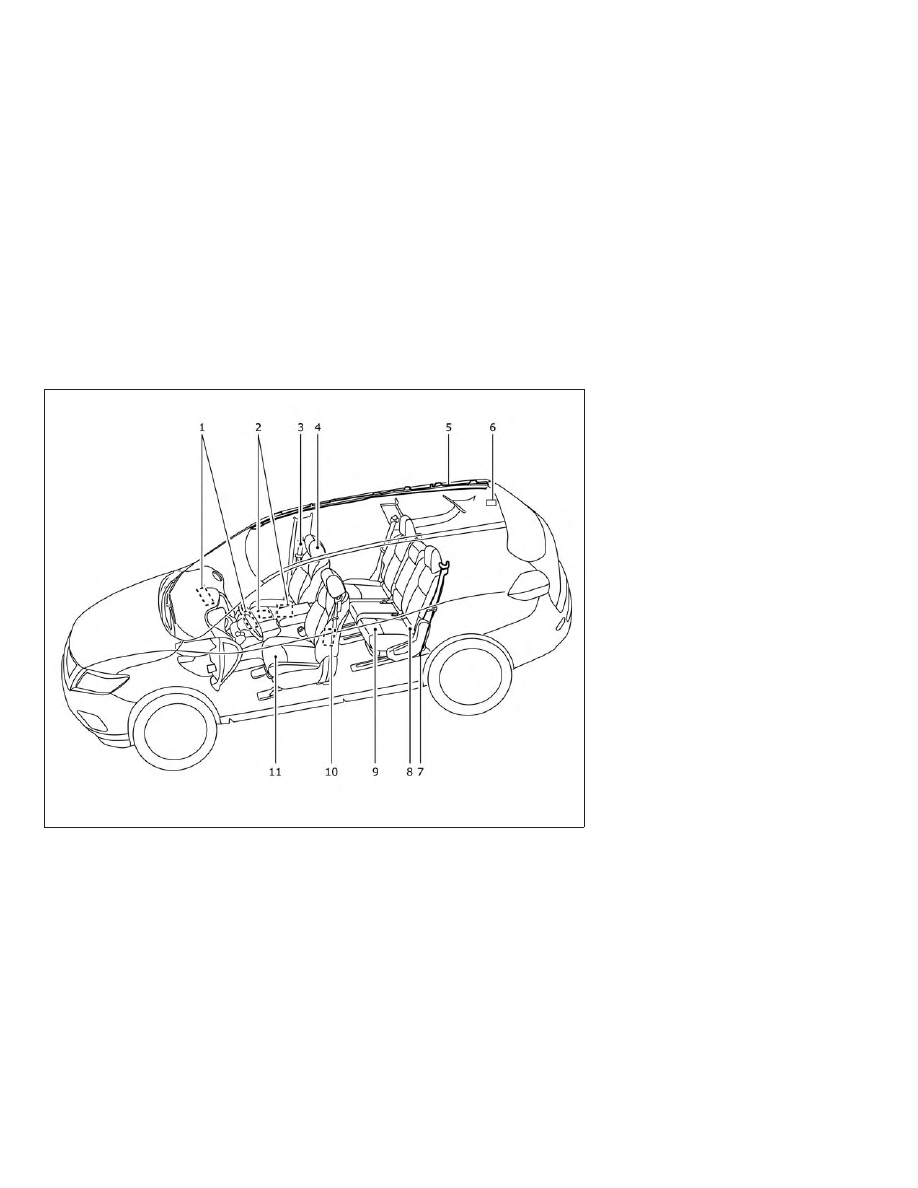

Supplemental air bags (P. 1-46)

Occupant classification sensor
(weight sensor) (P. 1-46)

Front Seat belt with pretensioner(s)
and shoulder heights adjuster
(P. 1-12, 1-46)

Head restraints/headrests (P. 1-8)

Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-46)

2nd row center position top tether
strap (located on ceiling) (P. 1-24)

2nd row outboard seat top tether
strap anchor (located on bottom
of seatback) (P. 1-24)

LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-24)

Folding 2nd row bench (P. 1-2)

10.

Front seat-mounted side-impact
supplemental air bag (P. 1-46)

11.

Seats (P. 1-2)

Refer to the page number indicated in
parentheses for operating details.

LII2549

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

Engine hood (P. 3-27)

Wiper and washer switch (P. 2-45)
Wiper blades (P. 8-19)

Windshield (P. 8-19)
Windshield-washer fluid (P. 8-10)

Power windows (P. 2-70)

Door locks (P. 3-5)
NISSAN Intelligent Key®
(if so equipped) (P. 3-11)
NISSAN Jackknife key
(if so equipped) (P. 3-2, 3-8)
Keys (P. 3-2)

Mirrors (P. 3-40)
Side view camera (if so equipped)
(P. 4-11)

Tire pressure (P. 8-31)
Flat tire (P. 6-3)
Tire chains (P. 8-31)

Fog light switch (if so equipped)
(P. 2-48)

Headlight and turn signal switch
(P. 2-48)
Replacing bulbs (P. 8-27)
LED Daytime Running Lights (DRL)
system (P. 2-48)

10.

Front view camera (if so equipped)
(P. 4-11)

Refer to the page number indicated in
parentheses for operating details.

LII2540

EXTERIOR FRONT

Illustrated table of contents

0-3

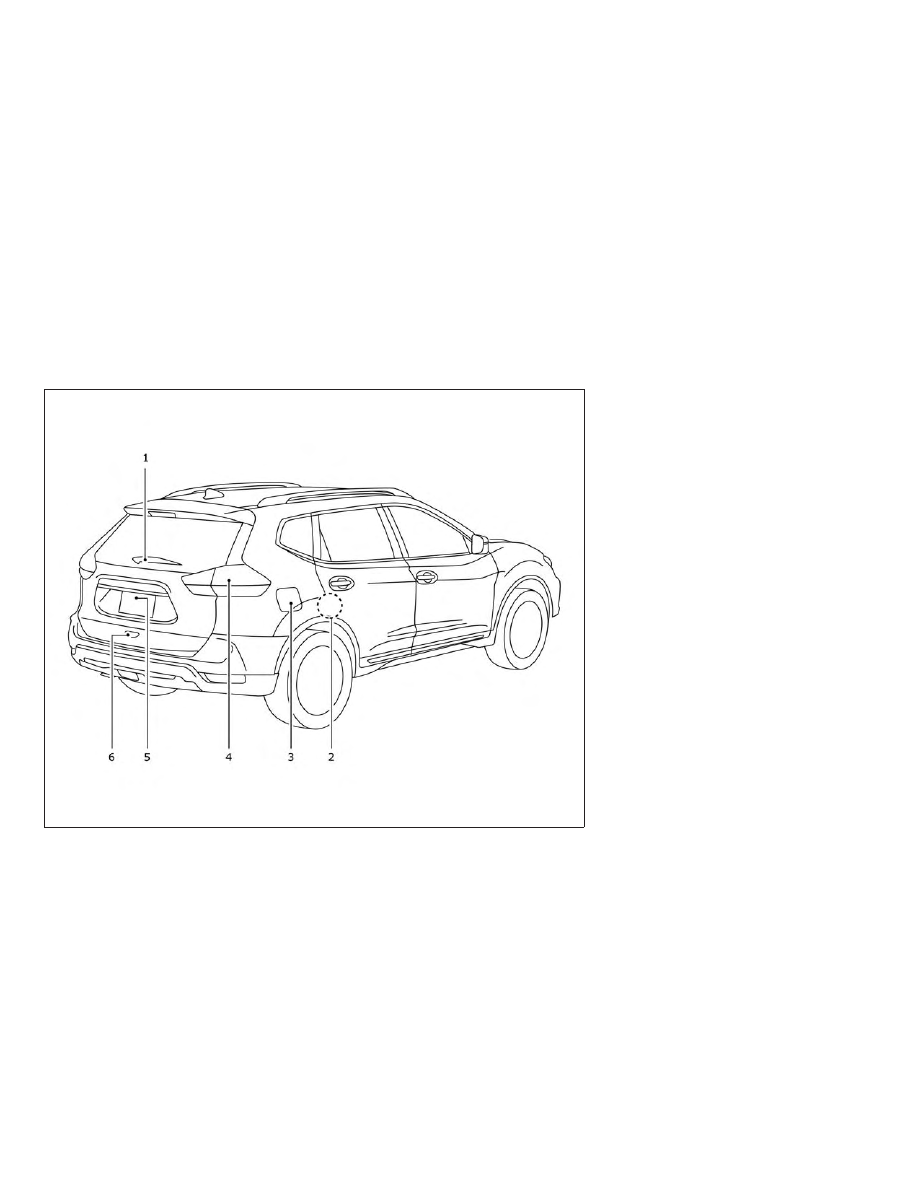

Wiper and washer switch (P. 2-45)

Child safety rear door lock (P. 3-5)

Fuel-filler door (P. 3-35)
Fuel-filler cap (P. 3-35)
Fuel recommendation (P. 10-2)

Replacing bulbs (P. 8-27)

Rearview camera (P. 4-3, 4-11)

Liftgate release (P. 3-28)

Refer to the page number indicated in
parentheses for operating details.

LII2541

EXTERIOR REAR

0-4

Illustrated table of contents

Glove box (P. 2-63)

Map lights (P. 2-75)

Power panoramic moonroof
(if so equipped) (P. 2-73)

Console box (P. 2-63)

Luggage hooks (P. 2-63)

Center armrest (P. 1-2)

Cup holders (P. 2-63)

8. Sun visors (P. 3-39)

Refer to the page number indicated in
parentheses for operating details.

LIC3720

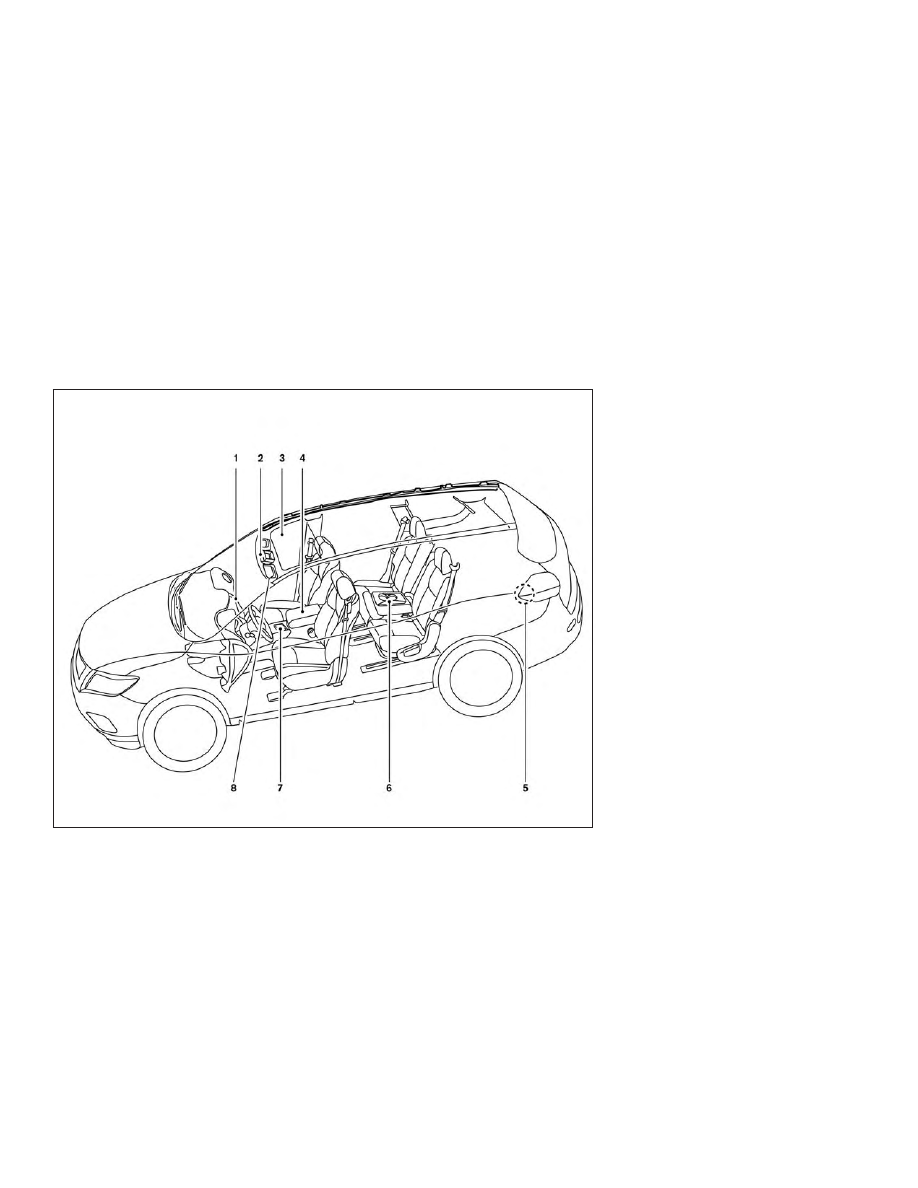

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

Vent (P. 4-28)

Headlight/fog light
(if so equipped)/turn signal switch
(P. 2-48)

Meters and gauges (P. 2-4)
Warning and indicator lights
(P. 2-11)
Vehicle information display (P. 2-22)

Wiper and washer switch (P. 2-45)
Rear wiper washer switch (P. 2-45)

Ignition switch (if so equipped)
(P. 5-13)
Push-button ignition switch
(if so equipped) (P. 5-15)

Hazard warning flasher switch
(P. 6-2)

Radio*
Navigation system*

Front passenger supplemental air
bag (P. 1-46)

Glove box (P. 2-63)

10.

Heater and air conditioning
controls (P. 4-29, 4-37)

11.

Power outlet (P. 2-60)

12.

Shift lever (P. 5-23)

13.

Auxiliary jack*
USB port*

14.

Front passenger air bag status
light (P. 1-46)

LII2516

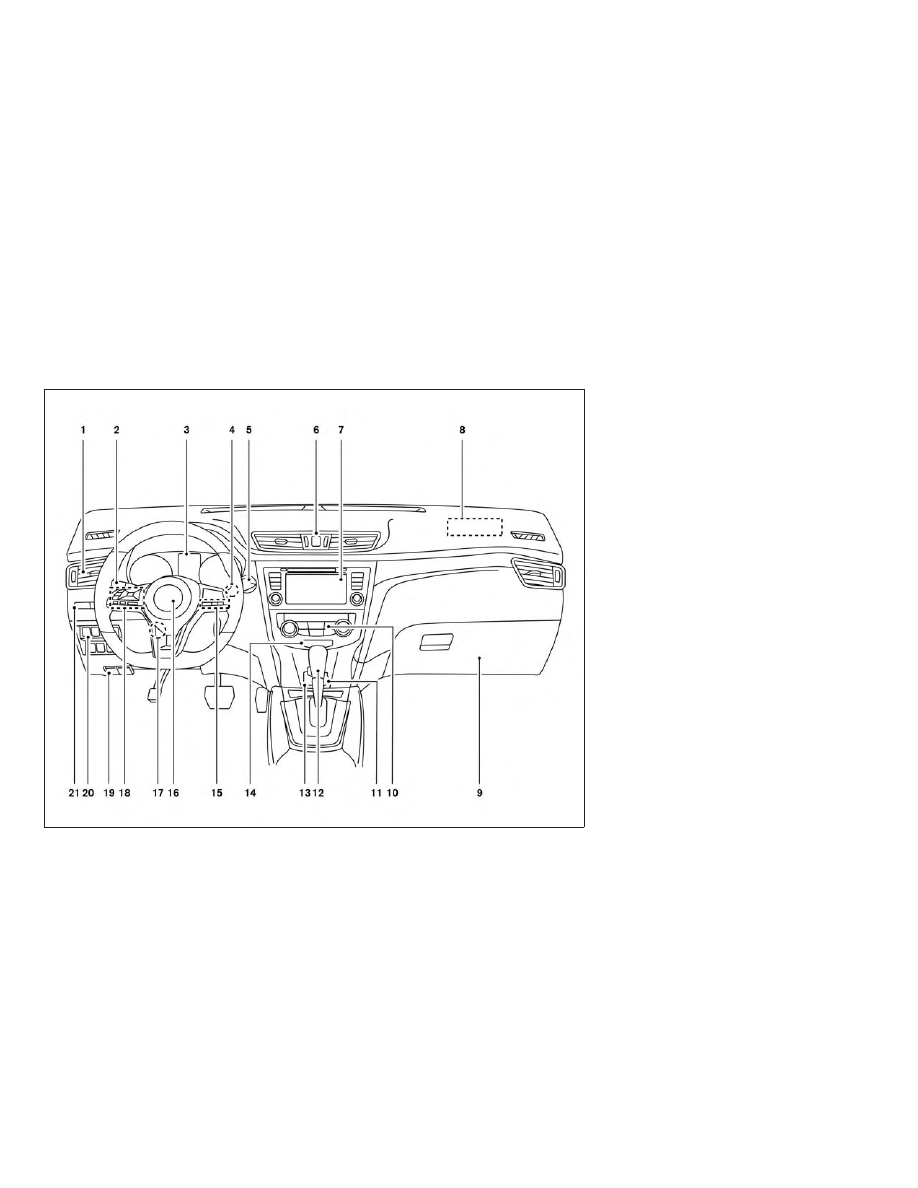

INSTRUMENT PANEL

0-6

Illustrated table of contents

15.

Cruise control switches
(if so equipped) (P. 5-64)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-66)
Bluetooth® Hands-Free Phone
System*
ProPILOT Assist switch
(if so equipped) (P. 5-90)

16.

Driver supplemental air bag
(P. 1-46)
Horn (P. 2-55)

17.

Tilt and telescopic steering (P. 3-38)

18.

Control panel and vehicle informa-
tion display switches (P. 2-22)

19.

Hood release (P. 3-27)

20.

Fuel door release (P. 3-35)
SPORT mode switch (P. 5-33)
ECO mode switch (P. 5-33)
Power liftgate switch
(if so equipped) (P. 3-28)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-58)
Steering Assist switch
(for vehicles with ProPILOT Assist)
(if so equipped) (P. 2-57)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-58)

Dynamic driver assistance switch
(for vehicles without ProPILOT
Assist) (if so equipped) (P. 2-57)
Heated steering wheel switch
(if so equipped) (P. 2-56)

21.

Instrument brightness control
(P. 2-48)
Twin trip odometer reset switch
(P. 2-5)

*: Refer to the separate NissanConnect®
Owner’s Manual.

Refer to the page number indicated in
parentheses for operating details.

Illustrated table of contents

0-7

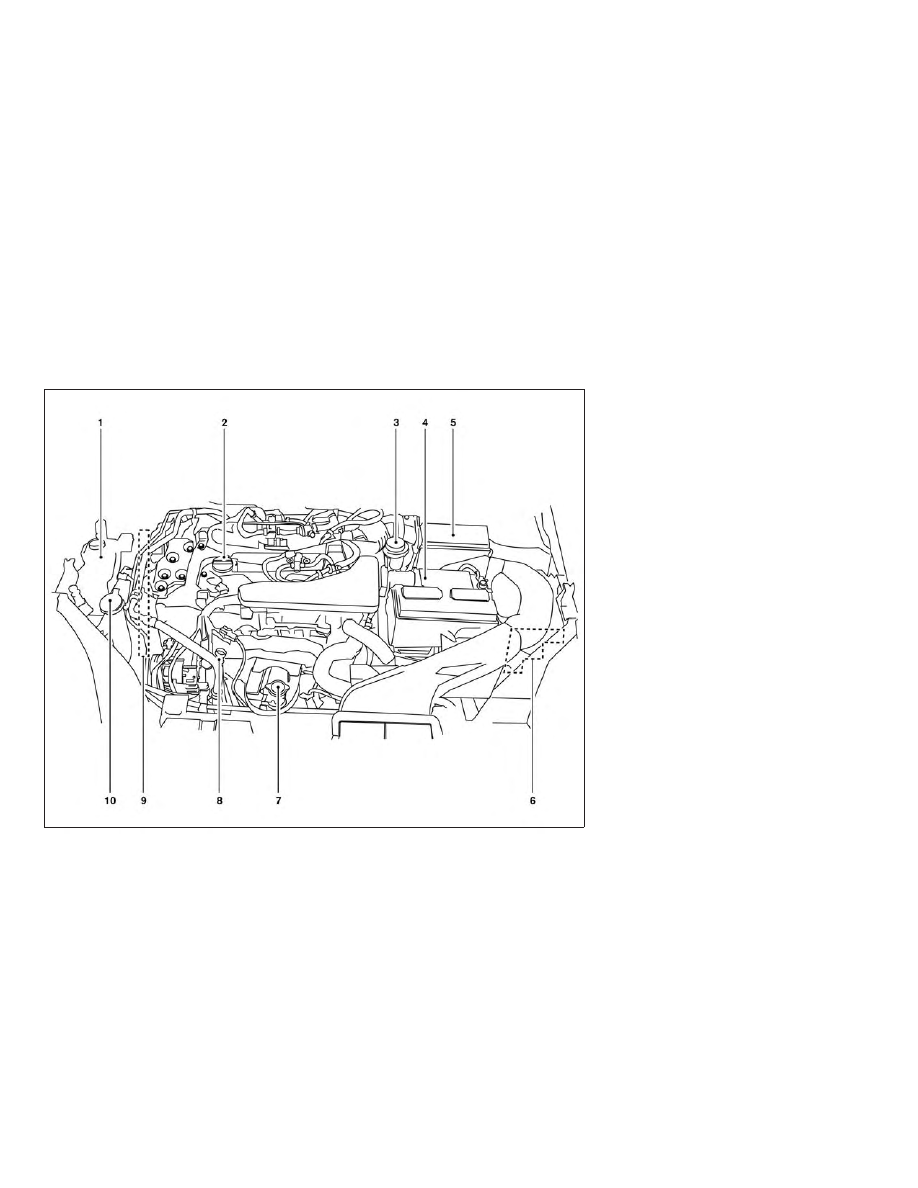

QR25DE engine

Engine coolant reservoir (P. 8-4)

Engine oil filler cap (P. 8-6)

Brake fluid reservoir (P. 8-9)

Battery (P. 8-12)

Air cleaner (P. 8-17)

Fuse/Fusible link box (P. 8-22)

Radiator cap (P. 8-4)

Engine oil dipstick (P. 8-6)

Drive belt location (P. 8-16)

10.

Windshield-washer fluid reservoir
(P. 8-10)

Engine cover removed for clarity.

Refer to the page number indicated in
parentheses for operating details.

LDI2809

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking
System (ABS)
warning light

2-12

Automatic Emer-
gency Braking
(AEB) system
warning light (if so
equipped)

2-12

Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)

2-12

Brake warning
light (red)

2-13

Warning

light

Name

Page

Charge warning
light

2-13

Electronic parking
brake warning
light (yellow) (if so
equipped)

2-14

Low tire pressure
warning light

2-14

Master warning
light

2-16

Power steering
warning light

2-16

Rear Automatic
Braking (RAB) sys-
tem warning light
(if so equipped)

2-17

Seat belt warning
light and chime

2-17

Warning

light

Name

Page

Supplemental air
bag warning light

2-17

Indicator

light

Name

Page

All-Wheel Drive
(AWD) LOCK indi-
cator light (if so
equipped)

2-18

Automatic brake
hold indicator
light (green) (if so
equipped)

2-18

Automatic brake
hold indicator
light (white) (if so
equipped)

2-18

Electronic parking
brake indicator
light (red) (if so
equipped)

2-18

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

Indicator

light

Name

Page

Front fog light in-
dicator light (if so
equipped)

2-18

Front passenger
air bag status
light

2-19

High beam assist
indicator light
(green) (if so
equipped)

2-19

High beam indi-
cator light (blue)

2-19

Malfunction Indi-
cator Light (MIL)

2-19

Security indicator
light

2-20

Side light and
headlight indica-
tor light (green)

2-20

Indicator

light

Name

Page

Slip indicator light

2-20

Turn signal/
hazard indicator
lights

2-20

Vehicle Dynamic
Control (VDC) OFF
indicator light

2-20

0-10

Illustrated table of contents

WARNING

∙ Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

∙ For the most effective protection

when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.

∙ After adjustment, gently rock in the

seat to make sure it is securely locked.

∙ Do not leave children unattended in-

side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

∙ Do not adjust the driver’s seat while

driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

∙ The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)

Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.

Forward and backward

Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.

Reclining

To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift
lever is in the P (Park) position.

LRS2160

LRS2161

Safety—Seats, seat belts and supplemental restraint system

1-3

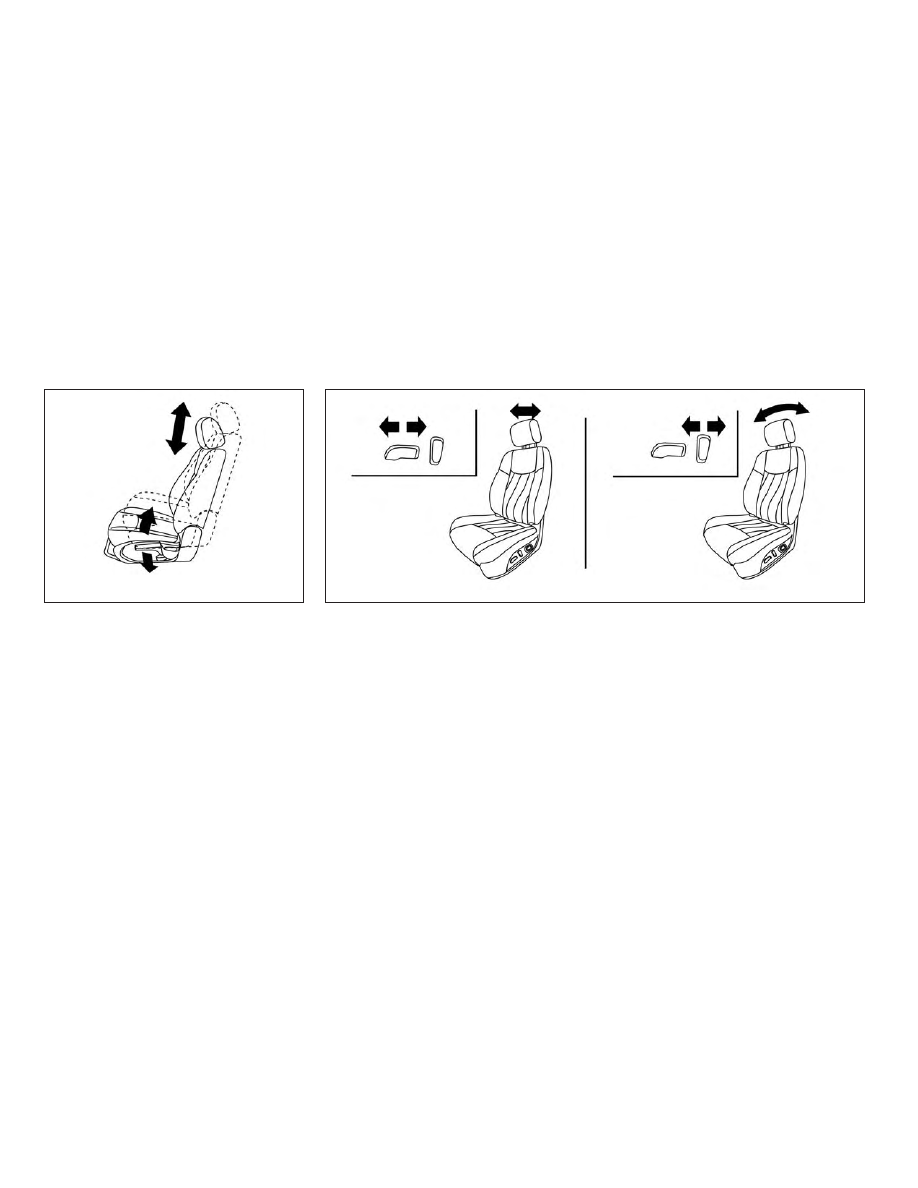

Seat lifter (driver’s seat)

Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.

FRONT POWER SEAT ADJUSTMENT
(if so equipped)

Operating tips

∙ The power seat motor has an auto-

reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.

∙ Do not operate the power seat switch

for a long period of time when the en-
gine is off. This will discharge the bat-
tery.

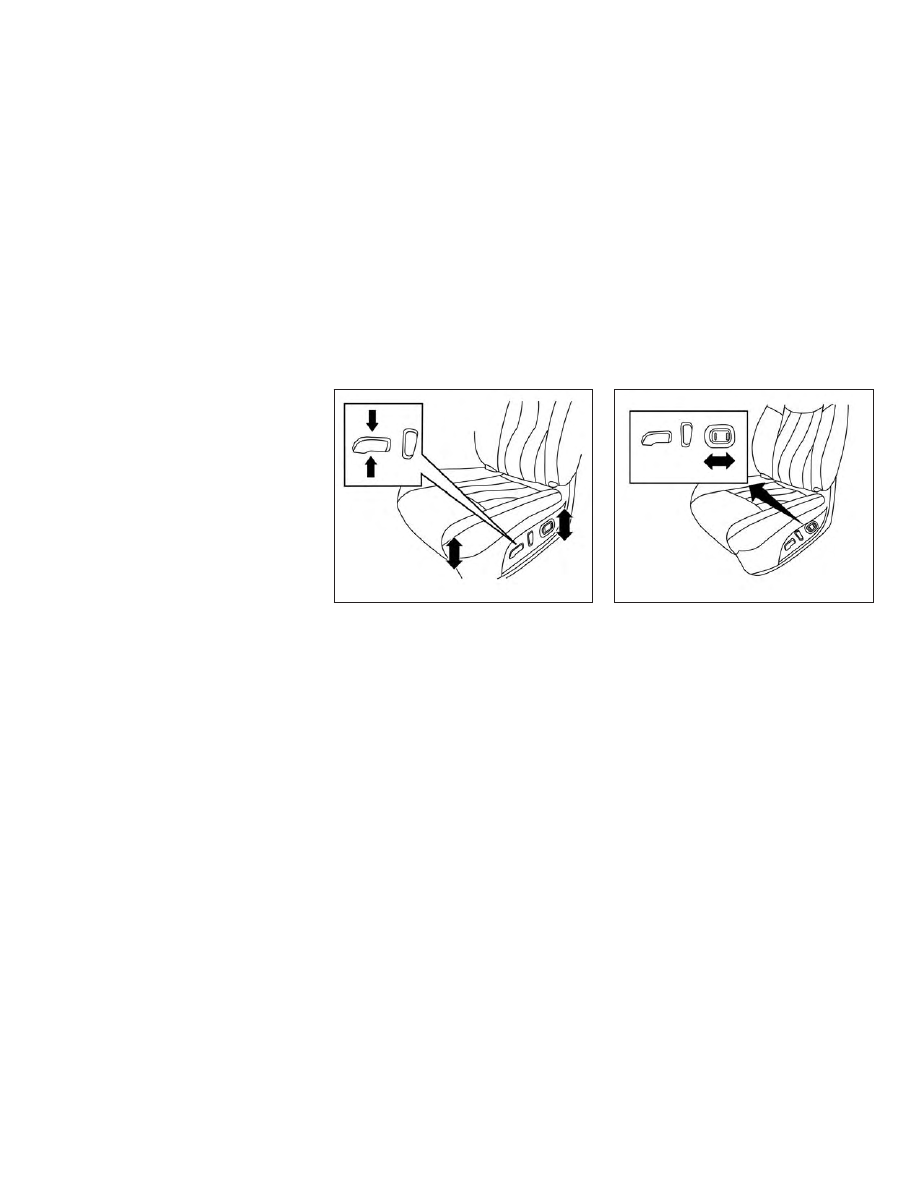

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired
position.

Reclining

Move the recline switch as shown until the
desired angle is obtained.

LRS2843

LRS2662

1-4

Safety—Seats, seat belts and supplemental restraint system

be reclined to allow occupants to rest
when the vehicle is stopped and the shift
lever is in P (Park).

Seat lifter (driver’s seat)

Move the switch as shown to achieve de-
sired seat height.

Lumbar support (driver’s seat)

The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seatback lumbar area.

LRS2784

LRS2270

Safety—Seats, seat belts and supplemental restraint system

1-5

REAR BENCH SEAT ADJUSTMENT

Forward and backward

Pull the center of the bar

䊊

up and hold it

while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.

Reclining

To recline the seatback, pull up on the lever

䊊

and lean back. To bring the seatback

forward, pull the lever

䊊

up and lean your

body forward. Release the lever to lock the
seatback in position.

The recline feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift
lever is in P (Park).

WARNING

∙ After adjustment, gently rock in the

seat to make sure it is securely locked.

∙ Do not ride in a moving vehicle when

∙ For the most effective protection

when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
belt properly. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section.

ARMRESTS

The rear bench center armrest is locked in
the up position. To lower the armrest, pull
the armrest down as shown.

To return the armrest to the up position,
push up on the armrest until it is in the full
up position.

Outboard seats

LRS2717

LRS2713

1-6

Safety—Seats, seat belts and supplemental restraint system

FLEXIBLE SEATING

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seats when
they are in the fold-down position. In a
collision, people riding in these areas
without proper restraints are more
likely to be seriously injured or killed.

∙ Do not allow people to ride in any area

of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.

∙ Do not allow more than one person to

use the same seat belt.

∙ Do not fold down the rear seats when

occupants are in the rear seat area or
any luggage is on the rear seats.

– Make sure that the seat path is

clear before moving the seat.

– Be careful not to allow hands or

feet to get caught or pinched in the
seat.

∙ Head restraints/headrests should be

adjusted properly as they may pro-
vide significant protection against in-
jury in an accident. Always replace
and adjust them properly if they have
been removed for any reason.

∙ If the head restraints/headrests are

removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers or
damage to the vehicle in case of sud-
den braking or an accident.

∙ When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

∙ Properly secure all cargo to help pre-

vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

Folding the rear bench seat

To fold the rear bench seat flat for maxi-
mum cargo hauling:

1. Lower

remove

the

rear

head

restraints/headrests and store them
properly so they are not loose in the
vehicle. For additional information, refer
to “Head restraints/headrests” in this
section.

LRS2754

Safety—Seats, seat belts and supplemental restraint system

1-7

Nissan Rogue (2019 year). Instruction - part 1
