NOTE:

Do not try to open the top of the battery.

This battery is not equipped with remov-
able vent caps.

NOTE:

The 12–volt battery

A

is located on the

left hand side of the cargo area under-
neath the access panel.

JUMP STARTING

If jump starting is necessary, refer to “Jump
starting” in the “In case of emergency” sec-
tion of this manual. If the hybrid system
does not start by jump starting, the battery
may have to be replaced. It is recom-
mended that you visit a NISSAN dealer for
this service.

REPLACING SPARK PLUGS

Iridium-tipped spark plugs

It is not necessary to replace iridium-
tipped

A

spark plugs as frequently as con-

ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the “Maintenance and sched-
ules” section of this manual. Do not service
iridium-tipped spark plugs by cleaning or
regapping.

∙ Always replace spark plugs with rec-

ommended or equivalent ones.

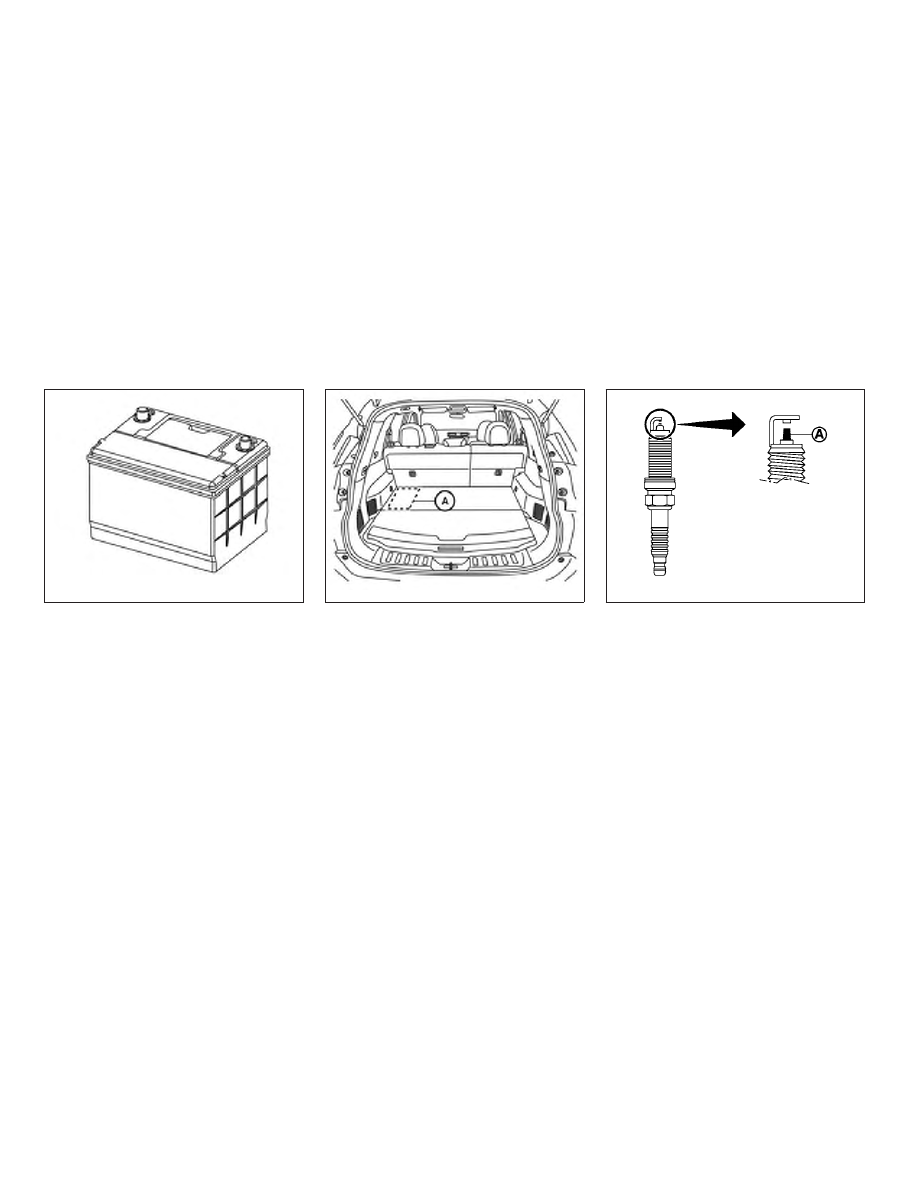

LDI2817

LDI3082

SDI1895

SPARK PLUGS

8-14

Do-it-yourself

WARNING

Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.

CAUTION

Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can damage the spark plugs.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

The viscous paper type filter element
should not be cleaned and reused. Replace
it according to the maintenance log shown
in the "Maintenance and schedules" sec-
tion of this manual.

To remove the air cleaner filter:

1. Pinch retaining clips

2

inward to un-

lock, move tab

1

frontward and re-

move air duct

B

upward.

NOTE:

Do not bend retaining clips outward or
they may break.

2. Unlatch the retaining clips

C

and

move air cleaner cover

D

forward.

3. Remove air cleaner filter.

Follow the removal instruction in reverse
order to install air cleaner filter, air cleaner
cover and air cleaner duct.

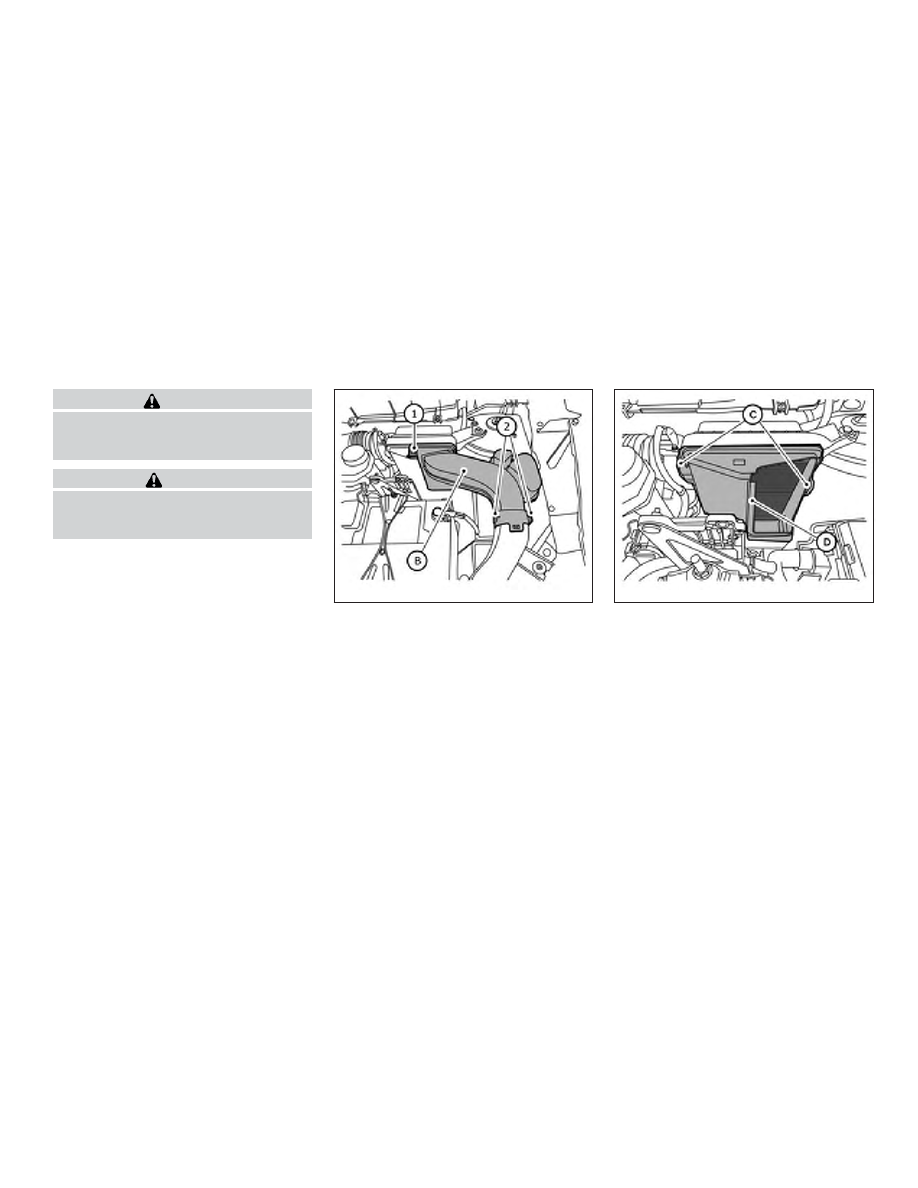

LDI3192

LDI2819

AIR CLEANER

Do-it-yourself

8-15

NOTE:

After installing a new air cleaner filter,
make sure the air cleaner cover and air
cleaner duct are seated correctly and all
the retaining clips are latched.

WARNING

∙ Operating the engine with the air

cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.

∙ Never pour fuel into the throttle body

or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

IN-CABIN MICROFILTER

The in-cabin microfilter restricts the entry
of airborne dust and pollen particles and
reduces

some

objectionable

outside

odors. The filter is located behind the glove
box. For additional information, refer to the
“Maintenance and schedules” section of
this manual for change intervals.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

CLEANING

If your windshield is not clear after using
the windshield-washer or if a wiper blade
chatters when running, wax or other mate-
rial may be on the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild de-
tergent. Then rinse the blades with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.

CAUTION

Worn windshield wiper blades can
damage the windshield and impair
driver vision.

WINDSHIELD WIPER BLADES

8-16

Do-it-yourself

REPLACING

Replace the wiper blades if they are worn.

To replace the windshield wiper blades, fol-
low the procedure below:

1. When ignition switch is ON or within

60 seconds after placing the ignition
switch from the ON to OFF position,
place the windshield wiper and washer
lever into the OFF position.

2. Rapidly lift the windshield wiper and

washer lever

A

upwards twice within

0.5 seconds. This action will cause the
wipers to automatically take the ser-
vice position.

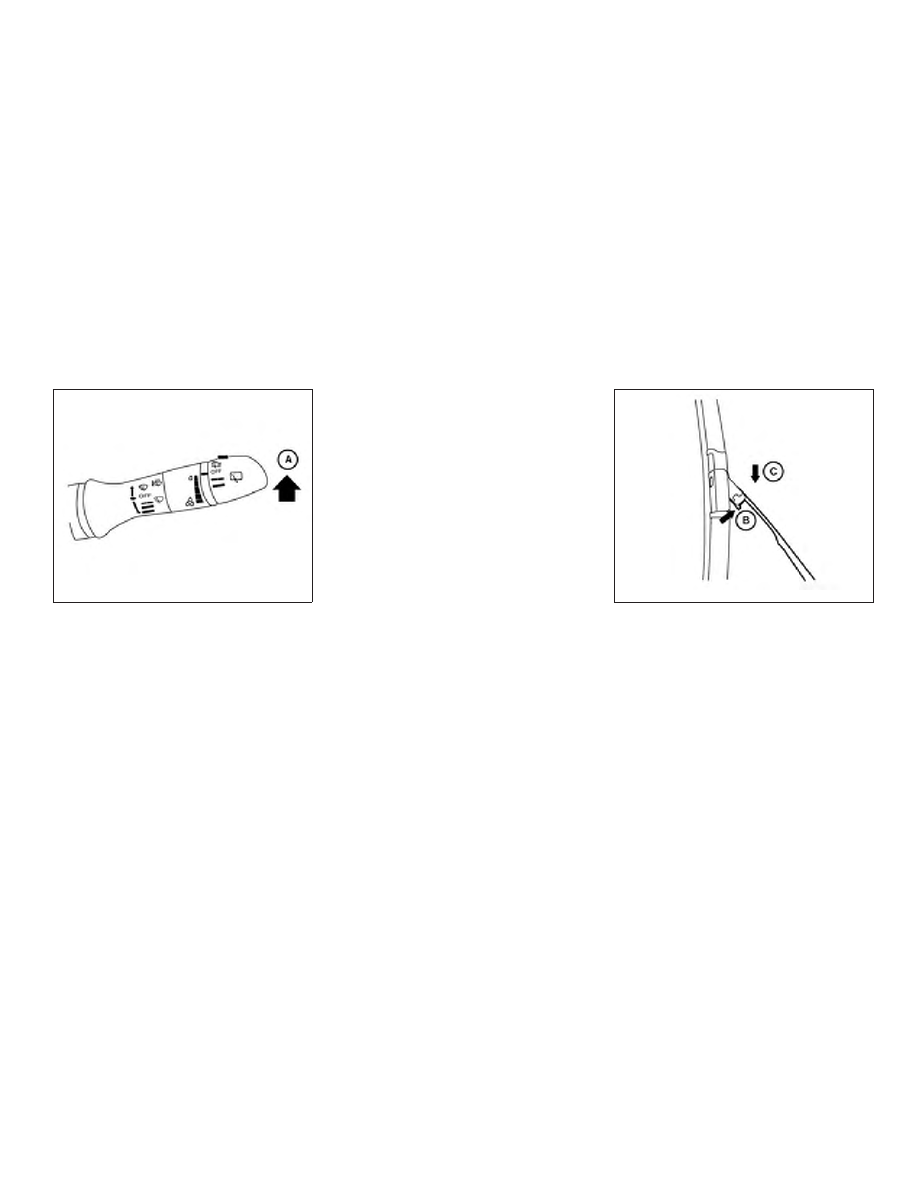

LDI2476

LDI2475

Do-it-yourself

8-17

3. Once the wipers are in the service po-

sition, push the release tab

B

.

4. Move the wiper blade down

C

and re-

move.

5. Insert the new wiper blade onto the

wiper arm until it clicks into place.

6. Rotate the wiper blade so the dimple is

in the groove.

7. Finally, lift the windshield wiper and

washer lever to the mist position

D

once and release. This action will cause
the wipers to resume the set position.

CAUTION

∙ After wiper blade replacement, return

the wiper arm to its original position;
otherwise it may be damaged when
the hood is opened.

∙ Make sure the wiper blades contact

the glass; otherwise the arms may be
damaged from wind pressure.

If you wax the surface of the hood, be care-
ful not to let wax get into the washer nozzle

A

. This may cause clogging or improper

windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin

B

.

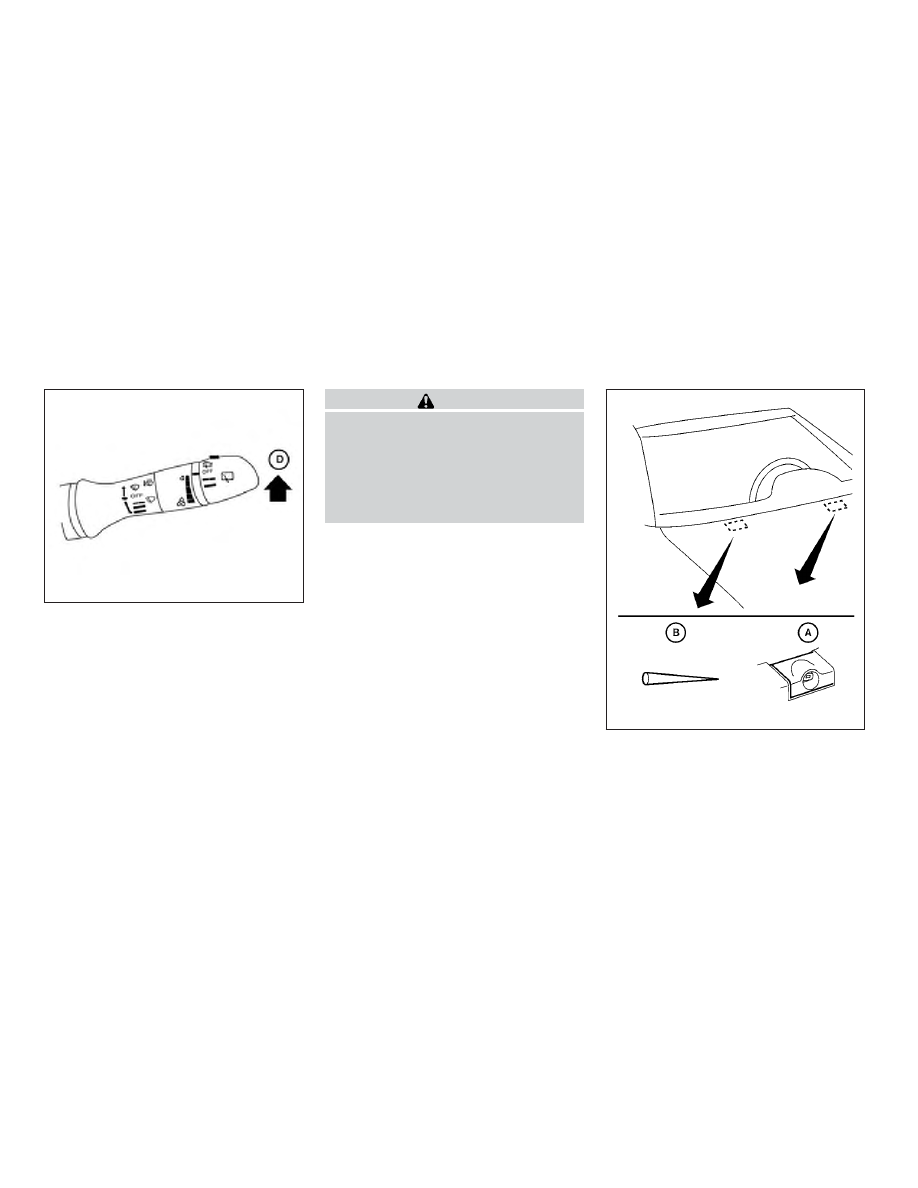

LDI2477

WDI0570

8-18

Do-it-yourself

Rear window wiper blade

If checking or replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front and rear disc-type brakes self-
adjust every time the brake pedal is ap-
plied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended that you
visit a NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires

replacement,

a

high

pitched

scraping or screeching sound will be heard
when the vehicle is in motion. The noise will
be heard whether or not the brake pedal is
depressed. Have the brakes checked as
soon as possible if the wear indicator
sound is heard.

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed.
For additional information re-
garding brake inspections, refer to the ap-
propriate maintenance schedule informa-
tion in the "Maintenance and schedules"
section of this manual.

BRAKES

Do-it-yourself

8-19

If any electrical equipment does not oper-
ate, check for an open fuse.

Fuses are used in the passenger compart-
ment and engine compartment. Spare
fuses are provided and can be found in the
passenger compartment fuse box.

When installing a fuse make sure the fuse is
installed in the fuse box securely.

ENGINE COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire

If any electrical equipment does not come
on, check for an open fuse.

For checking and replacing fuses, it is rec-
ommended that you visit a NISSAN dealer
for this service.

Fusible links

If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.

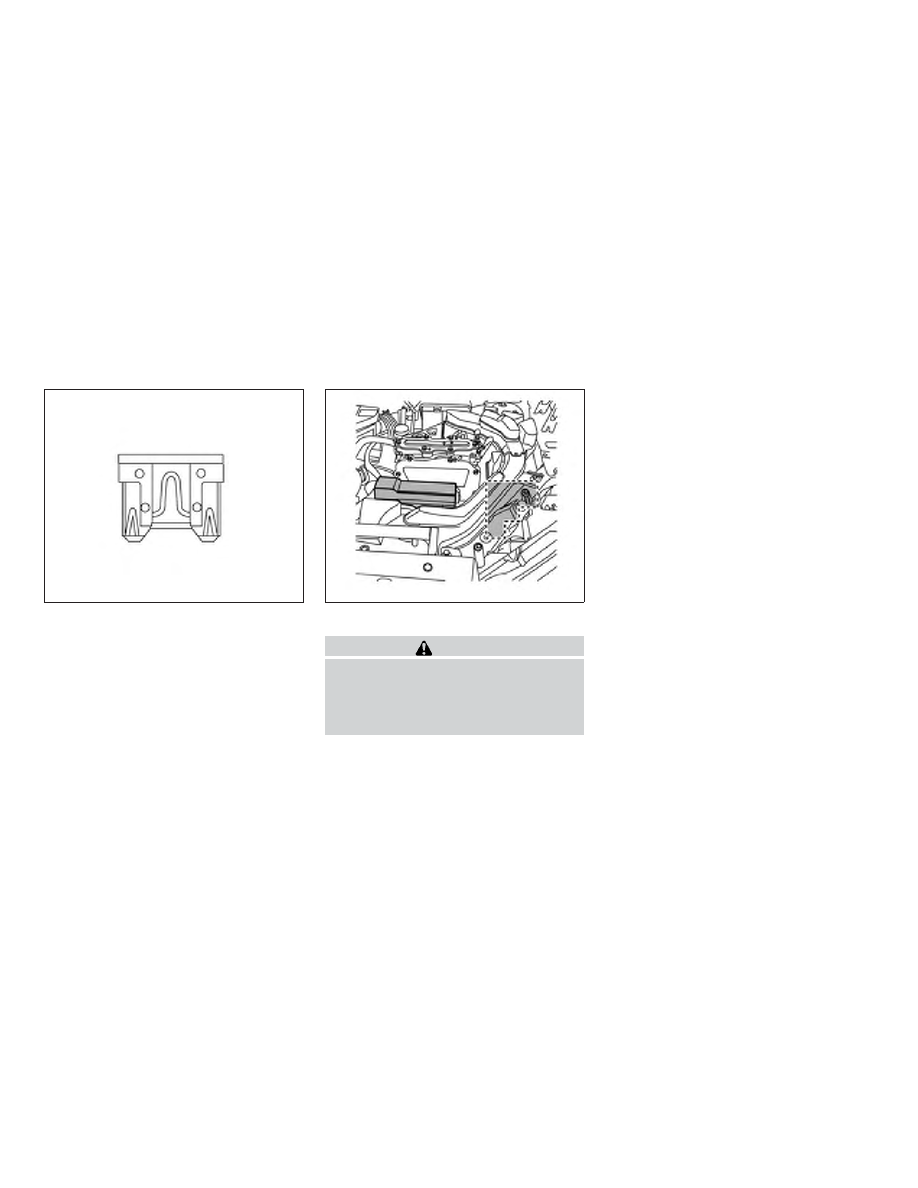

LDI2385

LDI3084

FUSES

8-20

Do-it-yourself

PASSENGER COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electronic system or electronic control
units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

NOTE:

The fuse box is located on the driver’s
side of the instrument panel.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Remove the fuse box cover with a suit-

able tool. Use a cloth to avoid damag-
ing the trim.

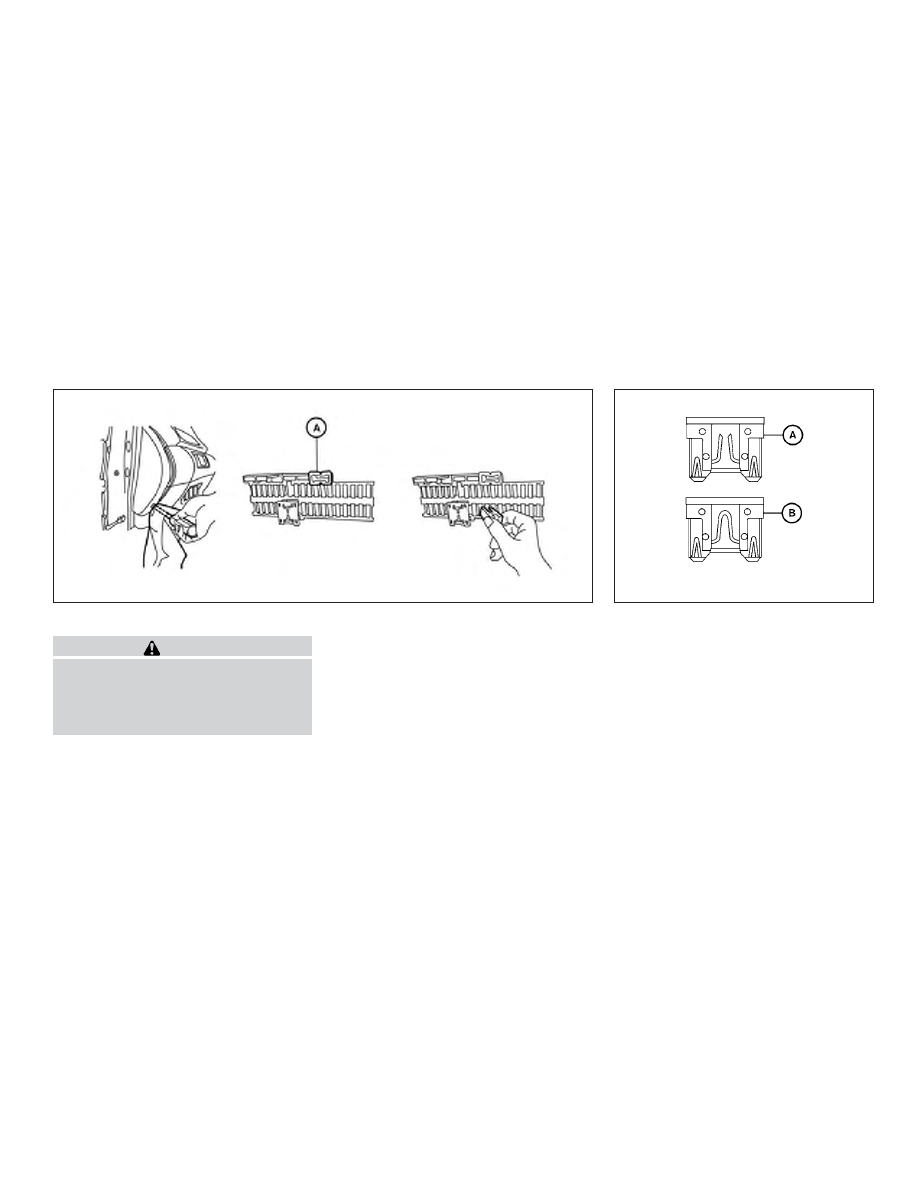

3. Locate the fuse that needs to be re-

placed.

4. Remove the fuse with the fuse puller

A

.

5. If the fuse is open

A

, replace it with an

equivalent good fuse

B

.

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

LDI2821

LDI0456

Do-it-yourself

8-21

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

NISSAN INTELLIGENT KEY®

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small screwdriver

A

into the

slit

B

of the corner and twist it to sepa-

rate the upper part from the lower part.
Use a cloth to protect the casing.

3. Replace the battery with a new one.

Recommended battery: CR2032 or
equivalent.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the stor-
age capacity.

∙ Make sure that the + side faces the

bottom of the case.

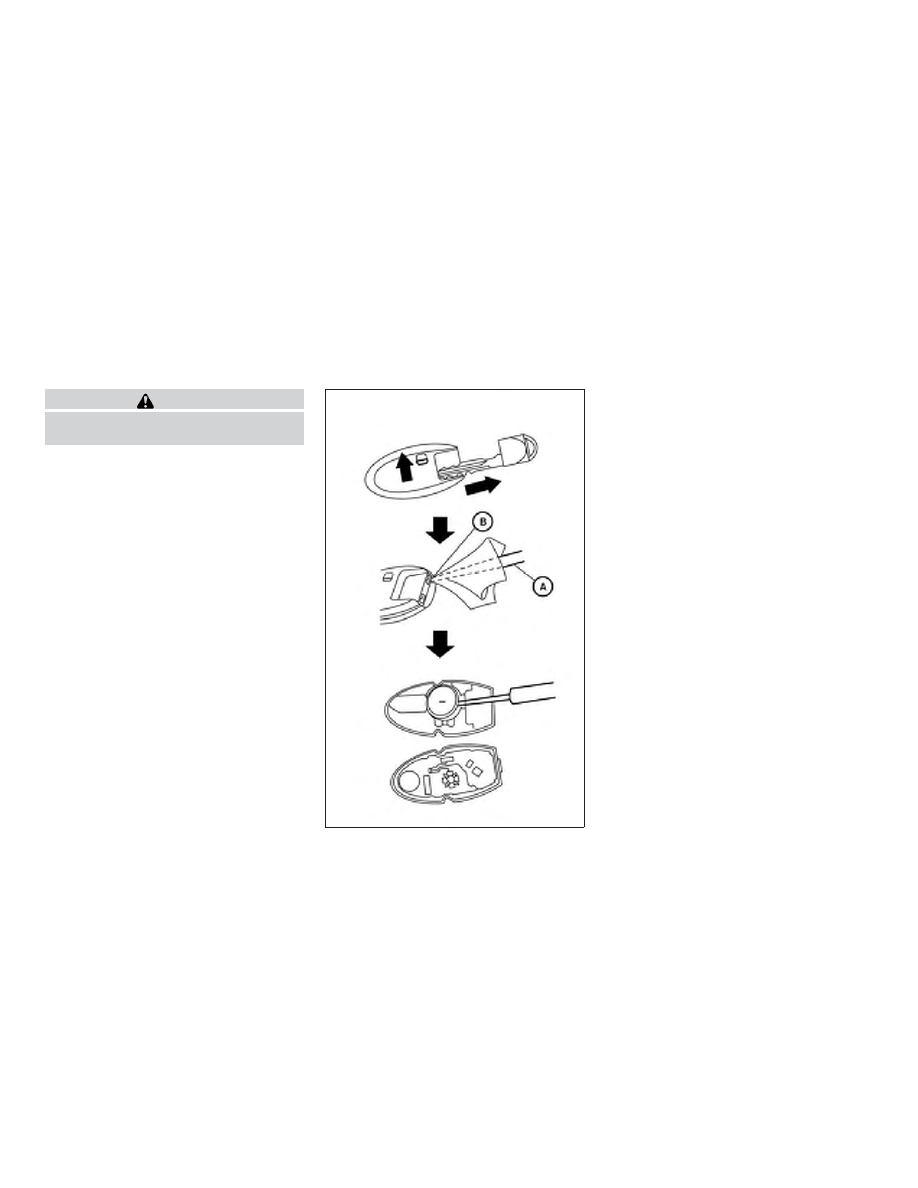

LDI2001

BATTERY REPLACEMENT

8-22

Do-it-yourself

4. Close the lid securely as illustrated with

C

and

D

.

5. Operate the buttons to check the op-

eration.

It is recommended that you visit a NISSAN
dealer for this service if you need assis-
tance for replacement.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note: Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the user’s
authority to operate the equipment.

For Canada:
This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

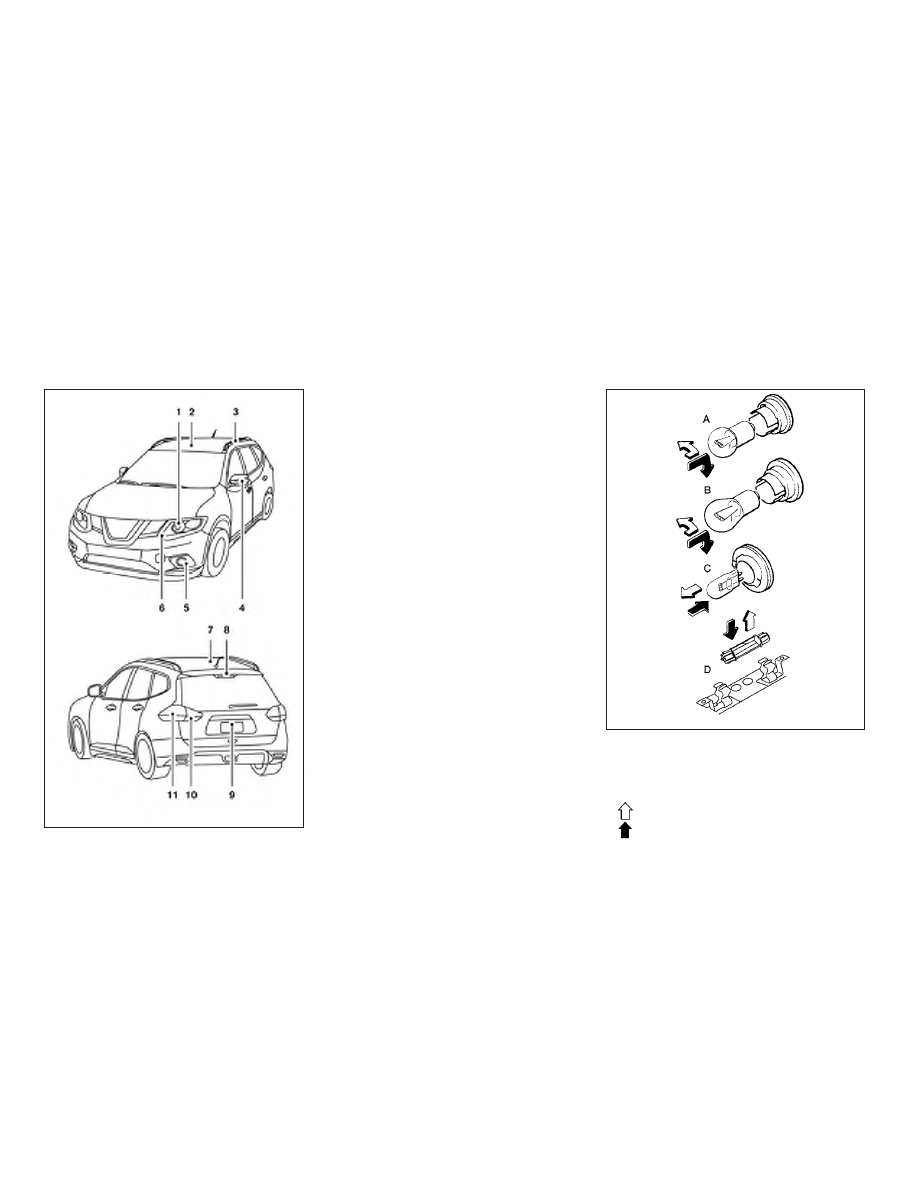

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb (if so equipped)

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside
the engine compartment without remov-
ing the headlight assembly.

If headlight bulb replacement is required, it
is recommended that you visit a NISSAN
dealer for this service.

WDI0568

LIGHTS

Do-it-yourself

8-23

CAUTION

∙ Aiming is not necessary after replac-

ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

if

the

glass

envelope

is

scratched or the bulb is dropped.

∙ Use the same number and wattage as

shown in the chart.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for this service.

Replacing the LED headlight bulb
(if so equipped)

If LED headlight bulb replacement is re-
quired, it is recommended that you visit a
NISSAN dealer for this service.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

if

the

glass

envelope

is

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

8-24

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly (Type A) (if so equipped)*

High

65

H9

Low

55

H11

Turn

28/8

7444NA

Side marker

Daytime running lights

Headlight assembly (Type B) (if so equipped)*

High

Low

Turn

28/8

7444NA

Side marker

Daytime running lights

Front fog lights (if so equipped)*

35

H8

Door mirror turn signal light

Map light*

Vanity mirror light

1.8

Glove box light*

Personal lights (if so equipped)

8

Cargo light*

8

High-mounted stop light*

Rear combination light*

Stop

21

7440

Tail/ Stop

Turn

21

WY21W

Side marker

5

W5W

Backup (reversing) assembly*

Backup

18

921

Tail

License plate light*

5

W5W

* It is recommended that you visit a NISSAN dealer for replacement.

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

Do-it-yourself

8-25

1.

Headlight assembly

2

Map light

3

Personal light (if so equipped)

4.

Door mirror turn signal light

5.

Fog light (if so equipped)

6.

Daytime running light

7.

Room light (if so equipped)

8.

High mounted stop light

9.

License plate light

10.

Backup (reversing) assembly

11.

Rear combination light

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

LDI2822

WDI0263

8-26

Do-it-yourself

Use a cloth and a suitable tool

1

to protect

the housing.

Use a cloth

1

and suitable tool to protect

the housing.

Use a cloth

1

to protect the housing.

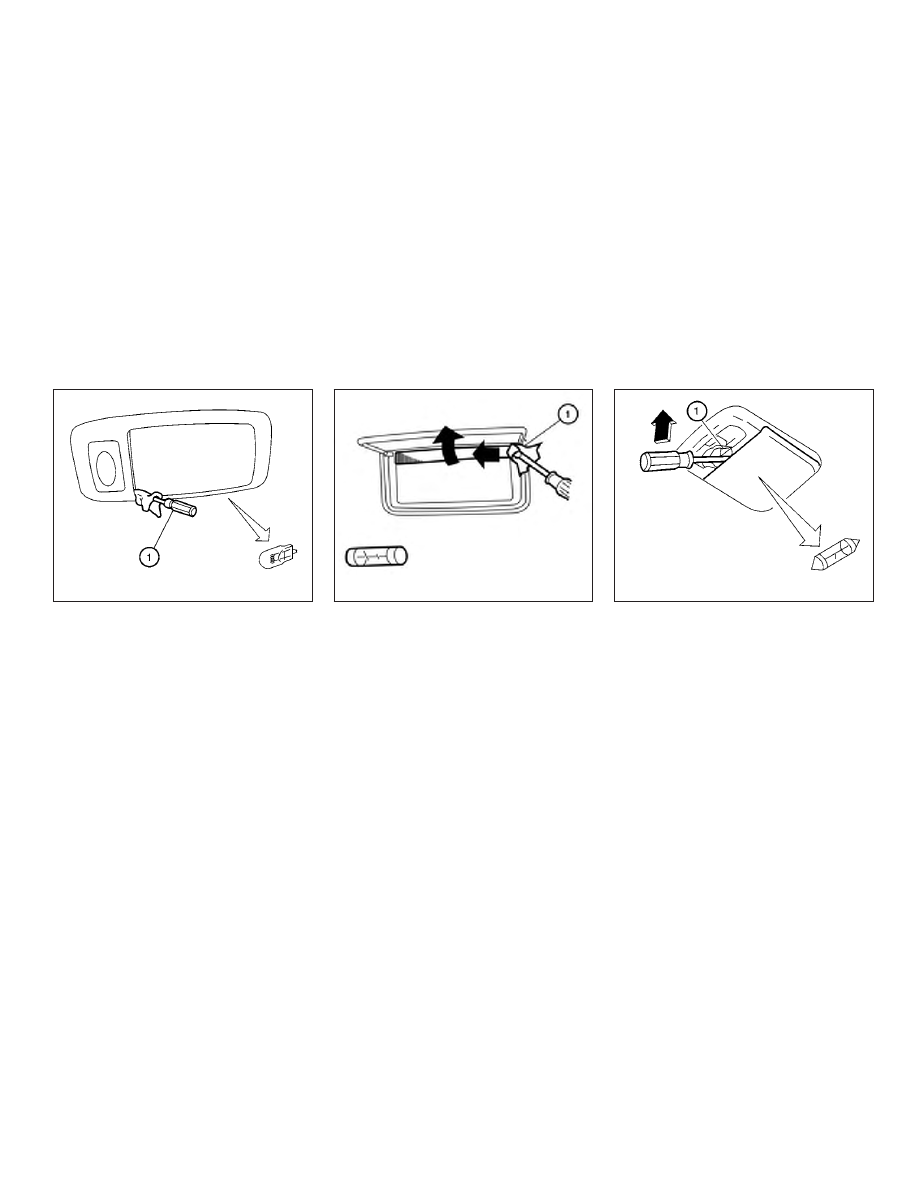

Personal lights (if so equipped)

WDI0670

Vanity mirror light

LDI2096

Room light (if so equipped)

WDI0206

Do-it-yourself

8-27

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all tires except the spare.
When the low tire pressure warning light is
lit and the “Tire Pressure Low – Add Air”
warning appears in the vehicle information
display, one or more of your tires is signifi-
cantly under-inflated. If equipped, the sys-
tem also displays pressure of all tires (ex-
cept the spare tire) on the display screen by
sending a signal from a sensor that is in-
stalled in each wheel.

The TPMS will activate only when the ve-
hicle is driven at speeds above 16 mph

(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example
a flat tire while driving).

For additional information, refer to “Low tire
pressure warning light” in the “Instruments
and controls” section, “Tire Pressure Moni-
toring System (TPMS)” in the “Starting and
driving” section and “Flat tire” in the “In case
of emergency” section of this manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

be

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Easy-Fill Tire
Alert” in the “Starting and driving”
section of this manual.

WHEELS AND TIRES

8-28

Do-it-yourself

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

an

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

is

located

on

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

a

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-29















Content   ..  25  26  27  28   ..
