TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
tire identification number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

䊊

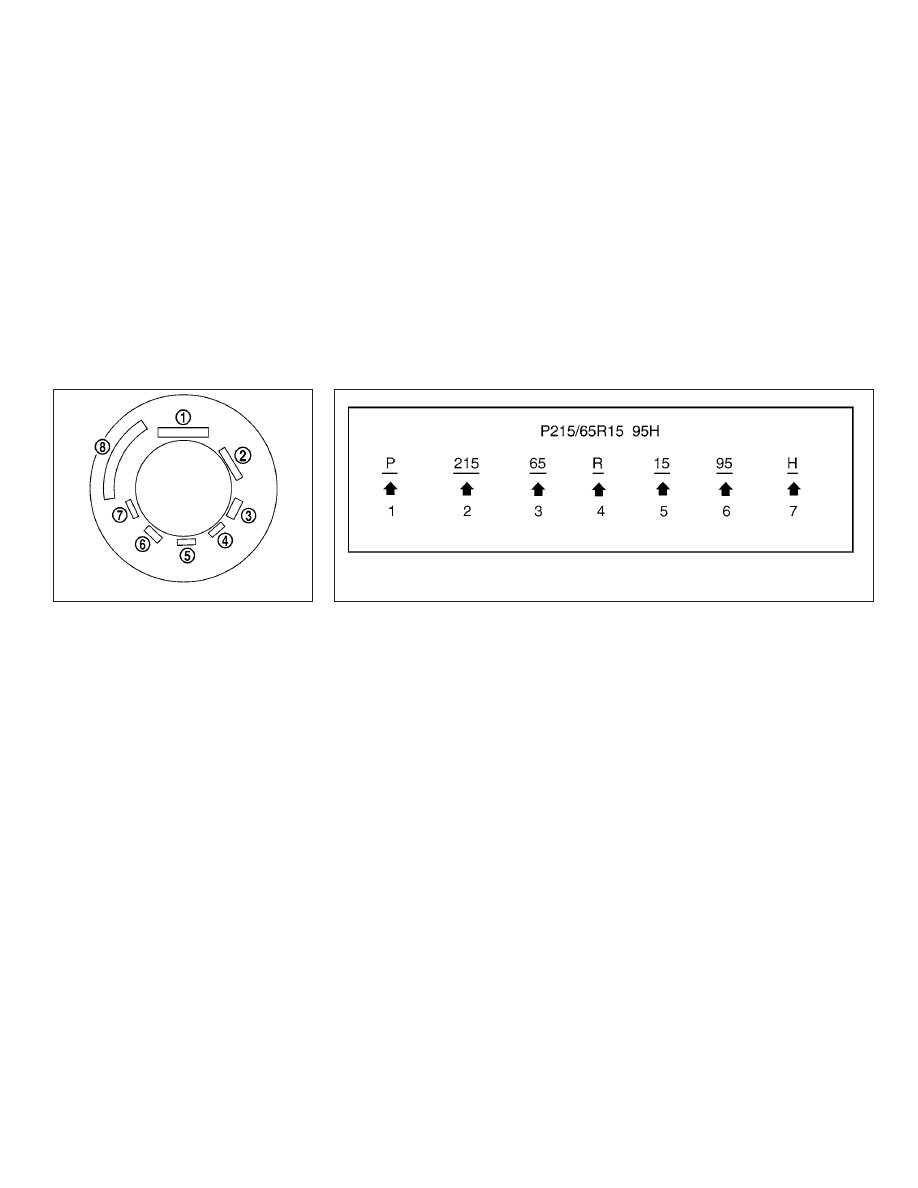

Tire size (example: P215/65R15 95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this information).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

Example

WDI0394

Example

WDI0395

Do-it-yourself

8-31

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

䊊

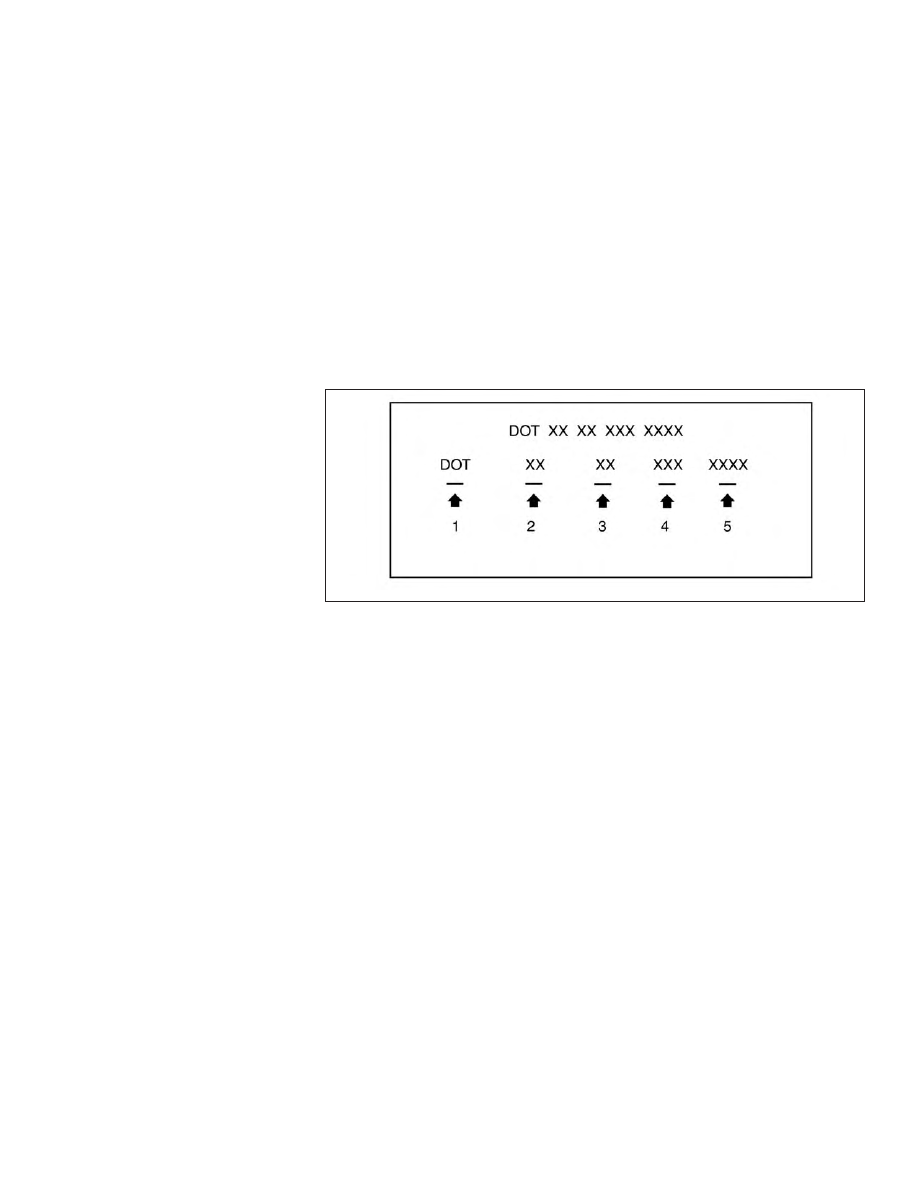

TIN (Tire Identification Number)

for a new tire
(example: DOT XX XX XXX XXXX)

1. DOT:

Abbreviation

for

the

“Department Of Transportation”.
The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

Example

LDI2786

8-32

Do-it-yourself

䊊

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate
the materials in the tire, which in-
clude steel, nylon, polyester and oth-
ers.

䊊

Maximum permissible inflation

pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

䊊

Maximum load rating

This number indicates the maxi-
mum load in kilograms and pounds
that can be carried by the tire. When
replacing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.

䊊

Term of “tubeless” or “tube type”

Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).

䊊

The word “radial”

The word “radial” is shown if the tire
has radial structure.

䊊

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other Tire-related Terminology

In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears

white

lettering

bears

manufacturer, brand, and/or model
name molding that is higher or
deeper than the same molding on
the other sidewall of the tire, or (2)
the outward facing sidewall of an
asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounted on a vehicle.

TYPES OF TIRES

WARNING

∙ When changing or replacing tires, be

sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. A NISSAN dealer may be
able to help you with information
about tire type, size, speed rating and
availability.

∙ Replacement tires may have a lower

speed

rating

than

the

factory

equipped tires, and may not match
the

potential

maximum

vehicle

speed. Never exceed the maximum
speed rating of the tire.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the low tire
pressure warning system.

Do-it-yourself

8-33

∙ Always use tires of the same type,

size, brand, construction and tread
pattern on all four wheels. Failure to
do so may result in a circumference
difference between tires on the front
and rear axles which can cause the
Vehicle Dynamic Control (VDC) system
to malfunction resulting in personal
injury or death, excessive tire wear
and may damage the transmission
and differential gears.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

All season tires

NISSAN specifies All Season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than
All Season tires and may be more appropri-
ate in some areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, stud-
ded tires may be used. However, some U.S.

states and Canadian provinces prohibit
their use. Check local, state and provincial
laws before installing studded tires. Skid
and traction capabilities of studded snow
tires on wet or dry surfaces may be poorer
than that of non-studded snow tires.

TIRE CHAINS

CAUTION

Tire chains/cables should not be in-
stalled on 235/55R20 size tires. Installa-
tion

the

tire

chains/cables

235/55R20 size tires will cause damage
to the vehicle. If you plan to use tire
chains/cables,

you

should

install

235/65R18 size tires on your vehicle.

Use of tire chains may be prohibited ac-
cording to location. Check the local laws
before installing tire chains. When installing
tire chains, make sure they are the proper
size for the tires on your vehicle and are
installed according to the chain manufac-
turer’s suggestions. Use only SAE class “S”
chains. Class “S” chains are used on ve-
hicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains
are designed to meet the minimum clear-
ances between the tire and the closest ve-
hicle suspension or body component re-

8-34

Do-it-yourself

quired to accommodate the use of a
winter traction device (tire chains or
cables). The minimum clearances are de-
termined using the factory equipped tire
size. Other types may damage your vehicle.
Use chain tensioners when recommended
by the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chain
must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. If possible,
avoid fully loading your vehicle when using
tire chains. In addition, drive at a reduced
speed. Otherwise, your vehicle may be
damaged and/or vehicle handling and
performance may be adversely affected.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the
tires every 5,000 miles (8,000 km).

For additional information on tire re-
placing procedures, refer to “Flat tire”
in the “In case of emergency” section
of this manual.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.

WARNING

∙ After rotating the tires, check

and adjust the tire pressure.

∙ Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

∙ Do not include the spare tire in

the tire rotation.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

WDI0258

Do-it-yourself

8-35

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

∙ Tires should be periodically in-

spected

for

wear,

cracking,

bulging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

∙ The original tires have built-in

tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

∙ Tires degrade with age and use.

Have tires, including the spare,
over 6 years old checked by a
qualified

technician

because

some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

∙ Improper service of the spare

tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, it is recom-
mended that you visit a NISSAN
dealer for this service.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. For ad-
ditional information, refer to “Wheels and
tires” in the “Technical and consumer infor-
mation” section of this manual.

WARNING

∙ The use of tires other than those rec-

ommended or the mixed use of tires
of

different

brands,

construction

(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, Vehicle Dynamic
Control (VDC) system, ground clear-
ance,

body-to-tire

clearance,

tire

chain clearance, speedometer cali-
bration, headlight aim and bumper
height. Some of these effects may
lead to accidents and could result in
serious personal injury.

WDI0259

8-36

Do-it-yourself

∙ If

your

vehicle

was

originally

equipped with four tires that were the
same size and you are only replacing
two of the four tires, install the new
tires on the rear axle. Placing new tires
on the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and per-
sonal injury.

∙ If the wheels are changed for any rea-

son,

always

replace

with

wheels

which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear, de-
grade vehicle handling characteris-
tics, affect the VDC system and/or in-
terference with the brake discs. Such
interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information
on wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical
and consumer information” section of
this manual.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for this service.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ The TPMS sensor may be damaged if

it is not handled correctly. Be careful
when handling the TPMS sensor.

∙ When replacing the TPMS sensor, the

ID registration may be required. It is
recommended that you visit a NISSAN
dealer for ID registration.

∙ Do not use a valve stem cap that is not

specified by NISSAN. The valve stem
cap may become stuck.

∙ Be sure that the valve stem caps are

correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause

malfunction

loss

pressure.

∙ Do not install a damaged or deformed

wheel or tire even if it has been re-
paired. Such wheels or tires could
have structural damage and could fail
without warning.

∙ The

use

retread

tires

not

recommended.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

Four-wheel drive models

CAUTION

Always use tires of the same type, size,
brand, construction (bias, bias-belted
or radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and

Do-it-yourself

8-37

wheel alignment should also be checked
and corrected as necessary. It is recom-
mended that you visit a NISSAN dealer for
this service.

Wheel balance

Unbalanced wheels may affect vehicle
handling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.

Care of wheels

∙ Wash the wheels when washing the ve-

hicle to maintain their appearance.

∙ Clean the inner side of the wheels when

the wheel is changed or the underside
of the vehicle is washed.

∙ Do not use abrasive cleaners when

washing the wheels.

∙ Inspect wheel rims regularly for dents

or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead.

∙ NISSAN recommends waxing the road

wheels to protect against road salt in
areas where it is used during winter.

Spare tire (TEMPORARY USE ONLY
spare tire)

When replacing a wheel without the TPMS
such as the spare tire, the TPMS will not
function.

Observe the following precautions if the
TEMPORARY USE ONLY spare tire must be
used. Otherwise, your vehicle could be
damaged or involved in an accident:

WARNING

∙ The spare tire should be used for

emergency use only. It should be re-
placed with the standard tire at the
first opportunity to avoid possible tire
or differential damage.

∙ Drive carefully while the TEMPORARY

USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.

∙ Periodically check spare tire inflation

pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire
at 420 kPa, 4.2 bar (60 psi).

∙ With the TEMPORARY USE ONLY spare

tire installed do not drive the vehicle
at

speeds

faster

than

mph

(80 km/h).

∙ When driving on roads covered with

snow or ice, the TEMPORARY USE
ONLY spare tire should be used on the
rear wheels and the original tire used
on the front wheels (drive wheels).

∙ Tire tread of the TEMPORARY USE

ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.

∙ Do not use the spare tire on other

vehicles.

∙ Do not use more than one spare tire at

the same time.

∙ Do not tow a trailer when the TEMPO-

RARY USE ONLY spare tire is installed.

8-38

Do-it-yourself

Some day-to-day and regular mainte-
nance is essential to maintain your vehicle
good mechanical condition, as well as its
emissions and engine performance.

It is the owner’s responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.

As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in
the maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal
day-to-day operation. They are essential
for proper vehicle operation. It is your re-
sponsibility to perform these procedures
regularly as prescribed.

Performing general maintenance checks
requires minimal mechanical skill and only
a few general automotive tools.

These checks or inspections can be done
by yourself, a qualified technician or, if you
prefer, a NISSAN dealer.

SCHEDULED MAINTENANCE

The maintenance items listed in this sec-
tion are required to be serviced at regular
intervals. However under severe driving
conditions, additional or more frequent
maintenance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced. It is recom-
mended that you visit a NISSAN dealer for
this service.

NISSAN technicians are well-trained spe-
cialists and are kept up-to-date with the
latest service information through techni-
cal bulletins, service tips and training pro-
grams. They are completely qualified to
work on NISSAN vehicles before work be-
gins.

You can be confident that a NISSAN deal-
er’s service department can perform the
service needed to meet the maintenance
requirements on your vehicle.

During the normal day-to-day operation of
the vehicle, general maintenance should
be performed regularly as prescribed in
this section. If you detect any unusual
sounds, vibrations or smells, be sure to
check for the cause or have it checked
promptly. In addition, it is recommended
that you visit a NISSAN dealer if you think
that repairs are required.

When performing any checks or mainte-
nance work, closely observe the “Mainte-
nance precautions” in the “Do-it-yourself ”
section of this manual.

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

Additional information on the following
items with “ * ” is found in the “Do-it-
yourself ” section of this manual.

Outside the vehicle

The maintenance items listed here should
be performed from time to time, unless
otherwise specified.

Doors and engine hood: Check that the
doors and engine hood operate properly.
Also ensure that all latches lock securely.
Lubricate hinges, latches, latch pins, rollers
and links if necessary. Make sure that the

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

9-2

Maintenance and schedules

secondary latch keeps the hood from
opening when the primary latch is re-
leased.

When driving in areas using road salt or
other corrosive materials, check lubrica-
tion frequently.

Lights*: Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and in-
stalled securely. Also check headlight aim.

Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.

Tire rotation*: Tires should be rotated ev-
ery 5,000 miles (8,000 km).

Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in all
tires, including the spare, to the pressure
specified. Check carefully for damage, cuts
or excessive wear.

Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the
TPMS transmitter grommet seal, valve core
and cap when the tires are replaced due to
wear or age.

Wheel alignment and balance: If the ve-
hicle should pull to either side while driving
on a straight and level road, or if you detect
uneven or abnormal tire wear, there may
be a need for wheel alignment. If the steer-
ing wheel or seat vibrates at normal high-
way speeds, wheel balancing may be
needed.

For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.

Windshield: Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other dam-
age. Have a damaged windshield repaired
by a qualified repair facility.

Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.

Inside the vehicle

The maintenance items listed here should
be checked on a regular basis, such as
when performing scheduled maintenance,
cleaning the vehicle, etc.

Accelerator pedal: Check the pedal for
smooth operation and make sure the
pedal does not catch or require uneven
effort. Keep the floor mat away from the
pedal.

Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer
to stop, have your vehicle checked imme-
diately. It is recommended that you visit a
NISSAN dealer for this service. Keep the
floor mat away from the pedal.

Brakes: Check that the brakes do not pull
the vehicle to one side when applied.

Continuously Variable Transmission (CVT)
P (Park) position mechanism: On a fairly
steep hill check that the vehicle is held se-
curely with the shift lever in the P (Park)
position without applying any brakes.

Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjustment, it is recom-
mended that you visit a NISSAN dealer for
this service.

Maintenance and schedules

9-3

Seats: Check seat position controls such
as seat adjusters, seatback recliner, etc., to
ensure they operate smoothly and all
latches lock securely in every position.
Check that the head restraints/headrests
move up and down smoothly and the locks
(if so equipped) hold securely in all latched
positions.

Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Steering wheel: Check for changes in the
steering system, such as excessive free
play, hard steering or strange noises.

Warning lights and chimes: Make sure all
warning lights and chimes are operating
properly.

Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.

Windshield wiper and washer*: Check
that the wipers and washer operate prop-
erly and that the wipers do not streak.

Under the hood and vehicle

The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel).

Battery*: Check the fluid level in each cell.
The fluid should be at the bottom of the
filler opening. Vehicles operated in high
temperatures or under severe conditions
require frequent checks of the battery fluid
level.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (Phone chargers, GPS, DVD
players, etc.).

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.

Engine coolant level*: Check the coolant
level when the engine is cold.

Engine drive belts*: Make sure the drive
belts are not frayed, worn, cracked or oily.

Engine oil level*: Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than
15 minutes for the oil to drain back into the
oil pan.

Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, immedi-
ately have the exhaust system inspected. It
is recommended that you visit a NISSAN
dealer for this service. For additional infor-
mation, refer to “Exhaust gas (carbon mon-
oxide)” in the “Starting and driving” section
of this manual.

Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use
is normal. If you should notice any leaks or if

9-4

Maintenance and schedules

fuel fumes are evident, check for the cause
and have it corrected immediately.

Power steering fluid level* and lines:
Check the level when the fluid is cold, with
the engine off. Check the lines for proper
attachment, leaks, cracks, etc.

Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.

Underbody: The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control dust. It
is very important to remove these sub-
stances, otherwise rust may form on the
floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the
underbody should be thoroughly flushed
with plain water, being careful to clean
those areas where mud and dirt may accu-
mulate. For additional information, refer to
the “Appearance and care” section of this
manual.

Windshield-washer fluid*: Check that
there is adequate fluid in the reservoir.

The following descriptions are provided to
give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The
maintenance schedule indicates at which
mileage/time intervals each item requires
service.

In addition to scheduled maintenance,
your vehicle requires that some items be
checked during normal day-to-day opera-
tion. For additional information, refer to
“General maintenance” in this section.

Items marked with “*” are recommended
by NISSAN for reliable vehicle operation.
You are not required to perform mainte-
nance on these items in order to maintain
the warranties which come with your
NISSAN. Other maintenance items and in-
tervals are required.

When applicable, additional information
can be found in the “Do-it-yourself ” section
of this manual.

NOTE:

NISSAN does not advocate the use of
non-OEM approved aftermarket flush-
ing

systems

and

strongly

advises

against performing these services on a
NISSAN product. Many of the aftermar-
ket flushing systems use non-OEM ap-
proved chemicals or solvents, the use of
which has not been validated by NISSAN.

For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer to “Recom-
mended fluids/lubricants and capaci-
ties” in the “Technical and consumer in-
formation” section of this manual.

EMISSION CONTROL SYSTEM
MAINTENANCE:

Drive belts*: Check engine drive belts for
wear, fraying or cracking and for proper
tension. Replace any damaged drive belts.

Engine air filter: Replace at specified inter-
vals. When driving for prolonged periods in
dusty conditions, check/replace the filter
more frequently.

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

Maintenance and schedules

9-5

Engine coolant*: Replace coolant at the
specified interval. When adding or replac-
ing coolant, be sure to use only Genuine
NISSAN Long Life Antifreeze/Coolant (blue)
or equivalent with the proper mixture. (For
additional information on the proper mix-
ture for your area, refer to “Engine cooling
system” in the “Do-it-yourself ” section of
this manual.)

NOTE:

Mixing any other type of coolant or the
use of non-distilled water may reduce
the recommended service interval of the
coolant.

Engine oil and oil filter: Replace engine oil
and oil filter at the specified intervals. For
recommended oil grade and viscosity, refer
to “Recommended fluids/lubricants and
capacities” in the “Technical and consumer
information” section of this manual.

Engine valve clearance*: Inspect only if
valve noise increases. Adjust valve clear-
ance if necessary.

Evaporative emissions control vapor
lines*: Check vapor lines for leaks or loose-
ness. Tighten connections or replace parts
as necessary.

Fuel lines*: Check the fuel hoses, piping
and connections for leaks, looseness, or
deterioration. Tighten connections or re-
place parts as necessary.

Spark plugs: Replace at specified intervals.
Install new plugs of the same type as origi-
nally equipped.

CHASSIS AND BODY
MAINTENANCE:

Brake lines and cables: Visually inspect for
proper installation. Check for chafing,
cracks, deterioration, and signs of leaking.
Replace any deteriorated or damaged
parts immediately.

Brake pads and rotors: Check for wear,
deterioration and fluid leaks. Replace any
deteriorated or damaged parts immedi-
ately.

Exhaust system: Visually inspect the ex-
haust pipes, muffler and hangers for leaks,
cracks, deterioration, and damage. Tighten
connections or replace parts as necessary.

In-cabin microfilter: Replace at specified
intervals. When driving for prolonged peri-
ods in dusty conditions, replace the filter
more frequently.

Propeller shaft(s): Check for damage,
looseness, and grease leakage.

Steering gear and linkage, axle and sus-
pension parts, drive shaft boots: Check
for damage, looseness, and leakage of oil
or grease. Under severe driving conditions,
inspect more frequently.

Tire rotation: Tires should be rotated every
5,000 miles (8,000 km) according to the in-
structions under “Explanation of general
maintenance items” in this section. When
rotating tires, check for damage and un-
even wear. Replace if necessary.

Transmission fluid/oil, differential oil: Vi-
sually inspect for signs of leakage at speci-
fied intervals.

If towing a trailer, using a camper or car-top
carrier, or driving on rough or muddy roads,
replace the CVT fluid every 60,000 miles
(96,000 km) or request the dealer to inspect
the fluid deterioration data using a CON-
SULT. If the deterioration data is more than
210000, replace the CVT fluid.

9-6

Maintenance and schedules

Nissan Pathfinder (2018 year). Instruction - part 26
