Nissan Pathfinder Hybrid (2015 year). Instruction

WARNING

● Your brake system may not be working

properly if both the brake warning light
and electronically controlled brake sys-
tem light come on when the hybrid sys-
tem is in READY mode and the parking
brake is not applied. Driving could be
dangerous. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have your
vehicle towed because driving it could
be dangerous.

Engine oil pressure warning
light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. For additional in-
formation, refer to “Engine oil” in the “Mainte-
nance and do-it-yourself” section of this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.

High temperature warning light

When the ignition switch is placed in the ON
position, the high temperature warning light illu-
minates and then turns off. This indicates that the
high temperature sensor in the engine coolant
system is operational.

CAUTION

If the high temperature warning light illu-
minates while the engine is running, it
may indicate the engine temperature is
extremely high. Stop the vehicle safely as
soon as possible. If the vehicle is over-
heated, continuing vehicle operation may
seriously damage the engine. For addi-
tional information, refer to “If your vehicle
overheats” in the “In case of emergency”
section.

Pure Drive Hybrid™ warning
light

When the ignition switch is in the “ON” position,
the hybrid system warning light illuminates. After
starting the hybrid system, the hybrid system
warning light turns off.
If the hybrid system warning light illuminates
while driving, it may indicate that there is a mal-
function in the electric motor and/or other hyrbrid
system components.
Stop your vehicle immediately and contact an
NISSAN dealer.

Low tire pressure warning light

Your vehicle is equipped with a TPMS that moni-
tors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A “Tire Press Low - Add Air” warning also
appears in the vehicle information display.

2-12

Instruments and controls

When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low
tire pressure warning light. Use a tire pres-
sure gauge to check the tire pressure.

The “Tire Press Low - Add Air” warning appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.

For additional information, refer to “Vehicle infor-
mation display” in the “Instruments and controls”
section and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section and
in the “In case of emergency” section of this
mannual.

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked by a
NISSAN dealer. The “Tire Pressure Low - Add
Air” warning does not appear if the low tire pres-
sure warning light illuminates to indicate a TPMS
malfunction.

For additional information, refer to “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section of this
manual.

WARNING

● Radio waves could adversely affect

electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

● If the light does not illuminate with the

ignition switch placed in the ON posi-
tion, have the vehicle checked by a
NISSAN dealer as soon as possible.

● If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may per-
manently damage the tires and increase
the likelihood of tire failure. Serious ve-
hicle damage could occur and may lead
to an accident and could result in serious
personal injury. Check the tire pressure
for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label located in the driver’s door
opening to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the
tire pressure, a tire may be flat. If you
have a flat tire, replace it with a spare tire
as soon as possible.

● When a spare tire is mounted or a wheel

is replaced tire pressure will not be in-
dicated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute. Con-
tact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.

Instruments and controls

2-13

● Replacing tires with those not originally

specified by NISSAN could affect the
proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

● If the vehicle is being driven at speeds

of less than 16 MPH (25 km/h), the
TPMS may not operate correctly.

● Be sure to install the specified size of

tires to the 4 wheels correctly.

Low windshield-washer fluid
warning light

This light comes on when the windshield-washer
fluid is at a low level. Add windshield-washer fluid
as necessary. For additional information, refer to
“Windshield-washer fluid” in the “Maintenance
and do-it-yourself” section of this manual.

Master warning light

When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle information
display:

● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door open warning
● Loose fuel cap warning
● Check tire pressure warning

For additional information, refer to “Vehicle Infor-
mation Display” in this section.

Power steering warning light

WARNING

● If the engine is not running or is turned

off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.

● When the power steering warning light

illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of
the vehicle, but the steering will be
much harder to operate. Have the power
steering system checked by a NISSAN
dealer.

When the ignition switch is in the ON position,
the power steering warning light illuminates. After
starting the engine, the power steering warning
light turns off. This indicates that the electric
power steering system is operational. If the
power steering warning light illuminates while the
engine is running, it may indicate the power
steering system is not functioning properly and
may need servicing. Have the hydraulic pump
electric power steering system checked by a
NISSAN dealer. For additional information, refer
to “Power steering” in the “Starting and driving”
section of this manual.

Seat belt warning light and
chime

The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened.

The seat belt warning light may also illuminate if
the front passenger’s seat belt is not fastened
when the front passenger’s seat is occupied . For
7 seconds after the ignition switch is placed in
the ON position, the system does not activate the
warning light for the front passenger.

2-14

Instruments and controls

For additional information, refer to “Seat belts” in
the “Safety—Seats, seat belts and supplemental
restraint system” section of this manual for pre-
cautions on seat belt usage.

Supplemental air bag warning
light

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag, and preten-
sioner systems need servicing and your vehicle
must be taken to a NISSAN dealer:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the seat
belts with pretensioner system may not function
properly. For additional information, refer to
“Supplemental restraint system (SRS)” in the
“Safety—Seats, seat belts and supplemental re-
straint system” section of this manual.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.

INDICATOR LIGHTS

For additional information on warnings and indi-
cators, refer to “Vehicle information display” in
this section.

EV indicator light

This light illuminates when the engine stops run-
ning.

Front fog light indicator light

The front fog light indicator light illuminates when
the front fog lights are ON. Refer to “Fog light
switch” in this section.

Front passenger air bag status
light

The front passenger air bag status light will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.

For front passenger air bag status light operation,
refer to “Front passenger air bag and status light”
in the “Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.

High beam indicator light
(blue)

This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.

The high beam indicator light also comes on
when the passing signal is activated.

Hill descent control system on
indicator light (if so equipped)

When the ignition switch is placed in the ON
position, this light comes on briefly and then turns
off.

The light comes on when the hill descent control
system is activated.

Instruments and controls

2-15

If the hill descent control switch is on and the
indicator light blinks, the system is not engaged.

If the indicator light does not come on when the
hill descent switch is on, the system may not be
functioning properly. Have the system checked
by a NISSAN dealer.

For additional information, refer to “Hill descent
control system on indicator light” in this section
and “Hill descent control system” in the “Starting
and driving” section of this manual.

Low temperature indicator
light (blue)

The low temperature indicator light illuminates
when the engine coolant temperature is low.

When the ignition switch is placed in the ON
position, the low temperature indicator light illu-
minates and then turns off after the engine cool-
ant has warmed up.

If the low temperature indicator light stays illumi-
nated after the engine has sufficiently warmed
up, it may indicate the low temperature sensor in
the engine coolant system is not functioning
properly and may need servicing. Have the sys-
tem checked, and if necessary repaired, by a
NISSAN dealer promptly.

Malfunction Indicator Light
(MIL)

If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.

The MIL may also come on steady if the fuel-filler
cap is loose or missing, or if the vehicle runs out
of fuel. Check to make sure the fuel-filler cap is
installed and closed tightly, and that the vehicle
has at least 3 gallons (11.4 liters) of fuel in the
fuel tank.

After a few driving trips, the

light should

turn off if no other potential emission control
system malfunction exists.

If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation,

refer

“Readiness

for

inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.

Operation

The MIL will come on in one of two ways:

● MIL on steady — An emission control system

malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning appears in the vehicle information
display. If the fuel-filler cap is loose or miss-
ing, tighten or install the cap and continue to
drive the vehicle. The

light should turn

off after a few driving trips. If the

light

does not turn off after a few driving trips,
have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.

● MIL blinking — An engine misfire has been

detected which may damage the emission
control system. To reduce or avoid emission
control system damage:

– do not drive at speeds above 45 MPH

(72 km/h).

– avoid hard acceleration or deceleration.

– avoid steep uphill grades.

– if possible, reduce the amount of cargo

being hauled or towed.

2-16

Instruments and controls

The MIL may stop blinking and come on steady.
Have the vehicle inspected by a NISSAN dealer.
You do not need to have your vehicle towed to the
dealer.

CAUTION

Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.

Overdrive OFF indicator light

The overdrive off indicator light illuminates when
the overdrive off mode is selected.

For additional information, refer to “Continuously
Variable Transmission (CVT)” in the “Starting and
driving” section of this manual.

READY to drive indicator light

The READY to drive indicator light illuminates
when the hybrid system is powered and the ve-
hicle may be driven.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF, LOCK or ACC position.

The blinking security indicator light indicates that
the security systems equipped on the vehicle are
operational.

For additional information, refer to “Security sys-
tems” in this section.

Side light and headlight
indicator light (green)

The side light and headlight indicator light illumi-
nates when the side light or headlight position is
selected. For additional information, refer to
“Headlight and turn signal switch” in this section.

Slip indicator light

This indicator will blink when the VDC system is
operating, thus alerting the driver to the fact that
the road surface is slippery and the vehicle is
nearing its traction limits.

You may feel or hear the system working; this is
normal.

The light will blink for a few seconds after the
VDC system stops limiting wheel spin.

The

indicator light also comes on when

you place the ignition switch in the ON position.
The light will turn off after approximately 2 sec-
onds if the system is operational. If the light does
not come on have the system checked by a
NISSAN dealer.

Tow mode ON indicator light

This light comes on when the tow mode function
is ON.

Turn signal/hazard indicator
lights

The appropriate light flashes when the turn signal
switch is activated.

Both lights flash when the hazard switch is turned
on.

Vehicle Dynamic Control
(VDC) off indicator light

This indicator light comes on when the VDC off
switch is pushed to OFF. This indicates the VDC
system is not operating.

Instruments and controls

2-17

Push the VDC off switch again or restart the
engine and the system will operate normally. For
additional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and driv-
ing” section of this manual.

The VDC light also comes on when you place the
ignition switch in the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the

indicator light while you are

driving, have the VDC system checked by a
NISSAN dealer.

While the VDC system is operating, you might
feel slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC or
OFF position or placed in the OFF or LOCK
position with the Intelligent Key left in the vehicle.
Make sure the ignition switch is placed in the
LOCK position, and take the Intelligent Key with
you when leaving the vehicle.

Light reminder chime

With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.

Turn the headlight control switch off before leav-
ing the vehicle.

NISSAN Intelligent Key® door buzzer

The Intelligent Key door buzzer sounds if the
Intelligent Key is left inside the vehicle when
locking the doors. When the buzzer sounds, be
sure to check both the vehicle and the Intelligent
Key. For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.

The vehicle information display is located to the
left of the speedometer. It displays such items as:

● Vehicle settings
● HEV energy flow
● Trip computer information
● Drive system warnings and settings (if so

equipped)

● Cruise control system information
● NISSAN Intelligent Key® operation information
● Indicators and warnings
● Tire pressure information

LIC2205

VEHICLE INFORMATION DISPLAY

2-18

Instruments and controls

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be changed
using the buttons

and ENTER located on

the steering wheel.

— select/enter the Vehicle informa-

tion menu items or to change from one dis-
play screen to the next (i.e. trip, TPMS, Fuel
economy)

— navigate through the items in ve-

hicle information
ENTER — change or select an item in the
vehicle information display

— go back to the previous menu

The ENTER and

buttons also control audio

and control panel functions. For additional infor-
mation, refer to “Steering wheel switch for audio
control” in the “Monitor, climate, audio, phone
and voice recognition systems” section of this
manual.

STARTUP DISPLAY

When the vehicle in placed in the ON or ACC
position the screens that display in the vehicle
information include:

● Active system status (if so equipped)
● Trip computer
● Tire pressure information
● 4 x 4 (if so equipped)
● Fuel economy
● Warnings

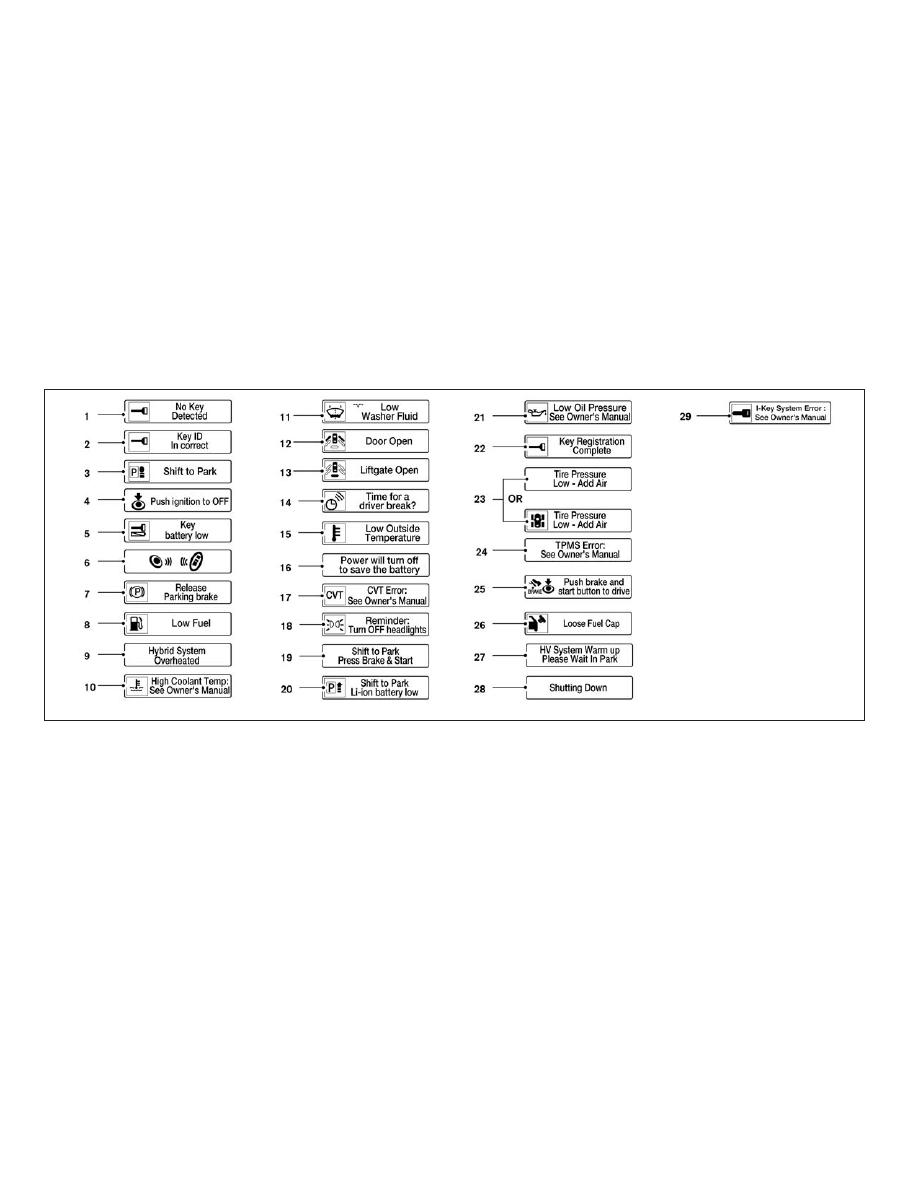

Warnings will only display if there are any pres-
ent, for additional information, refer to “Vehicle
information display warnings and indicators” re-
garding warnings and indicators in this section.

To control what items display in the vehicle infor-
mation display, refer to “Main menu selection” in
this section.

SETTINGS

The setting mode allows you to change the infor-
mation displayed in the vehicle information dis-
play:

● Parking Aids (if so equipped)
● Vehicle Settings
● Main Menu Selection
● Body Color

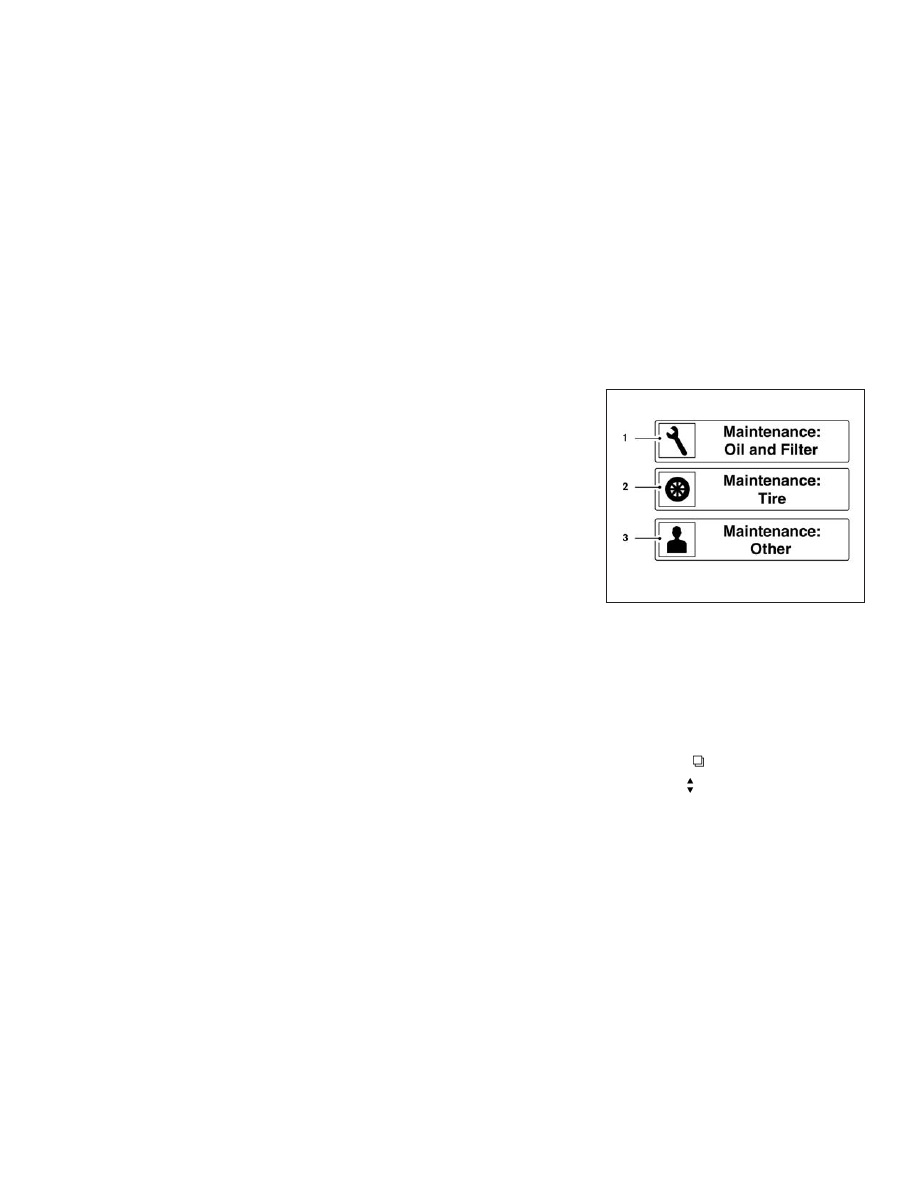

● Maintenance
● Alarms
● Language
● Unit
● Welcome Effects
● Factory Reset

Parking Aids (if so equipped)

To turn on or off the system displayed in the
“Parking Aids” menu use the

button to

select and the ENTER button.

For additional information, refer to “RearView
Monitor” in the “Monitor, climate, audio, phone
and voice recognition systems” section.

LIC2245

Instruments and controls

2-19

Vehicle Settings

The vehicle settings allows the customer to
change settings for interior lights, intelligent key
settings, unlock settings and other vehicle set-
tings.

The vehicle settings can be changed using

the

, and the ENTER buttons.

Welcome light (if so equipped)

The welcome light can be set to be ON or OFF.
From the Vehicle Settings menu, select “Wel-
come Light”. Use the ENTER button to turn this
feature ON or OFF.

Auto Room Lamp

The interior lights can be set to be ON or OFF if
any door is unlocked. From the Vehicle Settings
menu, select “Auto Room Light”. Use the ENTER
button to turn this feature ON or OFF.

Light Sensitivity (if so equipped)

The light sensitivity can be set to illuminate earlier
based on the brightness outside the vehicle.
From the Vehicle Settings menu, select “Light
Sensitivity”. Use the ENTER button to change the
sensitivity.

Light Off Delay (if so equipped)

The duration of the automatic headlights can be
changed from 0 to 180 seconds. From the Ve-
hicle Settings menu, select “Light Off Delay”. Use
the ENTER button to change the duration.

Wiper with Speed

The wiper with speed can be set to be ON or
OFF. From the Vehicle Settings menu, select
“Wiper with Speed”. Use the ENTER button to
turn this feature ON or OFF.

I-Key Door Lock

When this item is turned on, the request switch
on the door is activated. From the Vehicle Set-
tings menu, select “I-Key Door Unlock”. Use the
ENTER button to activate this function.

Selective-Unlock

When this item is turned on, only the driver’s door
is unlocked first after the door unlock operation.
When the door handle request switch on the
driver’s or front passenger’s side door is pushed
to be unlocked, only the corresponding door is
unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within
1 minute. When this item is turned to OFF, all the
doors will be unlocked after the door unlock
operation is performed once. From the Vehicle

Settings menu, select “Selective Unlock”. Use
the ENTER button to activate this function.

Auto Door Unlock

The auto door unlock function automatically un-
locks all the doors when the shift lever is placed in
the P (Park) position. From the Vehicle Settings
menu, select “Auto Door Unlock”. Use the EN-
TER button to enable/disable this function.

Answer back horn

When the answer back horn is on, the horn will
chirp and the hazard indicators will flash once
when locking the vehicle with the Intelligent Key.

Remote Start (if so equipped)

The remote start function can be turned on or off.
If the setting is OFF the vehicle cannot be started
using the Intelligent Key. From the Vehicle Set-
tings menu, select “Remote Start”. Use the EN-
TER button to enable/disable.

Battery Saver

The battery saver automatically turns off the igni-
tion after a period of time when the ignition switch
is left in the ACC or ON position.

2-20

Instruments and controls

Exit Seat Slide (if so equipped)

When the exit seat slide is ON the driver’s seat
will move backward for easy exit when the ignition
switch is placed in the OFF position and the
driver’s door is opened.

After getting into the vehicle and placing the
ignition switch in the ACC position, the driver’s
seat will move to the previous set position. For
additional information, refer to “Automatic drive
positioner” in the “Pre-driving checks and adjust-
ments” section of this manual regarding setting
the seat position. Use the ENTER button to
enable/disable this function.

Exit steering up (if so equipped)

When the exit steering up feature is turned ON,
the steering wheel moves upward for easy exit
when the ignition switch is in the OFF position
and the driver’s door is opened.

After getting into the vehicle and placing the
ignition switch in the ACC position, the steering
wheel moves to the previous position. For addi-
tional information, refer to “Tilt and telescopic
operation” in the “Pre-driving checks and adjust-
ments” section of this manual regarding setting
the steering wheel position . Use the ENTER
button to enable/disable this function.

Main Menu Selection

The items that display can be enabled/disabled
when the ignition switch is placed in the ON
position. To change the items that display.

Use the

button to select and the ENTER

button to change a menu item:

● Trip Computer
● Energy Flow
● Fuel Economy
● 4WD (if so equipped)
● Tire Pressures
● Engine Temperature

Trip Computer

The trip computer can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.

From the “Main Menu Selection” select “Trip
Computer” to display in the vehicle information
display when the ignition is placed in the ON
position.

Energy flow

The energy flow can be enabled/disabled to dis-
play in the vehicle information display when the
ignition switch is placed in the ON position.

From the “Main Menu Selection” select “Energy
Flow” to display the energy flow information when
the ignition switch is placed in the ON position.

Fuel Economy

The fuel economy can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.

NJE0017

Instruments and controls

2-21

From the “Main Menu Selection” select “Fuel
Economy” to display in the vehicle information
display when the ignition is placed in the ON
position.

4WD (if so equipped)

The 4WD can be enabled/disabled to display in
the vehicle information display when the ignition
switch is placed in the ON position.

From the “Main Menu Selection” select “4WD” to
display the 4WD information when the ignition
switch is placed in the ON position.

Tire Pressures

The tire pressures can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.

From the “Main Menu Selection” select “Tire
Pressures” to display in the vehicle information
display when the ignition is placed in the ON
position.

Engine Temperature

The

engine

temperature

can

enabled/disabled to display in the vehicle infor-
mation display when the ignition switch is placed
in the ON position.

From the “Main Menu Selection” select “Engine
Temp” to display the engine temperature informa-
tion when the ignition switch is placed in the ON
position.

Body Color

The color of the vehicle that displays in the ve-
hicle information display when the ignition switch
is placed in the ON position can be changed.

1. scheduled service: oil and oil filter

2. tires

3. other

Maintenance

The maintenance mode allows you to set alerts
for the reminding of maintenance intervals. To
change an item:

1. Press the

button.

2. Use the

button until “Settings” is se-

lected, and press ENTER.

LIC2773

2-22

Instruments and controls

3. Select “Maintenance” using the

but-

ton and press ENTER.

Oil and Filter

This indicator appears when the customer set
distance comes for changing the engine oil and
filter. You can set or reset the distance for check-
ing or replacing these items. For scheduled main-
tenance items and intervals, refer to your
“NISSAN Service and Maintenance Guide.”

Tire

This indicator appears when the customer set
distance is reached for replacing tires. You can
set or reset the distance for replacing tires.

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing Wheels
and Tires” in “Maintenance & Do- It-
Yourself” section of this manual. Many
factors including tire inflation, alignment,
driving habits and road conditions affect
tire wear and when tires should be re-
placed. Setting the tire replacement indi-
cator for a certain driving distance does
not mean your tires will last that long. Use
the tire replacement indicator as a guide
only and always perform regular tire
checks. Failure to perform regular tire
checks, including tire pressure checks
could result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.

Other

This indicator appears when the customer set
distance is reached for checking or replacing
maintenance items other than the engine oil, oil
filter and tires. Other maintenance items can in-
clude such things as air filter or tire rotation. The
distance for checking or replacing the items can
be set or reset.

Alarms

This setting allows the customer to set alarms for
outside temperature and a timer alert.

1. Press the

button.

2. Use the

button until “Settings” is se-

lected, and press ENTER.

3. Select “Alarms” using the

button and

press ENTER.

Outside Temperature

This

setting

allows

the

customer

enable/disable the alert for low outside tempera-
ture in the vehicle information display.

1. Use the

button to select “Outside

Temperature”.

2. Press the ENTER button to turn ON/OFF

the outside temperature in the vehicle infor-
mation display.

Timer Alert

This setting allows the driver to set an alert to
notify a set time has been reached.

1. Use the

button to select “Timer Alert”.

2. Press the ENTER button.

Instruments and controls

2-23

3. To change the timer amount, use the

button and the ENTER button to save the
selected time amount.

Language

The language of the vehicle information display
can be changed to:

● US English
● French
● Spanish

Use the

, and the ENTER buttons to

select and change the language of the vehicle
information display. The language of the center
display/navigation can be changed indepen-
dently of the vehicle information display. For ve-
hicles not equipped with Navigation refer to
“How to use the SETTING button” for vehicles
equipped with Navigation in the “System” in the
“Monitor, climate, audio, phone and voice recog-
nition systems” section of this manual.

Units

The units that are shown in the vehicle informa-
tion display can be changed:

● Mileage
● Tire pressures

● Temperature

Use the

, and the ENTER buttons to

select and change the units of the vehicle infor-
mation display. The units of the navigation screen
can be changed independently of the vehicle
information display. For vehicles equipped with
Navigation, refer to “System” in the “Monitor,
climate, audio, phone and voice recognition sys-
tems” section of this manual.

Mileage

The unit for the mileage that displays in the ve-
hicle information display can be changed to:

● miles, MPG, Inch
● km/h, l/100km, cm
● km/h, km/l, cm

Use the

and the ENTER buttons to select

and change the unit.

Tire Pressures

The unit for tire pressure that displays in the
vehicle information display can be changed to:

● psi
● kPa
● bar
● Kgf/cm

Use the

and the ENTER buttons to select

and change the unit.

Temperature

The temperature that displays in the vehicle infor-
mation display can be changed from:

● °F (Fahrenheit)
● °C (Celsius)

Use the ENTER button to toggle choices.

Welcome Effects

The welcome screen display can be turned
ON/OFF to display when the ignition switch is
placed in the ACC or ON position. To
enable/disable the welcome screen:

1. Press the

button.

2. Use the

buttons to select “Settings”,

and press ENTER.

3. Select “Welcome Effects” using the

buttons and press ENTER to turn this func-
tion ON or OFF.

2-24

Instruments and controls

Factory Reset

The settings in the vehicle information display can
be reset back to the factory default. To reset the
vehicle information display:

1. Press the

button.

2. Use the

buttons to select “Settings”,

and press the ENTER button.

3. Select “Factory Reset” using the

but-

tons and press the ENTER button.

4. Select “YES” to return all settings back to

default by pressing the ENTER button.

Instruments and controls

2-25

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS

1. No Key Detected

2. Key ID Incorrect

3. Shift to Park

4. Push ignition to OFF

5. Key battery low (if so equipped)

6. Engine start operation for Intelligent Key sys-

tem

7. Release parking brake

8. Low Fuel

9. Hybrid System Overheated

10. High Coolant Temp: See Owners Manual

11. Low Washer Fluid

12. Door Open

13. Liftgate Open

14. Timer Alert – Time for a driver break?

15. Low Outside Temperature

16. Power will turn off to save the battery

17. CVT Error: See Owner’s Manual

18. Reminder: Turn OFF headlights

19. Shift to Park Press Brake & Start

20. Shift to Park Li-ion battery low

21. Low Oil Pressure

22. Key Registration Complete

23. Tire Pressure Low - Add Air

24. TPMS Error

25. Remote Start (if so equipped)

26. Loose Fuel Cap

27. HV System Warm up Please Wait In Park

28. Shutting Down

29. I-Key System Error: See Owners Manual

No Key Detected

This warning appears when the Intelligent Key is
left outside the vehicle with the ignition switch in
the ON or ACC position. Make sure the Intelli-
gent Key is inside the vehicle.

Key ID Incorrect

This warning appears when the ignition switch is
placed from the OFF position and the Intelligent
Key is not recognized by the system. You cannot
start the engine with an unregistered key.

For additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.

Shift to Park warning

This will be displayed in the following conditions:

● When the shift lever is in any position except

P (Park) and the push button ignition switch
has been placed in the “OFF” position from
the “ON” position.

● When the shift lever is operated while the

READY to drive indicator light is flashing.

● The driver’s door is opened with the shift

lever in N, D or R.

● When the vehicle cannot be driven because

the hybrid system temperature has become
too high.

● The Lithium-ion (Li-ion) battery drops be-

cause the shift lever is in the N position.

● If a malfunction occurs in a situation other

than those described above and the engine
cannot start automatically.

Instruments and controls

2-27

Nissan Pathfinder Hybrid (2015 year). Instruction - part 8
