NOTE:

After installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips.

WARNING

● Operating the engine with the air

cleaner removed can cause you or oth-
ers to be burned. The air cleaner not
only cleans the air, it stops the flame if
the engine backfires. If it isn’t there, and
the engine backfires, you could be
burned. Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.

● Never pour fuel into the throttle body or

attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.

CLEANING

If your windshield is not clear after using the
windshield-washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.

Clean the outside of the windshield with a washer
solution or a mild detergent. Your windshield is
clean if beads do not form when rinsing with clear
water.

Clean each blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Then
rinse the blades with clear water. If your wind-
shield is still not clear after cleaning the blades
and using the wiper, replace the blades.

CAUTION

Worn windshield wiper blades can dam-
age the windshield and impair driver
vision.

REPLACING

Replace the wiper blades if they are worn.

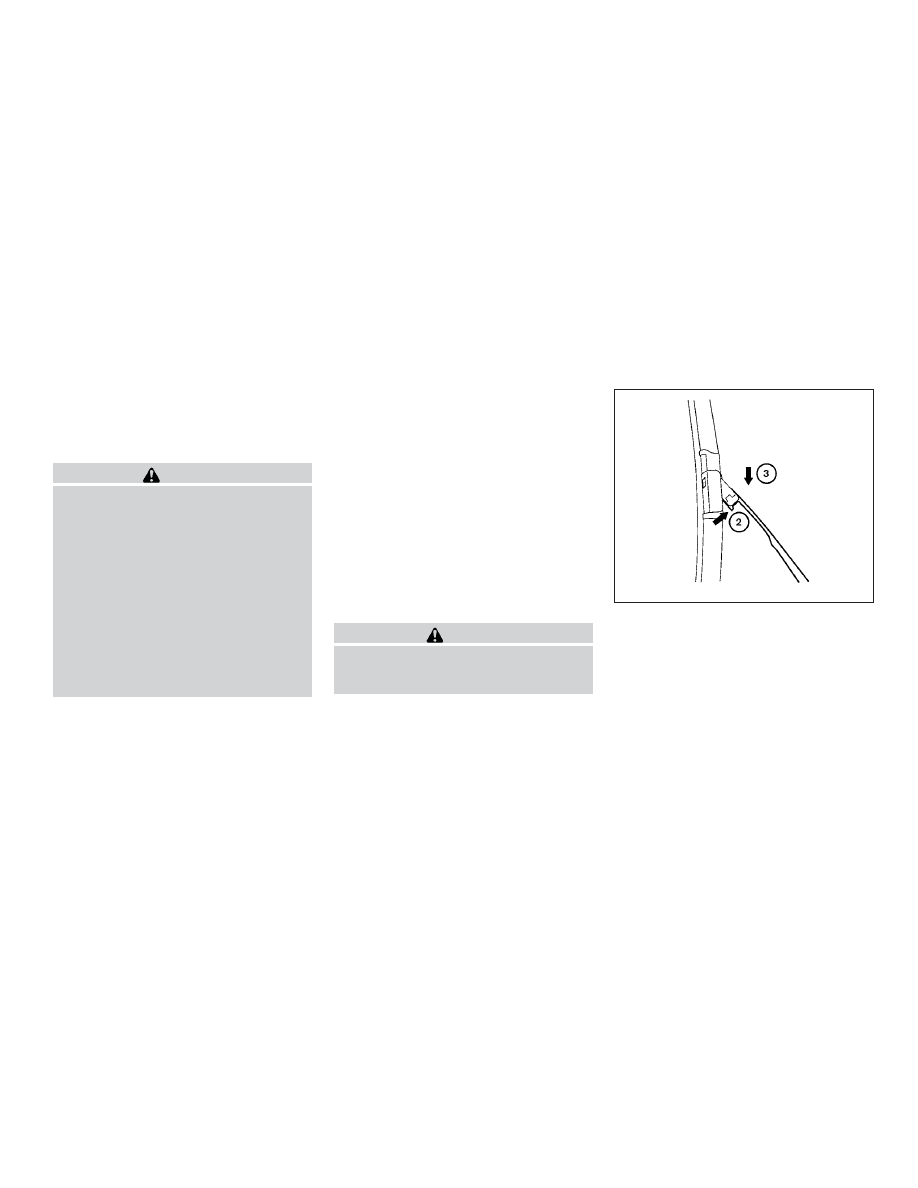

1. Lift the wiper arm away from the windshield.

䊊

Push the release tab, then move the wiper
blade down the wiper arm to remove.

䊊

Remove the wiper blade.

4. Insert the new wiper blade onto the wiper

arm until it clicks into place.

5. Rotate wiper blade so the dimple is in the

groove.

WDI0594

WINDSHIELD WIPER BLADES

Do-it-yourself

8-15

6. Return the wiper to its original position and

release it until it has made contact with the
windshield.

CAUTION

● After wiper blade replacement, return

the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.

● Make sure the wiper blades contact the

glass; otherwise the arms may be dam-
aged from wind pressure.

Be careful not to let anything get into the washer
nozzle

䊊

. This may cause clogging or improper

windshield washer operation. If something gets
into the nozzle, remove it with a needle or small
pin

䊊

If the brakes do not operate properly, have the
brakes checked. It is recommended that you visit
a NISSAN dealer for this service.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front disc-type brakes self-adjust every time
the brake pedal is applied. The rear drum-type
brakes self-adjust every time the parking brake is
applied.

WARNING

Have your brake system checked if the
brakes pedal height does not return to
normal. It is recommended that you visit a
NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have audible
wear indicators. When a brake pad requires re-
placement, a high pitched scraping or screech-
ing sound will be heard when the vehicle is in
motion. The noise will be heard whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear indicator
sound is heard.

LDI2187

BRAKES

8-16

Do-it-yourself

Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect the
function or performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information regard-
ing brake inspections, refer to the appropriate
maintenance schedule information in the “Main-
tenance and schedules” section in this manual.

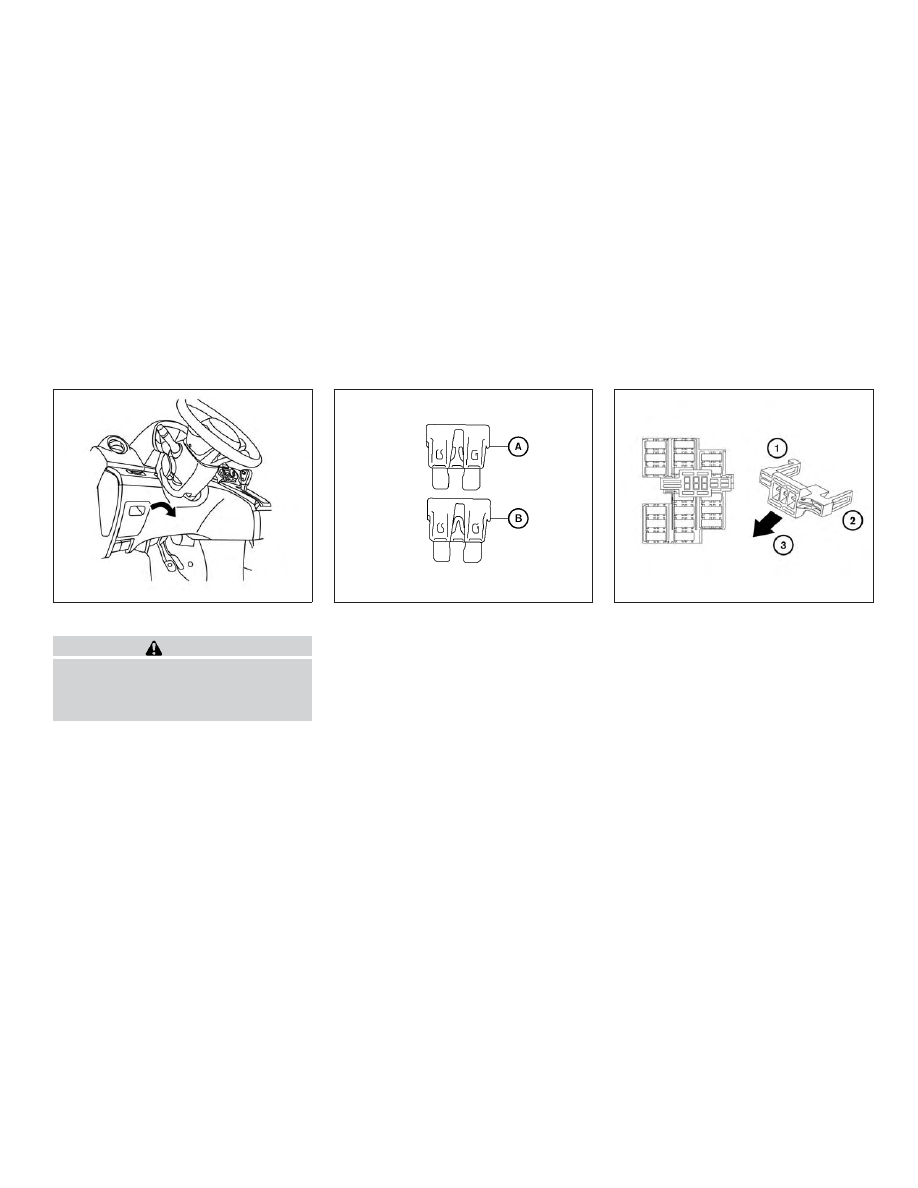

If any electrical equipment does not operate,
check for an open fuse.

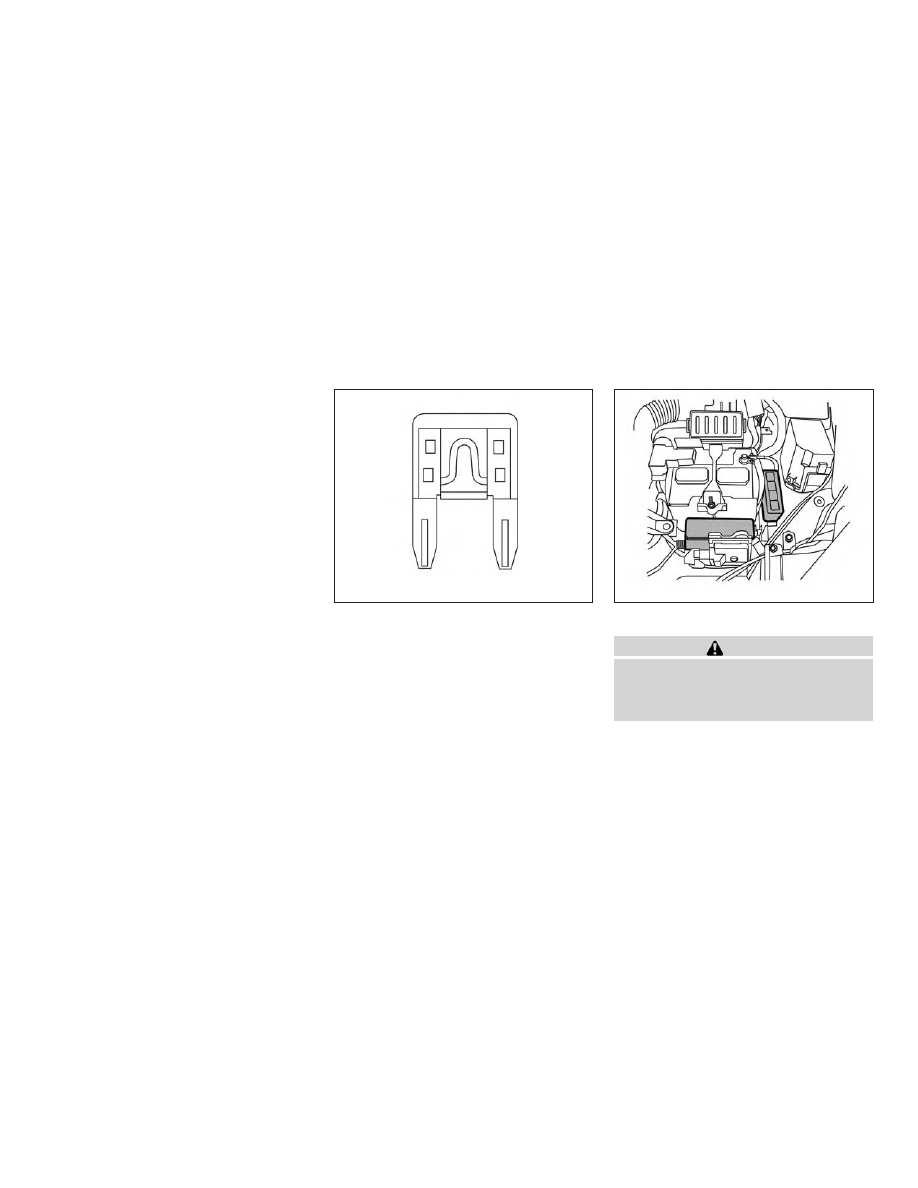

Fuses are used in the passenger and engine
compartment. Spare fuses are provided and can
be found in the passenger compartment fuse
box.

When installing a fuse make sure the fuse is
installed in the fuse box securely.

ENGINE COMPARTMENT

CAUTION

Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.

LDI2384

LDI2288

FUSES

Do-it-yourself

8-17

If any electrical equipment does not come on,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are in the OFF position.

2. Open the engine hood.

3. Remove the fuse box cover by pushing the

tab and lifting the cover up.

4. Remove the fuse with the fuse puller. The

fuse puller is located in the center of the fuse
block in the passenger compartment.

5. If the fuse is open

䊊

, replace it with a new

fuse

䊊

6. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

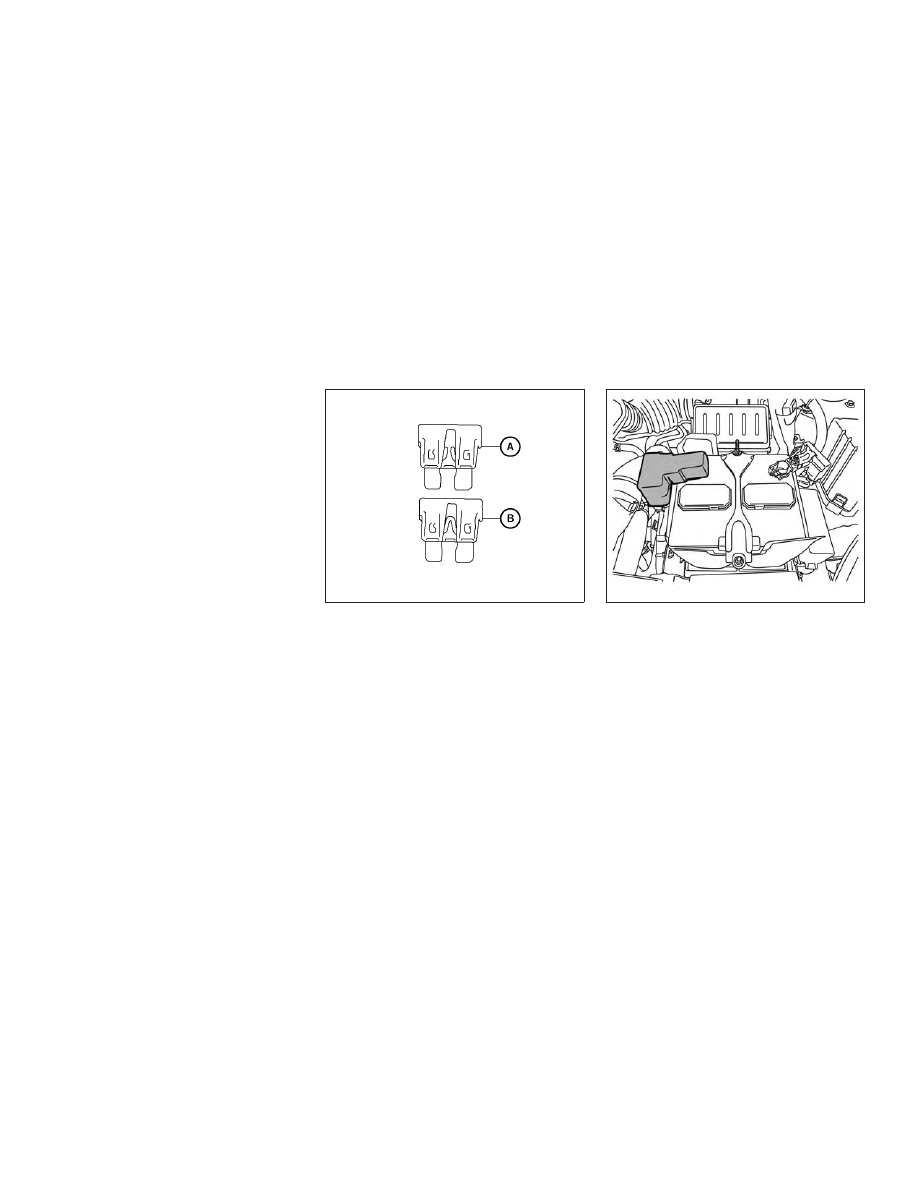

Fusible links

If the electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace with only Genuine NISSAN parts.

WDI0452

LDI2718

8-18

Do-it-yourself

PASSENGER COMPARTMENT

CAUTION

Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are in the OFF position.

2. Pull the fuse box cover to remove.

3. Remove the fuse with the fuse puller.

4. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

5. Push the fuse box cover to install.

6. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

Extended storage switch

If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

LDI2231

WDI0452

LDI2216

Do-it-yourself

8-19

How to replace the extended storage switch:

1. To remove the extended storage switch, be

sure the ignition switch is in the OFF or
LOCK position.

2. Be sure the headlight switch is in the OFF

position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

䊊

and

䊊

found on

each side of the storage switch.

5. Pull the storage switch straight out from the

fuse box

䊊

CAUTION

Be careful not to allow children to swallow
the battery or removed parts.

KEY FOB (if so equipped)

Replace the battery in the key fob as follows:

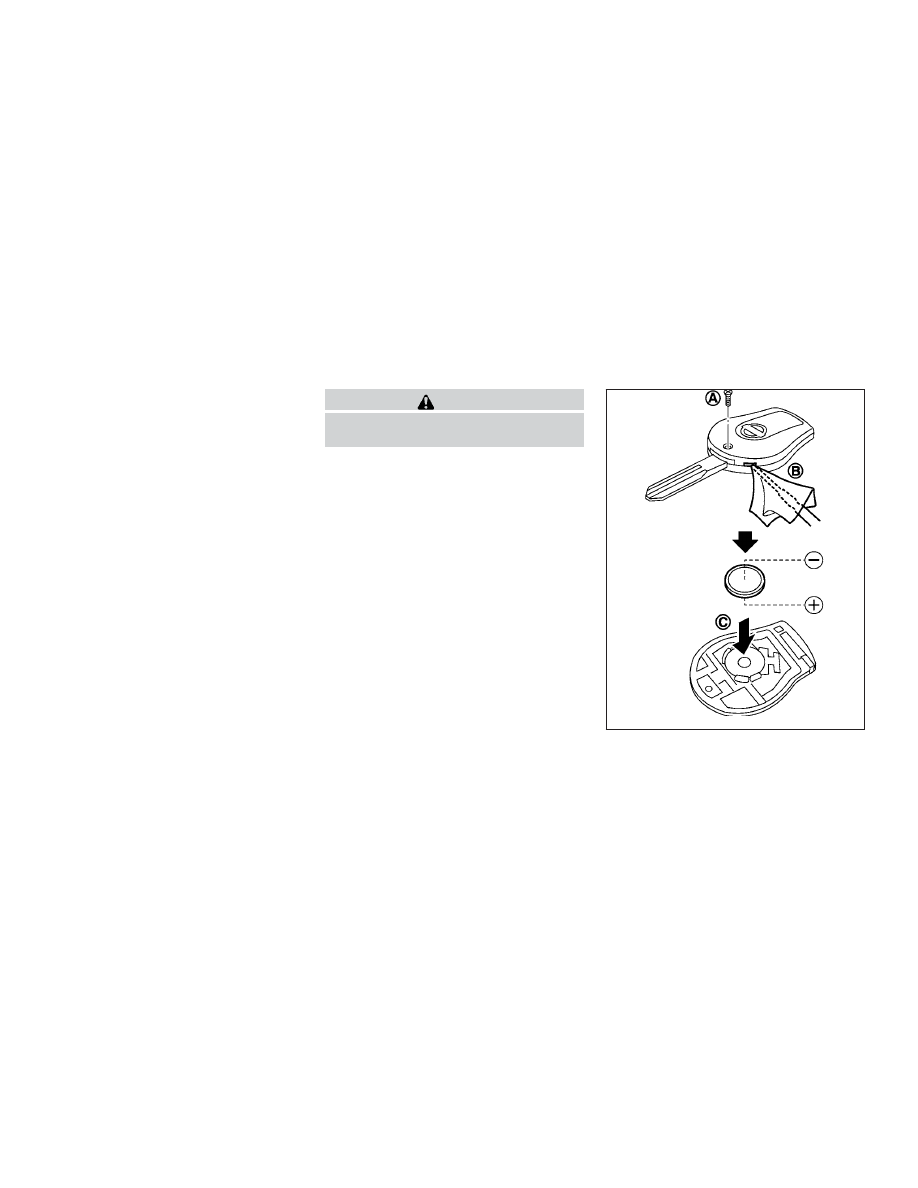

1. Remove the screw

䊊

SDI2134A

BATTERY REPLACEMENT

8-20

Do-it-yourself

2. Insert a small screwdriver into the slit of the

corner

䊊

and twist it to separate the upper

part from the lower part. Use a cloth to
protect the casing.

3. Replace the battery with a new one.

● Do not touch the internal circuit and elec-

tric terminals as doing so could cause a
malfunction.

● Make sure that the + side faces the bot-

tom of the case

䊊

Recommended battery: CR1620 or equivalent.

4. Close the lid and install the screw securely.

5. Operate the buttons to check its operation.

If you need assistance with replacement, it is
recommended that you visit a NISSAN dealer for
this service.

If the battery is removed for any reason
other than replacement, perform step 5.

● An improperly disposed battery can

hurt the environment. Always confirm
local regulations for battery disposal.

● The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

● The operational range of the key fob

extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.

Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause unde-
sired operation of the device.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.

Note:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.

HEADLIGHTS

For additional information on headlight bulb re-
placement, refer to the instructions outlined in
this section.

LIGHTS

Do-it-yourself

8-21

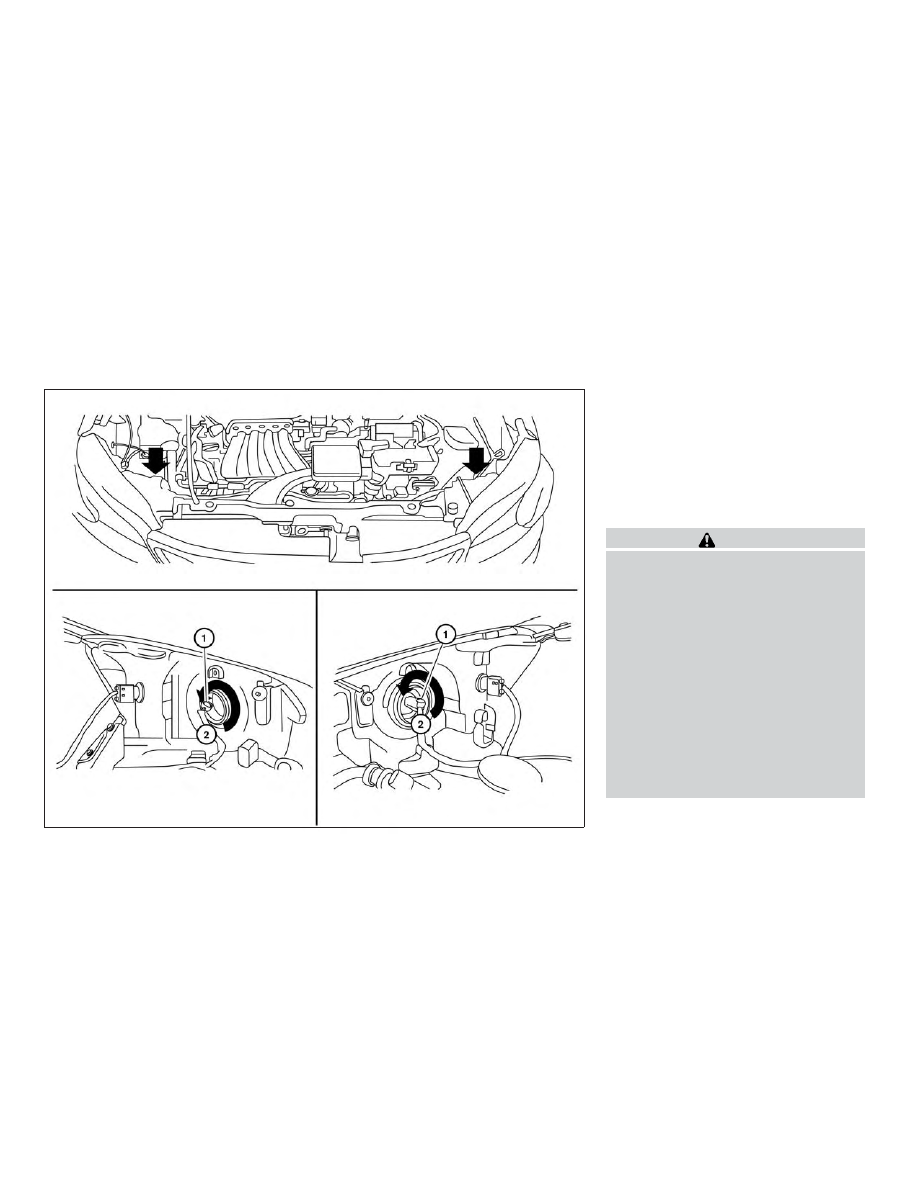

Replacing the halogen headlight bulb

Disconnect the negative battery cable before
replacement and installation of the headlight
bulb.

䊊

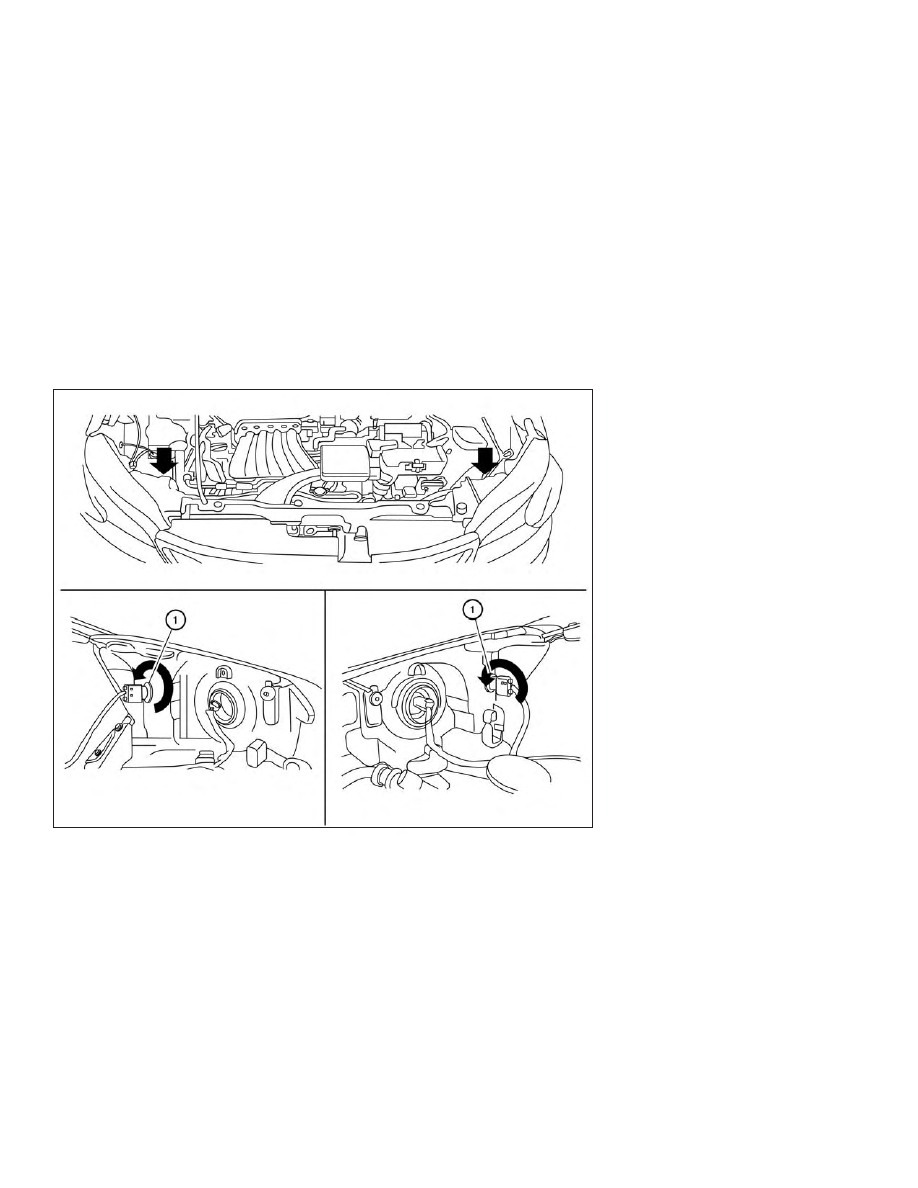

Release the clip on the connector.

䊊

Rotate the bulb counterclockwise and pull
out to remove. Replace as necessary.

CAUTION

● Aiming is not necessary after replacing

the bulb. When aiming adjustment is
necessary, it is recommended that you
visit a NISSAN dealer for this service.

● Do not leave the headlight assembly

open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.

● Only touch the base when handling the

bulb. Never touch the glass envelope.
Touching the glass could significantly
affect

bulb

life

and/or

headlight

performance.

LDI2222

8-22

Do-it-yourself

● High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.

● Use the same number and wattage as

shown in the chart.

Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, it is recommended that you visit a
NISSAN dealer for this service.

Aiming the headlights

The headlights on your vehicle are properly aimed
at the assembly plant. If your vehicle has been in
a collision, the alignment of your headlights
should be checked. It is recommended that you
visit a NISSAN dealer for this service.

Vertical aim adjustment

NOTE:

Due to a maximum load condition of the
vehicle, headlight aiming adjustment may
be necessary. Please perform the following
procedure:

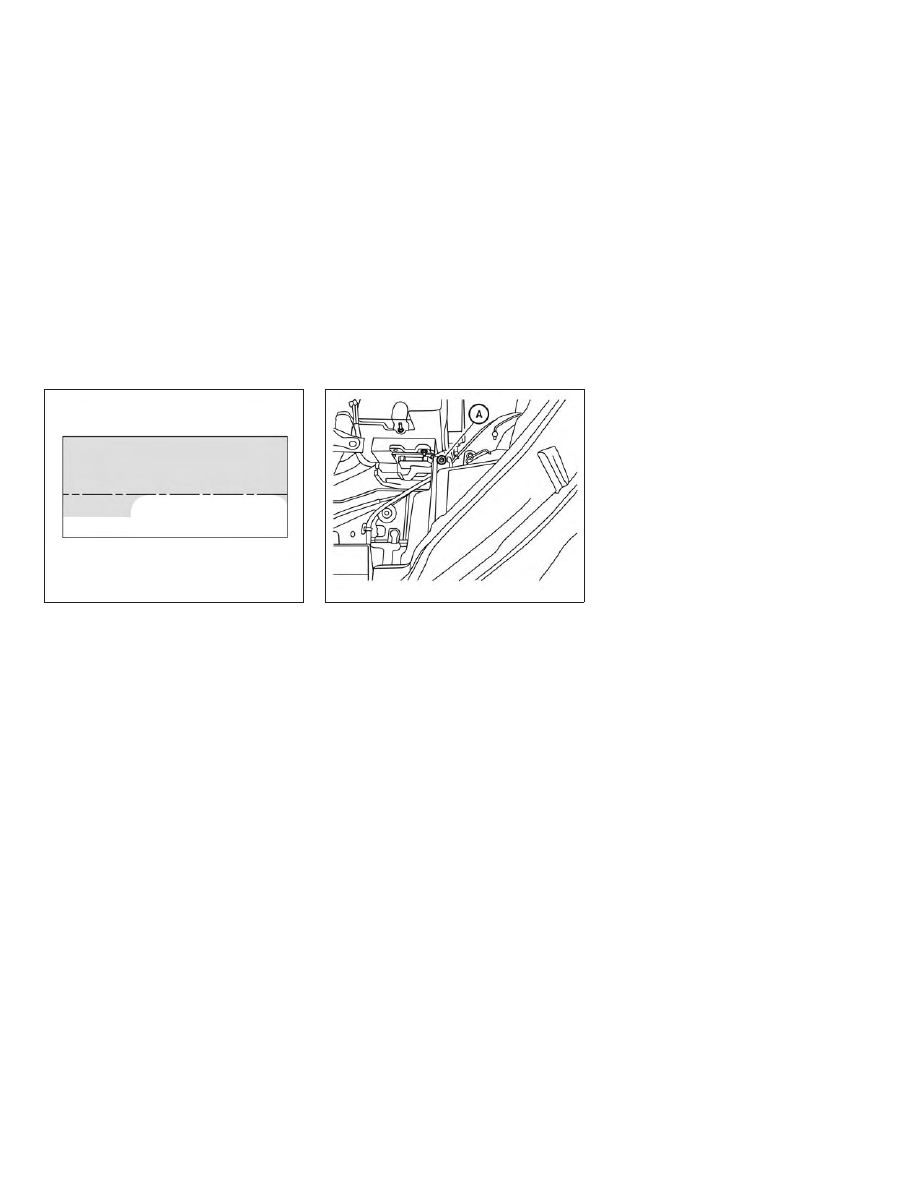

1. Park the vehicle directly in front of a wall or

screen on a level surface, approximately
25 feet (7.6 meters) away.

●

䊊

8 feet (2.4 meters)

●

䊊

Center height of headlight to ground

●

䊊

25 feet (7.6 meters)

●

䊊

Horizontal reference line

2. Measure the height from the center of the

headlight to the ground and mark an 8 foot
(2.4 meter) horizontal reference line on the
vertical wall or screen at this height (a piece
of masking tape works well).

3. Turn on the low beam headlights to illumi-

nate the wall or screen and open the hood.

LDI2252

Do-it-yourself

8-23

4. On the wall or screen you will observe an

area of high intensity light. The top of the
high intensity area should touch the horizon-
tal reference line. If not, the beam will need to
be adjusted.

5. Locate the vertical adjuster

䊊

on each

headlight, then use a suitable tool to adjust
the headlight up or down.

6. Close the hood and turn off the headlights.

NOTE:

Horizontal aim is not required for this ve-
hicle and is not adjustable.

PARK/TURN SIGNAL LIGHTS
Replacing the park/turn signal bulb

LDI2255

LDI2685

8-24

Do-it-yourself

Disconnect the negative battery cable before
replacement and installation of the headlight
bulb.

䊊

Rotate the bulb counterclockwise and pull
out to remove. Replace as necessary.

LDI2223

Do-it-yourself

8-25

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly

High/ Low

60/55

H13

Park/Turn

28/8

3457A

High-mounted stop light*

921

License plate light*

T10

Rear combination light

Tail/Stop

21/7

3047K

Backup (reversing)

T16

Turn

3157AK

Map light

T10

Room light

T10

Personal light

T10

Cargo light

T10

Trouble light*

—

Roof light*

—

Rear exit light*

—

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

* It is recommended that you visit a NISSAN dealer for replacement.

LDI2967

8-26

Do-it-yourself

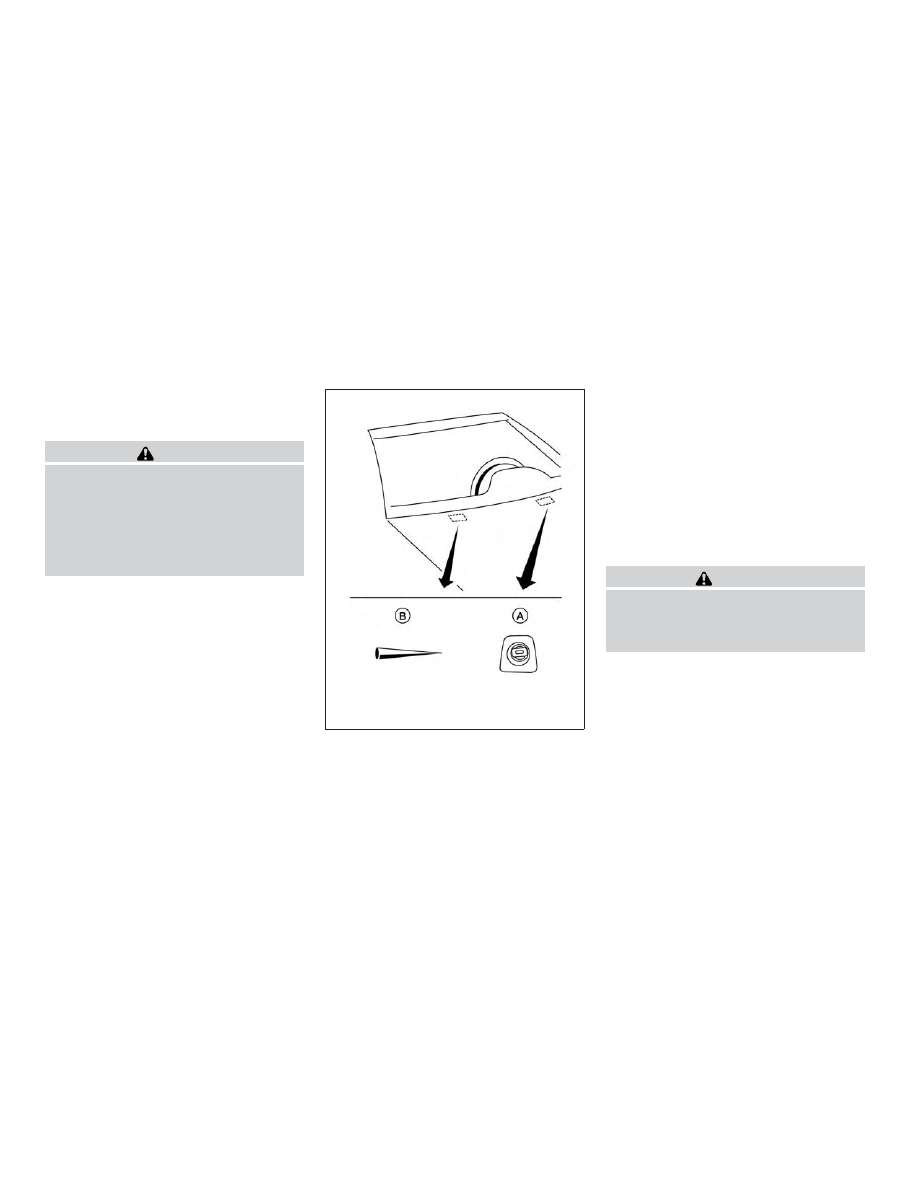

Roof light

Map light

Headlight assembly

High-mount stop light

Cargo light

Room light

Personal light

Rear combination light

License plate light

10. Rear exit light
11. Trouble light

Replacement procedures

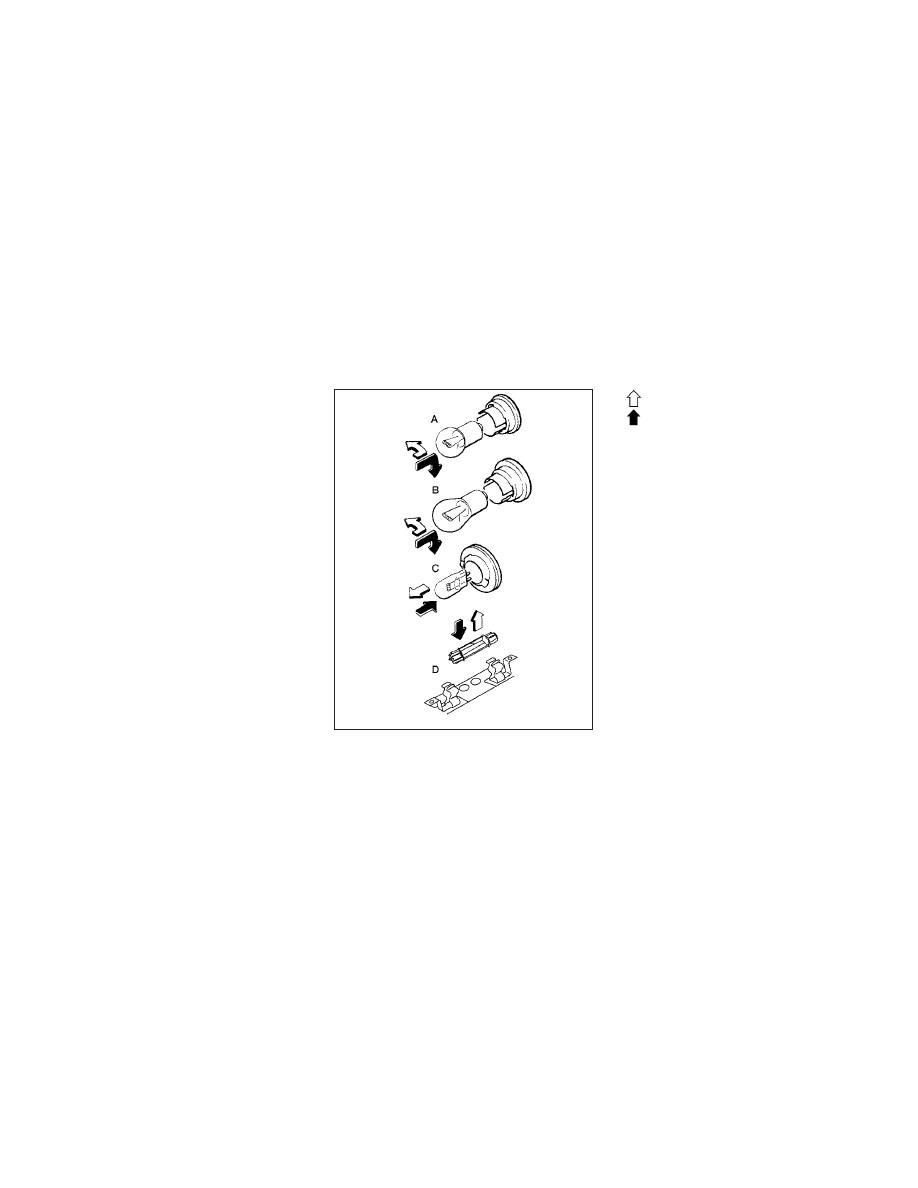

All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover using a cloth and suitable tool to
protect the housing.

Indicates bulb removal

Indicates bulb installation

WDI0263

Do-it-yourself

8-27

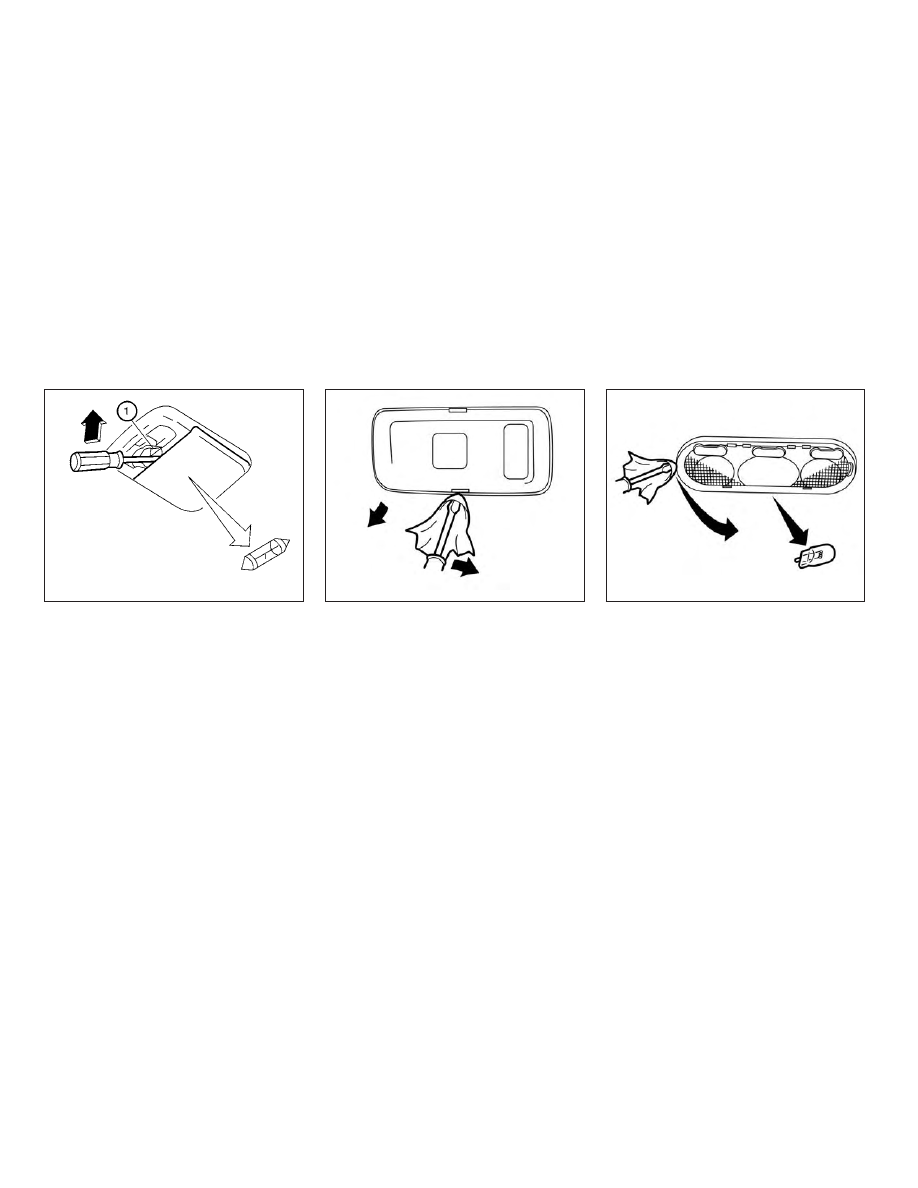

Use a cloth

䊊

to protect the housing.

Use a cloth to protect the housing.

Room light

WDI0206

Personal light

LDI2283

Map light

LDI2217

8-28

Do-it-yourself

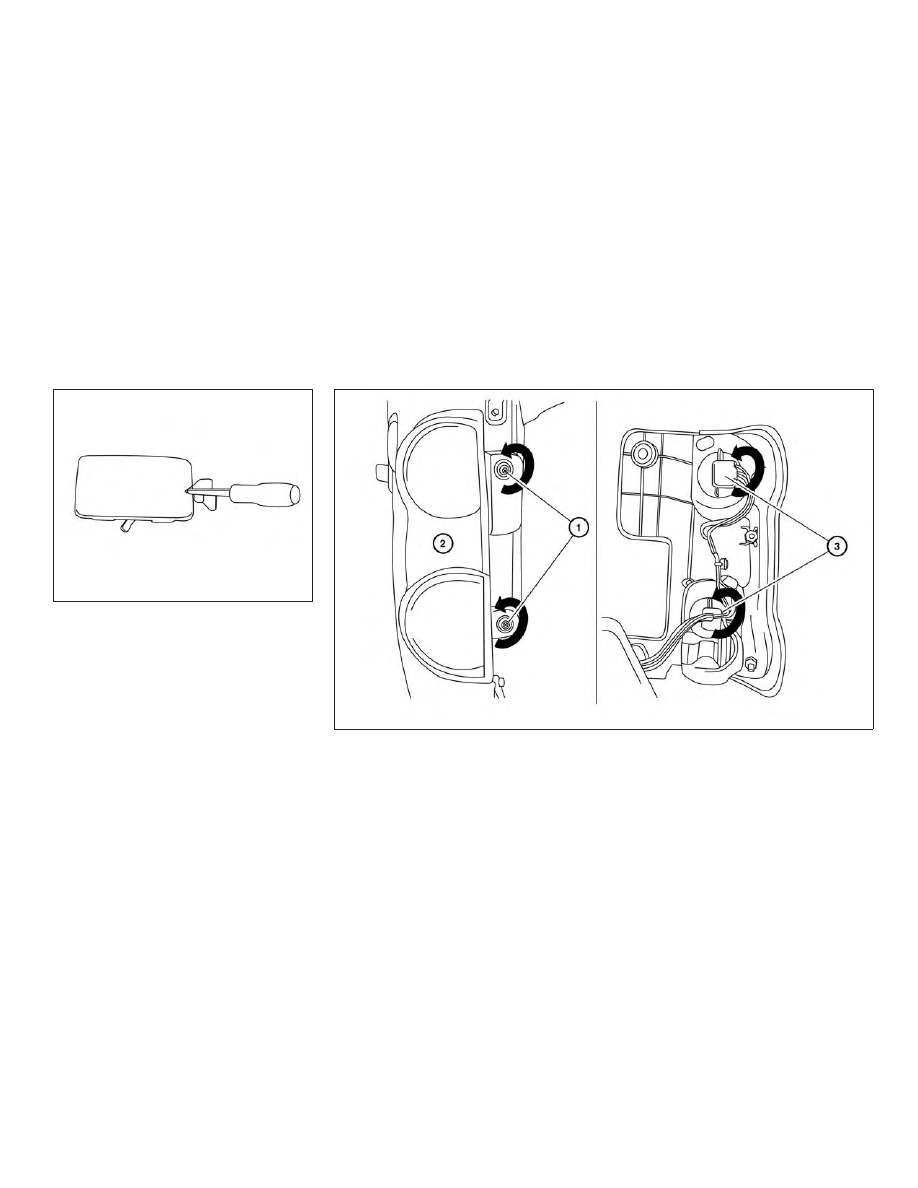

Use a cloth to protect the housing.

䊊

Remove the fasteners.

䊊

Remove the rear combination light assembly.

䊊

Remove the bulb(s) and replace as neces-
sary.

Cargo light

LDI2220

Rear combination light

LDI2221

Do-it-yourself

8-29

If you have a flat tire, refer “Flat tire” in the
“In case of emergency” section of this
manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

This vehicle is equipped with TPMS. It
monitors tire pressure of all four tires ex-
cept the spare. When the low tire pres-
sure warning light is lit and the CHECK
TIRE PRES (pressure) warning is dis-
played in the odometer, one or more of
your tires is significantly under-inflated.

TPMS will activate only when the vehicle
is driven at speeds above 16 mph
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving).

For

additional

information,

refer

“Warning/indicator lights and audible re-
minders” in the “Instruments and controls”
section, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driving”
section, and “Flat tire” in the “In case of
emergency” section of this manual.

Tire inflation pressure

Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the F.M-
.V.S.S. certification label or the Tire and
Loading Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed to the
driver side center pillar. Tire pressures
should be checked regularly because:

● Most tires naturally lose air over time.
● Tires can lose air suddenly when

driven over potholes or other objects
or if the vehicle strikes a curb while
parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

WARNING

● Improperly inflated tires can fail

suddenly and cause an accident.

● The Gross Vehicle Weight Rating

(GVWR) is located on the F.M-
.V.S.S. certification label. The ve-
hicle weight capacity is indicated
on the Tire and Loading Informa-
tion label. Do not load your ve-
hicle beyond this capacity. Over-
loading your vehicle may result in
reduced tire life, unsafe operat-
ing conditions due to premature
tire failure, or unfavorable han-
dling characteristics and could
also lead to a serious accident.
Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.

WHEELS AND TIRES

8-30

Do-it-yourself

Content .. 15 16 17 18 ..
