Nissan Murano (2018 year). Instruction

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

䊊

. To close the window, pull the

switch up

䊊

Automatic operation

To fully open a window, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

To fully close a window, pull the switch up to
the second detent and release it; it need
not be held. To stop the window, push the
switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. Have the power window auto-
reverse system re-initialized. It is recom-
mended that you visit a NISSAN dealer for
this service.

If the control unit detects something
caught in a window equipped with auto-
matic operation as it is closing, the window
will be immediately lowered.

LIC2663

LIC0410

Instruments and controls

2-57

The moonroof will only operate when the
ignition switch is placed in the ON position.
The moonroof is operational for a period of
time, even if the ignition switch is placed in
the ACC (if so equipped) or OFF position. If
the driver’s door or the front passenger’s
door is opened during this period of time,
the power to the moonroof is canceled.

When operating the power moonroof or
panoramic sunshade, the switch need not
be held continuously. To stop the moon-
roof or sunshade at any point while it is
opening or closing, slide the switch mo-
mentarily.

Sliding the moonroof

To fully open the moonroof, slide the switch
toward the OPEN

䊊

position to the second

detent and release it. If the switch is slid to
the first detent and released while the sun-
shade is closed only the sunshade will
open.

To fully close the moonroof, slide the switch
toward the CLOSE

䊊

position to the sec-

ond detent and release it. If the switch is
slid to the first detent and released, the
moonroof will close but the sunshade will
remain open.

Tilting the moonroof

To tilt the moonroof up, push and release
the tilt switch

䊊

To tilt the moonroof down but keep the
sunshade open, push and release the tilt
switch

䊊

or slide the switch toward the

CLOSE position

䊊

to the first detent.

To tilt the moonroof down and close the
sunshade at the same time, slide the
switch toward the CLOSE position

䊊

to the

second detent.

Auto-reverse function
(when closing or tilting down the
moonroof)

The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time after the igni-
tion switch is placed in the OFF position.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.

When closing

If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.

LIC3477

POWER MOONROOF (if so equipped)

2-58

Instruments and controls

When tilting down

If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds after it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the moon-
roof.

WARNING

∙ In an accident you could be thrown

from the vehicle through an open
moonroof. Always use seat belts and
child restraints.

∙ Do not allow anyone to stand up or

extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

CAUTION

∙ Remove water drops, snow, ice or

sand

from

the

moonroof

before

opening.

∙ Do not place heavy objects on the

moonroof or surrounding area.

Panoramic sunshade

The panoramic sunshade operates when
the ignition switch is in the ON position.
When opening or closing the sunshade the
switch need not be held.

To open the sunshade:

∙ To fully open the sunshade, slide the

switch

䊊

toward the OPEN position to

the first detent.

∙ To fully open the sunshade and the

moonroof together, slide the switch

䊊

toward the OPEN position to the sec-
ond detent.

To close the sunshade:

∙ To fully close the sunshade, slide the

switch

䊊

toward the CLOSE position to

the second detent. If the moonroof is
open, both the moonroof and the sun-
shade will close automatically.

∙ If the switch is slid

䊊

toward the CLOSE

position to the first detent while the
moonroof is open, only the moonroof
will close. The sunshade will remain
open.

WARNING

∙ To avoid personal injury, keep your

hands, fingers and head away from
the sunshade arm, the arm rail and
sunshade inlet port.

∙ Do not allow children near the rear

sunshade system. They could be
injured.

∙ Do not place objects on or near the

rear sunshade. This could cause im-
proper operation or damage it.

∙ Do not pull or push the rear sunshade.

This could cause improper operation
or damage it.

CAUTION

∙ Do not place objects (such as newspa-

pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may en-
tangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or dam-
age to the sunshade.

∙ Do not push the sunshade arm with

your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.

Instruments and controls

2-59

∙ Do not put any object into the sun-

shade inlet port as this may result in
improper operation or damage the
sunshade.

∙ Do not hang any object on the arm rail

as this may result in improper opera-
tion or damage the sunshade.

∙ Do not forcefully pull the sunshade.

Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.

If the moonroof does not close

Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

When the ON switch

䊊

is pushed, the foot-

well lights (if so equipped), step lights (if so
equipped), map lights and rear personal
lights will automatically turn on and stay on
for a period of time when:

∙ The doors are unlocked by the Intelli-

gent Key, a key or the request switch (if
so equipped) while all doors are closed
and the ignition switch is in the OFF
position.

∙ The driver’s door is opened and then

closed while the ignition switch is in the
OFF position.

∙ Individually pushed.

When the OFF switch

䊊

is pushed, the in-

terior lights will illuminate when pushed.
When the DOOR/OFF switch is pushed and
the ON switch is pushed, all of the lights will
come on.

NOTE:

The footwell lights (if so equipped) and
step lights (if so equipped) illuminate
when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time
while doors are open to prevent the bat-
tery from becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

LIC2302

INTERIOR LIGHTS

2-60

Instruments and controls

CONSOLE LIGHT (if so equipped)

The console light will turn on whenever the
parking lights or headlights are illuminated.

The console light brightness can be ad-
justed with the illumination brightness
control in the vehicle information display.

MAP LIGHTS

Press the button to turn the map lights on.
To turn them off, press the button again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

PERSONAL LIGHTS

To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.

LIC2303

LIC2304

Rear personal lights

LIC1083

Instruments and controls

2-61

LUGGAGE COMPARTMENT LIGHT

The light illuminates when the liftgate is
opened. When the liftgate is closed, the
light will turn off.

The light also illuminates with other interior
lights when the interior light switch is in the
DOOR position. For additional information,
refer to “Interior lights” in this section.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.

HomeLink® Universal Transceiver:

∙ Will operate most radio frequency de-

vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

∙ Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed

HomeLink®

Universal

Transceiver buttons should be erased for
security purposes. For additional infor-
mation,

refer

“Programming

HomeLink®” in this section.

WARNING

∙ Do not use the HomeLink® Universal

Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured after April 1, 1982). A
garage door opener which cannot de-
tect an object in the path of a closing
garage door and then automatically
stop and reverse, does not meet cur-
rent federal safety standards. Using a
garage door opener without these
features increases the risk of serious
injury or death.

∙ During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.

∙ Your

vehicle’s

engine

should

turned off while programming the
HomeLink® Universal Transceiver.

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

2-62

Instruments and controls

PROGRAMMING HOMELINK®

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion (if so equipped) when programming
HomeLink®. It is also recommended that
a new battery be placed in the hand-held
transmitter of the device being pro-
grammed to HomeLink® for quicker pro-
gramming and accurate transmission of
the radio frequency.

1. Position the end of your hand-held

transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light

䊊

in view.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and hand-held transmitter but-
ton.

NOT

release

until

the

HomeLink® indicator light

䊊

flashes

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. (The rapid flashing
indicates successful programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted
in “Programming HomeLink® for Cana-
dian customers and gate openers” in this
section.

LIC2365

LIC2366

Instruments and controls

2-63

3. Press

and

hold

the

programmed

HomeLink® button and observe the in-
dicator light.

∙ If the indicator light

䊊

is solid/

continuous, programming is com-
plete and your device should acti-
vate when the HomeLink® button is
pressed and released.

∙ If the indicator light

䊊

blinks rapidly

for 2 seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code de-
vice. A second person may make the
following steps easier. Use a ladder or
other device. Do not stand on your
vehicle to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, lo-
cate the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually lo-
cated near where the hanging an-
tenna wire is attached to the unit). If
there is difficulty locating the button,
reference the garage door opener’s
manual.

5. Press and release the “learn” or “smart”

button.

6. Return to the vehicle and firmly press

and hold the trained HomeLink® but-
ton for 2 seconds and release. Repeat
the “press/hold/release” sequence up
to three times to complete the training
process. HomeLink® should now acti-
vate your rolling code equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com or call 1-800-
355-3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
training. Similar to this Canadian law, some
U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having diffi-
culties training a gate operator or garage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
Step 2 with the following:

NOTE:

When

programming

garage

door

opener, etc., unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this
section.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and the hand-held transmitter
button. During training, your hand-held
transmitter may automatically stop
transmitting. Continue to press and
hold the desired HomeLink® button
while you press and re-press (“cycle”)
your

hand-held

transmitter

every

2 seconds until the frequency signal
has been learned. The HomeLink® indi-
cator light will flash slowly and then
rapidly after several seconds upon
successful training. DO NOT release un-
til the HomeLink® indicator light flashes

2-64

Instruments and controls

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. The rapid flashing in-
dicates successful training.
Proceed

with

“Programming

HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember
to plug it back in when programming is
completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate
the programmed device. To operate, sim-
ply press and release the appropriate pro-
grammed HomeLink® Universal Trans-
ceiver button. The amber indicator light will
illuminate while the signal is being trans-
mitted.

For convenience, the hand-held transmit-
ter of the device may also be used at any
time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

∙ replace the hand-held transmitter bat-

teries with new batteries.

∙ position the hand-held transmitter with

its battery area facing away from the
HomeLink® surface.

∙ press and hold both the HomeLink®

and hand-held transmitter buttons
without interruption.

∙ position the hand-held transmitter 1 -

3 in (26 - 76 mm) away from the
HomeLink® surface. Hold the transmit-
ter in that position for up to 15 seconds.
If HomeLink® is not programmed within
that time, try holding the transmitter in
another position – keeping the indicator
light in view at all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed. For additional information, refer
to “Reprogramming a single HomeLink®
button” in this section.

To clear all programming:

1. Press

and

hold

the

two

outer

HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.

HomeLink® is now in the programming
mode and can be programmed at any
time

beginning

with

“Programming

HomeLink®” - Step 1.

Instruments and controls

2-65

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal
Transceiver button, complete the following:

1. Press and hold the desired HomeLink®

button. DO NOT release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.

For

questions

comments,

contact

HomeLink®

at:

www.homelink.com

1–800–355–3515 (except Mexico).

The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The
new device can be activated by pressing
the HomeLink® button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink® but-
tons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device
that

has

been

programmed

into

HomeLink®. Consult the Owner’s Manual of
each device or call the manufacturer or
dealer of those devices for additional infor-
mation.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Uni-
versal Transceiver with your new trans-
mitter information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any received, including interference
that may cause undesired operation of
the device.

2-66

Instruments and controls

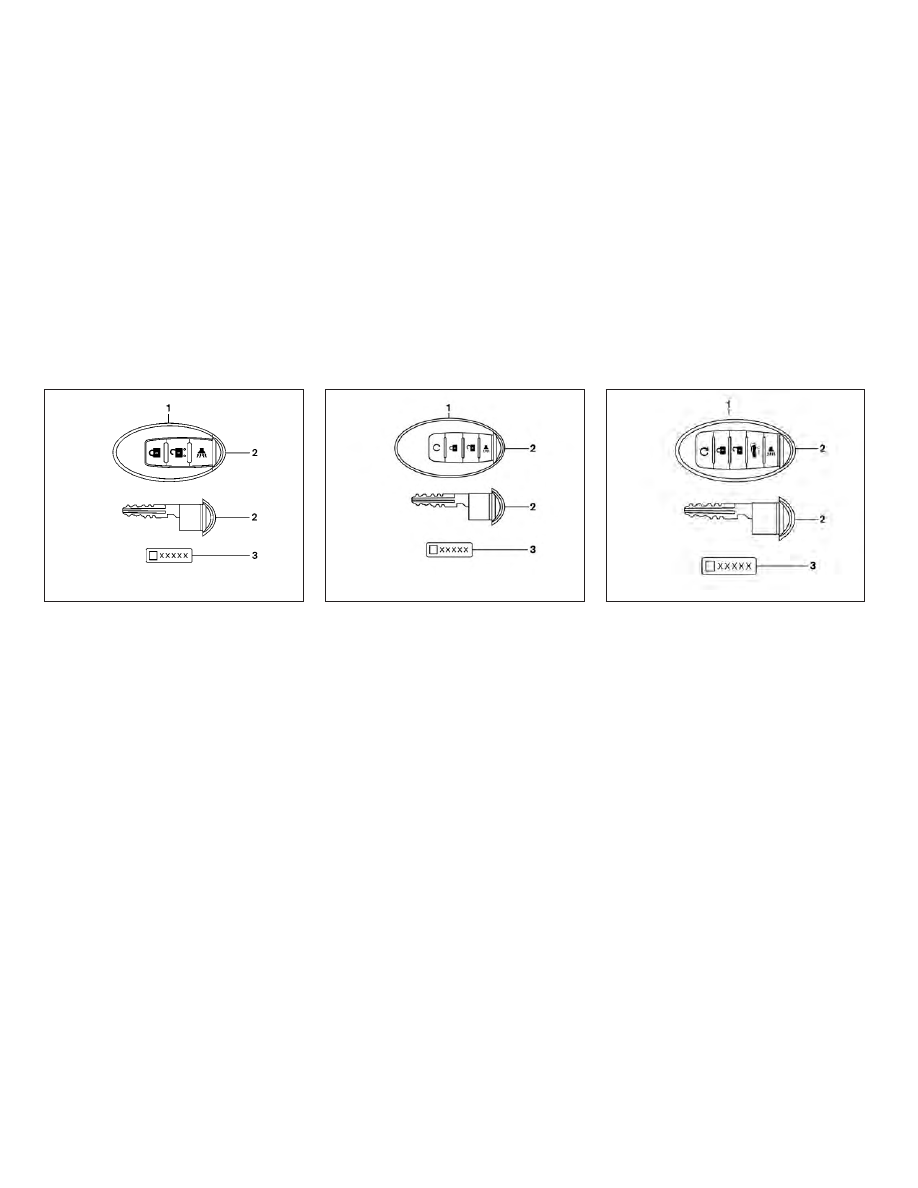

Intelligent Key (two sets)

Mechanical key

Key number plate (one plate)

NISSAN INTELLIGENT KEY®

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key System com-
ponents and NISSAN Vehicle Immobilizer
System components.

Never leave these keys in the vehicle.

As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered prior to use
with the Intelligent Key System and NISSAN
Vehicle Immobilizer System of your vehicle.
It is recommended that you visit a NISSAN
dealer for this service. Since the registra-
tion process requires erasing all memory in
the Intelligent Key components when reg-
istering new keys, be sure to take all Intelli-
gent Keys that you have to the NISSAN
dealer.

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

Type A (if so equipped)

LPD0350

Type B (if so equipped)

LPD2279

Type C (if so equipped)

LPD2052

KEYS

3-2

Pre-driving checks and adjustments

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelli-
gent Key:

∙ Do not allow the Intelligent Key, which

contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.

∙ Do not drop the Intelligent Key.

∙ Do not strike the Intelligent Key

sharply against another object.

∙ Do not change or modify the Intelli-

gent Key.

∙ Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely
dry.

∙ Do not place the Intelligent Key for an

extended period in an area where
temperatures exceed 140°F (60°C).

∙ Do not attach the Intelligent Key with

a key holder that contains a magnet.

∙ Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment
and personal computers.

If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key from the ve-
hicle. This may prevent the unauthor-
ized use of the Intelligent Key to oper-
ate

the

vehicle.

For

information

regarding the erasing procedure, it is
recommended that you visit a NISSAN
dealer.

Mechanical key

The Intelligent Key contains the mechani-
cal key.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

Use the mechanical key to lock or unlock
the driver’s door.

SPA1951

Pre-driving checks and adjustments

3-3

CAUTION

Always carry the mechanical key in-
stalled in the Intelligent Key slot.

For additional information, refer to “Doors”
in this section.

Valet hand-off

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect
your belongings.

To prevent the glove box or console box
from being opened during valet hand-off,
follow the procedure below.

1. Remove the mechanical key from the

Intelligent Key.

2. Lock the glove box with the mechani-

cal key.

3. Hand the Intelligent Key to the valet

and keep the mechanical key with you.

For additional information, refer to “Stor-
age” in the “Instruments and controls” sec-
tion of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the
Intelligent Keys which are registered to the
NISSAN Vehicle Immobilizer System com-
ponents in your vehicle.

The mechanical key can be used for all the
locks.

Never leave the keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. Your ex-
isting key can be duplicated without know-
ing the key number. As many as four
NISSAN Vehicle Immobilizer System keys
can be used with one vehicle. You should
bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to the NISSAN
dealer for registration. This is because the
registration process will erase the memory
of all key codes previously registered into
the NISSAN Vehicle Immobilizer System. Af-
ter the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any key that is not

given to the dealer at the time of registra-
tion will no longer be able to start your
vehicle.

CAUTION

Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.

3-4

Pre-driving checks and adjustments

Nissan Murano (2018 year). Instruction - part 10
