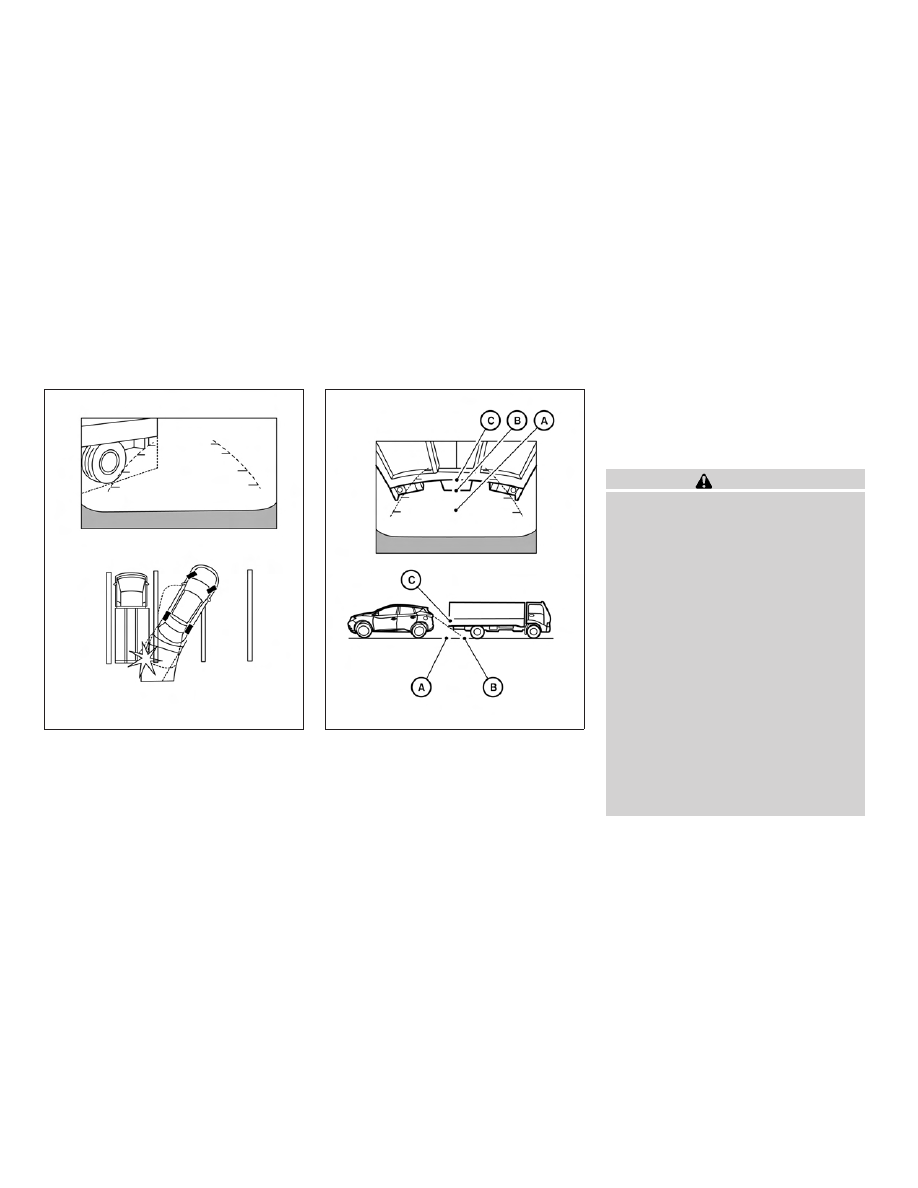

Backing up near a projecting object

The vehicle may seem to nearly clear the object in
the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.

Backing up behind a projecting object

The position

䊊

is shown farther than the position

䊊

in the display. However, the position

䊊

actually at the same distance as the position

䊊

The vehicle may hit the object when backing up to

the position

䊊

if the object projects over the

actual backing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

● If the tires are replaced with different

sized tires, the predicted course lines
may be displayed incorrectly.

● On a snow-covered or slippery road,

there may be a difference between the
predicted course line and the actual
course line.

● If the battery is disconnected or be-

comes discharged, the predicted course
lines may be displayed incorrectly. If
this occurs, please perform the follow-
ing procedures:

– Turn the steering wheel from lock to

lock while the engine is running.

– Drive the vehicle on a straight road

for more than 5 minutes.

● When the steering wheel is turned with

the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.

LHA2946

LHA3525

4-8

Monitor, climate, audio, phone and voice recognition systems

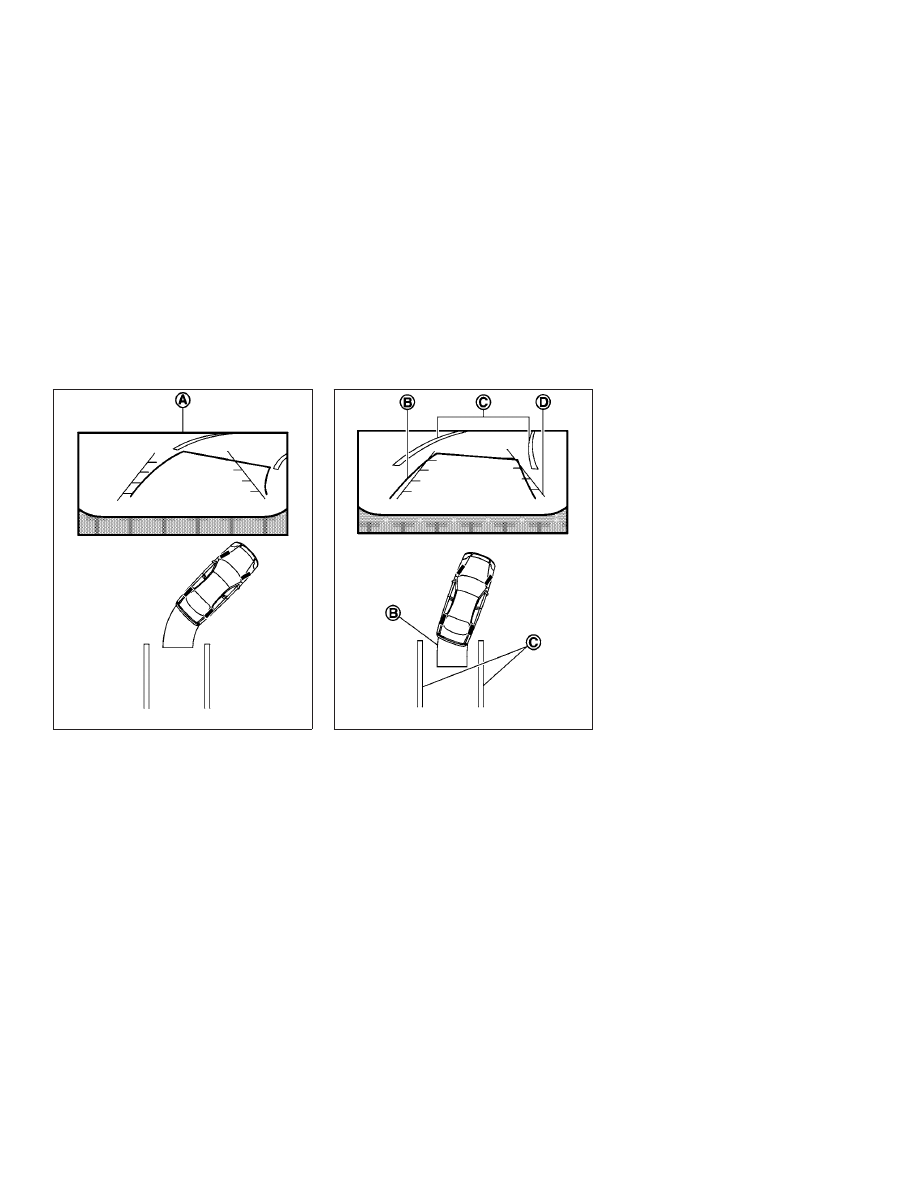

1. Visually check that the parking space is safe

before parking your vehicle.

2. The rear view of the vehicle is displayed on

the screen

䊊

when the shift lever is moved

to the R (Reverse) position.

3. Slowly back up the vehicle adjusting the

steering wheel so that the predicted course
lines

䊊

enter the parking space

䊊

4. Maneuver the steering wheel to make the

vehicle width guide lines

䊊

parallel to the

parking space

䊊

while referring to the pre-

dicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking brake.

HOW TO SWITCH THE DISPLAY

With the ignition switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around
View® Monitor.

The Around View® Monitor displays different
split screen views depending on the position of
the shift lever. Press the CAMERA button to
switch between the available views.

If the shift lever is in the R (Reverse) position, the
available views are:

● Rear view/bird’s-eye view split screen
● Rear view/front-side view split screen

If the shift lever is in the P (Park) position, the
available views are:

● Front view/bird’s-eye view split screen
● Front view/front-side view split screen

LHA1197

LHA1198

Monitor, climate, audio, phone and voice recognition systems

4-9

If the shift lever is in the D (Drive) position, the
only available view is front view/front-side view
split screen.

The display will switch from the Around View®
Monitor screen when:

● The shift lever is in the D (Drive) position and

the vehicle speed increases above approxi-
mately 6 mph (10 km/h)

● A different screen is selected.

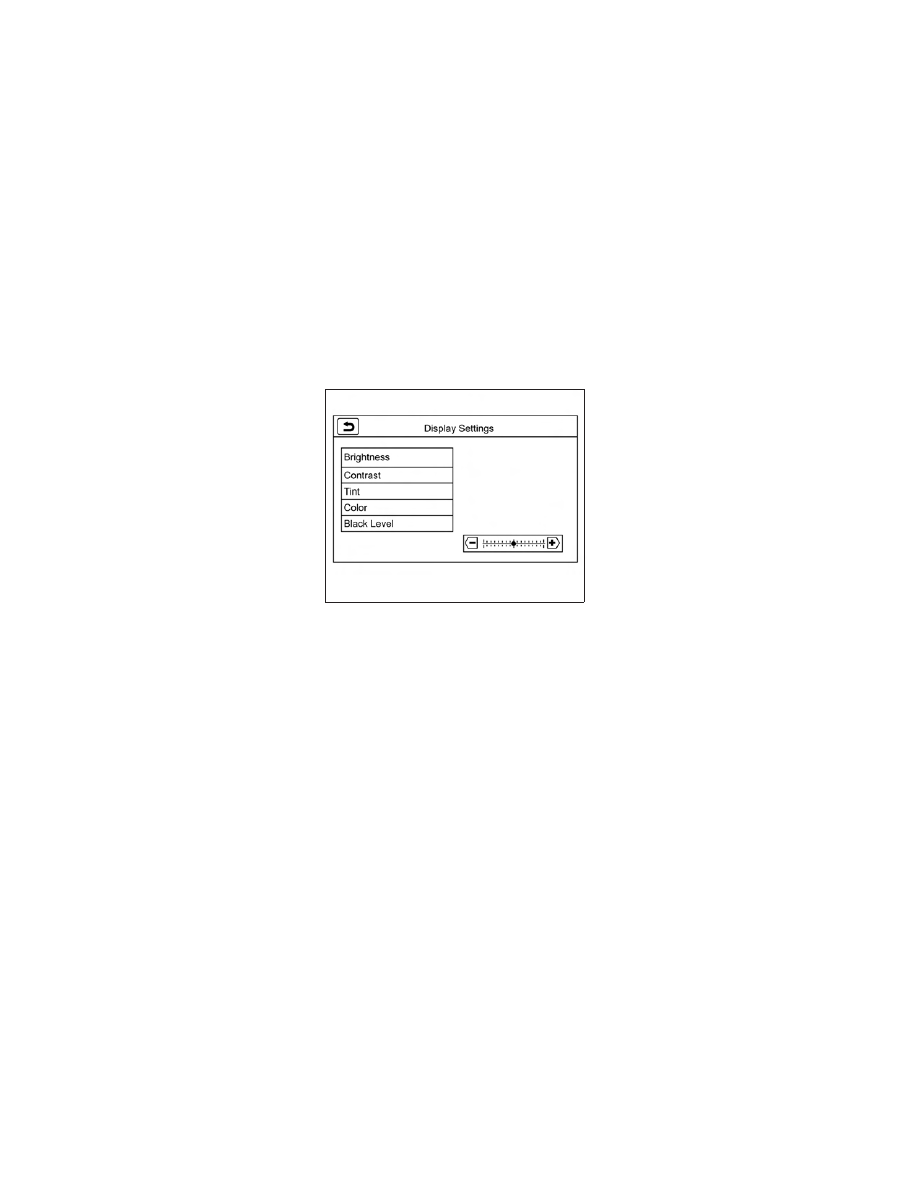

ADJUSTING THE SCREEN

1. While on a RearView Monitor screen, touch

the touch-screen display. The Camera Set-
tings screen will come up.

2. Touch the Display Settings key.

3. Touch the “Brightness,” “Contrast,” “Tint,”

“Color,” or “Black Level” key.

4. Adjust the item by touching the + or — key

on the touch-screen display.

NOTE:

Do not adjust any of the display settings of
the Around View® Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.

LHA3522

4-10

Monitor, climate, audio, phone and voice recognition systems

AROUND VIEW® MONITOR
SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these sys-
tem limitations could result in serious in-
jury or death.

● Do not use the Around View® Monitor

with the outside mirrors in the stored
position, and make sure that the liftgate
is securely closed when operating the
vehicle using the Around View® Monitor.

● The apparent distance between objects

viewed on the Around View® Monitor
differs from the actual distance.

● The cameras are installed on the front

grille, the outside mirrors and above the
rear license plate. Do not put anything
on the vehicle that covers the cameras.

● When washing the vehicle with high

pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.

● Do not strike the cameras. They are

precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.

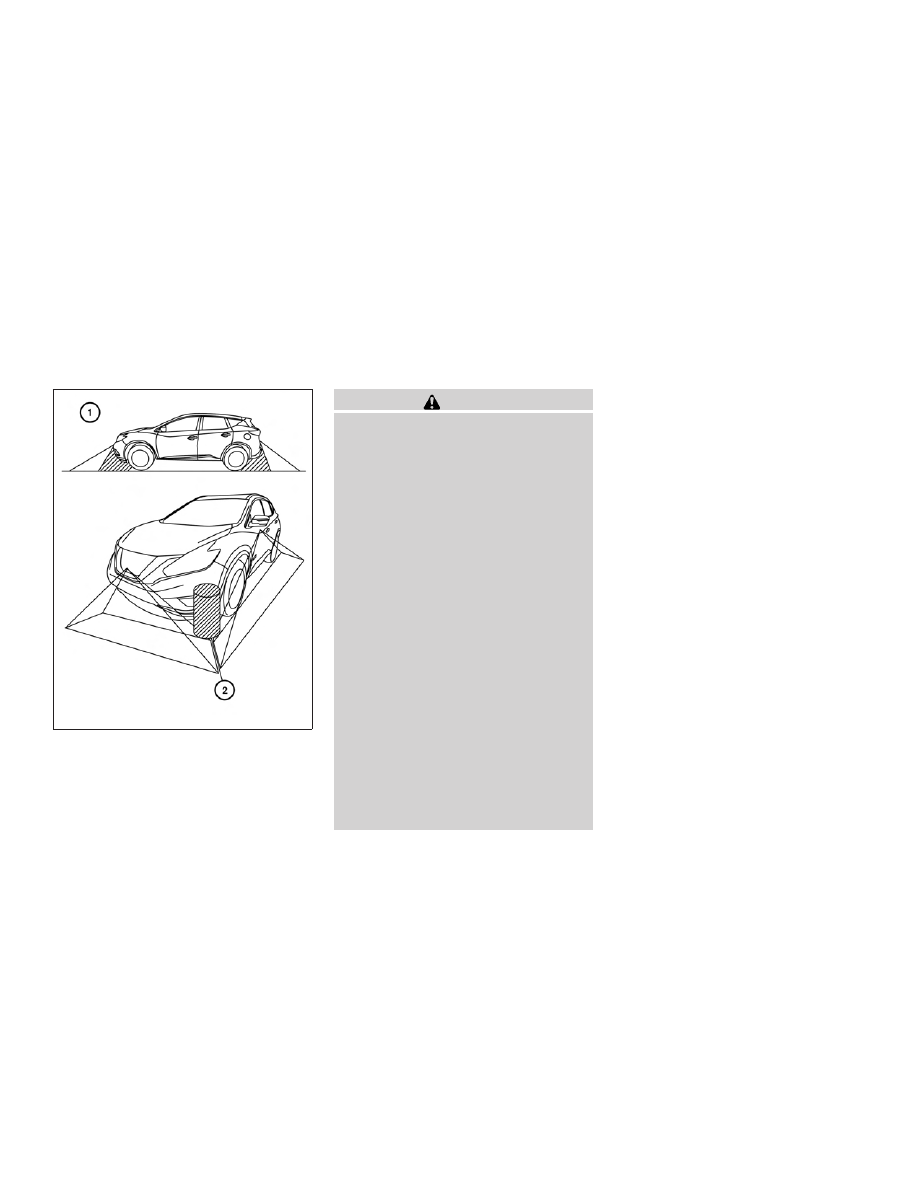

There are some areas where the system will not
show objects and the system does not warn of
moving objects. When in the front or rear view
display, an object below the bumper or on the
ground may not be viewed

䊊

. When in the

bird’s-eye view, a tall object near the seam

䊊

the camera viewing areas will not appear in the
monitor.

The following are operating limitations and do not
represent a system malfunction:

● There may be a delay when switching be-

tween views.

● When the temperature is extremely high or

low, the screen may not display objects
clearly.

● When strong light directly shines on the

camera, objects may not be displayed
clearly.

● The screen may flicker under fluorescent

light.

● The colors of objects on the Around View®

Monitor may differ somewhat from the actual
color of objects.

● Objects on the Around View® Monitor may

not be clear and the color of the object may
differ in a dark environment.

LHA3831

Monitor, climate, audio, phone and voice recognition systems

4-11

● There may be differences in sharpness be-

tween each camera view of the bird’s-eye
view.

● Do not use wax on the camera lens. Wipe off

any wax with a clean cloth that has been
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

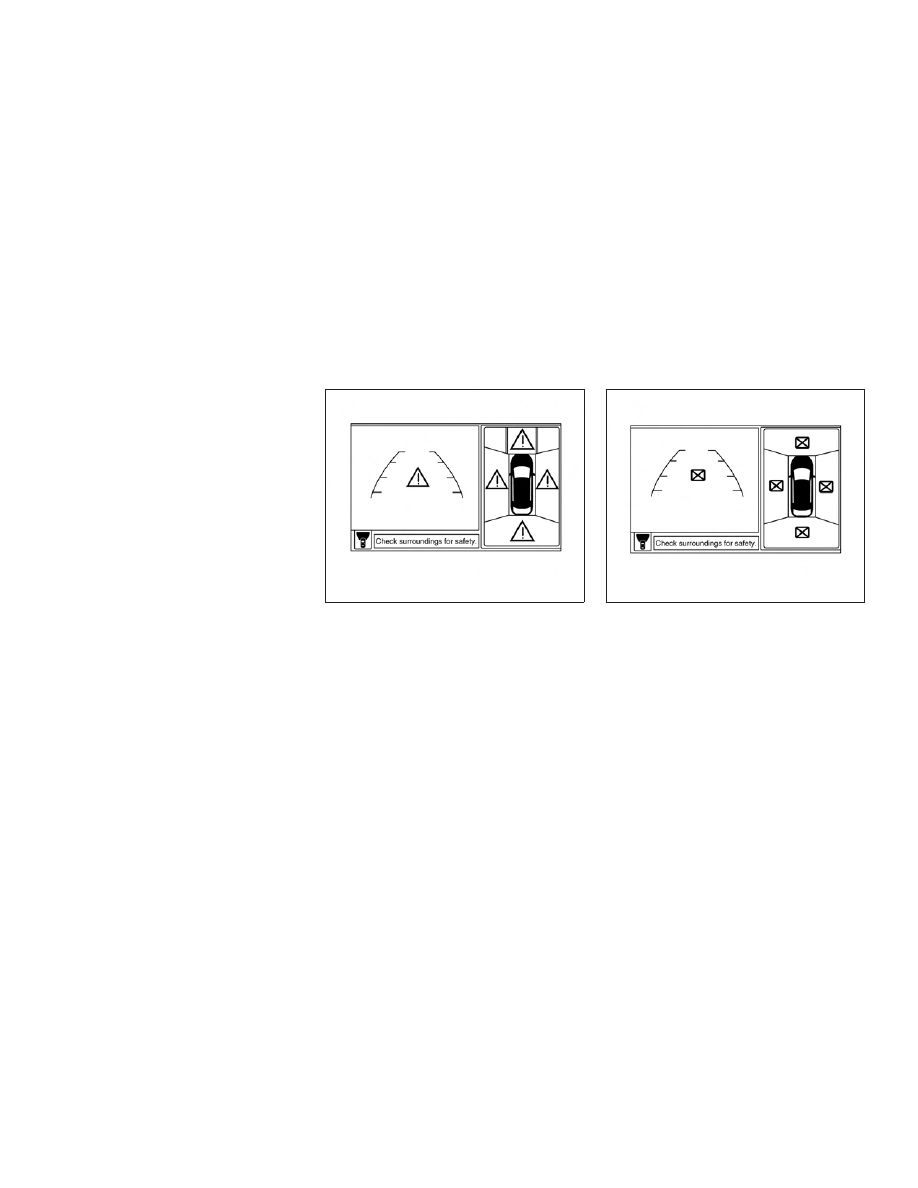

System temporarily unavailable

When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal driving
operation but the system should be inspected by
a NISSAN dealer.

When the “[X]” icon is displayed on the screen,
the camera image may be receiving temporary
electronic disturbances from surrounding de-
vices. This will not hinder normal driving opera-
tion but the system should be inspected by a
NISSAN dealer if it occurs frequently.

LHA3591

LHA3592

4-12

Monitor, climate, audio, phone and voice recognition systems

SYSTEM MAINTENANCE

CAUTION

● Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

● Do not damage the cameras as the

monitor

screen

may

adversely

affected.

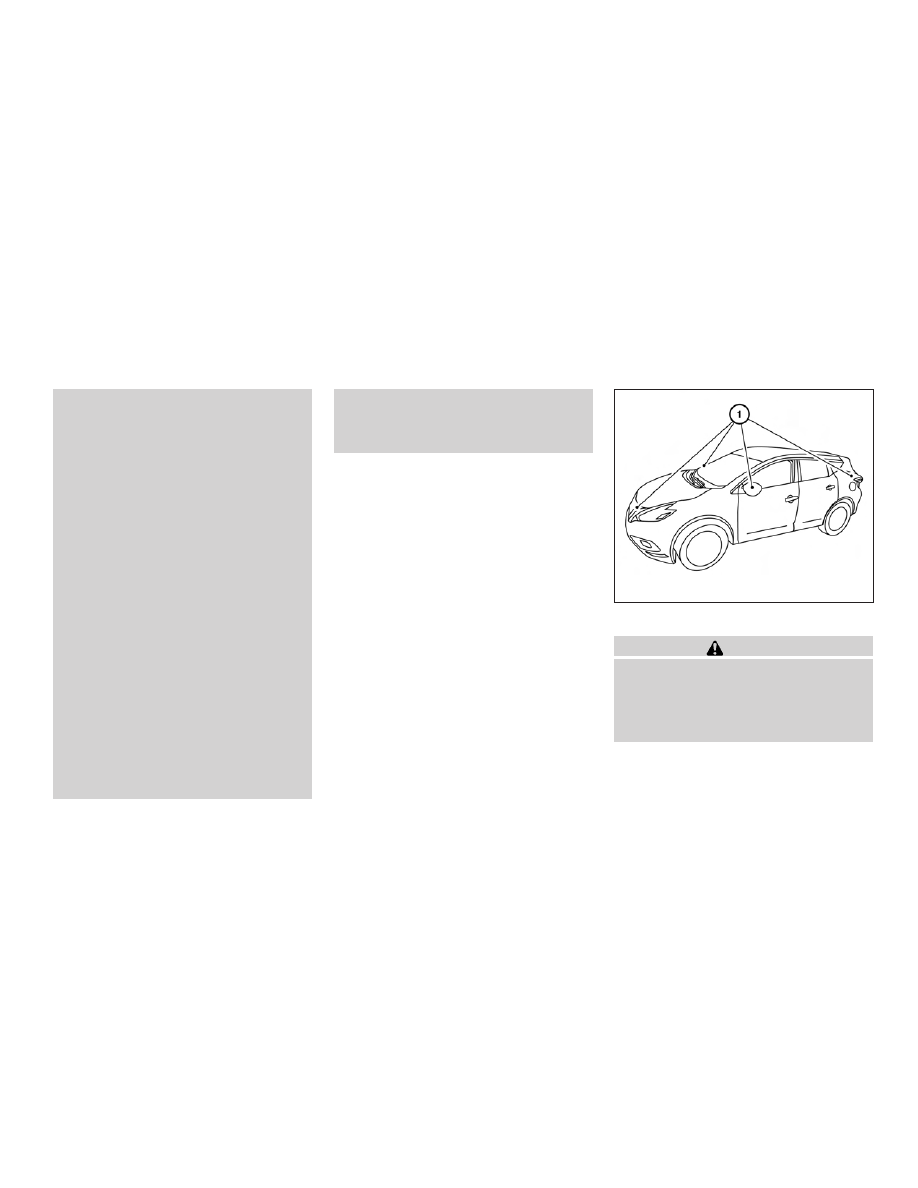

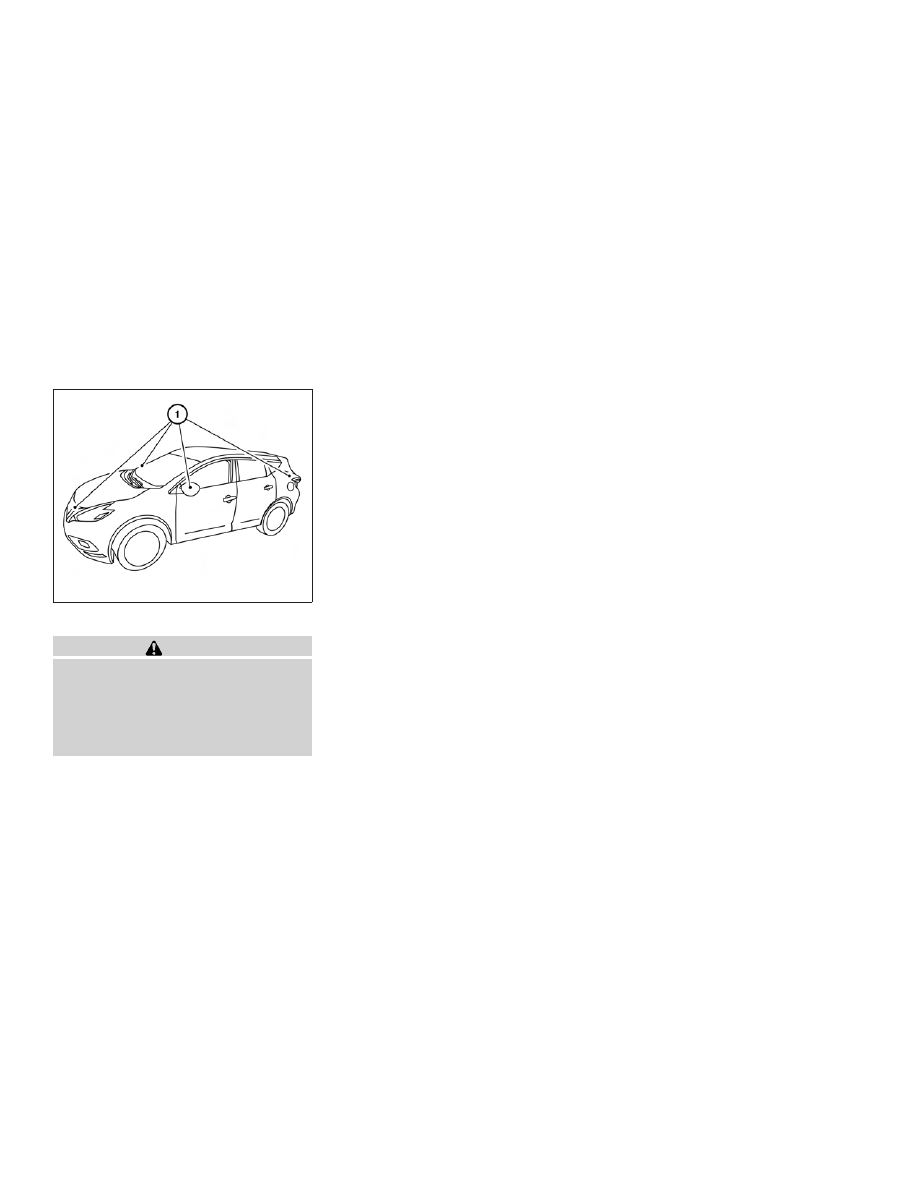

If dirt, rain or snow accumulates on any of the
cameras

䊊

, the Around View® Monitor may not

display objects clearly. Clean the camera by wip-
ing with a cloth dampened with a diluted mild
cleaning agent and then wiping with a dry cloth.

LHA3830

Monitor, climate, audio, phone and voice recognition systems

4-13

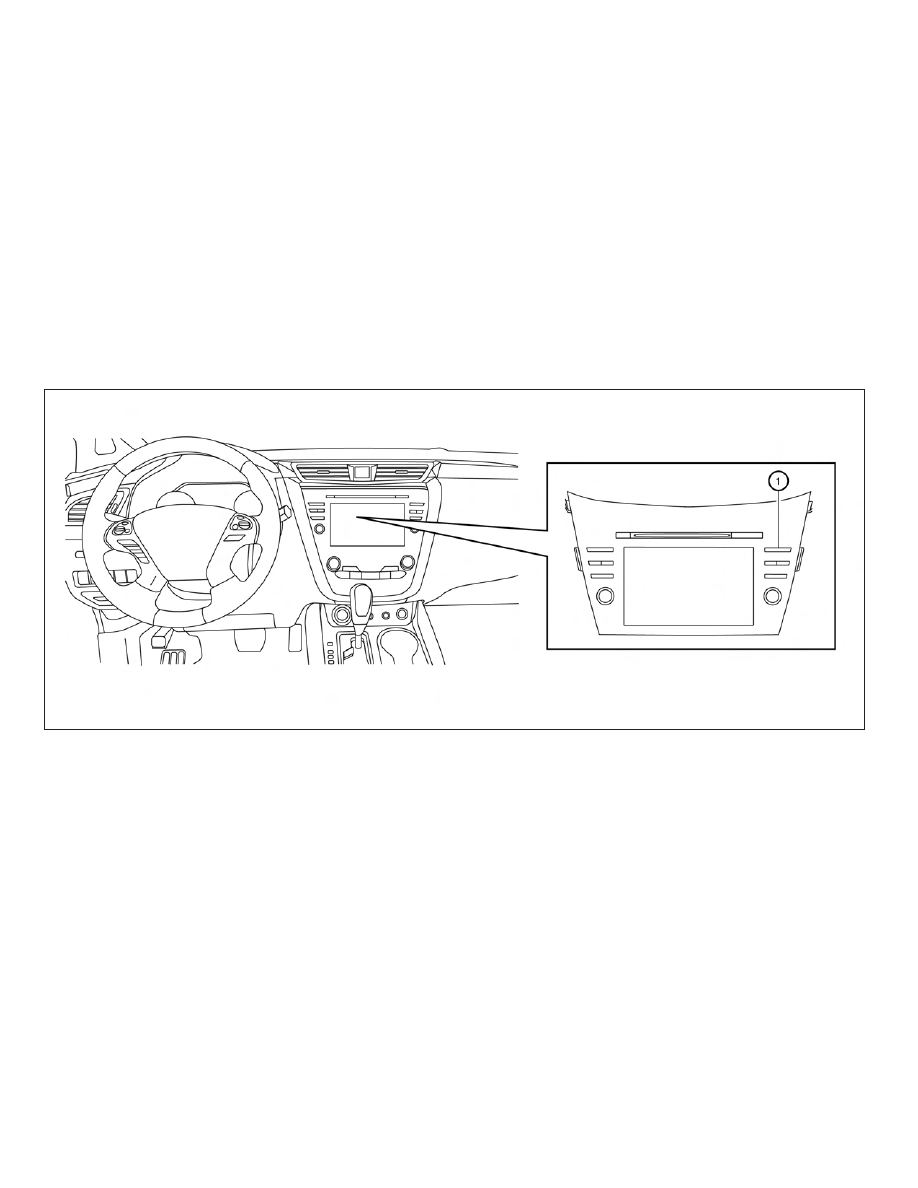

1. CAMERA button

LHA3829

MOVING OBJECT DETECTION (MOD)

4-14

Monitor, climate, audio, phone and voice recognition systems

WARNING

● Failure to follow the warnings and in-

structions for proper use of the Moving
Object Detection (MOD) system could
result in serious injury or death.

● The MOD system is not a substitute for

proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.

● The system is deactivated at speeds

above 6 mph (10 km/h). It is reactivated
at lower speeds.

● The MOD system is not designed to

detect surrounding stationary objects.

The MOD system can inform the driver of moving
objects near the vehicle when backing out of
garages, maneuvering in parking lots and in other
such instances.

The MOD system detects moving objects by
using image processing technology on the image
shown in the display.

MOD SYSTEM OPERATION

The MOD system will turn on automatically under
the following conditions:

● When the shift lever is in the R (Reverse)

position.

● When vehicle speed decreases below ap-

proximately 6 mph (10 km/h) and the camera
screen is displayed.

The MOD system operates in the following con-
ditions when the camera view is displayed:

● When the shift lever is in the P (Park) or N

(Neutral) position and the vehicle is stopped,
the MOD system detects moving objects in
the bird’s-eye view. The MOD system will
not operate if the outside mirrors are moving
in or out, in the stowed position, or if either
front door is opened.

● When the shift lever is in the D (Drive) posi-

tion and the vehicle speed is below approxi-
mately 6 mph (10 km/h), the MOD system
detects moving objects in the front view.

Front and bird’s-eye views

LHA3593

Monitor, climate, audio, phone and voice recognition systems

4-15

● When the shift lever is in the R (Reverse)

position and the vehicle speed is below ap-
proximately 6 mph (10 km/h), the MOD sys-
tem detects moving objects in the rear view.
The MOD system will not operate if the
liftgate is open.

The MOD system does not detect moving ob-
jects in the front-side view. The MOD icon is not
displayed on the screen when in this view.

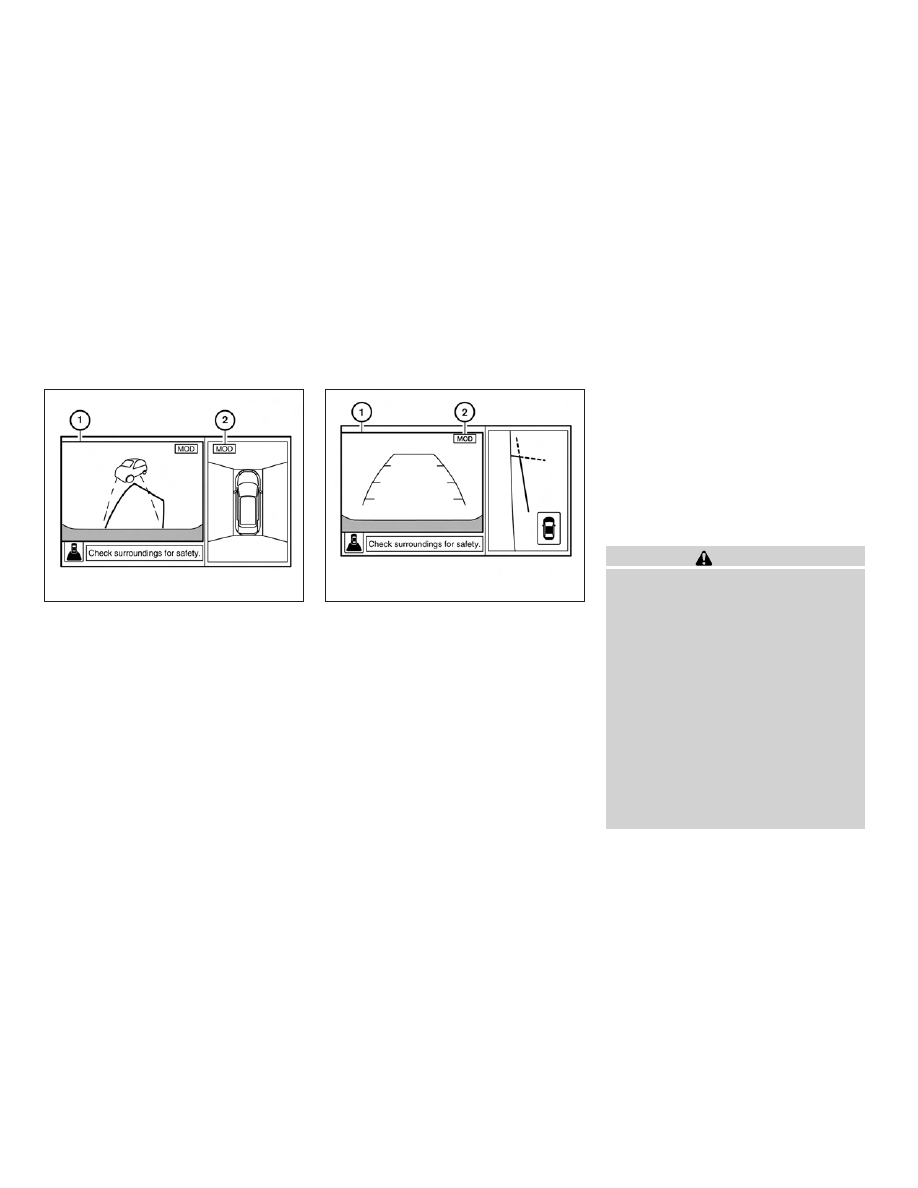

When the MOD system detects moving objects
near the vehicle, a chime will be heard and a
yellow frame will be displayed on the view where
the objects are detected. While the MOD system

continues to detect moving objects, the yellow
frame continues to be displayed.

NOTE:

While the Rear Cross Traffic Alert chime (if
so equipped) is beeping, the MOD system
does not chime

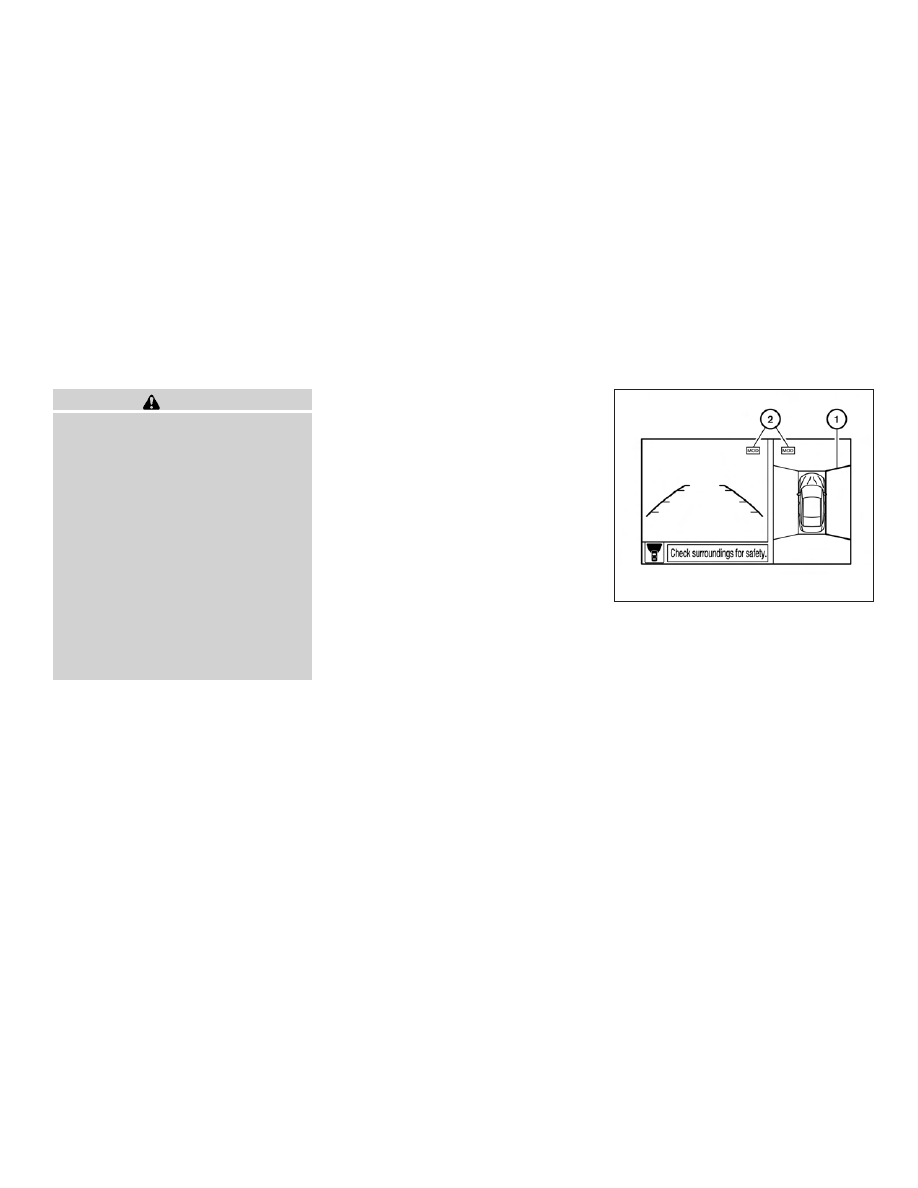

In the bird’s-eye view, the yellow frame

䊊

displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.

The yellow frame is displayed on each view in the
front view and rear view modes.

A blue MOD icon

䊊

is displayed in the view

where the MOD system is operative. A gray MOD
icon is displayed in the view where the MOD
system is not operative.

TURNING MOD ON AND OFF

To turn the MOD system on or off, press and hold
the CAMERA button for more than 2 seconds.

MOD SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
MOD. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.

● Do not use the MOD system when tow-

ing a trailer. The system may not func-
tion properly.

● Excessive noise (for example, audio

system volume or open vehicle window)
will interfere with the chime sound, and
it may not be heard.

● The MOD system performance will be

limited according to environmental con-
ditions and surrounding objects such as:

– When there is low contrast between

background and the moving objects.

Rear and bird’s-eye views

LHA3594

Rear and front-side views

LHA3595

4-16

Monitor, climate, audio, phone and voice recognition systems

– When there is a blinking source of

light.

– When strong light such as another

vehicle’s headlight or sunlight is
present.

– When camera orientation is not in its

usual position, such as when a mirror
is folded.

– When there is dirt, water drops or

snow on the camera lens.

– When the position of the moving ob-

jects in the display is not changed.

● The MOD system might detect flowing

water droplets on the camera lens,
white smoke from the muffler, moving
shadows, etc.

● The MOD system may not function

properly depending on the speed, direc-
tion, distance or shape of the moving
objects.

● If your vehicle sustains damage to the

parts where the camera is installed,
leaving it misaligned or bent, the sens-
ing zone may be altered and the MOD
system may not detect objects properly.

● When the temperature is extremely

high or low, the screen may not display
objects

clearly.

This

not

malfunction.

SYSTEM MAINTENANCE

CAUTION

● Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

● Do not damage the camera as the moni-

tor screen may be adversely affected.

If dirt, rain or snow accumulates on any of the
cameras

䊊

, the MOD system may not operate

properly. Clean the camera by wiping with a cloth
dampened with a diluted mild cleaning agent and
then wiping with a dry cloth.

LHA3830

Monitor, climate, audio, phone and voice recognition systems

4-17

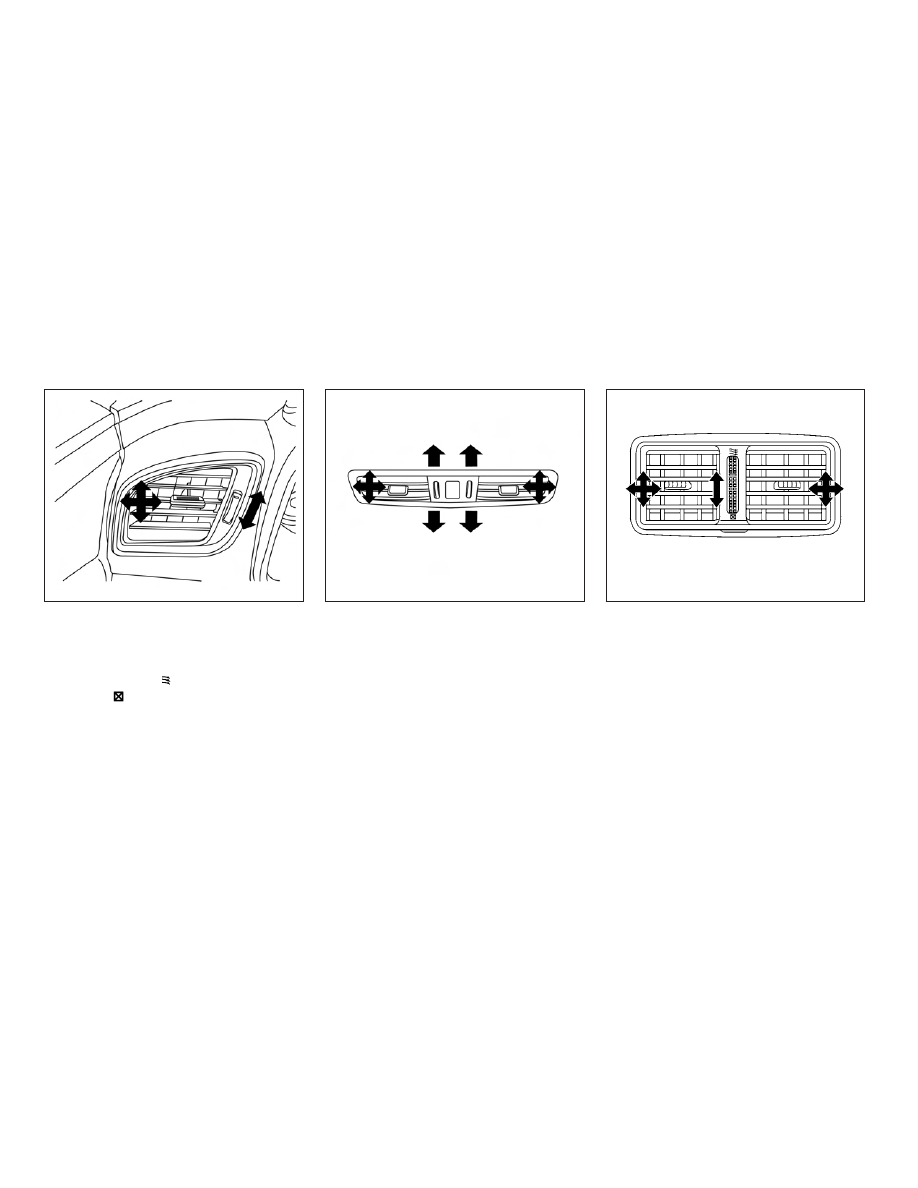

Adjust air flow direction by moving the vent
slides.

Open or close the vents by using the dial. Move
the dial toward the

to open the vents or

toward the

to close them.

Side

LHA3201

Center

LHA3510

Rear

LHA1134

VENTS

4-18

Monitor, climate, audio, phone and voice recognition systems

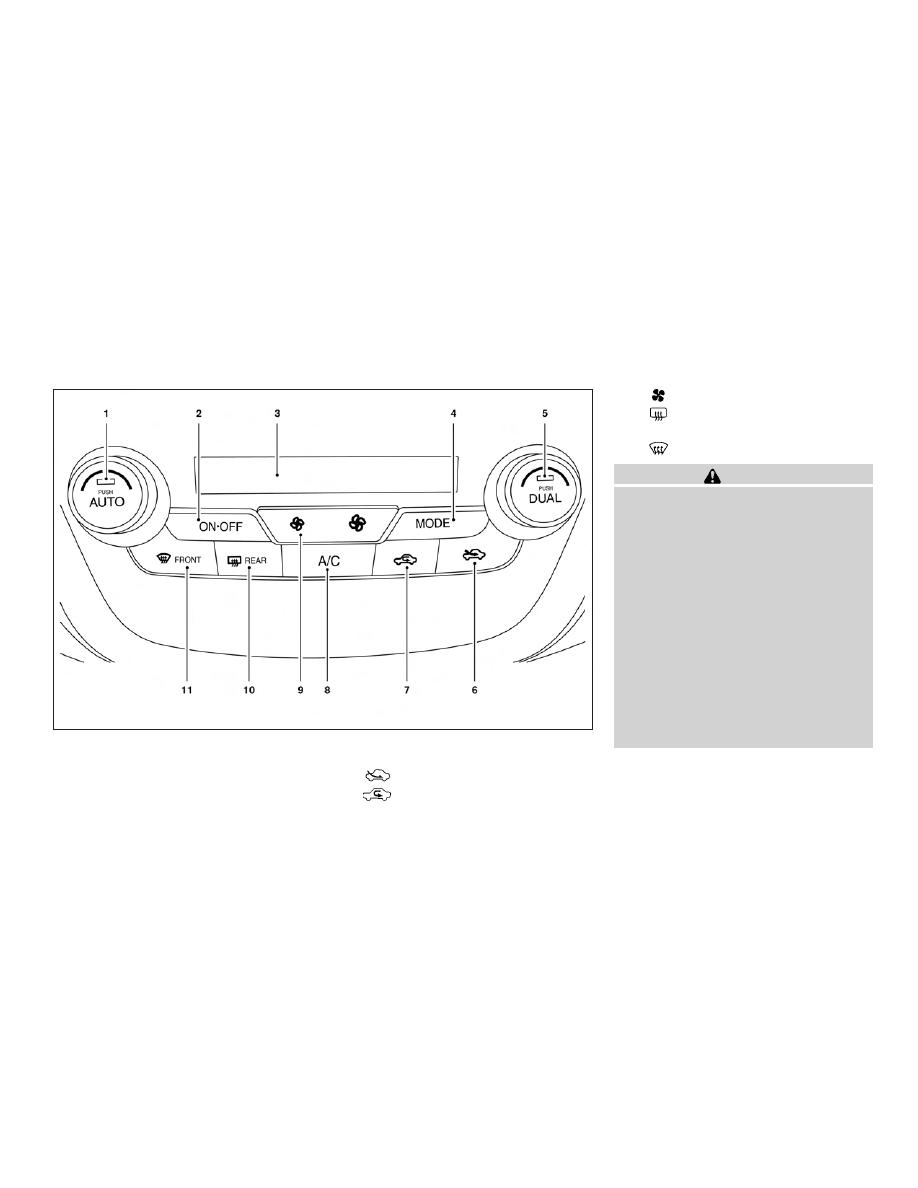

Temperature control dial (driver’s side)/
AUTO button

ON-OFF button

Display screen

MODE (manual air flow control) button

Temperature control dial (passenger’s
side)/DUAL button

Fresh air intake button

Air recirculation button

A/C (air conditioner) button

fan speed control buttons

10.

REAR window and outside mirror

defroster switch

11.

FRONT (defroster) button

WARNING

● The air conditioner cooling function op-

erates only when the engine is running.

● Do not leave children or adults who

would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

● Do not use the recirculation mode for

long periods as it may cause the interior
air to become stale and the windows to
fog up.

LHA3200

HEATER AND AIR CONDITIONER
(automatic)

Monitor, climate, audio, phone and voice recognition systems

4-19

NOTE:

● Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

● When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

AUTOMATIC OPERATION

Cooling and/or dehumidified heating
(AUTO)

This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution and fan speed
are also controlled automatically.

1. Press the AUTO button on. The indicator on

the button will illuminate.

2. Turn the temperature control dial to the left

or right to set the desired temperature.

● The temperature of the passenger compart-

ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

● A visible mist may be seen coming from the

vents in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.

3. You can individually set driver’s and front pas-

senger’s side temperature using each tem-
perature control dial. When the DUAL button
is pressed or passenger’s side temperature
dial is turned, the DUAL indicator will come
on. To turn off the passenger’s side tempera-
ture control, press the DUAL button.

Heating (A/C OFF)

The air conditioner does not activate. When you
need to heat only, use this mode.

1. Press the AUTO button.

2. Turn the temperature control dial to set the

desired temperature.

● The temperature of the passenger compart-

ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

● Do not set the temperature lower than the

outside air temperature. Otherwise, the sys-
tem may not work properly.

● Not recommended if windows fog up.

Dehumidified defrosting or defogging

1. Press the

front defroster button on.

The indicator light on the button will come
on.

2. Turn the temperature control dial to set the

maximum temperature to aid in defrosting or
defogging.

● To quickly remove ice from the outside of the

windows, use the

fan speed control

buttons to set the fan speed to maximum.

● As soon as possible after the windshield is

clean, press the AUTO button to return to
the automatic mode.

● When the

front defroster button is

pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C). The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance. When the air recirculate mode
automatically turns off, the air fresh mode will
automatically turn on.

4-20

Monitor, climate, audio, phone and voice recognition systems

Remote engine start logic (if so
equipped)

Vehicles equipped with automatic climate con-
trols and remote start function may go into auto-
matic heating or cooling mode when remote start
is activated depending on outside and cabin tem-
peratures. Automatic temperature depends on
outside and cabin temperatures. During this pe-
riod, the climate control display and buttons will
be inoperable until the ignition switch is turned
on.

MANUAL OPERATION

Fan speed control

Press the

fan speed control buttons to

manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.

Air recirculation

Press the

air recirculation button to recir-

culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the

front defrosting

mode.

Fresh air intake

Press the

fresh air intake button to draw

outside air into the passenger compartment.

Air flow control

Pressing the MODE button manually controls air
flow and selects the air outlet:

— Air flows mainly from center and

side vents.

— Air flows mainly from center and

side vents and foot outlets.

— Air flows mainly from foot outlets

and partly from defroster.

— Air flows mainly from defroster

and foot outlets.

To turn system off

Press the ON-OFF button.

Rear window and outside mirror
defroster switch

For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.

OPERATING TIPS

● When the engine coolant temperature and

outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally.

● Keep the moonroof (if so equipped) closed

while the air conditioner is in operation.

● If you feel that the air flow mode you have

selected and the outlets the air is coming out
do not match, select the

mode.

● When you change the air flow mode, you

may feel air flow from the feet vents for just a
moment. This is not a malfunction.

Monitor, climate, audio, phone and voice recognition systems

4-21

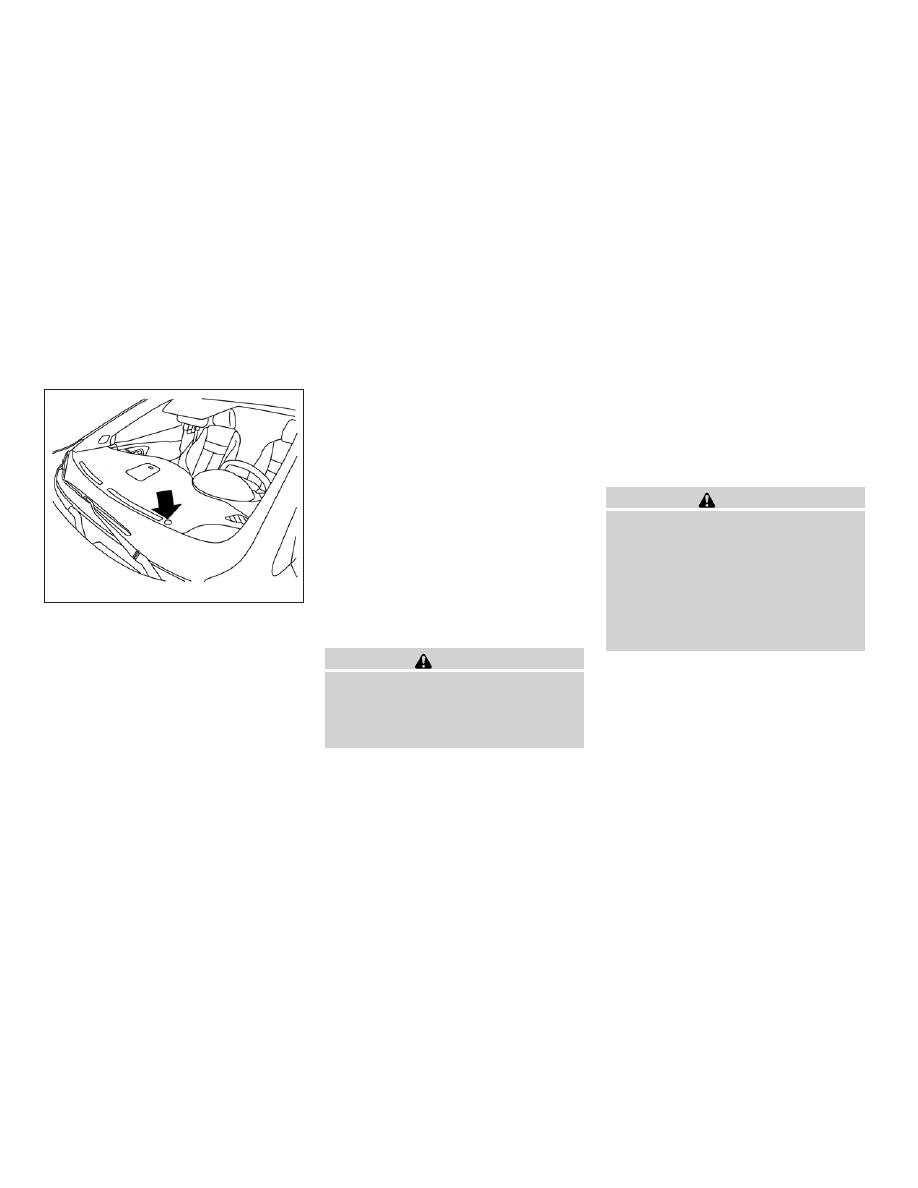

The sunload sensor, located on the driver’s side
of the instrument panel, helps the system main-
tain a constant temperature. Do not put anything
on or around this sensor.

The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.

This refrigerant does not harm the earth’s
ozone layer.

Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. For additional information, refer to “Air
conditioner system refrigerant and oil recommen-
dations” in the “Technical and consumer informa-
tion” section of this manual.

It is recommended that you visit a NISSAN dealer
to service your “environmentally friendly” air con-
ditioning system.

WARNING

The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.

For additional information, refer to the separate
Navigation Owner’s Manual.

ANTENNA

The antenna pattern is printed inside the rear
window.

CAUTION

● Do not place metalized film near the

rear window glass or attach any metal
parts to it. This may cause poor recep-
tion or noise.

● When cleaning the inside of the rear

window, be careful not to scratch or
damage

the

rear

window

antenna.

Lightly wipe along the antenna with a
dampened soft cloth.

LHA3554

SERVICING AIR CONDITIONER

AUDIO SYSTEM

4-22

Monitor, climate, audio, phone and voice recognition systems

For additional information, refer to the separate
Navigation Owner’s Manual.

When installing a CB, ham radio or car phone in
your vehicle, be sure to observe the following
precautions; otherwise, the new equipment may
adversely affect the engine control system and
other electronic parts.

WARNING

● A cellular phone should not be used for

any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.

● If you must make a call while your ve-

hicle is in motion, the hands free cellu-
lar phone operational mode is highly
recommended. Exercise extreme cau-
tion at all times so full attention may be
given to vehicle operation.

● If you are unable to devote full attention

to vehicle operation while talking on
the phone, pull off the road to a safe
location and stop your vehicle.

CAUTION

● Keep the antenna as far away as pos-

sible

from

the

electronic

control

modules.

● Keep the antenna wire more than 8 in

(20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.

● Adjust the antenna standing-wave ratio

as recommended by the manufacturer.

● Connect the ground wire from the CB

radio chassis to the body.

● For details, it is recommended that you

visit a NISSAN dealer for servicing.

NISSANCONNECT

MOBILE APPS

CAR PHONE OR CB RADIO

Monitor, climate, audio, phone and voice recognition systems

4-23

Content .. 12 13 14 15 ..
