Nissan Murano Hybrid (2016 year). Instruction

Navigation settings

The navigation related display settings can be
changed.

1. Select

using

and

push the OK button A menu will display.

2. Using

, select [Customize

Display] and then select [Navigation Set-
tings].

3. Select the preferred item using

Available items

Action

[Alerts]

When this item is turned on, the view of the turning point
with an alarm sound will interrupt the displays other than
navigation screen when the vehicle approaches the guide
point.

[Arrow view]

When this mode is selected, the Arrow view will be dis-
played on the vehicle information display.

[City view]

When this mode is selected, the view on the vehicle infor-
mation display will switch from the Arrow view to the City
view as the vehicle approaches a guide point.

4. Push the OK button to turn on or off the [Alerts] setting or to toggle the view mode between [Arrow]

or [City].

2-32

Instruments and controls

Your vehicle has two types of security systems:

● Vehicle security system
● NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and
audible alarm signals if someone opens the
doors, trunk, liftgate or the hood when the system
is armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.

The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-

ways secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key in
the vehicle, and always lock the vehicle when
unattended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.

Many devices offering additional protection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection features.

How to arm the vehicle security
system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the Intelligent Key from the vehicle.

3. Close all doors, hood and trunk/liftgate.

Lock all doors. The doors can be locked with
the Intelligent Key, door handle request
switch (if so equipped), or mechanical key.

4. Confirm that the

security indicator

light stays on for about 30 seconds. The
vehicle security system is now pre-armed.
The vehicle security system will automati-
cally shift into the armed phase. The
security light begins to flash once every

three seconds. If during the pre-armed
phase one of the following occurs, the sys-
tem will not arm:

● Any door is unlocked with the mechanical

key, the Intelligent Key or door request
switch (if so equipped).

● Ignition switch is placed in ACC or ON

position.

● Even when the driver and/or passen-

gers are in the vehicle, the system will
activate with all the doors, hood and
trunk lid locked with the ignition switch
placed in the LOCK position. When
placing the ignition switch in the ACC
or ON position, the system will be re-
leased.

Vehicle security system activation

The vehicle security system will give the following
alarm:

● The headlights blink and the horn sounds

intermittently but synchronously.

● The alarm automatically turns off after a pe-

riod of time. However, the alarm reactivates if
the vehicle is tampered with again.

LIC2930

SECURITY SYSTEMS

Instruments and controls

2-33

The alarm is activated by:

● opening any door or hood without using the

key or Intelligent Key (even if the door is
unlocked by releasing the door inside lock
knob).

How to stop an activated alarm

The alarm stops only by unlocking a door or the
trunk/liftgate with the mechanical key, pressing
the

button on the Intelligent Key, or press-

ing the request switch on the driver’s or passen-
ger’s door with the Intelligent Key in range of the
door handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of a
registered key.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.

For Canada:

This device complies with Industry Canada
license-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation
of the device.

Security indicator light

The security indicator light blinks whenever the
ignition switch is placed in the OFF, LOCK or ACC
position. This function indicates the NISSAN Ve-
hicle Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.

If the light still remains on and/or the engine
will not start, seek service for the NISSAN
Vehicle Immobilizer System service as soon
as possible. Please bring all registered keys
that you have. It is recommended you visit a
NISSAN dealer for this service.

LIC0474

2-34

Instruments and controls

SWITCH OPERATION

The windshield wiper and washer operates when
the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

䊊

Intermittent (INT) — intermittent operation
can be adjusted by turning the knob toward

䊊

(Slower) or

䊊

(Faster).

䊊

Low (LO) — continuous low speed operation

䊊

High (HI) — continuous high speed opera-
tion

Lift the lever up

䊊

to have one sweep operation

(MIST) of the wiper.

Pull the lever toward you

䊊

to operate the

washer. The wiper will also operate several times.

WARNING

In freezing temperatures the washer solu-
tion may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the windshield.

CAUTION

● Do not operate the washer continuously

for more than 30 seconds.

● Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

● Do not fill the windshield-washer fluid

reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl

alcohol

based

windshield-

washer fluid concentrates may perma-
nently stain the grille if spilled while
filling

the

windshield-washer

fluid

reservoir.

● Pre-mix windshield-washer fluid con-

centrates with water to the manufactur-
er’s recommended levels before pour-
ing the fluid into the windshield-washer
fluid

reservoir.

not

use

the

windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately
1 minute, turn the switch on again to op-
erate the wiper.

LIC3028

WIPER AND WASHER SWITCH

Instruments and controls

2-35

REAR SWITCH OPERATION

If the rear window wiper operation is interrupted
by snow, etc., the wiper may stop moving to
protect its motor. If this occurs, turn the wiper
switch to OFF and remove the snow, etc. on and
around the wiper arms. After about 1 minute, turn
the switch ON again to operate the wiper.

The rear window wiper and washer operate when
the ignition switch is in the ON position. Turn the
switch clockwise from the OFF position to oper-
ate the wiper.

䊊

Intermittent (INT) — intermittent operation
(not adjustable)

䊊

Low (ON) — continuous low speed opera-
tion

Push the switch forward

䊊

to operate the

washer. The wiper will also operate several times.

WARNING

In freezing temperatures the washer solu-
tion may freeze on the window and ob-
scure your vision. Warm the rear window
with the defroster before you wash the
rear window.

CAUTION

● Do not operate the washer continuously

for more than 30 seconds.

● Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

● Do not fill the windshield-washer fluid

reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl

alcohol

based

windshield-

washer fluid concentrates may perma-
nently stain the grille if spilled while
filling

the

windshield-washer

fluid

reservoir.

● Pre-mix windshield-washer fluid con-

centrates with water to the manufactur-
er’s recommended levels before pour-
ing the fluid into the windshield-washer
fluid

reservoir.

not

use

the

windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

LIC3101

2-36

Instruments and controls

To defrost the rear window glass and outside
mirrors start the hybrid system and push the rear
window defroster switch on. The rear window
defroster indicator light on the switch comes on.
Push the switch again to turn the defroster off.

The rear window defroster automatically turns off
after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.

NOTE:

The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio system.

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position, and

the front parking, tail, license plate, and in-
strument panel lights will come on.

䊊

Rotate the switch to the

position, and

the headlights will come on and all the other
lights remain on.

LIC2923

Type A (if so equipped)

LIC3240

REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

Instruments and controls

2-37

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Autolight system

The autolight system allows the headlights to turn
on and off automatically. The autolight system
can:

● Turn on the headlights, front parking, tail,

license plate and instrument panel lights au-
tomatically when it is dark.

● Turn off all the lights (except daylight running

lights) when it is light.

● Keep all the lights on for a period of time after

you place the ignition switch in the OFF
position and all doors are closed.

NOTE:

Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to “Ve-
hicle information display” in this section.
To turn on the autolight system:

1. Turn the headlight switch to the AUTO posi-

tion

䊊

2. Turn the ignition switch to ON.

3. The autolight system automatically turns the

headlights on and off.

Initially, if the ignition switch is turned OFF and a
door is opened and left open, the headlights
remain ON for a period of time. If another door is
opened while the headlights are on, then the
timer is reset.

To turn the autolight system off, turn the switch to

the OFF,

, or

position.

Type B (if so equipped)

LIC3241

LIC3474

2-38

Instruments and controls

Be sure you do not put anything on top of
the autolight sensor located in the top side

䊊

of the instrument panel. The autolight

sensor controls the autolight; if it is cov-
ered, the autolight sensor reacts as if it is
dark out and the headlights will illuminate.
If this occurs while parked with the engine
off and the ignition switch placed in the ON
position, your vehicle’s battery could be-
come discharged.

Headlight beam select

䊊

To select the high beam function, push the
lever forward while the low beams are on.
The high beam lights come on and the
indicator light illuminates.

䊊

Pull the lever back to return to the low beam.

䊊

Pulling and releasing the lever flashes the
headlight high beams on and off. The low
beams do not need to be on for this to
function.

Battery saver system

If the ignition switch is placed in the OFF position
while the headlight switch is in the
or

position, the headlights will turn off after

a period of time.

CAUTION

Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.

DAYTIME RUNNING LIGHT SYSTEM

The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights oper-
ate with the headlight switch in the OFF position
or in the

position. Turn the headlight switch

to the

position for full illumination when

driving at night.

LIC2237

LIC3250

Instruments and controls

2-39

If the parking brake is applied before the engine is
started, the daytime running lights do not illumi-
nate. The daytime running lights illuminate when
the parking brake is released. The daytime run-
ning lights will remain on until the ignition switch
is placed in the OFF position.

WARNING

When the daytime running light system is
active, tail lights on your vehicle are not
on. It is necessary at dusk to turn on your
headlights. Failure to do so could cause
an accident injuring yourself and others.

INSTRUMENT BRIGHTNESS
CONTROL

Press the “-” button

䊊

to decrease the bright-

ness of instrument panel lights.

Press the “+” button

䊊

to increase the bright-

ness of instrument panel lights.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automatically.

Lane change signal

䊊

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.

LIC2624

LIC3252

2-40

Instruments and controls

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.

Choose the appropriate method to signal a lane
change based on road and traffic conditions.

For additional information on disabling the 3 flash
pass turn indicator, refer to “How to use the
vehicle information display” in this section.

FOG LIGHT SWITCH

To turn the fog lights on, rotate the headlight
switch to the

position, then rotate the fog

light switch to the

position.

To turn the fog lights on with the headlight switch
in the AUTO position, the headlights must be on,
then rotate the fog light switch to the

po-

sition.
To turn the fog lights off, rotate the fog light
switch to the OFF position.

The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.

To sound the horn, push near the horn icon on the
steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.

LIC3256

LIC3178

HORN

Instruments and controls

2-41

The front seats are warmed by built-in heaters.

1. Start the hybrid system.

2. Push the LO or HI position of the switch, as

desired. The indicator light in the switch will
illuminate.

The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.

3. When the seat is warmed or before you

leave the vehicle, be sure to push the switch
to turn it off.

WARNING

Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.

CAUTION

● The battery could run down if the seat

heater is operated while the engine is
not running.

● Do not use the seat heater for extended

periods or when no one is using the
seat.

● Do not put anything on the seat which

insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

● Do not place anything hard or heavy on

the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

● Any liquid spilled on the heated seat

should be removed immediately with a
dry cloth.

● When cleaning the seat, never use

gasoline, benzine, thinner, or any simi-
lar materials.

● If any malfunctions are found or the

heated seat does not operate, turn the
switch off and have the system checked.
It is recommended you visit a NISSAN
dealer for this service.

LIC3475

HEATED SEAT SWITCHES (if so
equipped)

2-42

Instruments and controls

WARNING

CAUTION

● The battery could run down if the seat

heater is operated while the engine is
not running.

● Do not use the seat heater for extended

periods or when no one is using the
seat.

● Do not put anything on the seat which

insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

● Do not place anything hard or heavy on

the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

● Any liquid spilled on the heated seat

should be removed immediately with a
dry cloth.

● When cleaning the seat, never use

gasoline, benzine, thinner, or any simi-
lar materials.

● If any malfunctions are found or the

heated seat does not operate, turn the
switch off and have the system checked.
It is recommended you visit a NISSAN
dealer for this service.

The rear seats are warmed by built-in heaters.
The switches are located on the rear of the front
center console and can be operated indepen-
dently of each other.

1. Start the hybrid system.

2. Push the LO or HI position of the switch, as

desired. The indicator light in the switch will
illuminate.

The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.

LIC3475

HEATED REAR SEAT SWITCHES (if so
equipped)

Instruments and controls

2-43

3. When the seat is warmed or before you

leave the vehicle, be sure to turn the switch
off.

The climate controlled seat warms up or cools
down the front seat by blowing warm or cool air
from under the surface of the seat. The climate
control switch is located on the center console.

The climate controlled seat can be operated as
follows:

1. Start the hybrid system.

2. Turn the control knob

䊊

to the heat side

䊊

or the cool side

䊊

. The indicator light

䊊

the control knob will illuminate.

3. Adjust the desired amount of air using the

control knob. The climate controlled seat
blower remains on low speed for approxi-

mately 60 seconds after turning the switch
on or selecting the desired temperature.

4. When the vehicle’s interior is warmed or

cooled, or before you leave the vehicle, be
sure to turn the control knob to the OFF
(center) position. The indicator light

䊊

the control knob goes off with the switch in
the OFF (center) position.

To check the air filter for the climate controlled
seat, it is recommended you contact a NISSAN
dealer.

WARNING

Do not use or allow occupants to use the
climate controlled seats if you or the oc-
cupants can not monitor seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the seat.
Use of the climate controlled seats by
such people could result in serious injury.

CAUTION

● The battery could run down if the cli-

mate control seat is operated while the
engine is not running.

● Do not use the climate control seat for

extended periods or when no one is
using the seat.

SIC4334

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

2-44

Instruments and controls

● Do not put anything on the seat which

insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

● Do not place anything hard or heavy on

the seat or pierce it with a pin or similar
objects. This may result in damage to
the climate controlled seat.

● Any liquid spilled on the seat should be

removed immediately with a dry cloth

● The climate controlled seat has an air

filter. Do not operate the climate con-
trolled seat without an air filter. This
may result in damage to the system.

● When cleaning the seat, never use

gasoline, benzine, thinner, or any simi-
lar materials.

● If any malfunctions are found or the

climate controlled seat does not oper-
ate, turn the switch off and have the
system checked. It is recommended you
visit a NISSAN dealer for this service.

The heated steering wheel system is designed to
operate only when the surface temperature of the
steering wheel is below 68°F (20°C).

Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light will come on.

If the surface temperature of the steering wheel is
below 68°F (20°C), the system will heat the
steering wheel and cycle off and on to maintain a
temperature above 68°F (20°C). The indicator
light will remain on as long as the system is on.

Push the switch again to turn the heated steering
wheel system off manually. The indicator light will
go off.

NOTE:

If the surface temperature of the steering
wheel is above 68°F (20°C) when the switch
is turned on, the system will not heat the
steering wheel. This is not a malfunction.

LIC3476

HEATED STEERING WHEEL SWITCH
(if so equipped)

Instruments and controls

2-45

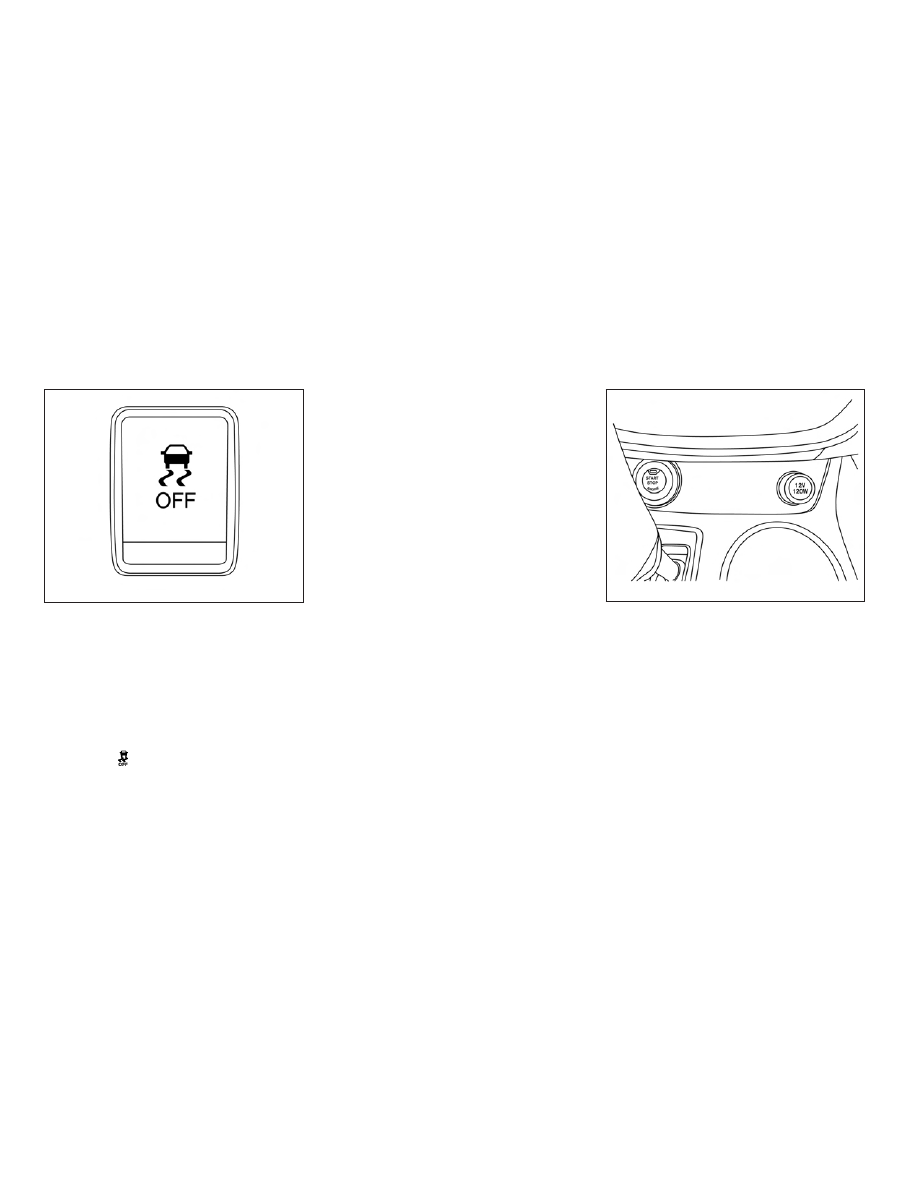

The vehicle should be driven with the VDC sys-
tem on for most driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF
switch. The

indicator will come on.

Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual.

12V OUTLETS

The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.

The vehicle’s power outlets are powered only
when the ignition switch is in the ACC (if so
equipped) or ON position.

Open the cap to use a power outlet.

LIC3344

Instrument Panel

LIC3002

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

POWER OUTLETS

2-46

Instruments and controls

CAUTION

● The outlet and plug may be hot during

or immediately after use.

● Only certain power outlets are designed

for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
you visit a NISSAN dealer for additional
information.

● Do not use with accessories that exceed

a 12 volt, 120W (10A) power draw.

● Do not use double adapters or more

than one electrical accessory.

● Use power outlets with the engine run-

ning to avoid discharging the vehicle
battery.

● Avoid using power outlets when the air

conditioner, headlights or rear window
defroster is on.

● Before inserting or disconnecting a

plug, be sure the electrical accessory
being used is turned OFF.

● Push the plug in as far as it will go. If

good contact is not made, the plug may
overheat or the internal temperature
fuse may open.

● When not in use, be sure to close the

cap. Do not allow water or any other
liquid to contact the outlet.

Center Console

LIC2616

Cargo Area

LIC2617

Instruments and controls

2-47

Nissan Murano Hybrid (2016 year). Instruction - part 9
