Nissan Micra (2018 year). Instruction - part 17

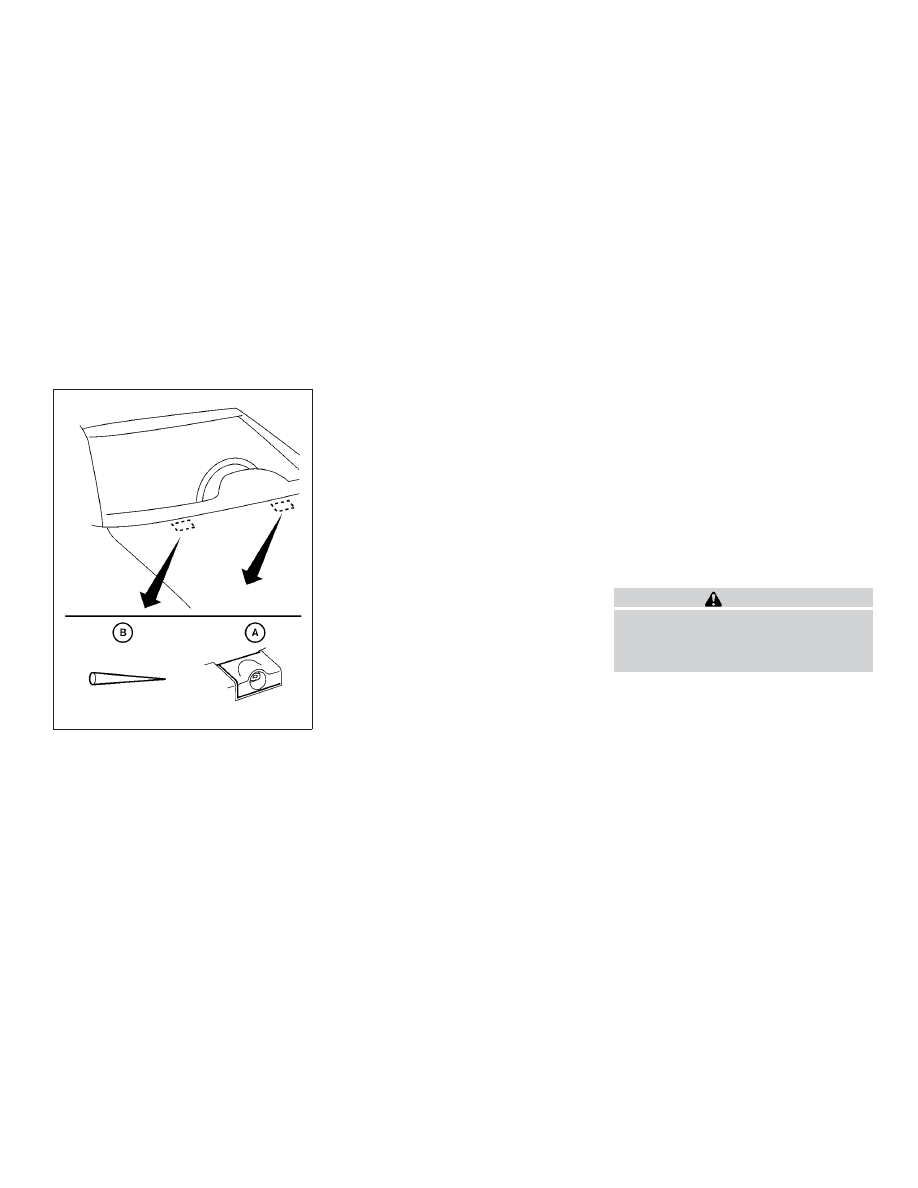

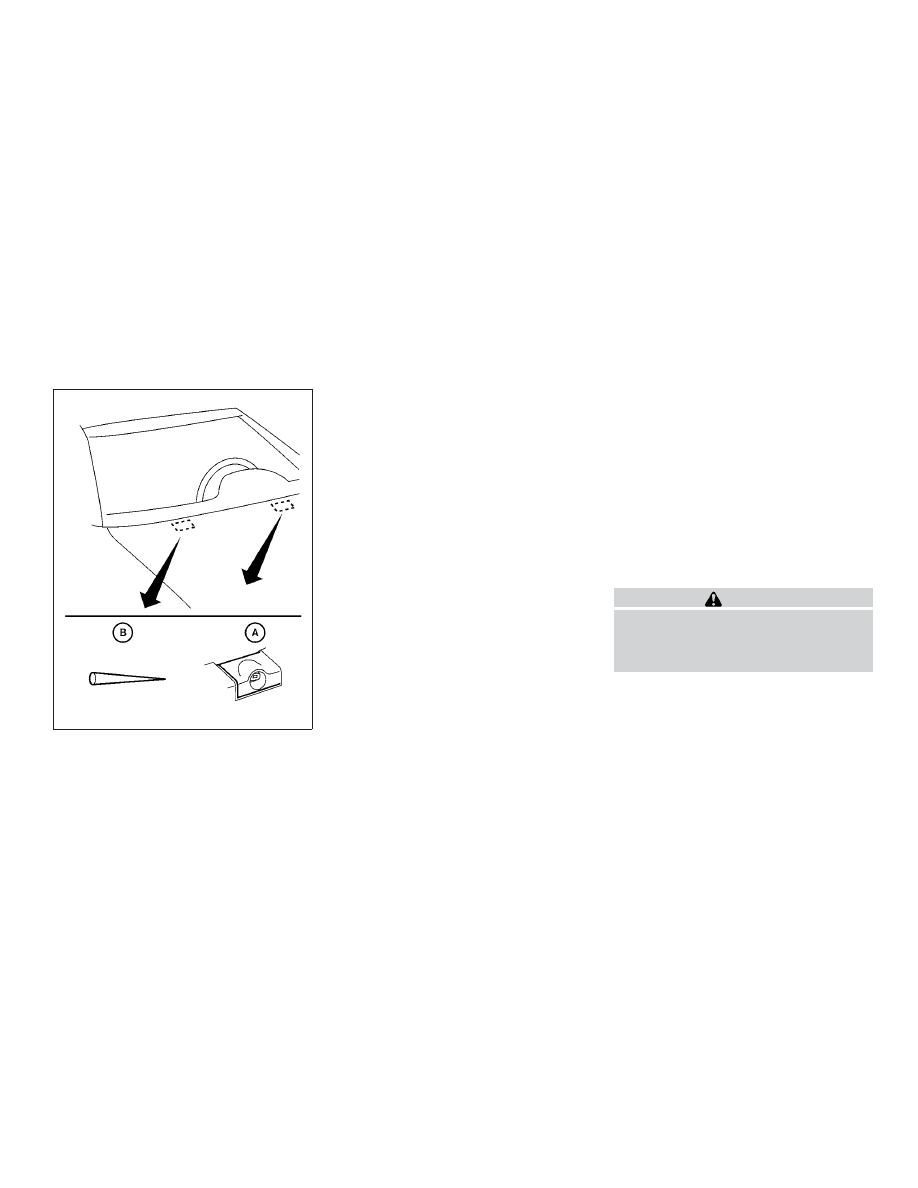

If you wax the surface of the hood, be care-
ful not to let wax get into the windshield
washer nozzle

䊊

. This may cause clogging

or improper windshield washer operation.
If wax gets into the nozzle, remove it with a
needle or small pin

䊊

Rear window wiper blade

If checking or replacement is required, it is
recommend that you visit a NISSAN dealer
for this service.

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front disc-type brakes self-adjust ev-
ery time the brake pedal is applied. The rear
drum-type brakes self-adjust every time
the parking brake is applied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended that you
visit a NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires

replacement,

high

pitched

scraping or screeching sound will be heard
when the vehicle is in motion. The noise will
be heard whether or not the brake pedal is
depressed. Have the brakes checked as
soon as possible if the wear indicator
sound is heard.

WDI0570

BRAKES

Do-it-yourself

8-17

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information re-
garding brake inspections, refer to the ap-
propriate maintenance schedule informa-
tion in the "Maintenance and schedules"
section of this manual.

If any electrical equipment does not oper-
ate, check for an open fuse.

Fuses are used in the passenger compart-
ment. Spare fuses are provided and can be
found in the passenger compartment fuse
box.

When installing a fuse make sure the fuse is
installed in the fuse box securely.

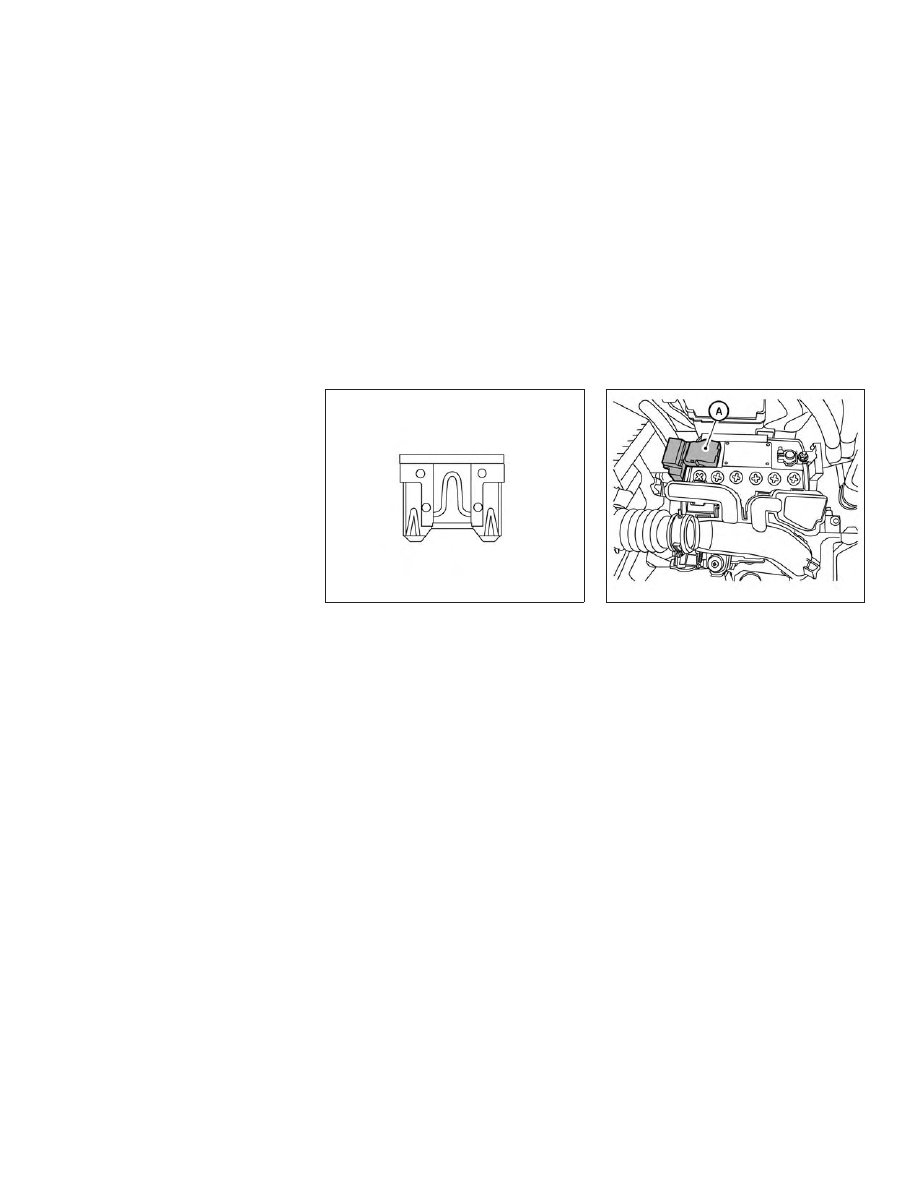

ENGINE COMPARTMENT

Fusible links

If any electrical equipment does not oper-
ate and the fuses are in good condition,
check the fusible links

䊊

in the holder. If

any of the fusible links are melted, replace
only with Genuine NISSAN parts.

For checking and replacing the fusible links,
it is recommended that you visit a NISSAN
dealer for this service.

LDI2385

LDI2792

FUSES

8-18

Do-it-yourself

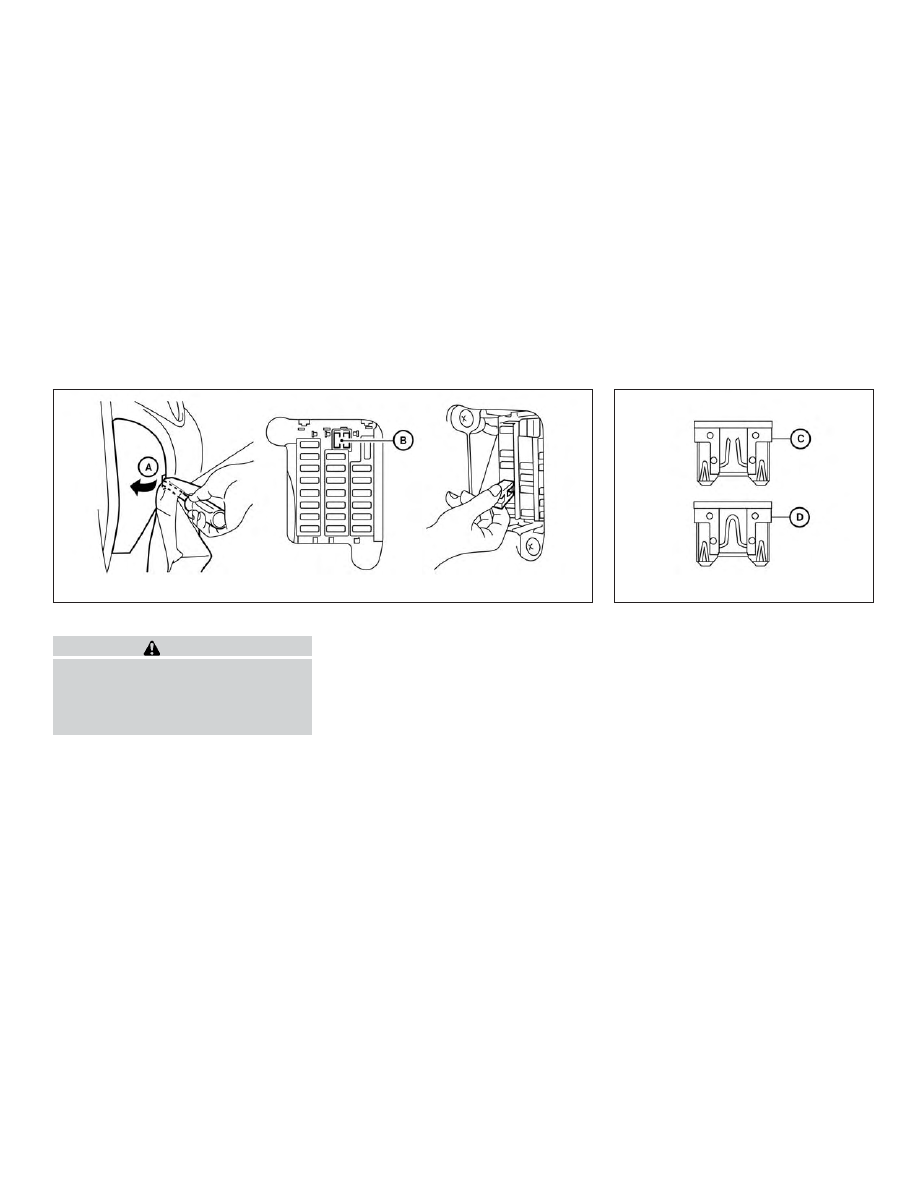

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

NOTE:

The fuse box is located on the driver’s
side of the instrument panel.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Remove the fuse box cover

䊊

with a

suitable tool. Use a cloth to avoid dam-
aging the trim.

3. Locate the fuse that needs to be re-

placed.

4. Remove the fuse with the fuse puller

䊊

5. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI2712

LDI2713

Do-it-yourself

8-19

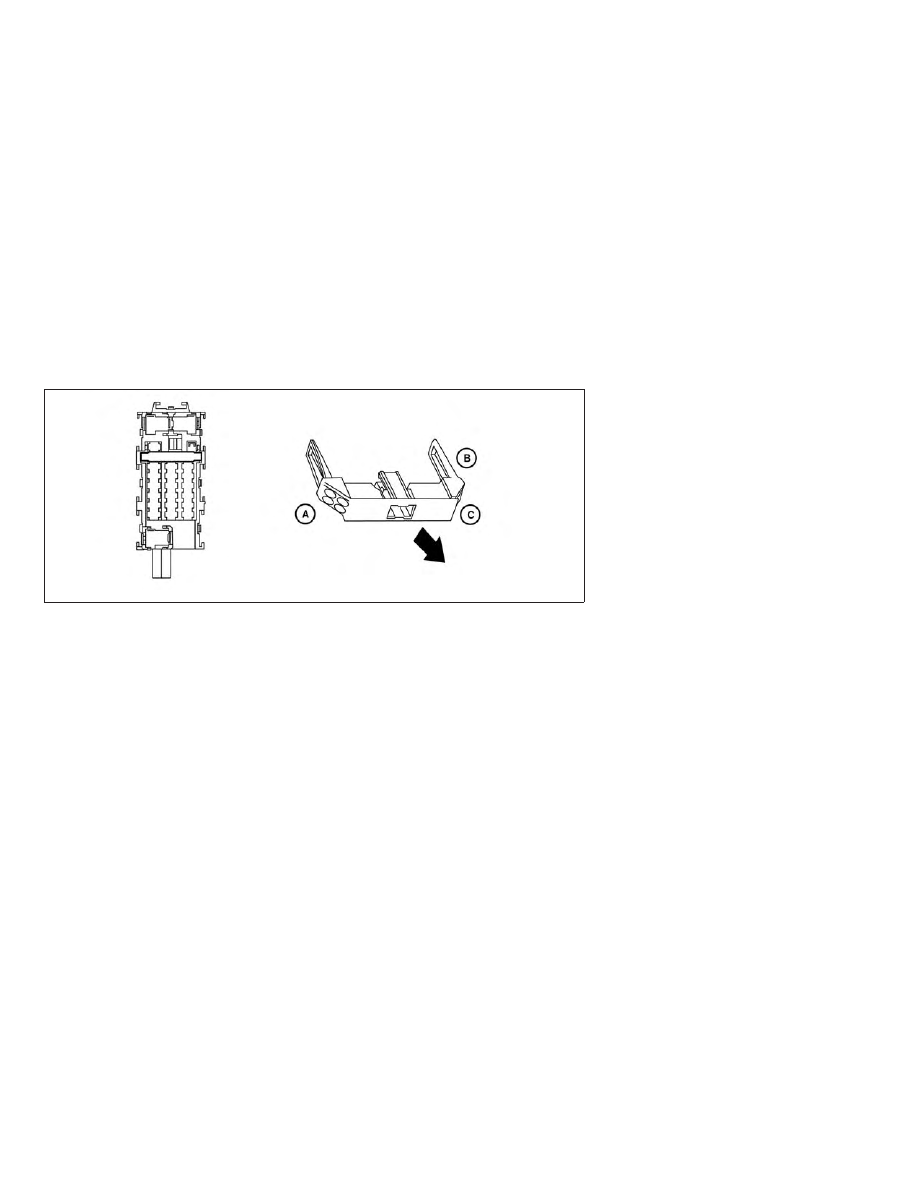

Extended storage switch

If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

How to replace the extended storage
switch:

1. To

remove

the

extended

storage

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlight switch is in the

OFF position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

䊊

and

䊊

found

on each side of the storage switch.

5. Pull the storage switch straight out

from the fuse box

䊊

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI2747

8-20

Do-it-yourself

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

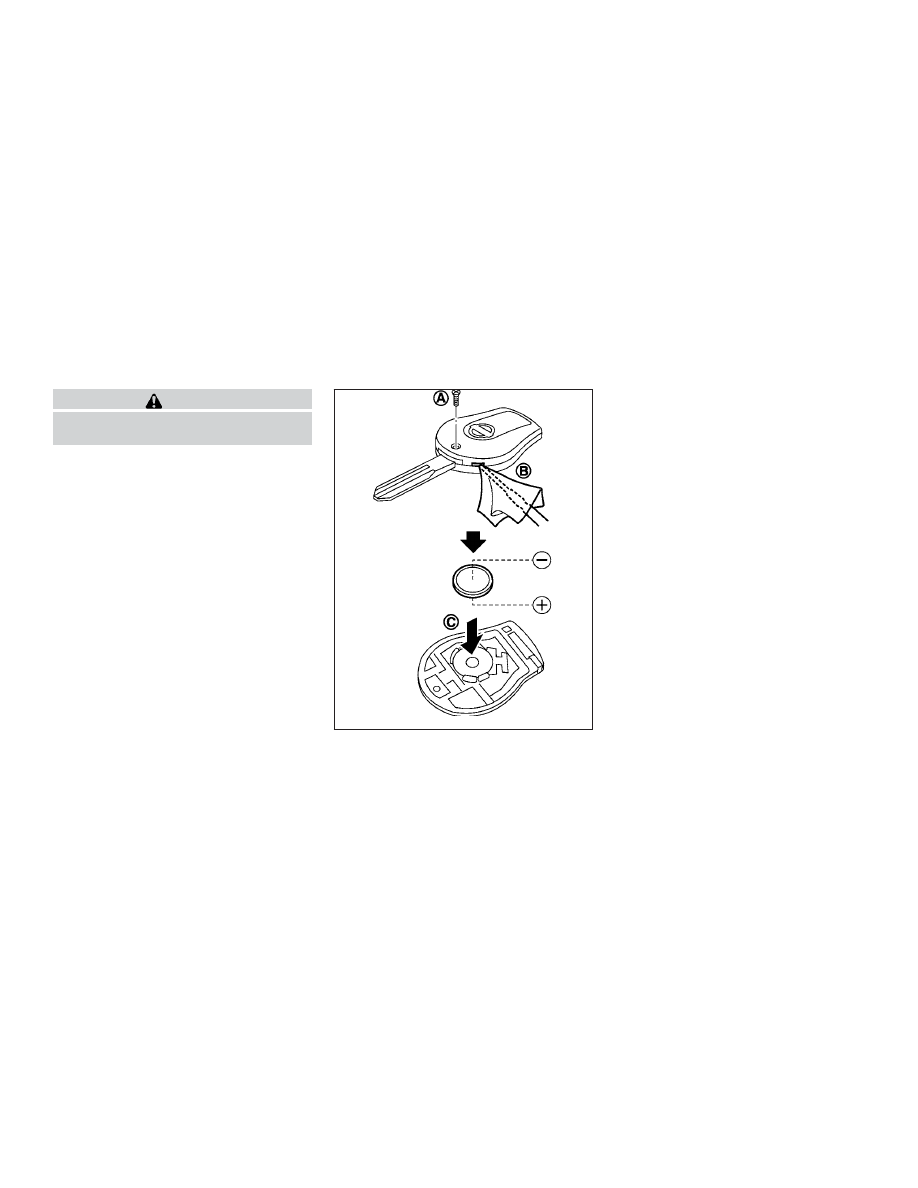

KEY FOB (if so equipped)

Replace the battery in the key fob as fol-
lows:

1. Remove the screw

䊊

2. Insert a small screwdriver into the slit of

the corner

䊊

and twist it to separate

the upper part from the lower part. Use
a cloth to protect the casing.

3. Replace the battery with a new one.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Make sure that the + side faces the

bottom of the case

䊊

Recommended battery: CR1620 or equiva-
lent.

4. Close the lid and install the screw se-

curely.

5. Operate the buttons to check its op-

eration.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

If the battery is removed for any reason
other than replacement, perform step 5.

∙ An improperly disposed battery can

hurt the environment. Always con-
firm local regulations for battery dis-
posal.

SDI2134A

BATTERY REPLACEMENT

Do-it-yourself

8-21

∙ The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

∙ The operational range of the key fob

extends to approximately 10 m (33 ft)
from the vehicle. This range may vary
with conditions.

Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation of the device.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

LIGHTS

8-22

Do-it-yourself

Replacing the halogen headlight
bulb

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside

the engine compartment without remov-
ing the headlight assembly.

CAUTION

∙ High-pressure halogen gas is sealed

inside the bulb. The bulb may break if
the glass envelope is scratched or the
bulb is dropped.

∙ Aiming should not be necessary after

replacing the H4 bulb. When aiming
adjustment is necessary, it is recom-
mended that you visit a NISSAN dealer
for this service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ Use the same number and wattage as

shown in the chart.

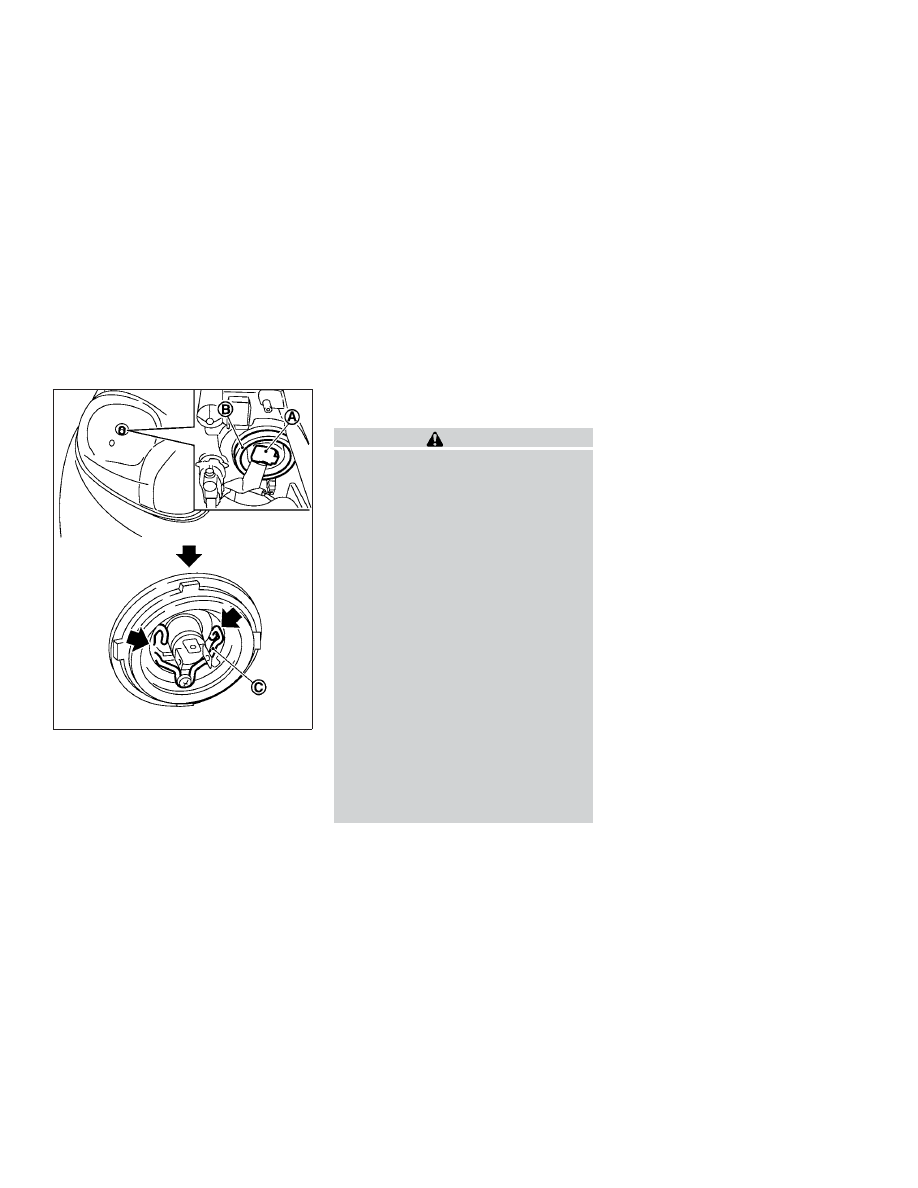

1. Disconnect the battery negative cable.

2. Disconnect the electrical connector

䊊

from the rear end of the bulb.

3. Pull off the rubber cap

䊊

4. Push and turn the retaining pin

䊊

loosen it.

5. Remove the headlight bulb. Do not

shake or rotate the bulb when remov-
ing it.

6. Install the new bulb in the reverse order

of removal.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.

JVM0002X

Do-it-yourself

8-23

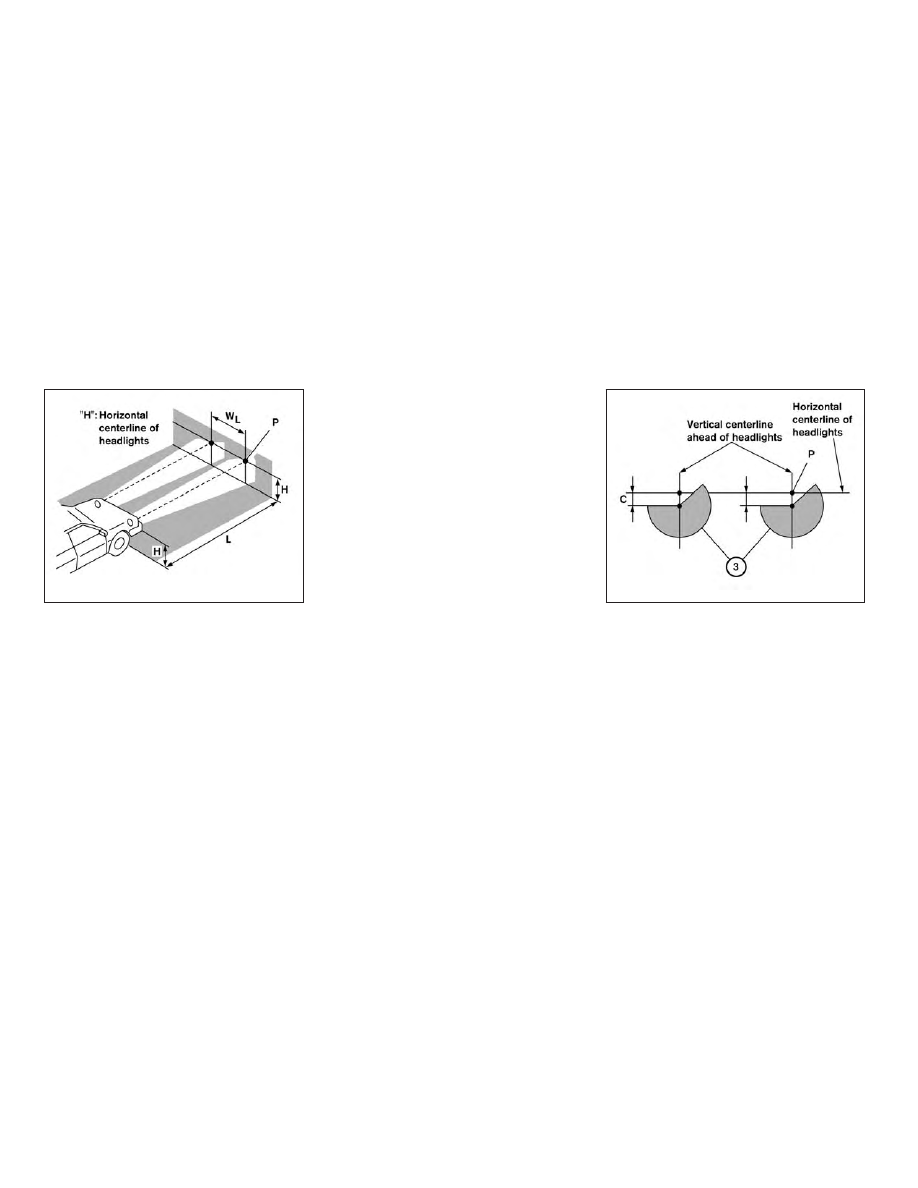

HEADLIGHT AIM

The aim of the headlights may require ad-
justment when replacing the headlight as-
sembly or when the vehicle’s front body
has been repaired. When the adjustment is
required, follow these procedures, or have
them adjusted by a NISSAN dealer.

Before performing the headlights aim ad-
justment:

∙ Check the pressure of all tires for the

correct inflation pressure.

∙ Check that the tools and spare tire are

stowed securely.

∙ Check that the fuel and lubricants levels

are filled to correct capacities.

∙ Unload all luggage and other items,

which

may

influence

the

vehicle’s

height level.

∙ Load a weight on the driver’s seat that is

equivalent to the weight of a driver.

Stopping the vehicle

1. Park the vehicle on a level surface verti-

cal to the wall or screen to which the
headlights will be projected.

2. Move the vehicle close to the wall to

determine the point P as shown in the
illustration.

The point P must be:

“H” is the distance between the head-
light’s center point to the level surface.

“WL” is the distance between the left
and right headlights’ centers.

LDI2422

LDI2423

8-24

Do-it-yourself

3. Mark point P on the wall or screen.

4. Back up the vehicle 5,000 mm (197.0 in,

16.4 ft) straight away from the wall or
screen.

”L” is the distance between the wall or
screen to the vehicle’s front bumper.

5. Apply the parking brake.

Adjusting the headlight aim

Be sure that the vehicle is parked directly
vertical to the wall on which the headlights
will be projected.

1. Turn on the headlight low beam

2. Open the hood.

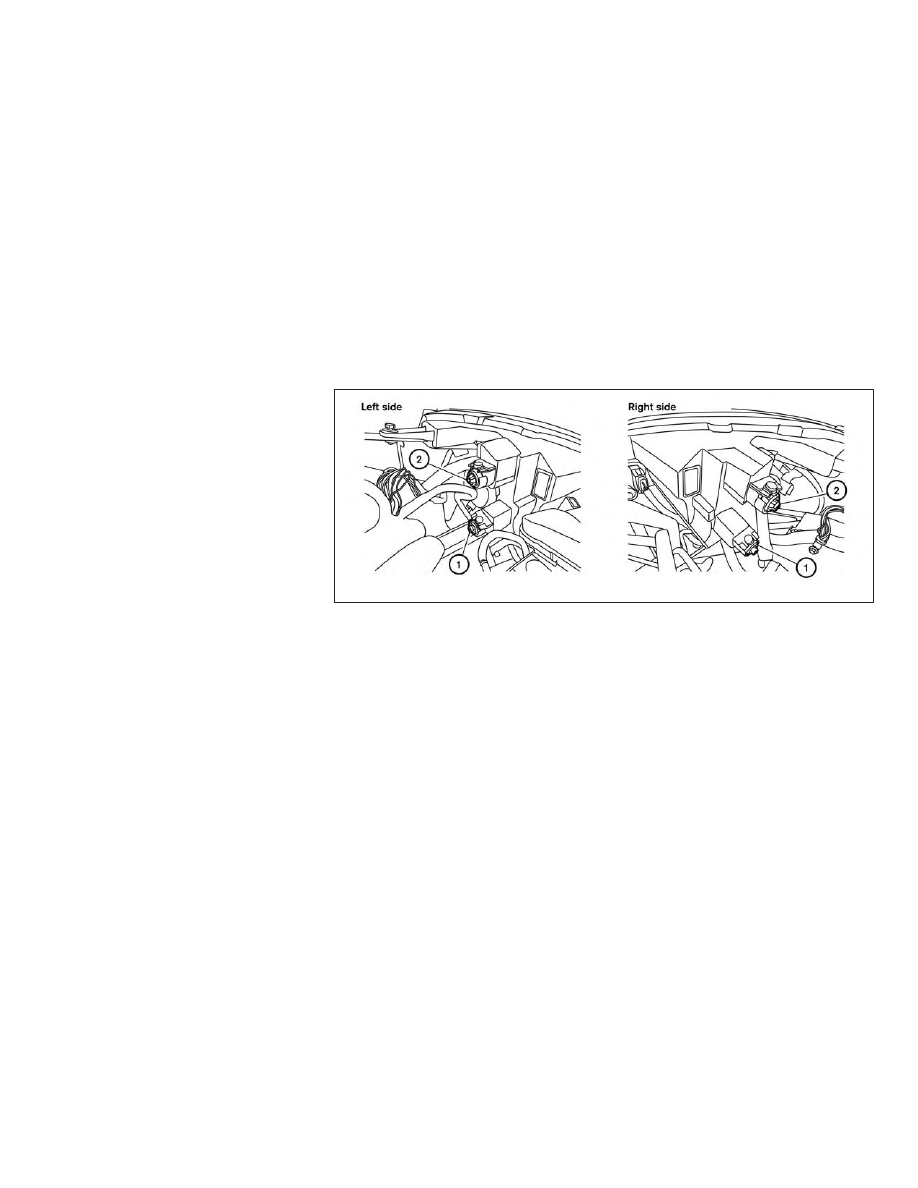

3. Turn the aiming adjustment screws

䊊

, located inside the engine compart-

ment, until the headlight projection, on
the wall or screen, does not move.

NOTE:

The aim adjustment screws are located
on each side of the headlights. The lower
screw

䊊

is used to adjust the horizontal

aim. The upper screw

䊊

is used to adjust

the vertical aim.

The screws can be turned indefinitely in
each direction. Therefore be sure to ob-
serve the headlight projection move-
ment to determine the necessary turn-
ing amount.

LDI2979

Do-it-yourself

8-25

4. Turn the lower screws

䊊

in the oppo-

site direction until the headlight projec-
tion becomes 70 mm (2.76 in) below the
point P. Once the left headlight has
been adjusted, perform right side ad-
justment as well.

”C” is the distance between point P and
point

䊊

5. Turn the upper screws

䊊

in the oppo-

site direction until the horizontal head-
light projection’s turn point

䊊

is di-

rectly below the point P. Once the left
headlight has been adjusted, perform
right side adjustment as well.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

8-26

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.*

Headlight assembly

High/Low/Daytime running light

60/55

Turn*

3457NAK

Park*

W5W

Side marker*

W5W

Fog light (if so equipped)*

H11

Interior light

W5W

Cargo light

W5W

High-mounted stop light

Spoiler (Type A) (if so equipped)

W16W

Spoiler (Type B) (if so equipped)*

—

Rear combination light*

Turn signal

WY21W

Stop/Tail

21/5

W21/5W

Backup (reversing)

W16W

License plate light

W5W

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

* If replacement is required it is recommended that you visit a NISSAN dealer for this service.

Do-it-yourself

8-27

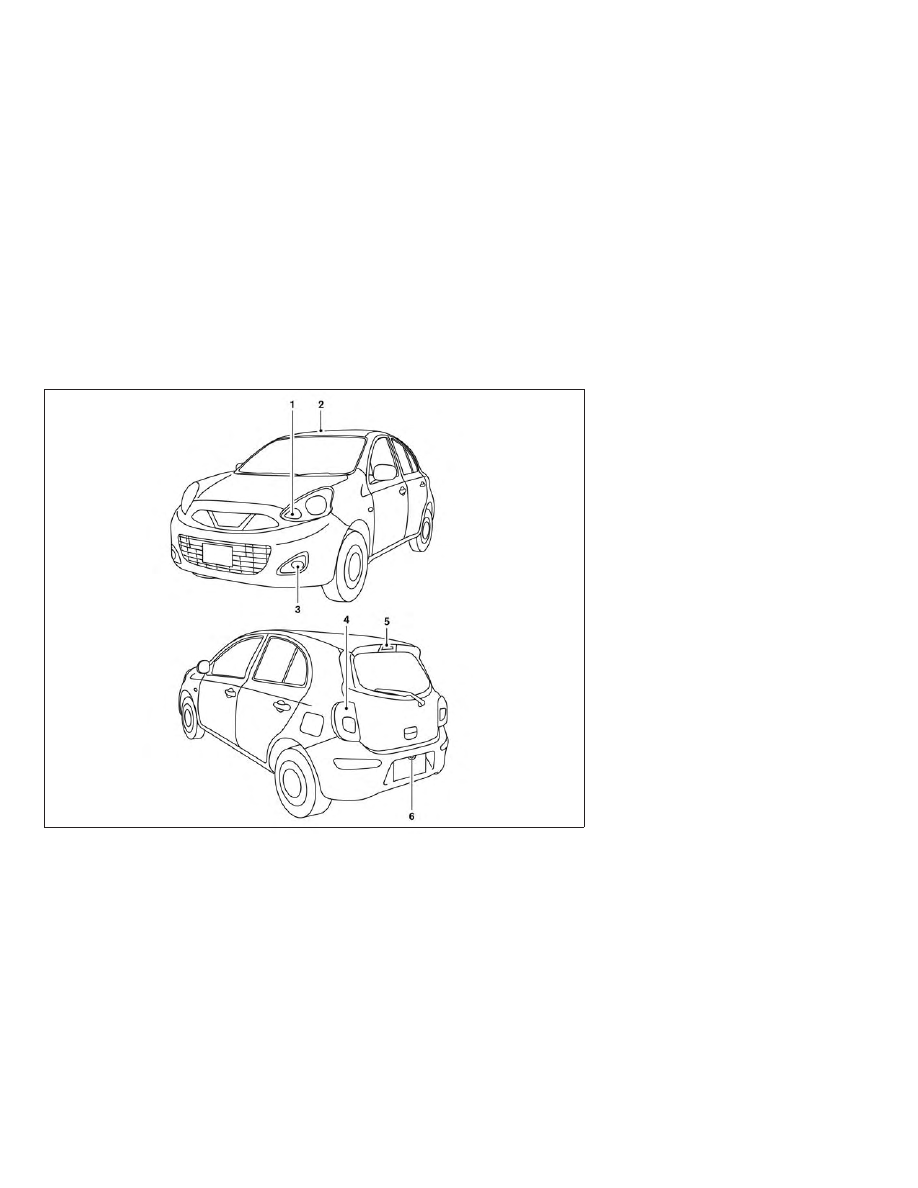

Headlight assembly

Interior light

Fog light (if so equipped)

Rear combination light

High-mounted stop light

License plate light

LDI2864

8-28

Do-it-yourself

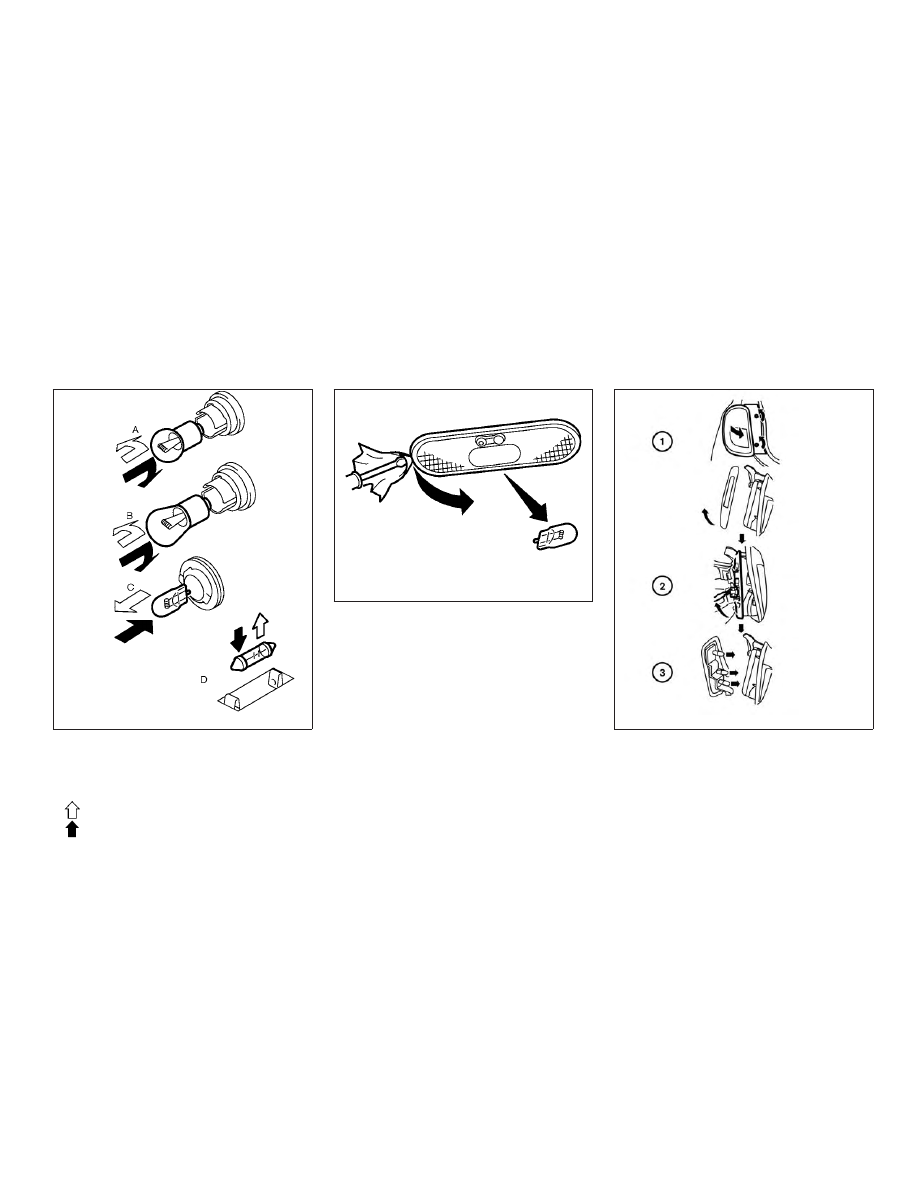

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

Use a cloth to protect the housing.

To replace the bulbs in the rear combina-
tion light:

䊊

Remove the rear combination light
mounting bolts.

SDI1805

Interior light

LDI2044

Rear combination light

LDI2374

Do-it-yourself

8-29

䊊

Carefully remove the gasket protector.

䊊

Pull rear combination light toward the
rear of the vehicle and disconnect the
rear combination light connector to re-
move the assembly.

Remove bulbs by turning counterclock-
wise and replace with new bulbs.

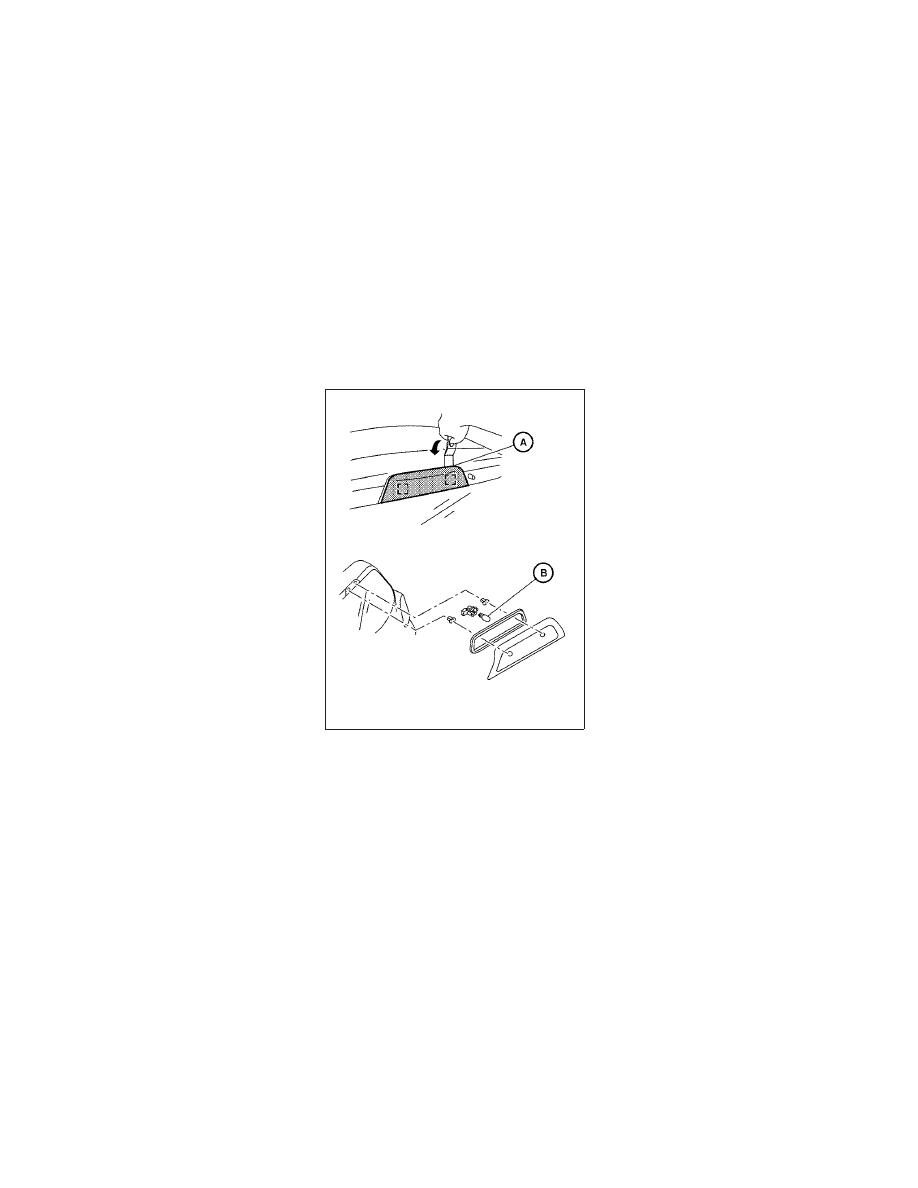

To replace the high-mounted stop light
bulb

1. Disconnect the negative (-) battery

cable.

2. Remove the lens cover of the high-

mounted stop light by inserting an ap-
propriate remover tool between the
top of the lens cover (the side not
touching the glass of the rear door)
and the vehicle

䊊

. Pull toward you.

3. After the cover is removed, disconnect

the harness connector and remove
the high-mounted stop light bulb

䊊

rotating it counterclockwise.

4. Replace with new bulb and reinstall

cover.

High-mounted stop light (Type A)

(if so equipped):

LDI2071

8-30

Do-it-yourself

To replace the luggage compartment light
bulb:

1. Remove the light

䊊

with a suitable tool.

2. Remove the cover

䊊

3. Replace the bulb.

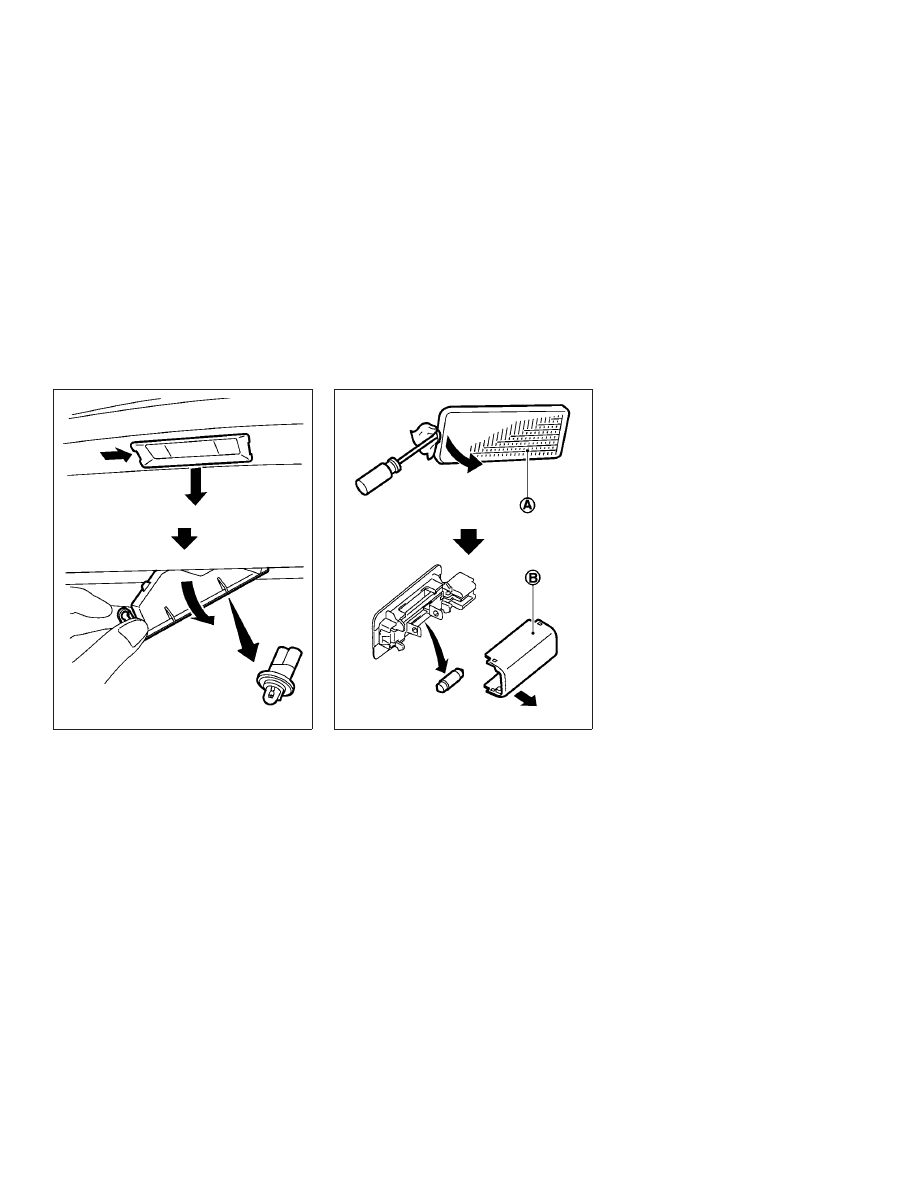

License plate light

JVC0014X

Cargo light

JVM0007X

Do-it-yourself

8-31

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the Tire and Loading
Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed
to the driver side center pillar. Tire
pressures should be checked regu-
larly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours or driven less than
1.6 km (1 mile) at moderate speeds.

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly and cause an accident.

∙ The Gross Vehicle Weight Rating

(GVWR) is located on the C.M-
.V.S.S. certification label. The ve-
hicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capac-
ity. Overloading your vehicle
may result in reduced tire life,
unsafe

operating

conditions

due to premature tire failure, or
unfavorable handling charac-
teristics and could also lead to a

serious accident. Loading be-
yond

the

specified

capacity

may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding

tires,

refer

“Tire

Safety Information” (Canada) in
the

Warranty

Information

Booklet.

WHEELS AND TIRES

8-32

Do-it-yourself

Content .. 15 16 17 18 ..
