Nissan Micra (2018 year). Instruction

Air conditioner button

Start the engine, turn the fan control dial to
the desired position and press the
button to turn on the air conditioner. The
indicator light comes on when the air con-
ditioner is operating. To turn off the air con-
ditioner, press the

button again.

The air conditioner cooling function op-
erates only when the engine is running.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

HEATER OPERATION

Heating

This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.

1. Move the air intake lever to the

position for normal heating.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Ventilation

This mode directs outside air to the side
and center vents.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

Defrosting or defogging

This mode directs the air to the defrost
outlets to defrost/defog the windows.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

∙ To quickly remove ice or fog from the

windows, turn the fan control dial to the
maximum position and the tempera-
ture control dial to the full hot position.

When the

position is se-

lected, press the

button to turn on

the air conditioner for better performance.
This will dehumidify the air and help defog
the windows.

Bi-level heating

This mode directs cooler air from the side
and center vents and warmer air from the
floor outlets. When the temperature con-
trol dial is moved to the full hot or full cool
position, the air between the vents and the
floor outlets is the same temperature.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

Heater, air conditioner, audio and phone systems

4-17

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

Heating and defogging

This mode heats the cabin and defogs the
windshield.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

When the

position is se-

lected, press the

button to turn on

the air conditioner for better performance.
This will dehumidify the air and help defog
the windows.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.

AIR CONDITIONER OPERATION

Start the engine, turn the

fan control

dial to the desired position, and press
the

button to activate the air condi-

tioner. When the air conditioner is on, cool-
ing

and

dehumidifying

functions

are

added to the heater operation.
The air conditioner cooling function op-
erates only when the engine is running.

Cooling

This mode is used to cool and dehumidify
the air.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Press the

button. The indicator

light comes on.

5. Turn the temperature control dial to

the desired position.

∙ For quick cooling when the outside

temperature is high, move the air intake
lever to the

position. Be sure to

return to the

position for normal

cooling.

Dehumidified heating

This mode is used to heat and dehumidify
the air.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Press the

button. The indicator

light comes on.

5. Turn the temperature control dial to

the desired position.

Dehumidified defogging

This mode is used to defog the windows
and dehumidify the air.

1. Move the air intake lever to the

position.

4-18

Heater, air conditioner, audio and phone systems

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the de-

sired position.

4. Turn the temperature control dial to

the desired position.

Operating tips

∙ Keep the windows closed while the air

conditioner is in operation.

∙ After parking in the sun, drive for 2 or

3 minutes with the windows open to
vent hot air from the passenger com-
partment. Then, close the windows.
This allows the air conditioner to cool
the interior more quickly.

∙ The air conditioning system should

operated

for

approximately

10 minutes at least once a month.
This helps prevent damage to the
system due to lack of lubrication.

∙ A visible mist may be seen coming from

the ventilators in hot, humid conditions
as the air is cooled rapidly. This does not
indicate a malfunction.

∙ If the engine coolant temperature

gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. For additional
information, refer to “If your vehicle
overheats” in the “In case of emer-
gency” section of this manual.

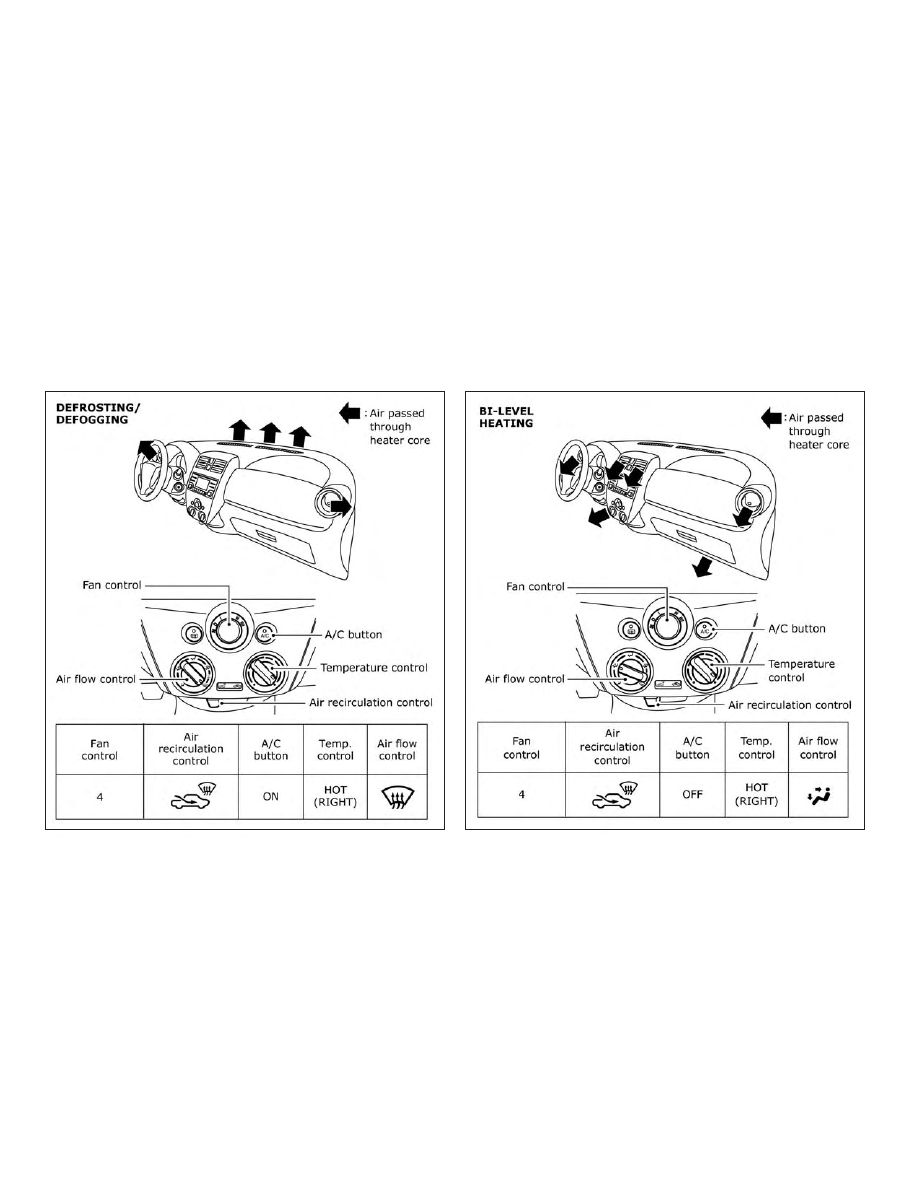

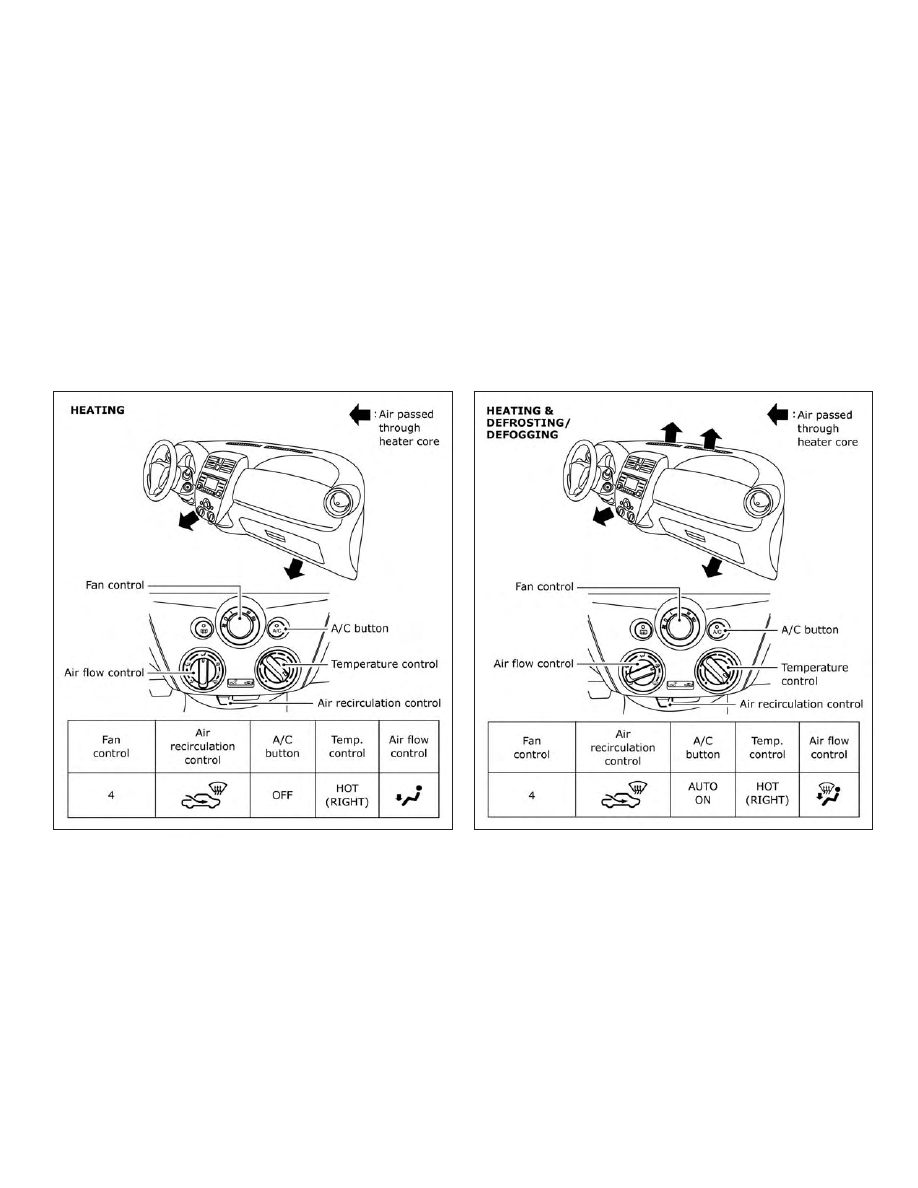

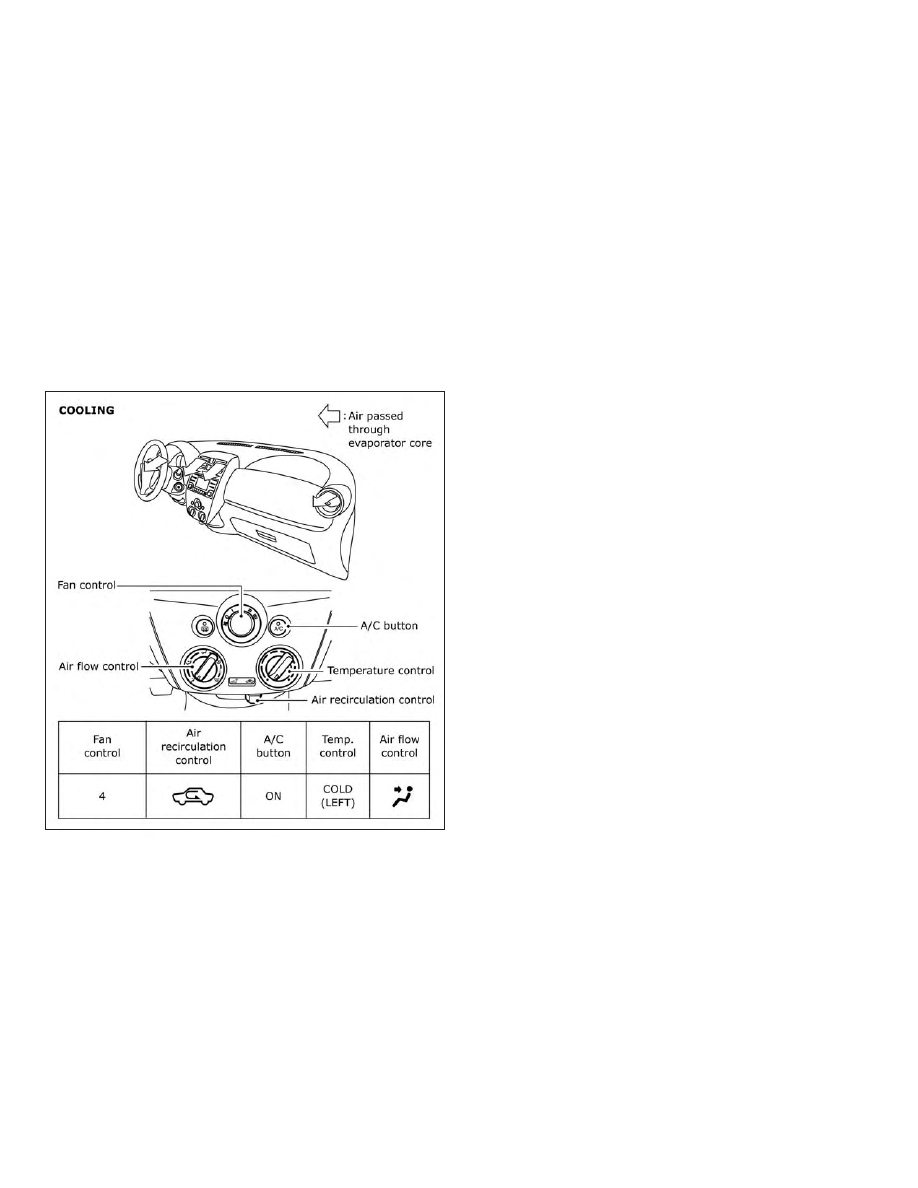

AIR FLOW CHARTS

The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating, cooling or defrosting. The air in-
take lever should always be in the
position for heating and defrosting.

Heater, air conditioner, audio and phone systems

4-19

The air conditioner system in your NISSAN
vehicle is charged with a refrigerant de-
signed with the environment in mind.
This refrigerant does not harm the
earth’s ozone layer.

Special charging equipment and lubricant
is required when servicing your NISSAN air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to
your air conditioner system. For additional
information, refer to “Air conditioner sys-
tem (if so equipped) refrigerant and oil rec-
ommendations” in the “Technical and con-
sumer information” section of this manual.

It is recommended that you visit a NISSAN
dealer to service your “environmentally
friendly” air conditioning system.

WARNING

The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by a NISSAN
dealer.

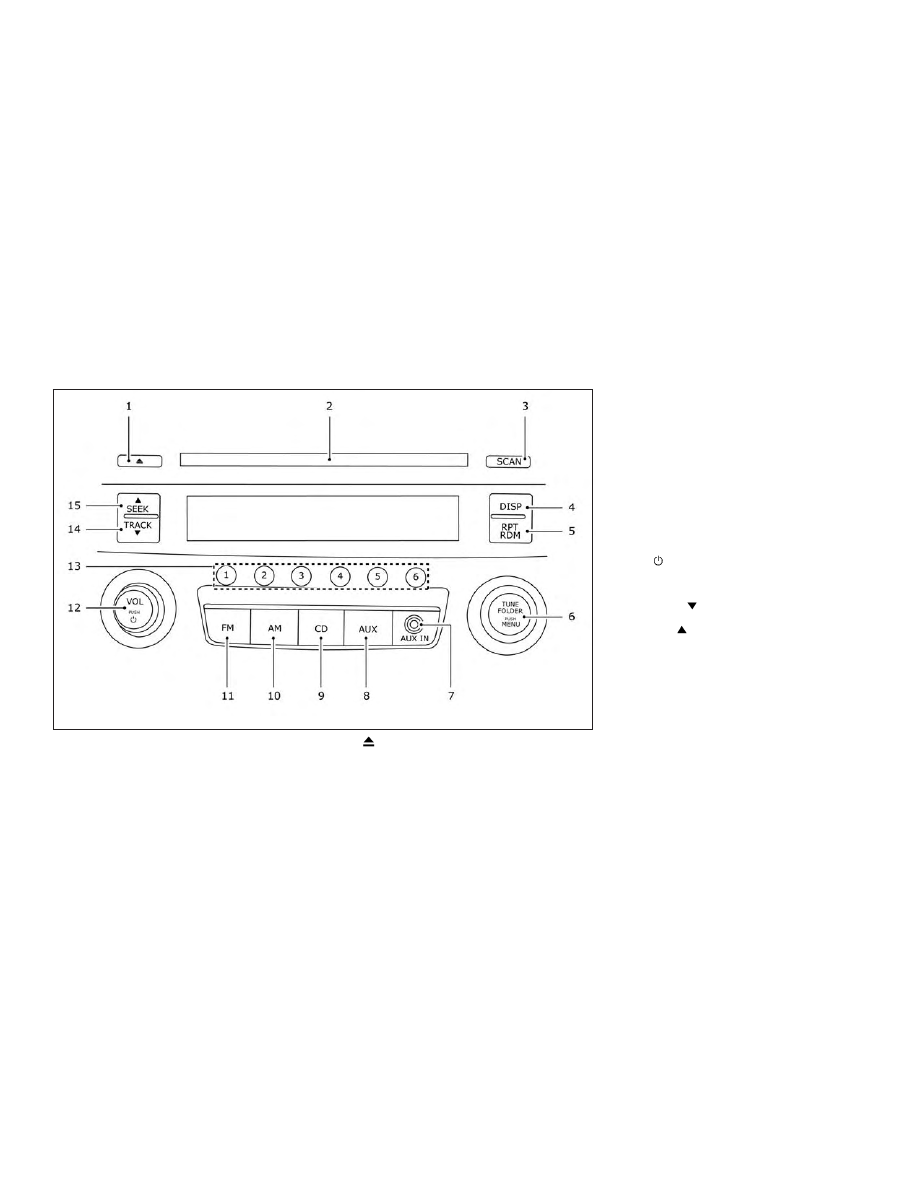

RADIO

Place the ignition switch in the ACC or ON
position and press the

(power) but-

ton / PWR (button) to turn the radio on. If
you listen to the radio with the engine not
running, the ignition switch should be
placed in the ACC position.
Radio reception is affected by station sig-
nal strength, distance from radio transmit-
ter, buildings, bridges, mountains and other
external influences. Intermittent changes
in reception quality normally are caused by
these external influences.

Using a cellular phone in or near the ve-
hicle may influence radio reception qual-
ity.

Radio reception

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to en-
hance radio reception. These circuits are
designed to extend reception range and to
enhance the quality of that reception.

However, there are some general charac-
teristics of both FM and AM radio signals
that can affect radio reception quality in a
moving vehicle, even when the finest
equipment is used. These characteristics
are completely normal in a given reception

area and do not indicate any malfunction
in your NISSAN radio system.

Reception

conditions

will

constantly

change because of vehicle movement.
Buildings, terrain, signal distance and inter-
ference from other vehicles can work
against ideal reception. Described below
are some of the factors that can affect your
radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.

FM RADIO RECEPTION

Range: FM range is normally limited to 40 –
48 km (25 – 30 mi) with monaural (single
channel) FM having slightly more range
than stereo FM. External influences may
sometimes interfere with FM station re-
ception even if the FM station is within
40 km (25 mi). The strength of the FM signal
is directly related to the distance between
the transmitter and receiver. FM signals fol-
low a line-of-sight path, exhibiting many of
the same characteristics as light. For ex-
ample, they will reflect off objects.

SERVICING AIR CONDITIONER (if so
equipped)

AUDIO SYSTEM

Heater, air conditioner, audio and phone systems

4-23

Fade and drift: As your vehicle moves away
from a station transmitter, the signals will
tend to fade and/or drift.

Static and flutter: During signal interfer-
ence from buildings, large hills or due to
antenna position (usually in conjunction
with increased distance from the station
transmitter), static or flutter can be heard.
This can be reduced by adjusting the treble
control to reduce treble response.

Multipath reception: Because of the reflec-
tive characteristics of FM signals, direct and
reflected signals reach the receiver at the
same time. The signals may cancel each
other, resulting in momentary flutter or loss
of sound.

AM RADIO RECEPTION

AM signals, because of their low frequency,
can bend around objects and skip along
the ground. In addition, the signals can be
bounced off the ionosphere and bent back
to earth. Because of these characteristics,
AM signals are also subject to interference
as they travel from transmitter to receiver.

Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas
with many tall buildings. It can also occur

for several seconds during ionospheric tur-
bulence even in areas where no obstacles
exist.

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights.

AUDIO OPERATION PRECAUTIONS

LHA0099

4-24

Heater, air conditioner, audio and phone systems

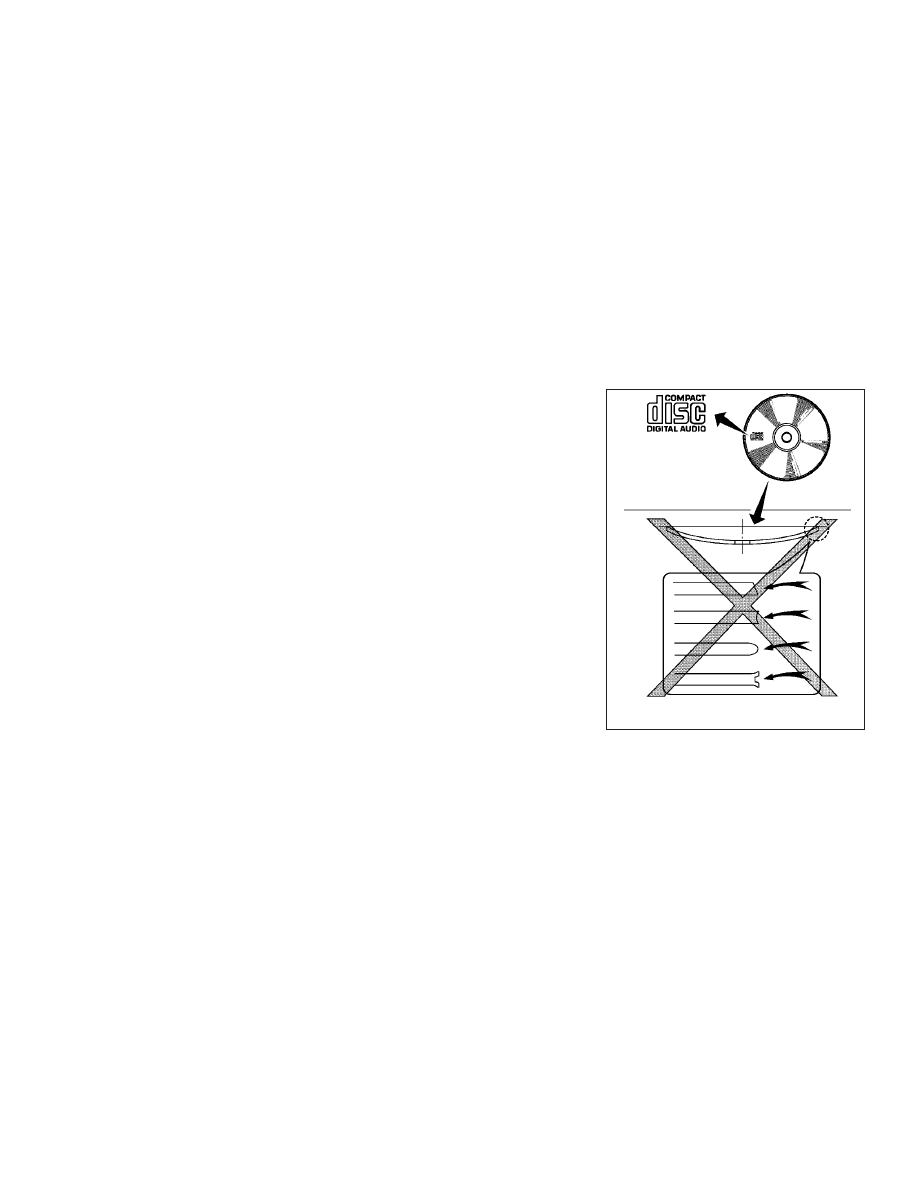

Compact disc (CD) player

CAUTION

∙ Do not force a compact disc into the

CD insert slot. This could damage the
CD and/or CD changer/player.

∙ Trying to load a CD with the CD door

closed could damage the CD and/or
CD changer.

∙ Only one CD can be loaded into the CD

player at a time.

∙ Only use high quality 12 cm (4.7 in)

round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.

∙ During cold weather or rainy days, the

player may malfunction due to the
humidity. If this occurs, remove the
CD and dehumidify or ventilate the
player completely.

∙ The player may skip while driving on

rough roads.

∙ The CD player sometimes cannot

function

when

the

compartment

temperature is extremely high. De-
crease the temperature before use.

∙ Do not expose the CD to direct sun-

light.

∙ CDs that are in poor condition or are

dirty, scratched or covered with fin-
gerprints may not work properly.

∙ The following CDs may not work

properly:

∙ Copy control compact discs (CCCD)

∙ Recordable compact discs (CD-R)

∙ Rewritable compact discs (CD-RW)

∙ Do not use the following CDs as they

may cause the CD player to malfunc-
tion:

∙ 8 cm (3.1 in) discs with an adapter

∙ CDs that are not round

∙ CDs with a paper label

∙ CDs that are warped, scratched, or

have abnormal edges

Compact disc with MP3

Terms

∙ MP3 — MP3 is short for Moving Pictures

Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital
audio file format. This format allows for
near “CD quality” sound, but at a fraction
of the size of normal audio files. MP3
conversion of an audio track from CD-
ROM can reduce the file size by approxi-
mately a 10:1 ratio with virtually no per-
ceptible

loss

quality.

MP3

compression removes the redundant
and irrelevant parts of a sound signal
that the human ear does not hear.

∙ Bit rate — Bit rate denotes the number

of bits per second used by a digital mu-
sic file. The size and quality of a com-
pressed digital audio file are deter-
mined by the bit rate used when
encoding the file.

∙ Sampling frequency — Sampling fre-

quency is the rate at which the samples
of a signal are converted from analog to
digital (A/D conversion) per second.

Heater, air conditioner, audio and phone systems

4-25

∙ ID3 tag — The ID3 tag is the part of the

encoded MP3 file that contains infor-
mation about the digital music file such
as song title, artist, album title, encoding
bit rate, track time duration, etc. ID3 tag
information

displayed

the

Album/Artist/Track title line on the dis-
play.

Playback order

Playback order of the CD with compressed
files (MP3) is as illustrated.

∙ The names of folders not containing

MP3 files are not shown in the display.

∙ If there is a file in the top level of the disc,

“ROOT” is displayed.

∙ The playback order is the order in which

the files were written by the writing soft-
ware; therefore, the files might not play
in the desired order.

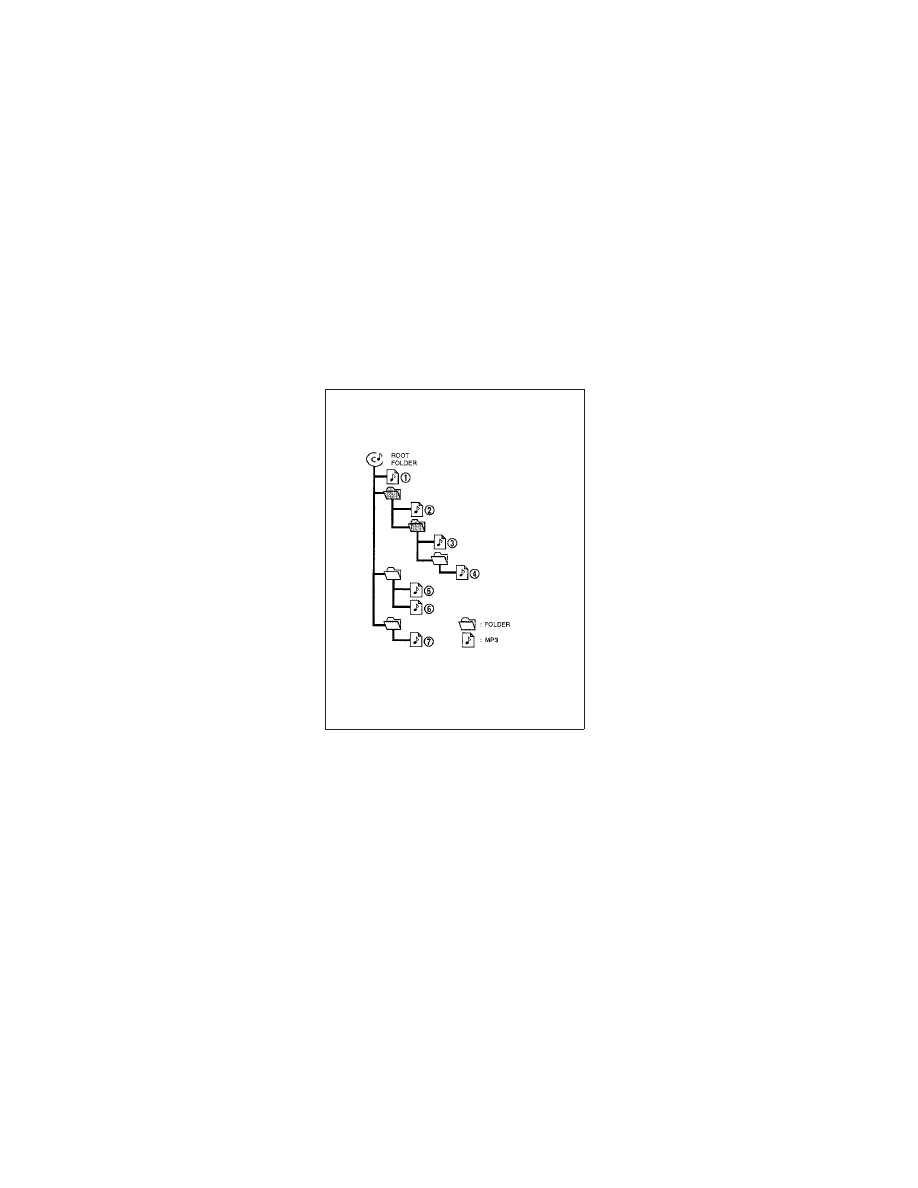

Playback order chart

WHA1090

4-26

Heater, air conditioner, audio and phone systems

Specification chart

Supported media

CD, CD-R, CD-RW

Supported file systems

ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not supported.

Supported
versions*

MP3

Version

MPEG1, MPEG2, MPEG2.5

Sampling
frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR

Tag information

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)

Folder levels

Folder levels: 8, Max folders: 255 (including root folder), Files: 512

Text character number limitation

31 characters

Displayable character codes

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big Endian),
05: (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian)

*Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Heater, air conditioner, audio and phone systems

4-27

Troubleshooting guide

Symptom

Cause and Countermeasure

Cannot play

Check if the disc was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the player.

If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.

Files with extensions other than “.MP3”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of characters
for folder names and file names should be in compliance with the specifications.

Poor sound quality

Check if the disc is scratched or dirty.

Bit rate may be too low.

It takes a relatively long
time before the music
starts playing.

If there are many folders or file levels on the MP3 disc or if it is a multi disc, some time may be required before the music starts
playing.

Music cuts off or skips

The writing software and hardware combination might not match or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.

Skipping with high bit
rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Moves immediately to
the next song when
playing

When a non-MP3 file has been given an extension of “.MP3” or “.mp3” or when play is prohibited by copyright protection, there will be
approximately 5 seconds of no sound and then the player will skip to the next song.

Songs do not play back
in the desired order

The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the
desired order.

4-28

Heater, air conditioner, audio and phone systems

USB (Universal Serial Bus)
Connection Port (if so equipped)

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

The vehicle is not equipped with a USB de-
vice. USB devices should be purchased
separately as necessary.

This system cannot be used to format USB
devices. To format a USB device, use a per-
sonal computer.

In some jurisdictions, the USB device for the
front seats plays only sound without im-
ages for regulatory reasons, even when the
vehicle is parked.

This

system

supports

various

USB

memory devices, USB hard drives and
iPod® players. Some USB devices may not
be supported by this system.

∙ Partitioned USB devices may not play

correctly.

∙ Some characters used in other lan-

guages (Chinese, Japanese, etc.) may
not appear properly in the display. Using
English language characters with a USB
device is recommended.

General notes for USB use:

∙ For additional information, refer to your

device manufacturer’s owner informa-
tion regarding the proper use and care
of the device.

Notes for iPod® use (if so equipped):

iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

∙ Improperly plugging in the iPod® may

cause a checkmark to be displayed on
and off (flickering). Always make sure
that the iPod® is connected properly.

∙ An iPod® nano (1st Generation) may remain

in fast forward or rewind mode if it is con-
nected during a seek operation. In this
case, please manually reset the iPod®.

∙ An iPod® nano (2nd Generation) will

continue to fast-forward or rewind if it is
disconnected during a seek operation.

∙ An incorrect song title may appear

when the Play Mode is changed while
using an iPod® nano (2nd Generation).

∙ Audiobooks may not play in the same

order as they appear on an iPod®.

∙ Large video files cause slow responses

in an iPod®. The vehicle center display
may momentarily black out, but will
soon recover.

∙ If an iPod® automatically selects large

video files while in the shuffle mode, the
vehicle center display may momen-
tarily black out, but will soon recover.

Heater, air conditioner, audio and phone systems

4-29

iPod®* player (if so equipped)

∙ Some characters used in other languages

(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen. We
recommend using English or Spanish lan-
guage characters with an iPod®.

∙ Large video podcast files cause slow

responses in the iPod®. The vehicle cen-
ter display may momentarily black out,
but it will soon recover.

∙ If the iPod® automatically selects large

video podcast files while in the shuffle
mode, the vehicle center display may
momentarily black out, but it will soon
recover.

∙ Improperly plugging in the iPod® may

cause a checkmark to be displayed on
and off (flickering). Always make sure
that the iPod® is connected properly.

∙ The iPod® nano (2nd Generation) will

continue to fast forward or rewind if it is
disconnected during a seek operation.

∙ An incorrect song title may appear

when the Play Mode is changed while
using the iPod® nano (2nd Generation).

∙ Audiobooks may not play in the same

order as they appear on the iPod®.

∙ The iPod® nano (1st Generation) may re-

main in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod®.

∙ If you are using an iPod® (3rd Generation

with Dock connector), do not use very
long names for the song title, album
name or artist name to prevent the
iPod® from resetting itself.

∙ Be careful not to do the following, or the

cable could be damaged and a loss of
function may occur:

∙ Bend the cable excessively (40 mm

[1.6 in] radius maximum).

∙ Twist the cable excessively (more

than 180 degrees).

∙ Pull or drop the cable.

∙ Do not force the iPod® cable connec-

tor into the device port.

∙ Close the center console lid on the

cable or connectors.

∙ Store objects with sharp edges in the

storage where the cable is stored.

∙ Spill liquids on the cable and connec-

tors.

∙ Do not connect the cable to the iPod® if

the cable and/or connectors are wet. It
may damage the iPod®.

∙ If the cable and connectors are ex-

posed to water, allow the cable and/or
connectors to dry completely before
connecting the cable to the iPod® (wait
24 hours for it to dry).

∙ If the connector is exposed to fluids

other than water, evaporative residue
may cause a short between the con-
nector pins. In this case, replace the
cable, otherwise damage to the iPod®
and a loss of function may occur.

∙ If the cable is damaged (insulation cut,

connectors

cracked,

contamination

such as liquids, dust, dirt, etc., in the con-
nectors), do not use the cable and con-
tact a NISSAN dealer to replace the cable
with a new one.

∙ When not in use for extended periods of

time, store the cable in a clean, dust-
free environment at room temperature
and without direct sun exposure.

∙ Do not use the cable for any other pur-

poses other than its intended use in the
vehicle.

*iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

4-30

Heater, air conditioner, audio and phone systems

FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (Type A)
(if so equipped)

For additional information, refer to “Audio
operation precautions” in this section.

CD eject button

2. CD insert slot

3. SCAN button

4. DISP button

5. RPT/RDM button

6. TUNE/FOLDER knob / MENU button

7. AUX IN jack

8. AUX (auxillary) button

9. CD button

10. AM button

11. FM button

12. VOL (volume) control knob

(power) button

13. Station select (1 - 6) buttons

14. TRACK

button

15. SEEK

button

LHA4637

Heater, air conditioner, audio and phone systems

4-31

Audio main operation

VOL (volume) control knob
/

(power) button

Place the ignition switch in the ACC or ON
position, then press the

button.

If you listen to the radio with the engine not
running, place the ignition in the ACC posi-
tion. The mode (radio or CD) that was play-
ing immediately before the system was
turned off resumes playing.
When a CD is loaded, the radio comes on.
Pressing the

button again turns the

system off.

Turn the VOL (volume) control knob to the
right to increase volume or to the left to
decrease volume.

MENU button

Audio

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.

Fade

Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.

Spd Sen Vol.

Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of the vehicle
increases. Set to “OFF” to disable the feature. The higher the setting, the more the volume increases in relation to vehicle
speed.

AUX IN Volume

Choose a setting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting of 0 provides no additional
boost in volume. A setting of +3 provides the greatest boost in volume.

Clock

Select “ON” or “OFF” to control whether the clock is shown on the display screen.

Adjust Clock

Select “YES” to adjust the hours and/or minutes on the clock.

Bass, treble, balance and fade can also be
adjusted by pressing the MENU button until
the desired mode appears in the display.

Press the

SEEK or

TRACK but-

ton to adjust the setting to the desired level
(-5 to +5). Once you have adjusted the
sound quality to the desired level, press the
MENU button repeatedly until the radio or

CD display reappears, otherwise the radio
or CD display will automatically reappear
after about 10 seconds.

4-32

Heater, air conditioner, audio and phone systems

Nissan Micra (2018 year). Instruction - part 10
