WARNING

∙ Always fasten the connector tongue

and the seat belt in the order shown.

∙ Always make sure both the connector

tongue and the seat belt tongue are
secured when using the seat belt or
installing a child restraint. Do not use
the seat belt or child restraint with
only the seat belt tongue attached.
This could result in serious personal
injury in case of an accident or a sud-
den stop.

Stowing the center seat belt

When folding down the rear seat, the rear
center seat belt can be retracted into a
stowed position.

1. Hold the connector tongue

䊊

so that

the seat belt does not retract suddenly

when the tongue is released from the
connector buckle. Release the connec-
tor tongue by inserting a suitable tool
such as a key

䊊

into the connector

buckle.

2. Retract the seat belt and store the seat

belt tongue on the stowed position

䊊

WARNING

Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.

SSS0241

LRS8100

Safety—Seats, seat belts and supplemental restraint system

1-17

Attaching the center seat belt

Always be sure the center seat belt con-
nector tongue and connector buckle are
attached. Disconnect only when folding
down the rear seat.

To connect the buckle:

1. Pull the seat belt tongue and connector

tongue from the stowed position

䊊

2. Pull the seat belt and secure the con-

nector buckle until it clicks

䊊

The center seat belt connector tongue can
be attached only into the rear center seat
belt connector buckle.

To fasten the seat belt, refer to “Fastening
the seat belts” in this section.

WARNING

∙ When attaching the rear center seat

belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.

∙ If the rear center seat belt connector

and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.

∙ Make sure to wear the rear center seat

belt

with

the

seat

belt

passing

through the path

䊊

LRS8101

LRS8102

1-18

Safety—Seats, seat belts and supplemental restraint system

Shoulder belt height adjustment
(front seats)

The shoulder belt anchor height should be
adjusted to the position best for you. For
additional information, refer to “Precau-
tions on seat belt usage” in this section. To
adjust, pull out the adjustment button

䊊

and move the shoulder belt anchor to the
desired position

䊊

, so the belt passes over

the center of the shoulder. The belt should
be away from your face and neck, but not
falling off your shoulder. Release the ad-
justment button to lock the shoulder belt
anchor into position.

WARNING

∙ After adjustment, release the adjust-

ment button and try to move the
shoulder belt anchor up and down to
make sure it is securely fixed in
position.

∙ The

shoulder

belt

anchor

height

should be adjusted to the position
best for you. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.

SEAT BELT EXTENDERS

If, because of body size or driving position, it
is

not

possible

properly

fit

the

lap/shoulder belt and fasten it, an extender
that is compatible with the installed seat
belts is available for purchase. The ex-
tender adds approximately 200 mm (8 in)
of length and may be used for either the
driver or front passenger seating position.
It is recommended that you visit a NISSAN
dealer for assistance with purchasing an
extender if an extender is required.

WARNING

∙ Only NISSAN seat belt extenders,

made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.

∙ Adults and children who can use the

standard seat belt should not use an
extender.

Such

unnecessary

use

could result in serious personal injury
in the event of an accident.

∙ Never use seat belt extenders to in-

stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured or
killed in a collision or a sudden stop.

SEAT BELT MAINTENANCE

∙ To clean the seat belt webbing, apply

a mild soap solution or any solution rec-
ommended for cleaning upholstery or
carpet. Then wipe with a cloth and allow
the seat belts to dry in the shade. Do not
allow the seat belts to retract until they
are completely dry.

LRS0242

Safety—Seats, seat belts and supplemental restraint system

1-19

∙ If dirt builds up in the shoulder belt

guide of the seat belt anchors, the
seat belts may retract slowly. Wipe the
shoulder belt guide with a clean, dry
cloth.

∙ Periodically check to see that the seat

belt and the metal components, such
as buckles, tongues, retractors, flexible
wires and anchors, work properly. If
loose parts, deterioration, cuts or other
damage on the webbing is found, the
entire seat belt assembly should be re-
placed.

WARNING

Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the seat
belt becomes wrapped around a child’s
neck with the ALR mode activated, the
child can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the vehicle
is parked. Unbuckle the seat belt to re-
lease the child. If the seat belt cannot be
unbuckled or is already unbuckled, re-
lease the child by cutting the seat belt
with a suitable tool (such as a knife or
scissors) to release the seat belt.

Children need adults to help protect
them. They need to be properly re-
strained.

In addition to the general information in
this manual, child safety information is
available from many other sources, includ-
ing doctors, teachers, government traffic
safety offices, and community organiza-
tions. Every child is different, so be sure to
learn the best way to transport your child.

There are three basic types of child re-
straint systems:

∙ Rear-facing child restraint

∙ Forward-facing child restraint

∙ Booster seat

The proper restraint depends on the child’s
size. Generally, infants up to about 1 year
and less than 9 kg (20 lbs.) should be placed
in rear-facing child restraints. Forward-
facing child restraints are available for chil-
dren who outgrow rear-facing child re-
straints and are at least 1 year old. Booster
seats are used to help position a vehicle
lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.

WARNING

Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly fit-
ting seat belt could cause serious or fa-
tal injury. Always use appropriate child
restraints.

CHILD SAFETY

1-20

Safety—Seats, seat belts and supplemental restraint system

All Canadian provinces or territories require
the use of approved child restraints for in-
fants and small children. For additional in-
formation, refer to “Child restraints” in this
section.

A child restraint may be secured in the ve-
hicle by using either the LATCH (Lower An-
chors and Tethers for CHildren) system or
with the vehicle seat belt. For additional
information, refer to “Child restraints” in this
section.

NISSAN recommends that all pre-teens
and children be restrained in the rear
seat. Studies show that children are
safer when properly restrained in the
rear seat than in the front seat.

This is especially important because
your vehicle has a supplemental re-
straint system (air bag system) for the
front passenger. For additional informa-
tion, refer to “Supplemental Restraint
System (SRS)” in this section.

INFANTS

Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
NISSAN

recommends

that

infants

placed in child restraints that comply with
Canadian Motor Vehicle Safety Standards.

You should choose a child restraint that fits
your vehicle and always follow the manu-
facturer’s instructions for installation and
use.

SMALL CHILDREN

Children that are over 1 year old and weigh
at least 9 kg (20 lbs.) should remain in a
rear-facing child restraint as long as pos-
sible up to the height or weight limit of the
child restraint. Children who outgrow the
height or weight limit of the rear-facing
child restraint and are at least 1 year old
should be secured in a forward-facing child
restraint with a harness. Refer to the manu-
facturer’s instructions for minimum and
maximum weight and height recommen-
dations. NISSAN recommends that small
children be placed in child restraints that
comply with Canadian Motor Vehicle Safety
Standards. You should choose a child re-
straint that fits your vehicle and always fol-
low the manufacturer’s instructions for in-
stallation and use.

LARGER CHILDREN

Children should remain in a forward-facing
child restraint with a harness until they
reach the maximum height or weight limit
allowed by the child restraint manufac-
turer.

Once a child outgrows the height or weight
limit of the harness-equipped forward-
facing child restraint, NISSAN recommends
that the child be placed in a commercially
available booster seat to obtain proper
seat belt fit. For a seat belt to fit properly, the
booster seat should raise the child so that
the shoulder belt is properly positioned
across the chest and the top, middle por-
tion of the shoulder. The shoulder belt
should not cross the neck or face and
should not fall off the shoulder. The lap belt
should lie snugly across the lower hips or
upper thighs, not the abdomen. A booster
seat can only be used in seating positions
that have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Canadian Motor Vehicle Safety Standards.

Safety—Seats, seat belts and supplemental restraint system

1-21

A booster seat should be used until the
child can pass the seat belt fit test below:

∙ Are the child’s back and hips against the

vehicle seatback?

∙ Is the child able to sit without slouch-

ing?

∙ Do the child’s knees bend easily over

the front edge of the seat with feet flat
on the floor?

∙ Can the child safely wear the seat belt

(lap belt low and snug across the hips
and shoulder belt across mid-chest
and shoulder)?

∙ Is the child able to use the properly ad-

justed head restraint/headrest?

∙ Will the child be able to stay in position

for the entire ride?

If you answered no to any of these ques-
tions, the child should remain in a booster
seat using a three-point type seat belt.

NOTE:

Laws in some communities may follow
different guidelines. Check local and
state regulations to confirm your child is
using the correct restraint system before
traveling.

WARNING

Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously
injured or killed in a sudden stop or
collision.

LRS2690

1-22

Safety—Seats, seat belts and supplemental restraint system

PRECAUTIONS ON CHILD
RESTRAINTS

WARNING

∙ Failure to follow the warnings and in-

structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

– The child restraint must be used

and installed properly. Always fol-
low all of the child restraint manu-
facturer’s instructions for installa-
tion and use.

– Infants and children should never

be held on anyone’s lap. Even the
strongest adult cannot resist the
forces of a collision.

– Do not put a seat belt around both

a child and another passenger.

– NISSAN recommends that all child

restraints be installed in the rear
seat. Studies show that children
are safer when properly restrained
in the rear seat than in the front
seat. If you must install a forward-
facing child restraint in the front
seat, refer to “Forward-facing child
restraint installation using the seat
belts” in this section.

– Even with the NISSAN Advanced Air

Bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could se-
riously injure or kill a child. A rear-
facing child restraint must only be
used in the rear seat.

ARS1098

WRS0256

CHILD RESTRAINTS

Safety—Seats, seat belts and supplemental restraint system

1-23

– Be sure to purchase a child re-

straint that will fit the child and ve-
hicle. Some child restraints may
not fit properly in your vehicle.

– Child restraint anchorages are de-

signed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used to at-
tach adult seat belts, or other items
or equipment to the vehicle. Doing
so could damage the child re-
straint anchorages. The child re-
straint will not be properly in-
stalled

using

the

damaged

anchorage, and a child could be se-
riously

injured

killed

collision.

– Never use the anchor points for

adult seat belts or harnesses.

– A child restraint with a top tether

strap should not be used in the
front passenger seat.

– Keep seatbacks as upright as pos-

sible

after

fitting

the

child

restraint.

– Infants and children should always

be placed in an appropriate child
restraint while in the vehicle.

∙ When the child restraint is not in use,

keep it secured with the LATCH system
or a seat belt. In a sudden stop or col-
lision, loose objects can injure occu-
pants or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.

This vehicle is equipped with a universal
child restraint anchor system, referred to
as the LATCH (Lower Anchors and Tethers
for CHildren) system. Some child restraints
include rigid or webbing-mounted attach-
ments that can be connected to these an-
chors. For additional information, refer to
“LATCH (Lower Anchors and Tethers for
CHildren) system” in this section.

If you do not have a LATCH compatible
child restraint, the vehicle seat belts can be
used.

Several

manufacturers

offer

child

re-

straints for infants and children of various
sizes. When selecting any child restraint,
keep the following points in mind:

∙ Choose only a restraint with a label cer-

tifying that it complies with Canadian
Motor Vehicle Safety Standard 213.

∙ Check the child restraint in your vehicle

to be sure it is compatible with the vehi-
cle’s seat and seat belt system.

∙ If the child restraint is compatible with

your vehicle, place your child in the child
restraint and check the various adjust-
ments to be sure the child restraint is
compatible with your child. Choose a
child restraint that is designed for your
child’s height and weight. Always follow
all recommended procedures.

∙ If the combined weight of the child and

child restraint is less than 65 lbs (29.5 kg),
you may use either the LATCH anchors
or the seat belt to install the child re-
straint (not both at the same time).

∙ If the combined weight of the child and

child restraint is greater than 65 lbs
(29.5 kg), use the vehicle’s seat belt (not
the lower anchors) to install the child
restraint.

1-24

Safety—Seats, seat belts and supplemental restraint system

∙ Be sure to follow the child restraint

manufacturer’s instructions for installa-
tion.

All Canadian provinces or territories re-
quire that infants and small children be
restrained in an approved child restraint
at all times while the vehicle is being op-
erated. Canadian law requires the top
tether strap on forward-facing child re-
straints be secured to the designated
anchor point on the vehicle.

LATCH (Lower Anchors and
Tethers for CHildren) SYSTEM

Your vehicle is equipped with special an-
chor points that are used with LATCH sys-
tem compatible child restraints. This sys-
tem may also be referred to as the ISOFIX
or ISOFIX compatible system. With this sys-
tem, you do not have to use a vehicle seat
belt to secure the child restraint unless the
combined weight of the child and child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and child restraint
is greater than 65 lbs. (29.5 kg) use the vehi-
cle’s seat belt (not the lower anchors) to

install the child restraint. Be sure to follow
the child restraint manufacturer’s instruc-
tions for installation.

The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only. Do not attempt to
install a child restraint in the center position
using the LATCH anchors.

LATCH lower anchor

WARNING

Failure to follow the warnings and in-
structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

– Attach LATCH system compatible

child restraints only at the loca-
tions shown in the illustration.

– Do not secure a child restraint in

the center rear seating position us-
ing the LATCH lower anchors. The
child restraint will not be secured
properly.

LATCH system lower anchor locations

LRS2761

Safety—Seats, seat belts and supplemental restraint system

1-25

– Inspect the lower anchors by in-

serting your fingers into the lower
anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly

the

lower

anchors

are

obstructed.

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child re-
straint will not be properly installed us-
ing the damaged anchorage, and a
child could be seriously injured or killed
in a collision.

LATCH lower anchor location

The LATCH lower anchors are located as
shown. A label is attached to the seatback
to help you locate the LATCH lower an-
chors.

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attach-
ments that can be connected to two an-
chors located at certain seating positions
in your vehicle. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint. Check your child restraint for
a label stating that it is compatible with
LATCH. This information may also be in the
instructions provided by the child restraint
manufacturer.

LATCH lower anchor location

WRS0700

LATCH webbing-mounted attachment

LRS0661

1-26

Safety—Seats, seat belts and supplemental restraint system

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

LATCH rigid-mounted attachment

LRS0662

LRS2467

LRS2444

Safety—Seats, seat belts and supplemental restraint system

1-27

Top tether anchor point locations

WARNING

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments or
seat belts. For additional information, refer
to “Installing top tether strap” in this sec-
tion.

If you have any questions when install-
ing a top tether strap child restraint, it is
recommended that you visit a NISSAN
dealer for this service.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer’s
instructions for installation.

Follow these steps to install a rear-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

Rear-facing webbing-mounted – step 2

WRS0801

1-28

Safety—Seats, seat belts and supplemental restraint system

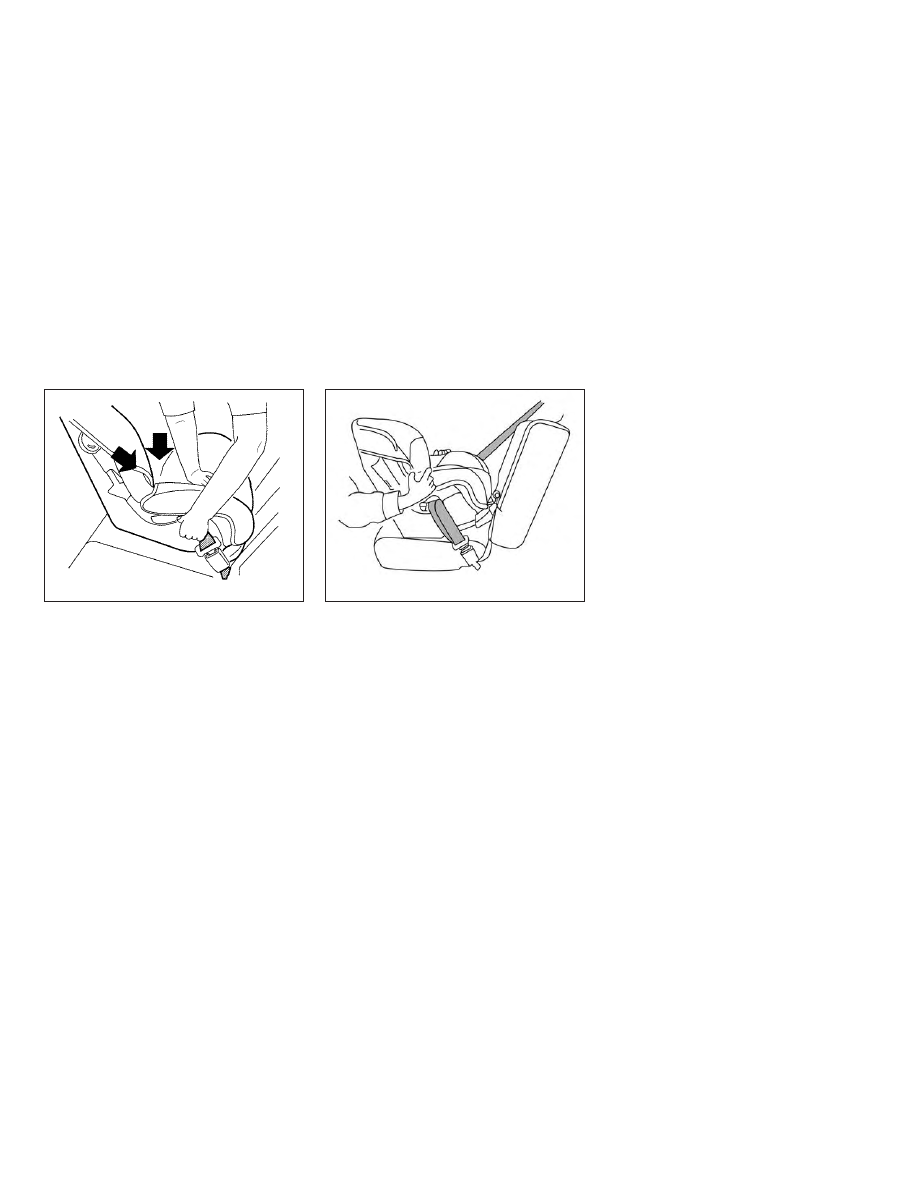

3. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and
seatback while tightening the webbing
of the anchor attachments.

4. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 25 mm (1 in), from side
to side. Try to tug it forward and check
to see if the LATCH attachment holds
the restraint in place. If the restraint is
not secure, tighten the LATCH attach-
ment as necessary, or put the restraint
in another seat and test it again. You
may need to try a different child re-
straint or try installing by using the ve-

Rear-facing rigid-mounted – step 2

WRS0802

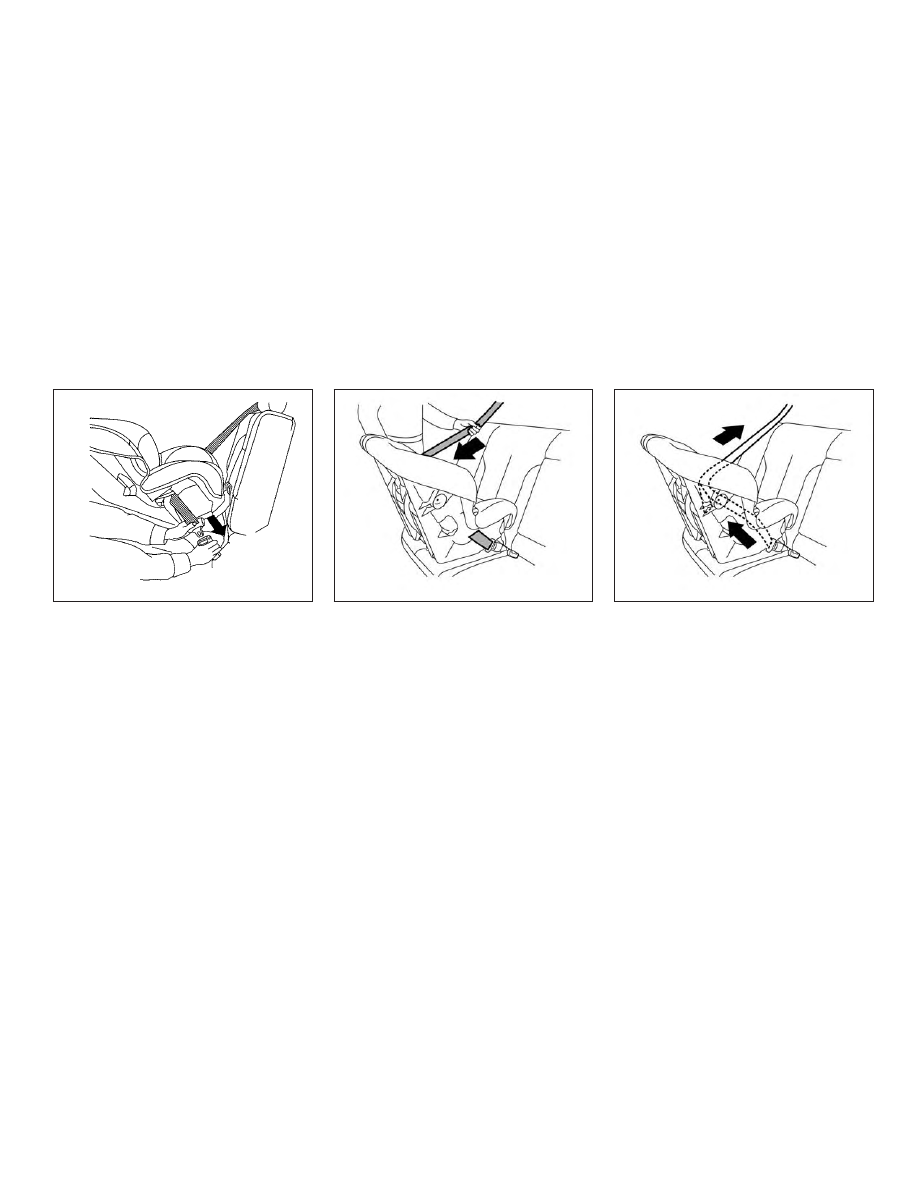

Rear-facing – step 3

LRS0673

Rear-facing – step 4

LRS0674

Safety—Seats, seat belts and supplemental restraint system

1-29

hicle seat belt (if applicable). Not all
child restraints fit in all types of vehicles.

5. Check to make sure the child restraint

is properly secured prior to each use. If
the child restraint is loose, repeat
steps 1 through 4.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision.

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the
front seat. Position the child restraint
on the seat. Always follow the child re-
straint manufacturer’s instructions.

Rear-facing – step 1

WRS0256

1-30

Safety—Seats, seat belts and supplemental restraint system

2. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

3. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to the ELR
mode when the seat belt is fully re-
tracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

Rear-facing – step 2

WRS0761

Rear-facing – step 3

LRS2395

Rear-facing – step 4

LRS2396

Safety—Seats, seat belts and supplemental restraint system

1-31

5. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint to compress the vehicle seat
cushion and seatback while pulling up
on the seat belt.

6. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 25 mm (1 in), from side to side. Try
to tug it forward and check to see if the
belt holds the restraint in place. If the
restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint.
Not all child restraints fit in all types of
vehicles.

7. Check to make sure that the child re-

straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 1 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Rear-facing – step 5

WRS0762

Rear-facing – step 6

LRS2397

1-32

Safety—Seats, seat belts and supplemental restraint system

Content .. 1 2 3 4 ..
