Nissan Maxima (2018 year). Instruction

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer and the twin trip odometer

䊊

are displayed in the vehicle information

display when the ignition switch is placed
in the ON position.

The odometer records the total distance
the vehicle has been driven.

The twin trip odometer records the dis-
tance of individual trips.

Changing the display

Push the TRIP RESET switch

䊊

on the left

side of the instrument panel to change the
display as follows:

Trip

→ Trip

→

Odometer Mileage

→ Trip

Resetting the trip odometer
Pushing the TRIP RESET switch

䊊

for more

than 1 second resets the currently dis-
played trip odometer to zero.

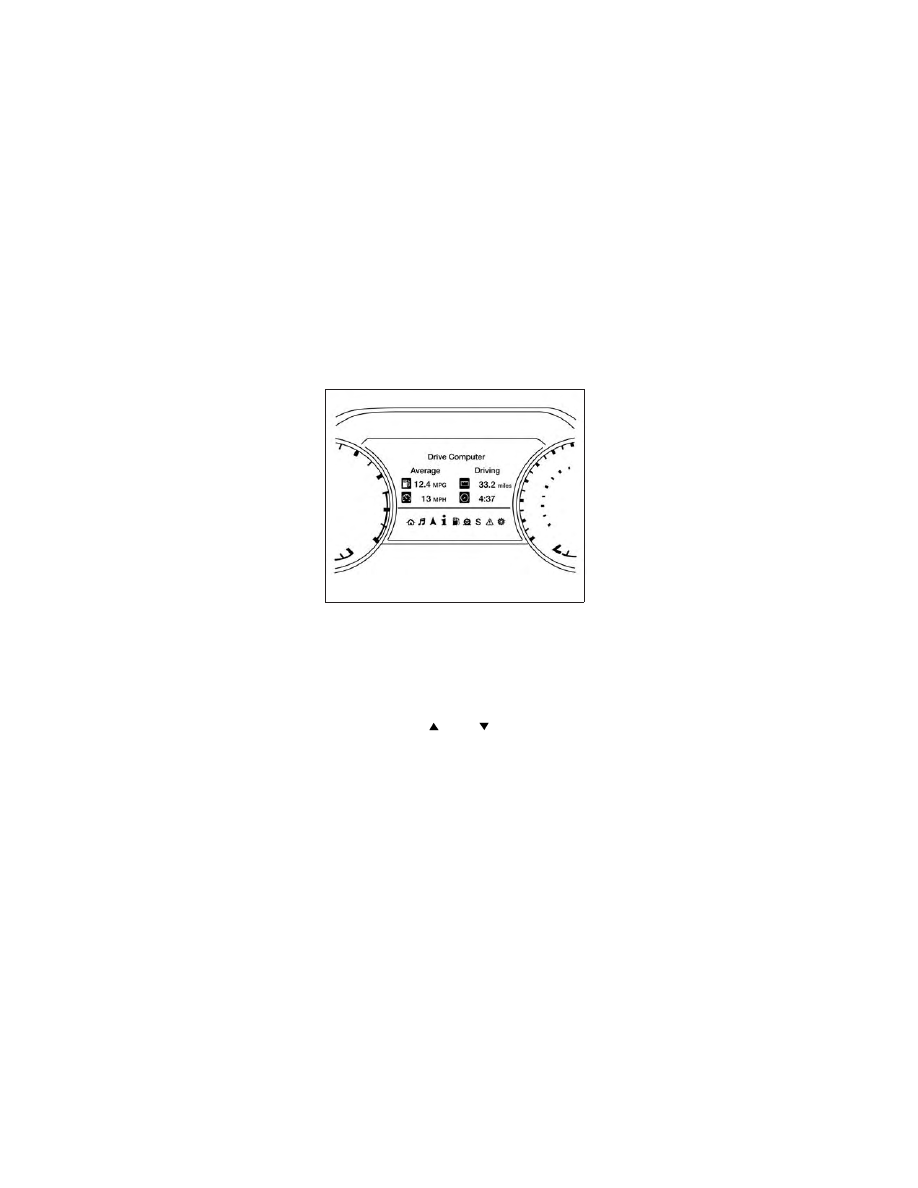

Average fuel economy and distance to
empty information is also available. For ad-
ditional information, refer to “Vehicle infor-
mation display” in this section.

LIC2218

LIC3179

Instruments and controls

2-5

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant
temperature. The engine coolant tempera-
ture is within the normal range

䊊

when

the gauge needle points within the zone
shown in the illustration.

The engine coolant temperature varies
with the outside air temperature and driv-
ing conditions.

CAUTION

If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the
normal range, stop the vehicle as soon
as safely possible. If the engine is over-
heated, continued operation of the ve-
hicle may seriously damage the engine.
For additional information, refer to “If
your vehicle overheats” in the “In case
of emergency” section of this manual
for immediate action required.

LIC3536

LIC3538

2-6

Instruments and controls

FUEL GAUGE

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.

The low fuel warning message shows in
the vehicle information display when the
amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge reg-
isters 0 (Empty).

The

indicates that the fuel-filler

door is located on the driver’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the

light

should turn off. If the light remains on
after a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

LIC2222

Instruments and controls

2-7

Anti-lock Braking System (ABS)
warning light

Master warning light

Malfunction Indicator Light (MIL)

Automatic Emergency Braking (AEB) system
warning light

Power steering warning light

Security indicator light

Brake warning light (parking brake)

Seat belt warning light and chime

Side light and headlight indicator light
(green)

Brake warning light

Supplemental air bag warning light

Slip indicator light

Charge warning light

Front fog light indicator light (green)

Turn signal/hazard indicator lights

Engine oil pressure warning light

Front passenger air bag status light

Vehicle Dynamic Control (VDC)
OFF indicator light

Low tire pressure warning light

High beam indicator light (blue)

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine.

The following lights (if so equipped) will
come on:

The following lights (if so equipped) will
come on briefly and then go off:

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-8

Instruments and controls

If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
Some indicators and warnings are also dis-
played on the vehicle information display
between the speedometer and tachom-
eter. For additional information, refer to “Ve-
hicle information display” in this section.

WARNING LIGHTS

For additional information on warnings
and indicators, refer to “Vehicle information
display” in this section.

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Automatic Emergency

Braking (AEB) system
warning light

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

This light illuminates when the AEB system
is set to OFF on the meter display.

If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Automatic Emergency Braking (AEB)”
and “Intelligent Forward Collision Warning
(I-FCW)” in the “Starting and driving” section
of this manual.

Brake warning light

(parking brake)

This light functions for the foot brake sys-
tems.

Parking brake indicator

When the ignition switch is placed in the ON
position, this light comes on when the
parking brake is applied.

Brake warning light

This light illuminates if there is a problem
with the foot brake systems.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running, with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.

2. If the brake fluid level is correct, have

the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.

Instruments and controls

2-9

WARNING

∙ Your brake system may not be work-

ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for repairs.
Otherwise, have your vehicle towed
because

driving

could

dangerous.

∙ Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

∙ If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the ABS warning
light illuminate, it may indicate the ABS is
not functioning properly. Have the brake
system checked and, if necessary, repaired.

It is recommended that you visit a NISSAN
dealer for this service. Avoid high-speed
driving and abrupt braking. For additional
information, refer to “Anti-lock Braking Sys-
tem (ABS) warning light” in this section.

Charge warning light

If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the generator belt. If
the belt is loose, broken, missing, or if the
light remains on, have the system checked.
It is recommended that you visit a NISSAN
dealer for this service.

CAUTION

Do not continue driving if the generator
belt is loose, broken or missing.

Engine oil pressure

warning light

This light warns of low engine oil pressure. If
the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine immediately and call a
NISSAN dealer or other authorized repair
shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. For
additional information, refer to “Engine oil”
in the “Do-it-yourself ” section of this
manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by the NISSAN New Vehicle Limited
Warranty. Turn off the engine as soon as
it is safe to do so.

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.

2-10

Instruments and controls

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display.

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

The “Tire Pressure Low - Add Air” warning ap-
pears each time the ignition switch is placed
in the ON position as long as the low tire pres-
sure warning light remains illuminated.

For additional information, refer to “Vehicle
information display” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” and “In case of emer-
gency” sections of this manual.

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the light does not illuminate with

the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

∙ If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
show on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving after adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire

Instruments and controls

2-11

is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

CAUTION

∙ The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

∙ If the vehicle is being driven at speeds

of less than 16 mph (25 km/h), the
TPMS may not operate correctly.

∙ Be sure to install the specified size of

tires to the four wheels correctly.

Master warning light

The

master

warning

light

illuminates

whenever there is an active warning that
can be reviewed in the “warnings review”
content page in the meter, or if there is a
red-level warning being displayed (which
cannot be dismissed). The master warning
light will illuminate red if a red-level warning
is being displayed, or yellow otherwise.

∙ Push Engine Start Lock Warning

∙ Key Fob Removed from Vehicle Warning

∙ Incorrect Key (RED)

∙ Door/Trunk Open (vehicle stationary)

∙ Trunk Open (vehicle moving)

∙ Door Open (RED with vehicle moving)

∙ Parking Brake ON (RED)

∙ Low Washer Fluid

∙ I-Key System Fault

∙ Low Tire Pressure

∙ CVT Warning

∙ Sonar Parking Sensor Error

∙ LED Headlight Failure (RED if no other

red warnings are active)

∙ Chassis Control warning

For additional information, refer to “Vehicle
information display” in this section.

Power steering warning

light

WARNING

∙ If the engine is not running or is

turned off while driving, the power as-
sist for the steering will not work.
Steering will be harder to operate.

∙ When the power steering warning

light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. After starting the engine, the
power steering warning light turns off. This
indicates the power steering is operational.

If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering is not function-

2-12

Instruments and controls

ing properly and may need servicing. Have
the power steering checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering, but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds.

For additional information, refer to “Power
steering” in the “Starting and driving” sec-
tion of this manual.

Seat belt warning light and

chime

The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the ignition switch is placed in the ON
or START position and remains illuminated
until the driver’s seat belt is fastened. At the
same time, the chime sounds for about
6 seconds unless the driver’s seat belt is
securely fastened.

The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied. For 7 seconds after the ignition

switch is placed in the ON position, the sys-
tem does not activate the warning light for
the front passenger.

For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

Supplemental air bag

warning light

When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

∙ The supplemental air bag warning light

flashes intermittently.

∙ The supplemental air bag warning light

does not come on at all.

It is recommended that you visit a NISSAN
dealer for these services.

Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information, re-
fer to “Supplemental Restraint System
(SRS)” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

INDICATOR LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

Front fog light indicator

light (green)

The front fog light indicator light illumi-
nates when the front fog lights are on. For
additional information, refer to “Fog light
switch” in this section.

Instruments and controls

2-13

Front passenger air bag

status light

The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.

For additional information, refer to “Front
passenger air bag and status light” in the
“Safety — Seats, seat belts and supplemen-
tal restraint system” section of this manual.

High beam indicator light

(blue)

This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.

The high beam indicator light also comes
on when the passing signal is activated.

Malfunction Indicator Light

(MIL)

If this indicator light comes on steady or
blinks while the engine is running, it may
indicate a potential emission control mal-
function.

The MIL may also come on steady if the
fuel-filler cap is loose or missing, or if the
vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least
3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light

should turn off if no other potential emis-
sion control system malfunction exists.
If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance
test. For additional information, refer to
“Readiness

for

Inspection/Maintenance

(I/M) test” in the “Technical and consumer
information” section of this manual.

Operation

The MIL will come on in one of two ways:

∙ MIL on steady — An emission control

system malfunction has been de-
tected. Check the fuel-filler cap if the
Loose Fuel Cap warning appears in the
vehicle information display. If the fuel-
filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The

light should turn off

after a few driving trips. If the

light

does not turn off after a few driving
trips, have the vehicle inspected. It is
recommended that you visit a NISSAN
dealer for this service. You do not need
to have your vehicle towed to the
dealer.

∙ MIL blinking — An engine misfire has

been detected which may damage the
emission control system. To reduce or
avoid emission control system dam-
age:

– do

not

drive

speeds

above

45 mph (72 km/h).

– avoid hard acceleration or decelera-

tion.

– avoid steep uphill grades.

– if possible, reduce the amount of

cargo being hauled or towed.

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

2-14

Instruments and controls

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF, LOCK or ACC (if so
equipped) position.

The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.

For additional information, refer to “Security
systems” in this section.

Side light and headlight

indicator light (green)

The side light and headlight indicator light
illuminates when the side light or head-
lights are on (not including daytime run-
ning or signature lights). If the headlight
switch is in the AUTO position, the side light
and headlight indicator light will illuminate
when the headlights turn on. For additional

information, refer to “Headlight and turn
signal switch” in this section.

Slip indicator light

This indicator will blink when the VDC sys-
tem is operating, thus alerting the driver to
the fact that the road surface is slippery
and the vehicle is nearing its traction limits.

You may feel or hear the system working;
this is normal.

The light will blink for a few seconds after
the VDC system stops limiting wheel spin.

The

indicator light also comes on

when you place the ignition switch in the
ON position. The light will turn off after ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Turn signal/hazard

indicator lights

The appropriate light flashes when the turn
signal switch is activated.

Both lights flash when the hazard switch is
turned on.

Vehicle Dynamic Control

(VDC) OFF indicator light

This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system has been turned off.

Push the VDC OFF switch again or restart
the engine and the system will operate
normally. For additional information, refer
to “Vehicle Dynamic Control (VDC) system”
in the “Starting and driving” section of this
manual.

The VDC indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off after
about 2 seconds if the system is opera-
tional. If the light stays on or comes on
along with the

indicator light while

you are driving, have the VDC system
checked. It is recommended that you visit a
NISSAN dealer for this service.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.

Instruments and controls

2-15

AUDIBLE REMINDERS
Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard. It
is recommended that you visit a NISSAN
dealer for this service.

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off or to
AUTO before leaving the vehicle.

NISSAN Intelligent Key® Lock-in
Prevention

The Intelligent Key buzzer sounds if the In-
telligent Key is left inside the vehicle when
the doors are closed and locked. When the
buzzer sounds, be sure to take the Intelli-
gent Key with you when leaving the vehicle.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Parking brake reminder chime

A chime sounds if the parking brake is set
and the vehicle is driven. The chime will
stop if the parking brake is released or the
vehicle speed returns to zero.

The vehicle information display is located
to the left of the speedometer. It displays
such items as:

∙ Home

∙ Audio Information

∙ Navigation Information

∙ Drive Computer Information

∙ Fuel Economy Information

∙ Driving Aids Information (if so equipped)

∙ Tire Pressure Information

LIC3224

VEHICLE INFORMATION DISPLAY

2-16

Instruments and controls

∙ Sport Information (Oil pressure, Gear Oil

Temperature,

Digital

Speedometer,

Horsepower)

∙ Indicators and Warnings

∙ Vehicle and Meter Display Settings

∙ Cruise Control Status

∙ Odometer/twin trip odometer

∙ Gear Position Indicator (P, R, N, D)

∙ Distance To Empty and Fuel Indicator

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be

changed

using

the

and

buttons located on the steering wheel.

䊊

SOURCE - Pressing SOURCE with the
ignition ON will display a list of available
audio sources in the vehicle informa-
tion display. The audio sources can

then be selected with the

and OK buttons on the steering switch
for direct access.

䊊

OK - Change or select an item in the
vehicle information display.

䊊

— Scroll up or down the vehicle

information menu items. If the vehicle
information display is not showing a

menu with the

buttons,

pressing

will change to

the previous/next audio preset.

䊊

—

back

forward

through the vehicle information menu
items or to change from one display
screen to the next.

The OK,

and

buttons also

control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display. An
orange cursor is shown to indicate where
you are in the available menu items. A scroll
bar with up and down arrows will appear if
there is more than one page of menu
items. For additional information, refer to
the separate NissanConnect® Owner’s
Manual.

LIC3177

Instruments and controls

2-17

STARTUP DISPLAY

When the vehicle in placed in the ON or ACC
position the screens that display in the ve-
hicle information display include:

∙ Home

∙ Audio

∙ Navigation

∙ Drive Computer

∙ Fuel economy

∙ Driving Aids (if so equipped)

∙ Tire Pressures

∙ Chassis Control (if so equipped)

∙ SPORT

∙ Warning Review

∙ Settings

The warnings review title screen will show
how many active warnings exist, or 0 in the
event that no warnings are active. For ad-
ditional information on warnings and indi-
cators, refer to “Vehicle information display
warnings and indicators” in this section.

To control what items display in the vehicle
information display, refer to “Customize
display” in this section.

DRIVE COMPUTER

The Drive Computer displays driving and
average trip information, and can be ac-
cessed from the startup display on the ve-
hicle information display. Select the Drive
Computer icon, and press the OK button.
To reset the driving and average trip infor-

mation, use the

button to se-

lect which item to reset, or select Reset All.
Select YES, and press the OK button to re-
set information history.

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle infor-
mation display as well as the model for
several vehicle functions:

∙ Driver Assistance

∙ Customize Display

∙ Vehicle Settings

∙ Maintenance

∙ Clock

∙ TPMS Settings

∙ Unit/Language

∙ Key-Linked Settings

∙ Factory Reset

LIC3261

2-18

Instruments and controls

Driver Assistance

The driver assistance menu allows the user
to change the various driving aids and as-
sistance options.

Menu item

Result

Blind Spot (if so equipped)

Allows user to turn the blind spot feature on or off. For additional information, refer to “Blind Spot Warning (BSW)”
and “Rear Cross Traffic Alert (RCTA)” in the “Starting and driving” section of this manual.

Parking Aids (if so equipped)

Displays the available parking aids. For additional information, refer to “Front and rear sonar system” in the “Start-
ing and driving” section of this manual.

Sensor

Allows user to turn the sensor on, off, or front only.

Display

Allows user to turn the display on or off.

Volume

Allows user to adjust the volume to Low/Med./High.

Range

Allows user to adjust the range to Near/Mid./Far.

Emergency Brake

Displays the available emergency brake options. For additional information, refer to “Automatic Emergency Brak-
ing (AEB)” and “Intelligent Forward Collision Warning (I-FCW)” in the “Starting and driving” section of this manual.

System

Allows user to turn the system on or off.

Driver Attention (if so equipped)

Allows user to turn the driver attention feature on or off. For additional information, refer to “Intelligent Driver Alert-
ness (I-DA)” in the “Starting and driving” section of this manual.

Timer Alert

Allows user to set or reset an alert at a specific time interval.

Low Temperature Alert

Allows user to turn the low temperature alert on or off.

Chassis Control (if so equipped)

Displays the available chassis control options. For addition information, refer to “Integrated Dynamics-control
Module” in the “Starting and driving” section of this manual.

Active Trace Control

Allows user to turn the Intelligent Trace Control on or off.

Active Engine Brake

Allows user to turn the Intelligent Engine Brake on or off.

Instruments and controls

2-19

Customize Display

The customize display menu allows the
user to customize the information that ap-
pears in the vehicle information display

Menu item

Result

Main Menu Selection

Displays available screens that can be shown in the vehicle information display.

Home

Allows user to turn the home screen on or off in the vehicle information display.

Audio

Allows user to turn the audio screen on or off in the vehicle information display.

Navigation

Allows user to turn the navigation screen on or off in the vehicle information display.

Drive Computer

Allows user to turn the drive computer screen on or off in the vehicle information display.

Fuel Economy

Allows user to turn the fuel economy screen on or off in the vehicle information display.

Driving Aids (if so equipped)

Allows user to turn the driving aids screen on or off in the vehicle information display.

Tire Pressures

Allows user to turn the tire pressure screen on or off in the vehicle information display.

Chassis Control (if so equipped)

Allows user to turn the chassis control screen on or off in the vehicle information display.

SPORT

Allows user to turn the SPORT screen on or off in the vehicle information display.

Car Icon Color

Displays available colors of the vehicle shown in the vehicle information display.

ECO Info Settings

Displays the various ECO info settings.

ECO Drive Report

Select to display this report when the ignition in switch is placed in the ON position.

View History

Select to view the vehicle’s history.

Navigation Settings

Displays the available navigation settings.

Alerts

Allows user to set available navigation alerts.

View Mode

Allows user to change the navigation view mode to “City” or “Arrow.”

Welcome Effect

Displays the various welcome effect settings.

2-20

Instruments and controls

Nissan Maxima (2018 year). Instruction - part 6
