Nissan Leaf (2019 year). Instruction - part 16

Locking doors

䊊

Lock

button

䊊

Unlock

button

䊊

Charge port unlock

button

䊊

Panic

button

When you lock or unlock the doors, the haz-
ard indicator may flash and the horn may
sound as a confirmation. For additional in-
formation, refer to “Hazard warning flasher
switch” in the “In case of emergency” sec-
tion and “Horn” in the “Instruments and
controls” sections of this manual.

1. Push the power switch to the OFF posi-

tion and make sure you carry the Intelli-
gent Key with you.

2. Carry the Intelligent Key with you.

3. Close all the doors.

4. Press the

button

䊊

on the Intelli-

gent Key.

5. All the doors and the rear hatch will lock.

6. The hazard indicator may flash twice

and the horn may chirp once.

Operate the door handles to confirm that
the doors have been securely locked.

Unlocking doors

1. Press the

button

䊊

on the Intelli-

gent Key once.

2. The hazard indicator may flash once.

The driver’s door will unlock.

3. Press the

button on the Intelligent

Key again within one minute.

4. The hazard indicator may flash once

again. All the doors and the rear hatch
will unlock.

All doors will be locked automatically un-
less one of the following operations is per-
formed within one minute after pressing
the

button while the doors are locked.

• Opening any door (including the rear

hatch).

• Pushing the power switch.

During this one minute time period, if the

button on the Intelligent Key is

pressed, all doors will be locked automati-
cally after another one minute.

Opening charge port lid

The charge port lid may be opened by
pressing and holding the

button

䊊

For additional information, refer to "Open-
ing charge port lid" in this section.

Using panic alarm

If you are near your vehicle and feel threat-
ened, you may activate the alarm to call
attention as follows:

1. Push the

button

䊊

on the Intelli-

gent Key for more than 1 second.

2. The panic alarm and headlights will stay

on for a period of time.

3-14

Pre-driving checks and adjustments

3. The panic alarm stops when:

• It has run for a period of time, or

• Any of the buttons on the Intelligent Key

is pushed. (Note: The

button must

be pushed for more than 1 second.)

Setting hazard indicator and horn
mode

This vehicle is set in hazard indicator and
horn mode when you first receive the vehicle.

In hazard indicator and horn mode, when
the

button

䊊

is pressed, the hazard

indicator flashes twice and the horn chirps
once. When the

button

䊊

is pressed,

the hazard indicator flashes once.

If horns are not necessary, the system can
be switched to the hazard indicator mode.

In hazard indicator mode, when the
button is pressed, the hazard indicator
flashes twice. When the

button is

pressed, neither the hazard indicator nor
the horn operates.

Hazard indicator and horn mode:

Operation

DOOR LOCK

DOOR UNLOCK

Pushing door handle request switch or rear hatch request

switch

HAZARD - twice
OUTSIDE CHIME - twice

HAZARD - once
OUTSIDE CHIME - once

Pressing

button

HAZARD - twice
HORN - once

HAZARD - once
HORN - none

Hazard indicator mode:

Operation

DOOR LOCK

DOOR UNLOCK

Pushing door handle request switch or rear hatch request

switch

HAZARD - twice
OUTSIDE CHIME - none

HAZARD - none
OUTSIDE CHIME - none

Pressing

button

HAZARD - twice
HORN - none

HAZARD - none
HORN - none

Pre-driving checks and adjustments

3-15

Switching procedure:

To switch the hazard indicator and horn
(chime) operation, press the

䊊

and

䊊

buttons on the Intelligent Key si-

multaneously for more than two seconds.

• When the hazard indicator mode is set,

the hazard indicator flashes three times.

• When the hazard indicator and horn

mode is set, the hazard indicator flashes

once and the horn chirps once.

WARNING

• Make sure that the hood is com-

pletely closed and latched before
driving. Failure to do so could cause
the hood to open during driving and
result in an accident.

• If steam or smoke is emitting from

the motor compartment, do not
open the hood. Doing so could cause
an injury.

HOOD

3-16

Pre-driving checks and adjustments

When opening the hood:

1. Securely close the charge port door.

2. Pull the hood lock release handle

䊊

lo-

cated below the instrument panel. The
hood will then spring up slightly.

3. Locate the lever

䊊

in between the hood

and charge port lid, and push the lever
upward with your fingertips.

4. Raise the hood

䊊

5. Remove the support rod

䊊

from the

hood and insert it into the slot

䊊

Hold the coated part

䊊

when removing

or resetting the support rod. Avoid direct
contact with the metal parts because
they may be hot immediately after the
EV system has been stopped.

When closing the hood:

1. Return the support rod to its original

position.

2. Slowly move the hood down to latch the

lock.

3. Push the hood down to lock the hood

securely into place.

WARNING

• Always make sure that the rear

hatch has been closed securely to
prevent it from opening while driv-
ing.

• Do not drive with the rear hatch

open.

• Make sure that all passengers have

their hands, etc. inside the vehicle
before closing the rear hatch.

REAR HATCH

Pre-driving checks and adjustments

3-17

To open the rear hatch, unlock it and push
the rear hatch opener switch

䊊

. Pull up the

rear hatch to open.

The rear hatch can be unlocked by:

• Pushing the rear hatch request switch. For

additional information, refer to “NISSAN In-
telligent Key® system” in this section.

• Pressing the

button on the Intelli-

gent Key. For additional information, refer
to “NISSAN Intelligent Key® system” in this
section.

• Pressing the

button on the remote

control. For additional information, refer to
“NISSAN Intelligent Key® system” in this
section.

• Pushing the power door lock switch to the

unlock position.

SECONDARY REAR HATCH
RELEASE

Follow the following steps to unlock the
liftgate when the battery is discharged.

NOTE:
It is recommended that you visit a
NISSAN certified LEAF dealer as soon
as possible for inspection.

3-18

Pre-driving checks and adjustments

Unlocking the rear hatch:

1. Move the cover

䊊

by using a screwdriver

or a similar tool available on hand.

2. Then move the inside lever

䊊

by using a

screwdriver or similar tool available on
hand. The rear hatch will open.

OPENING CHARGE PORT LID

CAUTION

Make sure that the charge port lid is
completely closed and latched before
driving. Failure to do so could cause the
lid to open suddenly during driving.

CHARGE PORT LID

Pre-driving checks and adjustments

3-19

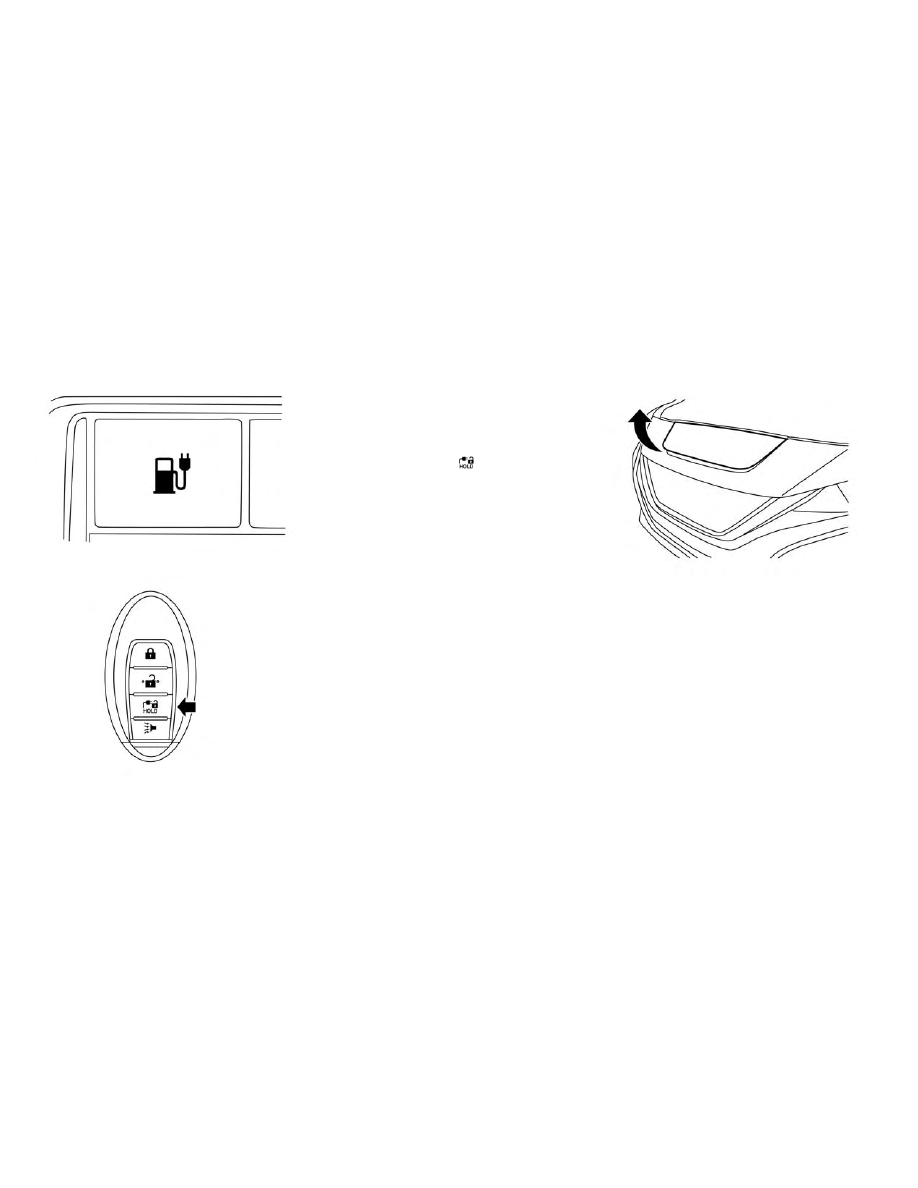

When opening the charge port lid perform
one of the following:

• Push the charge port lid switch located on

the instrument panel, or

• Press and hold the

button on the

Intelligent Key for more than one second.

When opening the charge port lid:

1. The charging status indicator lights flash

and a chime sounds three times and the
charge port lid will then spring up slightly.

2. Put your hand into the underside of the

lid and open until it is in the fully open
position.

When closing the charge port lid:

1. Slowly move the lid down.

2. Lock it securely into place.

Switch

Button

3-20

Pre-driving checks and adjustments

If the charge port lid cannot be unlocked

1. Open the hood.

2. Move the lever behind the charge port

lid in the direction of the arrow using a
flat head screwdriver or suitable tool,
and the port is unlocked.

CHARGE PORT CAP

When opening the charge port cap, press
the tab inward and the cap will spring open.

When the charge port cap is closed to its
previous position, it will lock automatically.

CAUTION

• When charging is finished, be sure to

close the charge port cap. If water or
dust gets inside the charge port, this
may cause a malfunction.

• Pay particular attention when using

the normal charge port as the
charge port lid can be closed even
when the normal charge port cap is
open.

• Close the quick charge (if so equipped)

port cap before closing the charging
lid. The quick charge port cap can be
damaged if it is open when closing the
charge port lid.

Pre-driving checks and adjustments

3-21

WARNING

• Do not adjust the steering wheel

while driving. You could lose control
of your vehicle and cause an acci-
dent.

• Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious
or fatal injuries from the air bag if
you are up against it when it inflates.
Always sit back against the seat-
back and as far away as practical
from the steering wheel. Always use
the seat belts.

TILT OPERATION

Push the lock lever down

䊊

and adjust the

steering wheel up or down

䊊

to the de-

sired position.

Pull the lock lever up

䊊

to lock the steering

wheel in place.

1. To block out glare from the front, swing

down the sun visor

䊊

2. To block glare from the side, remove the

sun visor from the center mount and
swing it to the side

䊊

STEERING WHEEL

SUN VISORS

3-22

Pre-driving checks and adjustments

3. Slide the extension sun visor in or out as

needed

䊊

CAUTION

• Do not store the sun visor before re-

turning the extension to its original
position.

• Do not pull the extension sun visor

forcedly downward.

VANITY MIRROR

To use the front vanity mirror, pull down the
sun visor and pull up the cover.

INSIDE REARVIEW MIRROR

Adjust the angle of the inside rearview mir-
ror to the preferred position.

MIRRORS

Pre-driving checks and adjustments

3-23

MANUAL ANTI-GLARE REARVIEW
MIRROR (IF SO EQUIPPED)

The night position

䊊

reduces glare from

the headlights of vehicles behind you at
night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when nec-
essary, because it reduces rearview
clarity.

AUTOMATIC ANTI-GLARE TYPE
(IF SO EQUIPPED)

The inside mirror is designed so that it au-
tomatically changes reflection based on
the intensity of the headlights of the vehicle
behind.

When the system is turned on, the indicator
light

䊊

will illuminate and excessive glare

from the headlights of the vehicle behind
you will be reduced.

Push the “

䡩” switch

䊊

to make the inside

rearview mirror operate normally. The indi-
cator light will turn off. Push the “I” switch

䊊

to turn the system on.

Do not allow any object to cover the sen-
sors

䊊

or apply glass cleaner on them.

Doing so will reduce the sensitivity of the
sensor, resulting in improper operation.

WARNING

Use the night position only when neces-
sary, because it reduces rear view clarity.

3-24

Pre-driving checks and adjustments

OUTSIDE MIRRORS

Adjusting outside mirrors

WARNING

Objects viewed in the outside mirror
on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the inside
mirror or glance over your shoulder to
properly judge distances to other ob-
jects.

The outside mirror control switch is lo-
cated on the armrest.

The outside mirror will operate only when
the power switch is in the ACC or ON posi-
tion.

Turn the switch right or left to select the
right or left side mirror

䊊

, then adjust the

mirror using the control switch

䊊

Move the switch to the center (neutral) po-
sition to prevent accidentally moving the
mirror.

Defrosting outside mirrors (if so
equipped)

The outside mirrors will be heated when
the rear window defroster switch is oper-
ated. For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.

Folding outside mirrors

Fold the outside mirror by pushing it to-
ward the rear of the vehicle.

Pre-driving checks and adjustments

3-25

NOTES

3-26

Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and
voice recognition systems

NissanConnect® Manual (for Leaf) . . . . . . . . . . .4-3
RearView Monitor (if so equipped) . . . . . . . . . . .4-4

RearView Monitor system operation . . . . . . .4-5
How to read the displayed lines . . . . . . . . . .4-6
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . .4-6
How to park with predicted course lines
(models with Navigation System) . . . . . . . . .4-8
Adjusting the screen . . . . . . . . . . . . . . . . .4-10
How to turn on and off predicted course lines
(models with navigation) . . . . . . . . . . . . . .4-11
RearView Monitor system limitations . . . . . .4-11
System maintenance . . . . . . . . . . . . . . . .4-12

Intelligent Around View Monitor
(if so equipped). . . . . . . . . . . . . . . . . . . . . . .4-13

Intelligent Around View Monitor system
operation . . . . . . . . . . . . . . . . . . . . . . . .4-15
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . .4-18
How to park with predicted course lines . . . .4-19
How to switch the display . . . . . . . . . . . . .4-20
Adjusting the screen . . . . . . . . . . . . . . . . .4-21
Intelligent Around View Monitor system
limitations. . . . . . . . . . . . . . . . . . . . . . . .4-22
