Nissan Leaf (2019 year). Instruction

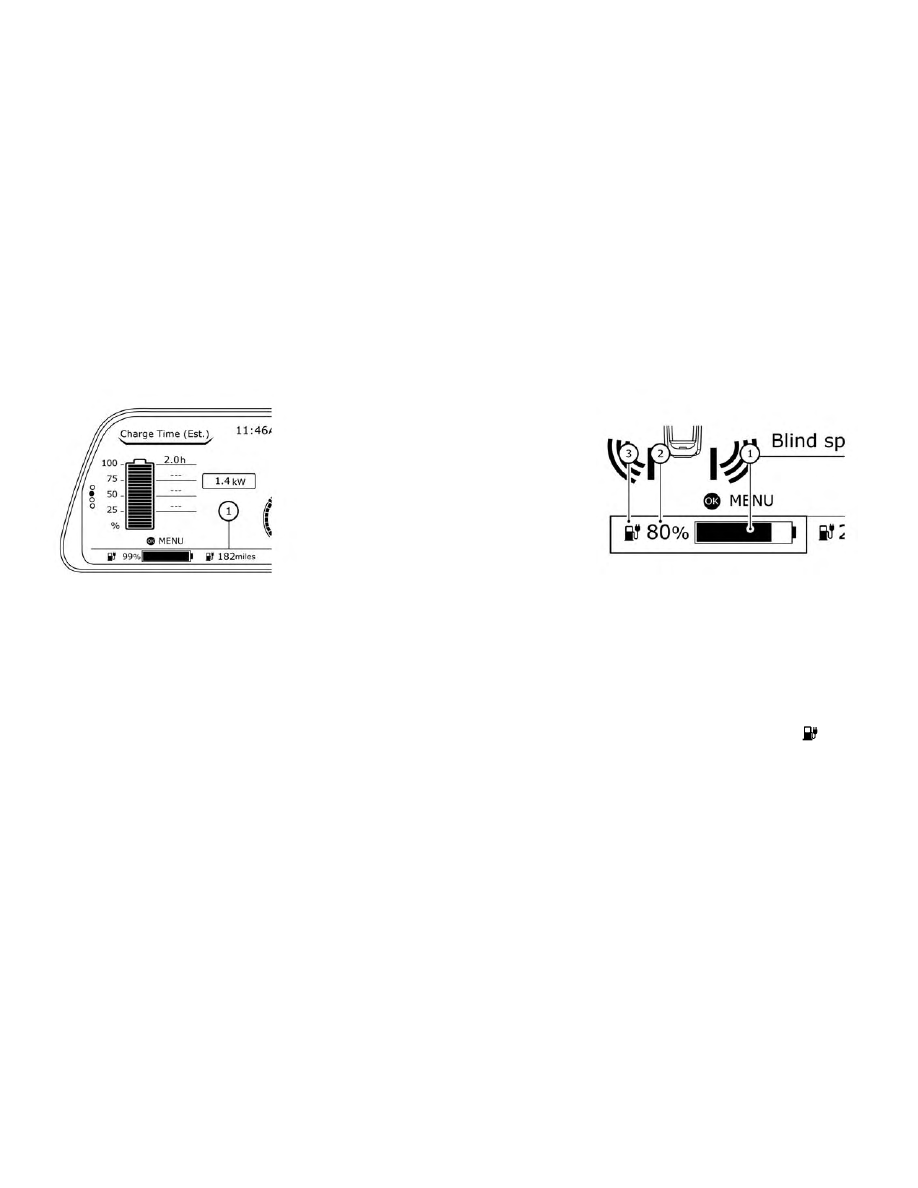

DRIVING RANGE

The driving range

䊊

provides an esti-

mated distance that the vehicle can be
driven before recharging is necessary. The
driving range is constantly being calcu-
lated, based on the amount of available
Li-ion battery charge and the actual power
consumption average.

NOTE:

• The driving range display will flash

when the low battery charge indicator
illuminates. Additionally, if you continue
to drive the vehicle in this state and the
Li-ion battery is close to being com-
pletely discharged, “---” will be dis-
played. Charge the Li-ion battery as
soon as possible. When the Li-ion bat-
tery is charged, the original display will
be restored.

• After the vehicle is charged, the dis-

played

driving

range

calculated

based on the actual average energy
consumption of the previous driving.
The displayed driving range will vary ev-
ery time the vehicle is fully charged.

• The driving range increases or de-

creases when the air conditioner, heater
or

Li-ion

battery

warmer

(if

equipped) is turned on or off, or when
the ECO mode is selected, or when any
other accessory is turned on or off
based on driving.

LI-ION BATTERY AVAILABLE
CHARGE GAUGE

䊊

This gauge indicates the approximate

available Li-ion battery charge to run the
vehicle.

䊊

This figure shows the current state of

charge (%) of the vehicle.

䊊

Low battery charge indicator

: This

indicator illuminates yellow when the avail-
able Li-ion battery charge is getting low.

Charge the Li-ion battery before the blue
bar of the gauge

䊊

disappears.

2-10

Instruments and controls

The low battery charge indicator

䊊

illuminates yellow when the available Li-ion
battery charge is getting low. Charge as
soon as it is convenient, preferably before
the blue bar of the gauge

䊊

disappears.

When the blue bar of the gauge

䊊

disap-

pears and the charge indicator

䊊

illuminates, there is a very small reserve of
Li-ion battery charge remaining.

NOTE:

• The length of the blue bar of the gauge

䊊

is determined by the available

charge and the amount of charge the
Li-ion battery is capable of storing at
the current temperature.

• Temperature affects the amount of

charge the Li-ion battery is capable of
storing. The Li-ion battery is capable of
storing less power when the Li-ion bat-
tery temperature is cold. The Li-ion bat-
tery is capable of storing more power
when the Li-ion battery temperature is
warm. The length of the blue bar of the
gauge

䊊

can change based on the

amount of power the Li-ion battery is
capable of storing. For example, when
the Li-ion battery becomes colder, a

longer blue bar of the gauge

䊊

illumi-

nates because the available charge is a
greater percentage of the Li-ion bat-
tery's capability of storing power. When
the Li-ion battery becomes warmer, a
shorter blue bar of the gauge

䊊

illumi-

nates because the remaining energy is
a lower percentage of the Li-ion bat-
tery's capability of storing power.

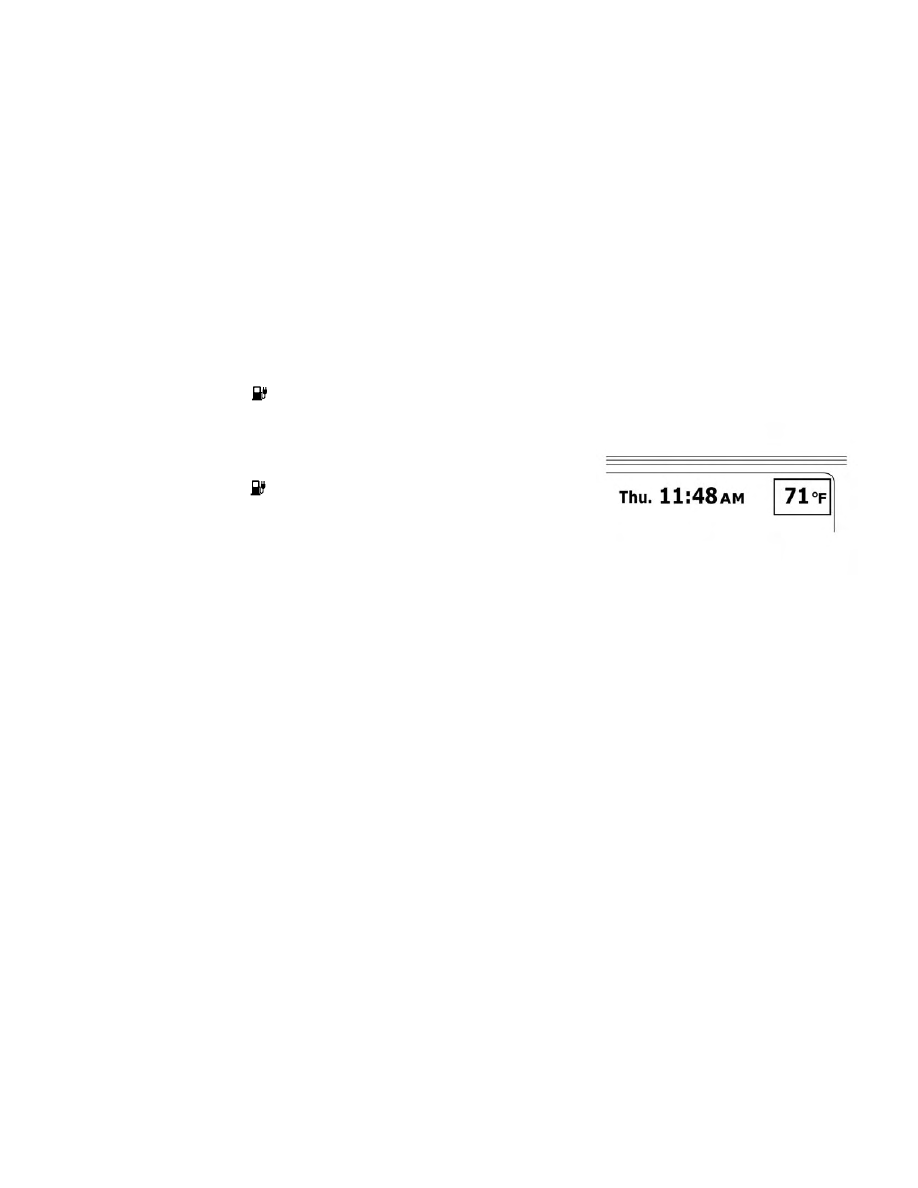

OUTSIDE AIR TEMPERATURE

The outside air temperature is displayed in
°F or °C.

The display may differ from the actual out-
side temperature displayed on various
signs or billboards.

Instruments and controls

2-11

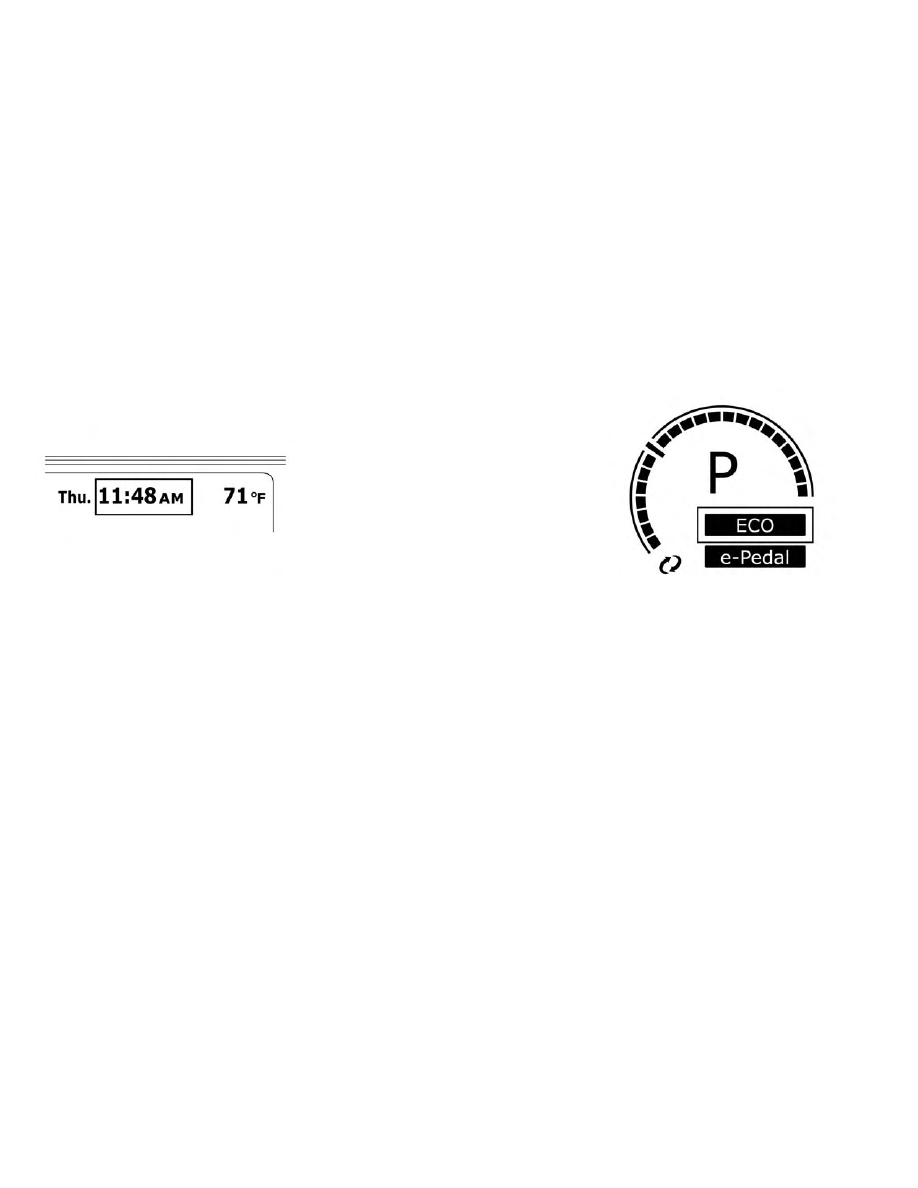

CLOCK

For models without a Navigation System:

Adjust the clock on the setting screen of
the vehicle information display. For addi-
tional information, refer to “Settings” in this
section. If the power supply (12-volt battery)
is disconnected, the clock will not indicate
the correct time. Readjust the time.

For models with a Navigation System:

This clock is synchronized with the clock
displayed

the

navigation

system

screen. For additional information, refer to
the separate NissanConnect® Manual (for
Leaf).

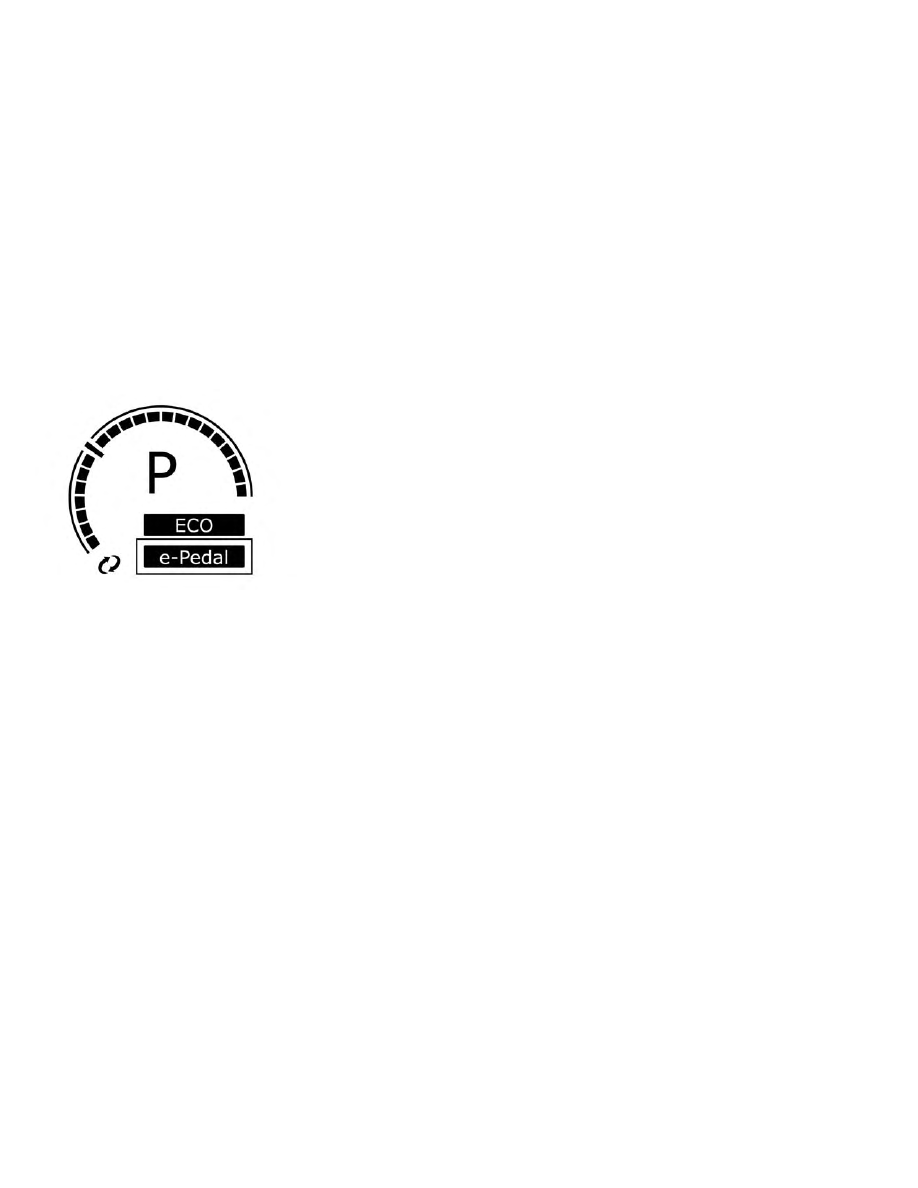

ECO MODE INDICATOR

This indicator in the vehicle information
display shows the status of the e-Pedal
system. When the e-Pedal system is turned
off, the indicator changes to "e-Pedal OFF".
For additional information, refer to "e-Pedal
system" in the "Starting and driving" sec-
tion of this manual.

2-12

Instruments and controls

12-volt battery charge warning
light

Low tire pressure warning light

High Beam Assist indicator light
(if so equipped)

Anti-lock Braking System (ABS)
warning light

Master warning light (red/
yellow)

Plug-in indicator light

Approaching Vehicle Sound for
Pedestrians (VSP) OFF system
warning light

Power steering warning light

Power limitation indicator light

Automatic Emergency Braking
(AEB) system warning light (if so
equipped)

Seat belt warning light

READY to drive indicator light

Automatic Emergency Braking
(AEB) with Pedestrian Detection
system warning light (if so
equipped)

Supplemental air bag warning
light

Security indicator light

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-14

Instruments and controls

Brake system warning light
(yellow)

Electronic parking brake indica-
tor light

Slip indicator light

Brake warning light (red)

Exterior light indicator light

Turn signal/hazard indicator
lights

Electronic parking brake system
warning light (yellow)

Front fog light indicator light (if
so equipped)

Vehicle Dynamic Control (VDC)
OFF indicator light

Electric shift control system
warning light

Front passenger air bag status
light

Electric Vehicle (EV) system
warning light

High beam indicator light (blue)

Instruments and controls

2-15

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
power switch for LEAF to the ON position
without starting the hybrid system. The fol-
lowing lights (if so equipped) will come on:

The following lights (if so equipped) come
on briefly and then turn off:

(yellow),

(red),

If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.

Some indicators and warnings are also dis-
played on the vehicle information display.
For additional information, refer to “Vehicle
information display” in this section.

WARNING LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

12-volt battery charge

warning light

The DC/DC converter converts 400 volt Li-
ion battery voltage to charge the 12-volt
battery.

This light illuminates continuously after the
bulb is checked when the power switch is
in the ON position, and turns off when the
power switch is placed in the READY to
drive position.

When this warning light illuminates, a
chime sounds and the following warnings
are also displayed.

• Master warning (red)

• EV system warning light

The following messages also flash on and
off on the vehicle information display.

If the vehicle is being driven; “Stop the ve-
hicle” and if the vehicle is stopped; “When
parked apply parking brake”. When these
messages flash, immediately stop the ve-
hicle in a safe location, pull the parking
brake switch and push the P (Park) position
switch on the shift lever to place the vehicle
in the P (Park) position. The warning on the
meter and the chime stops when the park-

ing brake is operated or the vehicle is in the
P (Park) position. Have the system checked.
It is recommended that you visit a NISSAN
certified LEAF dealer for this service.

CAUTION

• The DC/DC converter system may

not be functioning properly if the 12-
volt battery charge warning light il-
luminates continuously when the
power switch is in the READY to drive
position. Immediately stop the ve-
hicle in a safe location and have the
system checked. It is recommended
that you visit a NISSAN certified LEAF
dealer for this service.

• The DC/DC converter system may

not be functioning properly if the 12-
volt warning light illuminates con-
tinuously when the power switch is
in the READY to drive position. Do not
charge the 12-volt battery while this
warning light is illuminated. It may
lead to a malfunction of the DC/DC
converter system. Have the system
checked. It is recommended that
you visit a NISSAN certified LEAF
dealer for this service.

2-16

Instruments and controls

NOTE:

• If the vehicle does not go into the READY

to drive position (when the power switch
is pushed and the brake pedal is de-
pressed), jump-start the vehicle to place
the power switch in the READY to drive
position. For additional information, refer
to “Jump starting” in the “In case of emer-
gency” section of this manual.

• Do not jump-start the vehicle if the con-

ditions below occur. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer for
this service:

– If the 12-volt charge warning light

turns off when the vehicle is in the
READY to drive mode, the 12-volt bat-
tery may be discharged or there may
be a malfunction in the 12-volt bat-
tery related system.

– If the 12-volt charge warning light

continues to illuminate when the ve-
hicle is in the READY to drive mode,
there may be a malfunction in the
DC/DC converter. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer
for this service.

Anti-lock
Braking System
(ABS) warning
light

When the power switch is in the ON or
READY to drive position, the Anti-lock Brak-
ing System (ABS) warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the power switch is in the READY to drive
position, or while driving, it may indicate the
ABS is not functioning properly. Have the
system checked. It is recommended that
you visit a NISSAN certified LEAF dealer for
this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Approaching Vehicle
Sound for Pedestrians
(VSP) OFF system warning
light

The Approaching Vehicle Sound for Pedes-
trians (VSP) system warning light is located
on the instrument panel.

This light comes on if there is a malfunction
in the VSP system.

If the VSP system warning light illuminates
while the power switch is in the ON posi-
tion, or in the READY to drive position, it may
indicate the VSP system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.

For additional information, refer to “Ap-
proaching Vehicle Sound for Pedestrians
(VSP) system” in the “EV overview” section of
this manual.

Instruments and controls

2-17

Automatic Emergency
Braking (AEB) system
warning light (if so
equipped)

This light comes on when the power switch
is placed in the ON position. It turns off after
the hybrid system is started.

This light illuminates when the AEB system
is set to OFF on the meter display.

If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Automatic Emergency Braking (AEB)”
in the “Starting and driving” section of this
manual.

Automatic Emergency
Braking (AEB) with
Pedestrian Detection
system warning light (if so
equipped)

This light comes on when the power switch
is placed in the ON position. It turns off after
the hybrid system is started.

This light illuminates when the AEB with
Pedestrian Detection system is set to OFF
in the vehicle information display.

If the light illuminates when the AEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, refer to “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” in the “Starting and driving” sec-
tion of this manual.

Brake system warning
light (yellow)

This light functions for both the coopera-
tive regenerative brake and the electroni-
cally driven intelligent brake systems.

When the power switch is placed in the ON
position or in the READY to drive position,
the light remains illuminated for about 2 or
3 seconds. If the light illuminates at any
other time, it may indicate that the coop-
erative regenerative brake and/or the elec-
tronically driven intelligent brake systems
are not functioning properly. Have the sys-
tem checked. It is recommended that you
visit a NISSAN certified LEAF dealer for this
service.

If the BRAKE warning light (red) also illumi-
nates, stop the vehicle immediately and
have the system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service. For additional
information, refer to “Brake system” in the
“Starting

and

driving”

section

this

manual.

WARNING

• Pressing the brake pedal when the

power switch position is not in the
ON or READY to drive position and/or
low brake fluid level may increase
the stopping distance and braking
will require greater pedal effort as
well as pedal travel.

• If the brake fluid level is below the

minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended

that

you

visit

NISSAN certified LEAF dealer for this
service.

2-18

Instruments and controls

• The cooperative regenerative brake

system may not be working prop-
erly if the brake system warning
light illuminates when the READY to
drive indicator light is ON. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving could be
dangerous.

Brake warning
light (red)

When the power switch is placed in the ON
position or in the READY to drive position,
the light remains illuminated for about a
few seconds. If the light illuminates at any
other time, it may indicate that the hydrau-
lic brake system is not functioning properly.
If the BRAKE warning light illuminates, stop
the vehicle immediately and have the sys-
tem checked. It is recommended that you
visit a NISSAN certified LEAF dealer for this
service.

Parking brake indicator:

When the power switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.

Low brake fluid warning light:

When the power switch is in the ON posi-
tion, the light warns of a low brake fluid
level. If this warning light illuminates, the
Vehicle Dynamic Control (VDC) warning
light and the brake system warning light
(yellow) also illuminate.

If the light illuminates while the power
switch is in the READY to drive position with
the parking brake not applied, stop the ve-
hicle and perform the following items.

1. Check the brake fluid level. If brake fluid is

necessary, add fluid and have the sys-
tem checked. It is recommended that
you visit a NISSAN certified LEAF dealer
for this service. For additional informa-
tion, refer to “Brake fluid” in the “Mainte-
nance and do-it-yourself ” section of this
manual.

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.

WARNING

• Your brake system may not be work-

ing properly if the warning light is
on. Driving could be dangerous. If
you judge the brake system to be
safe, drive carefully to the nearest
service station for repairs. Other-
wise, have your vehicle towed be-
cause driving it could be dangerous.

• Pressing the brake pedal when the

• If the brake fluid level is below the

minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended

that

you

visit

NISSAN certified LEAF dealer for this
service.

Instruments and controls

2-19

Electronic brake system
warning light (yellow)

The electronic parking brake system warn-
ing light function for the electronic braking
brake system. When the power switch is
placed in the ON position, the light illumi-
nates for a few seconds. If the warning light
illuminates at any other time, it may indi-
cate that the electronic parking brake sys-
tem is not function properly. Have the sys-
tem

checked

immediately.

recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.

Electric shift control
system warning light

This light illuminates to warn when a mal-
function occurs in the electric shift control
system. When the master warning light illu-
minates, the chime sounds and the mes-
sage, “When parked apply parking brake”, is
displayed on the vehicle information dis-
play.

When the power switch is in the OFF posi-
tion, the chime sounds continuously. Make
sure the parking brake is applied.

Have the system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.

Electric Vehicle (EV)
system warning light

This light illuminates if there is a malfunc-
tion in the following systems. Have the sys-
tem checked. It is recommended that you
visit a NISSAN certified LEAF dealer for this
service.

• Traction motor and inverter system

• Charge port or on board charger

• Li-ion battery system

• Cooling system

• Shift control system

• Emergency shut off system is activated.

For additional information, refer to “Emer-
gency shut-off system” in the “EV over-
view” section of this manual.

Low tire pressure warning
light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires.

The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the power switch is placed in the ON
position, this light illuminates for about
1 second and then turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
The “Low Tire Pressure — Add Air” warning
also appears on the vehicle information
display.

When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure to the recommended COLD
tire pressure shown on the Tire and Load-
ing Information label. The low tire pressure
warning light does not automatically turn
off when the tire pressure is adjusted. After
the tire is inflated to the recommended
pressure, the vehicle must be driven at
speeds above 16 mph (25 km/h) to activate
the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.

2-20

Instruments and controls

The “Low Tire Pressure — Add Air” warning
appears each time the power switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.

For additional information, refer to “Vehicle
information display” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “In case
of emergency” section of this manual.

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the power
switch is placed in the ON position. The
light will remain on after the 1 minute. Have
the system checked. It is recommended
that you visit a NISSAN certified LEAF dealer
for this service. The “Low Tire Pressure —
Add Air” warning does not appear if the low
tire pressure warning light illuminates to
indicate a TPMS malfunction.

For additional information, refer to “Vehicle
information display” in this section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.

WARNING

• Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.

• If the light does not illuminate when

the power switch is placed in the ON
position, have the vehicle checked. It
is recommended that you visit a
NISSAN certified LEAF dealer as soon
as possible for this service.

• If the light illuminates while driving,

avoid sudden steering maneuvers
or abrupt braking, reduce vehicle
speed, pull off the road to a safe lo-
cation and stop the vehicle as soon
as possible. Driving with under-
inflated

tires

may

permanently

damage the tires and increase the
likelihood of tire failure. Serious ve-
hicle damage could occur and may
lead to an accident and could result
in serious personal injury or death.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Infor-

mation label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving
after adjusting the tire pressure, a
tire may be flat or the TPMS may be
malfunctioning. If you have a flat
tire, replace it with a spare tire as
soon as possible. If no tire is flat and
all tires are properly inflated, have
the vehicle checked. It is recom-
mended that you visit a NISSAN cer-
tified LEAF dealer for this service.

• When replacing a wheel without the

TPMS such as a spare tire, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after 1 minute. Have
the system checked. It is recom-
mended that you visit a NISSAN cer-
tified LEAF dealer as soon as pos-
sible for tire replacement and/or
system resetting.

• Replacing tires with those not origi-

nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Instruments and controls

2-21

CAUTION

• The TPMS is not a substitute for the

regular tire pressure check. Be sure
to check the tire pressure regularly.

• If the vehicle is being driven at

speeds

less

than

mph

(25 km/h), the TPMS may not oper-
ate correctly.

• Be sure to install the specified size of

tires to the four wheels correctly.

Master warning light
(red/yellow)

There are two types of master warning
lights: yellow and red. These lights illumi-
nate if any warning lights or indicator lights
are illuminated or if various vehicle infor-
mation warnings appear in the vehicle in-
formation display.

Yellow master warning light

This light illuminates when a yellow warn-
ing light within the vehicle information dis-
play is illuminated or when a message is
displayed on the vehicle information dis-
play.

Red master warning light

This light illuminates when a red warning
light within the vehicle information display
is illuminated or when a warning is dis-
played on the vehicle information display.

Power steering warning
light

When the power switch is in the ON posi-
tion, the electric power steering warning
light illuminates and turns off when the
power switch is placed in the READY to
drive position. This indicates the electric
power steering system is operational.

If the electric power steering warning light
illuminates while the READY to drive indica-
tor light is ON, it may indicate the electric
power steering system is not functioning
properly and may need servicing. Have the
electric power steering system checked. It
is recommended that you visit a NISSAN
certified LEAF dealer for this service.

When the electric power steering warning
light illuminates while the READY to drive
indicator is ON, the power assist to the
steering will cease operation but you will
still have control of the vehicle. At this time,

greater steering efforts are required to op-
erate the steering wheel, especially in
sharp turns and at low speeds.

For additional information, refer to “Power
steering system” in the “Starting and driv-
ing” section of this manual.

Seat belt warning light

The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the power switch is placed in the ON
position, and will remain illuminated until
the driver’s seat belt is fastened. At the
same time, the chime will sound for ap-
proximately 6 seconds unless the driver’s
seat belt is securely fastened.

The seat belt warning light for the front
passenger will illuminate if the seat belt is
not fastened when the front passenger’s
seat is occupied. The front passenger seat
belt warning light does not activate until
5 seconds after the power switch is in the
ON position.

For additional information, refer to “Seat belts”
in the “Safety — Seats, seat belts and supple-
mental restraint system” section of this
manual for precautions on seat belt usage.

2-22

Instruments and controls

Supplemental air bag

warning light

After turning the power switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air
bag warning light will turn off after about
7 seconds if the supplemental front air bag
and supplemental side air bag, curtain
side-impact air bag systems and/or pre-
tensioner seat belt are operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing
and your vehicle must be taken to your
nearest NISSAN certified LEAF dealer.

• The supplemental air bag warning light re-

mains on after approximately 7 seconds.

• The supplemental air bag warning light

flashes intermittently.

• The supplemental air bag warning light

does not illuminate at all.

Unless checked and repaired, the Supple-
mental Restraint Systems and/or the pre-
tensioners may not function properly.

For additional information, refer to “Supple-
mental restraint system (SRS)” in the “Safety
— Seats, seat belts and supplemental re-
straint system” section of this manual.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked. It is recommended
that you visit a NISSAN certified LEAF
dealer as soon as possible for this ser-
vice.

INDICATOR LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

Electronic parking

brake indicator light

When the power switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.

Exterior light indicator light

This indicator illuminates when the head-
light switch is turned to the AUTO,

position and the front parking lights,

side marker lights, tail and license plate
lights are on. The indicator turns off when
these lights are turned off.

Front fog light indicator light
(if so equipped)

The front fog indicator light illuminates
when the front fog lights are on. For addi-
tional information, refer to “Fog light switch”
in this section.

Front passenger air bag
status light

The front passenger air bag status light
(located on the center of the instrument
panel) will be lit and the passenger front air
bag will be turned off depending on how
the front passenger seat is being used.

For front passenger air bag status light op-
eration, refer to “NISSAN Advanced Air Bag
System (front seats)” in the “Safety — Seats,
seat belts and supplemental restraint sys-
tem” section of this manual.

Instruments and controls

2-23

High Beam Assist indicator
light (if so equipped)

The indicator light illuminates when the
headlights come on while the headlight
switch is in the AUTO position with the high
beam selected. This indicates that the high
beam assist system is operational. For ad-
ditional information, refer to “Headlight
beam select” in this section.

High beam indicator light
(blue)

This light illuminates when the headlight
high beam is on and goes out when the low
beam is selected.

Plug-in indicator light

This light illuminates when the charge con-
nector is connected to the vehicle and
blinks during charging.

NOTE:

If the charge connector is connected to
the vehicle, the power switch cannot be
placed in the READY to drive position.

Power limitation indicator
light

When the power limitation indicator light is
illuminated, the power provided to the trac-
tion motor is reduced. Therefore the ve-
hicle is not as responsive when the accel-
erator is depressed while the power
limitation light is illuminated.

When this light comes on, the warning dis-
play appears within the vehicle information
display. Follow the instructions provided on
the vehicle information display.

This light illuminates in the following condi-
tions.

• Li-ion battery available charge is ex-

tremely low

• Li-ion battery temperature is very low (ap-

proximately −4°F (−20°C)

• When the temperature of the EV system is

high (motor, inverter, coolant system, Li-
ion battery etc.)

• When the EV system has a malfunction.

If the low battery charge indicator is illumi-
nated, charge the Li-ion battery as soon as
possible.

If this indicator illuminates because the Li-
ion battery is cold due to low outside tem-
peratures, move the vehicle to a warmer
location. The Li-ion battery temperature
may be increased by charging the Li-ion
battery.

If the light illuminates when the EV system
becomes hot due to continuous hill climb-
ing, either continue driving at a slower safe
speed or stop the vehicle in a safe location.
If this indicator does not turn off, have the
system checked. It is recommended that
you visit a NISSAN certified LEAF dealer for
this service.

The indicator illuminates when a part in the
EV system has malfunctioned. If the indica-
tor illuminates in a situation other than
those described above, or if it does not turn
off, there may be a system malfunction.
Have the system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.

WARNING

Power limitation mode can result in re-
duced power and vehicle speed. The
reduced speed may be lower than

2-24

Instruments and controls

other traffic, which could increase the
chance of a collision. Be especially
careful when driving. If the vehicle can-
not maintain a safe driving speed, pull
to the side of the road in a safe area.
Charge the Li-ion battery if the charge
is low or allow the Li-ion battery to
cool.

NOTE:
You can reduce charging time and
keep the Li-ion battery temperature
lower if you:

• Charge more frequently in smaller

amounts, and

• Keep the battery at a higher level of

charge.

READY to drive indicator
light

The READY to drive indicator light illumi-
nates when the EV system is powered and
the vehicle may be driven.

The READY to drive indicator light will turn
off in the following conditions.

• Certain EV system malfunctions.

• The READY to drive indicator light turns off

immediately before the Li-ion battery is
completely discharged. If the Li-ion battery
becomes completely discharged, the ve-
hicle must be charged in order to be driven.
For additional information, refer to “Low
battery charge indicator” in this section.

Security indicator light

This light blinks when the power switch is in
the ACC, OFF or LOCK position. This func-
tion

indicates

the

security

system

equipped on the vehicle is operational.

If the security system is malfunctioning,
this light will remain on while the power
switch is in the ON position. For additional
information, refer to “Security systems” in
this section.

Slip indicator light

This indicator will blink when the VDC sys-
tem or the traction control system is oper-
ating, thus alerting that the vehicle is near-
ing its traction limits. The road surface may
be slippery.

You may feel or hear the system working;
this is normal. The light will blink for a few

seconds after the VDC system stops limit-
ing wheel spin.

The indicator light also comes on when
you place the power switch in the ON posi-
tion.

The light will turn off after approximately
2 seconds if the system is operational. If the
light does not come on, have the system
checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice.

Turn signal/hazard
indicator lights

This light flashes when the turn signal
switch lever or hazard switch is turned on.

Vehicle Dynamic Control
(VDC) OFF indicator light

This light illuminates when the Vehicle Dy-
namic Control (VDC) switch is pushed to
OFF. This indicates that the VDC system is
not operating. For additional information,
refer to “Vehicle Dynamic Control (VDC) sys-
tem” in the “Starting and driving” section of
this manual.

Instruments and controls

2-25

Nissan Leaf (2019 year). Instruction - part 11
