Nissan Kicks (2018 year). Instruction - part 3

Unfastening the seat belts

To unfasten the seat belt, press the button
on the buckle

䊊

. The seat belt automati-

cally retracts.

Checking seat belt operation

Seat belt retractors are designed to lock
seat belt movement by two separate
methods:

∙ When the seat belt is pulled quickly from

the retractor

∙ When the vehicle slows down rapidly

To increase your confidence in the seat
belts, check the operation as follows:

∙ Grasp the shoulder belt and pull for-

ward quickly. The retractor should lock
and restrict further belt movement.

If the retractor does not lock during this
check, get the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service, or to learn more about seat
belt operation.

Shoulder belt height adjustment
(front seats)

The shoulder belt anchor height should be
adjusted to the position best for you. For
additional information, refer to “Precau-
tions on seat belt usage” in this section. To
adjust, pull out the adjustment button

䊊

and move the shoulder belt anchor to the
desired position

䊊

, so the belt passes over

the center of the shoulder. The belt should
be away from your face and neck, but not
falling off your shoulder. Release the ad-
justment button to lock the shoulder belt
anchor into position.

WRS0139

LRS0242

1-16

Safety—Seats, seat belts and supplemental restraint system

WARNING

∙ After adjustment, release the adjust-

ment button and try to move the
shoulder belt anchor up and down to
make sure it is securely fixed in
position.

∙ The

shoulder

belt

anchor

height

should be adjusted to the position
best for you. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.

Seat belt hook

When the seat belt is not in use and when
folding down the rear seats, hook the rear
seat belts on the seat belt hooks.

SEAT BELT EXTENDERS

If, because of body size or driving position, it
is

not

possible

properly

fit

the

lap/shoulder belt and fasten it, an extender
that is compatible with the installed seat
belts is available for purchase. The ex-
tender adds approximately 8 in (200 mm)
of length and may be used for either the
driver or front passenger seating position.
It is recommended that you visit a NISSAN

dealer for assistance with purchasing an
extender if an extender is required.

WARNING

∙ Only NISSAN seat belt extenders,

made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.

∙ Adults and children who can use the

standard seat belt should not use an
extender.

Such

unnecessary

use

could result in serious personal injury
in the event of an accident.

∙ Never use seat belt extenders to in-

stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured or
killed in a collision or a sudden stop.

SEAT BELT MAINTENANCE

∙ To clean the seat belt webbing, apply

a mild soap solution or any solution rec-
ommended for cleaning upholstery or
carpet. Then wipe with a cloth and allow
the seat belts to dry in the shade. Do not
allow the seat belts to retract until they
are completely dry.

LRS3082

Safety—Seats, seat belts and supplemental restraint system

1-17

∙ If dirt builds up in the shoulder belt

guide of the seat belt anchors, the
seat belts may retract slowly. Wipe the
shoulder belt guide with a clean, dry
cloth.

∙ Periodically check to see that the seat

belt and the metal components, such
as buckles, tongues, retractors, flexible
wires and anchors, work properly. If
loose parts, deterioration, cuts or other
damage on the webbing is found, the
entire seat belt assembly should be re-
placed.

WARNING

Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the seat
belt becomes wrapped around a child’s
neck with the ALR mode activated, the
child can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the vehicle
is parked. Unbuckle the seat belt to re-
lease the child. If the seat belt cannot be
unbuckled or is already unbuckled, re-
lease the child by cutting the seat belt
with a suitable tool (such as a knife or
scissors) to release the seat belt.

Children need adults to help protect
them. They need to be properly re-
strained.

In addition to the general information in
this manual, child safety information is
available from many other sources, includ-
ing doctors, teachers, government traffic
safety offices, and community organiza-
tions. Every child is different, so be sure to
learn the best way to transport your child.

There are three basic types of child re-
straint systems:

∙ Rear-facing child restraints

∙ Forward-facing child restraints

∙ Booster seats

The proper restraint depends on the child’s
size. Generally, infants up to about 1 year
and less than 20 lbs. (9 kg) should be placed
in rear-facing child restraints. Forward-
facing child restraints are available for chil-
dren who outgrow rear-facing child re-
straints and are at least 1 year old. Booster
seats are used to help position a vehicle
lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.

WARNING

Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly fit-
ting seat belt could cause serious or fa-
tal injury. Always use appropriate child
restraints.

CHILD SAFETY

1-18

Safety—Seats, seat belts and supplemental restraint system

All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. For
additional information, refer to “Child re-
straints” in this section.

A child restraint may be secured in the ve-
hicle by using either the LATCH (Lower An-
chors and Tethers for CHildren) system or
with the vehicle seat belt. For additional
information, refer to “Child restraints” in this
section.

NISSAN recommends that all pre-teens
and children be restrained in the rear
seat. Studies show that children are
safer when properly restrained in the
rear seat than in the front seat.

This is especially important because
your vehicle has a supplemental re-
straint system (air bag system) for the
front passenger. For additional informa-
tion, refer to “Supplemental Restraint
System (SRS)” in this section.

INFANTS

Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
NISSAN

recommends

that

infants

placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or

Canadian Motor Vehicle Safety Standards.
You should choose a child restraint that fits
your vehicle and always follow the manu-
facturer’s instructions for installation and
use.

SMALL CHILDREN

Children that are over 1 year old and weigh
at least 20 lbs. (9 kg) should remain in a
rear-facing child restraint as long as pos-
sible up to the height or weight limit of the
child restraint. Children who outgrow the
height or weight limit of the rear-facing
child restraint and are at least 1 year old
should be secured in a forward-facing child
restraint with a harness. Refer to the manu-
facturer’s instructions for minimum and
maximum weight and height recommen-
dations. NISSAN recommends that small
children be placed in child restraints that
comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle
Safety Standards. You should choose a
child restraint that fits your vehicle and al-
ways follow the manufacturer’s instruc-
tions for installation and use.

LARGER CHILDREN

Children should remain in a forward-facing
child restraint with a harness until they
reach the maximum height or weight limit
allowed by the child restraint manufac-
turer.

Once a child outgrows the height or weight
limit of the harness-equipped forward-
facing child restraint, NISSAN recommends
that the child be placed in a commercially
available booster seat to obtain proper
seat belt fit. For a seat belt to fit properly, the
booster seat should raise the child so that
the shoulder belt is properly positioned
across the chest and the top, middle por-
tion of the shoulder. The shoulder belt
should not cross the neck or face and
should not fall off the shoulder. The lap belt
should lie snugly across the lower hips or
upper thighs, not the abdomen. A booster
seat can only be used in seating positions
that have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.

Safety—Seats, seat belts and supplemental restraint system

1-19

A booster seat should be used until the
child can pass the seat belt fit test below:

∙ Are the child’s back and hips against the

vehicle seatback?

∙ Is the child able to sit without slouch-

ing?

∙ Do the child’s knees bend easily over

the front edge of the seat with feet flat
on the floor?

∙ Can the child safely wear the seat belt

(lap belt low and snug across the hips
and shoulder belt across mid-chest
and shoulder)?

∙ Is the child able to use the properly ad-

justed head restraint/headrest?

∙ Will the child be able to stay in position

for the entire ride?

If you answered no to any of these ques-
tions, the child should remain in a booster
seat using a three-point type seat belt.

NOTE:

Laws in some communities may follow
different guidelines. Check local and
state regulations to confirm your child is
using the correct restraint system before
traveling.

WARNING

Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously
injured or killed in a sudden stop or
collision.

LRS2690

1-20

Safety—Seats, seat belts and supplemental restraint system

PRECAUTIONS ON CHILD
RESTRAINTS

WARNING

∙ Failure to follow the warnings and in-

structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

– The child restraint must be used

and installed properly. Always fol-
low all of the child restraint manu-
facturer’s instructions for installa-
tion and use.

– Infants and children should never

be held on anyone’s lap. Even the
strongest adult cannot resist the
forces of a collision.

– Do not put a seat belt around both

a child and another passenger.

– NISSAN recommends that all child

restraints be installed in the rear
seat. Studies show that children
are safer when properly restrained
in the rear seat than in the front
seat. If you must install a forward-
facing child restraint in the front
seat, refer to “Forward-facing child
restraint installation using the seat
belts” in this section.

– Even with the NISSAN Advanced Air

Bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could se-
riously injure or kill a child. A rear-
facing child restraint must only be
used in the rear seat.

ARS1098

WRS0256

CHILD RESTRAINTS

Safety—Seats, seat belts and supplemental restraint system

1-21

– Be sure to purchase a child re-

straint that will fit the child and ve-
hicle. Some child restraints may
not fit properly in your vehicle.

– Child restraint anchorages are de-

signed to withstand only loads im-
posed by correctly fitted child re-
straints. Under no circumstances
are they to be used to attach adult
seat belts, or other items or equip-
ment to the vehicle. Doing so could
damage the child restraint anchor-
ages. The child restraint will not be
properly installed using the dam-
aged anchorage, and a child could
be seriously injured or killed in a
collision.

– Never use the anchor points for

adult seat belts or other items.

– A child restraint with a top tether

strap should not be used in the
front passenger seat.

– Keep seatbacks as upright as pos-

sible

after

fitting

the

child

restraint.

– Infants and children should always

be placed in an appropriate child
restraint while in the vehicle.

∙ When the child restraint is not in use,

keep it secured with the LATCH system
or a seat belt. In a sudden stop or col-
lision, loose objects can injure occu-
pants or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.

This vehicle is equipped with a universal
child restraint anchor system, referred to
as the LATCH (Lower Anchors and Tethers
for CHildren) system. Some child restraints
include rigid or webbing-mounted attach-
ments that can be connected to these an-
chors. For additional information, refer to
“LATCH (Lower Anchors and Tethers for
CHildren) system” in this section.

If you do not have a LATCH compatible
child restraint, the vehicle seat belts can be
used.

Several

manufacturers

offer

child

re-

straints for infants and children of various
sizes. When selecting any child restraint,
keep the following points in mind:

∙ Choose only a restraint with a label cer-

tifying that it complies with Federal Mo-
tor Vehicle Safety Standard 213 or Cana-
dian Motor Vehicle Safety Standard 213.

∙ Check the child restraint in your vehicle

to be sure it is compatible with the vehi-
cle’s seat and seat belt system.

∙ If the child restraint is compatible with

your vehicle, place your child in the child
restraint and check the various adjust-
ments to be sure the child restraint is
compatible with your child. Choose a
child restraint that is designed for your
child’s height and weight. Always follow
all recommended procedures.

∙ If the combined weight of the child and

child restraint is less than 65 lbs.
(29.5 kg), you may use the LATCH an-
chors to install the child restraint (not
both at the same time).

∙ If the combined weight of the child and

child restraint is greater than 65 lbs.
(29.5 kg), use the vehicle’s seat belt (not
the lower anchors) to install the child
restraint.

∙ Be sure to follow the child restraint

manufacturer’s instructions for installa-
tion.

1-22

Safety—Seats, seat belts and supplemental restraint system

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved
child restraint at all times while the ve-
hicle is being operated. Canadian law re-
quires the top tether strap on forward-
facing child restraints be secured to the
designated anchor point on the vehicle.

LATCH (Lower Anchors and
Tethers for CHildren) SYSTEM

Your vehicle is equipped with special an-
chor points that are used with LATCH sys-
tem compatible child restraints. This sys-
tem may also be referred to as the ISOFIX
or ISOFIX compatible system. With this sys-
tem, you do not have to use a vehicle seat
belt to secure the child restraint unless the
combined weight of the child and child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and child restraint
is greater than 65 lbs. (29.5 kg), use the ve-
hicle’s seat belt (not the lower anchors) to

install the child restraint. Be sure to follow
the child restraint manufacturer’s instruc-
tions for installation.

The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only. Do not attempt to
install a child restraint in the center position
using the LATCH anchors.

LATCH lower anchor

WARNING

Failure to follow the warnings and in-
structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

– Attach LATCH system compatible

child restraints only at the loca-
tions shown in the illustration.

– Do not secure a child restraint in

the center rear seating position us-
ing the LATCH lower anchors. The
child restraint will not be secured
properly.

LATCH system lower anchor locations

LRS3073

Safety—Seats, seat belts and supplemental restraint system

1-23

– Inspect the lower anchors by in-

serting your fingers into the lower
anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly

the

lower

anchors

are

obstructed.

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child re-
straint will not be properly installed us-
ing the damaged anchorage, and a
child could be seriously injured or killed
in a collision.

LATCH lower anchor location

The LATCH lower anchors are located as
shown. A label is attached to the seatback
to help you locate the LATCH lower an-
chors.

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attach-
ments that can be connected to two an-
chors located at certain seating positions
in your vehicle. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint. Check your child restraint for
a label stating that it is compatible with
LATCH. This information may also be in the
instructions provided by the child restraint
manufacturer.

LATCH lower anchor location

LRS3036

LATCH webbing-mounted attachment

LRS0661

1-24

Safety—Seats, seat belts and supplemental restraint system

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

Top tether anchor

WARNING

If the cargo cover (if so equipped) con-
tacts the top tether strap when it is at-
tached to the top tether anchor, remove
the cargo cover from the vehicle or se-
cure it on the cargo floor below its at-
tachment location. If the cargo cover is
not removed, it may damage the top
tether strap during a collision. A child
could be seriously injured or killed in a
collision if the child restraint top tether
strap is damaged.

Top tether anchor point locations

Anchor points are located on the back of
the rear seats.

LATCH rigid-mounted attachment

LRS0662

LRS3063

Safety—Seats, seat belts and supplemental restraint system

1-25

WARNING

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer’s
instructions for installation.

Follow these steps to install a rear-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

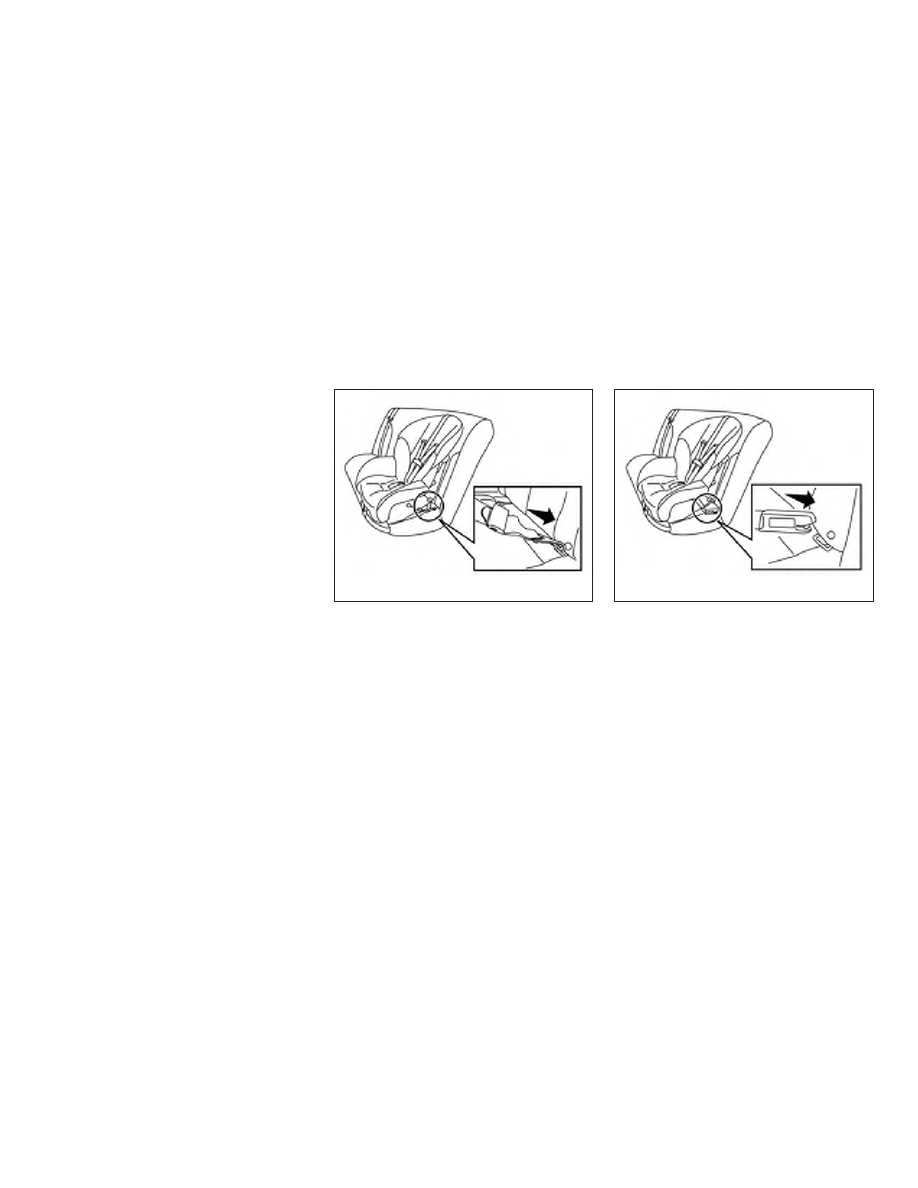

Rear-facing webbing-mounted – step 2

LRS2997

1-26

Safety—Seats, seat belts and supplemental restraint system

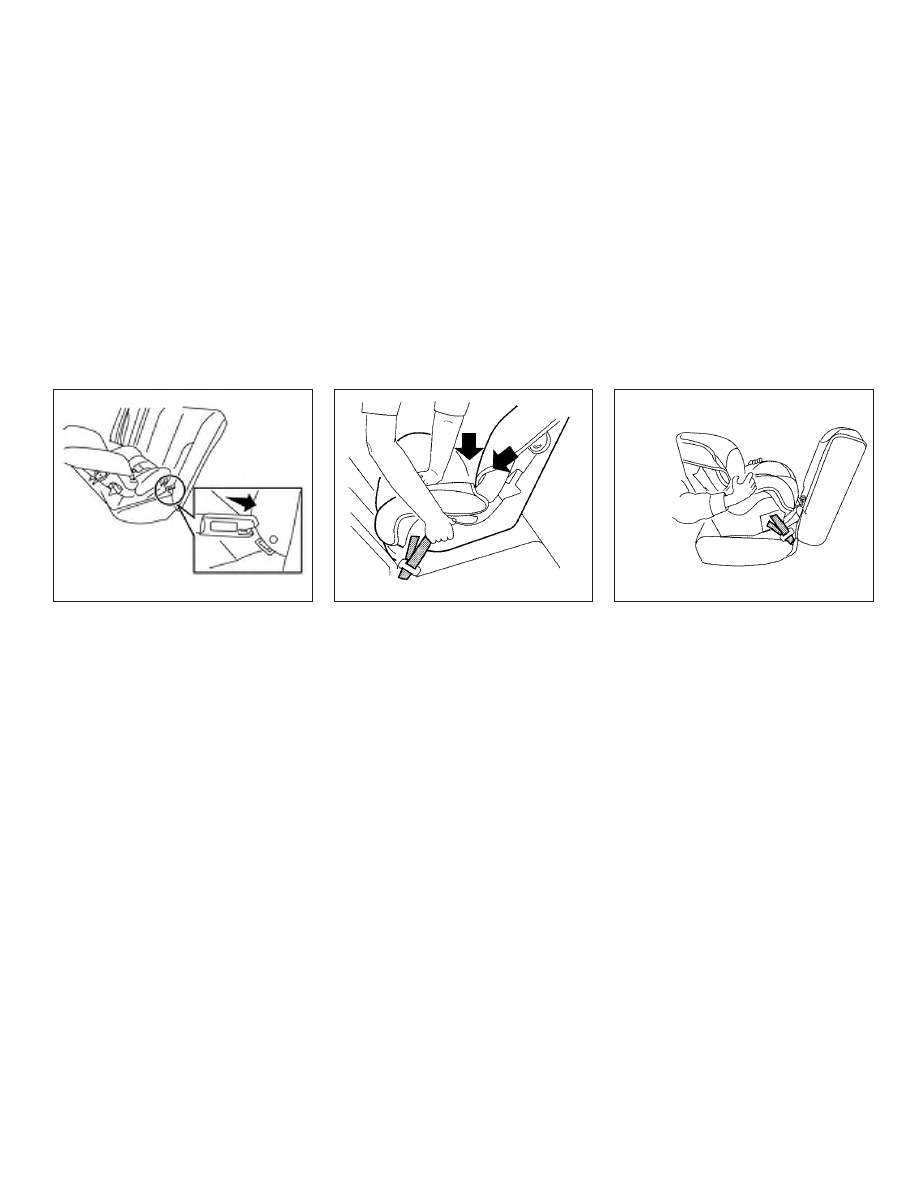

3. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and
seatback while tightening the webbing
of the anchor attachments.

4. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint or try installing by using the

Rear-facing rigid-mounted – step 2

LRS2996

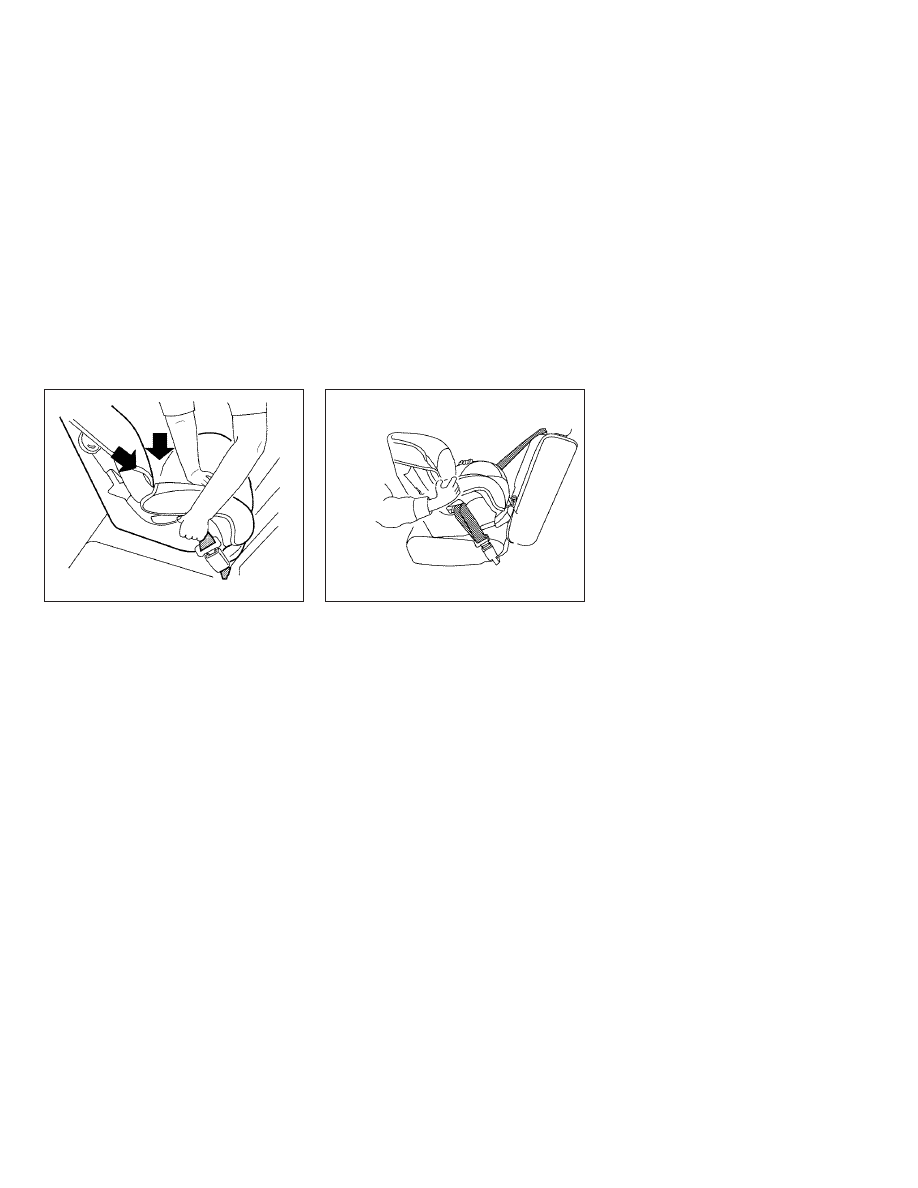

Rear-facing – step 3

LRS0673

Rear-facing – step 4

LRS0674

Safety—Seats, seat belts and supplemental restraint system

1-27

vehicle seat belt (if applicable). Not all
child restraints fit in all types of vehicles.

5. Check to make sure the child restraint

is properly secured prior to each use. If
the child restraint is loose, repeat
steps 1 through 4.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. For additional informa-
tion, refer to “Front passenger air bag
and status light” in this section.

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the
front seat. Position the child restraint
on the seat. Always follow the child re-
straint manufacturer’s instructions.

Rear-facing – step 1

WRS0256

1-28

Safety—Seats, seat belts and supplemental restraint system

2. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

3. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to the ELR
mode when the seat belt is fully re-
tracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

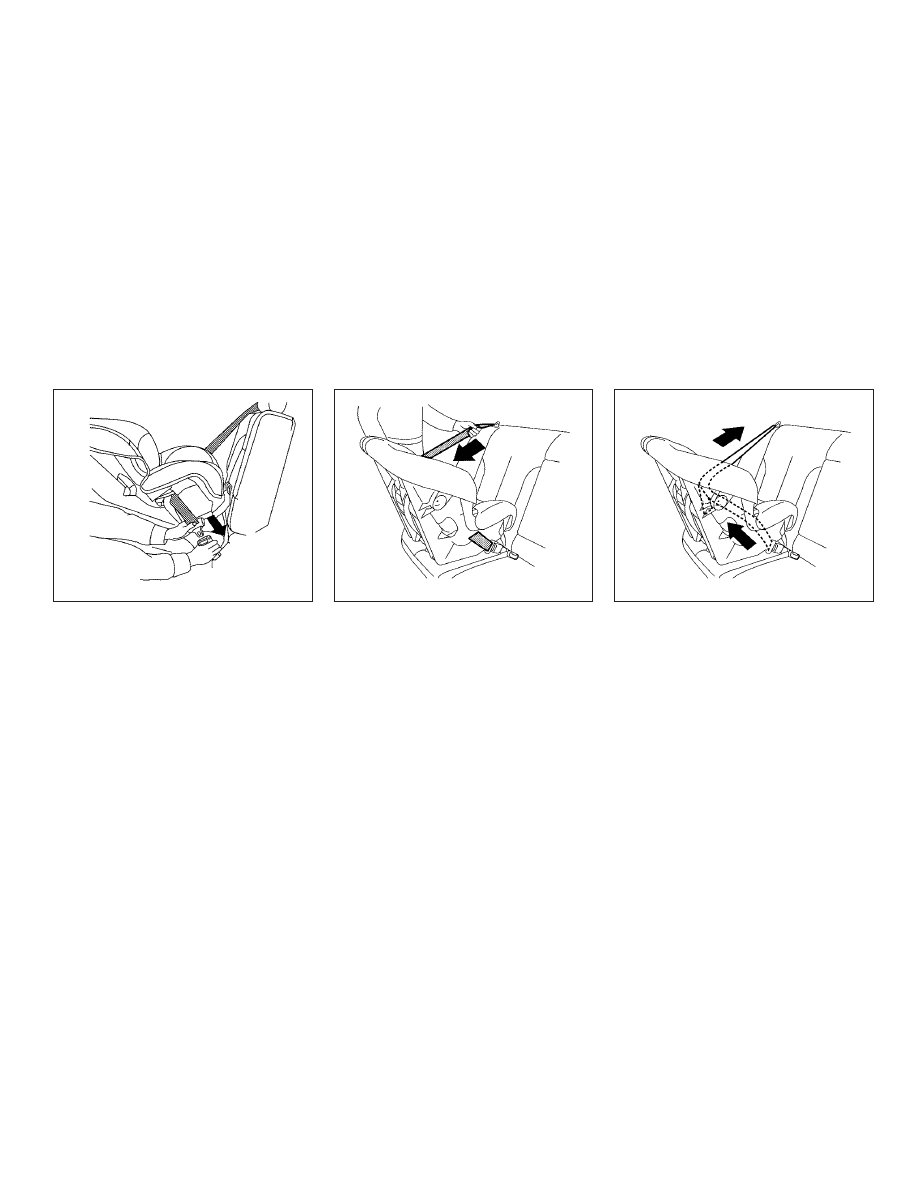

Rear-facing – step 2

WRS0761

Rear-facing – step 3

LRS0669

Rear-facing – step 4

LRS0670

Safety—Seats, seat belts and supplemental restraint system

1-29

5. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint to compress the vehicle seat
cushion and seatback while pulling up
on the seat belt.

6. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the belt holds the restraint in place. If
the restraint is not secure, tighten the
seat belt as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.

7. Check to make sure that the child re-

straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 2 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg) use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer’s
instructions for installation.

Rear-facing – step 5

WRS0762

Rear-facing – step 6

WRS0763

1-30

Safety—Seats, seat belts and supplemental restraint system

Follow these steps to install a forward-
facing child restraint using the LATCH sys-
tem:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point. For additional
information, refer to “Installing top
tether strap” in this section. Do not in-
stall child restraints that require the
use of a top tether strap in seating po-

sitions that do not have a top tether
anchor.

3. The back of the child restraint should

be secured against the vehicle seat-
back.

If necessary, adjust or remove the head
restraint/headrest to obtain the cor-
rect child restraint fit. If the head
restraint/headrest is removed, store it
in a secure place. Be sure to reinstall
the head restraint/headrest when
the child restraint is removed. For ad-
ditional information, refer to “Head
restraints/headrests” in this section for

Forward-facing

webbing-mounted

–

step 2

LRS2995

Forward-facing rigid-mounted – step 2

LRS2994

Safety—Seats, seat belts and supplemental restraint system

1-31

Content .. 1 2 3 4 ..
