Fluid type

Capacity (Approximate)

Recommended Fluids/Lubricants

Metric

Measure

Imperial

Measure

Manual Transmission (MT) gear oil

—

For NISMO RS models

Â Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or equivalent
Â If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi is not available, API GL-4,

Viscosity SAE 75W-85 may be used as a temporary replacement. However, use Genuine
NISSAN Manual Transmission Fluid (MTF) HQ Multi as soon as it is available.

Except for NISMO RS models

Â Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type 75W-80 or equivalent
Â If Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type is not available, API GL-4+,

Viscosity SAE 75W-80 may be used as a temporary replacement. However, use Genuine
NISSAN Manual Transmission Fluid (MTF) TL/JR Type as soon as it is available.

Differential gear oil

—

Â Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent conventional

(non-synthetic) oil

Transfer fluid

—

Brake and clutch fluid

Refill to the proper oil level according

to the instructions in the “8. Do-it-

yourself” section.

Â Genuine NISSAN Super Heavy Duty Brake Fluid

or equivalent DOT 3

: Available in mainland U.S.A. through a NISSAN dealer.

Multi-purpose grease

—

Â NLGI No. 2 (Lithium soap base)

Air conditioning system refrigerant

—

Â For additional information, see “Vehicle identification” (P.10-11) for air conditioner

specification label.

Â HFC-134a (R-134a)

Air conditioning system lubricants

—

Â NISSAN A/C System Oil Type R or exact equivalent

Window washer fluid

4.5

1-1/4 gal

1 gal

Â Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent

Technical and consumer information

10-3

10-4

Technical and consumer information

FUEL INFORMATION

Except for NISMO RS models:

NISSAN recommends the use of unleaded
premium gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number (Re-
search octane number 96).

If unleaded premium gasoline is not available,
you may use unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91), but you may
notice a decrease in performance.

For NISMO RS models:

Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).

If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of at least 87 AKI number (Research octane
number 91) may be temporarily used, but only
under the following precautions:
. Have the fuel tank filled only partially with

unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.

. Avoid full throttle driving and abrupt accel-

eration.

Use unleaded premium gasoline for max-
imum vehicle performance.

CAUTION

. Using a fuel other than that speci-

fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.

. Under no circumstances should a

leaded gasoline be used, because
this will damage the three-way cat-
alyst.

. Do not use E-15 or E-85 fuel in your

vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.

. Do not use fuel that contains the

octane booster methylcyclopenta-
dienyl manganese tricarbonyl
(MMT). Using fuel containing MMT
may adversely affect vehicle perfor-
mance and vehicle emissions. Not
all fuel dispensers are labeled to

indicate MMT content, so you may
have to consult your gasoline retai-
ler for more details. Note that Fed-
eral and California laws prohibit the
use of MMT in reformulated gaso-
line.

. U.S. government regulations require

ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.

Gasoline specifications

NISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission control system
and vehicle performance. Ask your service
station manager if the gasoline meets the
WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your vehicle cannot be readily
determined. If in doubt, ask your service station
manager.

If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
. The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

. If an oxygenate-blend, other than

methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

. E-15 fuel contains more than 10%

oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN new
vehicle limited warranty.

. If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.

If any driveability problems such as engine
stalling and difficult hot-starting are experienced
after using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.

Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.

E-15 fuel

E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.

E-85 fuel

E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.

Fuel containing MMT

MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
NISSAN does not recommend the use of fuel
containing MMT. Such fuel may adversely affect
vehicle performance, including the emissions
control system. Note that while some fuel pumps
label MMT content, not all do, so you may have

Technical and consumer information

10-5

10-6

Technical and consumer information

to consult your gasoline retailer for more details.

Aftermarket fuel additives

NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock”. (Spark
knock is a metallic rapping noise.) If
severe, this can lead to engine damage. If
you detect a persistent heavy spark knock
even when using gasoline of the stated
octane rating, or if you hear steady spark
knock while holding a steady speed on
level roads, it is recommended you have a
NISSAN dealer correct the condition. Fail-
ure to correct the condition is misuse of
the vehicle, for which NISSAN is not
responsible.

Incorrect ignition timing will result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine

damage. If any of the above symptoms are
encountered, have your vehicle checked. It is
recommended you visit a NISSAN dealer for
servicing.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

JVT0159X

For NISMO RS models

JVT0351X

Except for NISMO RS models

API certification mark

API service symbol

ENGINE OIL AND OIL FILTER RE-
COMMENDATION

Selecting the correct oil

It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
“Capacities and recommended fluids/lubricants”
(P.10-2). NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.

Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.

Oil additives

NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.

Oil which may contain foreign matter or has
been previously used should not be used.

Technical and consumer information

10-7

10-8

Technical and consumer information

Oil viscosity

The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.

Selecting the correct oil filter

Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.

Change intervals

The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using an engine oil and
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the NISSAN new vehicle limited
warranty.

Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change

interval.

AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS

The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the oil,
NISSAN A/C system oil Type R or the exact
equivalents.

CAUTION

The use of any other refrigerant or oil
may cause severe damage to the air
conditioning system and may require
the replacement of all air conditioner
system components.

The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. A NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.

It is recommended you visit a NISSAN dealer
when servicing your air conditioning system.

ENGINE

Model

MR16DDT

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

4-cylinder, in-line

Bore

6 Stroke

in (mm)

3.138

6 3.193 (79.7 6 81.1)

Displacement

cu in (cm

)

98.78 (1,618)

Firing order

1-3-4-2

Idle speed

rpm

No adjustment is necessary.

Ignition timing (B.T.D.C.)

degree/rpm

Spark plug

Standard

DILKAR7C9H (for NISMO RS models)
DILKAR7E9HS (except for NISMO RS models)

Spark plug gap (Normal)

in (mm)

0.035 (0.9)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

WHEELS AND TIRES

Road wheel

Type

Size

Offset in
(mm)

Conven-
tional

6 7J

1.85 (47)

NISMO
models

6 7J

1.85 (47)

Spare

6 4T

1.18 (30)

NISMO RS
models

6 4T

1.18 (30)

Technical and consumer information

10-9

SPECIFICATIONS

10-10

Technical and consumer information

Tire

Type

Size

Pressure
PSI (kPa)
[Cold]

Conven-
tional

P215/55-
R17 93V

33 (230)*1
36 (250)*2
35 (240)*3

NISMO
models

225/45R18
95Y

33 (230)*1
35 (240)*3

Spare

T135/80-
D16
101M*1*2

60 (420)

T135/90-
D16
102M*3

NISMO RS
models

T135/70-
D17 92M

*1:

2WD MT model

*2:

2WD CVT model

*3:

AWD model

DIMENSIONS AND WEIGHTS

Overall length

in (mm) 162.8 (4,135)*1

162.4 (4,125)*2
164.0 (4,165)*3
163.8 (4,160)*4

Overall width

in (mm) 69.5 (1,765)

69.7(1,770)*5

Overall height

in (mm) 61.8 (1,570)

Front tread

in (mm) 60.0 (1,525)

Rear tread

in (mm) 60.0 (1,525)*6

59.3 (1,505)*7

Wheelbase

in (mm) 99.6 (2,530)

Gross Vehicle
Weight Rating
(GVWR)

lb (kg)

See the F.M.V.S.S. or
C.M.V.S.S. certification
label on the driver’s
side center pillar.

Gross Axle
Weight Rating
(GAWR)

Front

lb (kg)

Rear

lb (kg)

*1:

With front license plate bracket

*2:

Without front license plate bracket

*3:

With front license plate bracket (NISMO mod-
els)

*4:

Without front license plate bracket (NISMO
models)

*5:

NISMO models

*6:

for 2WD model

*7:

for AWD model

When planning to travel in another coun-
try, you should first find out if the fuel available is
suitable for your vehicle’s engine.

Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.

When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.

The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.

When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
b i l i t y o f t h e u s e r . N I S S A N i s n o t
responsible for any inconvenience that
may result.

WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY

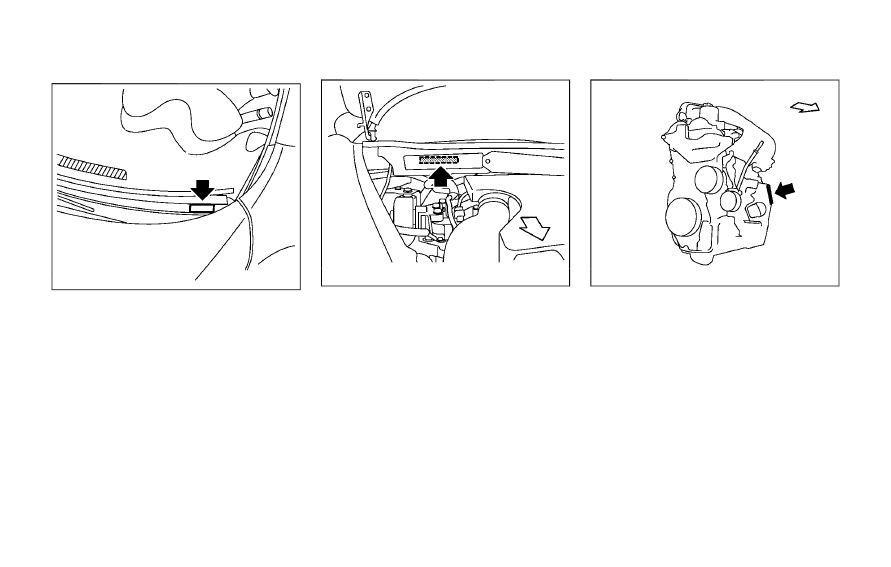

STI0787

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE

The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.

STI0778

VEHICLE IDENTIFICATION NUMBER
(chassis number)

The vehicle identification number is located as
shown.

Remove the cover to access the number.

STI0785

ENGINE SERIAL NUMBER

The number is stamped on the engine as shown.

Technical and consumer information

10-11

VEHICLE IDENTIFICATION

10-12

Technical and consumer information

STI0814

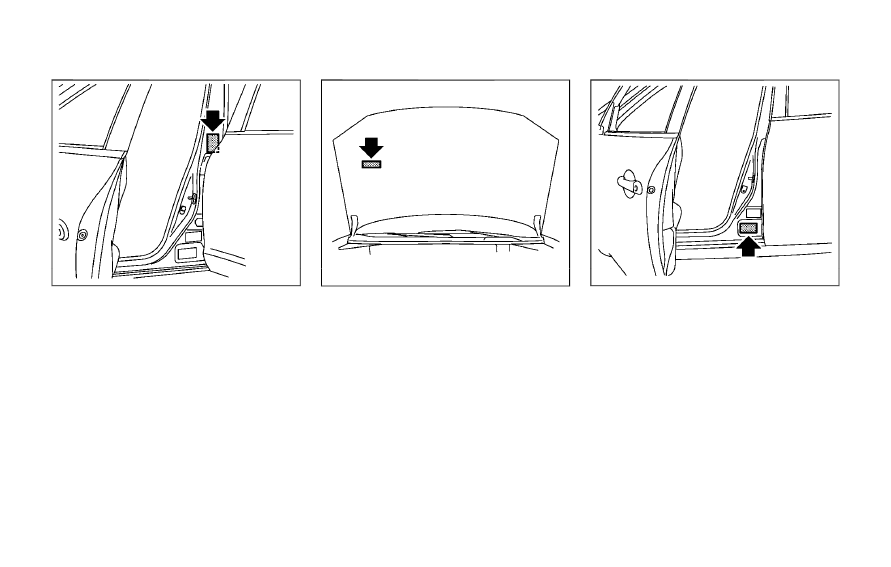

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL

The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR), Gross Axle
Weight Rating (GAWR), month and year of
manufacture, Vehicle Identification Number
(VIN), etc. Review it carefully.

JVO0181X

EMISSION CONTROL INFORMATION
LABEL

The emission control information label is at-
tached to the underside of the hood as shown.

STI0775

TIRE AND LOADING INFORMATION
LABEL

The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
shown.

10-14

Technical and consumer information

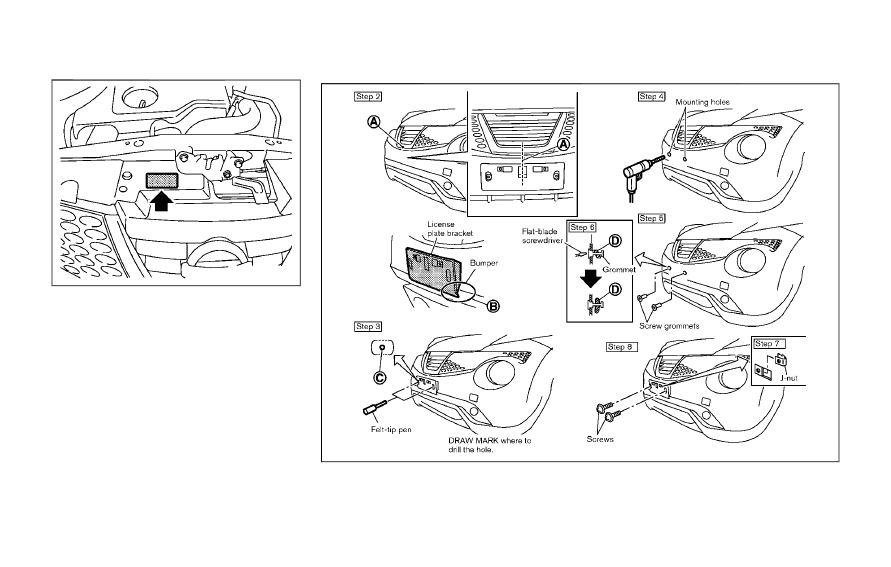

Use the following steps to mount the license
plate:

Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
. License plate bracket
. J-nut 6 2
. Screw 6 2
. Screw grommet 6 2
1. Park the vehicle on flat, level ground.

2. Locate the center position

as illustrated.

Make sure the side end surface of the
license plate bracket is aligned with the
bumper

3. Mark the center of the holes

with a felt-

tip pen.

4. Carefully drill the two pilot holes using a

0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)

5. Insert grommets into the hole on the fascia.

6. Insert a flat-blade screwdriver into the

grommet hole to add a 90

8 turn onto the

part

7. Insert a J-nut into the license plate bracket

before placing the license plate bracket on
the fascia.

8. Install the license plate bracket with the

screws.

9. Install the license plate with bolts that are

not longer than 0.55 in (14 mm).

WARNING

It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.

Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.

Be sure everyone in your ve-
hicle is in a seat and using a
seat belt properly.

TERMS
It is important to familiarize yourself with
the following terms before loading your
vehicle:

Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare

tire assembly. This weight does not
include passengers and cargo.

GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.

GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers, luggage, hitch, trailer tongue
load and any other optional equip-
ment. This information is located on
the F.M.V.S.S./C.M.V.S.S. label.

GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.
V.S.S. label.

GCWR (Gross Combined Weight
Rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.

Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the vehi-
cle. This is the maximum combined

weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.

Cargo capacity - permissible weight
of cargo, the subtracted weight of
occupants from the load limit.

VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined weight
of occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of occupants shown as
“Seating Capacity” on the Tire and
Loading Information label.

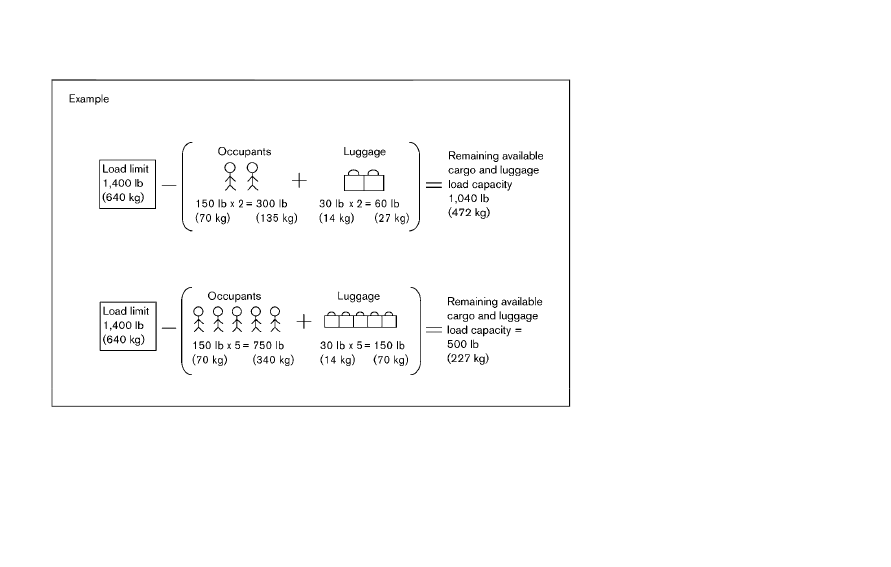

To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the
following illustration.

Technical and consumer information

10-15

VEHICLE LOADING INFORMATION

10-16

Technical and consumer information

STI0447

Steps for determining correct load limit

Locate the statement “The combined
weight of occupants and cargo
should never exceed XXX kg or XXX
lbs” on your vehicle’s placard.

Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.

Subtract the combined weight of the
driver and passengers from XXX kg
or XXX lbs.

The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400

í 750 (5 x 150) = 650 lbs) or

(640

í 340 (5 x 70) = 300 kg.)

Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calculated
in Step 4.

Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross
Axle Weight Rating (GAWR) for your
vehicle. (See “Measurement of weights”
(P.10-17).)

Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.

LOADING TIPS

The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.
S./C.M.V.S.S. certification label.

Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.

WARNING

Properly secure all cargo with
ropes or straps to help prevent
it from sliding or shifting. Do
not place cargo higher than
the seatbacks. In a sudden
stop or collision, unsecured
cargo could cause personal
injury.

Do not load your vehicle any
heavier than the GVWR or the
m a x i m u m f r o n t a n d r e a r
GAWRs. If you do, parts of
your vehicle can break, tire
damage could occur, or it can
change the way your vehicle
handles. This could result in

loss of control and cause per-
sonal injury.

Overloading not only can
shorten the life of your vehicle
and the tire, but can cause
unsafe vehicle handling and
longer braking distances. This
may cause a premature tire
failure, which could result in a
serious accident and personal
injury. Failures caused by
overloading are not covered
by the vehicle’s warranty.

MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the Gross Axle
Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).

These ratings are given on the vehicle
certification label. If weight ratings are
exceeded, move or remove items to bring
all weights below the ratings.

Technical and consumer information

10-17

10-18

Technical and consumer information

Do not tow a trailer with your vehicle.

Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.

CAUTION

. Failure to follow these guidelines

can result in severe transmission
damage.

. Whenever flat towing your vehicle,

always tow forward, never back-
ward.

. DO NOT tow any Continuously Vari-

able Transmission (CVT) vehicle
with all four wheels on the ground
(flat towing). Doing so WILL DA-
MAGE internal transmission parts
due to lack of transmission lubrica-
tion.

. DO NOT tow an All-Wheel Drive

(AWD) vehicle with any of the
wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.

. For emergency towing procedures

refer to “Towing your vehicle” (P.6-

13).

CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)

All-Wheel Drive (AWD) models:

Do not tow an AWD vehicle with any of the
wheels on the ground.

Two-Wheel Drive (2WD) models:

To tow a vehicle equipped with a Continuously
Variable Transmission (CVT), an appropriate
vehicle dolly MUST be placed under the towed
vehicle’s driving wheels. Always follow the dolly
manufacturer’s recommendations when using
their product.

MANUAL TRANSMISSION

. Always tow with the manual transmission in

Neutral.

. Your vehicle speed should never exceed 70

MPH (112 km/h) when flat towing your
vehicle.

. After towing 500 miles (805 km), start and

idle the engine with the transmission in
Neutral for two minutes. Failure to idle the
engine after every 500 miles (805 km) of
towing may cause damage to the transmis-
sion’s internal parts.

TOWING A TRAILER

FLAT TOWING

Nissan Juke (2017 year). Instruction - part 25
