UNDER-SEAT STORAGE BINS

WARNING

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

∙ The cargo restrained in the under-

seat storage bins must not exceed the
weight limits listed below or the bins
may not stay secured. In a sudden
stop or collision, the unsecured bins
could cause personal injury.
King Cab® model: 16 lbs. (7.25 kg)
Crew Cab model

Driver’s side: 16 lbs. (7.25 kg)
Passenger’s side: 25 lbs. (11.33 kg)

∙ If the under-seat storage bins are re-

moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or dam-
age to the vehicle in case of sudden
braking or an accident.

Rear row under-seat storage bin

(King Cab® model)

LIC0821

Rear row under-seat storage bin

(Crew Cab model)

LIC0820

2-42

Instruments and controls

∙ Do not place sharp objects in the

under-seat storage bins. Such objects
may become dangerous projectiles
and cause injury when the vehicle is
moving or if the vehicle is involved in a
collision.

To access the under-seat storage bins:

For King Cab® models, lift up the jump seat.
For additional information, refer to “Jump
seat” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

For Crew Cab models, lift up the rear bench
seat. For additional information, refer to
“Folding the rear bench seat down” in the
“Safety—Seats, seat belts and supplemen-
tal restraint system” section of this manual.

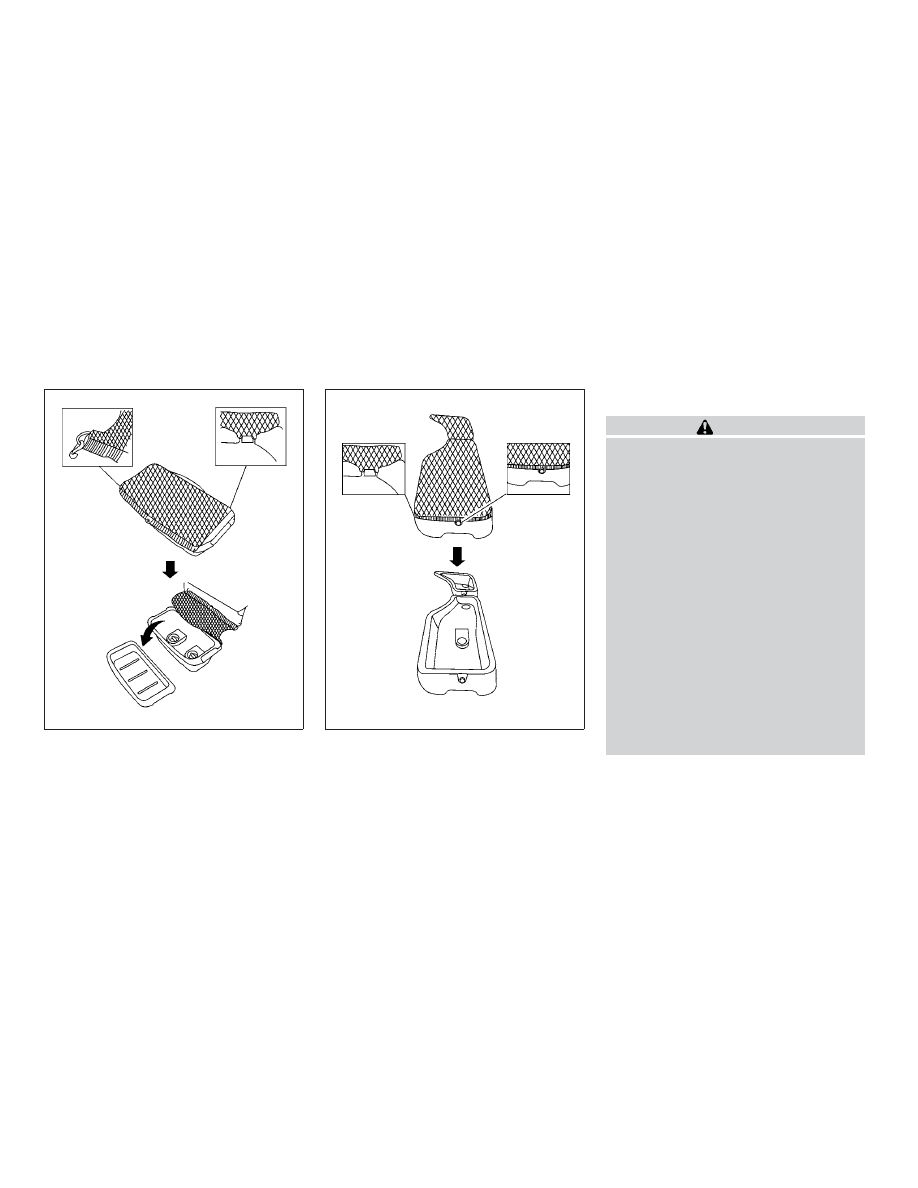

To remove the under-seat storage bins:

1. Remove the storage net.

2. Turn the knobs to the UNLOCK position

䊊

3. Remove the tray by lifting it out of the

storage bin (King Cab® model).

To install the under-seat storage bins:

1. Position the under-seat storage bin so

the holes line up with the holes in the
floorboard.

2. Insert the knobs and turn them to the

LOCK position

䊊

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.

LIC0822

Top center tray

LIC1539

Instruments and controls

2-43

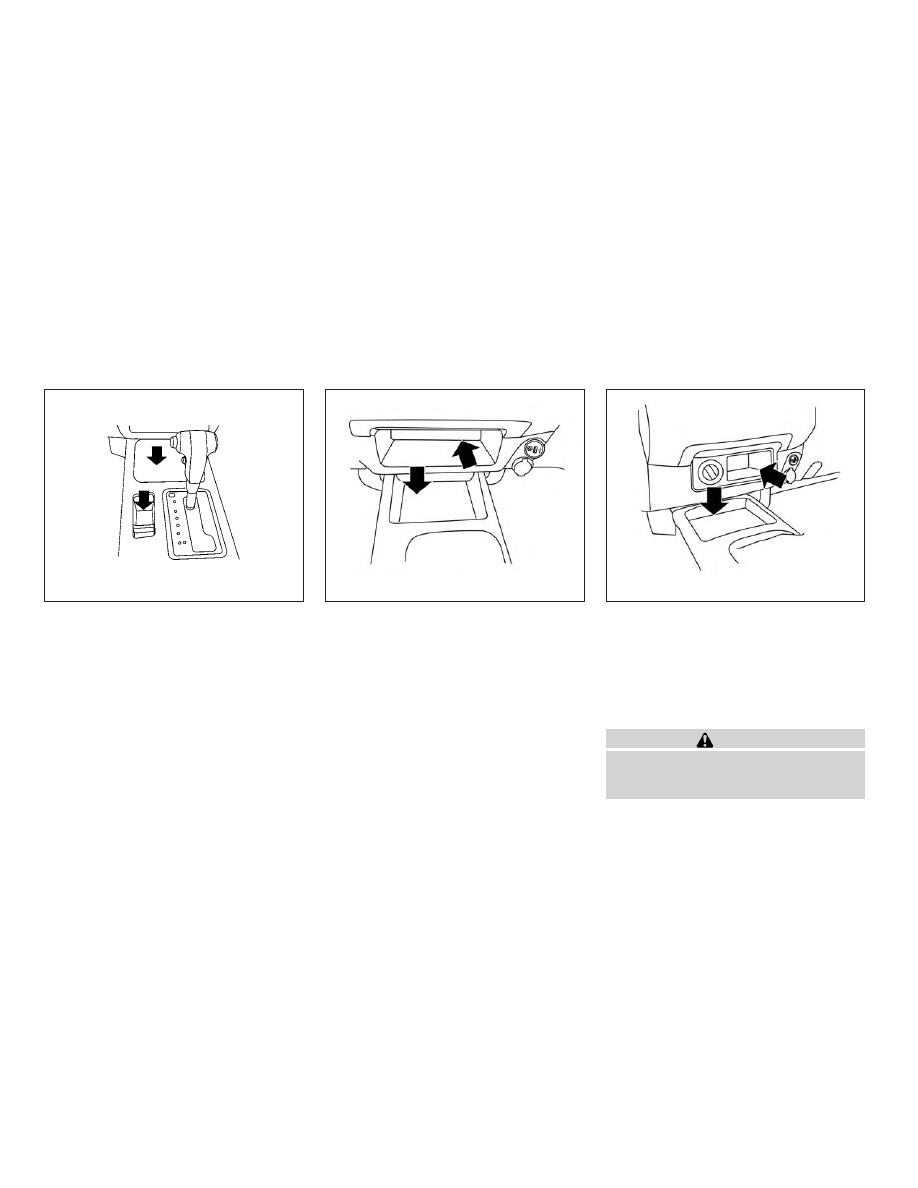

GLOVE BOX

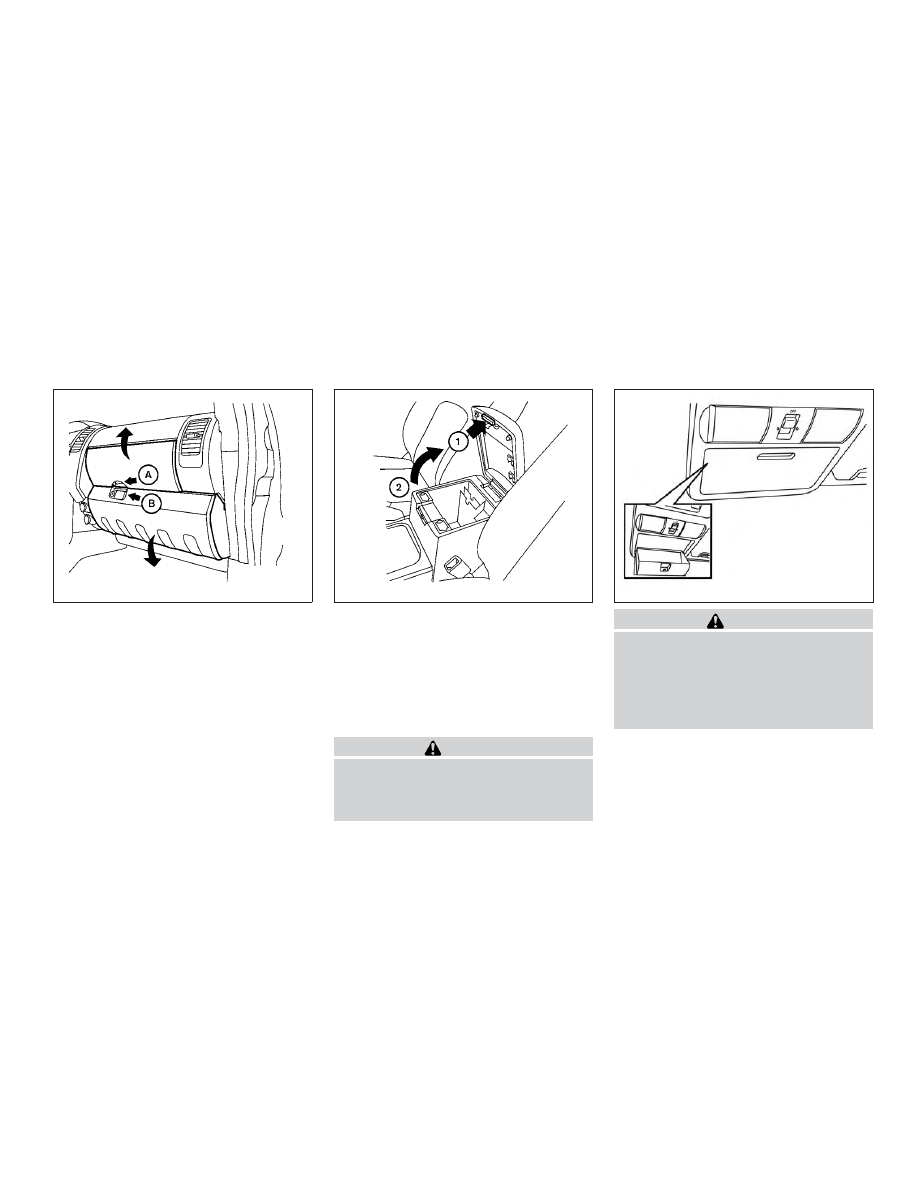

To open the top portion of the glove box,
push the latch

䊊

up and raise the lid.

To open the lower portion of the glove box,
pull the handle

䊊

down and lower the lid.

WARNING

Keep the glove box lid closed while driv-
ing to help prevent injury in an accident
or a sudden stop.

A/T model

LIC0818

M/T model — Type A (if so equipped)

LIC3646

M/T model — Type B (if so equipped)

LIC3647

2-44

Instruments and controls

CONSOLE BOX

Pull up on the lever

䊊

to open the console

box lid

䊊

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push and
release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.

CAUTION

∙ Do not use for anything other than

sunglasses.

∙ Do not leave sunglasses in the sun-

glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.

LIC0768

LIC0766

LIC3387

Instruments and controls

2-45

CUP HOLDERS

The front cup holders have adapters that
can be removed to accommodate larger
cups.

WARNING

∙ The cup holder should not be used

while driving so full attention may be
given to vehicle operation.

∙ Avoid abrupt starting and braking

when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.

CAUTION

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

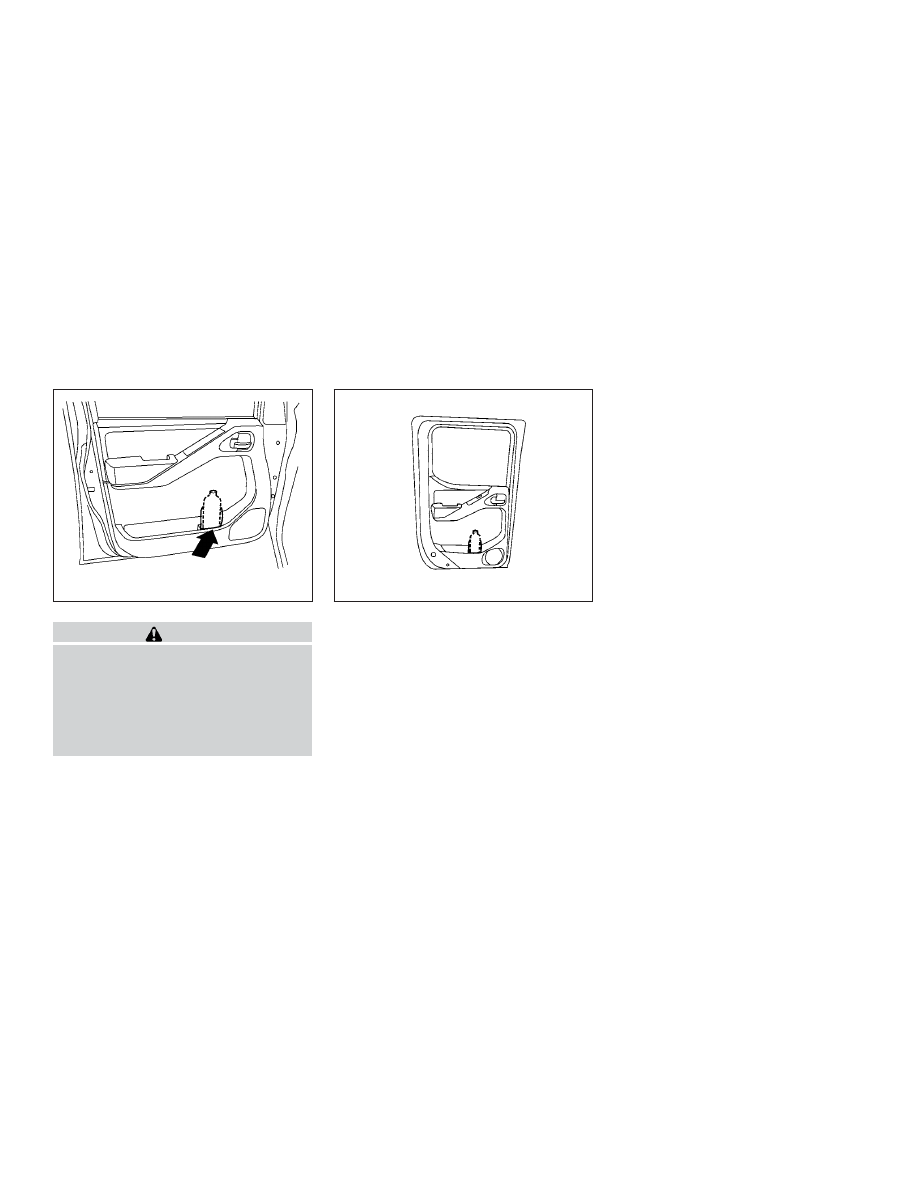

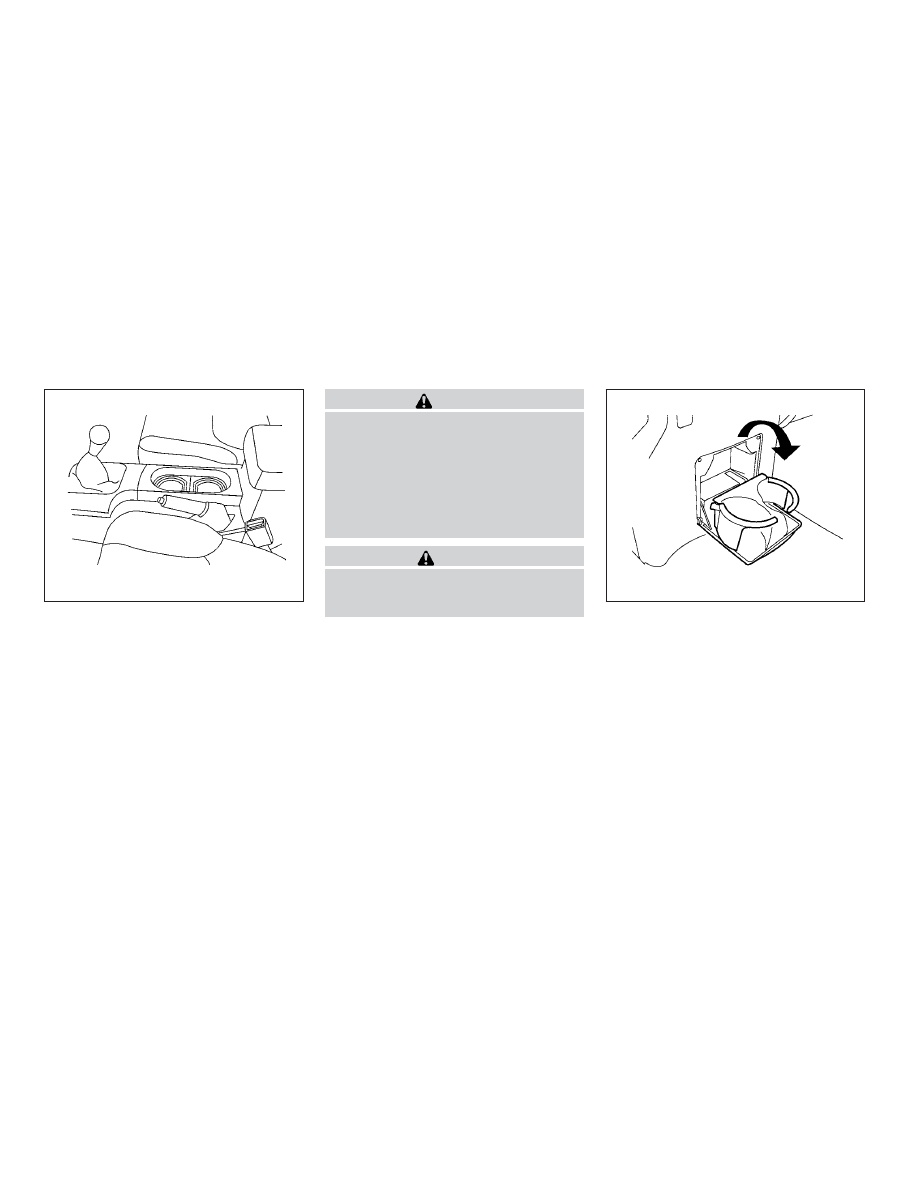

To open the rear row cup holders (rear of
the front console), lower the lid. To close,
raise the lid. If stepped on, the cup holder is
designed to snap loose from the console.
To re-install, close the cup holder assembly
and push it back into the console opening.

To fold the rear seat back, first close the cup
holder.

Front

WIC0827

Rear seat (rear of front console)

WIC0771

2-46

Instruments and controls

CAUTION

∙ Do not use the bottle holder for any

other objects that could be thrown
about in the vehicle and possibly in-
jure people during sudden braking or
an accident.

∙ Do not use the bottle holder for open

liquid containers.

Front bottle holders

LIC0784

Rear bottle holders

WIC0828

Instruments and controls

2-47

ROOF RACK (if so equipped)

WARNING

∙ Drive extra carefully when the vehicle

is loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
roof rack.

∙ Heavy loading of the roof rack has the

potential to affect the vehicle stability
and handling during sudden or ab-
normal handling maneuvers.

∙ Roof rack load should be evenly

distributed.

∙ Do not exceed maximum roof rack

load weight capacity.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

CAUTION

Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof
rack from the ground, use a ladder or
stool.

WIC0857

2-48

Instruments and controls

Always evenly distribute the cargo on the
tubular roof rack. The maximum total
load is 125 lbs. (56 kg) evenly distributed.
Be careful that your vehicle does not ex-
ceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Ratings
(GAWR front and rear). The GVWR and GAWR
are located on the F.M.V.S.S. label (located
on the driver’s side door jamb pillar). For
additional information, refer to “Vehicle
loading information” in the “Technical and
consumer information” section of this
manual.

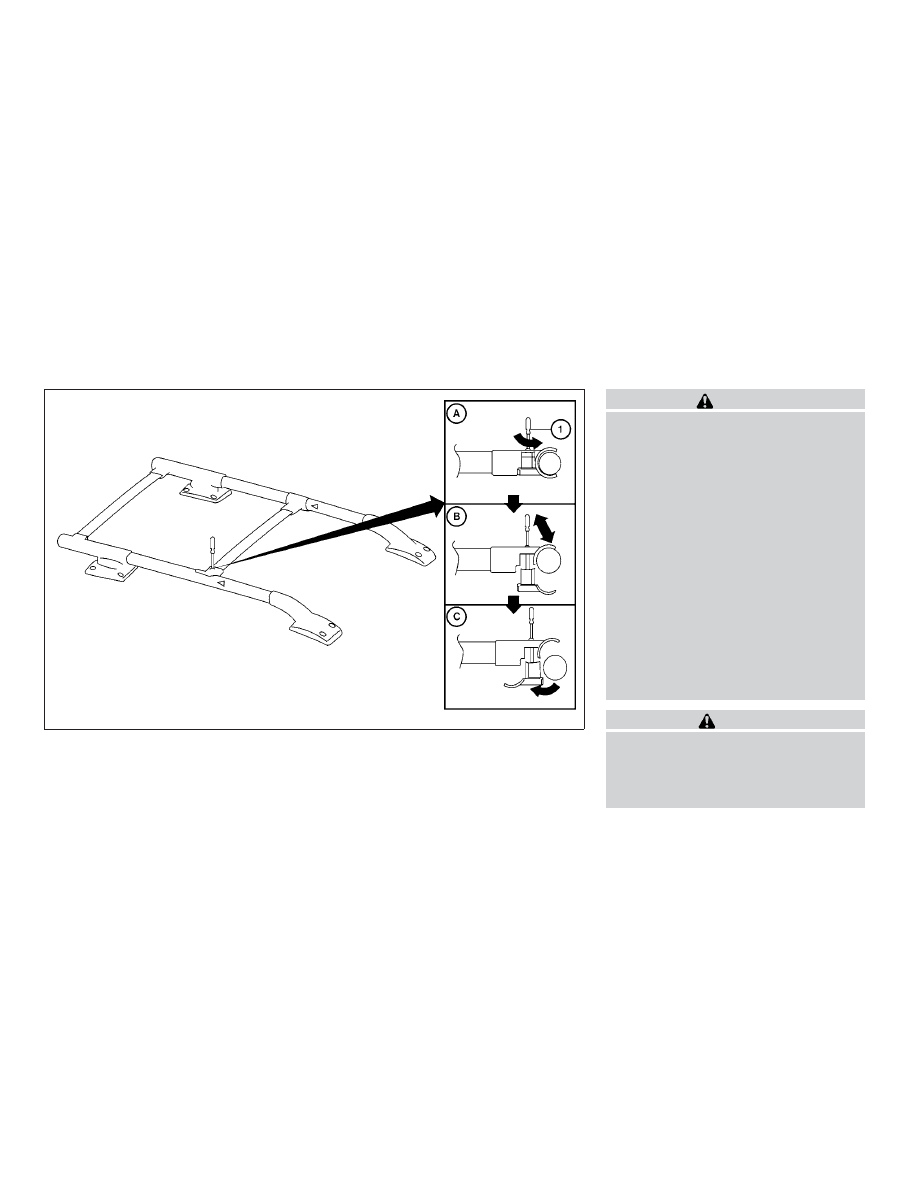

The front crossbar can be adjusted or re-
moved. Use the TORX® driver provided in
the tool kit to loosen both crossbar adjust-
ing screws.

To adjust:

1. Loosen the adjusting screws with the

TORX® driver

䊊

by turning counter-

clockwise

䊊

2. When the clamp is loosened, move the

crossbar so the cargo can be posi-
tioned on the crossbar

䊊

3. Tighten the crossbar adjusting screws

with the TORX® driver by turning clock-
wise.

4. Secure the cargo with rope.

5. Always check the tightness of the

crossbar adjusting screws.

To remove:

1. Loosen the adjusting screws with the

TORX® driver

䊊

by turning counter-

clockwise

䊊

2. Rotate the clamps

䊊

3. Remove the crossbar.

4. Reverse to install.

5. Always check the tightness of the

crossbar adjusting screws.

If you hear wind noise coming from the roof
rack while driving, adjust the roof rack
crossbar to the neutral position.

MANUAL WINDOWS (if so
equipped)

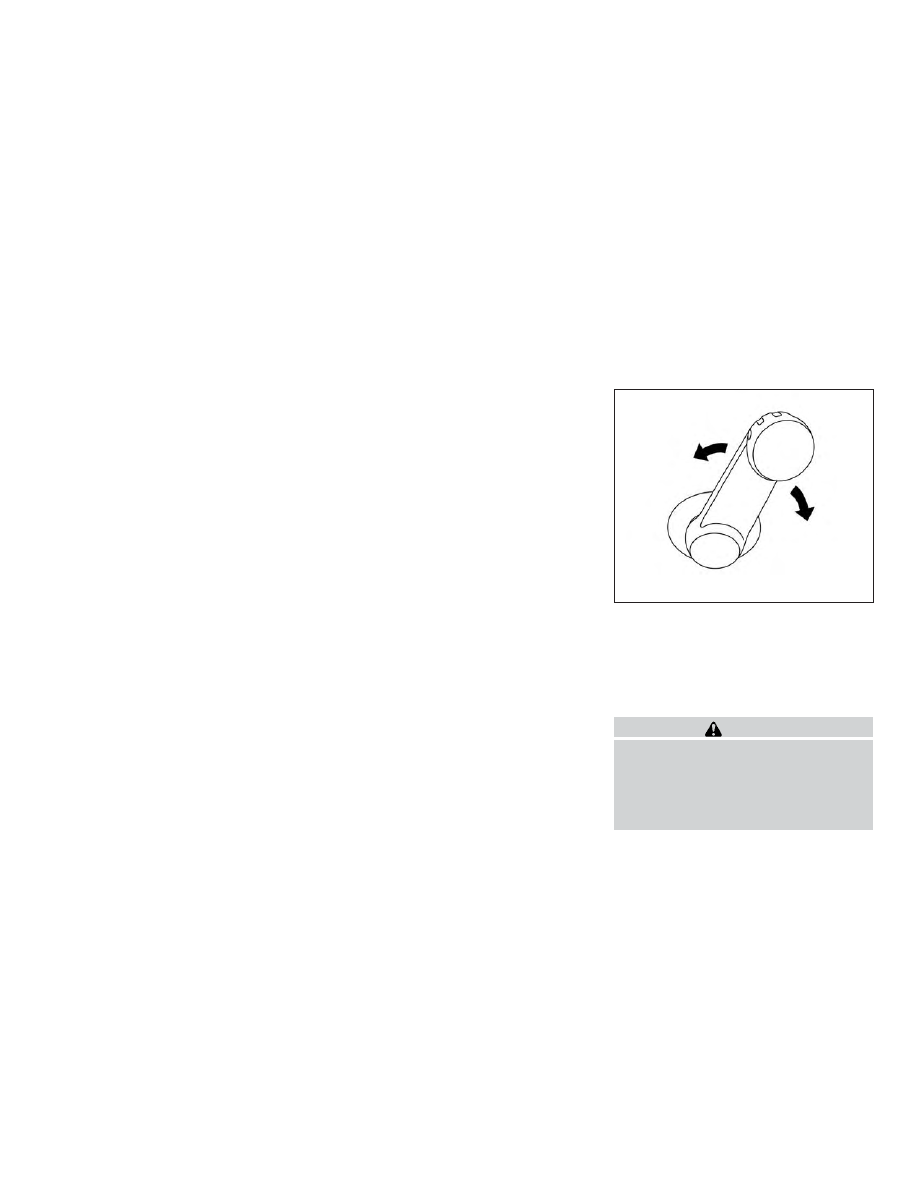

The side windows can be opened or closed
by turning the hand crank on each door.

POWER WINDOWS (if so equipped)

WARNING

∙ Make sure that all passengers have

their hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.

LIC3352

WINDOWS

Instruments and controls

2-49

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time after the ignition switch
is placed in the ACC or OFF position. If the
driver’s or passenger’s door is opened dur-
ing this period of time, the power to the
windows is canceled.

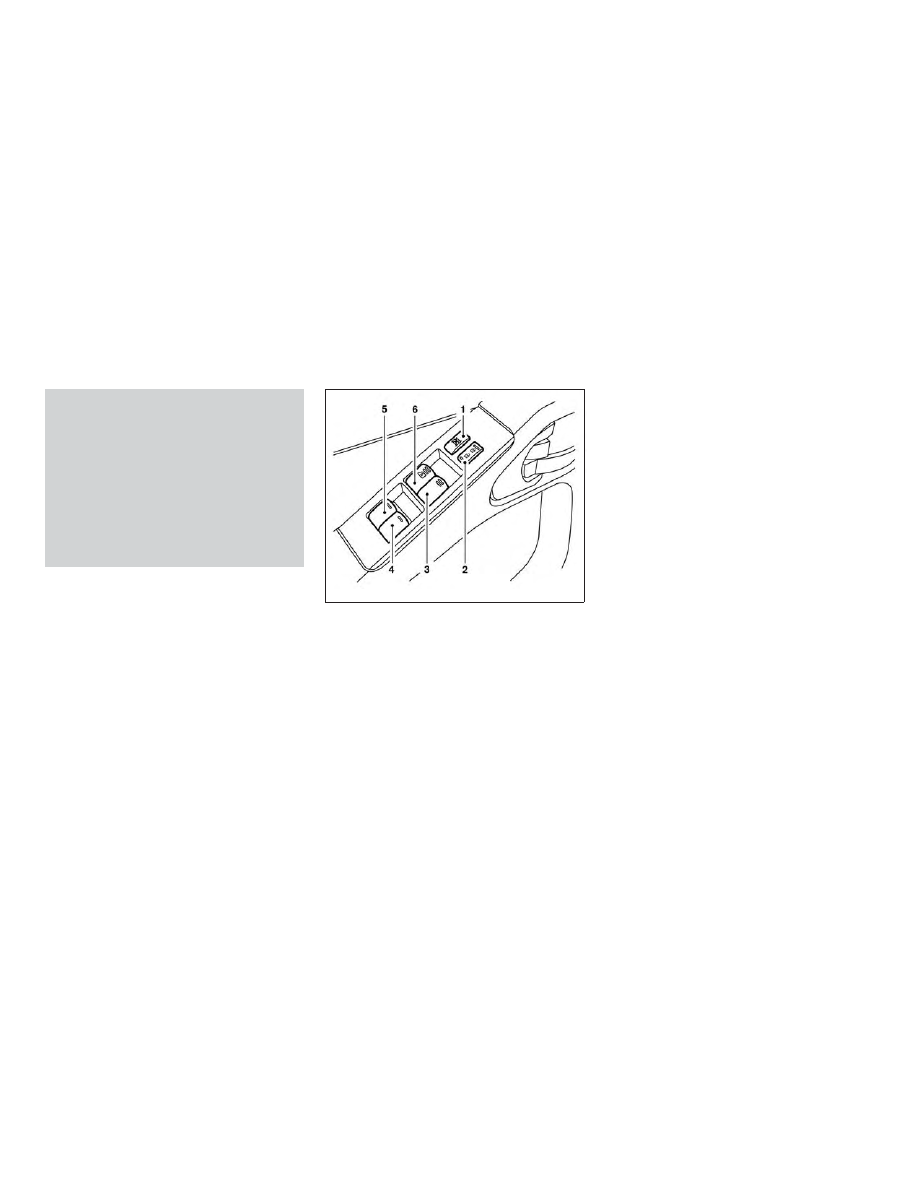

Window lock button

Power door lock switch

Front passenger side window
switch

Right rear passenger window
switch (Crew Cab models only)

Left rear passenger window switch
(Crew Cab models only)

Driver’s side automatic switch

Driver’s side power window
switch

The driver’s side control panel is equipped
with switches to open or close the front
and rear passenger windows.

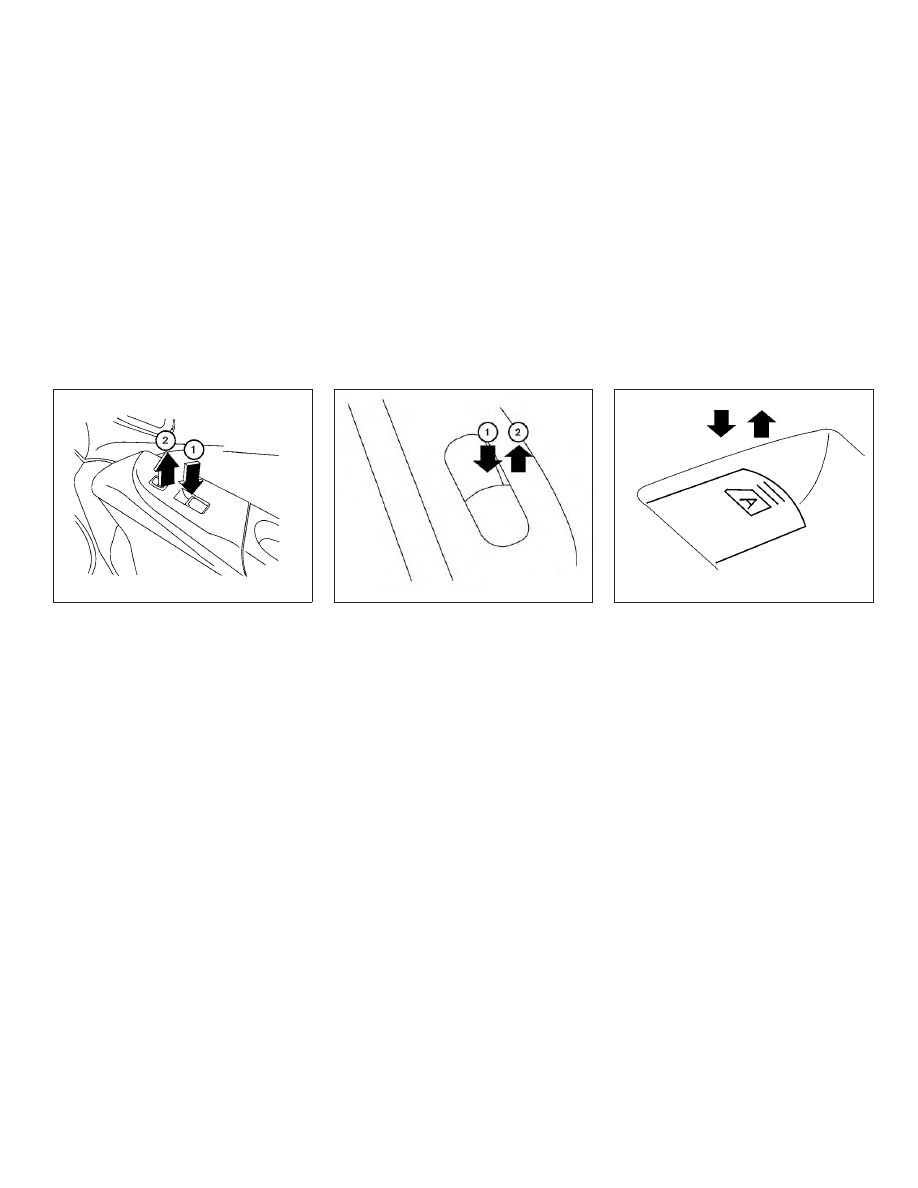

To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.

LIC1329

2-50

Instruments and controls

Front passenger’s power window
switch

The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down

䊊

. To close the window,

pull the switch up

䊊

Rear power window switch (Crew
Cab models only)

The rear power window switches open or
close only the corresponding passenger
window. To open the window, push the
switch and hold it down

䊊

. To close the

window, push the switch up

䊊

Locking passengers’ windows

When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.

Automatic operation

To fully open a window equipped with au-
tomatic

operation,

push

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

WIC0260

LIC2663

LIC0410

Instruments and controls

2-51

REAR SLIDING WINDOW (if so
equipped)

WARNING

∙ You must ensure all occupants and

objects are free of the rear window
area prior to and during operation.
Failure to do so may result in injury
and/or damage to the rear window
system.

∙ The rear window is not designed to

carry long items through it.

∙ Do not place objects through the

opened rear window. Do not use the
rear window as a cargo area pass-
through. This may result in damage to
the rear window system or personal
injury.

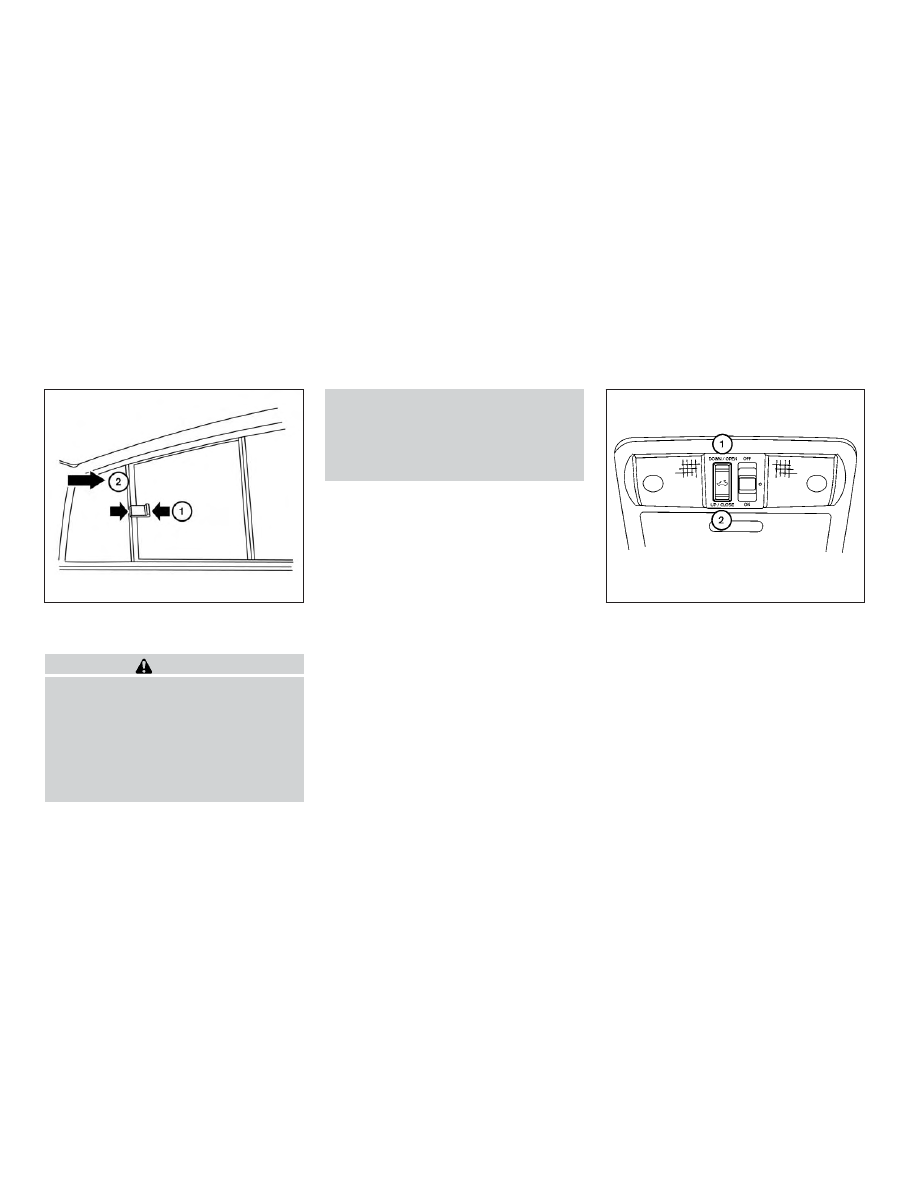

Squeeze the handles of the lever

䊊

, then

slide the window open

䊊

POWER MOONROOF

The moonroof will only operate when the
ignition switch is in the ON position. The
power moonroof is operational for about
45 seconds, even if the ignition switch is
placed in the ACC or OFF position. If the
driver’s door or the front passenger’s door
is opened during this period of about
45 seconds, power to the moonroof is can-
celed.

Sliding the moonroof

To fully open the moonroof, push the
switch toward DOWN/OPEN

䊊

LIC3488

WIC0882

MOONROOF (if so equipped)

2-52

Instruments and controls

To fully close the moonroof, push the
switch toward UP/CLOSE

䊊

To open or close the moonroof part way,
push the switch in any direction while the
moonroof is sliding to stop it in the desired
position.

Tilting the moonroof

Close the moonroof by pushing the switch
toward UP/CLOSE

䊊

. Release the switch,

then push the UP/CLOSE switch again to
tilt the moonroof up.

To tilt the moonroof down, push the switch
toward DOWN/OPEN

䊊

Auto-reverse function (when
closing or tilting down the
moonroof)

The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time after the igni-
tion switch is placed in the OFF position.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.

When closing

If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.

When tilting down

If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds after it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the moon-
roof.

WARNING

∙ In an accident you could be thrown

from the vehicle through an open
moonroof. Always use seat belts and
child restraints.

∙ Do not allow anyone to stand up or

extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

CAUTION

∙ Remove water drops, snow, ice or

sand

from

the

moonroof

before

opening.

∙ Do not place heavy objects on the

moonroof or surrounding area.

If the moonroof does not close

Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

Instruments and controls

2-53

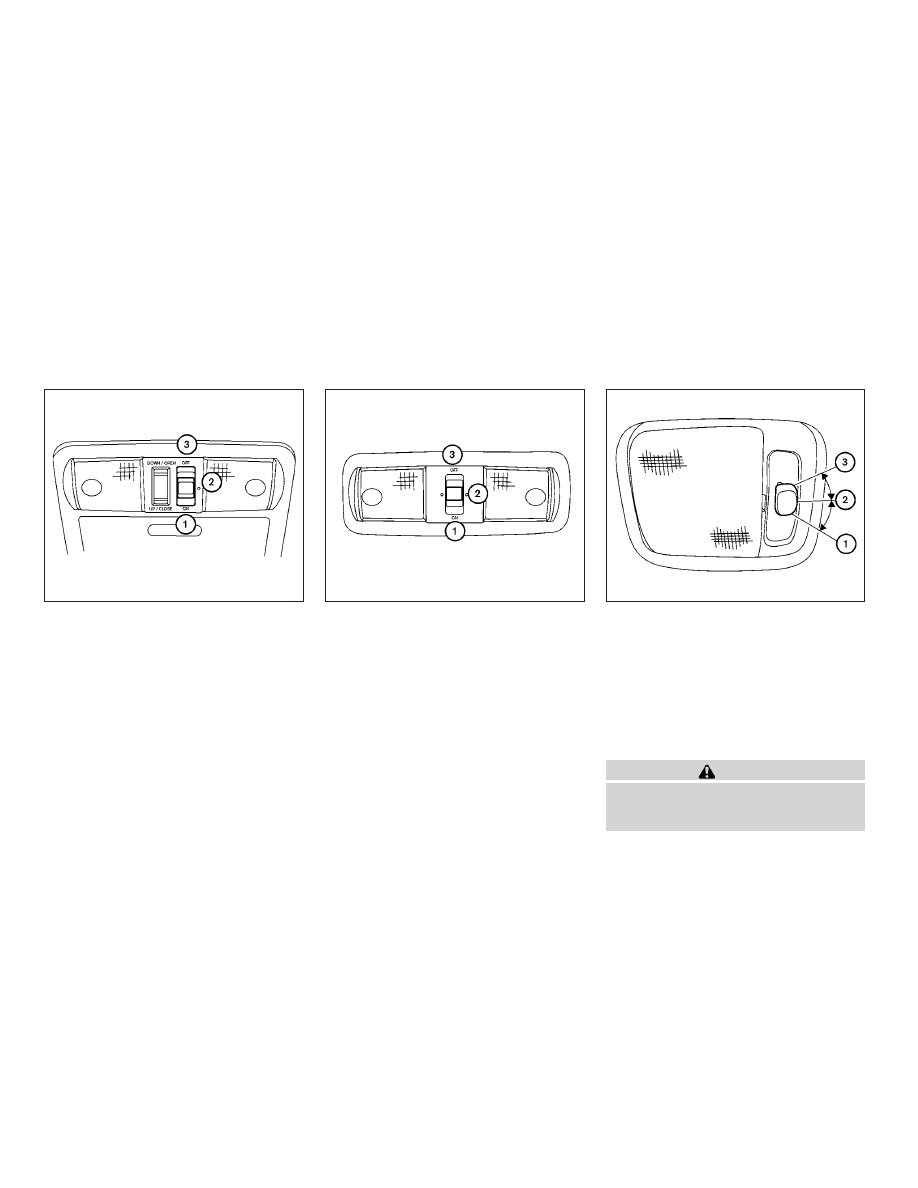

The interior lights have a three-position
switch and operate regardless of ignition
switch position.

When the switch is in the ON position

䊊

the interior lights illuminate, regardless of
door position. The lights will go off after a
period of time unless the ignition switch is
in the ON position.

When the switch is in the O (DOOR) position

䊊

, the interior lights will stay on for a period

of time when:

∙ The doors are unlocked by the key fob, a

key or the power door lock switch while
all doors are closed and the ignition
switch is in the OFF position.

∙ The driver’s door is opened and then

closed while the key is removed from
the ignition switch.

∙ The key is removed from the ignition

switch while all doors are closed.

The lights will turn off while the timer is
activated when:

∙ The driver’s door is locked by the key

fob, a key, or the power door lock switch.

∙ The ignition switch is turned on.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

When the switch is in the OFF position

䊊

the interior lights do not illuminate, regard-
less of door position.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

Type A (if so equipped)

LIC0789

Type B (if so equipped)

LIC0792

Type C (if so equipped)

LIC0630

INTERIOR LIGHTS

2-54

Instruments and controls

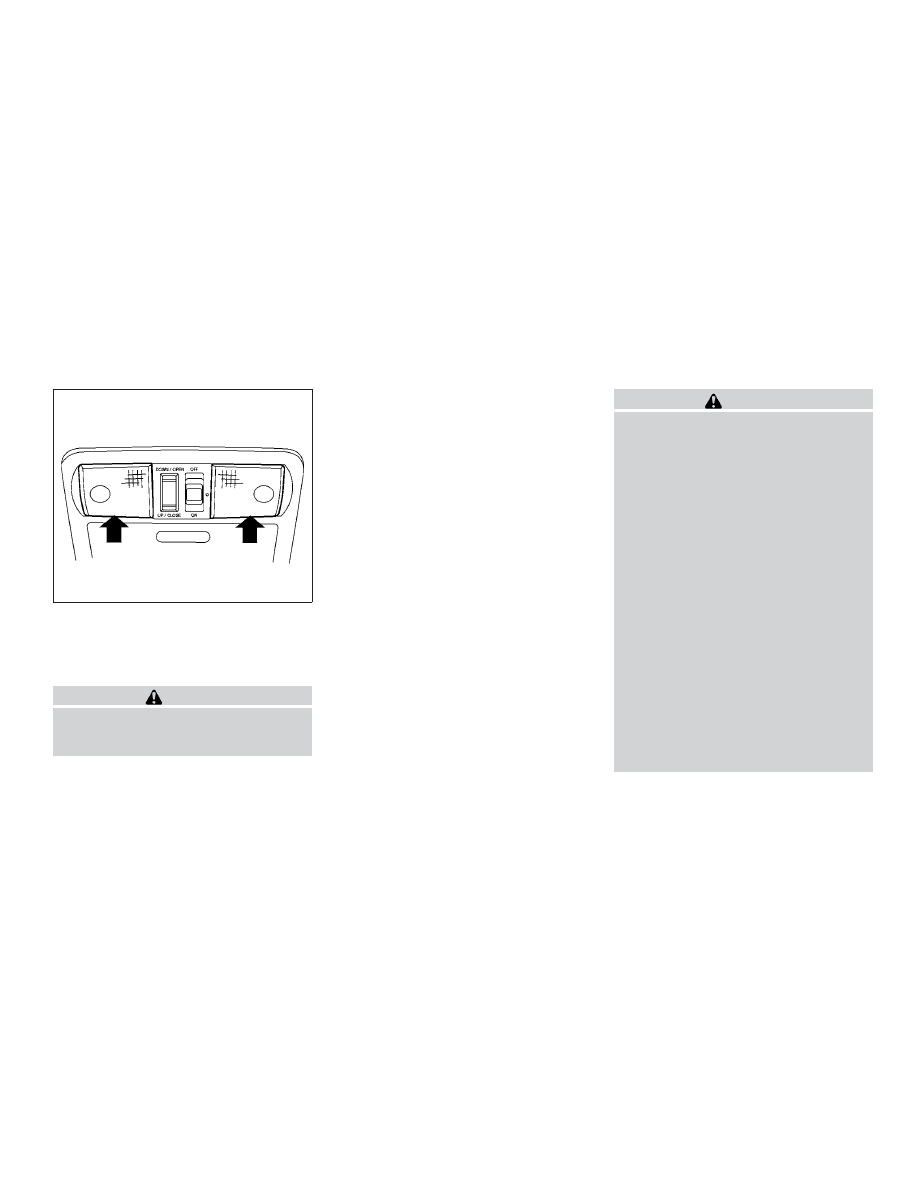

MAP LIGHTS (if so equipped)

To turn the map lights on, press the lenses.
To turn them off, press the lenses of the
lights again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.

HomeLink® Universal Transceiver:

∙ Will operate most Radio Frequency de-

vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

∙ Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed

HomeLink®

Universal

Transceiver buttons should be erased for
security purposes. For additional infor-
mation,

refer

“Programming

HomeLink®” in this section.

WARNING

∙ Do not use the HomeLink® Universal

Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured after April 1, 1982.) A
garage door opener which cannot de-
tect an object in the path of a closing
garage door and then automatically
stop and reverse does not meet cur-
rent federal safety standards. Using a
garage door opener without these
features increases the risk of serious
injury or death.

∙ During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc., that you are programming.

∙ Your

vehicle’s

engine

should

turned off while programming the
HomeLink® Universal Transceiver.

LIC0791

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

Instruments and controls

2-55

PROGRAMMING HOMELINK®

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink® for quicker programming
and accurate transmission of the radio-
frequency.

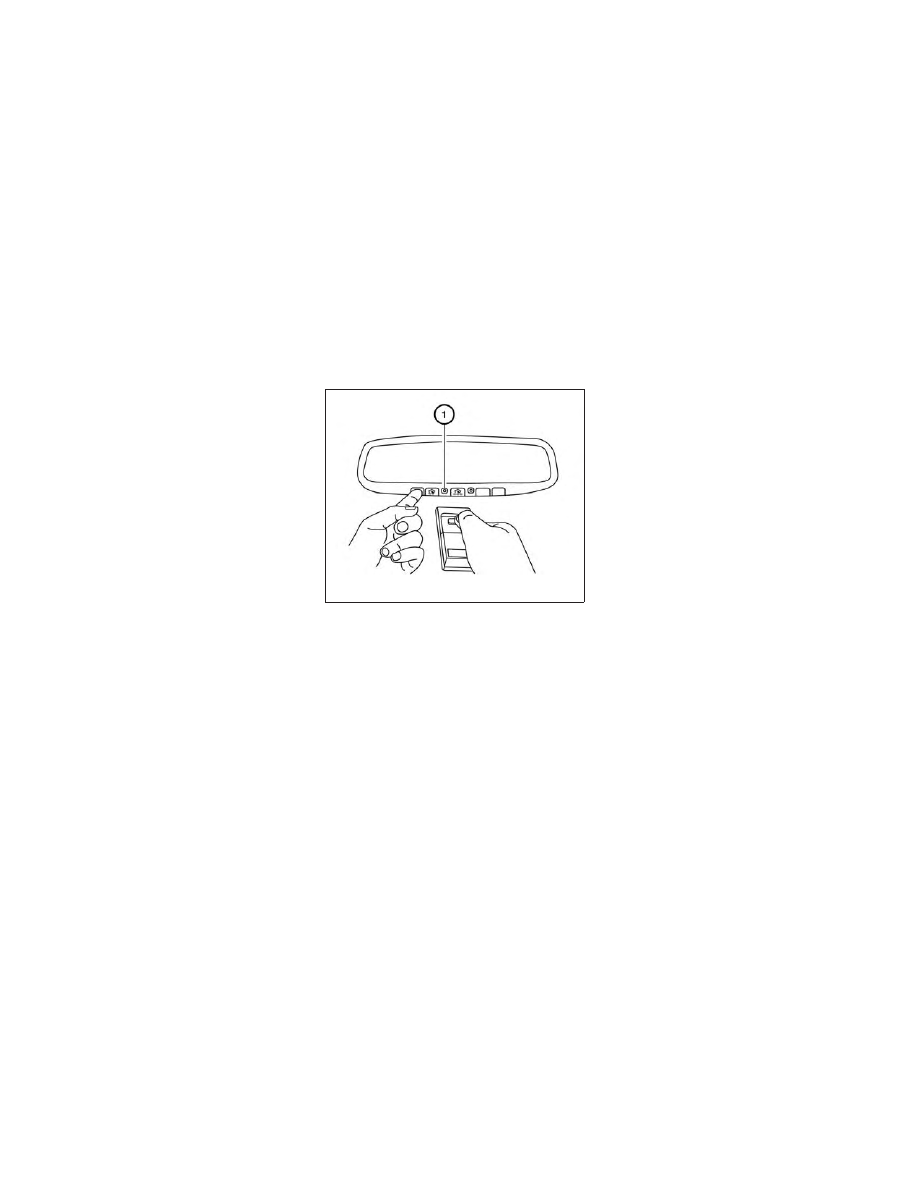

1. Position the end of your hand-held

transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light

䊊

in view.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and hand-held transmitter but-
ton.

NOT

release

until

the

HomeLink® indicator light

䊊

flashes

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. (The rapid flashing
indicates successful programming.)

NOTE:

Some devices may require you to replace
step 2 with the cycling procedure noted
in “Programming HomeLink® for Cana-
dian customers and gate openers” in this
section.

LIC2365

2-56

Instruments and controls

3. Press

and

hold

the

programmed

HomeLink® button and observe the in-
dicator light.

∙ If

the

indicator

light

䊊

solid/continuous, programming is
complete and your device should
activate when the HomeLink® button
is pressed and released.

∙ If the indicator light

䊊

blinks rapidly

for 2 seconds and then turns to a
solid/continuous

light,

continue

with steps 4-6 for a rolling code de-
vice. A second person may make the
following steps easier. Use a ladder or
other device. Do not stand on your
vehicle to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, lo-
cate the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually lo-
cated near where the hanging an-
tenna wire is attached to the unit). If
there is difficulty locating the button,
reference the garage door opener’s
manual.

5. Press and release the “learn” or “smart”

button.

6. Return to the vehicle and firmly press

and hold the trained HomeLink® but-
ton for 2 seconds and release. Repeat
the “press/hold/release” sequence up
to three times to complete the training
process. HomeLink® should now acti-
vate your rolling code equipped device.

7. If you have any questions or are having

difficulty

programming

your

HomeLink®

buttons,

refer

the

HomeLink®

web

site

at:

www.homelink.com or call 1-800-355-
3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
training. Similar to this Canadian law, some
U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having diffi-
culties training a gate operator or garage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
step 2 with the following:

NOTE:

When

programming

garage

door

opener, etc., unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this
section.

LIC2366

Instruments and controls

2-57

Content .. 8 9 10 11 ..
