Nissan Armada (2019 year). Instruction - part 26

SCE0876

Loosen each wheel nut one or two
turns by turning counterclockwise
with the wheel nut wrench. Do not
remove the wheel nuts until the tire
is off the ground.

NCE130

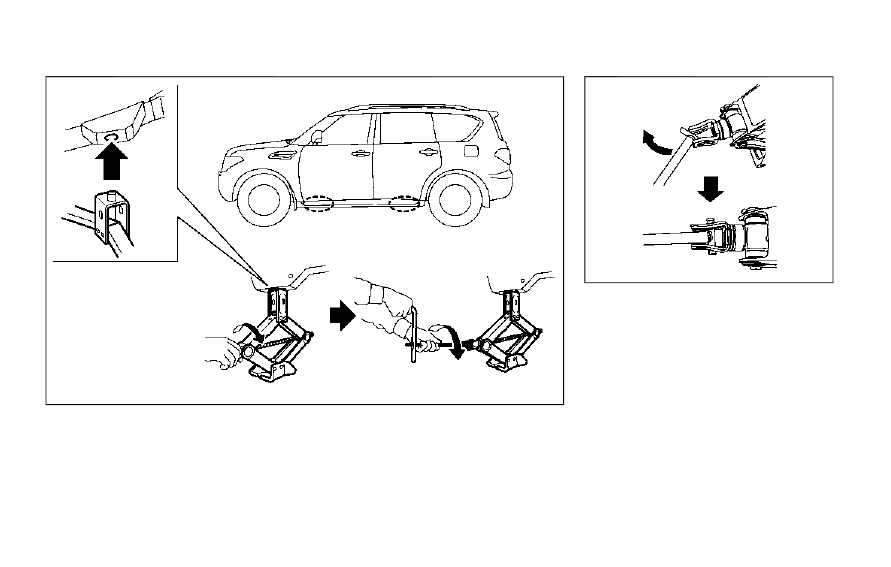

3. Install the assembled jack rod into the

jack as shown.

4. Carefully raise the vehicle until the

clearance between the tire and
ground is achieved.

5. To lift the vehicle, securely hold the

jack lever and rod with both hands
and turn the jack lever.

NOTE:

Before jacking up the vehicle, make
sure the ignition switch is placed in
the OFF position. If the vehicle is lifted
up with the engine running, the auto-
leveling suspension will become dis-
abled after 120 seconds. To reset the
auto-leveling suspension, cycle the

In case of emergency

6-9

6-10

In case of emergency

ignition switch ON/OFF one time.

SCE0910

Installing the spare tire

Clean any mud or dirt from the sur-
face between the wheel and hub.

Carefully put the spare tire on and
tighten the wheel nuts finger tight.

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in
the sequence illustrated ( ,

) until they are tight.

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.

WARNING

. Incorrect wheel nuts or impro-

perly tightened wheel nuts can
cause the wheel to become loose
or come off. This could cause an
accident.

. Do not use oil or grease on the

wheel studs or nuts. This could
cause the nuts to become loose.

. Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

As soon as possible, tighten the

wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

98 ft-lb (133 N·m)

The wheel nuts must be kept
tightened to specification at all
times. It is recommended that
wheel nuts be tightened to speci-
fications at each lubrication inter-
val.

Adjust tire pressure to the COLD

pressure.

COLD pressure:

After the vehicle has been parked

for three hours or more or driven
less than 1 mile (1.6 km).

COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side
center pillar.

After adjusting tire pressure to the COLD
tire pressure, the display of the tire
pressure information may show higher
pressure than the COLD tire pressure
after the vehicle has been driven more
than 1 mile (1.6 km). This is because the
tire pressurizes as the tire temperature
rises. This does not indicate a system
malfunction.

Stowing the damaged tire and
tools

Securely store the damaged tire, jack
and tools in the storage area.

Close the cargo floor cover.

3. Replace the cargo floor board.

4. Close the liftgate.

WARNING

Always make sure that the spare tire
and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an
accident or sudden stop.

In case of emergency

6-11

6-12

In case of emergency

To start your engine with a booster
battery, the instructions and precautions
below must be followed.

WARNING

. If done incorrectly, jump starting

can lead to a battery explosion,
resulting in severe injury or
death. It could also damage your
vehicle.

. Explosive hydrogen gas is always

present in the vicinity of the
battery. Keep all sparks and
flames away from the battery.

. Do not allow battery fluid to come

into contact with eyes, skin,
clothing or painted surfaces. Bat-
tery fluid is a corrosive sulphuric
acid solution which can cause
severe burns. If the fluid should
come into contact with anything,
immediately flush the contacted
area with water.

. Keep the battery out of the reach

of children.

. The booster battery must be

rated at 12 volts. Use of an im-
properly rated battery can da-
mage your vehicle.

. Whenever working on or near a

battery, always wear suitable eye
protectors (for example, goggles
or industrial safety spectacles)
and remove rings, metal bands,
or any other jewelry. Do not lean
over the battery when jump start-
ing.

. Do not attempt to jump start a

frozen battery. It could explode
and cause serious injury.

. Your vehicle has an automatic

engine cooling fan. It could come
on at any time. Keep hands and
other objects away from it.

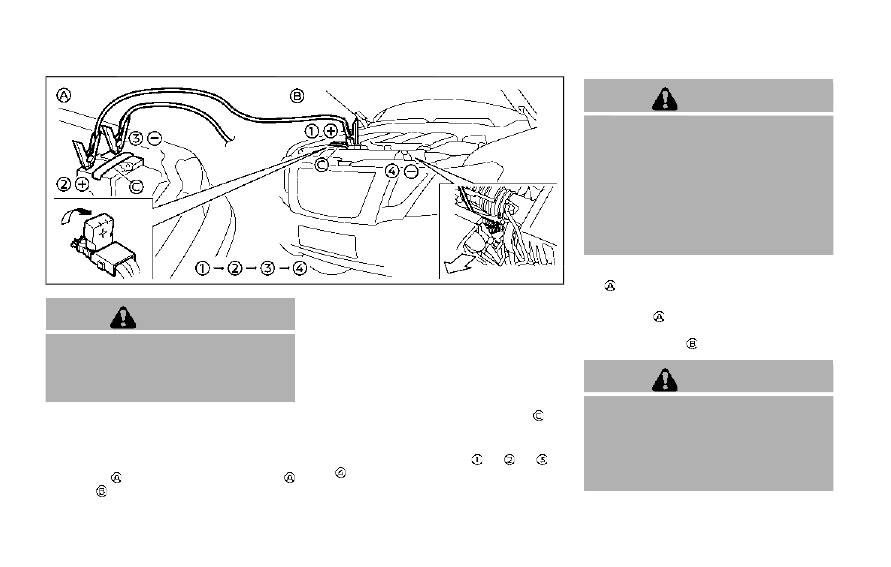

JUMP STARTING

JVE0485X

WARNING

Always follow the instructions below.
Failure to do so could result in
damage to the charging system and
cause personal injury.

Remove the engine compartment
cover, if necessary. See “Engine com-
partment check locations” (P.8-3).

If the booster battery is in another
vehicle

, position the two vehicles (

and

) to bring their batteries into

close proximity to each other.

Do not allow the two vehicles to
touch.

Apply parking brake. Move the shift
lever to the P (Park) position. Switch
off all unnecessary electrical systems
(light, heater, air conditioner, etc.).

4. Remove vent caps on the battery (if so

equipped). Cover the battery with a
firmly wrung out moist cloth

reduce explosion hazard.

5. Connect jumper cables in the se-

quence as illustrated (

CAUTION

. Always connect positive (+) to

positive (+) and negative (−) to
body ground (as illustrated) —
not to the battery.

. Make sure the jumper cables do

not touch moving parts in the
engine compartment and that
clamps do not contact any other
metal.

6. Start the engine of the booster vehicle

and let it run for a few minutes.

Keep the engine speed of the booster
vehicle

at about 2,000 rpm, and

start the engine of the vehicle being
jump started

CAUTION

Do not keep the starter motor en-
gaged for more than 10 seconds. If
the engine does not start right away,
place the ignition switch in the OFF
position and wait 10 seconds before
trying again.

In case of emergency

6-13

6-14

In case of emergency

8. After starting your engine, carefully

disconnect the negative cable and
then the positive cable (

? ).

9. Replace the vent caps (if so equipped).

Be sure to dispose of the cloth used to
cover the vent holes as it may be
contaminated with corrosive acid.

10. Put the battery cover on.

Do not attempt to start the engine by
pushing.

CAUTION

. Automatic transmission models

cannot be push-started or tow-
started. Attempting to do so may
cause transmission damage.

. Three way catalyst equipped

models should not be started by
pushing since the three way cat-
alyst may be damaged.

. Never try to start the vehicle by

towing it; when the engine starts,
the forward surge could cause
the vehicle to collide with the
tow vehicle.

CAUTION

. Do not continue to drive if your

vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.

. To avoid the danger of being

scalded, never remove the radia-
tor cap or coolant reservoir cap
while the engine is still hot. When
the radiator cap or coolant reser-
voir cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.

. Do not open the hood if steam is

coming out.

If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take
the following steps:

Move the vehicle safely off the road,
apply the parking brake and move the
shift lever to the P (Park) position.

Do not stop the engine.

Turn off the heater and air condi-
tioner. Open all the windows, move
the heater or air conditioner tempera-
ture control to maximum hot and fan

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

control to high speed.

3. If engine overheating is caused by

climbing a long hill on a hot day, run
the engine at a fast idle (approxi-
mately 1,500 rpm) until the tempera-
ture gauge indication returns to
normal.

4. Get out of the vehicle. Look and listen

for steam or coolant escaping from
the radiator before opening the hood.
(If steam or coolant is escaping, turn
off the engine.) Do not open the hood
further until no steam or coolant can
be seen.

5. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent get-
ting burned.

6. Visually check drive belts for damage

or looseness. Also check if the cooling
fan is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking or the cooling fan does
not run, stop the engine.

WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or get caught in, engine
belts or the engine cooling fan. The
engine cooling fan can start at any
time.

After the engine cools down, check
the coolant level in the reservoir tank
with the engine running. Add coolant
to the reservoir tank if necessary. Have
your vehicle repaired. It is recom-
mended you visit a NISSAN dealer for
this service.

In case of emergency

6-15

6-16

In case of emergency

When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations
for towing must be followed. Incorrect
towing equipment could damage your
vehicle. Towing instructions are available
from a NISSAN dealer. Local service op-
erators are familiar with the applicable
laws and procedures for towing. To
assure proper towing and to prevent
accidental damage to your vehicle,
NISSAN recommends that you have a
service operator tow your vehicle. It is
advisable to have the service operator
carefully read the following precautions.

WARNING

. Never ride in a vehicle that is

being towed.

. Never get under your vehicle after

it has been lifted by a tow truck.

CAUTION

. When towing, make sure that the

transmission, axles, steering sys-
tem and powertrain are in work-
ing condition. If any of these
conditions apply, dollies or a
flatbed tow truck must be used.

. Always attach safety chains be-

fore towing.

For information about towing your vehi-
cle behind a recreational vehicle (RV), see
“Flat towing” (P.10-29).

TOWING YOUR VEHICLE

SCE0925

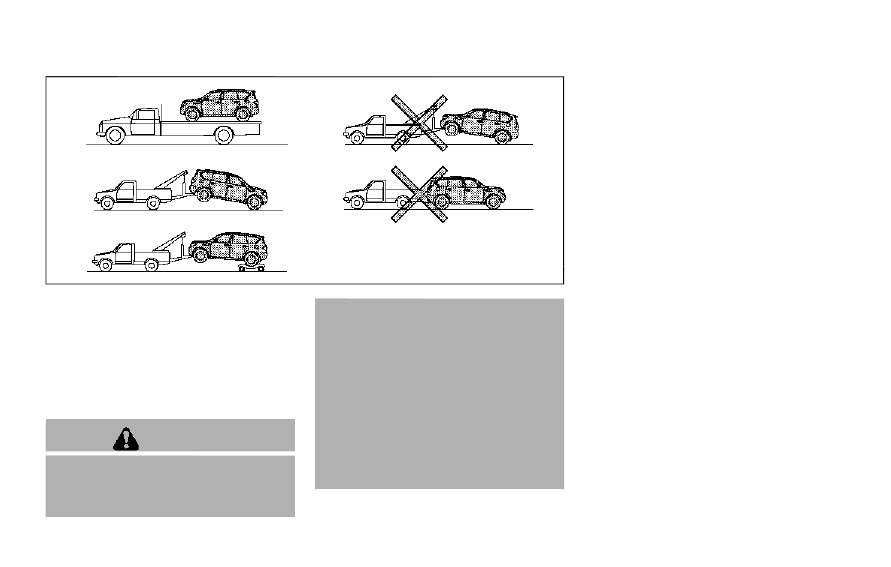

Two-Wheel Drive (2WD) models

TOWING RECOMMENDED BY
NISSAN

Two-Wheel Drive (2WD) models

NISSAN recommends that your vehicle be
towed with the driving (rear) wheels off
the ground or place the vehicle on a flat
bed truck as illustrated.

CAUTION

. Never tow automatic transmis-

sion models with the rear wheels
on the ground or four wheels on
the ground (forward or back-

ward), as this may cause serious
and expensive damage to the
transmission. If it is necessary to
tow the vehicle with the front
wheels raised, always use towing
dollies under the rear wheels.

. When towing rear wheel drive

models with the front wheels on
the ground or on towing dollies:
Place the ignition in the ACC or ON
position, and secure the steering
wheel in a straight-ahead posi-
tion with a rope or similar device.

In case of emergency

6-17

6-18

In case of emergency

SCE0907

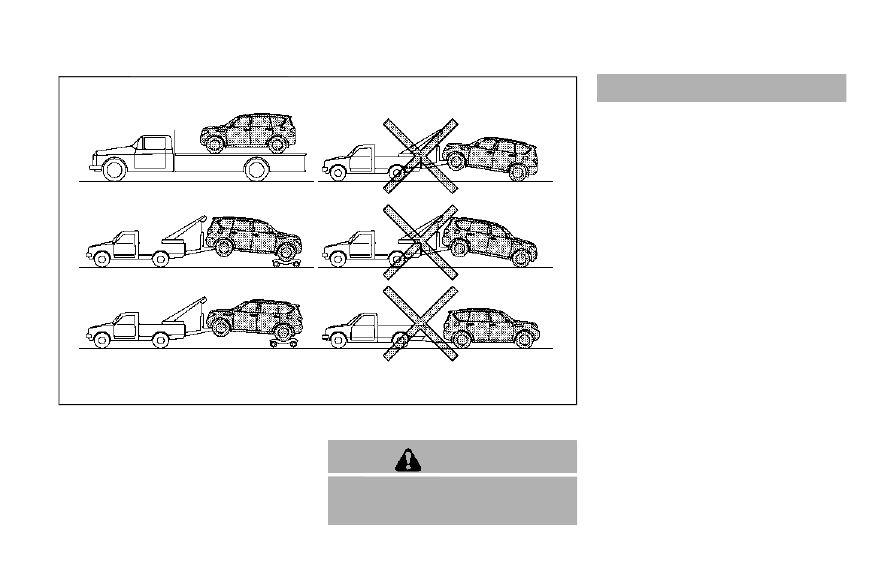

Four-Wheel Drive (4WD) models

Four-Wheel Drive (4WD) models

NISSAN recommends that towing dollies
be used when towing your vehicle or the
vehicle be placed on a flat bed truck as
illustrated.

CAUTION

Never tow 4WD models with any of
the wheels on the ground as this
may cause serious and expensive

damage to the powertrain.

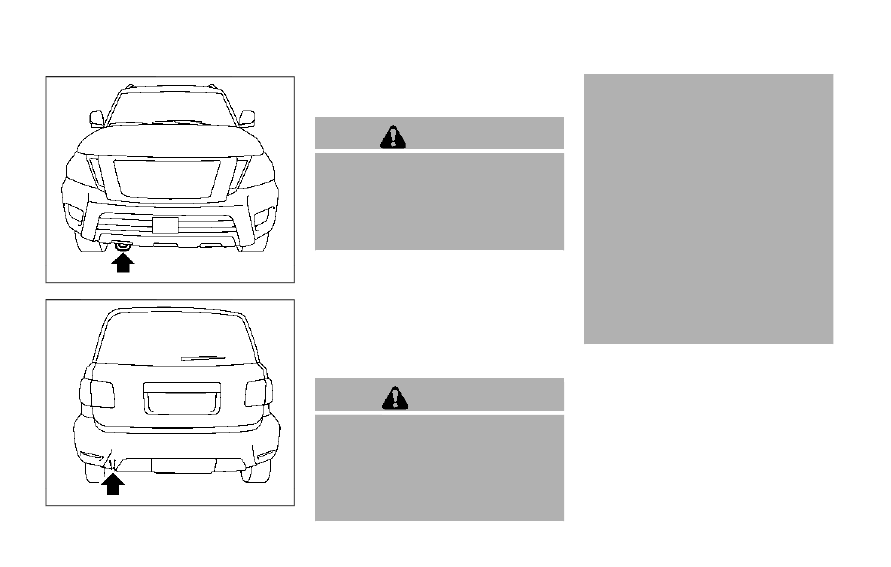

JVE0350X

Front

JVE0351X

Rear

VEHICLE RECOVERY (freeing a stuck
vehicle)

WARNING

. Stand clear of a stuck vehicle.
. Do not spin your tires at high

speed. This could cause them to
explode and result in serious in-
jury. Parts of your vehicle could
also overheat and be damaged.

Pulling a stuck vehicle

If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device
designed specifically for vehicle recovery.
Always follow the manufacturer’s instruc-
tions for the recovery device.

Attach the tow strap to the towing hook.

CAUTION

. Tow chains or cables must be

attached only to the main struc-
tural members of the vehicle or
the towing hooks. Otherwise, the
vehicle body will be damaged.

. Use the towing hook only to free

a vehicle stuck in sand, snow,

mud, etc. Never tow the vehicle
for a long distance using only the
towing hook.

. The towing hook is under tre-

mendous force when used to free
a stuck vehicle. Never pull the
hook at an angle.

. Always pull the cable straight out

from the front or rear of the
vehicle.

. Pulling devices should be routed

so they do not touch any part of
the suspension, steering, brake or
cooling systems.

. Pulling devices such as ropes or

canvas straps are not recom-
mended for use in vehicle towing
or recovery.

Rocking a stuck vehicle

If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:

Turn off the Vehicle Dynamic Control
(VDC) system.

Make sure the area in front and
behind the vehicle is clear of obstruc-
tions.

3. Turn the steering wheel right and left

to clear an area around the front tires.

In case of emergency

6-19

6-20

In case of emergency

4. Slowly rock the vehicle forward and

backward.

Shift back and forth between R

(Reverse) and D (Drive).

Apply the accelerator as little as

possible to maintain the rocking
motion.

Release the accelerator pedal be-

fore shifting between R and D.

Do not spin the tires above 35 MPH

(55 km/h).

5. If the vehicle cannot be freed after a

few tries, contact a professional tow-
ing service to remove the vehicle.

This section describes the procedure for
manually shifting the vehicle into the 4WD
mode (4L position) in case of an emer-
gency.

WHEN 4WD WARNING LIGHT ILLU-
MINATES

If the 4WD warning light illuminates while
driving, there may be a malfunction in the
4WD system. Stop the vehicle and have
the vehicle checked as soon as possible. It
is recommended you contact a NISSAN
dealer for this service. (See “NISSAN all-
mode 4WD®” (P.5-121).)

When the vehicle is stuck on an uneven
road (desert, mud, etc.) and the 4WD
warning light is illuminated, be sure to
place the 4WD shift switch in the 4L
position. If only the rear wheels are
spinning, this means that the transfer
has not switched to the 4L position
electrically.

If this situation occurs, contact a dealer or
road assistance service for help. If an
immediate service is not available, per-
form the following procedure to switch to
the 4L position manually and free the
vehicle.

CAUTION

Only perform this procedure in an
emergency.

If the vehicle is driven for a long
period of time over a long distance
with a component detached, foreign
material such as water, sand, etc.
may enter from the opening and this
may cause a malfunction in the
drivetrain system. After freeing a
vehicle that has become stuck, it is
recommended you contact a NISSAN
dealer for inspection and repair.

WARNING

. Ensure your safety before per-

forming the operations. The ve-
hicle may move unexpectedly.

. Place the ignition switch in the

OFF position, apply the parking
brake and let the vehicle cool
down.

. Do not perform the following

procedure immediately after
driving the vehicle. Parts such as
exhaust components, the trans-

FOUR-WHEEL DRIVE (4WD)
MANUAL SHIFTING (4WD models)

mission, etc. are very hot and
may cause a burn injury.

. Make sure that the parts that will

be operated as well as related
parts cool down before perform-
ing the operation.

. Burrs or projecting portions of

metal components may cause
unexpected injury to your fingers
or arms. Pay special attention in
regard to your safety while re-
moving and installing these
parts. Wear work gloves and pro-
tective arm covers.

CAUTION

While removing and installing the
parts, prevent the removed parts
from getting dirty with water, dirt or
sand. Protect the parts using a cover
such as a clean cloth, etc.

OPERATING PROCEDURE

Place the ignition switch in the OFF
position and apply the parking brake. Let
the vehicle cool down before performing
the following procedure.

SCE0959

4WD shift motor assembly

Check that the ignition switch is in the
OFF position.

CAUTION

The following procedure includes the
removal of the electrical system
components. Therefore, make sure
that the ignition switch is in the OFF
position before proceeding.

In case of emergency

6-21

6-22

In case of emergency

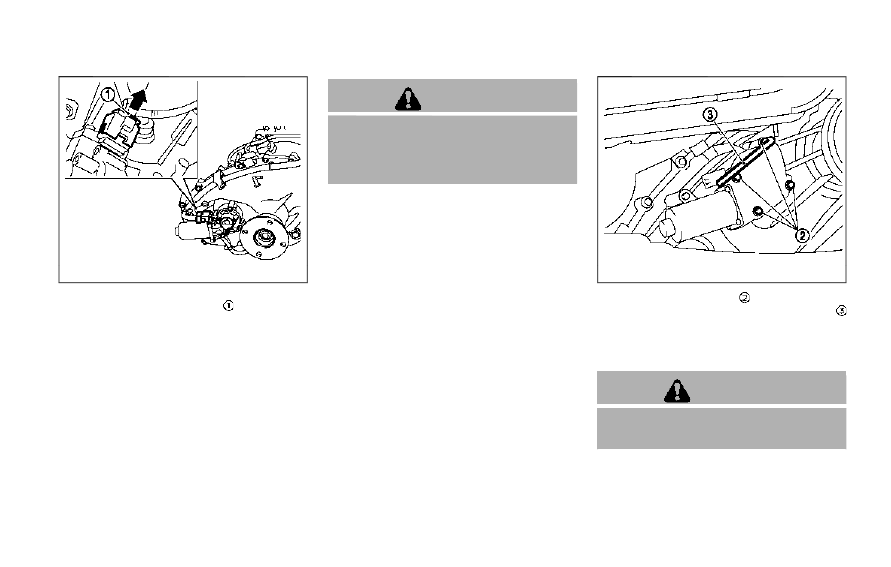

SCE0960

4WD shift motor harness connector

Unlock the upper lock

of the har-

ness connector of the 4WD shift motor
assembly, then remove the harness
connector.

3. Cover the connector to prevent it

from getting dirty, and then fasten
the connector to the vehicle using a
suitable rope so that the connector
does not contact the exhaust muffler,
etc.

CAUTION

The connector must be fastened
securely. Not doing so may result in
damage to the connector due to
interference with other parts.

SCE0961

4. Remove the 4 bolts

that secure the

4WD shift motor using the wrench
that is equipped in the vehicle.

5. Remove the 4WD shift motor assem-

bly.

CAUTION

Be careful not to allow the assembly
to contact water, dirt or sand.

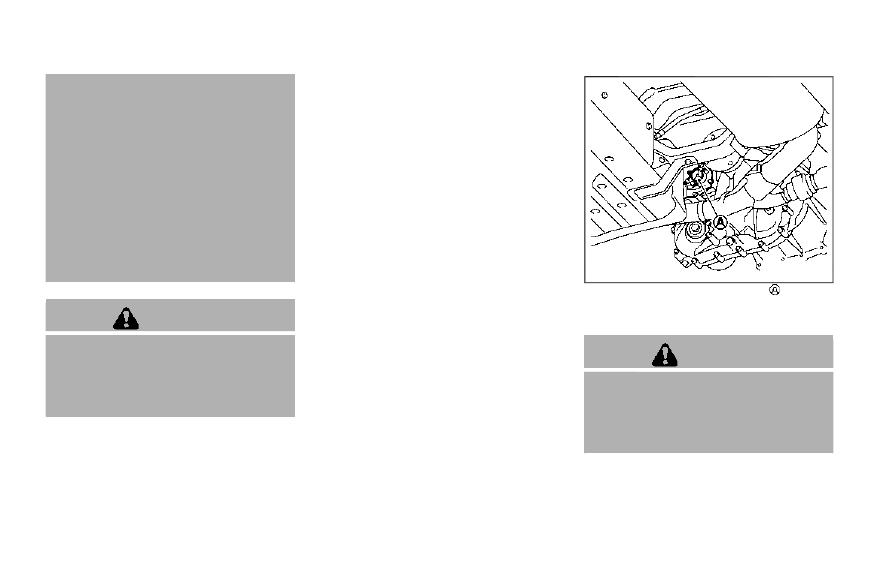

SCE0962

6. Completely insert the wrench into the

internal gear

of the transfer.

Fully turn the wrench clockwise

far as it will go. This shifts the transfer
to the 4L position.

8. Install the 4WD shift motor assembly.

Securely tighten the 4 bolts using the
wrench.

CAUTION

. Do not connect the harness con-

nector of the 4WD shift motor
after the above procedure has
been performed.

. The 4 bolts are tightened to

temporarily install the 4WD shift
motor so that water, dirt or sand
does not enter inside the system.
Therefore, they should only be
tightened to the proper tighten-
ing torque. It is recommended
you contact a NISSAN dealer for
inspection and repair.

9. With the 4WD system in the 4L posi-

tion, free the stuck vehicle. (See “Ve-
hicle recovery (freeing a stuck vehicle)”
(P.6-19) for details.)

CAUTION

After manually shifting the vehicle to
the 4L position, it is recommended
you contact a NISSAN dealer for
inspection and repair as soon as
possible.

In case of emergency

6-23

6-24

In case of emergency

MEMO

Content .. 24 25 26 27 ..
