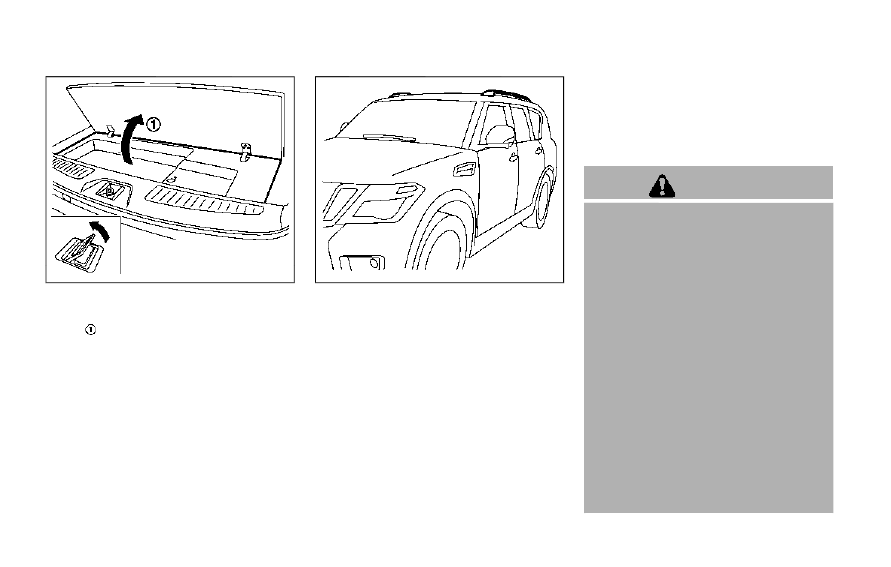

CARGO FLOOR BOX

Push the handle to open the cargo floor
board

JVI1515X

ROOF RACK

Do not apply any load directly to the roof
side rails. Cross bars must be installed
before applying load/cargo/luggage to
the roof of the vehicle. Genuine NISSAN
accessory cross bars are available
through a NISSAN dealer. It is recom-
mended that you visit a NISSAN dealer for
additional information.

The service load capacity for the roof side
rails is 221 lb (100 kg), however do not
exceed the accessory cross bars load
capacity.

Be careful that your vehicle does not
exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating

(GAWR front and rear). The GVWR and
GAWR are located on the F.M.V.S.S. or C.V.
M.S.S. certification label (located on the
driver’s door pillar). For additional infor-
mation regarding GVWR and GAWR, refer
to “Vehicle loading information” (P.10-13).

WARNING

. Always install the cross bars onto

the roof side rails before loading
cargo of any kind. Loading cargo
directly onto the roof side rails or
the vehicle’s roof may cause ve-
hicle damage.

. Drive extra carefully when the

vehicle is loaded at or near the
cargo carrying capacity, espe-
cially if the significant portion of
that load is carried on the roof
rack.

. Heavy loading of the roof rack

has the potential to affect the
vehicle stability and handling
during sudden or unusual hand-
ling maneuvers.

. Roof rack load should be evenly

distributed.

. Do not exceed maximum roof

rack load weight capacity.

Instruments and controls

2-61

2-62

Instruments and controls

. Properly secure all cargo with

ropes or straps to help prevent it
from sliding or shifting. In a sud-
den stop or collision, unsecured
cargo could cause personal in-
jury.

JVE0219X

REAR BUMPER COVER

The rear bumper cover helps prevent the
rear bumper from being scratched or
damaged when loading or unloading a
cargo.

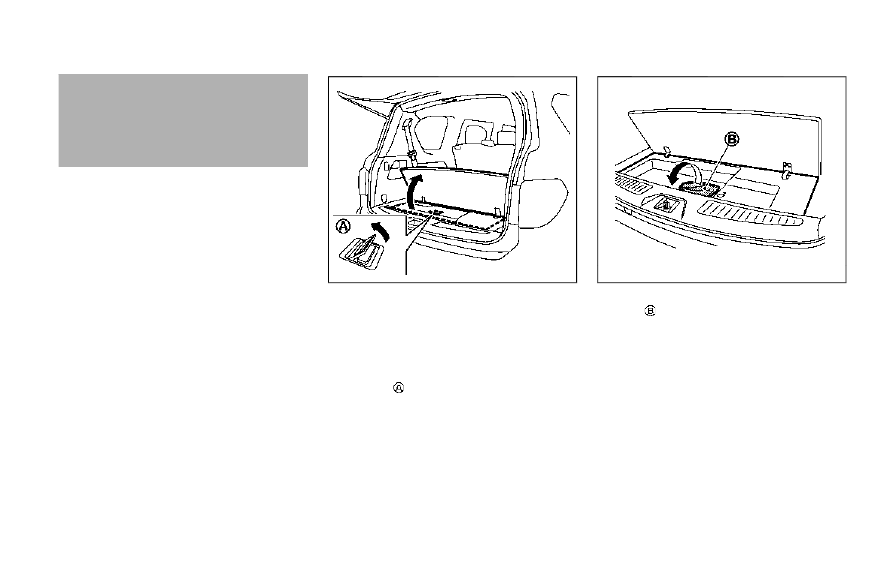

Open the cargo floor board using the
handle

JVI1516X

Take the rear bumper cover from the
bag

stored in the cargo floor box.

JVI1517X

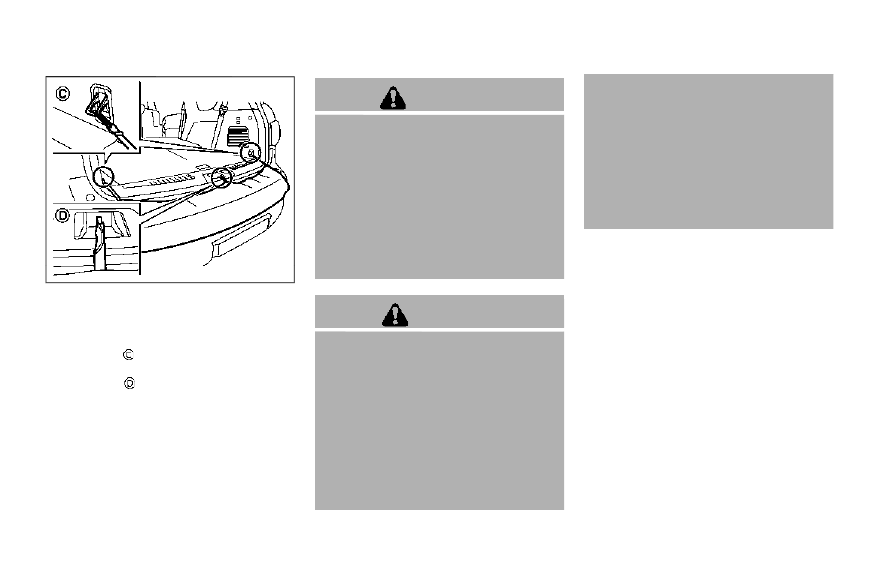

3. Install the rear bumper cover.

Place the cover over the surface

with the tag facing down.

Attach the hooks to the luggage

hooks

Secure the strap to the liftgate

striker

4. Cover the upper part of the rear

bumper as shown.

After loading or unloading the cargo, be
sure to remove the rear bumper cover
and store it in the storage place.

WARNING

. Never install the rear bumper

cover while the engine is running.
The exhaust gas could heat the
rear bumper cover and this may
cause a fire.

. Never drive with the rear bumper

cover left in place. There is a risk
that the liftgate will not close
correctly, and that carbon mon-
oxide may enter the cabin caus-
ing serious injury or death.

CAUTION

. Failure to follow the instructions

below could result in damage to
the rear bumper cover.

— Do not close the liftgate with

the rear bumper cover in-
stalled.

— Do not strike or apply exces-

sive force to the rear bumper
cover.

— Keep the rear bumper cover

away from heat or fire.

— To clean the rear bumper cov-

er, use a soft cloth, dampened
with a mild solution of neutral
detergent. Never use benzine,
thinner or any similar chemi-
cal.

— Remove any solvent such as

oil or gasoline spilled on the
surface of the rear bumper
cover as soon as possible.

Instruments and controls

2-63

2-64

Instruments and controls

POWER WINDOWS

WARNING

. Make sure that all passengers

have their hands, etc. inside the
vehicle while it is in motion and
before closing the windows. Use
the window lock switch to pre-
vent unexpected use of the
power windows.

. To help avoid risk of injury or

death through unintended opera-
tion of the vehicle and or its
systems, including entrapment
in windows or inadvertent door
lock activation, do not leave chil-
dren, people who require the
assistance of others or pets un-
attended in your vehicle. Addi-
tionally, the temperature inside a
closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury
or death to people and pets.

The power windows operate when the
ignition switch is in the ON position or for
about 45 seconds after the ignition
switch is pushed to the OFF position. If
the driver’s or front passenger’s door is
opened during this period of about 45

seconds, power to the windows is can-
celed.

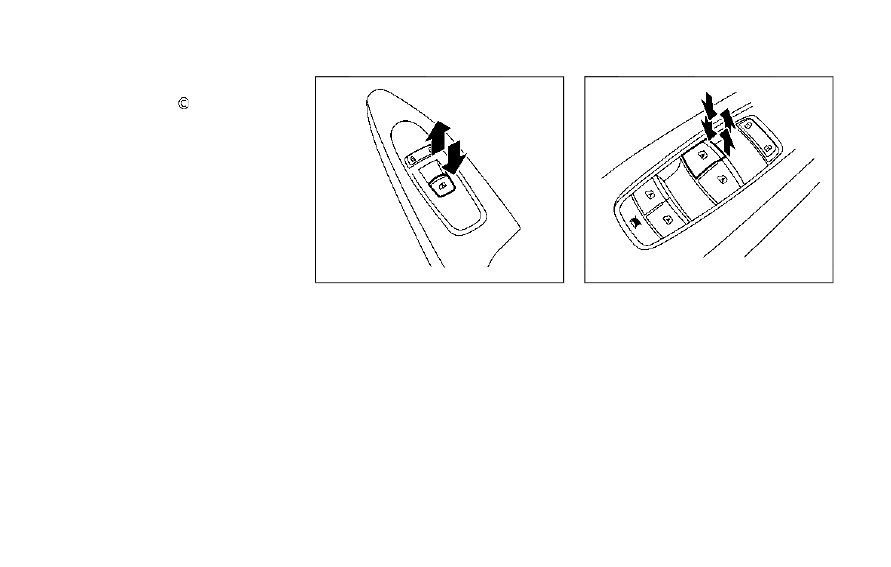

SIC4352

Driver side window

Front passenger side window

Rear left passenger side window

Rear right passenger side window

Window lock button

Main power window switch (driver’s
side)

To open or close the window, push down

or pull up

the switch and hold it. The

main switch (driver side switches) will
open or close all the windows.

WINDOWS

Locking passengers’ windows

When the lock button

is pushed in, only

the driver side window can be opened or
closed. Push it in again to cancel.

SIC4353

Passenger side power window
switch

The passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.

SIC4354

Automatic operation

To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close
all the way. To stop the window, just push
or lift the switch in the opposite direction.

A light push or pull on the switch will
cause the window to open or close until
the switch is released.

Instruments and controls

2-65

2-66

Instruments and controls

Auto reverse function

WARNING

There are some small distances im-
mediately before the closed position
which cannot be detected. Make sure
that all passengers have their hands,
etc., inside the vehicle before closing
the window.

If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.

The auto reverse function can be acti-
vated when the window is closed by
automatic operation when the ignition
switch is in the ON position or for 45
seconds after the ignition switch is
pushed to the OFF position.

Depending on the environment or driv-
ing conditions, the auto reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

If the windows do not close auto-
matically

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.

Push the ignition switch to start the
engine.

Close the door.

3. After starting the engine, open the

window completely by operating the
power window switch.

4. Pull the power window switch and

hold it to close the window, and then
hold the switch more than 3 seconds
after the window is closed completely.

5. Release the power window switch.

Operate the window by the automatic
function to confirm the initialization is
complete.

6. Perform steps 2 through 5 above for

other windows.

If the power window automatic function
does not operate properly after perform-
ing the procedure above, have your
vehicle checked. It is recommended you
visit a NISSAN dealer for this service.

WARNING

. In an accident you could be

thrown from the vehicle through
an open moonroof. Always use
seat belts and child restraints.

. Do not allow anyone to stand up

or extend any portion of their
body out of the moonroof open-
ing while the vehicle is in motion
or while the moonroof is closing.

CAUTION

. Remove water drops, snow, ice or

sand from the moonroof before
opening.

. Do not place any heavy object on

the moonroof or surrounding
area.

POWER MOONROOF

The moonroof only operates when the
ignition switch is in the ON position.

The moonroof is operational for about 45
seconds, even if the ignition switch is
pushed to the OFF position. If the driver’s
door or the passenger’s door is opened

MOONROOF (if so equipped)

during this period of about 45 seconds,
power to the moonroof is canceled.

JVI0614X

Sunshade

The sunshade will open automatically
when the moonroof is opened. However,
it must be closed manually.

Tilting the moonroof

To tilt up, first close the moonroof, then
push the switch to the TILT UP position
and release it; it need not be held. To tilt
down the moonroof, push the switch to
the TILT DOWN

position.

Sliding the moonroof

To fully open or close the moonroof, push
the switch to the OPEN

or CLOSE

position and release it; it need not be held.
The roof will automatically open or close
all the way. To stop the roof, push the
switch once more while it is opening or
closing.

Auto reverse function

WARNING

There are some small distances im-
mediately before the closed position
which cannot be detected. Make sure
that all passengers have their hands,
etc., inside the vehicle before closing
the moonroof.

If the control unit detects something
caught in the moonroof when it is closing,
the moonroof will be immediately
opened.

The auto reverse function can be acti-
vated when the moonroof is closed by
automatic operation when the ignition
switch is in the ON position or for about
45 seconds after the ignition switch is
pushed to the OFF position.

If the moonroof cannot be closed auto-

Instruments and controls

2-67

2-68

Instruments and controls

matically when the auto reverse function
activates due to a malfunction, push and
hold the switch to the CLOSE

position.

Depending on the environment or driv-
ing conditions, the auto reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

If the moonroof does not operate

If the moonroof does not operate prop-
erly, perform the following procedure to
initialize the moonroof operation system.

If the moonroof is open, close it fully
by repeatedly pushing the moonroof
switch to the CLOSE

position.

Push and hold the switch to the
CLOSE

position.

Release the moonroof switch after the
moonroof moves slightly up and
down.

4. Push and hold the switch to the OPEN

position to fully tilt the moonroof

down.

5. Check if the moonroof switch oper-

ates normally.

If the moonroof does not operate prop-
erly after performing the procedure
above, have your moonroof checked and
repaired. It is recommended you visit a
NISSAN dealer for this service.

SIC3642

To activate or deactivate the welcome
light function, perform the following pro-
cedure.

Place the ignition switch in the ON
position.

Open the driver’s side door.

3. Within 20 seconds after the ignition

switch is placed in the ON position,
push the door open request switch on
the driver’s side door handle for more
than 5 seconds with the driver’s door
open.

4. A chime sounds when the setting is

completed.

Once the welcome light function is active,
the puddle light

and the passenger

cabin illumination will illuminate when
you approach the vehicle with the Intel-
ligent Key (within approximately 3.3 ft (1
m) of the antenna built inside the door
handles) and the following conditions are
met.
. All doors are closed and locked.

. The ignition switch is in the LOCK or

OFF position.

. The Intelligent Key is outside the

vehicle.

. The puddle light operates within a set

duration.

BATTERY SAVER SYSTEM

The welcome light function will be deac-
tivated automatically to prevent battery
discharge under the following conditions.
To activate the welcome light function
again, unlock any door.
. If the welcome light function does not

operate within a set duration. Note
that the duration is set to 9 days as
the factory default setting.

. If the welcome light function is acti-

vated 15 consecutive times when you
approach and leave the vehicle with
the Intelligent Key without the doors
being unlocked.

WELCOME LIGHT (if so equipped)

CAUTION

. Turn off the lights when you leave

the vehicle.

. Do not use the lights for extended

periods of time with the engine
stopped. This could result in a
discharged battery.

JVI0760X

INTERIOR LIGHT SWITCH

ON switch

When the ON switch

is pushed in, the

map lights and rear personal lights will
illuminate.

DOOR OFF switch

When the switch

is not pushed in, the

map lights and rear personal lights will
illuminate for a period of time under the
following conditions:
. when the ignition switch is placed in

the OFF position.

. when doors are unlocked by pushing

the UNLOCK

button on the In-

telligent Key or door handle request
switch with the ignition switch in the
OFF position.

. when any door is opened and then

closed with the ignition switch in the
OFF position.

. when any door is opened with the

ignition switch in the ACC or ON
position.
— The lights will remain on while the

door is opened. When the door is
closed, the lights will turn off.

When the “Lamp ON When Door Unlocks”
key is set to the OFF position (see
NissanConnect® Owner’s Manual), the
lights will illuminate under the following
condition:
. any door is opened with the ignition

switch in any position
— remain on while the door is opened.

When the door is closed, the lights
go off.

When the switch

is pushed in, the map

lights and rear personal lights will not
illuminate under the above condition.

Instruments and controls

2-69

INTERIOR LIGHTS

SIC4448

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.

When the cover is closed, the light will
turn off.

The lights will also turn off after a
period of time when the lights remain
illuminated to prevent the battery from
becoming discharged.

SIC4418

The cargo light switch has three posi-
tions: ON

, center

and OFF

ON position

When the switch is in the ON position

the cargo light will illuminate.

Center position

When the switch is in the center position

, the cargo light will illuminate when the

liftgate is opened.

OFF position

When the switch is in the OFF position

the cargo light will not illuminate.

The HomeLink® Universal Transceiver
provides a convenient way to consolidate
the functions of up to three individual
hand-held transmitters into one built-in
device.

HomeLink® Universal Transceiver:
. Will operate most Radio Frequency

(RF) devices such as garage doors,
gates, home and office lighting, entry
door locks and security systems.

. Is powered by your vehicle’s battery.

No separate batteries are required. If
the vehicle’s battery is discharged or is
disconnected, HomeLink® will retain
all programming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the origi-
nal transmitter for future programming
procedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed HomeLink® Universal
Transceiver buttons should be erased
for security purposes. For additional
information, refer to “Programming
HomeLink®” (P.2-72).

WARNING

. Do not use the HomeLink® Uni-

versal Transceiver with any gar-
age door opener that lacks safety

Instruments and controls

2-71

VANITY MIRROR LIGHTS

CARGO LIGHT

HomeLink® UNIVERSAL TRANSCEIVER
(Type A) (if so equipped)

2-72

Instruments and controls

stop and reverse features as re-
quired by federal safety stan-
dards. (These standards became
effective for opener models man-
ufactured after April 1, 1982). A
garage door opener which cannot
detect an object in the path of a
closing garage door and then
automatically stop and reverse,
does not meet current federal
safety standards. Using a garage
door opener without these fea-
tures increases the risk of serious
injury or death.

. During the programming proce-

dure your garage door or security
gate will open and close (if the
transmitter is within range). Make
sure that people or objects are
clear of the garage door, gate,
etc. that you are programming.

. Your vehicle’s engine should be

turned off while programming
the HomeLink® Universal Trans-
ceiver. Do not breathe exhaust
gases; they contain colorless
and odorless carbon monoxide.
Carbon monoxide is dangerous. It
can cause unconsciousness or
death.

PROGRAMMING HomeLink®

The following steps show generic instruc-
tions how to program a HomeLink®
button. If you have any questions or are
having difficulty programming your
H o m e L i n k ®

b u t t o n s , r e f e r t o

t h e

HomeLink® web site at: www.homelink.
com/nissan or call 1-800-355-3515.

NOTE:

It is also recommended that a new
battery be placed in the hand-held
transmitter of the device being pro-
grammed to HomeLink® for quicker
programming and accurate transmis-
sion of the radio-frequency.

Position the end of your hand-held
transmitter 1-3 in (26-76 mm) away
from the HomeLink® surface, keeping
the HomeLink® indicator light

view.

JVI0428X

Using both hands, simultaneously
press and hold the desired HomeLink®
button and handheld transmitter but-
t o n . D O N O T r e l e a s e u n t i l t h e
HomeLink® indicator light

flashes

slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. (The rapid
flashing indicates successful pro-
gramming.)

NOTE:
Some devices to be programmed
may require you to replace Step 2
with the cycling procedure noted in
the “Programming HomeLink® for
Canadian customers and gate open-
ers” (P.2-73).

JVI0429X

3. Press and hold the programmed

HomeLink® button and observe the
indicator light.

If the indicator light

is solid/

continuous, programming is com-
plete and your device should acti-
vate when the HomeLink® button is
pressed and released.

If the indicator light

blinks rapidly

for two seconds and then turns to a
solid/continuous light, continue
with Steps 4-6 for a rolling code
device. A second person may make
the following steps easier. Use a
ladder or other device. Do not stand
on your vehicle to perform the next
steps.

4. At the receiver located on the garage

door opener motor in the garage,
locate the “learn” or “smart” button
(the name and color of the button
may vary by manufacturer but it is
usually located near where the hang-
ing antenna wire is attached to the
unit). If there is difficulty locating the
button, reference the garage door
opener’s manual.

5. Press and release the “learn” or “smart”

button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.

6. Return to the vehicle and firmly press

and hold the programmed HomeLink®
button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete
the programming process. HomeLink®
should now activate your rolling code
equipped device.

If you have any questions or are
having difficulty programming your
HomeLink® buttons, refer to the
H o m e L i n k ® w e b

s i t e a t :

w w w .

homelink.com/nissan or call 1-800-
355-3515.

PROGRAMMING HomeLink® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.

If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
“Programming HomeLink®” procedures,
replace “Programming HomeLink®” Step
2 with the following:

NOTE:

When programming a garage door
opener, etc., unplug the device during
the “cycling” process to prevent possi-
ble damage to the garage door opener
components.

Step 2: Using both hands, simultaneously
press and hold the desired HomeLink®
button and the hand-held transmitter
button. During programming, your hand-
held transmitter may automatically stop
transmitting. Continue to press and hold
the desired HomeLink® button while you
press and re-press (“cycle”) your hand-

Instruments and controls

2-73

2-74

Instruments and controls

held transmitter every two seconds until
the frequency signal has been learned.
The HomeLink® indicator light will flash
slowly and then rapidly after several
seconds upon successful programming.
DO NOT release until the HomeLink®
indicator light flashes slowly and then
rapidly. When the indicator light flashes
rapidly, both buttons may be released.
The rapid flashing indicates successful
programming.

Proceed with “Programming HomeLink®”
step 3 to complete.

Remember to plug the device back in
when programming is completed.

OPERATING THE HomeLink® UNI-
VERSAL TRANSCEIVER

The HomeLink® Universal Transceiver,
after it is programmed, can be used to
activate the programmed device. To op-
erate, simply press and release the appro-
priate programmed HomeLink® Universal
Transceiver button. The amber indicator
light will illuminate while the signal is
being transmitted.

For convenience, the hand-held transmit-
ter of the device may also be used at any
time.

PROGRAMMING TROUBLESHOOT-
ING

If the HomeLink® does not quickly learn
the hand-held transmitter information:
. replace the hand-held transmitter

batteries with new batteries.

. position the hand-held transmitter

with its battery area facing away from
the HomeLink® surface.

. press and hold both the HomeLink®

and hand-held transmitter buttons
without interruption.

. position the hand-held transmitter 1-3

i n ( 2 6 - 7 6 m m ) a w a y f r o m t h e
HomeLink® surface. Hold the transmit-
ter in that position for up to 15
seconds. If HomeLink® is not pro-
grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at
all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com/nissan or 1-800-
355-3515.

CLEARING THE PROGRAMMED IN-
FORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared.
However, individual buttons can be re-
programmed, see “Reprogramming a sin-
gle HomeLink® button” (P.2-74).

To clear all programming

P r e s s a n d h o l d t h e t w o o u t e r
HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer
than 20 seconds.

Release both buttons.

HomeLink® is now in the programming
mode and can be programmed at any
time beginning with “Programming
HomeLink®” - Step 1.

REPROGRAMMING A SINGLE
HomeLink® BUTTON

To reprogram a HomeLink® Universal
Transceiver button, complete the follow-
ing.

Press and hold the desired HomeLink®
button. Do not release the button.

The indicator light will begin to flash
after 20 seconds. Without releasing
the HomeLink® button, proceed with

“Programming HomeLink®” - Step 1.

For questions or comments, contact
HomeLink® at: www.homelink.com/
nissan or 1-800-355-3515.

The HomeLink® Universal Transceiver
button has now been reprogrammed.
The new device can be activated by
pushing the HomeLink® button that was
just programmed. This procedure will not
affect any other programmed HomeLink®
buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should
change the codes of any non-rolling code
device that has been programmed into
HomeLink®. Consult the Owner’s Manual
of each device or call the manufacturer or
dealer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Uni-
versal Transceiver with your new trans-
mitter information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any

interference received, including inter-
ference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.

For Canada:

This device complies with Industry Ca-
nada licence-exempt RSS standard(s).
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.

The HomeLink® Universal Transceiver
provides a convenient way to consolidate
the functions of up to three individual
hand-held transmitters into one built-in
device.

HomeLink® Universal Transceiver:
. Will operate most Radio Frequency

(RF) devices such as garage doors,
gates, home and office lighting, entry
door locks and security systems.

. Is powered by your vehicle’s battery.

No separate batteries are required. If
the vehicle’s battery is discharged or is
disconnected, HomeLink® will retain
all programming.

WARNING

. Do not use the HomeLink® Uni-

versal Transceiver with any gar-
age door opener that lacks safety

Instruments and controls

2-75

HomeLink® UNIVERSAL TRANSCEIVER
(Type B) (if so equipped)

2-76

Instruments and controls

. During the programming proce-

dure your garage door or security
gate will open and close (if the
transmitter is within range). Make
sure that people or objects are
clear of the garage door, gate,
etc. that you are programming.

. Your vehicle’s engine should be

PROGRAMMING HomeLink®

The following steps show generic instruc-
tions how to program a HomeLink®
button. If you have any questions or are
having difficulty programming your
H o m e L i n k ®

b u t t o n s , r e f e r t o

t h e

HomeLink® web site at: www.homelink.
com/nissan or call 1-800-355-3515.

NOTE:

JVI1689X

HomeLink® buttons (1-3)

Indicator light (appears above each
HomeLink® button)

Status display (where the current condi-
tion of the HomeLink® is displayed)

Nissan Armada (2019 year). Instruction - part 10
