Nissan Altima Coupe (2013 year). Instruction

To open or close the moonroof part way, push the
switch in any direction while the moonroof is
sliding to stop it in the desired position.

Tilting the moonroof

Close the moonroof by pushing the switch
toward

䊊

. Release the switch, then push

the switch toward

䊊

again to tilt the

moonroof up.

To tilt the moonroof down, push the switch
toward

䊊

WARNING

● In an accident you could be thrown from

the vehicle through an open moonroof.
Always

use

seat

belts

and

child

restraints.

● Do not allow anyone to stand up or

extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.

CAUTION

● Remove water drops, snow, ice or sand

from the moonroof before opening.

● Do not place heavy objects on the

moonroof or surrounding area.

Resetting the moonroof switch

The moonroof switch may not operate properly
and need to be reset if any of the following
conditions have occurred:

● the moonroof has been manually moved,
● the moonroof motor has been removed and

reinstalled after the moonroof has been re-
positioned or adjusted,

● the moonroof glass panel has been adjusted

or changed, or

● the electrical supply interrupted and/or

some malfunction has been detected.

Use the following reset procedure to return the
moonroof operation to normal.

1. Place the ignition switch in the ON position.

2. Push

and

hold

the

moonroof

switch

toward

䊊

. Once the moonroof has

reached the full tilt position, release the
switch. Push and hold the switch toward

the

䊊

position again. After a delay of

four seconds, the moonroof will make a small
movement and backup.

3. Release the switch.

4. Within 5 seconds of releasing the switch,

push and continuously hold the switch
toward

䊊

. The moonroof will move

from the tilt position to the open position and
back to the close position.

NOTE:

If the switch is released at any time during
Step 4, the procedure must be restarted.

5. Release the switch. Do not place the ignition

switch in the OFF position for at least 2
seconds. The moonroof is now reset.

If the moonroof still does not operate properly,
have the moonroof system checked by a NISSAN
dealer.

Auto-reverse function (when closing or
tilting down the moonroof)

The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.

Instruments and controls

2-45

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.

When closing:

If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.

When tilting down:

If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.

If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.

WARNING

● In an accident you could be thrown from

the vehicle through an open moonroof.
Always

use

seat

belts

and

child

restraints.

● Do not allow anyone to stand up or

extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.

CAUTION

● Remove water drops, snow, ice or sand

from the moonroof before opening.

● Do not place heavy objects on the

moonroof or surrounding area.

Sunshade

Open and close the sunshade by sliding it for-
ward or backward.

If the moonroof does not close

Have your NISSAN dealer check and repair the
moonroof.

The interior light has a three-position switch and
operates regardless of ignition switch position.

● When the switch is in the ON position

䊊

the interior light illuminates, regardless of
door position. The light will go off after a
period of time unless the ignition switch is
placed in the ON position.

● When the switch is in the center DOOR

position

䊊

, the front and rear personal

lights will illuminate when the driver’s door is
opened. Lights remain on for a period of time
after driver’s door is closed.

WIC1550

INTERIOR LIGHT

2-46

Instruments and controls

The lights will go off when the ignition switch is
placed in the ON position, or the driver’s door is
closed and locked.

The lights will also go off after a period of time
when the doors are open.

● When the switch is in the OFF position

䊊

the interior light does not illuminate, regard-
less of door position.

NOTE:

The doorstep lights illuminate when the
driver and passenger doors are opened re-
gardless of the interior light switch posi-
tion. These lights will turn off automatically
after a period of time while doors are open
to prevent the battery from becoming dis-
charged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

CONSOLE LIGHT (if so equipped)

The console light will turn on whenever the park-
ing lights or headlights are illuminated.

The console light brightness can be adjusted
with the instrument brightness control.

WIC1476

Front map lights

WIC1494

Instruments and controls

2-47

To turn the map lights on, press the light lens. To
turn them off, press the lens again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.

The light will go off after a period of time if the
trunk lid is left open, unless the ignition switch is
placed in the ON position.

For bulb replacement procedures, refer to “Exte-
rior and interior lights” in the “Maintenance and
do-it-yourself” section of this manual.

The HomeLink

姞 Universal Transceiver provides a

convenient way to consolidate the functions of up
to three individual hand-held transmitters into
one built-in device.

HomeLink

姞 Universal Transceiver:

● Will operate most Radio Frequency (RF)

devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.

● Is powered by your vehicle’s battery. No

separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink

姞 will retain all program-

ming.

When the HomeLink

姞 Universal Trans-

ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink

姞 Universal Transceiver buttons

should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink

姞” later in this section.

MAP LIGHTS

TRUNK LIGHT

HOMELINK

姞 UNIVERSAL

TRANSCEIVER (if so equipped)

2-48

Instruments and controls

WARNING

● Do not use the HomeLink姞 Universal

Transceiver

with

any

garage

door

opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came

effective

for

opener

models

manufactured after April 1, 1982). A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener

without

these

features

in-

creases the risk of serious injury or
death.

● During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.

● Your vehicle’s engine should be turned

off while programming the HomeLink

姞

Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.

PROGRAMMING HOMELINK

姞

If you have any questions or are having difficulty
programming your HomeLink

姞 buttons, refer to

the HomeLink

姞 web site at: www.homelink.com

or call 1-800-355-3515.

NOTE:

It is also recommended that a new battery
be placed in the hand-held transmitter of
the

device

being

programmed

HomeLink

姞 for quicker programming and

accurate

transmission

the

radio-

frequency.

1. Position the end of your hand-held transmit-

ter 1–3 inches (5–14 cm) away from the
HomeLink

姞 surface, keeping the HomeLink姞

indicator light

䊊

in view.

2. Using both hands, simultaneously press and

hold the desired HomeLink

姞 button and

handheld transmitter button. DO NOT re-
lease until the HomeLink

姞 indicator light

䊊

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted in
the “Programing HomeLink

姞 for Canadian

customers and gate openers” section.

LIC2365

Instruments and controls

2-49

3. Press and hold the programmed HomeLink

姞

button and observe the indicator light.

● If

the

indicator

light

䊊

solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink

姞 button is

pressed and released.

● If the indicator light

䊊

blinks rapidly for

two seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device.

Do not stand on your vehicle to perform
the next steps.

4. At the receiver located on the garage door

opener motor in the garage, locate the
“learn” or “smart” button (the name and color
of the button may vary by manufacturer but it
is usually located near where the hanging
antenna wire is attached to the unit). If there
is difficulty locating the button, reference the
garage door opener’s manual.

5. Press and release the “learn” or “smart” but-

ton.

6. Return to the vehicle and firmly press and

hold the trained HomeLink

姞 button for two

seconds

and

release.

Repeat

the

“press/hold/release” sequence up to 3
times to complete the training process.
HomeLink

姞 should now activate your rolling

code equipped device.

7. If you have any questions or are having diffi-

culty programming your HomeLink

姞 buttons,

refer to the HomeLink

姞 web site at:

www.homelink.com

call

1-800-355-

3515.

PROGRAMMING HOMELINK

姞 FOR

CANADIAN CUSTOMERS AND
GATE OPENERS

Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink

姞 to pick up the signal

during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having difficulties
training a gate operator or garage door opener
by using the “Training” procedures, replace
“Programming HomeLink

姞” Step 2 with the fol-

lowing:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

1. See “Programing HomeLink

姞” step 1 earlier

in this section.

2. Using both hands, simultaneously press and

hold the desired HomeLink

姞 button and the

hand-held transmitter button. During train-
ing, your hand-held transmitter may auto-
matically stop transmitting. Continue to

LIC2366

2-50

Instruments and controls

press and hold the desired HomeLink

姞 but-

ton while you press and re-press (“cycle”)
your hand-held transmitter every two sec-
onds until the frequency signal has been
learned. The HomeLink

姞 indicator light will

flash slowly and then rapidly after several
seconds upon successful training. DO NOT
release until the HomeLink

姞 indicator light

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. The rapid flashing indi-
cates successful training.
Proceed with “Programming HomeLink

姞”

step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.

OPERATING THE HOMELINK

姞

UNIVERSAL TRANSCEIVER

The HomeLink

姞 Universal Transceiver, after it is

programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release the appropriate programmed HomeLink

姞

Universal Transceiver button. The amber indica-
tor light will illuminate while the signal is being
transmitted.

For convenience, the hand-held transmitter of the
device may also be used at any time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink

姞 does not quickly learn the hand-

held transmitter information:

● replace the hand-held transmitter batteries

with new batteries.

● position the hand-held transmitter with its

battery

area

facing

away

from

the

HomeLink

姞 surface.

● press and hold both the HomeLink姞 and

hand-held transmitter buttons without inter-
ruption.

● position the hand-held transmitter 1 - 3

inches (26 - 76 mm) away from the
HomeLink

姞 surface. Hold the transmitter in

that position for up to 15 seconds. If
HomeLink

姞 is not programmed within that

time, try holding the transmitter in another
position – keeping the indicator light in view
at all times.

If you have any questions or are having difficulty
programming your HomeLink

姞 buttons, refer to

the HomeLink

姞 web site at: www.homelink.com

or call 1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see “Reprogramming a
single HomeLink

姞 button” in this section.

To clear all programming:

1. Press and hold the two outer HomeLink

姞

buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.

2. Release both buttons.

HomeLink

姞 is now in the programming mode and

can be programmed at any time beginning with
“Programming HomeLink

姞” - Step 1.

REPROGRAMMING A SINGLE
HOMELINK

姞 BUTTON

To reprogram a HomeLink

姞 Universal Transceiver

button, complete the following:

1. Press and hold the desired HomeLink

姞 but-

ton. DO NOT release the button.

Instruments and controls

2-51

2. The indicator light will begin to flash after 20

seconds. Without releasing the HomeLink

姞

button,

proceed

with

“Programming

HomeLink

姞” - Step 1.

For questions or comments, contact HomeLink

姞

at: www.homelink.com or 1–800–355–3515.

The HomeLink

姞 Universal Transceiver button has

now been reprogrammed. The new device can
be activated by pushing the HomeLink

姞 button

that was just programmed. This procedure will
not affect any other programmed HomeLink

姞

buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink

姞. Consult the

Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink

姞 Univer-

sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation. Note: Changes
or modifications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate the
equipment.

For Canada:

This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.

2-52

Instruments and controls

Two Intelligent Keys

Mechanical keys with built-in transpon-
der chip (inside Intelligent Keys)

Key number plate

NISSAN INTELLIGENT KEY

姞

Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key system components and NISSAN Ve-
hicle Immobilizer System components.

Never leave these keys in the vehicle.

As many as 4 Intelligent Keys can be registered
and used with one vehicle. The new keys must be
registered by a NISSAN dealer prior to use with

the Intelligent Key system and NISSAN Vehicle
Immobilizer System of your vehicle. Since the
registration process requires erasing all memory
in the Intelligent Key components when register-
ing new keys, be sure to take all Intelligent Keys
that you have to the NISSAN dealer.

A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet), not in the vehicle. If you lose
your keys, see a NISSAN dealer for duplicates by
using the key number. NISSAN does not record
key numbers so it is very important to keep track
of your key number plate.

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, your NISSAN dealer
can duplicate it.

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelligent
Key:

● Do not allow the Intelligent Key, which

contains

electrical

components,

come into contact with water or salt
water. This could affect the system
function.

● Do not drop the Intelligent Key.

● Do not strike the Intelligent Key sharply

against another object.

● Do not change or modify the Intelligent

Key.

● Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

● Do not place the Intelligent Key for an

extended period in an area where tem-
peratures exceed 140°F (60°C).

● Do not attach the Intelligent Key with a

key holder that contains a magnet.

● Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

WPD0427

KEYS

3-2

Pre-driving checks and adjustments

Mechanical key

The Intelligent Key contains the mechanical key.

To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.

Use the mechanical key to lock or unlock the
doors, glove box and rear seatback lock.

See “Doors”, “Storage” in the “Instruments and
controls” section, “Seats” in the “Safety — Seats,
seat belts and supplemental restraint system”

section, and “Upper tether anchor/key cylinder
covers” in the “Maintenance and do-it-yourself”
section of this manual.

CAUTION

Always carry the mechanical key installed
in the Intelligent Key slot.

Valet hand-off

When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the me-
chanical key with you to protect your belongings.

To prevent the glove box and the trunk from being
opened during valet hand-off, follow the proce-
dures below:

1. Push the trunk cancel switch to the OFF

position.

2. Remove the mechanical key from the Intelli-

gent Key.

3. Lock the glove box and the rear seats with

the mechanical key.

4. Hand the Intelligent Key to the valet and

keep the mechanical key with you.

See “Storage” in the “Instruments and controls”
section and “Seats” in the “Safety — seats, seat
belts and supplemental restraint system” section.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the master
keys which are registered to the NISSAN Vehicle
Immobilizer System components in your vehicle.

The master key can be used for all the locks.

Never leave these keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer can dupli-
cate your existing key. This is because the regis-
tration process will erase the memory of all key
codes previously registered into the NISSAN Ve-
hicle Immobilizer System.

Do not allow the immobilizer system key, which
contains an electrical transponder, to come into
contact with water or salt water. This could affect
system function.

SPA1951

Pre-driving checks and adjustments

3-3

When the doors are locked using one of the
following methods, the doors can not be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.

WARNING

● Always have the doors locked while

driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally open-
ing the doors, and will help keep out
intruders.

● Before opening any door, always look

for and avoid oncoming traffic.

● Do not leave children unattended inside

the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.

LOCKING WITH KEY

The power door lock system allows you to lock or
unlock all doors at the same time.

Turning the key toward the front

䊊

of the vehicle

locks all doors.

Turning the key one time toward the rear

䊊

of the

vehicle unlocks that door. From that position,
returning the key to neutral

䊊

(where the key can

only be removed and inserted) and turning it
toward the rear again within 5 seconds unlocks
all doors

䊊

Opening and closing windows

The driver’s door key operation allows you to
open and close windows equipped with auto-
matic operation at the same time.

● To open the windows, turn the driver’s door

key toward the rear of the vehicle for longer
than 1 second after the door is unlocked.

● To close the windows, turn the driver’s door

key toward the front of the vehicle for longer
than 1 second after the door is locked.

Windows stop when the key cylinder is released.

Driver’s side

WPD0444

DOORS

3-4

Pre-driving checks and adjustments

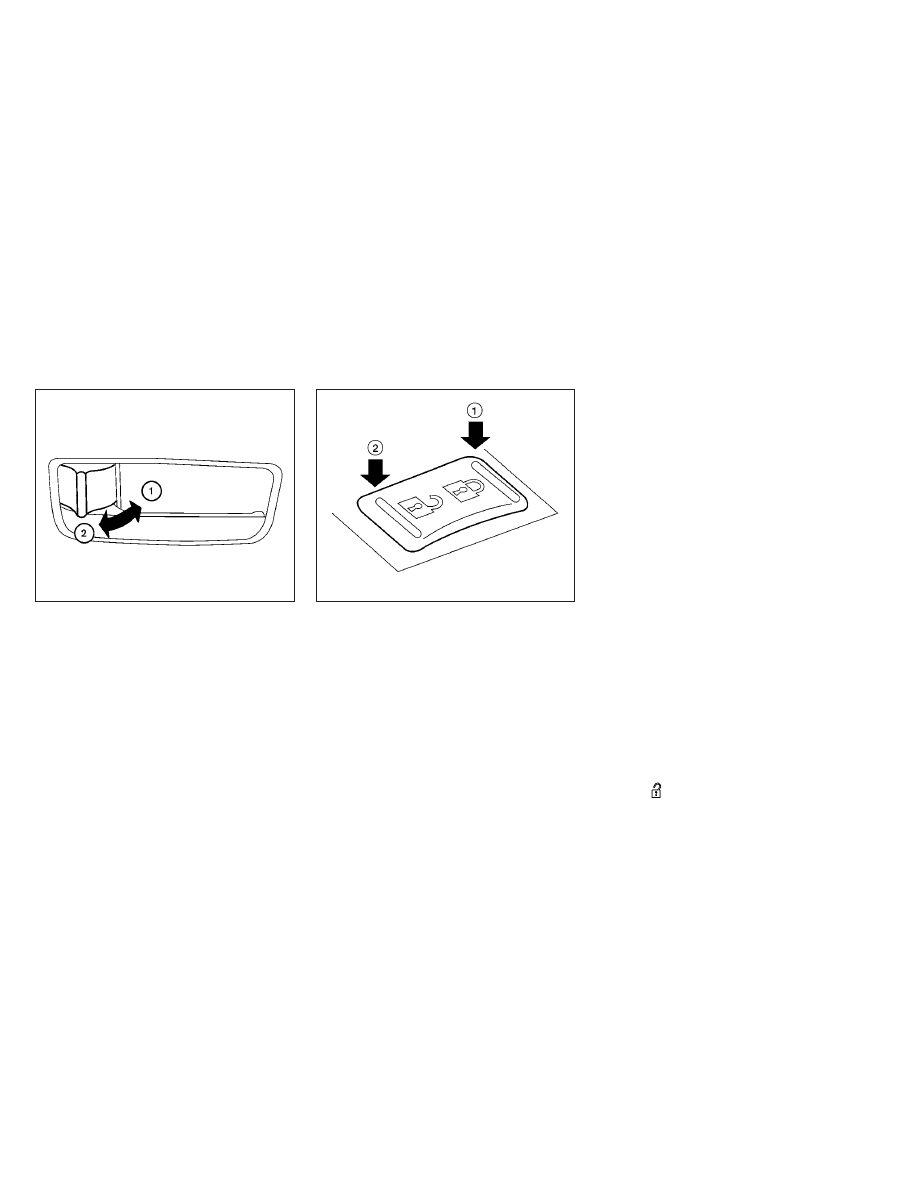

LOCKING WITH INSIDE LOCK
KNOB

To lock the door without the key, move the inside
lock knob to the lock position

䊊

, then close the

door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

LOCKING WITH POWER DOOR
LOCK SWITCH

To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position

䊊

. When locking the door this

way, be certain not to leave the key inside the
vehicle.

To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position

䊊

Lockout protection

When the power door lock switch (driver’s or
front passenger’s side) is moved to the lock
position with the Intelligent Key in the port and
any door open, all doors will lock and unlock
automatically. With the Intelligent Key left in the
vehicle (not in the Intelligent Key port) and any
door open, all doors will unlock automatically and
a chime will sound after the door is closed.

AUTOMATIC DOOR LOCKS

● All doors lock automatically when the vehicle

speed reaches 15 MPH (24 km/h).

● All doors unlock automatically when the ig-

nition is placed in the OFF position.

The automatic unlock function can be de-
activated or activated. To deactivate or acti-
vate the automatic door unlock system, perform
the following procedure:

1. Close all doors.

2. Place the ignition switch in the ON position.

3. Within 20 seconds of performing Step 2,

push and hold the power door lock switch to
the

position (UNLOCK) for more than

5 seconds.

Inside lock

WPD0291

Door lock switch

WPD0381

Pre-driving checks and adjustments

3-5

4. When activated, the hazard indicator will

flash twice. When deactivated, the hazard
indicator will flash once.

5. The ignition switch must be placed in the

OFF and ON position again between each
setting change.

When the automatic door unlock system is deac-
tivated, the doors do not unlock when the ignition
switch is placed in the OFF position. To unlock
the door manually, use the inside lock knob or the
power door lock switch (driver’s or front passen-
ger’s side).

WARNING

● Radio waves could adversely affect elec-

tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

● The Intelligent Key transmits radio waves

when the buttons are pressed. The FAA
advises the radio waves may affect air-
craft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure the but-
tons are not operated unintentionally
when the unit is stored for a flight.

The Intelligent Key system can operate all the
door locks using the remote controller function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key system operation.

Be sure to read the following before using the
Intelligent Key system.

CAUTION

● Be sure to carry the Intelligent Key with

you when operating the vehicle.

● Never leave the Intelligent Key in the

vehicle when you leave the vehicle.

The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The Intel-
ligent Key system transmits weak radio waves.
Environmental conditions may interfere with the
operation of the Intelligent Key system under the
following operating conditions:

● When operating near a location where

strong radio waves are transmitted, such as
a TV tower, power station and broadcasting
station.

● When in possession of wireless equipment,

such as a cellular telephone, transceiver,
and CB radio.

● When the Intelligent Key is in contact with or

covered by metallic materials.

● When any type of radio wave remote control

is used nearby.

● When the Intelligent Key is placed near an

electric appliance such as a personal com-
puter.

● When the vehicle is parked near a parking

meter.

In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.

NISSAN INTELLIGENT KEY

姞

3-6

Pre-driving checks and adjustments

Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.

When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the Intelli-
gent Key port to start the engine. Replace the
discharged battery with a new one as soon as
possible. For additional information, see “Push
Button Ignition Switch” in the “Starting and driv-
ing” section.

Since the Intelligent Key is continuously receiving
radio waves, if the key is left near equipment
which transmits strong radio waves, such as sig-
nals from a TV and personal computer, the bat-
tery life may become shorter.

For information regarding replacement of a bat-
tery, see “Battery replacement” in the “Mainte-
nance and do-it-yourself” section.

As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelligent
Key:

● Do not allow the Intelligent Key, which

contains

electrical

components,

come into contact with water or salt
water. This could affect the system
function.

● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply

against another object.

● Do not change or modify the Intelligent

Key.

● Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

● Do not place the Intelligent Key for an

extended period in an area where tem-
peratures exceed 140°F (60°C).

● Do not attach the Intelligent Key with a

key holder that contains a magnet.

● Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For information regarding the erasing
procedure, contact a NISSAN dealer.

Pre-driving checks and adjustments

3-7

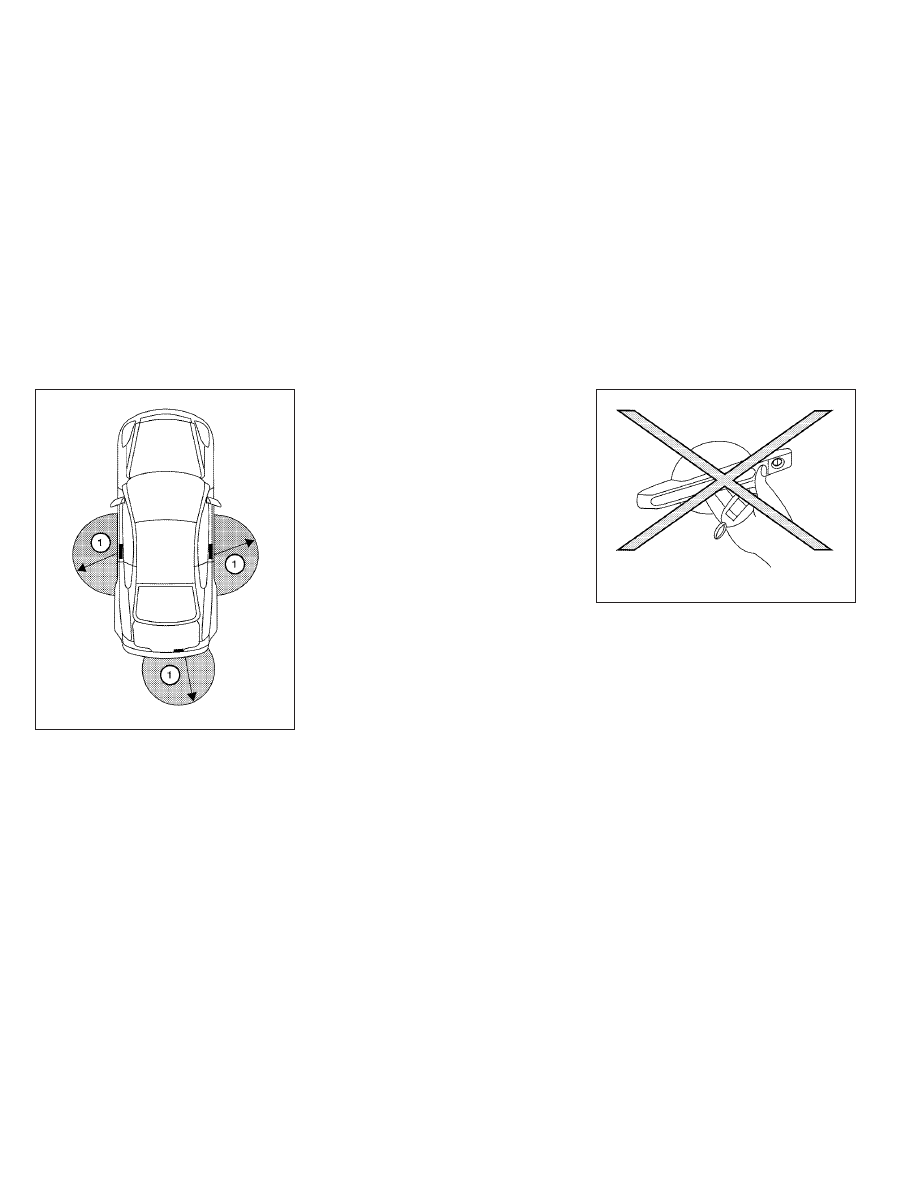

OPERATING RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch

䊊

When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key system’s operat-
ing range becomes narrower, and the Intelligent
Key may not function properly.

The operating range is within 31.50 in (80 cm)
from each request switch

䊊

If the Intelligent Key is too close to the door glass,
handle or rear bumper, the request switches may
not function.

When the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push the
request switch to lock/unlock the doors.

DOOR LOCKS/UNLOCKS
PRECAUTION

● Do not push the door handle request switch

with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intelli-
gent Key is outside the vehicle.

● After locking with the door handle request

switch, verify the doors are securely locked
by testing them.

WPD0465

WPD0375

3-8

Pre-driving checks and adjustments

Nissan Altima Coupe (2013 year). Instruction - part 8
