ENGINE COMPARTMENT

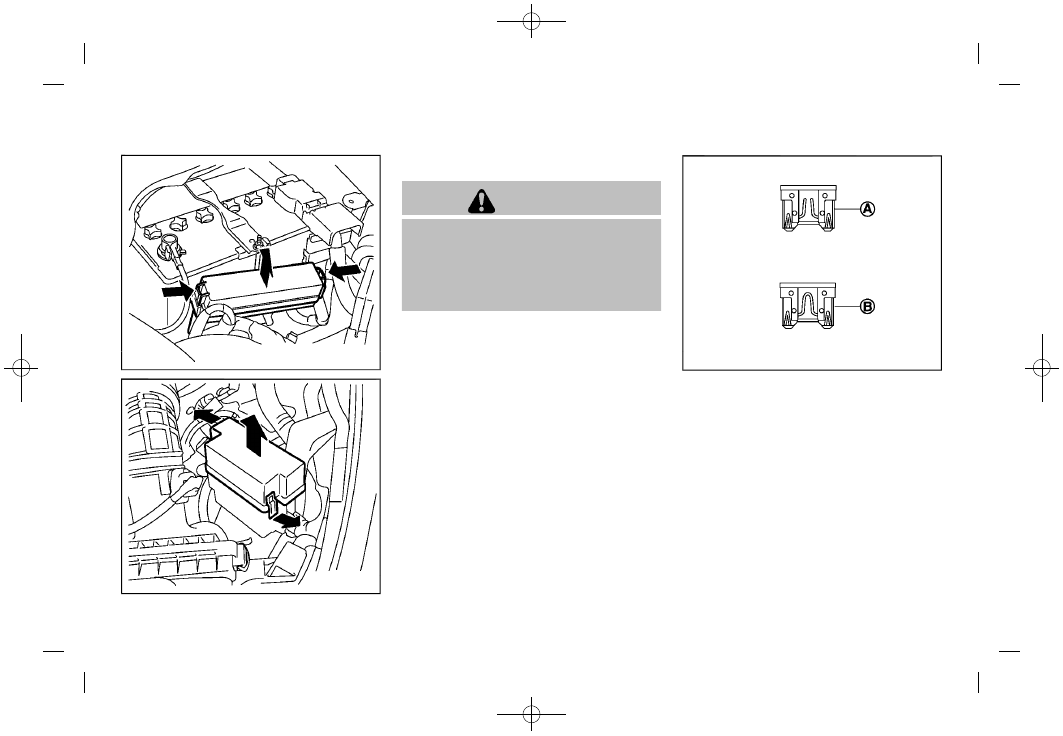

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

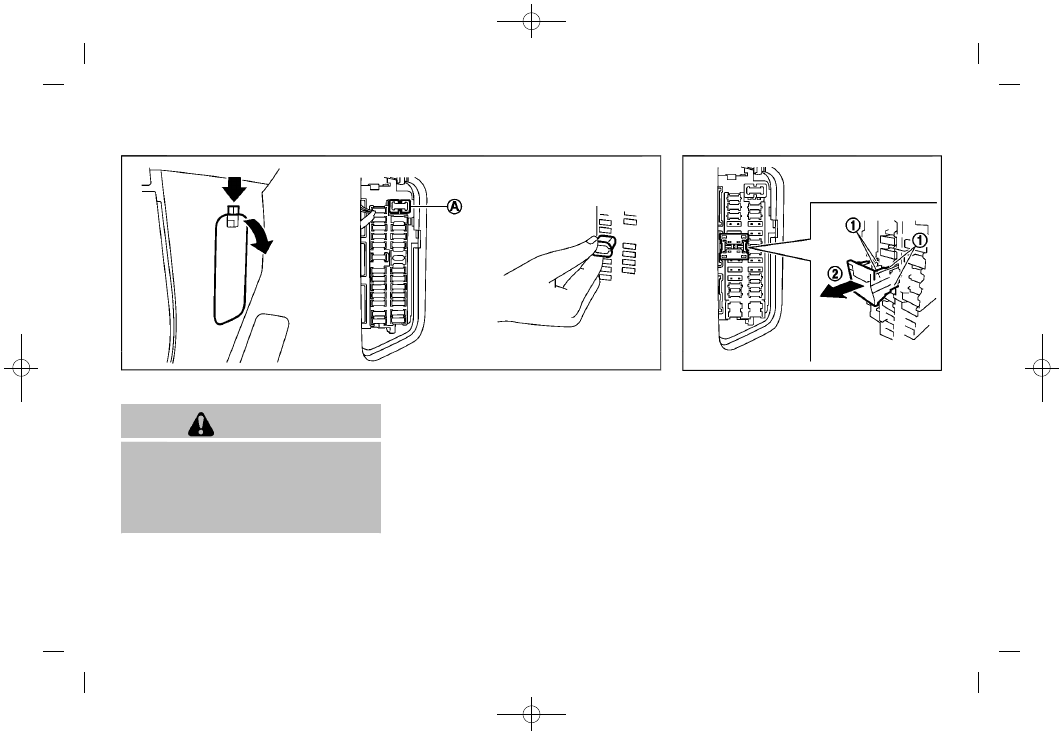

1. Be sure the ignition switch is pushed to the

OFF or LOCK position and the headlight
switch is turned to OFF.

2. Open the engine hood.

3. Remove the fuse/fusible link holder cover.

4. Remove the fuse with the fuse puller located

in the passenger compartment fuse box.

SDI1754

5. If the fuse is open

, replace it with a new

fuse

. Spare fuses are stored in the

passenger compartment fuse box.

6. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

Fusible links

If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.

FUSES

Condition:

(371,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SDI2361

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch is pushed to the

OFF or LOCK position and the headlight

switch is turned to OFF.

2. Open the fuse box lid.

3. Remove the fuse with the fuse puller

4. If the fuse is open, replace it with a new fuse.

Spare fuses are stored in the fuse box.

5. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

SDI2704

Extended storage fuse switch

To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.

Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.

If the extended storage fuse switch is not
pushed in (switched on), the “SHIPPING MODE
ON, PUSH STORAGE FUSE” warning may
appear on the vehicle information display. See
“Warnings and alerts” (P.2-21).

If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.

Do-it-yourself

8-19

Condition:

(372,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-20

Do-it-yourself

NOTE:

If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.

How to remove the extended storage fuse
switch:

1. To remove the extended storage fuse switch,

be sure the ignition switch is in the OFF or
LOCK position.

2. Be sure the headlight switch is in the OFF

position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

found on each

side of the storage fuse switch.

5. Pull the storage fuse switch straight out from

the fuse box

SDI2451

CAUTION

Be careful not to allow children to
swallow the battery and removed parts.

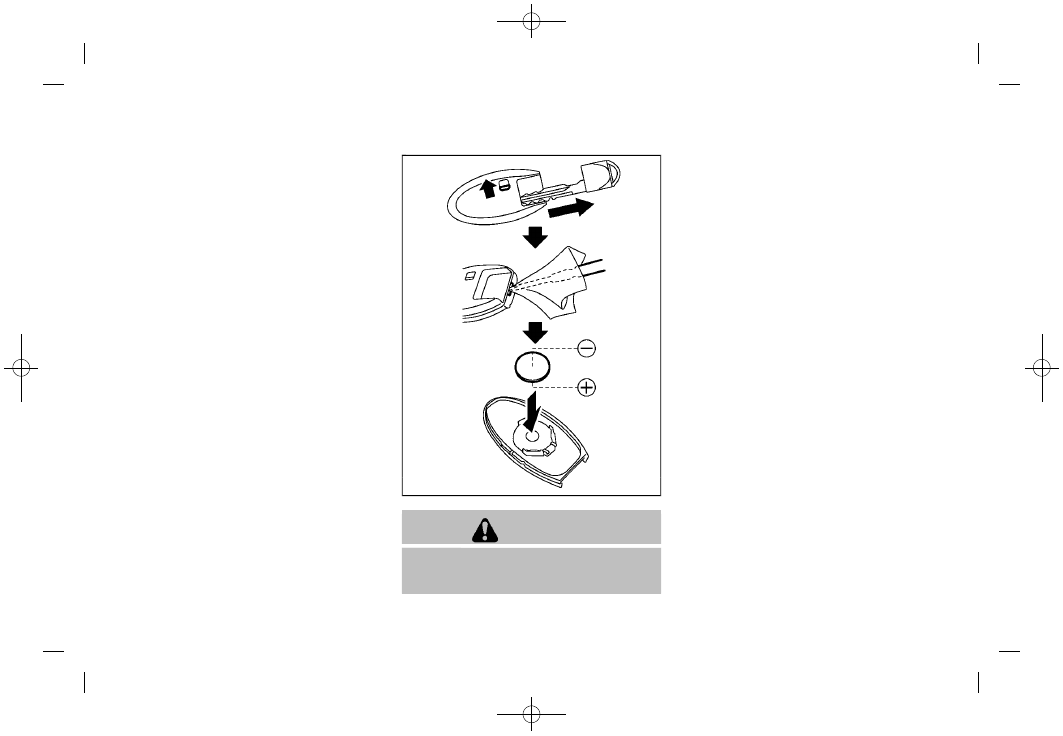

Replace the battery as follows:

1. Remove the mechanical key from the key.

2. Insert a small screwdriver into the slit of the

corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.

3. Replace the battery with a new one.

Recommended battery:

CR2032 or equivalent

Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

Hold the battery by the edges. Holding

the battery across the contact points will
seriously deplete the storage capacity.

Make sure that the + side faces the

bottom case.

INTELLIGENT KEY BATTERY
REPLACEMENT

Condition:

(373,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SDI2452

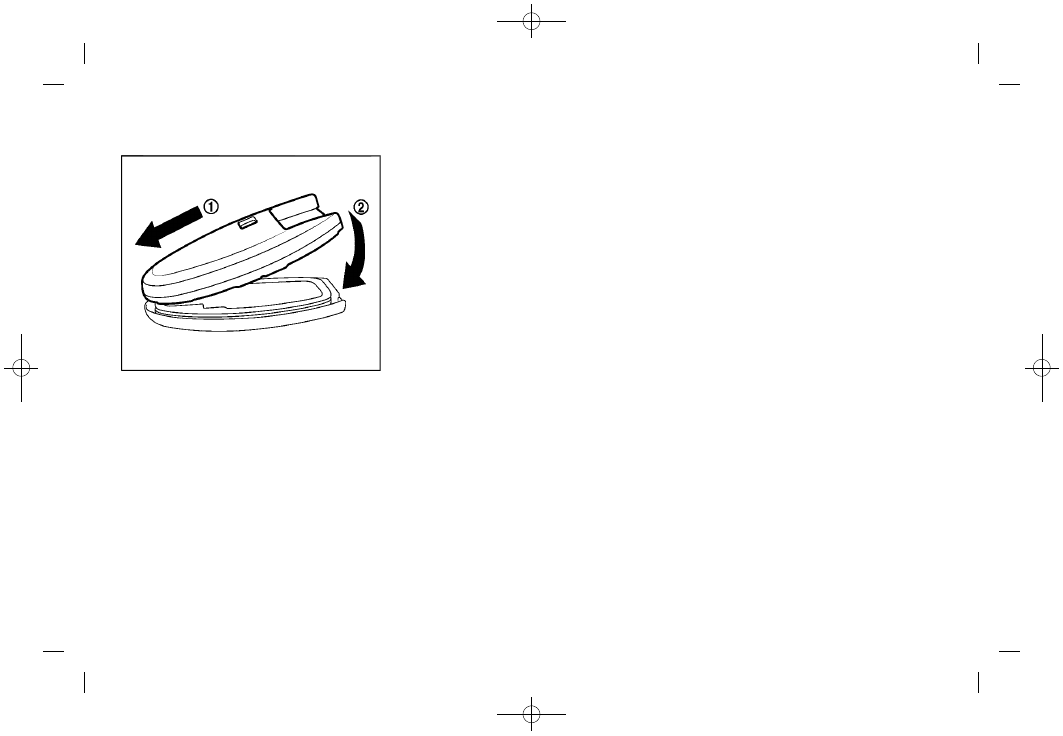

4. Align the tips of the upper and lower parts

, and then push them together until it is

securely closed

5. Operate the buttons to check its operation.

If you need any assistance for replacement, it is
recommended you visit a NISSAN dealer for this
service.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-

ence received, including interference that
may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.

Do-it-yourself

8-21

Condition:

(374,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-22

Do-it-yourself

JVM0467X

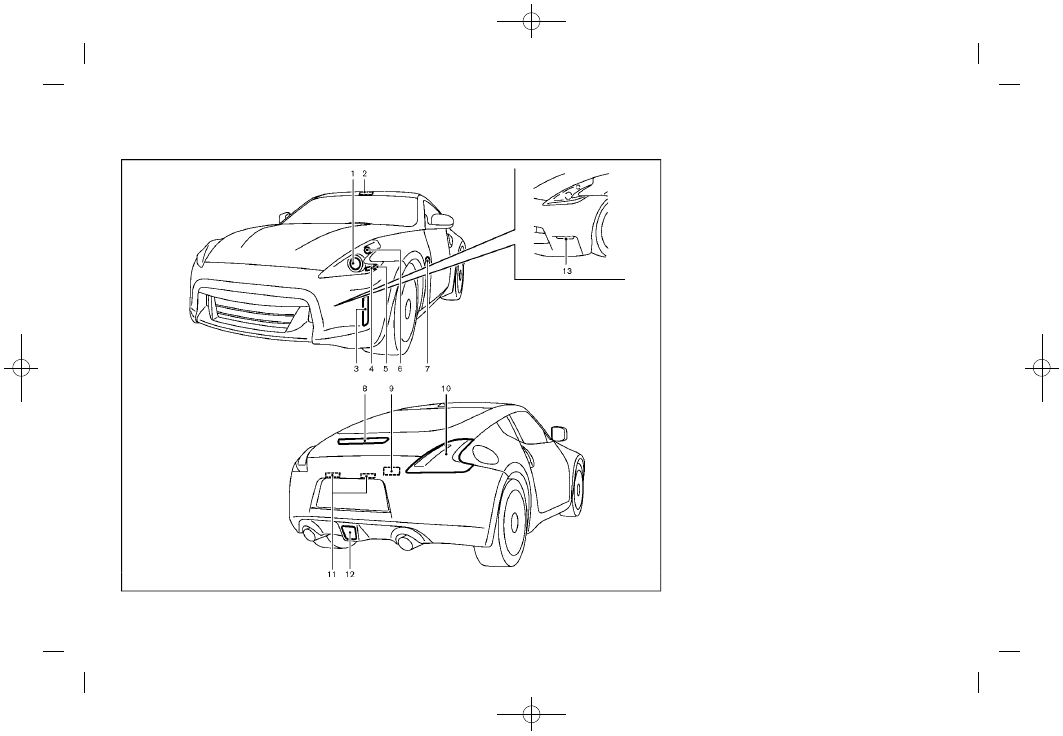

COUPE

Headlight (high- and low-beam)

Map light

Daytime running light (except for NISMO mod-
els)

Front parking light

Front side marker light

Front turn signal light

Side turn signal light (if so equipped)

High-mounted stop light

Cargo light

10.

Rear combination light (rear turn signal/tail/stop/
side marker/back-up light)

11.

License plate light

12.

Rear fog light (if so equipped)

13.

Daytime running light (NISMO models)

LIGHTS

Condition:

(375,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

JVM0140X

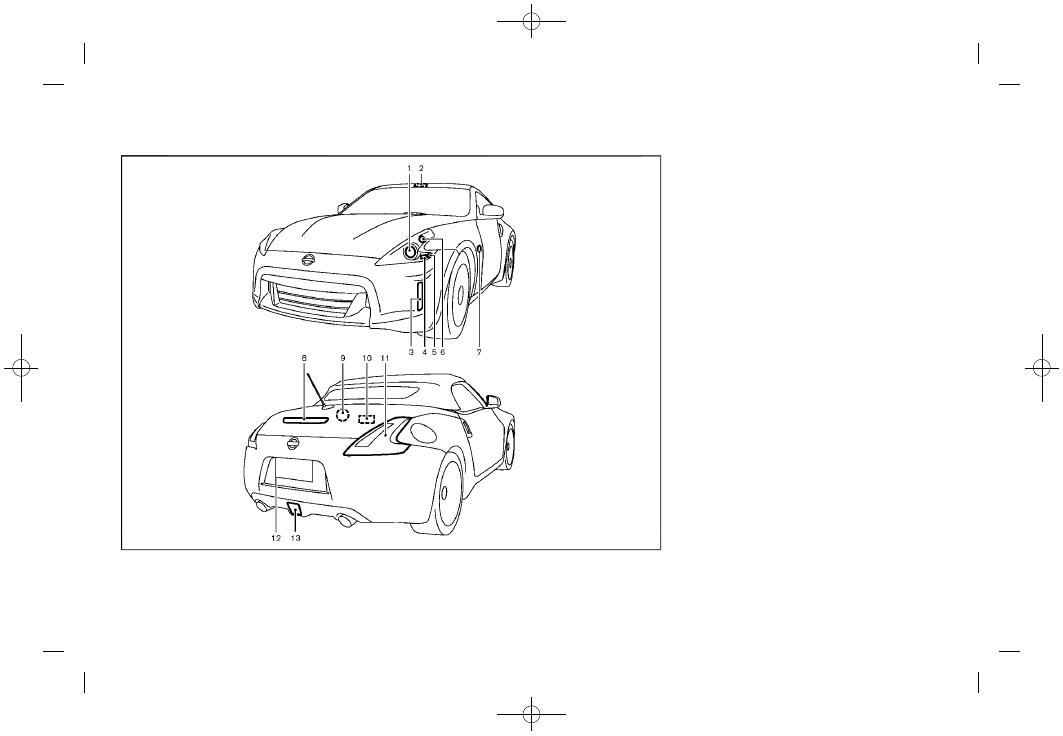

ROADSTER

Headlight (high- and low-beam)

Map light

Daytime running light

Front parking light

Front side marker light

Front turn signal light

Side turn signal light

High-mounted stop light

Trunk light

10.

Cargo area courtesy light

11.

Rear combination light (rear turn signal/tail/stop/
side marker/back-up light)

12.

License plate light

13.

Rear fog light (if so equipped)

HEADLIGHTS

Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, it is recommended you visit a
NISSAN dealer for this service.

Do-it-yourself

8-23

Condition:

(376,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-24

Do-it-yourself

Replacing

WARNING

HIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” (P.2-
33).

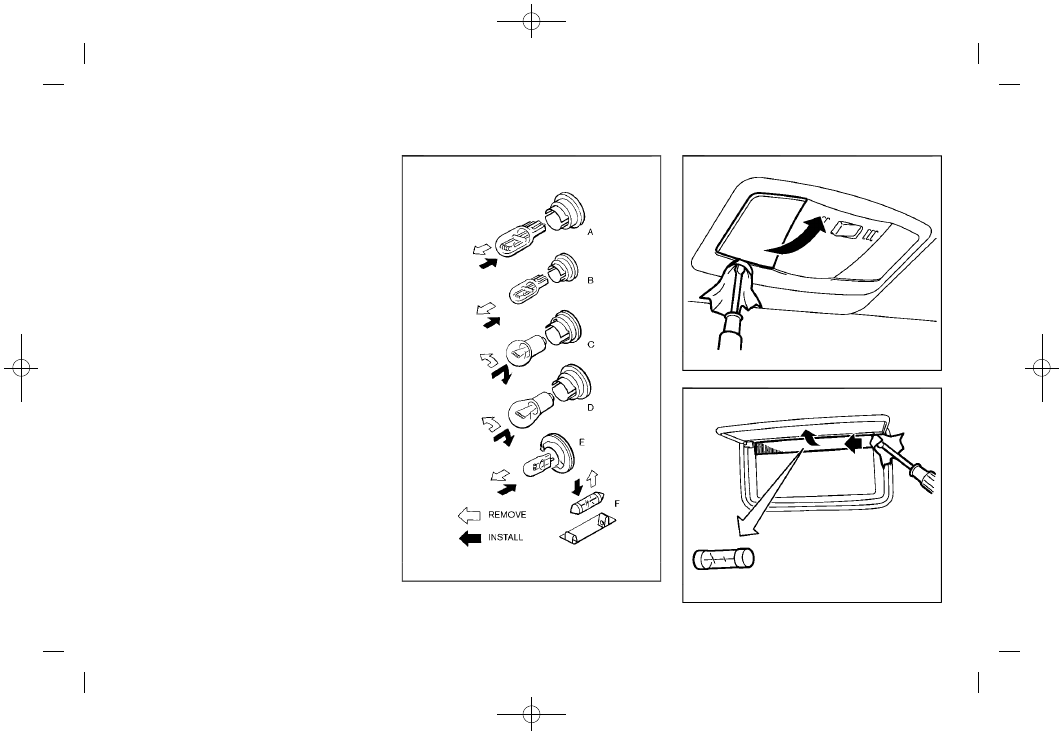

Use the same number and wattage shown in the
following chart as originally installed.

It is recommended you visit a NISSAN dealer if
replacement is required.

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight*

High/Low beams (Xenon)

D2S

Front turn signal light*

28/8

7444NA

Front parking light*

W5W

Front side marker light*

LED

—

Side turn signal light (if so equipped)*

LED

—

Daytime running light*

LED

—

Rear combination light*

back-up

W16W

turn signal

WY21W

stop/tail/side marker

LED

—

Rear fog light (if so equipped)*

W21W

License plate light*

W5W

Map light

—

Vanity mirror light

1.8

—

Cargo area courtesy light (Roadster)*

—

Cargo light (Coupe)*

—

Trunk light (Roadster)*

3.4

—

High-mounted stop light*

LED

—

It is recommended you visit a NISSAN dealer for replacement.

NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.

Condition:

(378,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-26

Do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-3).

TIRE PRESSURE

Tire Pressure Monitoring System (TPMS)

This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.

The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving).

For more details, see “Low tire pressure warning
light” (P.2-13), “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3).

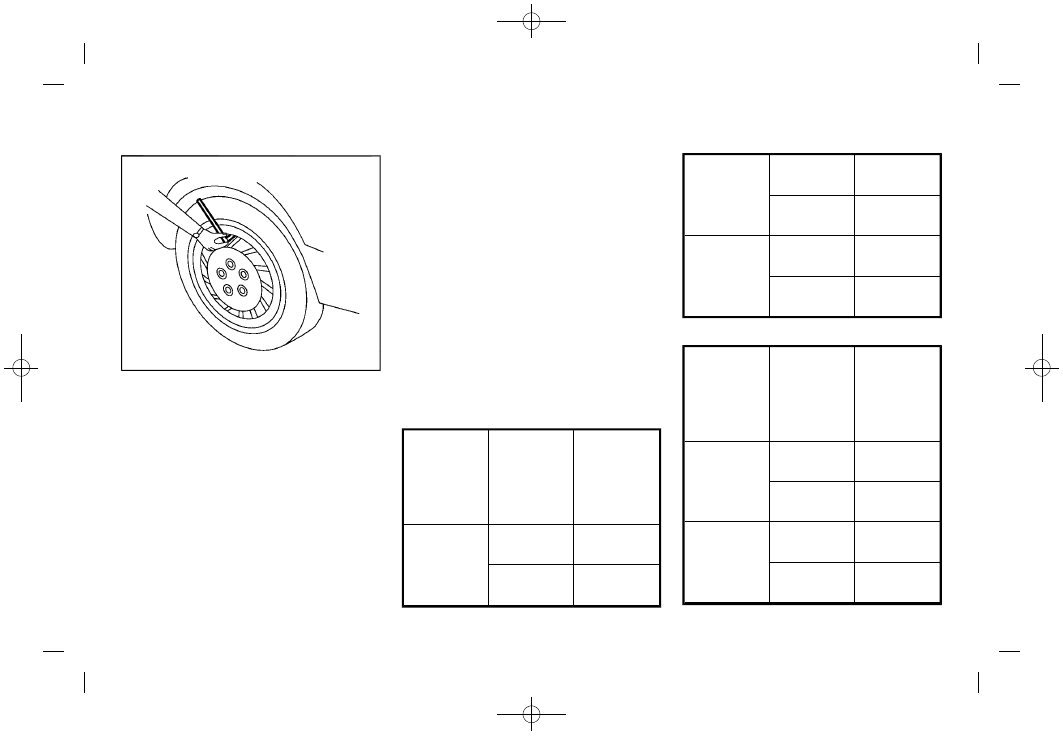

Tire inflation pressure

Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The

Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked reg-
ularly because:

Most tires naturally lose air over time.

Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds.

Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.

WARNING

Improperly inflated tires can
fail suddenly and cause an
accident.

The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. label. The
vehicle weight capacity is in-
dicated on the Tire and Load-
ing Information label. Do not
load your vehicle beyond this
capacity. Overloading your ve-
hicle may result in reduced tire
life, unsafe operating condi-
tions due to premature tire
failure, or unfavorable hand-
ling characteristics and could
also lead to a serious accident.
Loading beyond the specified
capacity may also result in
failure of other vehicle compo-
nents.

Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pres-
sure gauge to ensure that the
tire pressures are at the spe-
cified level.

WHEELS AND TIRES

Condition:

(379,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.

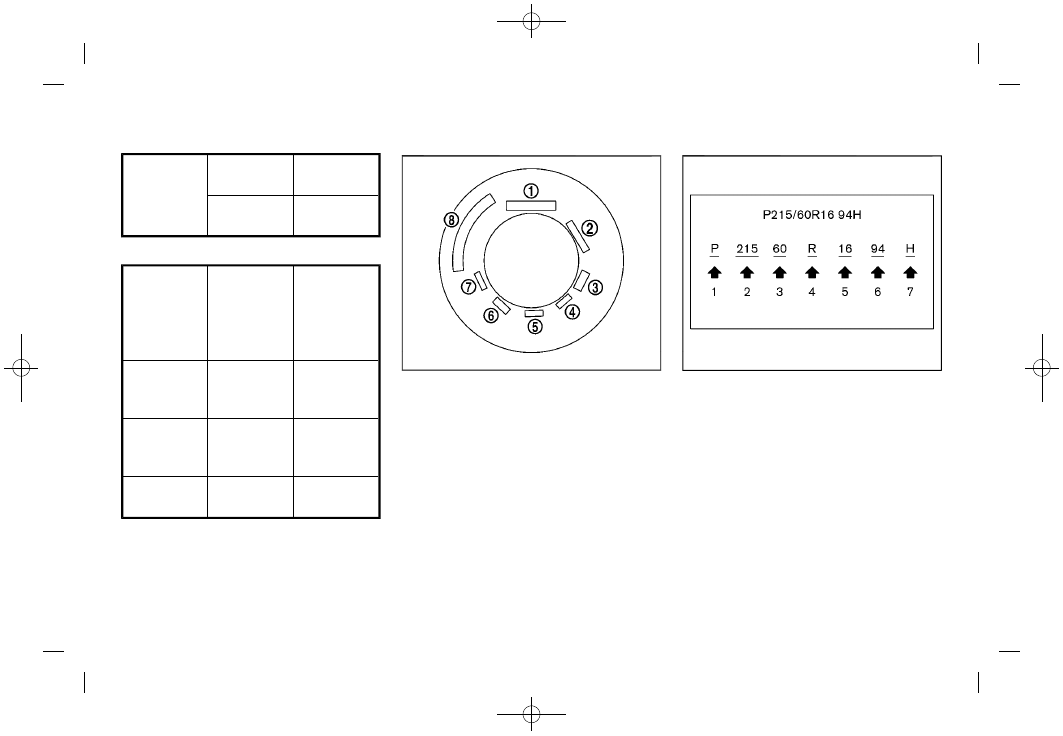

SDI2462

Tire and Loading Information label

Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.

Vehicle load limit: See “Vehicle
loading information” (P.10-18).

Original size: The size of the tires
originally installed on the vehicle at
the factory.

Cold tire pressure: Inflate the tires to
this pressure when the tires are
cold. Tires are considered COLD

Do-it-yourself

8-27

Condition:

(380,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-28

Do-it-yourself

after the vehicle has been parked for
3 or more hours, or driven less than
1 mile (1.6 km) at moderate speeds.
The recommended cold tire inflation
is set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.

Tire size — see “Tire labeling” (P.8-
30).

Spare tire size or compact spare tire
size (if so equipped)

Condition:

(381,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SDI1949

Checking the tire pressure

1. Remove the valve stem cap from the

tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.

3. Remove the gauge.

4. Read the tire pressure on the gauge

stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other tires,

including the spare.

Coupe models (except for NISMO models):

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGINAL

TIRE

225/50R18
95W

240 kPa,
35 PSI

245/40R19
94W

220 kPa,
32 PSI

REAR

ORIGINAL

TIRE

245/45R18
96W

240 kPa,
35 PSI

275/35R19
96W

220 kPa,
32 PSI

SPARE

TIRE

T145/80-
D17 107M

420 kPa,
60 PSI

T145/70-
R18 107M

420 kPa,
60 PSI

Roadster models:

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGINAL

TIRE

225/50R18
95W

260 kPa,
38 PSI

245/40R19
94W

220 kPa,
32 PSI

REAR

ORIGINAL

TIRE

245/45R18
96W

260 kPa,
38 PSI

275/35R19
96W

220 kPa,
32 PSI

Do-it-yourself

8-29

Condition:

(382,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-30

Do-it-yourself

SPARE

TIRE

T145/80-
D17 107M

420 kPa,
60 PSI

T145/70-
R18 107M

420 kPa,
60 PSI

Coupe models (NISMO models):

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGINAL

TIRE

245/40R19
98Y

240 kPa,
35 PSI

REAR

ORIGINAL

TIRE

285/35R19
99Y

240 kPa,
35 PSI

SPARE

TIRE

T145/70-
R18 107M

420 kPa,
60 PSI

SDI1575

Example

TIRE LABELING

Federal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamental
characteristics of the tire and also
provides the tire identification number
(TIN) for safety standard certification.
The TIN can be used to identify the tire
in case of a recall.

SDI1606

Example

Tire size (example: P215/60R16
94H)

1. P: The “P” indicates the tire is

designed for passenger vehicles.
(Not all tires have this information.)

2. Three-digit number (215): This num-

ber gives the width in millimeters of
the tire from sidewall edge to sidewall
edge.

3. Two-digit number (60): This number,

known as the aspect ratio, gives the
tire’s ratio of height to width.

Condition:

(383,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4. R: The “R” stands for radial.

5. Two-digit number (16): This number

is the wheel or rim diameter in inches.

6. Two- or three-digit number (94): This

number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires
because it is not required by law.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

JVM0694X

Example

TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)

1. DOT: Abbreviation for the “Depart-

ment of Transportation”. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s iden-

tification mark

3. Two-digit code: Tire size

4. Three-digit code: Tire type code

(Optional)

5. Four numbers represent the week

and year the tire was built. For
example, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing, then look on
the other sidewall of the tire.

Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must
indicate the materials in the tire,
which include steel, nylon, polye-
ster, and others.

Maximum permissible inflation pres-
sure
This number is the greatest
amount of air pressure that
should be put in the tire. Do not
exceed the maximum permissible
inflation pressure.

Maximum load rating
This number indicates the max-
imum load in kilograms and

Do-it-yourself

8-31

Condition:

(384,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

8-32

Do-it-yourself

pounds that can be carried by
the tire. When replacing the tires
on the vehicle, always use a tire
that has the same load rating as
the factory installed tire.

Term of “tubeless” or “tube type”
Indicates whether the tire re-
quires an inner tube (“tube type”)
or not (“tubeless”).

The word “radial”
The word “radial” is shown, if the
tire has radial structure.

Manufacturer or brand name
Manufacturer or brand name is
shown.

Other tire-related terminology:

In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall
that contains a whitewall, bears white
lettering or bears manufacturer, brand
and/or model name molding that is
higher or deeper than the same molding
on the other sidewall of the tire, or (2) the
outward facing sidewall of an asymme-

trical tire that has a particular side that
must always face outward when
mounted on a vehicle.

TYPES OF TIRES

WARNING

When changing or replacing tires,
be sure all four tires are of the same
type (Example: Summer, All Season
or Snow) and construction. A
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.

Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.

Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the

Warranty Information Booklet.

All season tires

NISSAN specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire
sidewall. Snow tires have better snow traction
than All Season tires and may be more appro-
priate in some areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance on dry
roads. Summer tire performance is substantially
reduced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.

If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.

Condition:

(385,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Snow tires

If snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.

Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.

If you install snow tires, they must be the same
brand, construction and tread pattern on all four
wheels, and the same sizes as the original tires.

For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction cap-
abilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.

TIRE CHAINS

CAUTION

Tire chains/cables should not be in-
stalled on 19-inch size tires. Doing so

will cause damage to the vehicle. If you
plan to use tire chains/cables, you
should install 18-inch size tires on your
vehicle.

Use of tire chains may be prohibited according
to location. Check the local laws before instal-
ling tire chains. When installing tire chains, make
sure they are the proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions. Use only SAE
Class S chains. Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when re-
commended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to the
fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains. In
addition, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle

handling and performance may be adversely
affected.

Tire chains must be installed only on the
rear wheels and not on the front wheels.

Never install tire chains on a TEMPORARY USE
ONLY spare tire.

Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.

CHANGING WHEELS AND TIRES

Tire rotation

Tires cannot be rotated on this vehicle
because the front tires are a different size
than the rear tires.

A pin is on the front brake rotor to
prevent the rear wheels from being
installed in place of the front wheels.
The spare tire can be installed in place of
the front and rear wheels. When instal-
ling the spare tire in the front wheel, the
hole in the spare tire wheel must be
aligned with the pin on the brake rotor.

Do-it-yourself

8-33

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 24
