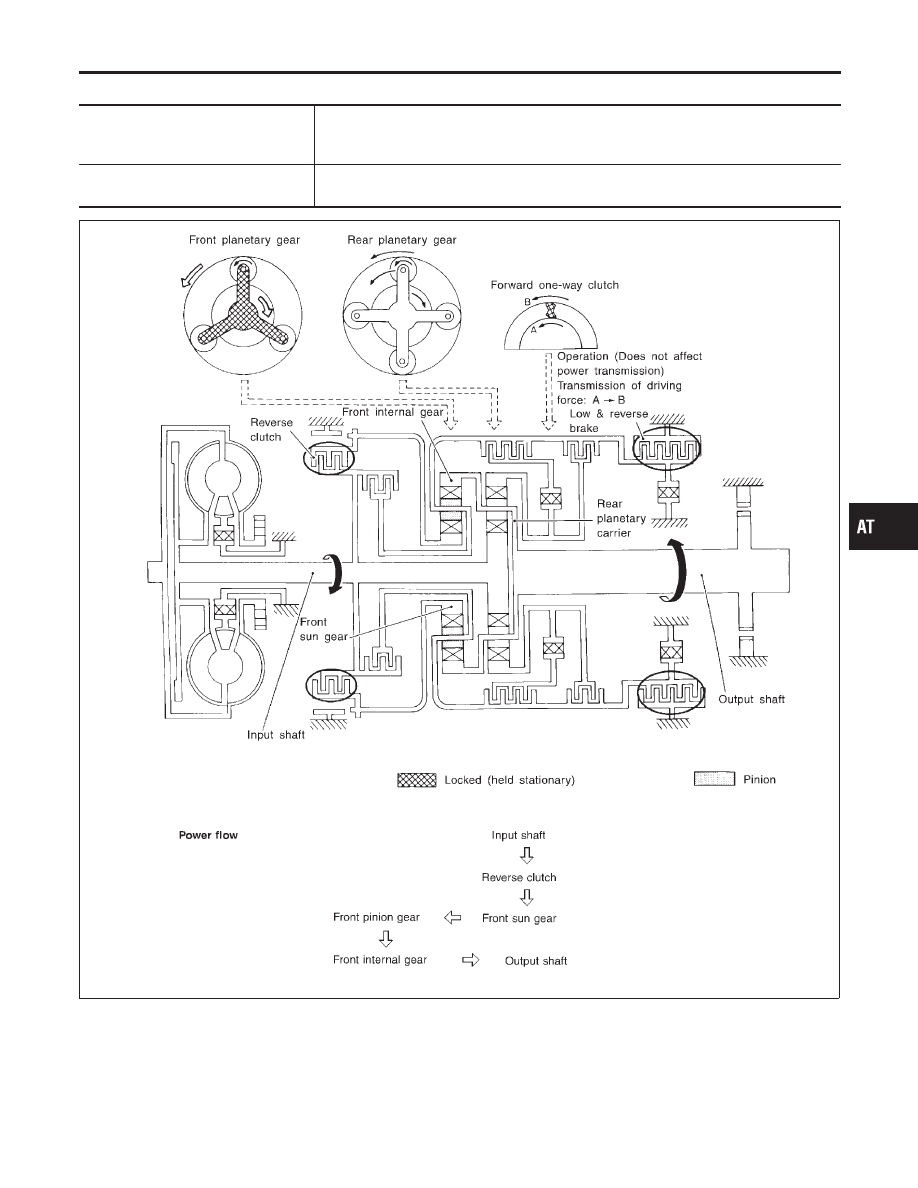

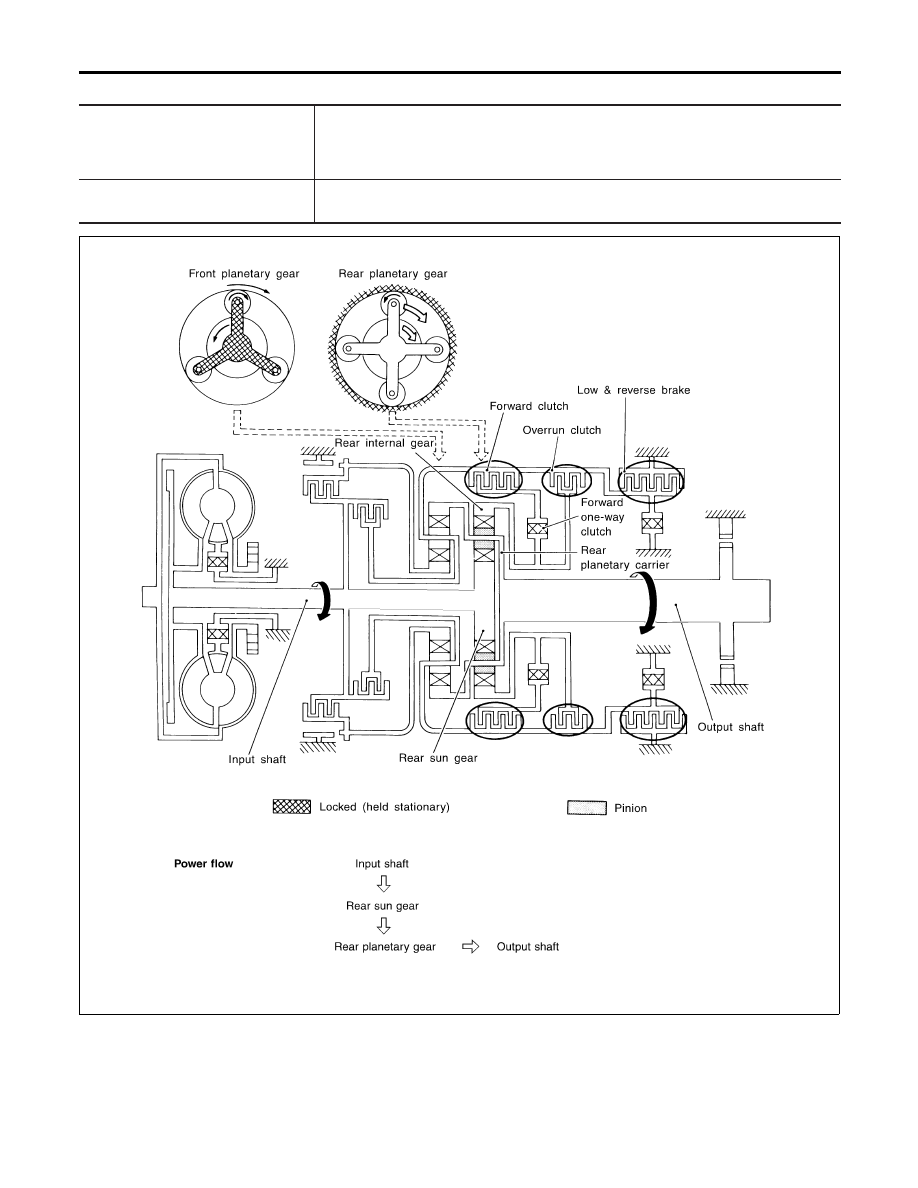

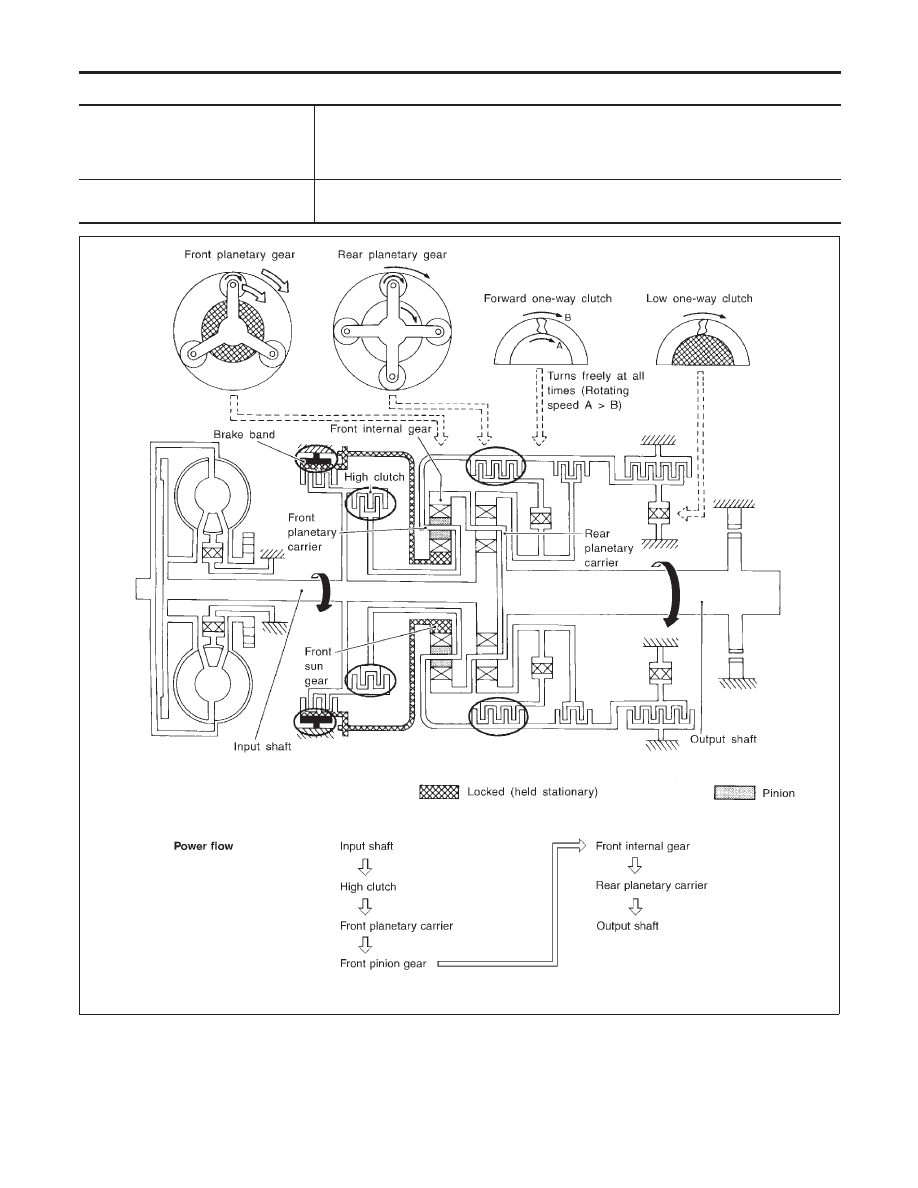

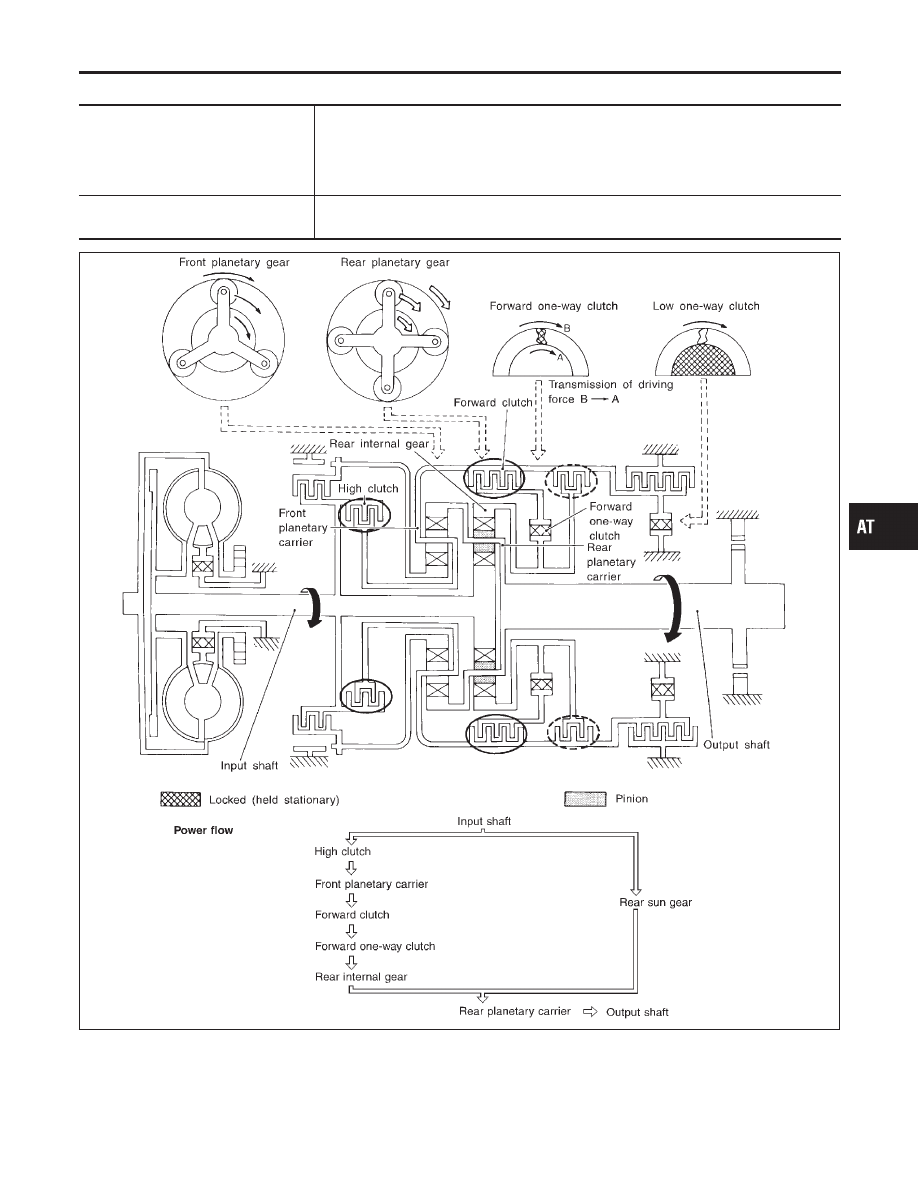

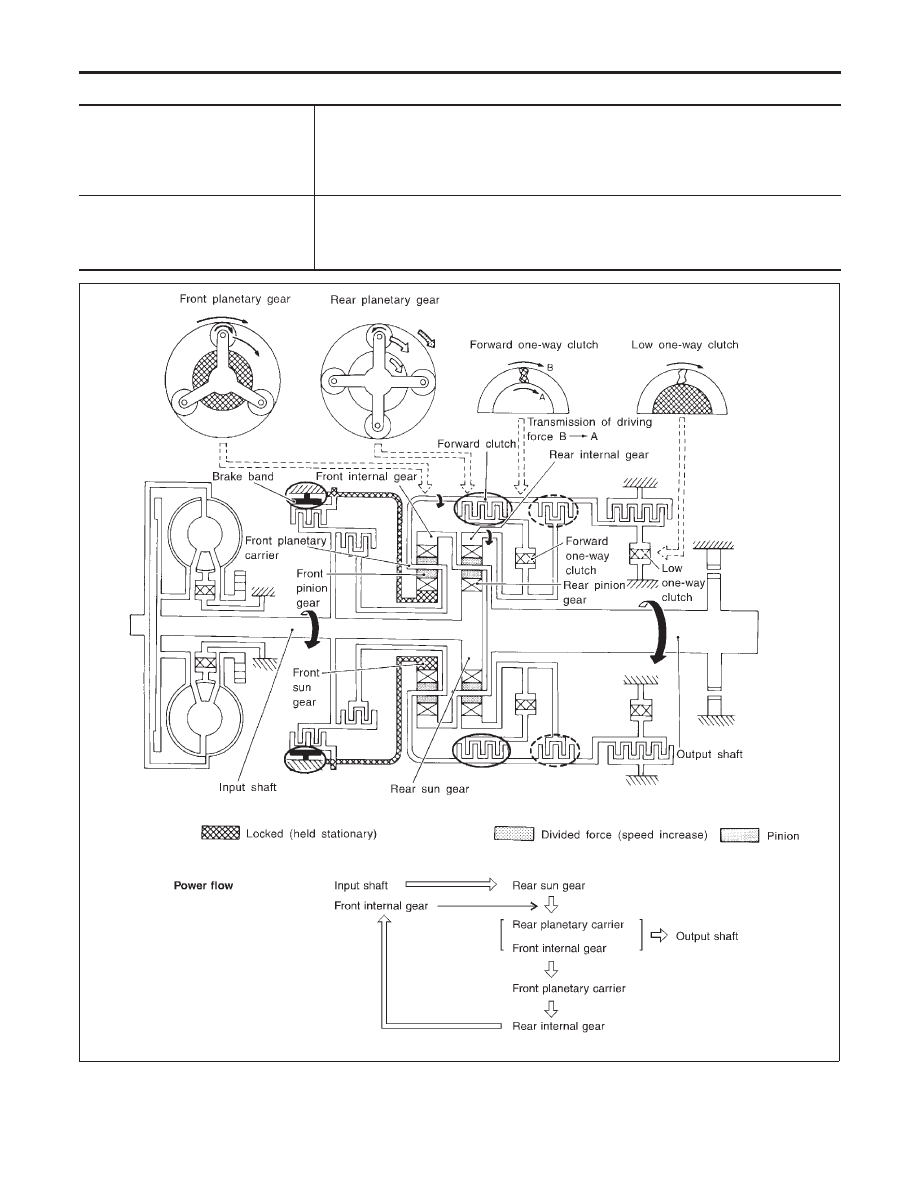

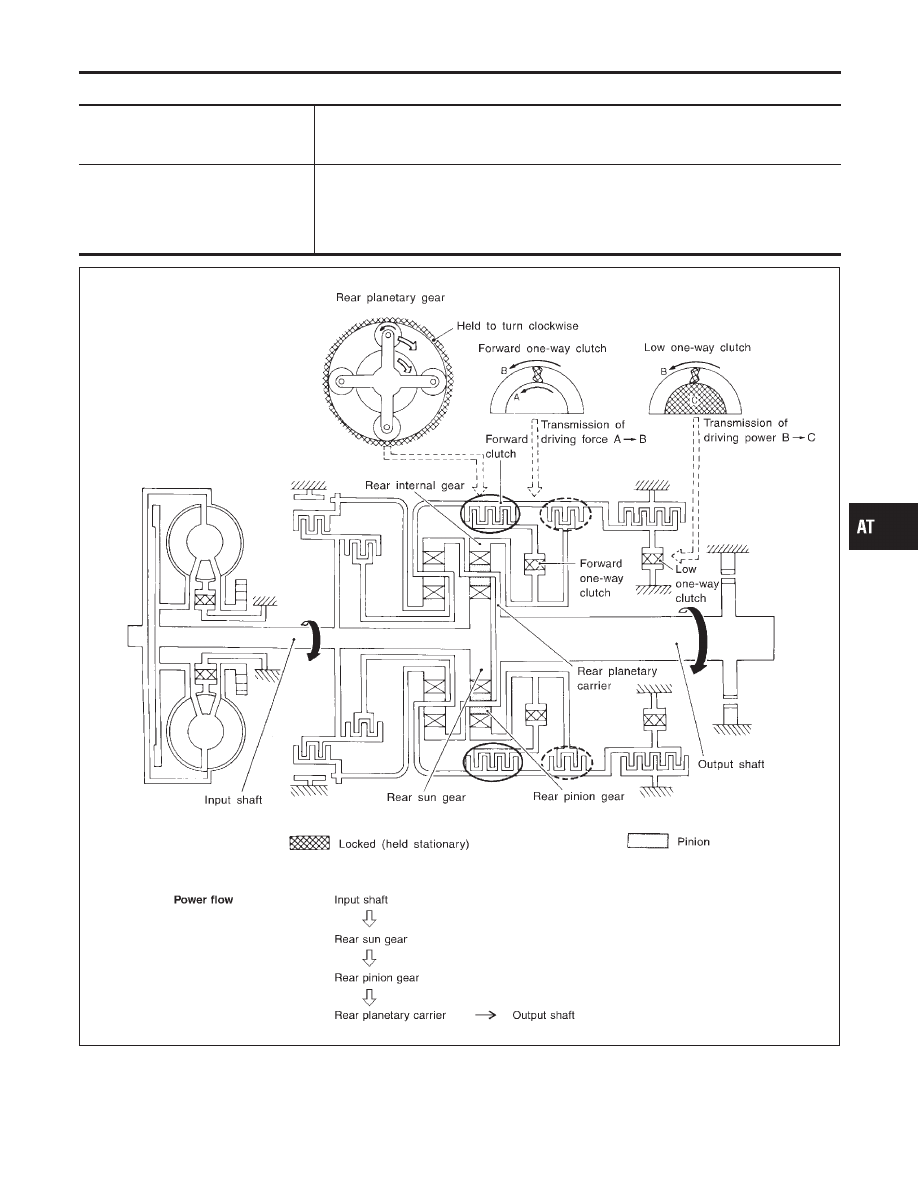

POWER TRANSMISSION
=NMAT0012S04
“N” and “P” Positions
NMAT0012S0401
I
“N” position

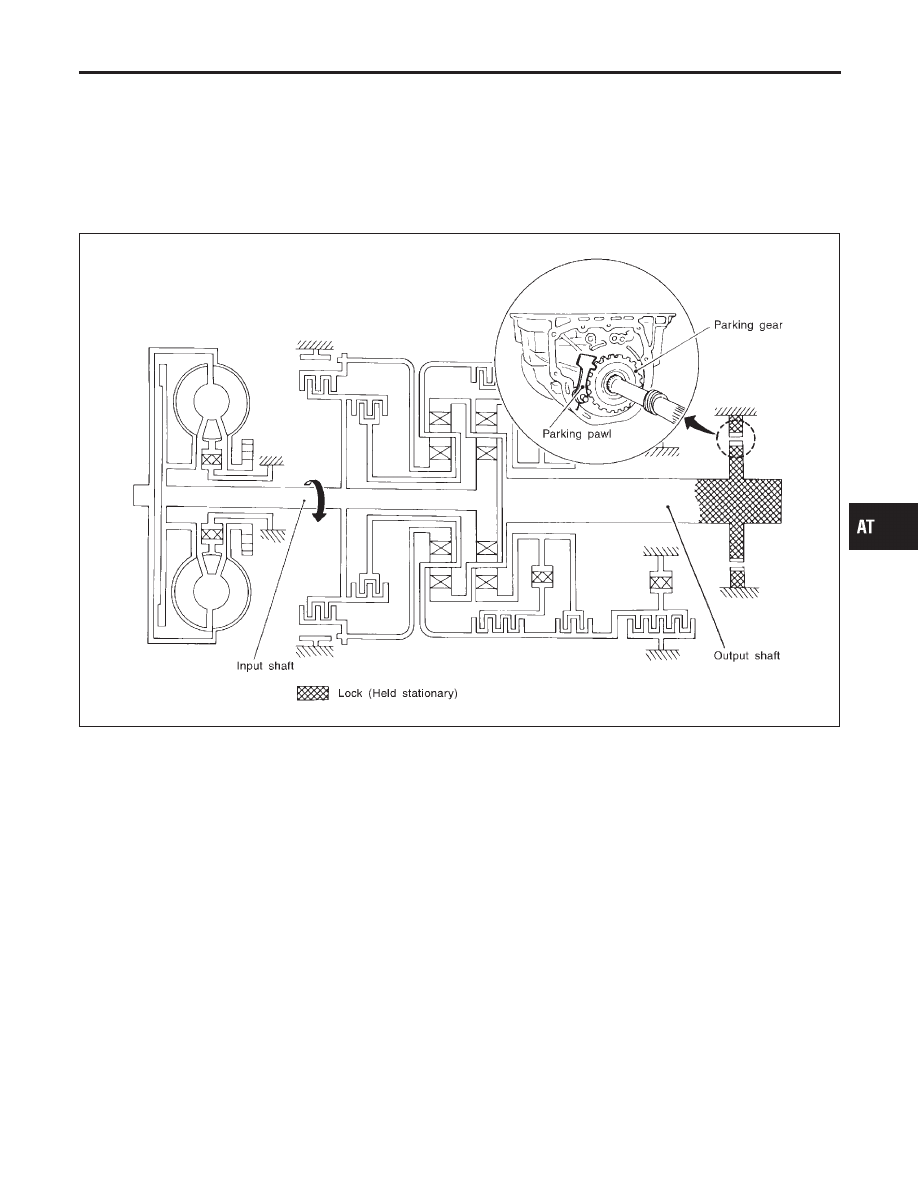

No control members operate. Power from the input shaft is not transmitted to the output shaft since the
clutch does not operate.
I
“P” position
Similar to the “N” position, no control members operate. The parking pawl interconnected with the select
lever engages with the parking gear to mechanically hold the output shaft so that the power train is locked.
