PREPARATION

HA-11

< PREPARATION >

PREPARATION

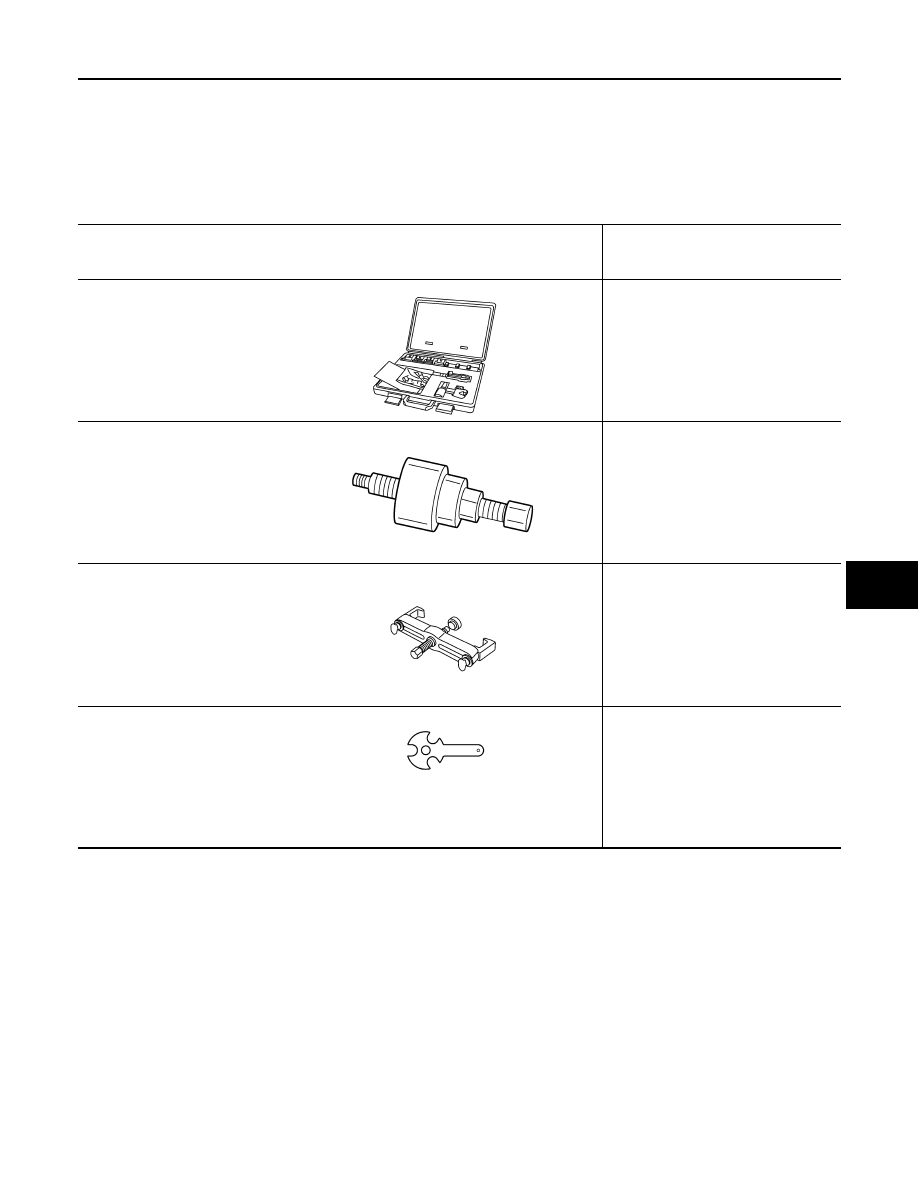

Special Service Tool

INFOID:0000000005272547

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000005272548

Never mix HFC-134a (R-134a) refrigerant and/or the specified oil with CFC-12 (R-12) refrigerant and/or the
oil.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed
use of the refrigerants/oil.
Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur
and compressor malfunction will result.

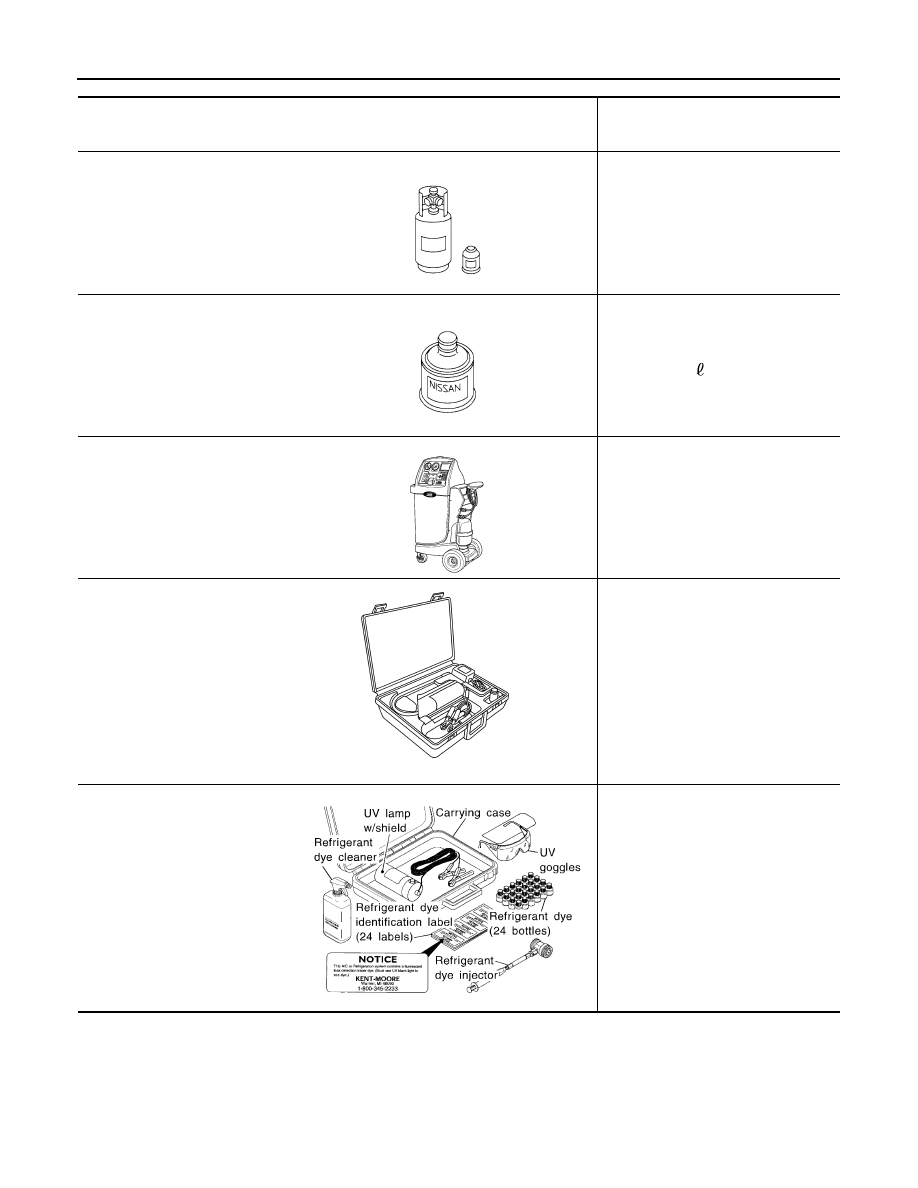

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-38873-A)
Drive plate installer

Installing pulley

KV99233130
(J-29884)
Pulley puller

Removing pulley

(J-44614)
Clutch disc holding tool

Clutch disc holding tool

ALIIA0390ZZ

WJIA0367E

LHA172

WHA230

HA-12

< PREPARATION >

PREPARATION

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a)
(

—

)

Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

(

—

)

NISSAN A/C System Oil
Type R

Type: Poly alkylene glycol oil (PAG),
type R
Application: HFC-134a (R-134a) vane
rotary compressors (NISSAN only)

Lubricity: 40 m

(1.4 US fl oz, 1.4 Imp

fl oz)

KV991J0130
(ACR2005-NI)
ACR5 A/C Service Center

Refrigerant Recovery and Recycling
and Recharging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
HFC-134a (R-134a) Fluorescent
leak detection dye (box of 24, 1/4
ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

PREPARATION

HA-13

< PREPARATION >

—

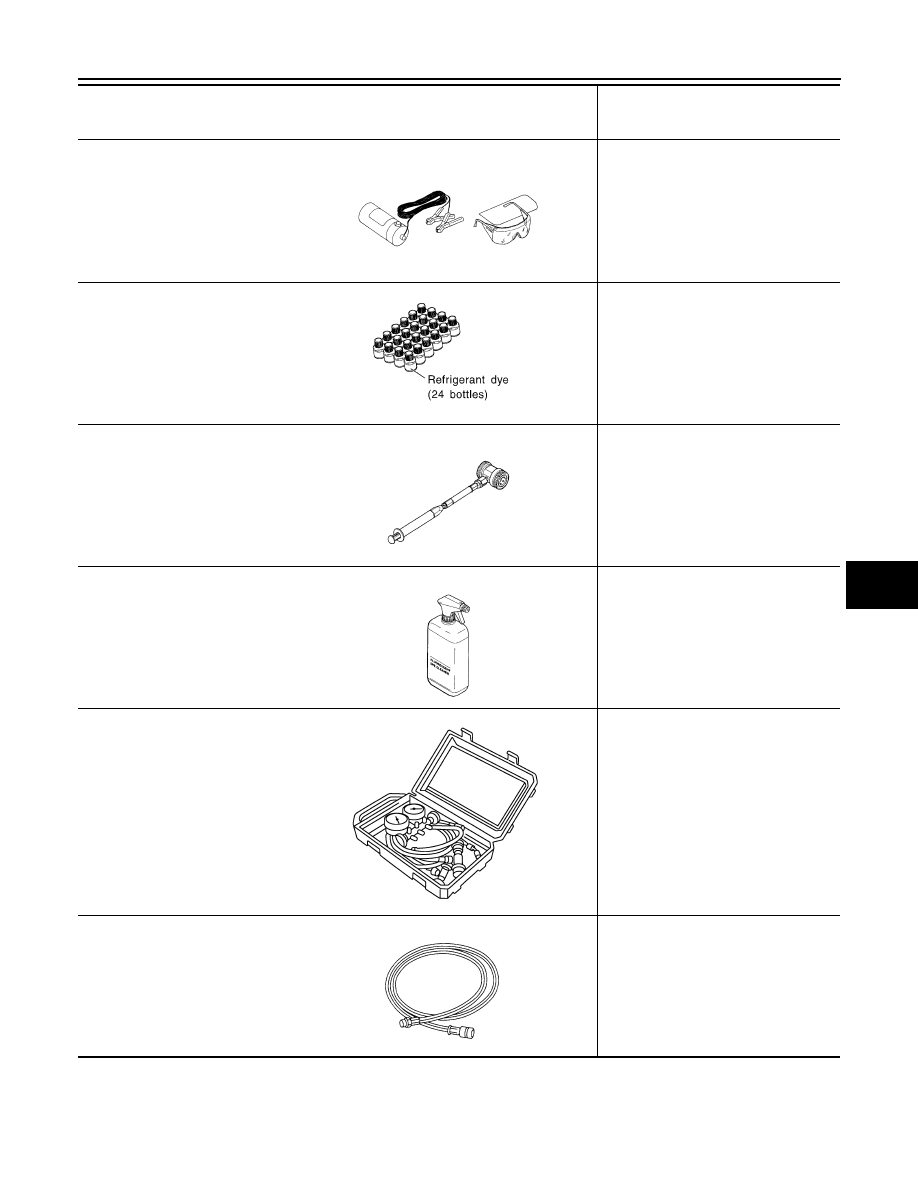

(J-42220)
Fluorescent dye leak detector

Power supply:
• DC 12V (battery terminal)
For checking refrigerant leak when flu-
orescent dye is installed in A/C system.
Includes: UV lamp and UV safety gog-
gles

—

(J-41447)
HFC-134a (R-134a) Fluorescent
leak detection dye
(box of 24, 1/4 ounce bottles)

Application: For HFC-134a (R-134a)
PAG oil
Container: 1/4 ounce (7.4cc) bottle
(Includes self-adhesive dye identifica-
tion labels for affixing to vehicle after
charging system with dye.)

—

(J-41459)
HFC-134a (R-134a) Refrigerant
dye injector
Use with J-41447, 1/4 ounce bottle

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system.

—

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills.

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

SHA438F

SHA439F

SHA440F

SHA441F

RJIA0196E

S-NT201

HA-14

< PREPARATION >

PREPARATION

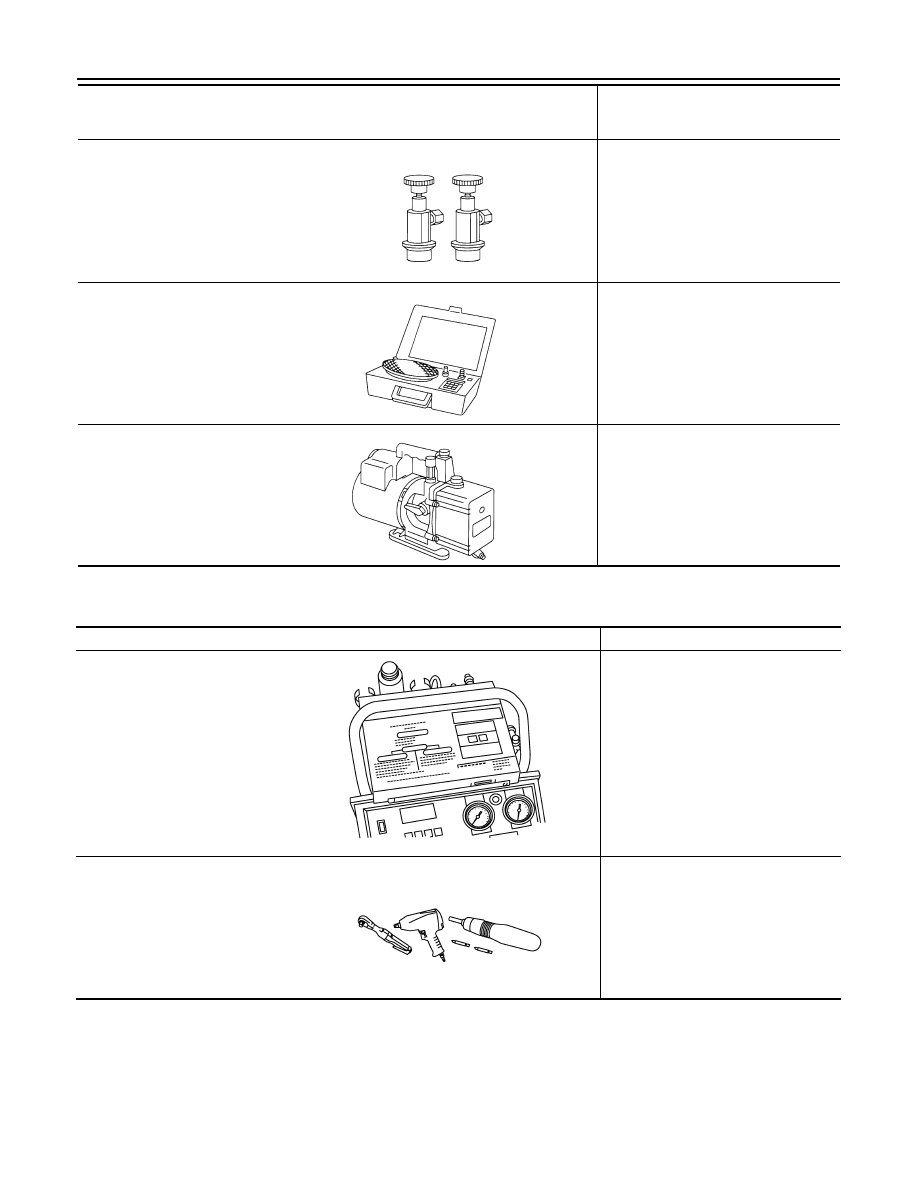

Commercial Service Tool

INFOID:0000000005272549

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT202

S-NT200

S-NT203

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening bolts and nuts

RJIA0197E

PIIB1407E
