Nissan Frontier D40. Manual - part 621

EM-216

< DISASSEMBLY AND ASSEMBLY >

[VQ40DE]

ENGINE UNIT

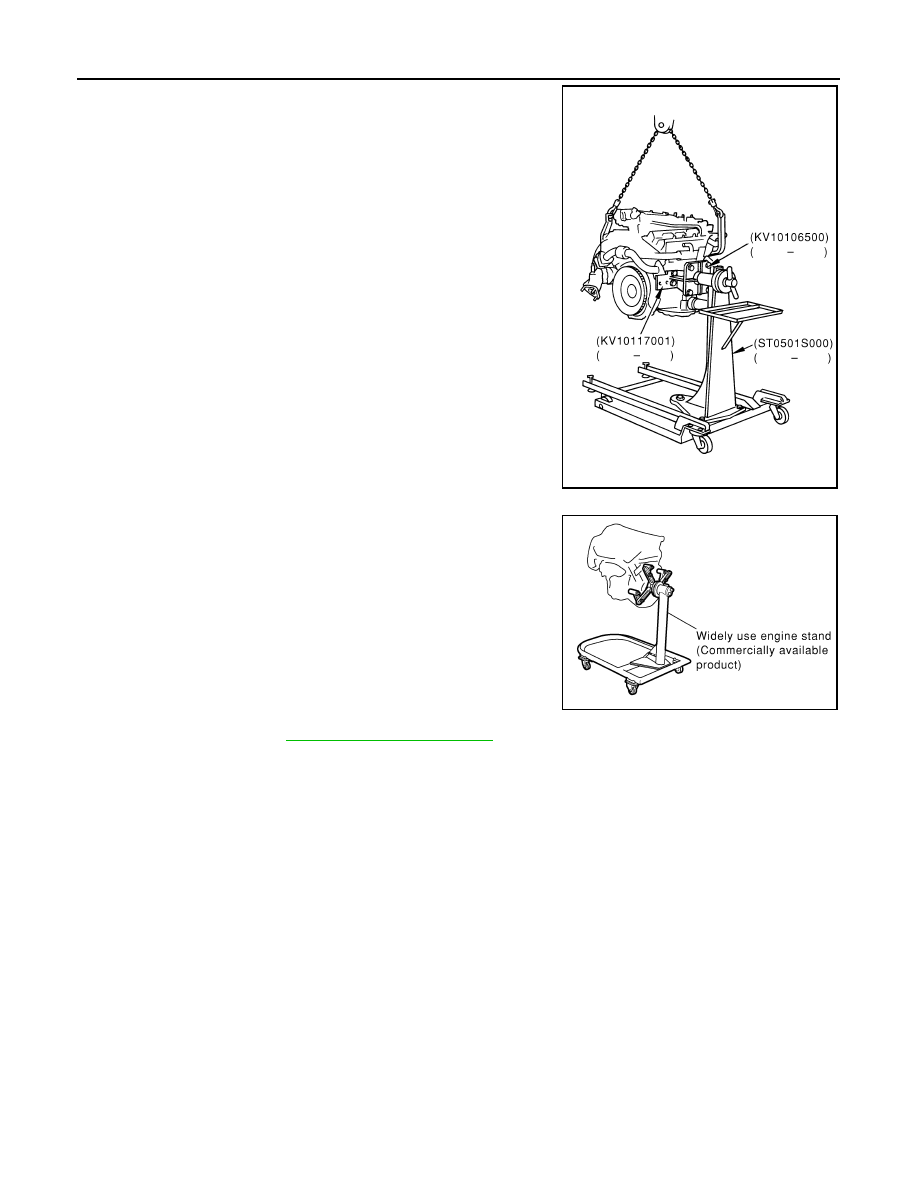

4.

Lift engine, and mount to engine stand.

CAUTION:

Before removing the hanging chains, make sure engine
stand is stable and there is no risk of overturning.

• A widely use engine stand can be used.

CAUTION:

Use engine stand that has a load capacity [approximately
220 kg (441 lb) or more] large enough for supporting the
engine weight.

5.

Drain engine oil. Refer to

LU-22, "Changing Engine Oil"

.

PBIC0805E

PBIC0085E

ENGINE UNIT

EM-217

< DISASSEMBLY AND ASSEMBLY >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

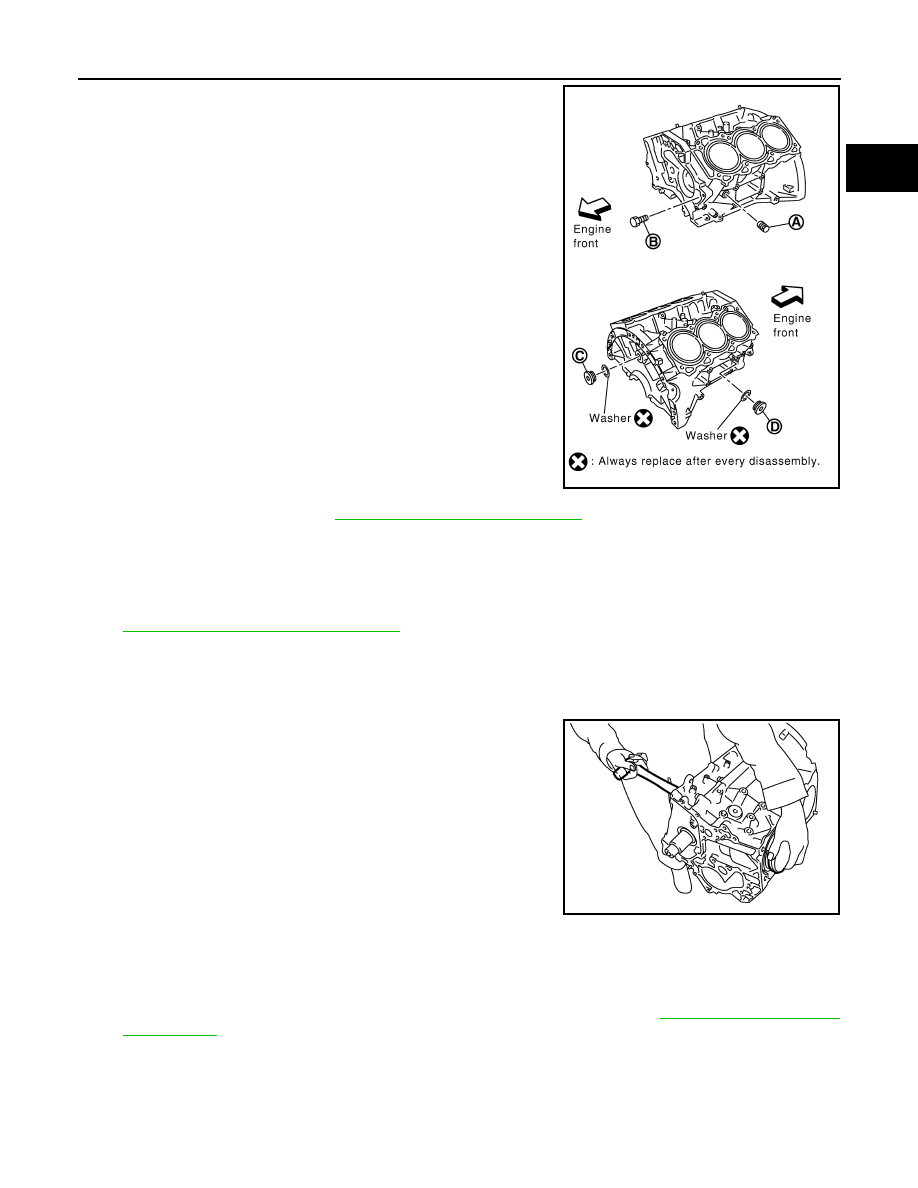

6.

Drain engine coolant by removing the cylinder block drain plugs
(A), (B), (C) and (D) from cylinder block as shown.
NOTE:
For Canada, (D) is not plug but block heater.

7.

Remove cylinder head. Refer to

EM-199, "Removal and Installation"

.

8.

Remove sub harness, and remove knock sensors.

CAUTION:

Carefully handle sensor avoiding shocks.

9.

Remove piston and connecting rod assembly as follows:
• Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to

EM-225, "Inspection After Disassembly"

.

CAUTION:

Be careful not to drop connecting rod bearing, and to scratch the surface.

10. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
11. Remove connecting rod bearing cap.

12. Push piston and connecting rod assembly out to the cylinder

head side using suitable tool.

CAUTION:

Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.

13. Remove connecting rod bearings from connecting rod and connecting rod bearing cap.

CAUTION:

Identify installation position, and store them without mixing them up.

14. Remove piston rings from piston.

• Before removing piston rings, check the piston ring side clearance. Refer to

EM-225, "Inspection After

Disassembly"

.

WLIA0020E

PBIC2940E

EM-218

< DISASSEMBLY AND ASSEMBLY >

[VQ40DE]

ENGINE UNIT

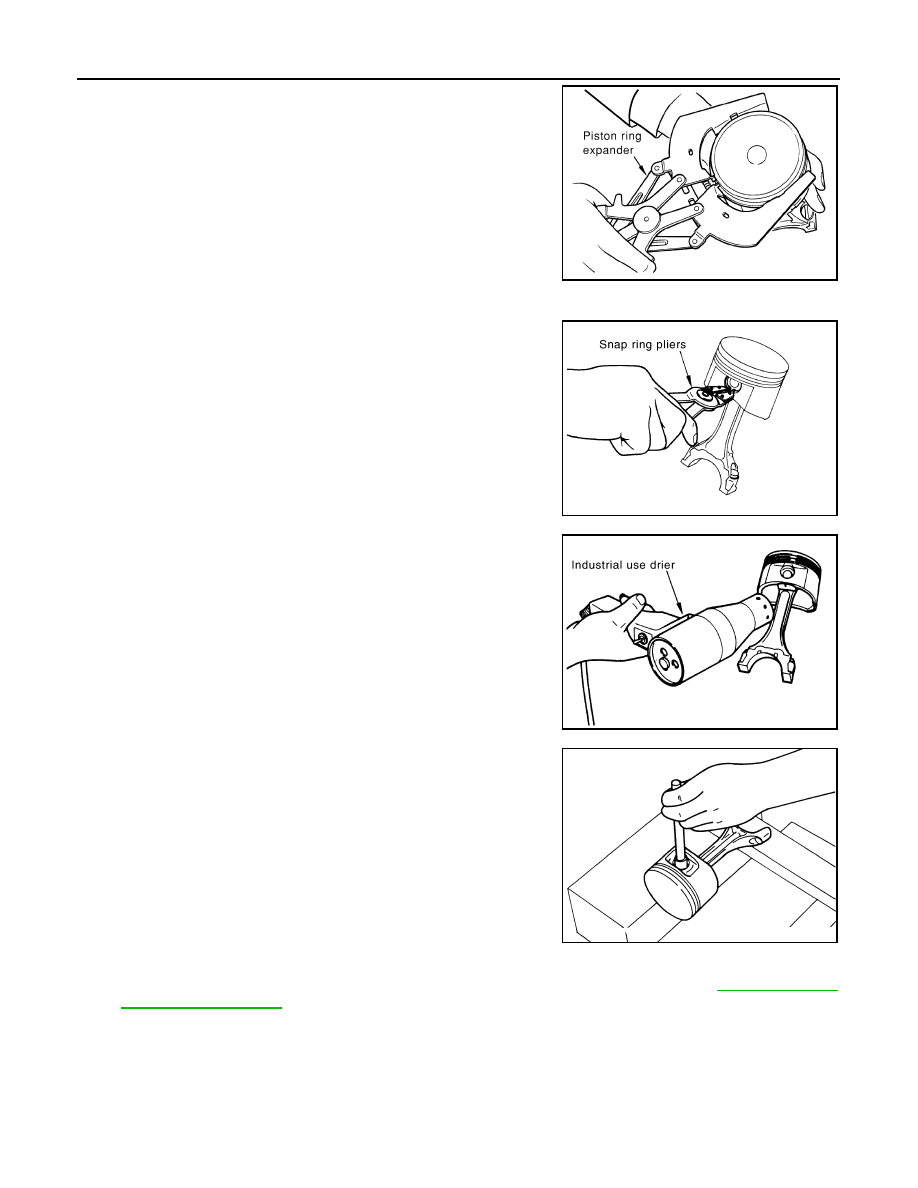

• Remove piston rings using piston ring expander or suitable

tool.

CAUTION:

• When removing piston rings, be careful not to damage

piston.

• Be careful not to damage piston rings by expanding them

excessively.

15. Remove piston from connecting rod as follows:
a.

Remove snap ring using snap ring pliers.

b.

Heat piston to 60

°

 to 70

°

C (140

°

 to 158

°

F) with industrial use

drier or equivalent.

c.

Push out piston pin with stick of outer diameter approximately 20
mm (0.79 in).

16. Remove lower cylinder block bolts.

• Before loosening lower cylinder block bolts, measure the crankshaft end play. Refer to

EM-225, "Inspec-

tion After Disassembly"

.

PBIC0087E

PBIC1638E

PBIC1639E

PBIC0262E

ENGINE UNIT

EM-219

< DISASSEMBLY AND ASSEMBLY >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

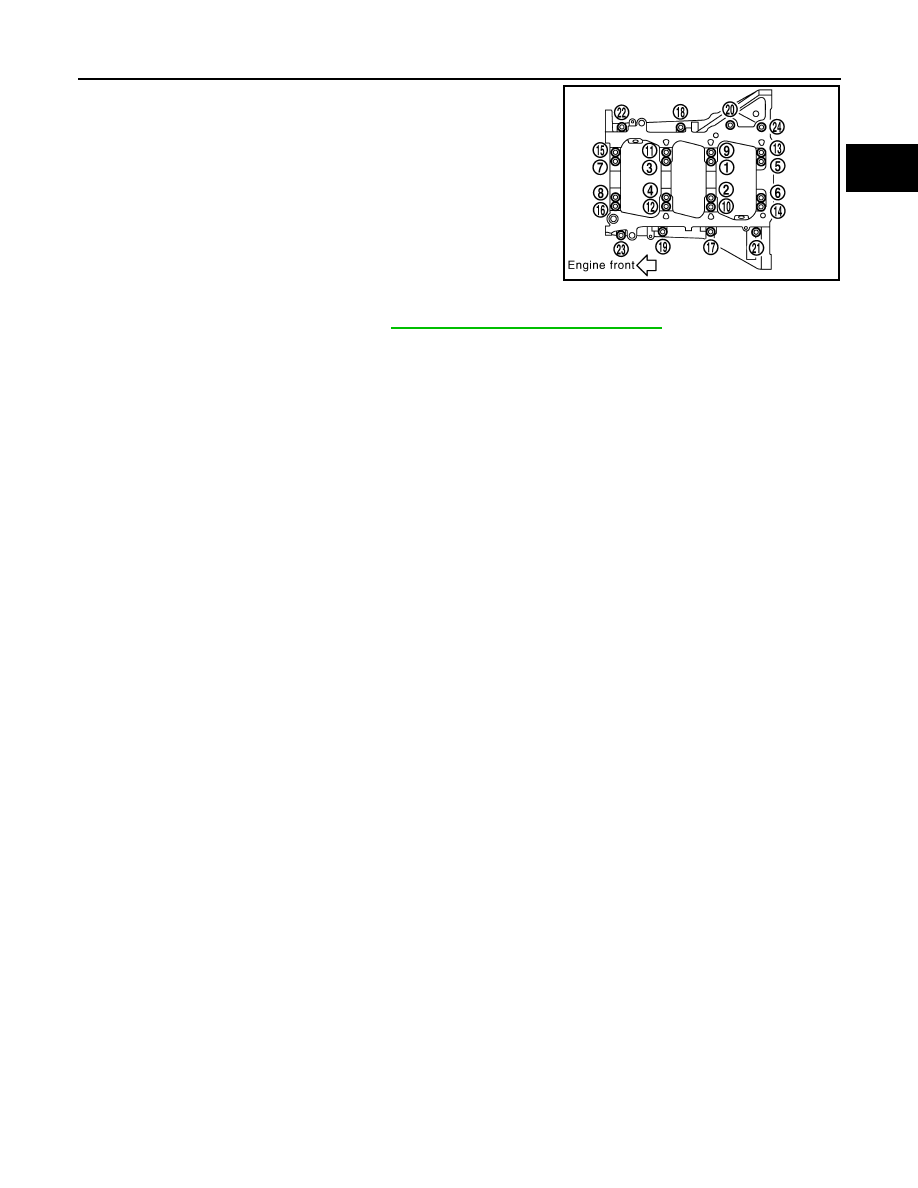

• Loosen lower cylinder block bolts in reverse order as shown in

several different steps.
NOTE:
Use TORX socket (size E14) for bolts No. 1 to 16 (M10 bolt).

17. Remove lower cylinder block.

• Cut liquid gasket for removal. Refer to

EM-118, "Precaution for Liquid Gasket"

.

CAUTION:

Be careful not to damage the mounting surfaces.

18. Remove crankshaft.

19. Pull rear oil seal out from rear end of crankshaft.

NOTE:
When replacing rear oil seal without removing lower cylinder block, use a suitable tool to pull the rear oil
seal installed between crankshaft and cylinder block out.

CAUTION:

Be careful not to damage crankshaft and cylinder block.

20. Remove main bearings and thrust bearings from cylinder block and lower cylinder block.

CAUTION:

• Do not drop main bearing, or scratch the surface.
• Identify installation positions, and store them without mixing them up.

21. Remove oil jet.

ASSEMBLY

1.

Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.

WARNING:

Use goggles to protect your eyes.

PBIC2941E

Tool number

: KV10111100 (J-37228)
