WHEEL AND TIRE ASSEMBLY

WT-47

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

4.

After the wheel and tire rotation, retighten the wheel nuts after the vehicle has been driven for 1,000 km
(600 miles), and also after any wheel and tire has been installed, such as after repairing a flat tire.

WT-48

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

Transmitter (Pressure Sensor)

INFOID:0000000005275762

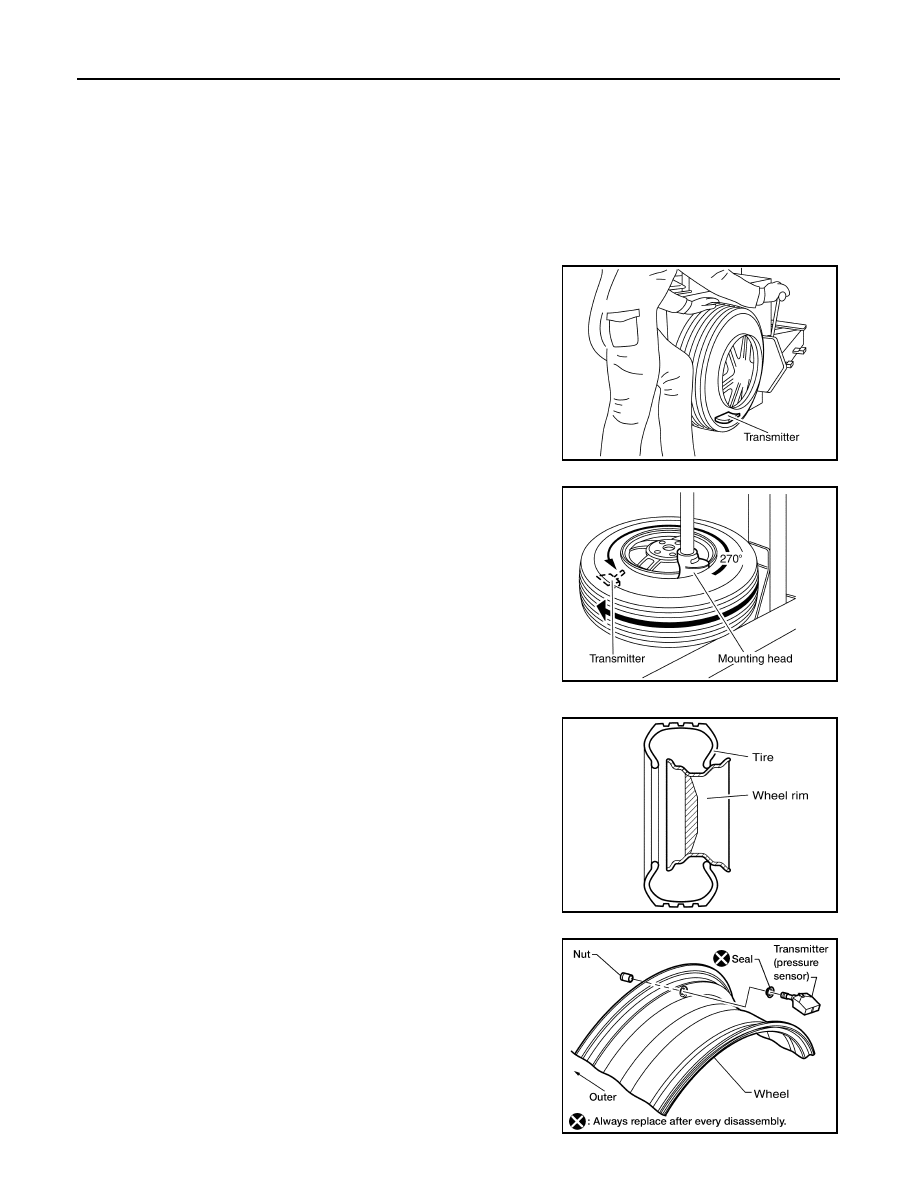

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

3.

Gently bounce tire so that transmitter falls to bottom of tire.
Place wheel and tire assembly on tire changing machine and
break both tire beads. Ensure that the transmitter remains at the
bottom of the tire while breaking the bead.

4.

Turn tire so that valve hole is at bottom, and gently bounce the
tire to ensure transmitter is near valve hole. Carefully lift tire onto
turntable and position valve hole (and transmitter) 270 degrees
from mounting/dismounting head.

5.

Lubricate tire well, and remove top side of tire. Reach inside the
tire and remove the transmitter.

6.

Remove the second side of the tire as normal.

INSTALLATION

1.

Place first side of tire onto rim.

2.

Apply suitable silicone lubricant to new transmitter seal then
install seal on transmitter.
NOTE:
Always replace the seal after every disassembly.

3.

Mount transmitter on wheel rim and tighten nut.
NOTE:
Make sure no burrs exist in the valve stem hole of the wheel.

SEIA0047E

WEIA0046E

SEIA0049E

Transmitter nut
tightening torque

: 7.7 N·m (0.79 kg-m, 68 in-lb)

WEIA0137E

REMOVAL AND INSTALLATION

WT-49

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

4.

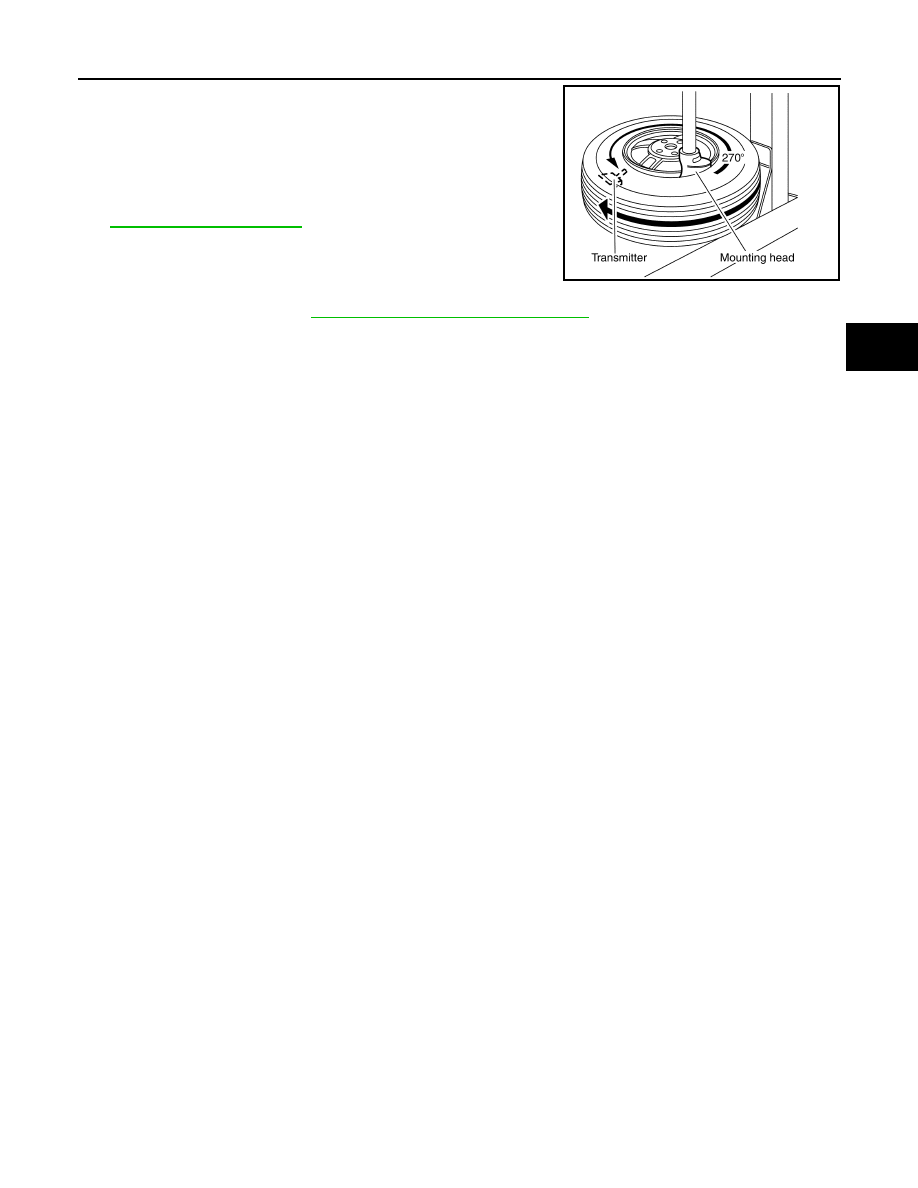

Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degrees from mounting/dismounting head.
NOTE:
Do not touch transmitter with mounting head.

5.

Lubricate tire well, and install second side of tire as normal.
Ensure that tire does not rotate relative to rim.

6.

Inflate tire and balance the wheel and tire assembly. Refer to

WT-45, "Balancing Wheels"

.

7.

Install wheel and tire assembly in appropriate wheel position on
vehicle.
NOTE:
If replacing the transmitter, then transmitter wake up operation
must be performed. Refer to

WT-5, "Transmitter Wake Up Operation"

.

WEIA0046E

WT-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000005275763

Tire

INFOID:0000000005275764

Unit: kPa (kg/cm

2

, psi)

Wheel type

Aluminum

Steel

Inside

Outside

Maximum radial
runout limit

Lateral mm (in)

0.3 (0.012) or less

0.8 (0.031) or less

0.8 (0.031) or less

Radial mm (in)

0.3 (0.012) or less

0.6 (0.024) or less

0.6 (0.024) or less

Maximum residual im-
balance

Dynamic (at rim flange)

Less than 5 g (0.18 oz) (per side)

Static (at rim flange)

Less than 10 g (0.35 oz)

Tire size

Air pressure

Conventional tire

Spare tire

P235/75R15

240 (2.4, 35)

240 (2.4, 35)

P265/70R16

240 (2.4, 35)

240 (2.4, 35)

P265/75R16

240 (2.4, 35)

240 (2.4, 35)

P265/60R18

240 (2.4, 35)

240 (2.4, 35)
