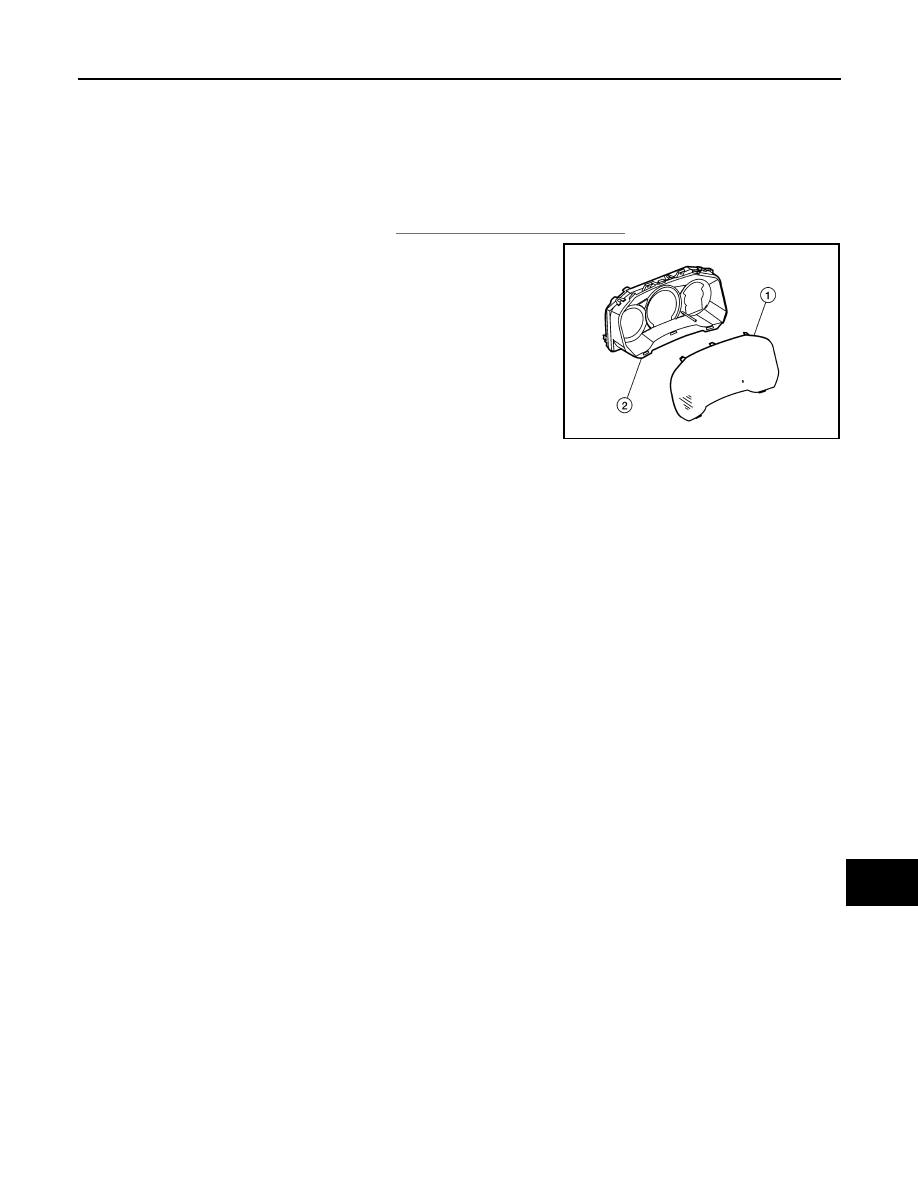

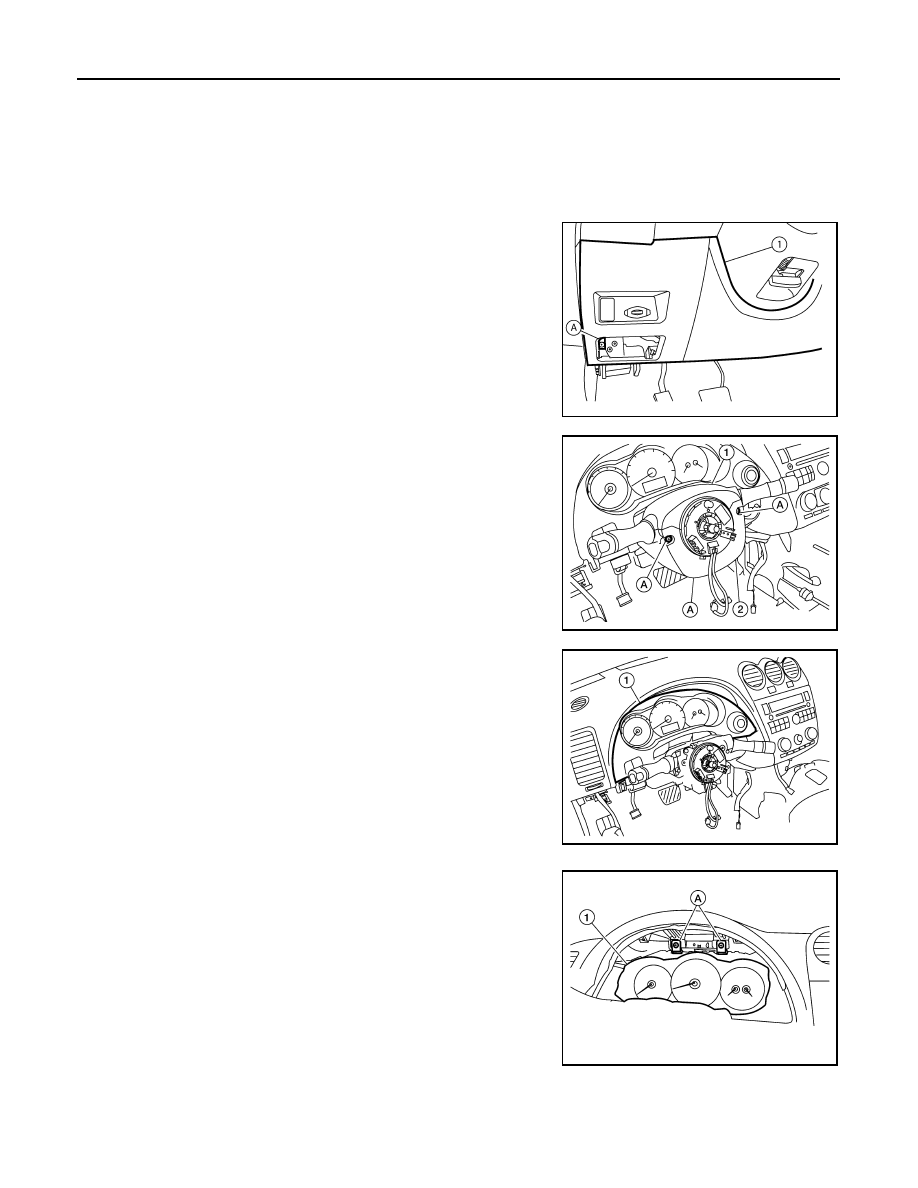

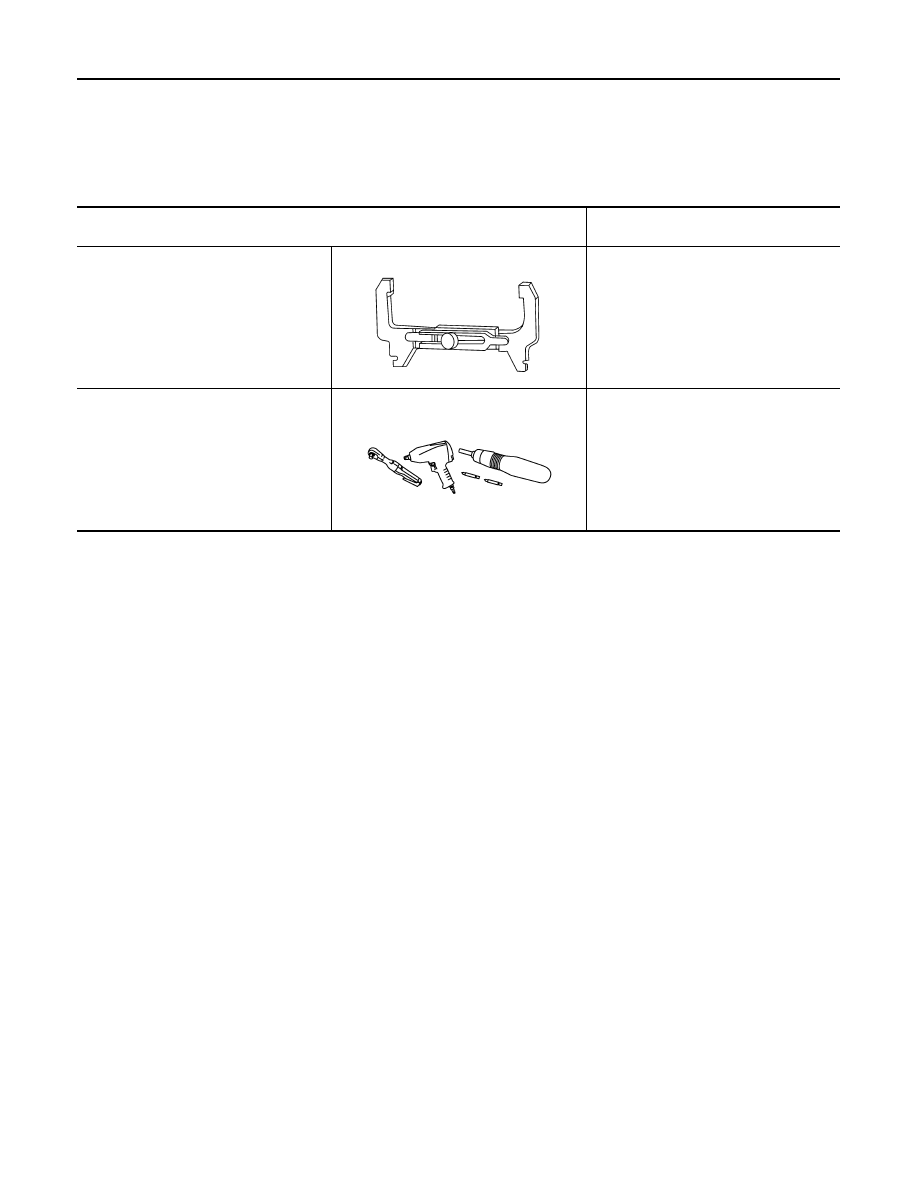

MWI-176 < ON-VEHICLE REPAIR > COMBINATION METER ON-VEHICLE REPAIR COMBINATION METER Removal and Installation INFOID:0000000004204152 REMOVAL 1. Open the fuse block cover, remove the instrument lower cover screw (A), then remove the instrument lower cover (1). • Disconnect the harness connectors. • Disconnect the aspirator tube. 2. Remove the steering column screws (A), then remove both the steering wheel column upper (1) and lower (2) covers. NOTE: • Turn steering wheel to access steering column cover screws. • Steering wheel removed for clarity. 3. Remove the cluster lid A (1). NOTE: Steering wheel removed for clarity. 4. Remove the combination meter screws (A) using power tools, and pull out the combination meter (1). 5. Disconnect the combination meter connector, and remove the combination meter (1). INSTALLATION Installation is in the reverse order of removal. ALJIA0019ZZ ALJIA0025ZZ ALJIA0026ZZ ALLIA0008ZZ |
