SHIFT POSITION INDICATOR : Component Description

INFOID:0000000004204073

WARNING LAMPS/INDICATOR LAMPS
WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000004204074

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000004204075

OIL PRESSURE WARNING LAMP

The oil pressure warning lamp is controlled by the IPDM E/R (intelligent power distribution module engine

room).

Low oil pressure causes the oil pressure switch to provide a ground signal to the IPDM E/R. The IPDM E/R

then signals the combination meter (unified meter control unit) via the CAN communication lines and ground is

provided to the oil pressure warning lamp.

When power and ground are supplied, the oil pressure warning lamp illuminates.

1.

Combination meter M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

4.

TCM F16

5.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

8.

Ambient sensor E211 (view of front
bumper fascia)

9.

Oil pressure switch F41 (QR25DE)
(view with engine removed)

10. Oil pressure switch F41 (VQ35DE)

(view with engine removed)

11. Parking brake switch M73

(Sedan with M/T and Coupe)
(view with center console removed)

12. Parking brake switch E35

(Sedan with CVT)
(view with instrument lower cover LH
removed)

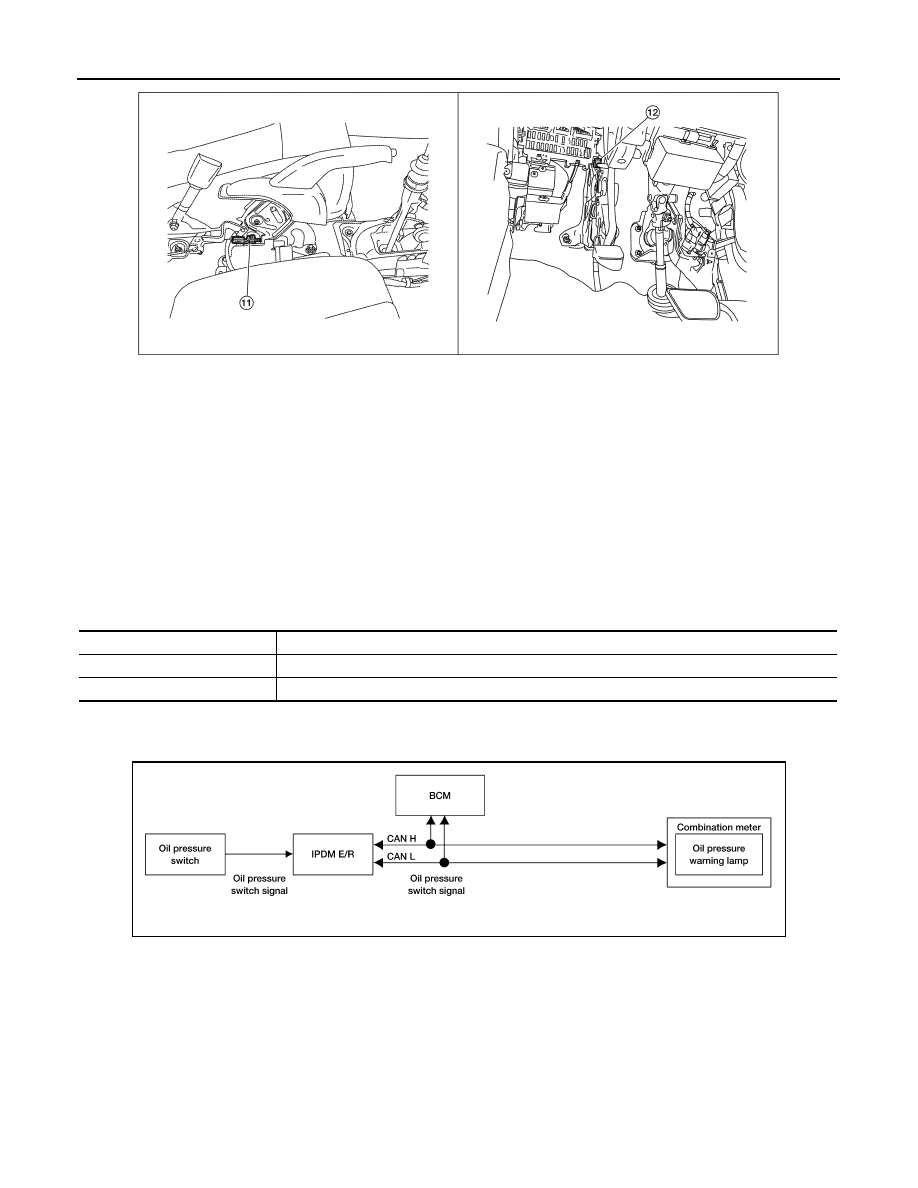

AWNIA0747ZZ

Unit

Description

Combination meter

Displays the shift position using shift position signal received from TCM.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

AWNIA0009GB

MWI

METER SYSTEM

MWI-29

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING LAMPS/INDICATOR LAMPS : Component Parts Location

INFOID:0000000004495947

MWI-30

< FUNCTION DIAGNOSIS >

METER SYSTEM

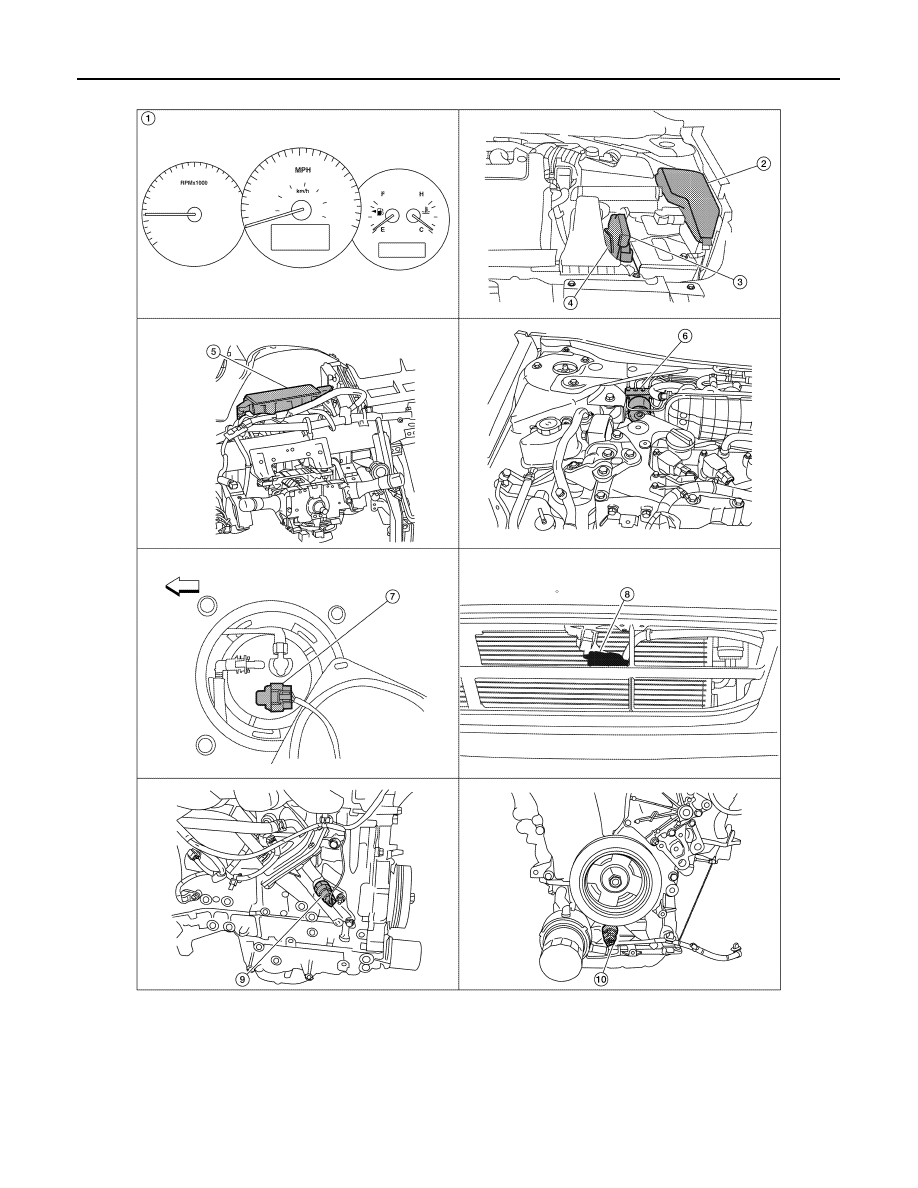

AWNIA0308ZZ

MWI

METER SYSTEM

MWI-31

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING LAMPS/INDICATOR LAMPS : Component Description

INFOID:0000000004204077

INFORMATION DISPLAY
INFORMATION DISPLAY : System Diagram

INFOID:0000000004204078

1.

Combination meter M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

4.

TCM F16

5.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

8.

Ambient sensor E211 (view of front
bumper fascia)

9.

Oil pressure switch F41 (QR25DE)
(view with engine removed)

10. Oil pressure switch F41 (VQ35DE)

(view with engine removed)

11. Parking brake switch M73

(Sedan with M/T and Coupe)
(view with center console removed)

12. Parking brake switch E35

(Sedan with CVT)
(view with instrument lower cover LH
removed)

AWNIA0747ZZ

Unit

Description

Combination meter

Turns the oil pressure warning lamp ON/OFF according to the oil pressure switch signal received
from BCM by means of communication.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-48, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.

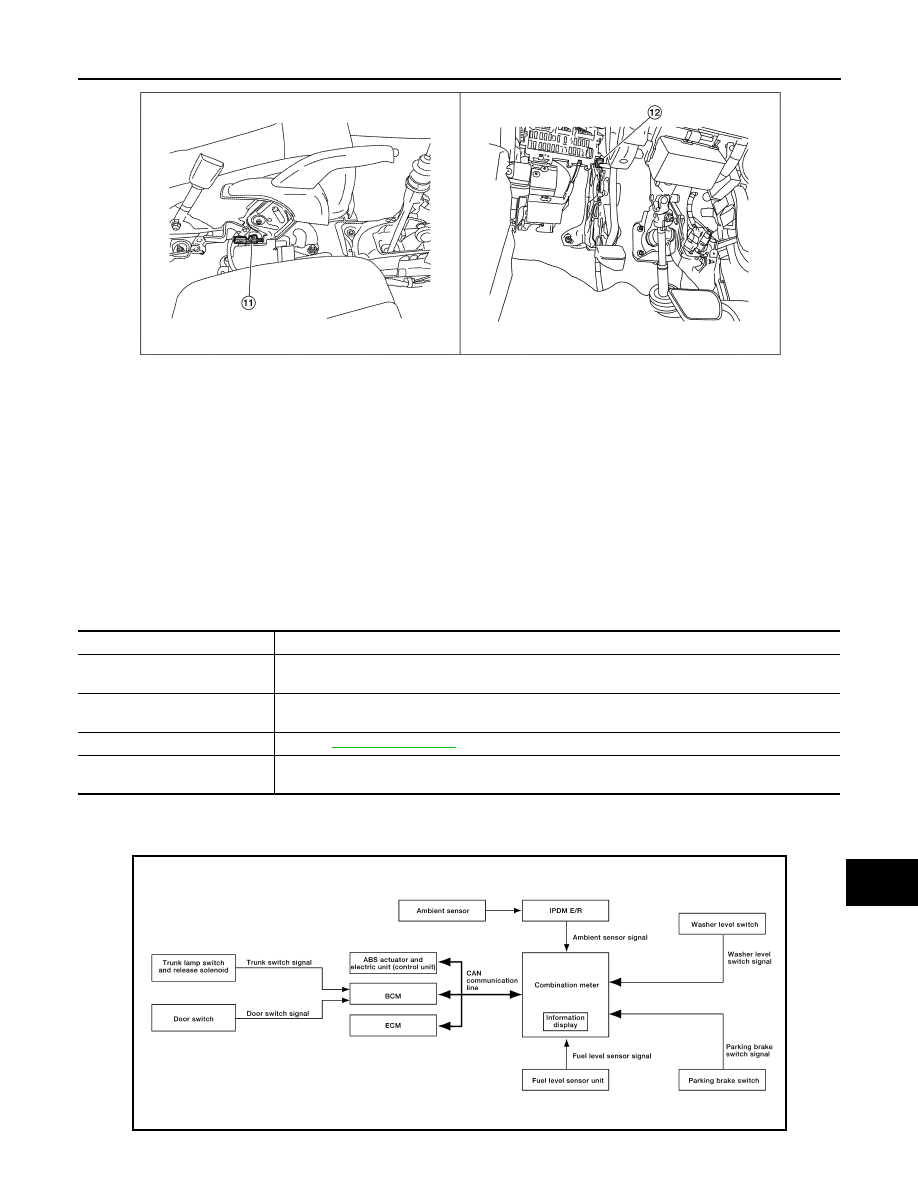

AWNIA0011GB
