SPEEDOMETER : Component Description

INFOID:0000000004204053

TACHOMETER

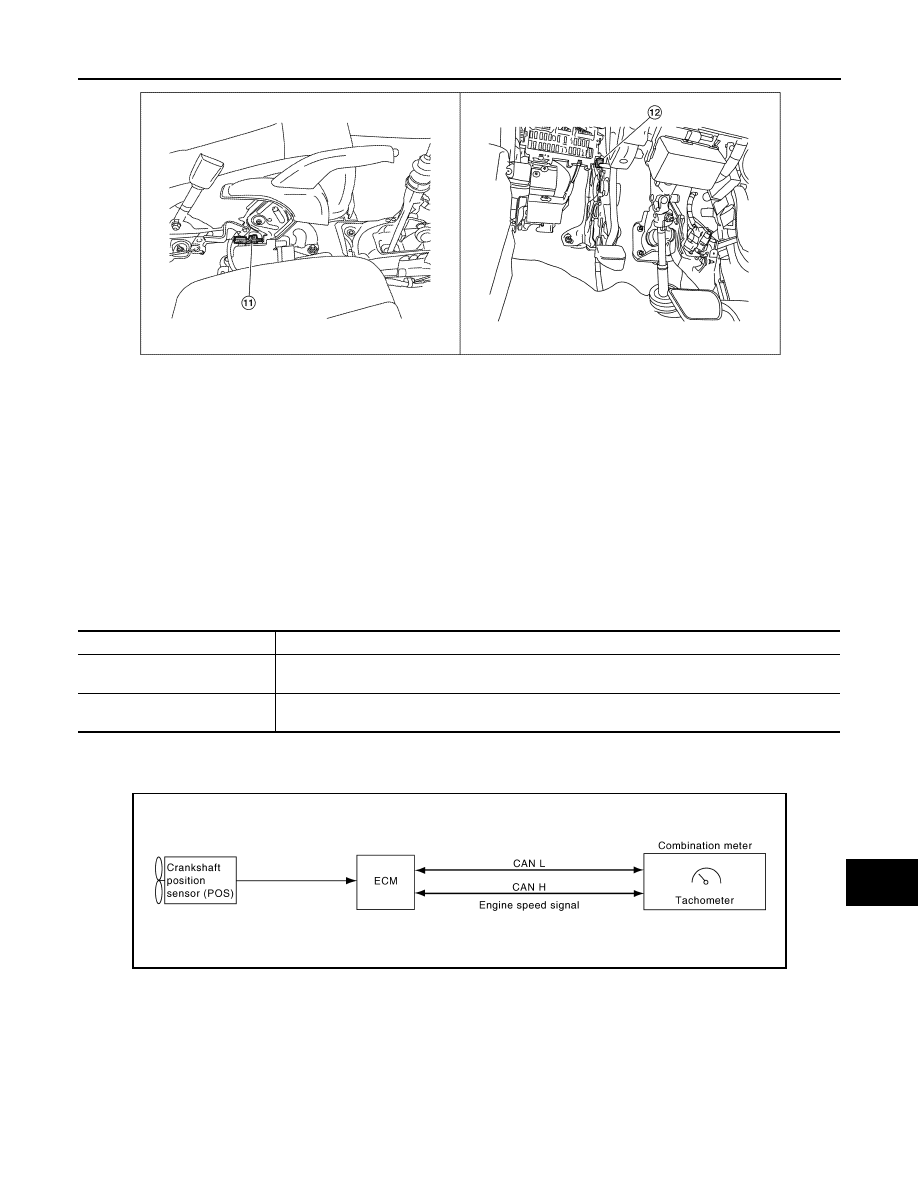

TACHOMETER : System Diagram

INFOID:0000000004204054

TACHOMETER : System Description

INFOID:0000000004204055

The tachometer indicates engine speed in revolutions per minute (rpm).

The ECM provides an engine speed signal to the combination meter via CAN communication lines.

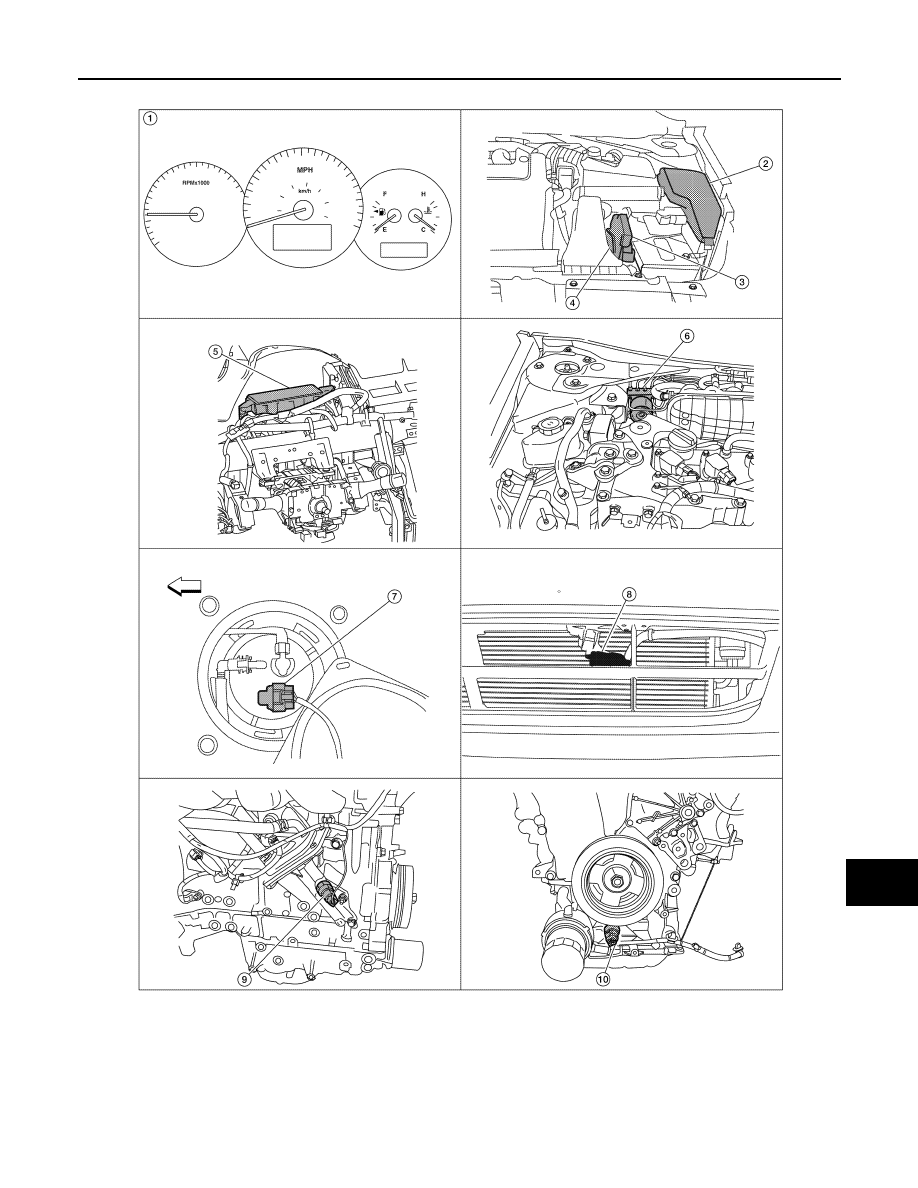

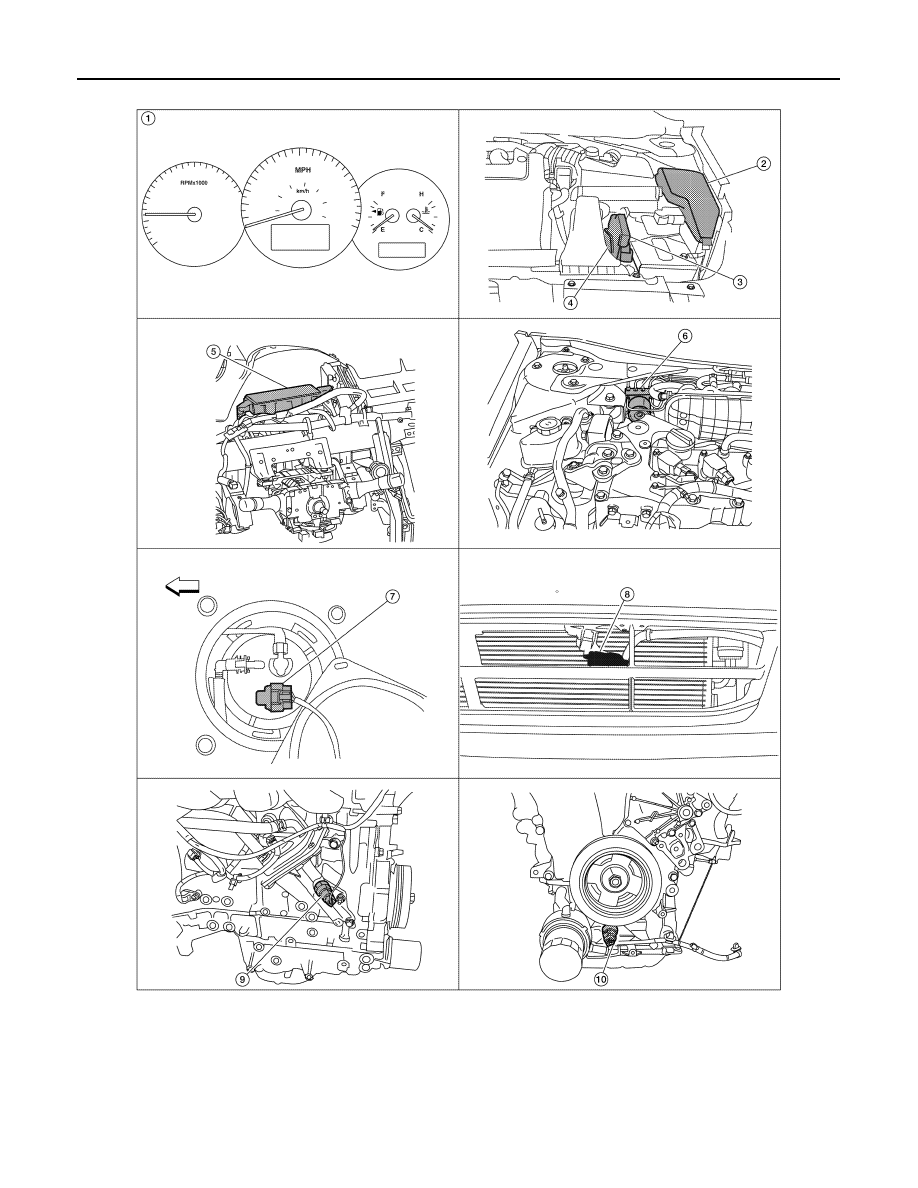

1.

Combination meter M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

4.

TCM F16

5.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

8.

Ambient sensor E211 (view of front
bumper fascia)

9.

Oil pressure switch F41 (QR25DE)
(view with engine removed)

10. Oil pressure switch F41 (VQ35DE)

(view with engine removed)

11. Parking brake switch M73

(Sedan with M/T and Coupe)
(view with center console removed)

12. Parking brake switch E35

(Sedan with CVT)
(view with instrument lower cover LH
removed)

AWNIA0747ZZ

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E
