PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000004205288

Tool name

Description

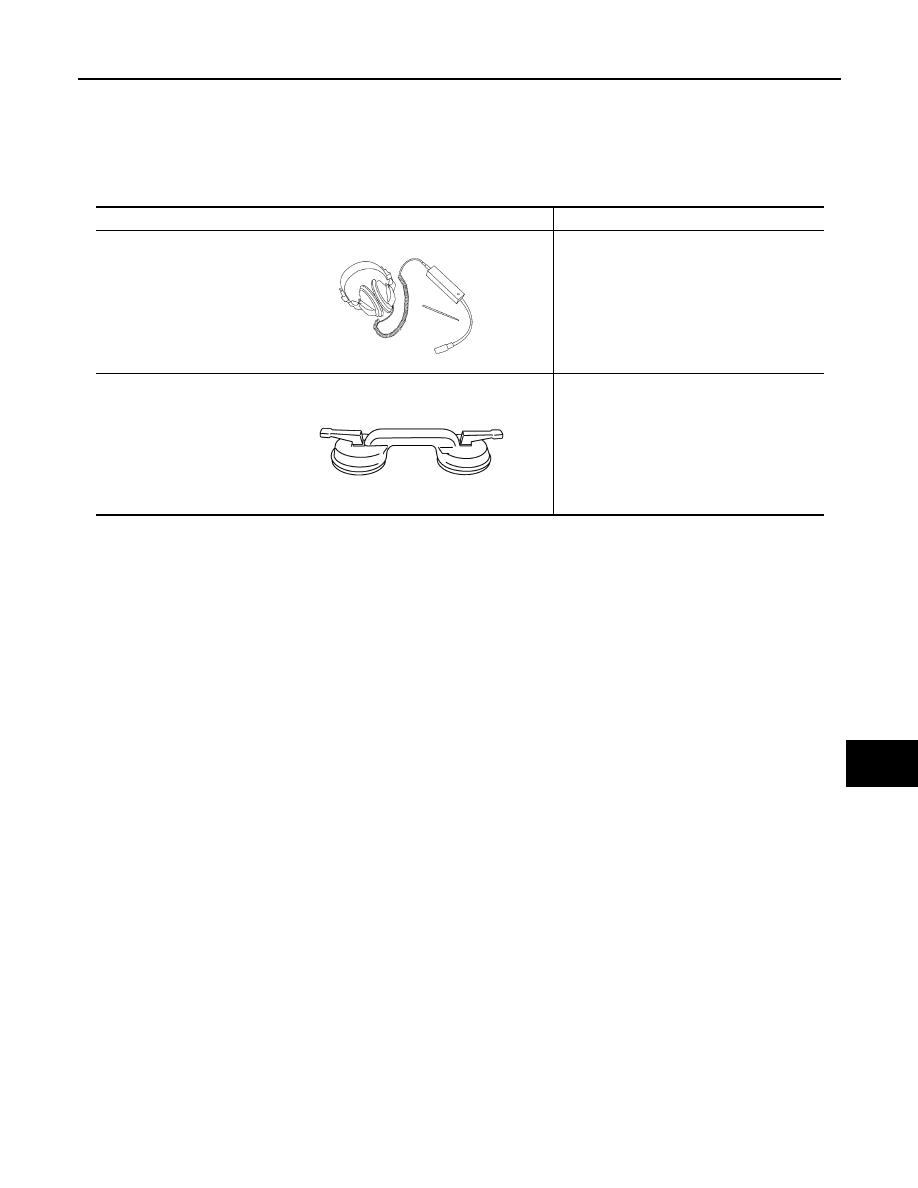

Engine ear

Locating the noise

Suction lifter

Holding the door glass

SIIA0995E

PIIB1805J

MIR-18

< ON-VEHICLE REPAIR >

INSIDE MIRROR

ON-VEHICLE REPAIR

INSIDE MIRROR

Exploded View

INFOID:0000000004205289

Removal and Installation

INFOID:0000000004205290

REMOVAL

1. Remove inside mirror finisher (if equipped).
2. Remove screw of mirror base.
3. Slide the mirror upward to remove.
4. Disconnect the connector (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

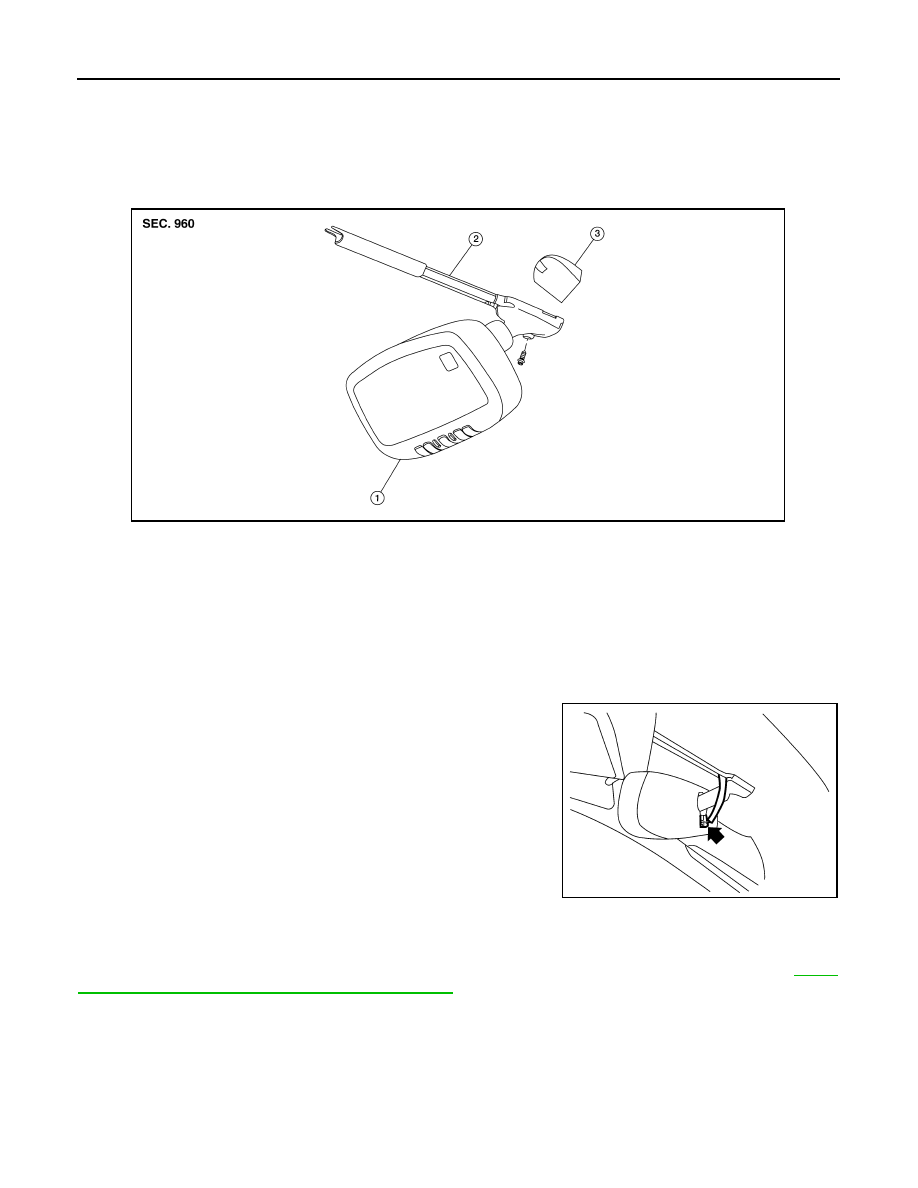

1.

Inside mirror

2.

Inside mirror finisher (if equipped)

3.

Mirror base

ALLIA0781GB

ALKIA0069GB

DOOR MIRROR

MIR-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

Exploded View

INFOID:0000000004205291

Removal and Installation

INFOID:0000000004205292

REMOVAL

1. Remove the front door finisher. Refer to

INT-12, "Removal and Installation"

.

2. Disconnect the door mirror harness connector.

3. Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

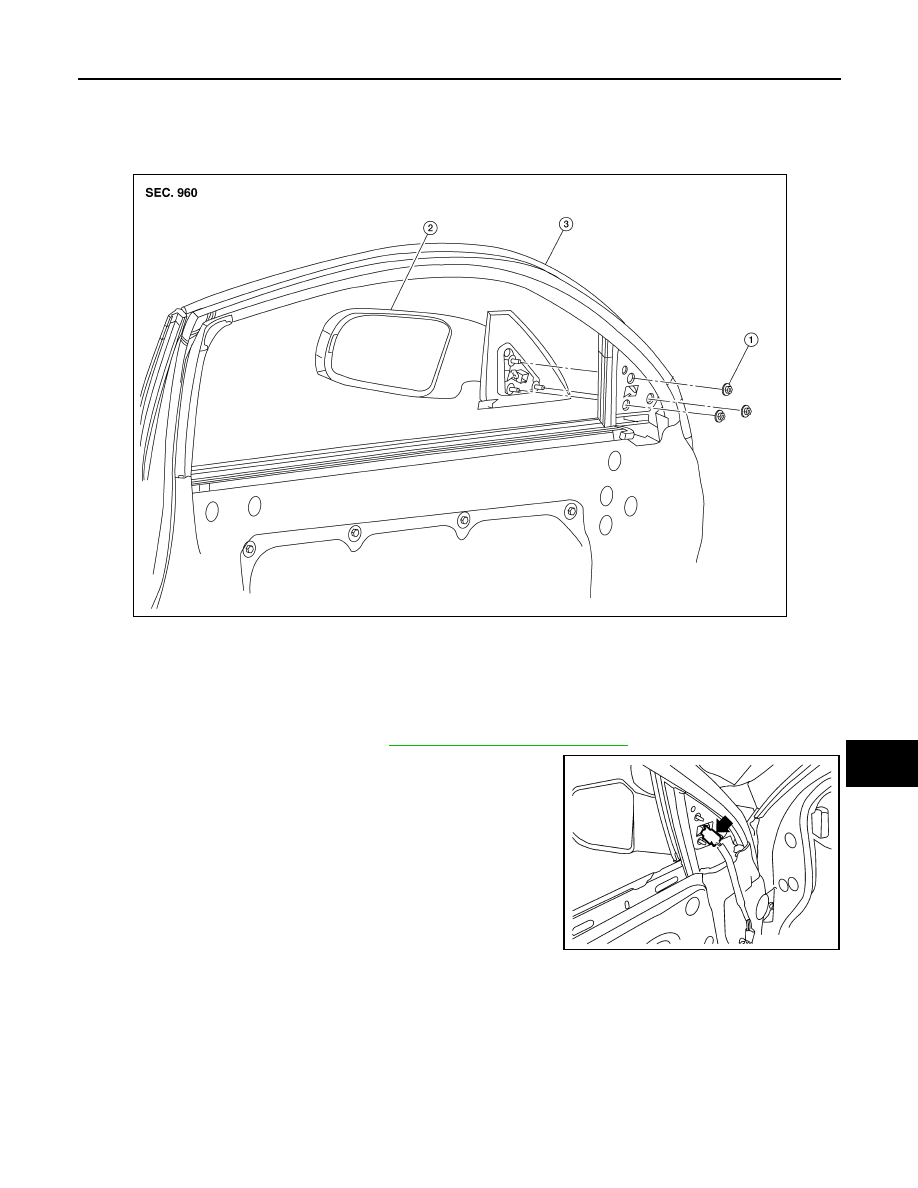

1.

Nut

2.

Mirror assembly

3.

Door panel

ALLIA0782GB

ALKIA0071GB

MIR-20

< DISASSEMBLY AND ASSEMBLY >

DOOR MIRROR

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

Exploded View

INFOID:0000000004205293

Disassembly

INFOID:0000000004205294

1. Turn the mirror glass surface upward.

2. Apply a protective tape (A) to mirror housing. Insert a suitable

tool (B) into the concave gap between the mirror holder (1) and

mirror motor (2) Push up tabs (3) (two locations) on the mirror

holder to disengage the lower part of mirror holder, and remove

the mirror glass and holder.

NOTE:

When pushing up tabs (3), do not forcefully push up only one

concave position but try to push up two concave positions.

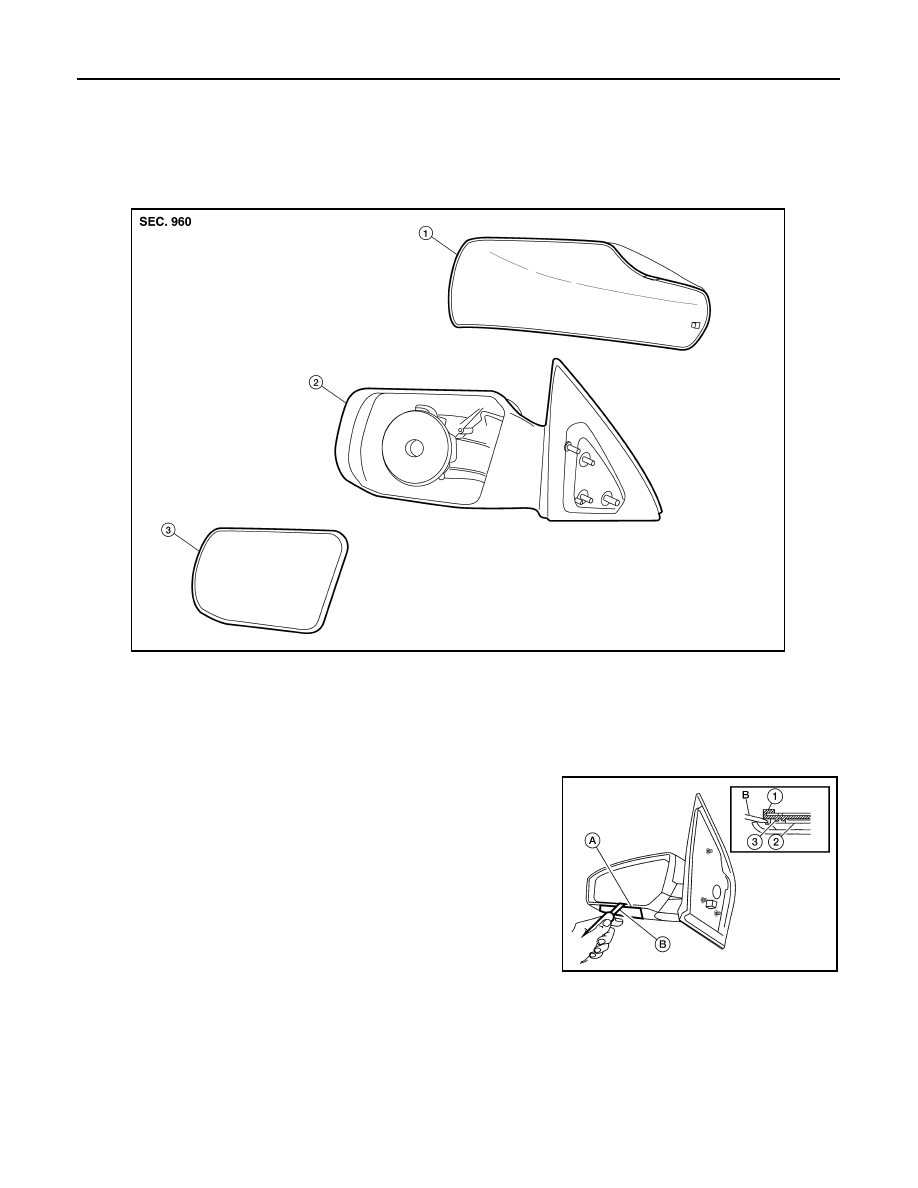

1.

Door mirror cover

2.

Mirror housing assembly

3.

Mirror glass and holder

ALLIA0929ZZ

LIIA2744E
