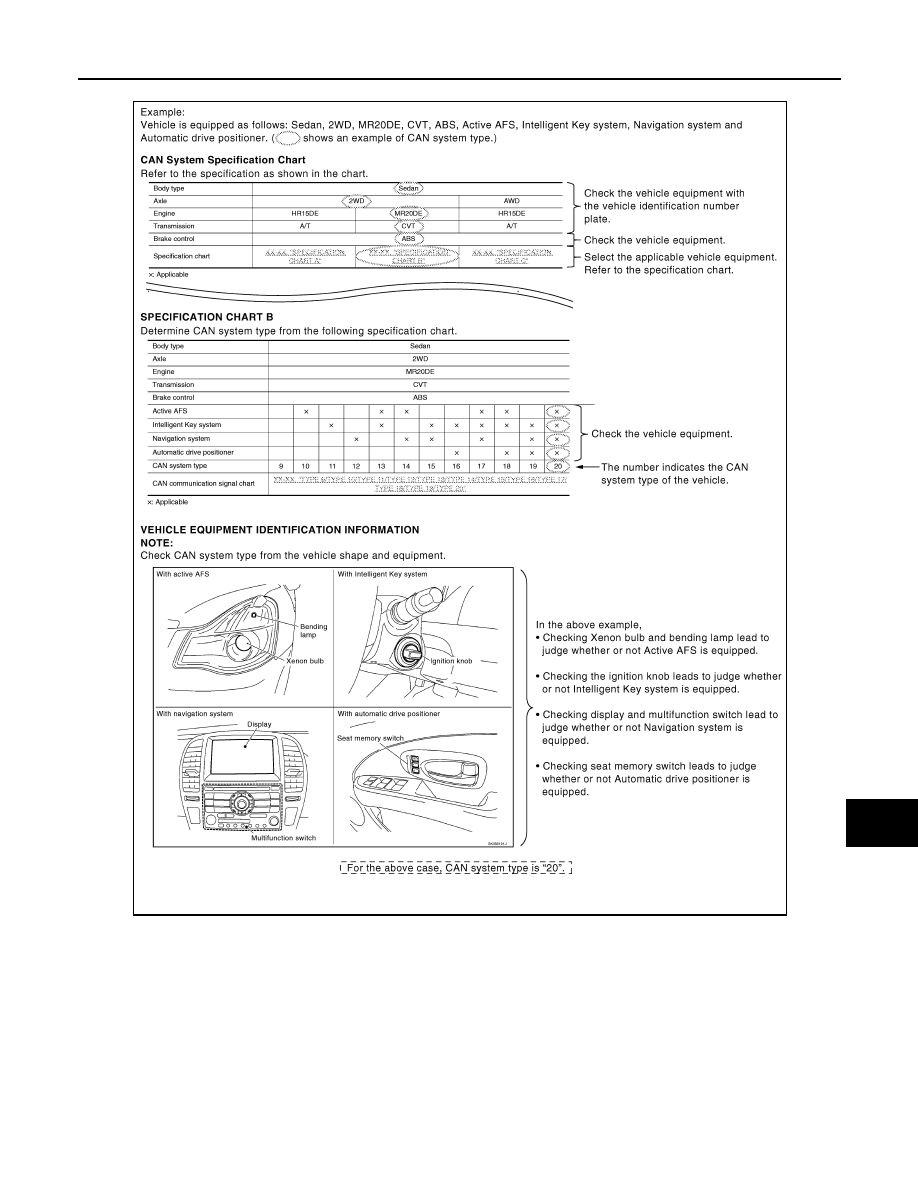

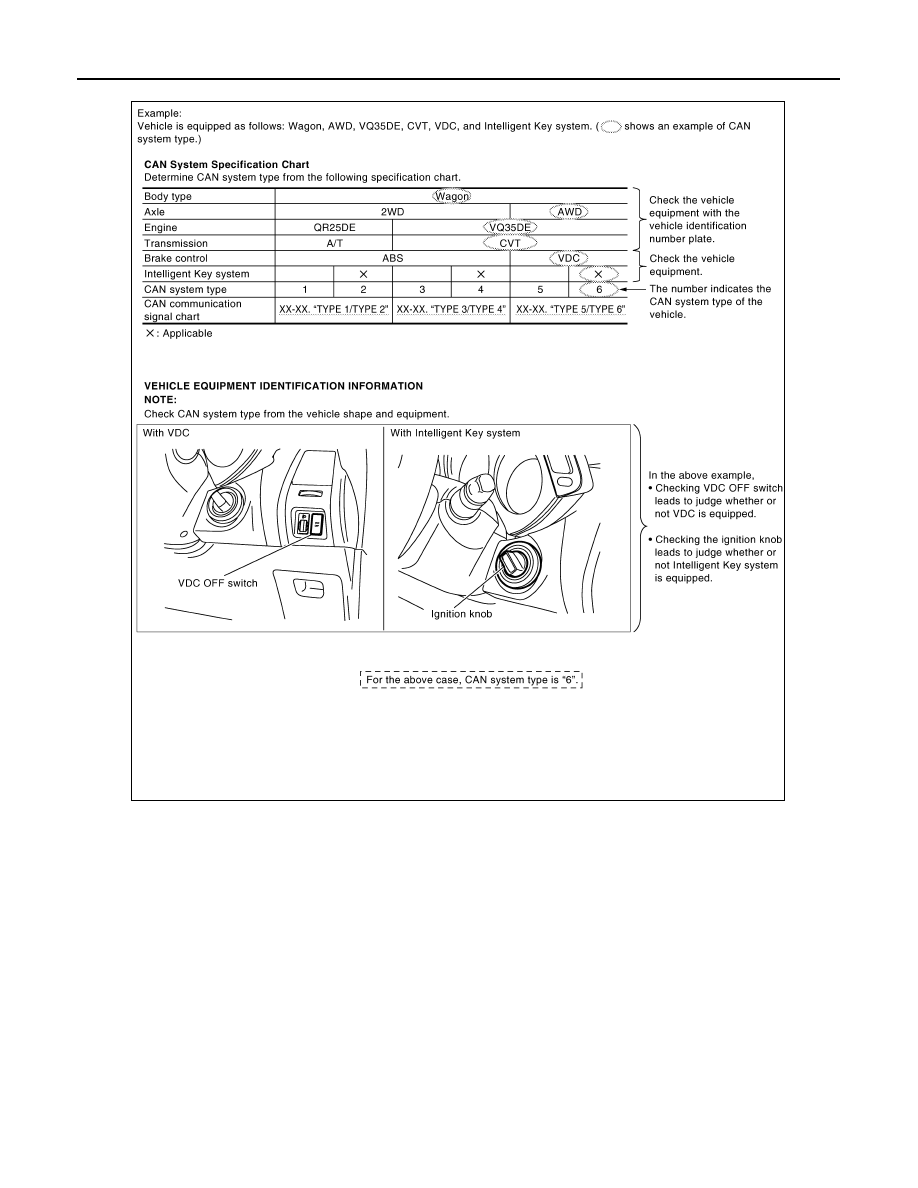

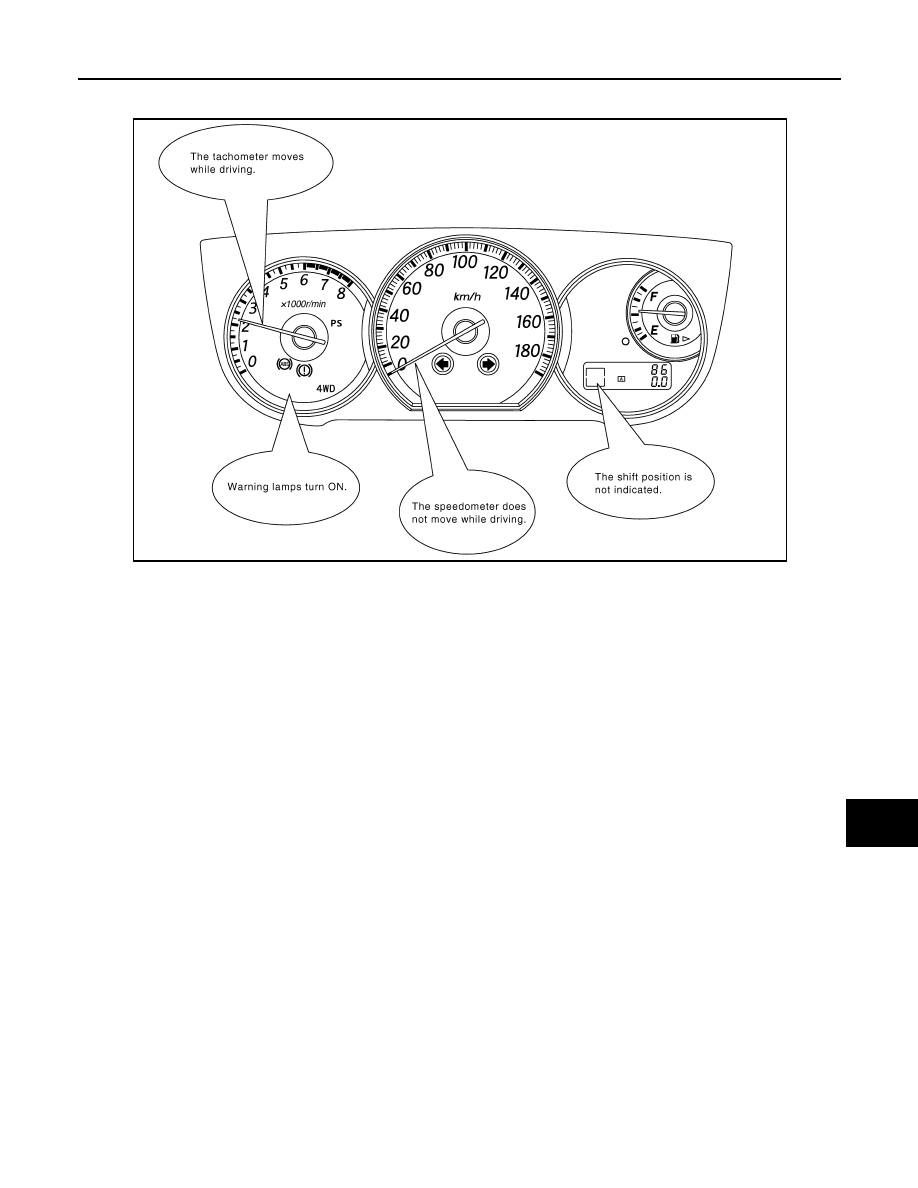

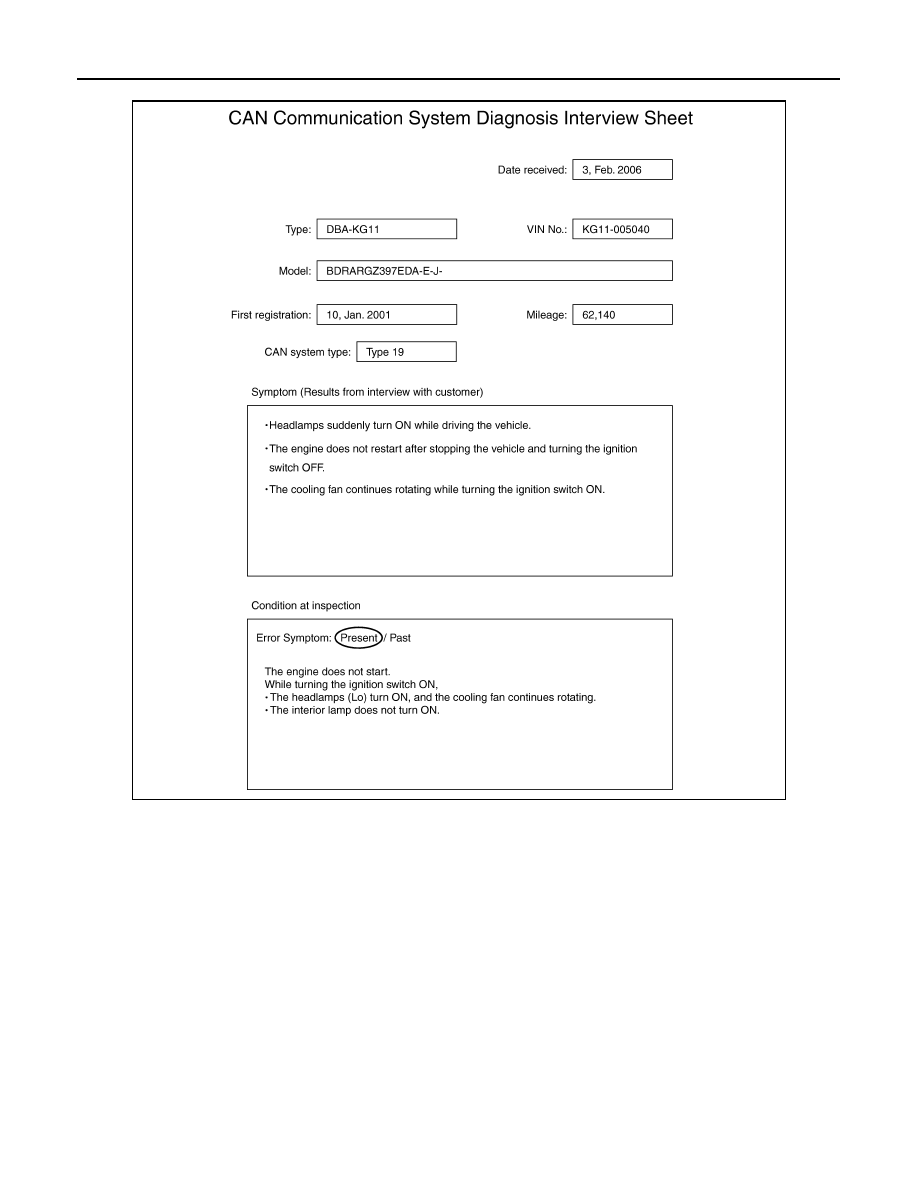

LAN DIAGNOSIS AND REPAIR WORKFLOW LAN-17 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N • Indication of the combination meter is important to detect the root cause because it is the most obvious to the customer, and it performs CAN communication with many units. INSPECTION OF VEHICLE CONDITION Check whether the symptom is reproduced or not. NOTE: Do not turn the ignition switch OFF or disconnect the battery cable while the reproducing the error. The error may temporarily correct itself, making it difficult to determine the root cause. CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART) Determine CAN system type based on vehicle equipment. NOTE: • This chart is used if CONSULT-III does not automatically recognize CAN system type. • There are two styles for CAN system type specification charts. Depending on the number of available sys- tem types, either style A or style B may be used. CAN System Type Specification Chart (Style A) NOTE: SKIB8717E |
