HAC-138

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

23

GR/W

Rear defrost ON signal

Defroster

switch

ON

0

OFF

5

24

BR/W

Fan ON signal

Fan

ON

0

OFF

5

36

R/Y

Light (-)

—

0

37

B

Ground

—

0

39

Y/R

Power supply for battery

—

12

40

G

Power supply for IGN

—

12

Termi-

nal No.

Wire

color

Item

Ignition

switch

Condition

Voltage (V)

(Approx.)

AIR CONDITIONER CONTROL

HAC-139

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

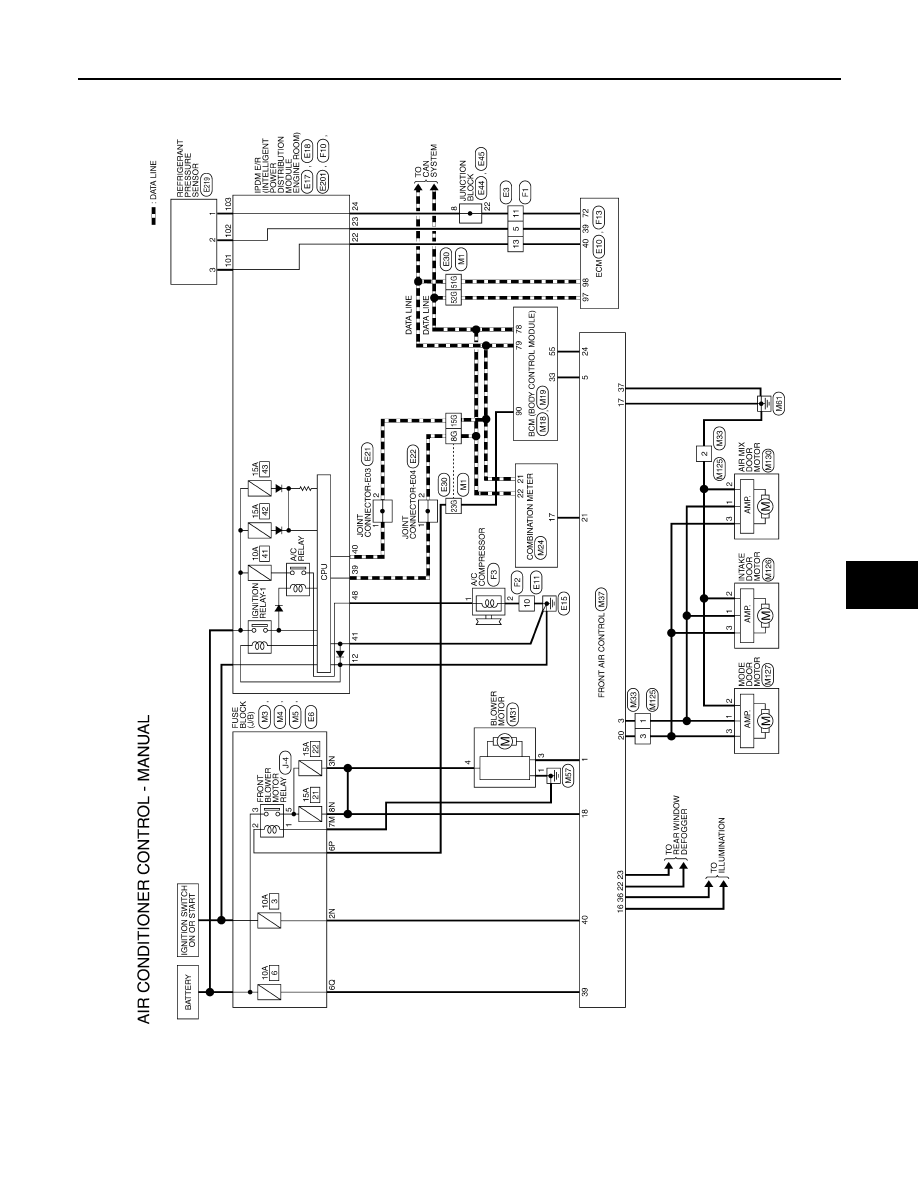

Wiring Diagram - Air Conditioner Control (Manual) - Coupe

INFOID:0000000004498284

ABIWA0028GB

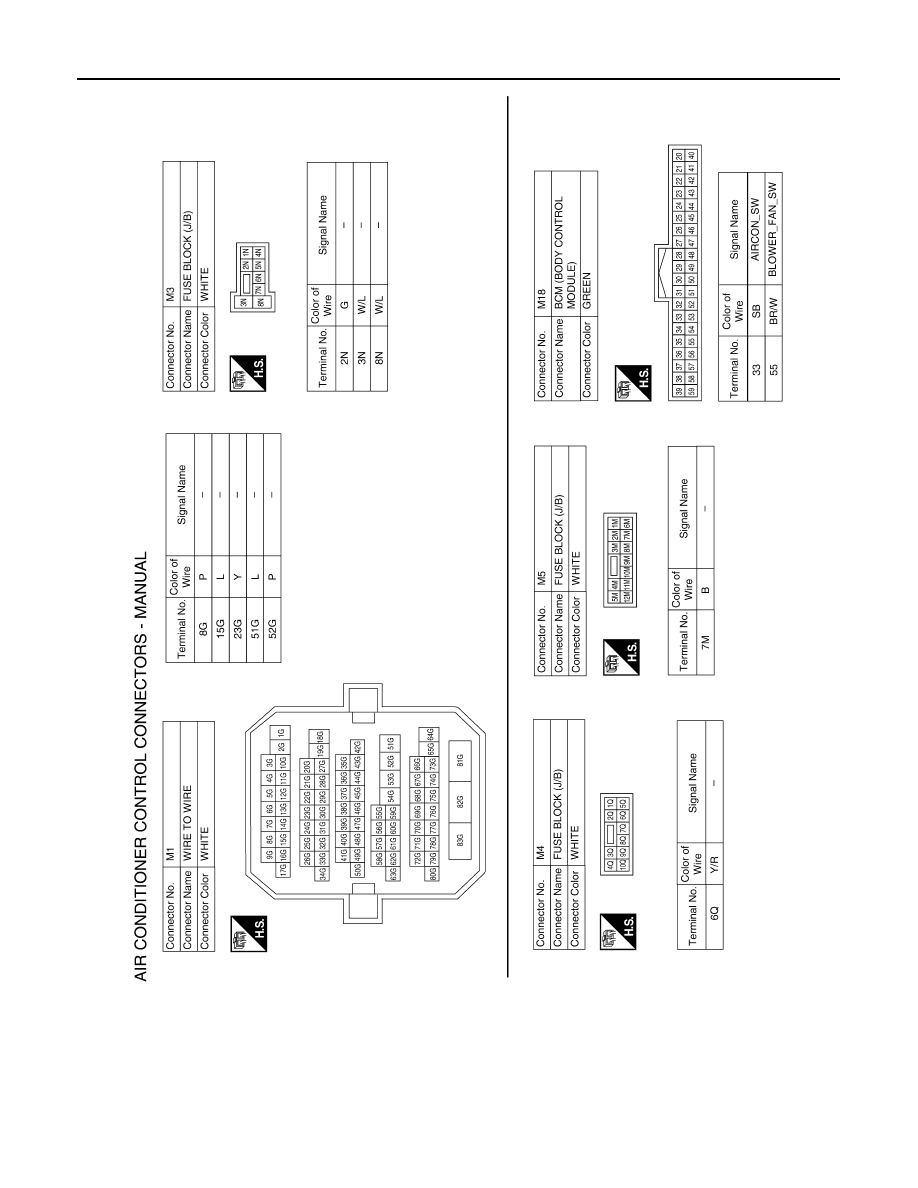

HAC-140

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

ABIIA0153GB

AIR CONDITIONER CONTROL

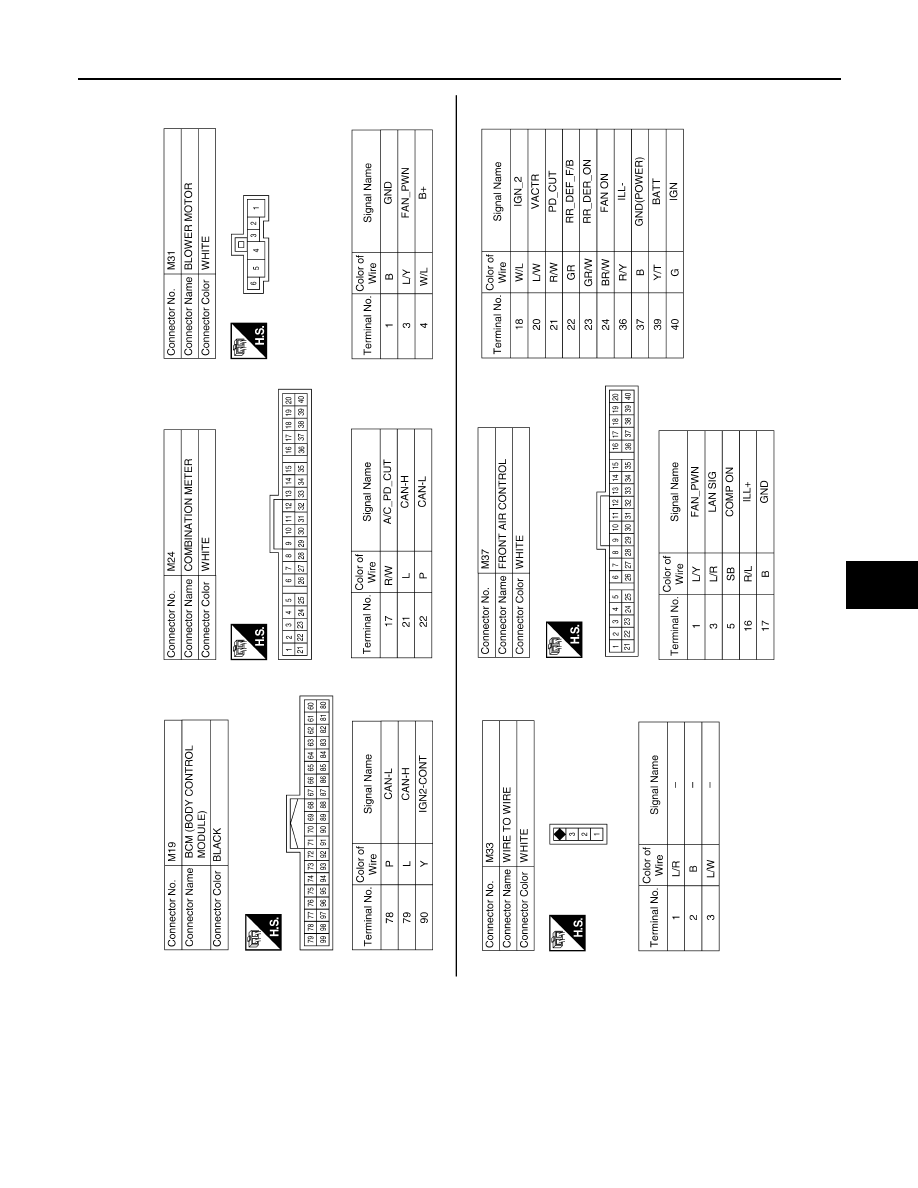

HAC-141

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0160GB
