SQUEAK AND RATTLE TROUBLE DIAGNOSES

CE117

CF110

CF118

CG101

CS101

CR103

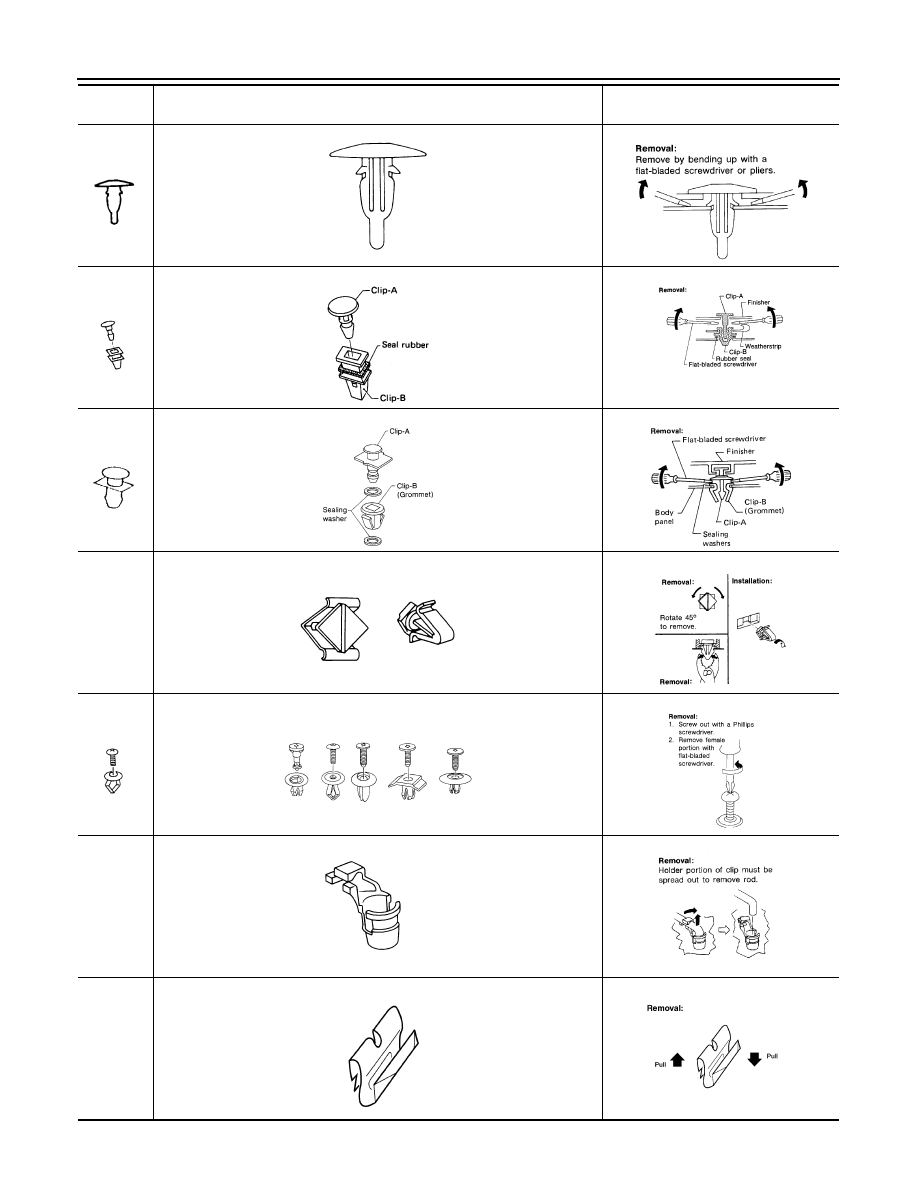

Metal Clip

Symbol

No.

Shapes

Removal & Installation

SBF174D

SBF175DA

SBF648B

SBF649B

SBF151D

SBF259G

SBF145B

SBF085B

SBF078B

SBF992G

SBF768B

SBF770B

WBT072

WBT073

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ON-VEHICLE REPAIR

FRONT BUMPER

Removal and Installation

INFOID:0000000004205918

REMOVAL

1. Remove the front fender protectors RH and LH. Refer to

EXT-19, "Removal and Installation"

.

2. Remove the engine under cover.
3. Remove the RH and LH side under covers.
4. Remove the fog lamp if equipped. Refer to

EXL-256, "Removal and Installation"

.

5. Remove the front bumper fascia clips and screws, then remove the front bumper fascia.

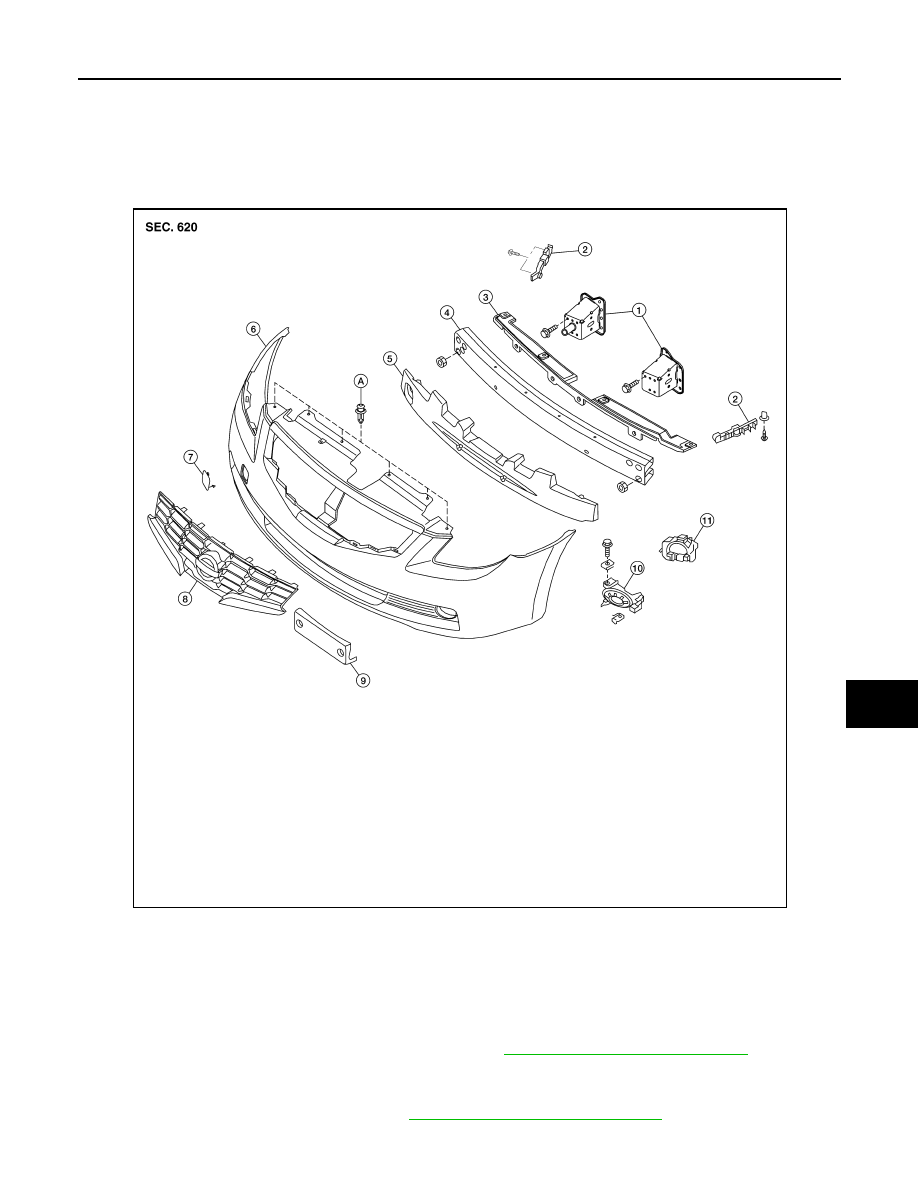

1.

Front bumper supports

2.

Front bumper side bracket

3.

Reinforcement bracket

4.

Front bumper reinforcement

5.

Front energy absorbing foam

6.

Front bumper fascia

7.

Tow hook cover

8.

Front grille

9.

License plate bracket

10. Fog lamp finisher (if equipped)

11. Fog lamp (if equipped)

A.

Clip C101

ALKIA1323ZZ

EXT-14

< ON-VEHICLE REPAIR >

[COUPE]

FRONT BUMPER

6. Remove the front grille. Refer to

EXT-17, "Removal and Installation"

.

7. Remove the front energy absorbing foam.
8. Remove the front bumper reinforcement and reinforcement bracket.
9. Remove the front bumper supports.

INSTALLATION

Installation is in the reverse order of removal.

REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

Removal and Installation

INFOID:0000000004205919

REMOVAL

1. Remove the LH and RH rear combination lamps. Refer to

EXL-260, "Removal and Installation"

.

2. Remove both the rear wheels and tires. Refer to

WT-66, "Adjustment"

.

3. Remove the rear bumper fascia clips and screws, then remove the rear bumper fascia.
4. Remove the rear energy absorbing foam.
5. Remove the rear bumper reinforcement.
6. Remove the rear bumper supports.

INSTALLATION

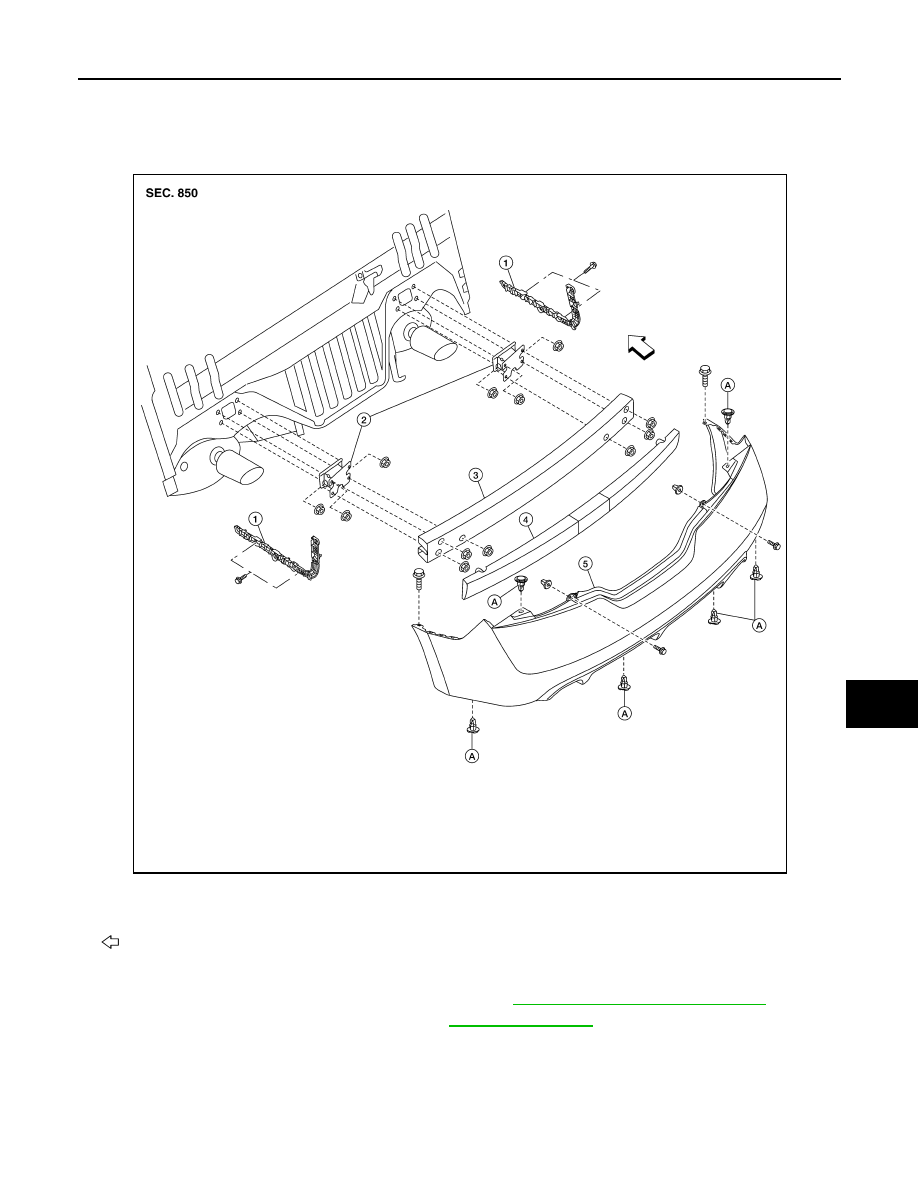

1.

Rear bumper side brackets

2.

Rear bumper supports

3.

Rear bumper reinforcement

4.

Rear energy absorbing foam

5.

Rear bumper fascia

A.

C205 push pin

Vehicle front

ALKIA1324ZZ
