PREPARATION

EX-9

< PREPARATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PREPARATION

PREPARATION

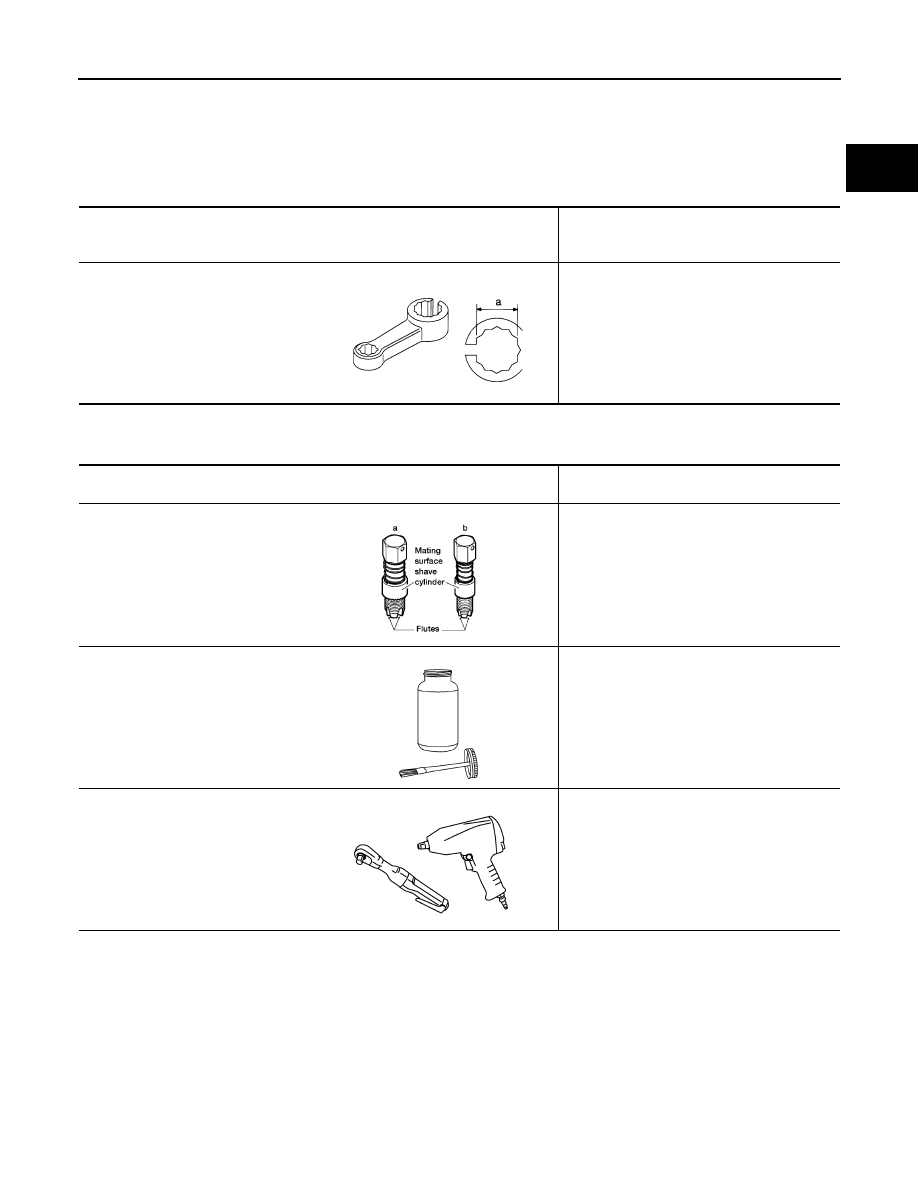

Special Service Tool

INFOID:0000000004205605

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000004205606

Tool number
(Kent-Moore No.)
Tool name

 Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:
a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below):
a: J-43897-18 (18 mm dia.) for zirconia ox-
ygen sensor
b: J-43897-12 (12 mm dia.) for titania oxy-
gen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts and bolts

AEM488

AEM489

PBIC0190E

EX-10

< ON-VEHICLE MAINTENANCE >

[VQ35DE]

EXHAUST SYSTEM (VQ35DE)

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM (VQ35DE)

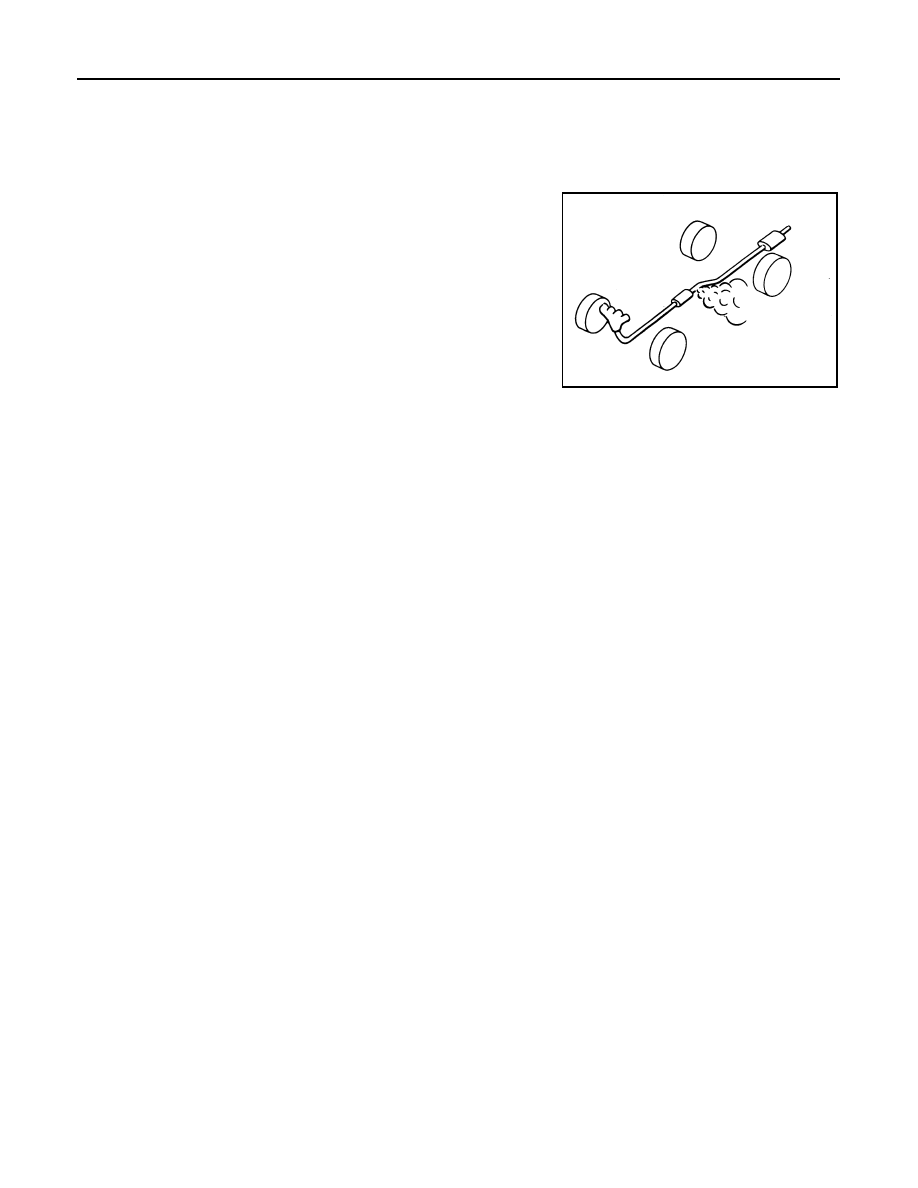

Checking Exhaust System

INFOID:0000000004205607

Check the exhaust pipes, muffler, and mounting components for

incorrect attachment, leaks, cracks, damage, or deterioration.

SMA211A

EXHAUST SYSTEM (VQ35DE)

EX-11

< ON-VEHICLE REPAIR >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE REPAIR

EXHAUST SYSTEM (VQ35DE)

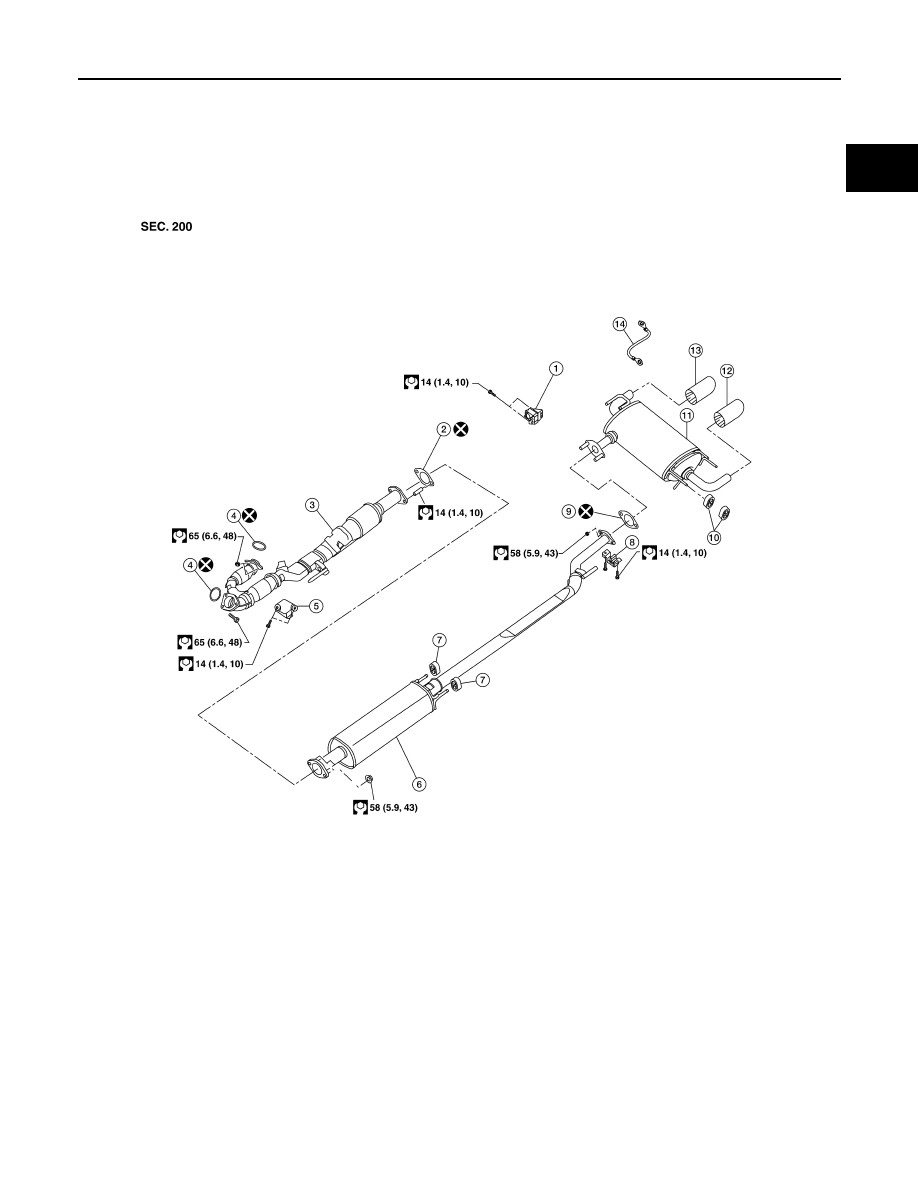

Exploded View

INFOID:0000000004501256

Coupe Models

AWBIA0179GB

1.

RH rear muffler bracket 2.

Gasket

3.

Front exhaust tube

4.

Ring gasket

5.

Front exhaust tube hanger

6.

Center exhaust tube

7.

Mounting rubber

8.

Center exhaust tube hanger

9.

Gasket

10. Mounting rubber

11. Rear muffler

12. LH muffler tip

13. RH muffler tip

14. Ground strap

EX-12

< ON-VEHICLE REPAIR >

[VQ35DE]

EXHAUST SYSTEM (VQ35DE)

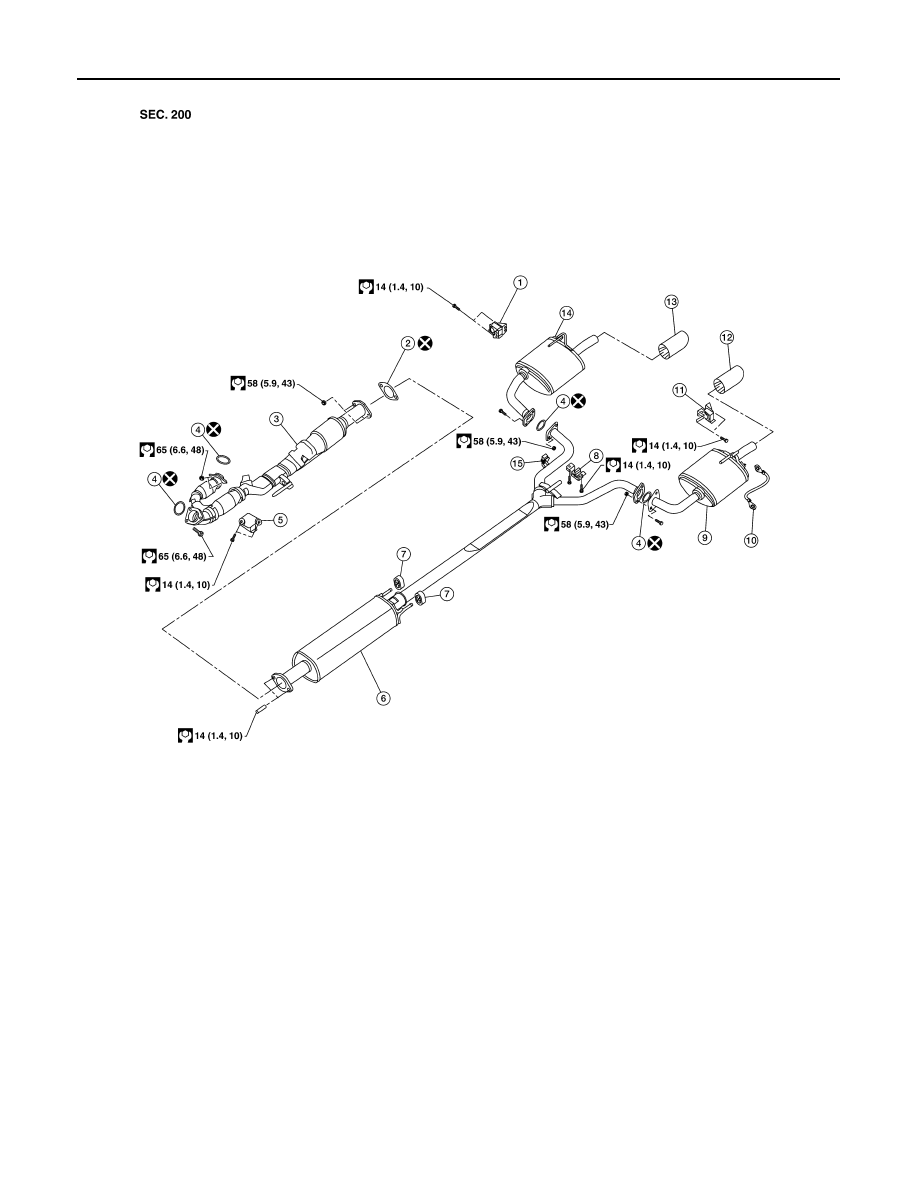

Sedan Models

Removal and Installation

INFOID:0000000004501280

WARNING:

• Perform the procedure with the exhaust system fully cooled down because the system will be hot

just after the engine is turned off.

AWBIA0002GB

1.

RH rear muffler bracket 2.

Gasket

3.

Front exhaust tube

4.

Ring gasket

5.

Front exhaust tube hanger

6.

Center exhaust tube

7.

Mounting rubber

8.

 Center exhaust tube hanger

9.

LH rear muffler

10. Ground strap

11. LH rear muffler bracket

12. LH muffler tip

13. RH muffler tip

14. RH rear muffler

15. Dampener
