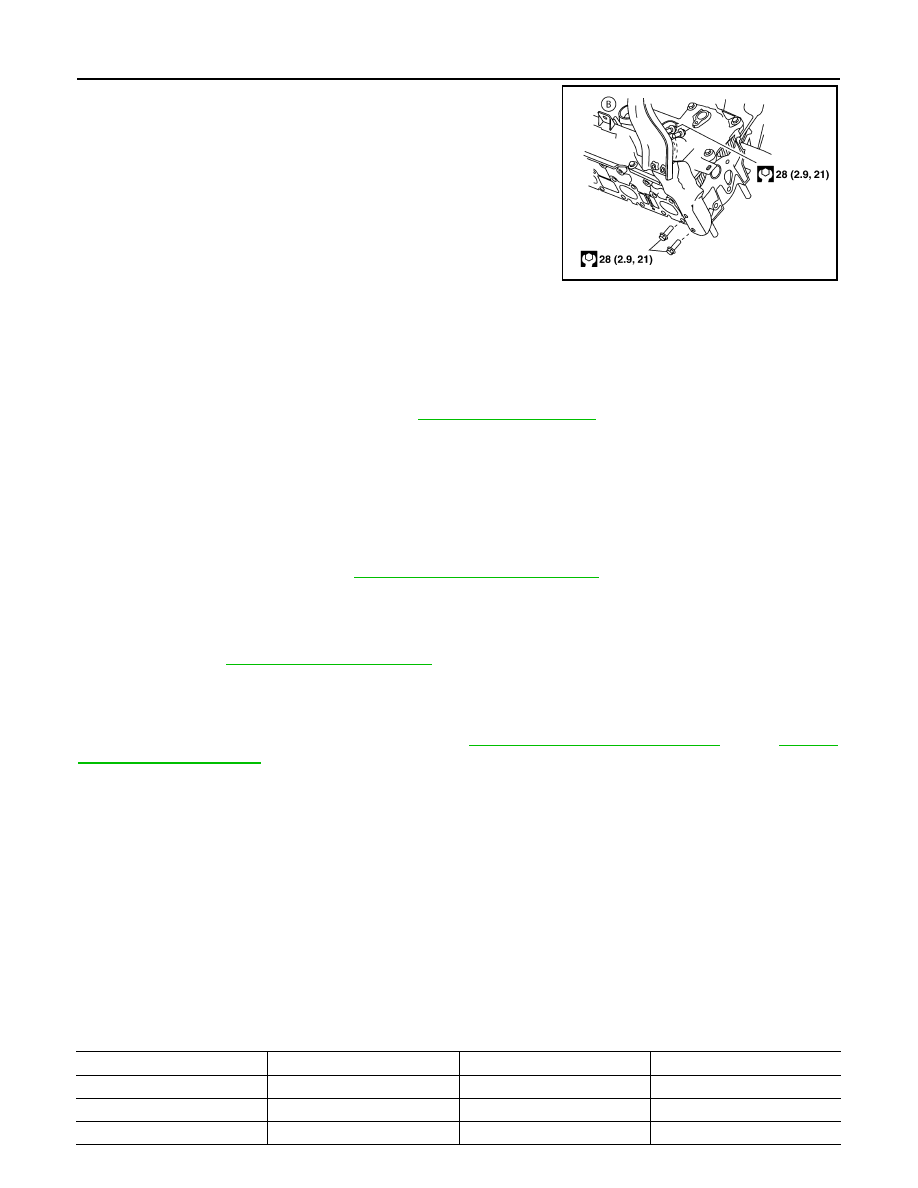

ENGINE ASSEMBLY

• (B): LH cylinder head

29. Remove rear cover plate.
30. Remove the torque converter bolts (CVT models).
31. Position a suitable support table under suspension member and engine assembly.
32. Disconnect the LH transaxle mount and the RH engine mount.
33. For additional safety, secure the engine in position with suitable tool.
34. Remove suspension member bolts. Refer to

FSU-12, "Exploded View"

.

35. Carefully lower the engine, transaxle assembly and suspension member using Tool, avoiding interference

with the vehicle body.

CAUTION:

• Before and during this procedure, always check if any harnesses are left connected.

• Avoid any damage to, or any oil/grease smearing or spills onto the engine mounting insulators.

36. Remove the starter motor. Refer to

STR-51, "Removal and Installation"

.

37. Remove the crankshaft position sensor (POS).
38. Remove engine and transaxle harness.
39. Separate the engine and transaxle and mount the engine on a suitable engine stand.
40. Drain engine oil.

LU-24, "Changing Engine Oil"

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Tighten transmission bolts to specification. Refer to

TM-26, "Removal and Installation"

 (M/T),

TM-259,

"Removal and Installation"

 (CVT).

INSPECTION AFTER INSTALLATION

• Before starting engine, check the levels of engine coolant, engine oil and working fluid. If less than required

quantity, fill to the specified level.

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

• Warm up engine thoroughly to make sure there is no leakage of engine coolant, engine oil, working fluid, fuel

and exhaust gas.

• Bleed air from passages in pipes and tubes of applicable lines, such as in cooling system.

• After cooling down engine, again check amounts of engine coolant, engine oil and working fluid. Refill to

specified level, if necessary.

• Summary of the inspection items:

ALBIA0263GB

Tool number

: KV101J0010 (J-47242)

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Working fluid

Level

Leakage

Level

ENGINE ASSEMBLY

EM-205

< REMOVAL AND INSTALLATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—

EM-206

< DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

CYLINDER BLOCK

DISASSEMBLY AND ASSEMBLY

CYLINDER BLOCK

Disassembly and Assembly

INFOID:0000000004202182

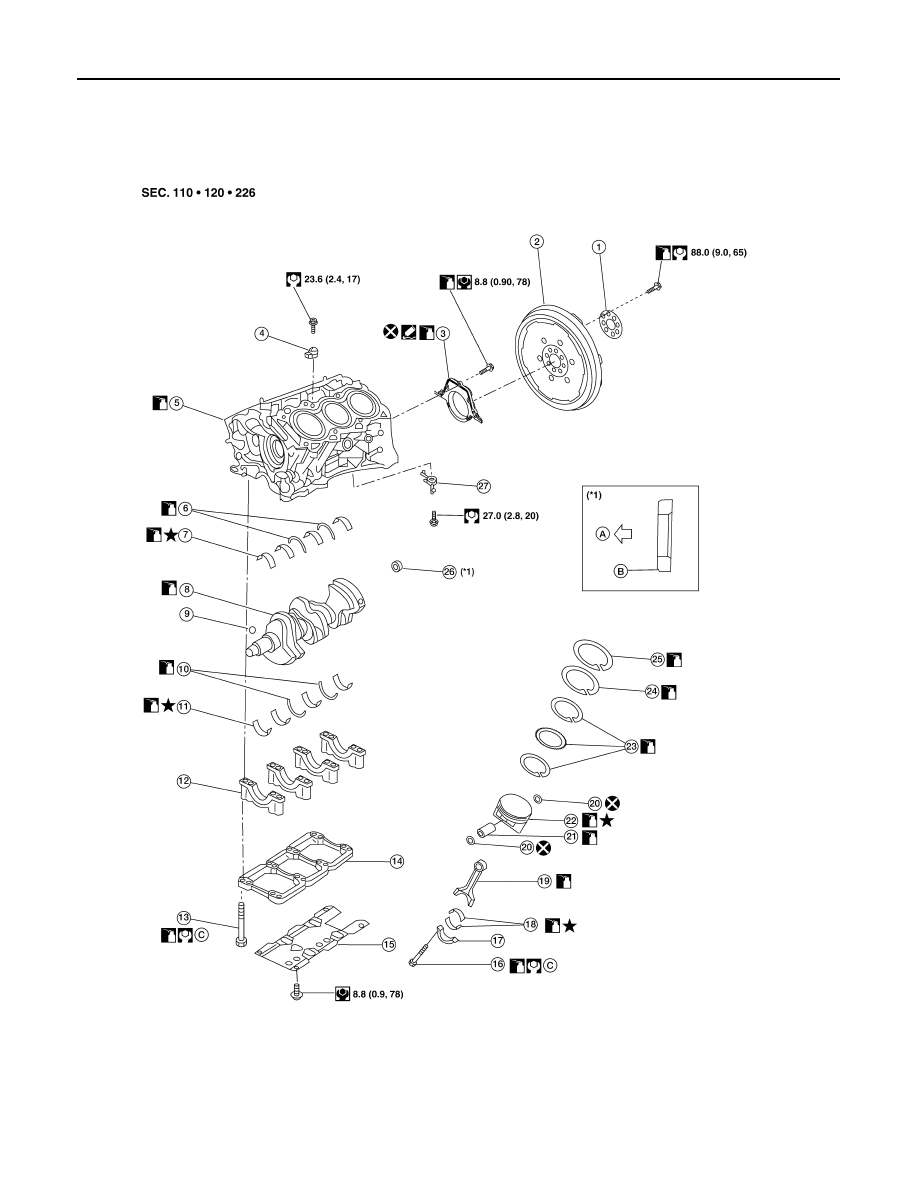

AWBIA0220GB

1.

Drive plate reinforcement (CVT)

2.

Drive plate (CVT), Flywheel (M/T)

3.

Rear oil seal retainer

4.

Knock sensor upper main bearing

5.

Cylinder block

6.

Thrust bearing (upper)

7.

Main bearing (upper)

8.

Crankshaft

9.

Crankshaft key

CYLINDER BLOCK

EM-207

< DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAUTION:

• Apply new engine oil to parts as marked in illustrations before installation.

• Place removed parts such as bearings and bearing caps in their proper order and direction.

• When installing the connecting rod nuts, and main bearing cap bolts, apply new engine oil to the

threads and mating surfaces

• Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.

DISASSEMBLY

1. Remove the engine assembly. Refer to

EM-202

.

2. Install the engine on the engine stand.
3. Remove the knock sensor.

CAUTION:

Carefully handle sensor avoiding shocking it.

4. Drain the engine of all coolant and oil.
5. Remove the oil pan. Refer to

EM-139, "Removal and Installation"

.

6. Remove the timing chain. Refer to

EM-163, "Removal"

.

7. Remove the cylinder head. Refer to

EM-191, "Removal and Installation"

.

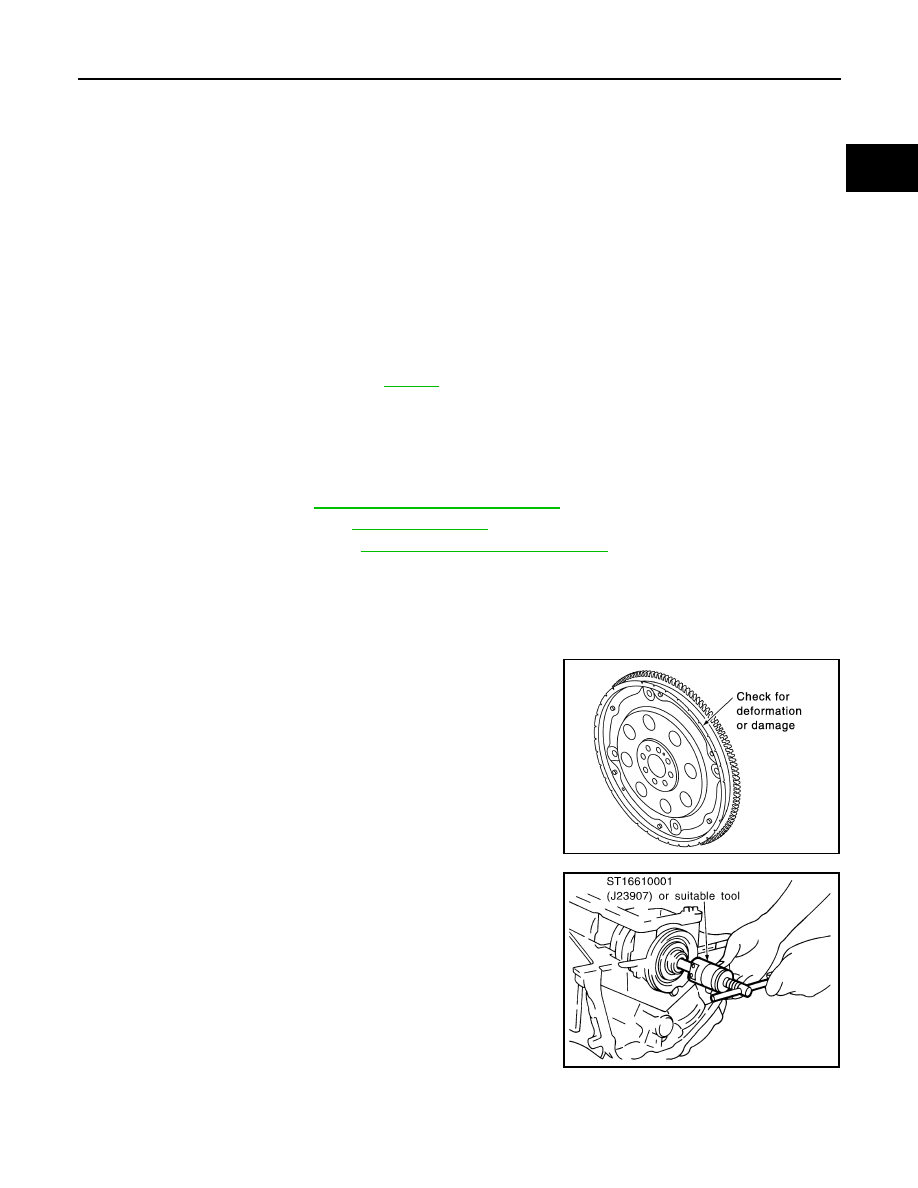

8. Remove drive plate or flywheel. Fix crankshaft with Tool, and remove bolts.

• Loosen bolts in diagonal order.

CAUTION:

• Do not disassemble drive plate.

• Never place the drive plate with signal plate facing down.

• When handling signal plate, take care not to damage or

scratch it.

• Handle signal plate in a manner that prevents it from

becoming magnetized.

9. Remove pilot bushing (M/T) or converter (CVT) using Tool.

10. Thrust bearing (lower)

11.

Main bearing (lower)

12. Main bearing cap

13. Main bearing cap bolt

14. Main bearing beam

15. Baffle plate

16. Connecting rod bolt

17. Connecting rod bearing cap

18. Connecting rod bearing

19. Connecting rod

20. Snap ring

21. Piston pin

22. Piston

23. Oil ring

24. Second ring

25. Top ring

26. Pilot converter (CVT), Pilot bushing (MT)

27. Oil jet

 A. Crankshaft side

B.

Chamfered

C.

Follow installation procedure

Tool number

: KV10117700 (J-44716)

SEM760G

Tool number

: ST16610001 (J-23907)

SEM005G
