Nissan Altima L32. Manual - part 644





EM-112

< PRECAUTION >

[VQ35DE]

PRECAUTIONS

If for some unavoidable reason a tool such as a flat-bladed screwdriver is used, be careful not to dam-

age the mating surfaces.

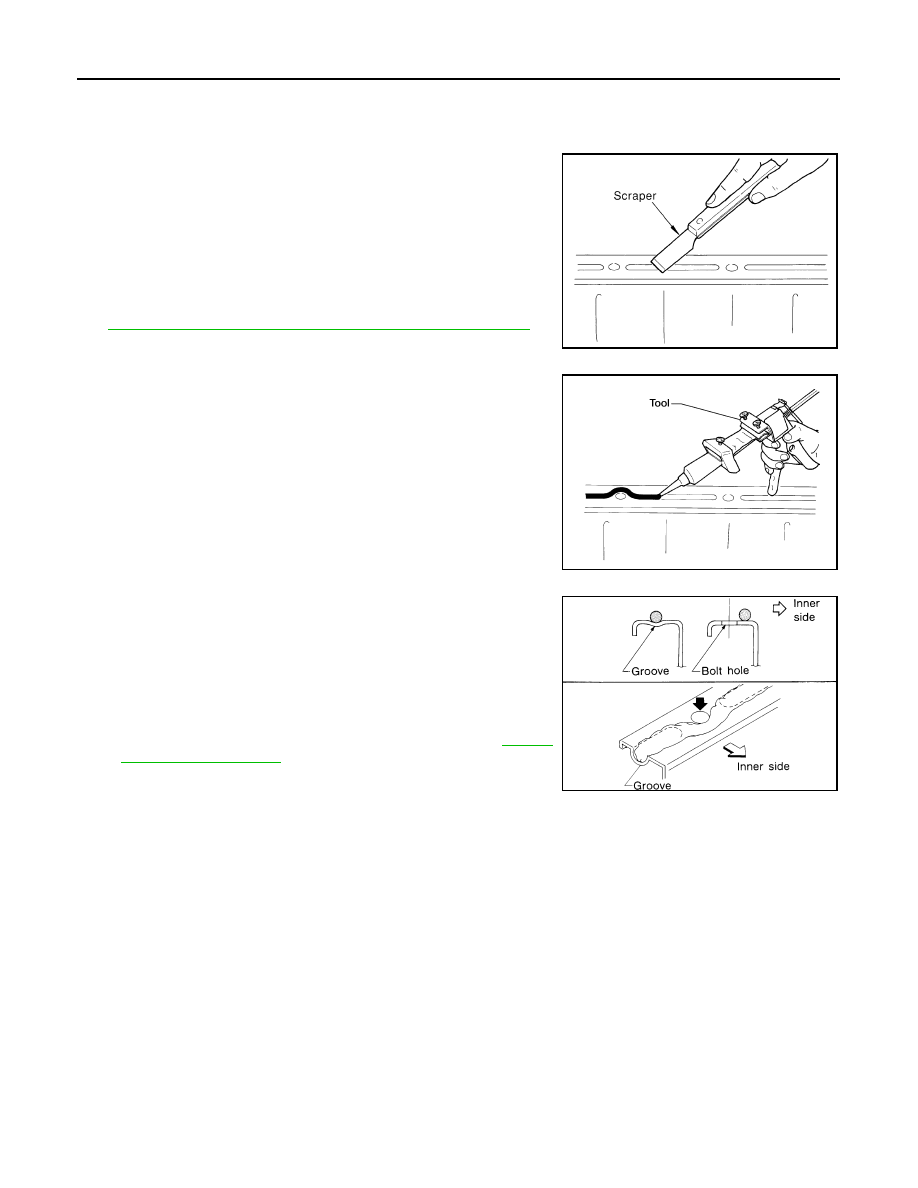

LIQUID GASKET APPLICATION PROCEDURE

1. Using a scraper, remove the old Silicone RTV Sealant adhering

to the gasket application surface and the mating surface.

• Remove the sealant completely from the groove of the gasket

application surface, bolts, and bolt holes.

2. Thoroughly clean the gasket application surface and the mating

surface and remove adhering moisture, grease and foreign

materials.

3. Attach the sealant tube to the tube presser.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

4. Apply the sealant using Tool without breaks to the specified

location.

• If there is a groove for the sealant application, apply the seal-

ant to the groove.

• As for the bolt holes, normally apply the sealant inside the

holes. If specified, it should be applied outside the holes. Make

sure to read the text of this manual.

• Within five minutes of the sealant application, install the mat-

ing component.

• If the sealant protrudes, wipe it off immediately.

• Do not retighten after the installation.

• After 30 minutes or more have passed from the installation, fill

the engine with the specified oil and coolant. Refer to

MA-12,

"Fluids and Lubricants"

.

CAUTION:

Follow all specific instructions in this manual.

PBIC0003E

Tube presser

WS39930000 ( – )

WBIA0567E

SEM159F

PREPARATION

EM-113

< PREPARATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

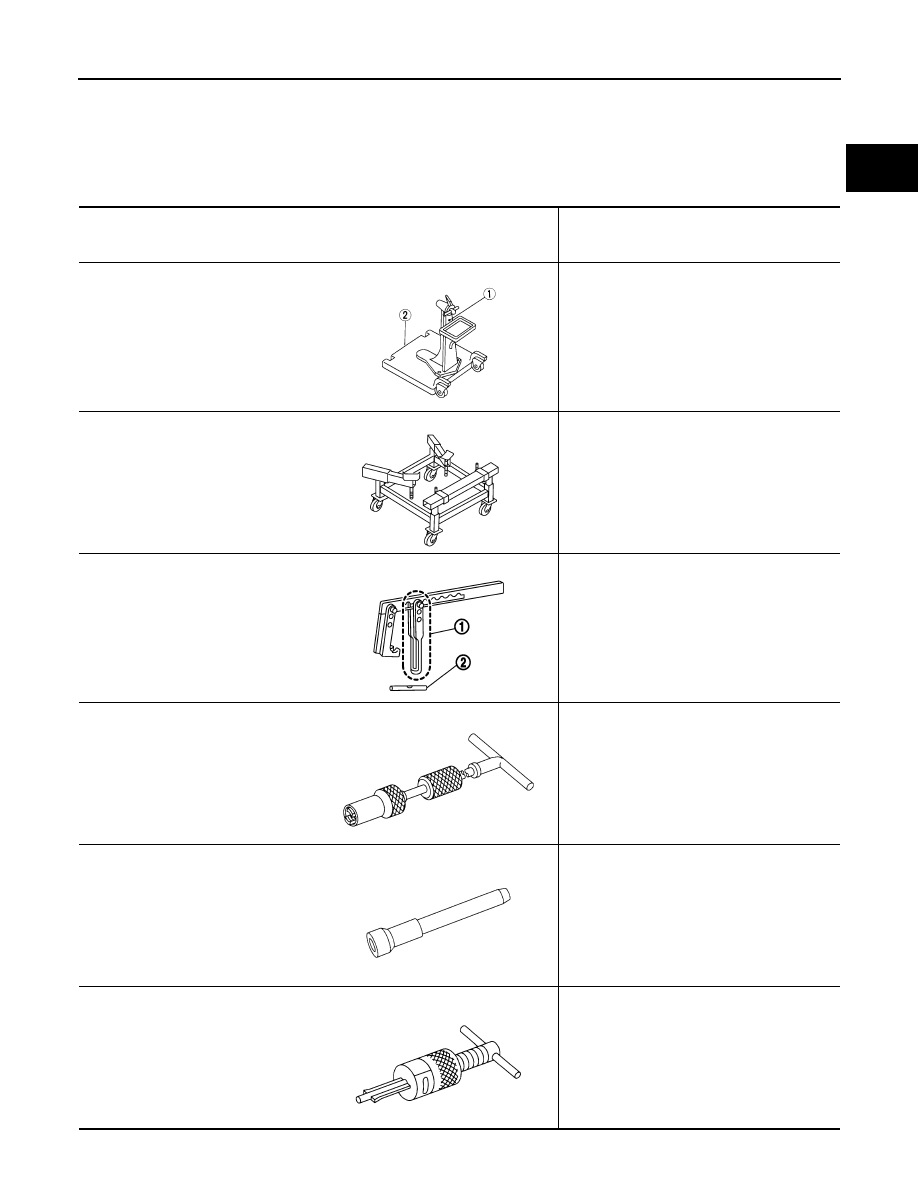

Special Service Tool

INFOID:0000000004202146

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST0501S000
(

)

Engine stand assembly
1 ST05011000
(

)

Engine stand
2 ST05012000
(

)

Base

Disassembling and assembling

KV101J0010
(J-47242)
Engine support table

Engine and transmission assembly removal

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(  —  )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not.

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

  —
(J-39386)
Valve oil seal drift

Installing valve oil seal

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

NT042

WBIA0658E

PBIC1650E

S-NT011

NT024

NT045

EM-114

< PREPARATION >

[VQ35DE]

PREPARATION

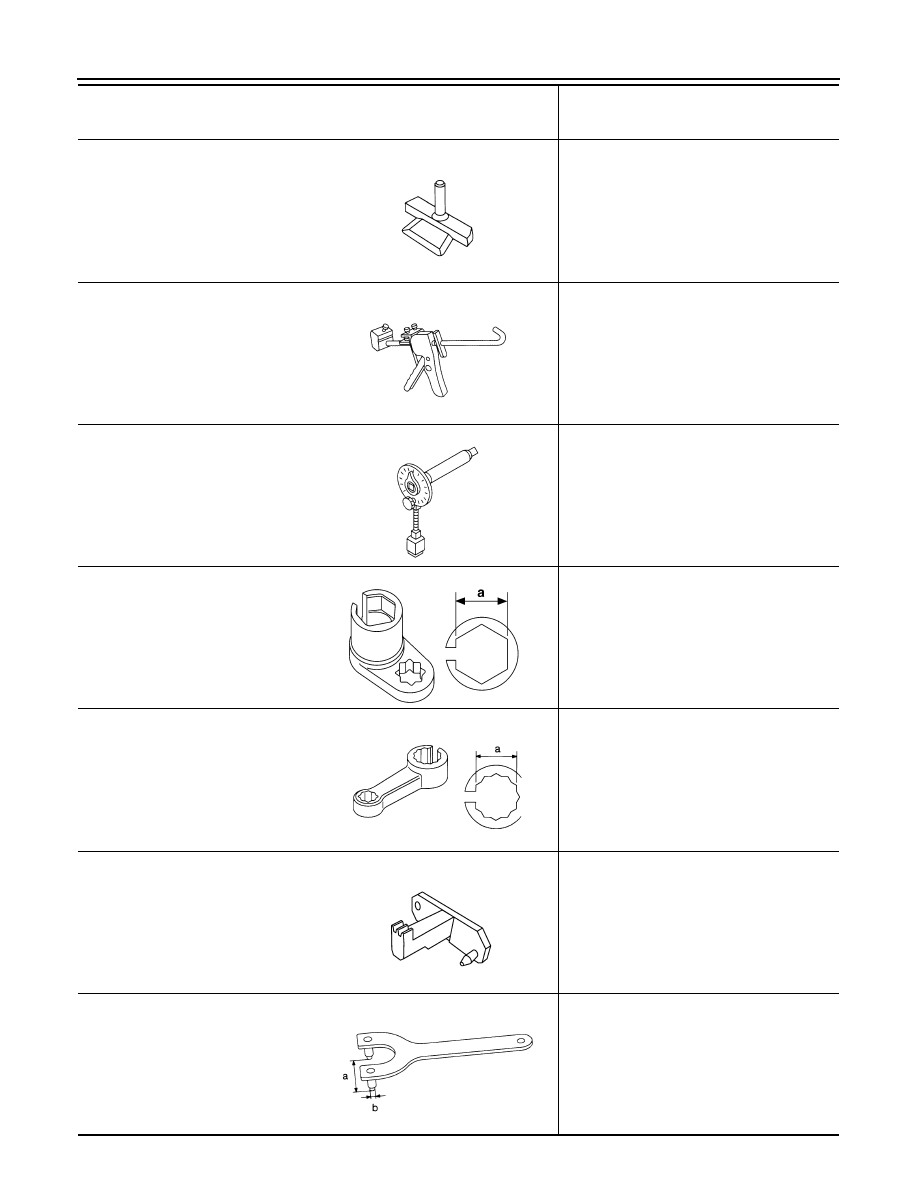

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc.

(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening rear heated oxygen
sensor
a: 22 mm (0.87 in)

KV10117700
(J-44716)
Ring gear stopper

Removing and installing crankshaft pulley

KV10109300
(       —       )
Pulley holder

Holding pulley position
a: 68 mm (2.68 in)
b: 8 mm (0.31 in)

Tool number
(Kent-Moore No.)
Tool name

Description

NT046

NT052

NT014

LBIA0444E

NT636

NT822

NT628

PREPARATION

EM-115

< PREPARATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

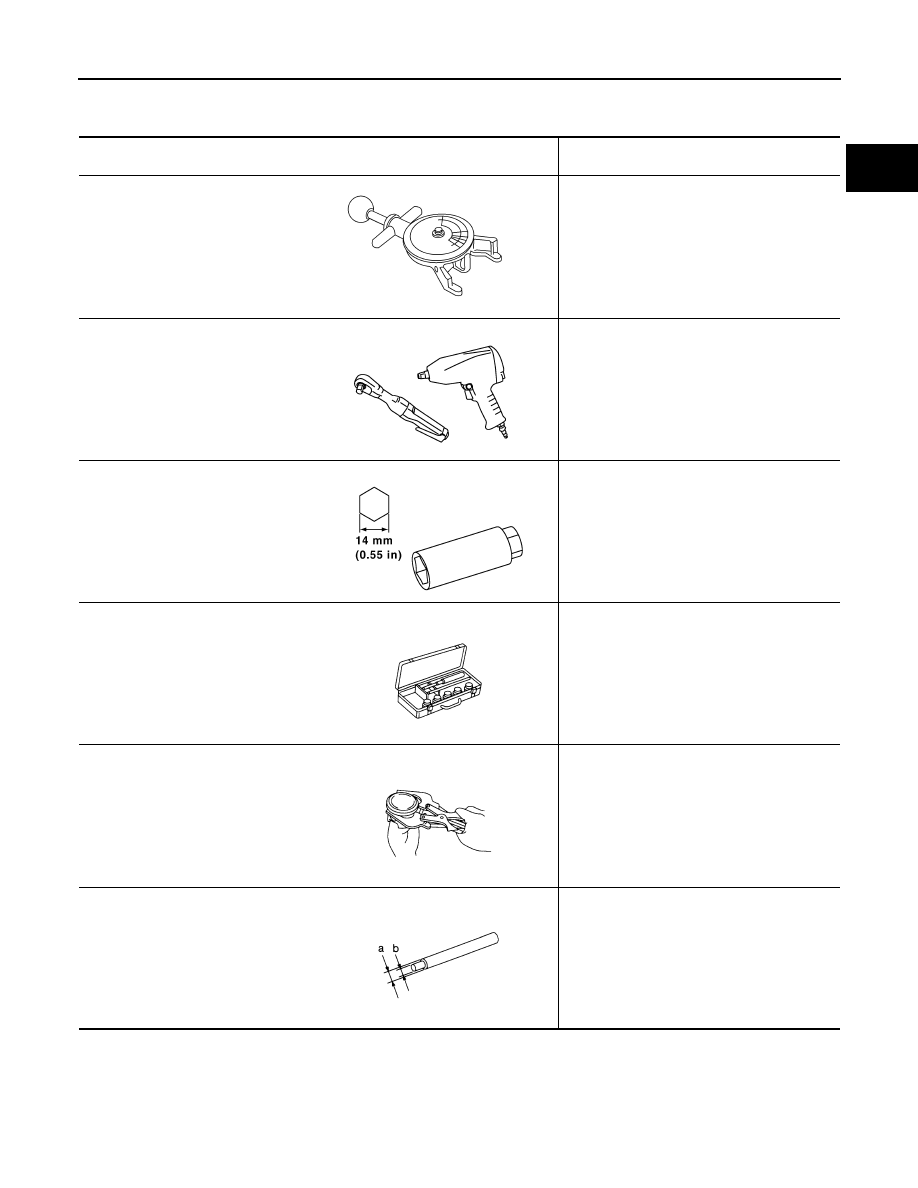

Commercial Service Tool

INFOID:0000000004202147

(Kent-Moore No.)
Tool name

Description

(BT-3373-F)
Belt tension gauge

Checking drive belt tension

Power tool

Loosening bolts and nuts

Spark plug wrench

Removing and installing spark plug

Valve seat cutter set

Finishing valve seat dimensions

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

AMA126

PBIC0190E

PBIC2982E

NT048

NT030

NT015
