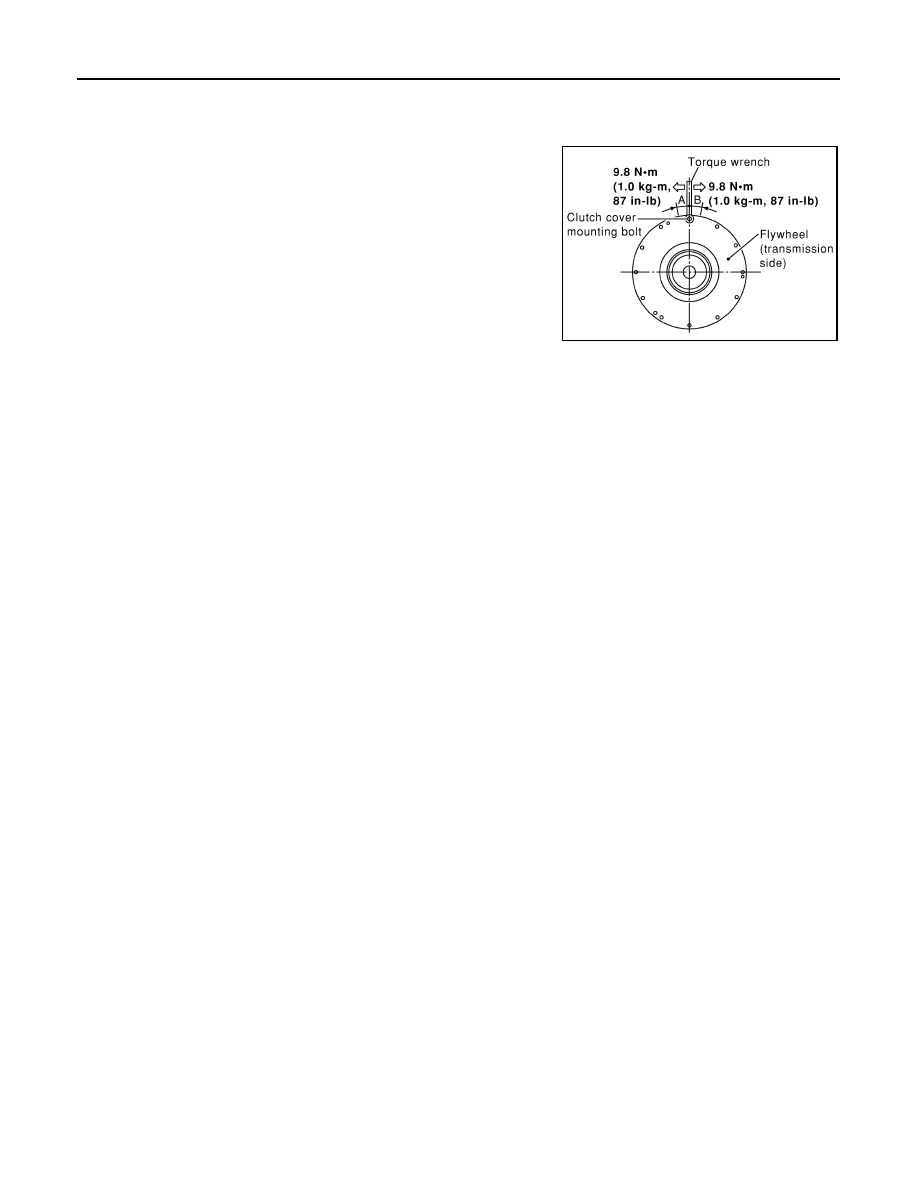

EM-92 < DISASSEMBLY AND ASSEMBLY > [QR25DE] CYLINDER BLOCK 1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel center line. • Tighten bolt to keep it from loosening at a force of 9.8 N·m (1 kg-m, 87 in-lb). masses without applying any load (measurement standard points). 3. Apply a force of 9.8 N·m (1 kg-m, 87 in-lb) in each direction, and mark the movement amount on the mass on the transmission side. 4. Measure dimensions of movement amounts (A) and (B) on cir- cumference of the flywheel on the transmission side. • When measured value is outside the standard, replace flywheel. Standard : 35 mm (1.38 in) or less SBIA0288E |
