P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-1341

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7. Check that “FUEL T/TMP SE” is more than 0

°C (32°F).

8. Start engine and wait at least 20 seconds.

9. Check 1st trip DTC.

With GST

1. Start engine and warm it up to normal operating temperature.

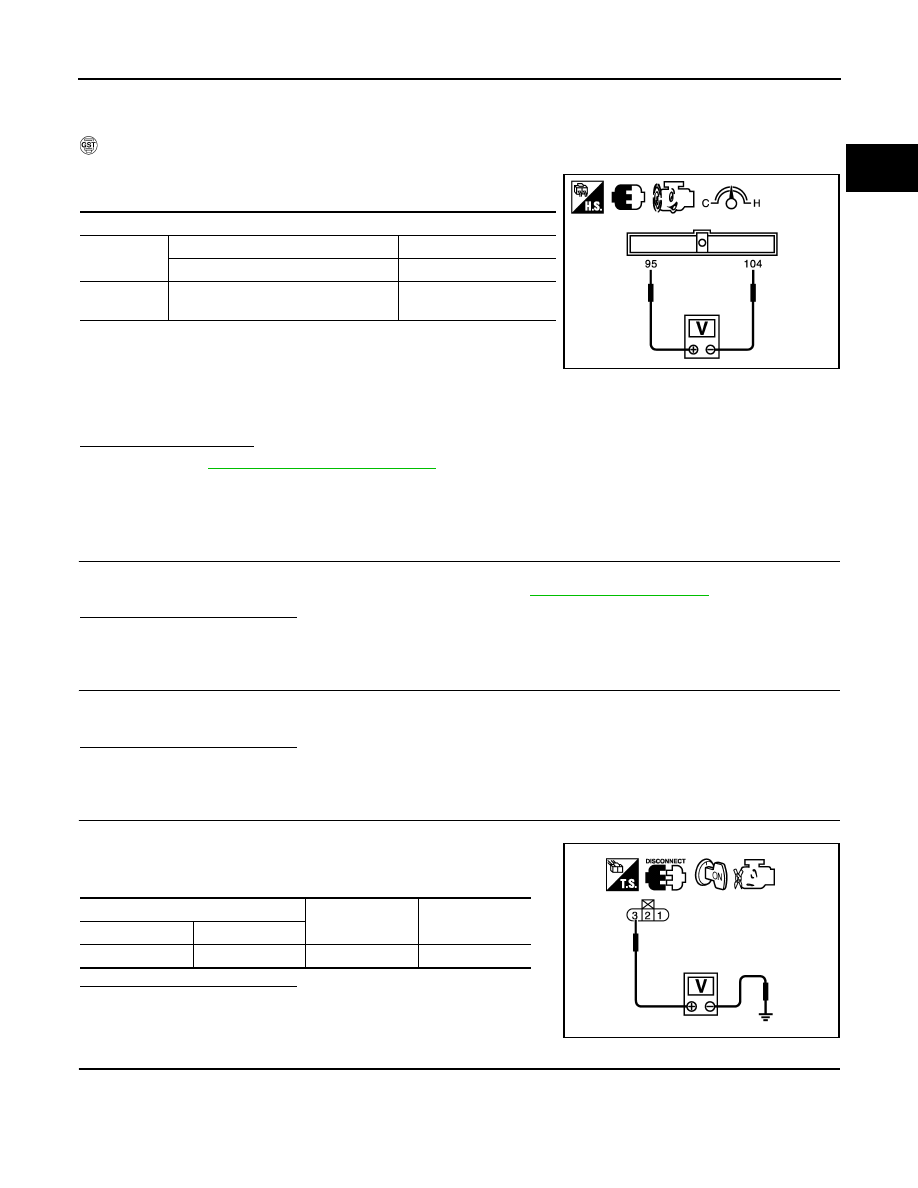

2. Set voltmeter probes to ECM harness connector terminals.

3. Check that the voltage is less than 4.2 V.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Turn ignition switch ON.

6. Turn ignition switch OFF and wait at least 10 seconds.

7. Start engine and wait at least 20 seconds.

8. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-1341, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004362183

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

2. Check that water is not inside connectors.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness connector.

3.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check the voltage between EVAP control system pressure sen-

sor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 4.

4.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

ECM

Connector

+

–

Terminal

Terminal

E10

95

(Fuel tank temperature sensor signal)

104

(Sensor ground)

JMBIA1872ZZ

EVAP control system pressure sensor

Ground

Voltage (V)

Connector

Terminal

B41

3

Ground

Approx. 5

PBIB0138E

EC-1342

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors B10, E29

• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit.

6.

CHECK SENSOR POWER SUPPLY CIRCUIT

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair short to ground or short to power in harness or connectors.

7.

CHECK COMPONENTS

Check the following.

• Crankshaft position sensor (POS) (Refer to

EC-1295, "Component Inspection"

.)

• Refrigerant pressure sensor (Refer to

EC-1503, "Diagnosis Procedure"

.)

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace malfunctioning components.

8.

CHECK APP SENSOR

Refer to

EC-1450, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> GO TO 9.

9.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal assembly.

2. Refer to

EC-1450, "Special Repair Requirement"

.

>> INSPECTION END

10.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND

SHORT
1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

EVAP control system pressure sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

B41

3

E10

91

Existed

ECM

Sensor

Connector

Terminal

Name

Connector

Terminal

F13

72

Refrigerant pressure sensor

E219

1

76

CKP sensor (POS)

F30

1

E10

87

APP sensor

E40

6

91

EVAP control system pressure sensor

B41

3

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-1343

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 11.

11.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors B10, E29

• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit, short to ground or short to power in harness or connectors.

12.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT

1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 14.

NO

>> GO TO 13.

13.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors B10, E29

• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit, short to ground or short to power in harness or connectors.

14.

CHECK RUBBER TUBE

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 15.

NO

>> Clean the rubber tube using an air blower, repair or replace rubber tube.

15.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-1326, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 16.

NO

>> Replace EVAP canister vent control valve.

16.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-1344, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 17.

NO

>> Replace EVAP control system pressure sensor.

EVAP control system pressure sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

B41

1

E10

96

Existed

EVAP control system pressure sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

B41

2

E10

86

Existed

EC-1344

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

17.

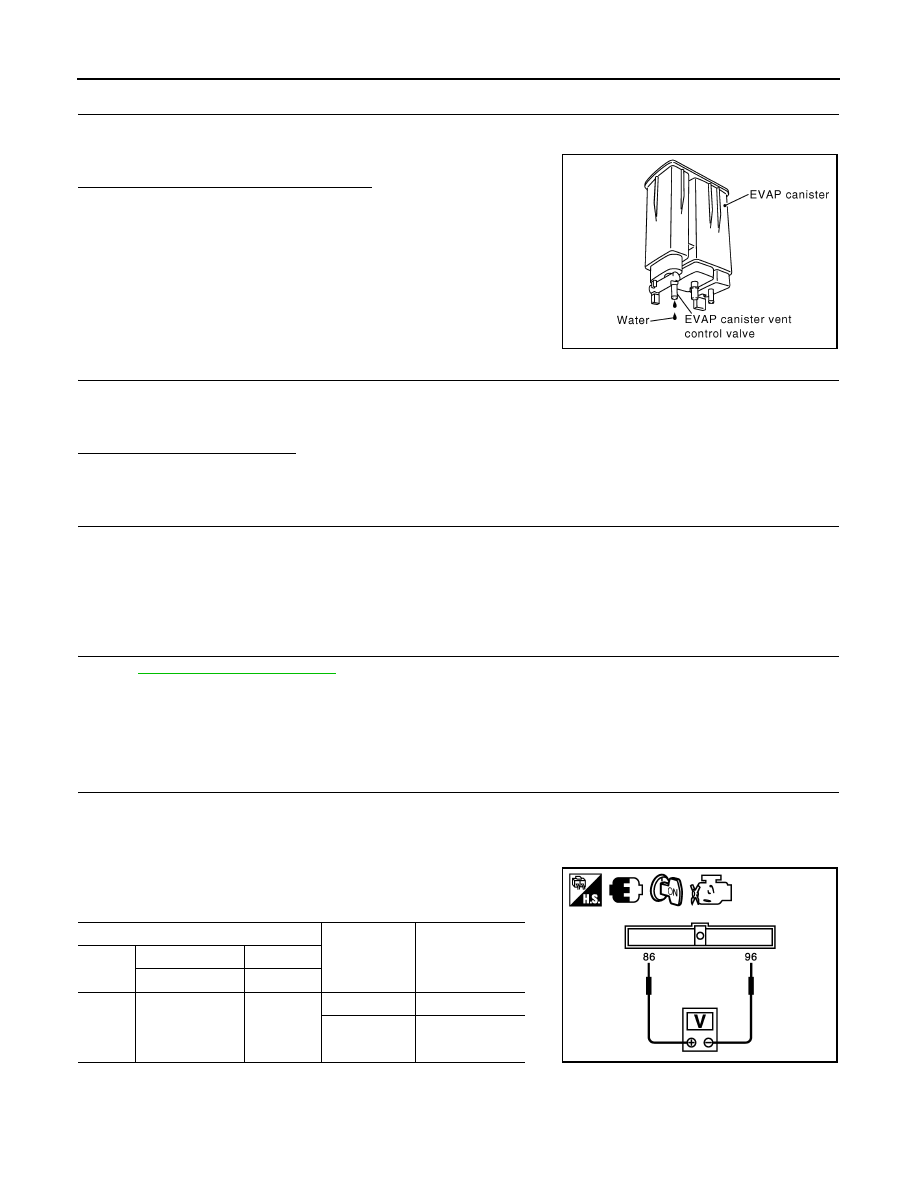

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

2. Check if water will drain from the EVAP canister.
Does water drain from the EVAP canister?

YES

>> GO TO 18.

NO

>> GO TO 20.

18.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.1 kg (4.6 lb).
Is the inspection result normal?

YES

>> GO TO 20.

NO

>> GO TO 19.

19.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister.

20.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000004362184

1.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1. Turn ignition switch OFF.

2. Remove EVAP control system pressure sensor with its harness connector.

Always replace O-ring with a new one.

3. Install a vacuum pump to EVAP control system pressure sensor.

4. Turn ignition switch ON and check output voltage between ECM

terminals under the following conditions.

CAUTION:

• Always calibrate the vacuum pump gauge when using it.
• Never apply below -93.3 kPa (-0.952 kg/cm

2

, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/cm

2

,

14.69 psi).

PBIB1213E

ECM

Applied vacu-

um kPa

(kg/cm

2

, psi)

Voltage

Con-

nector

+

–

Terminal

Terminal

E10

86

(EVAP control

system pressure

sensor signal)

96

(Sensor
ground)

Not applied

1.8 - 4.8 V

-26.7 (-0.272,

-3.87)

2.1 to 2.5 V lower
than above value

JMBIA1871ZZ
