Nissan Altima L32. Manual - part 548





P0442 EVAP CONTROL SYSTEM

EC-1313

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

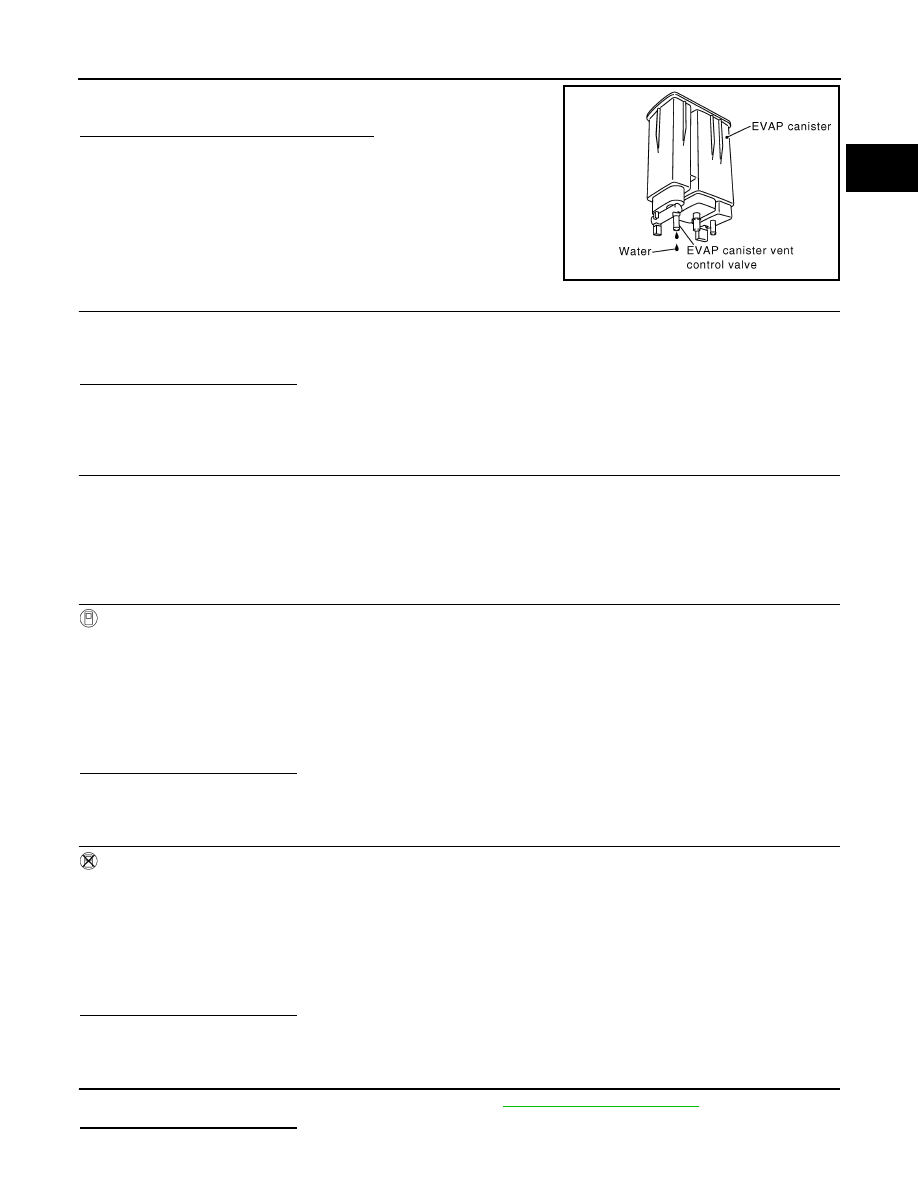

Remove EVAP canister with EVAP canister vent control valve and

EVAP control system pressure sensor attached.
Does water drain from the EVAP canister?

YES

>> GO TO 8.

NO-1 >> With CONSULT-III: GO TO 10.

NO-2 >> Without CONSULT-III: GO TO 11.

8.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.1 kg (4.6 lb).
Is the inspection result normal?

YES-1 >> With CONSULT-III: GO TO 10.

YES-2 >> Without CONSULT-III: GO TO 11.

NO

>> GO TO 9.

9.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister.

10.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

With CONSULT-III

1. Disconnect vacuum hose from EVAP canister purge volume control solenoid valve at EVAP service port.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode.

4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL CONT/V” opening to 100%.

5. Check vacuum hose for vacuum.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> GO TO 12.

11.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

3. Disconnect vacuum hose from EVAP canister purge volume control solenoid valve at EVAP service port.

4. Start engine and let it idle for at least 80 seconds.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> GO TO 12.

12.

CHECK VACUUM HOSE

Check vacuum hoses for clogging or disconnection. Refer to

EC-1116, "System Diagram"

.

Is the inspection result normal?

PBIB1213E

Vacuum should exist.

Vacuum should exist.

EC-1314

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0442 EVAP CONTROL SYSTEM

YES

>> GO TO 13.

NO

>> Repair or reconnect the hose.

13.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-1319, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Replace EVAP canister purge volume control solenoid valve.

14.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-1276, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> Replace fuel level sensor unit and fuel pump.

15.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-1334, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 16.

NO

>> Replace EVAP control system pressure sensor.

16.

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.

Refer to

EC-1116, "System Diagram"

.

Is the inspection result normal?

YES

>> GO TO 17.

NO

>> Repair or reconnect the hose.

17.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 18.

18.

CHECK EVAP/ORVR LINE

Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kinks, looseness and improper

connection. For location, refer to

EC-1497, "Description"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> Repair or replace hoses and tubes.

19.

CHECK RECIRCULATION LINE

Check recirculation line between fuel filler tube and fuel tank for clogging, kinks, cracks, looseness and

improper connection.
Is the inspection result normal?

YES

>> GO TO 20.

NO

>> Repair or replace hose, tube or fuel filler tube.

20.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-1500, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 21.

NO

>> Replace refueling EVAP vapor cut valve with fuel tank.

21.

CHECK FUEL LEVEL SENSOR

Refer to

MWI-47, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 22.

P0442 EVAP CONTROL SYSTEM

EC-1315

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> Replace fuel level sensor unit and fuel pump.

22.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000004362156

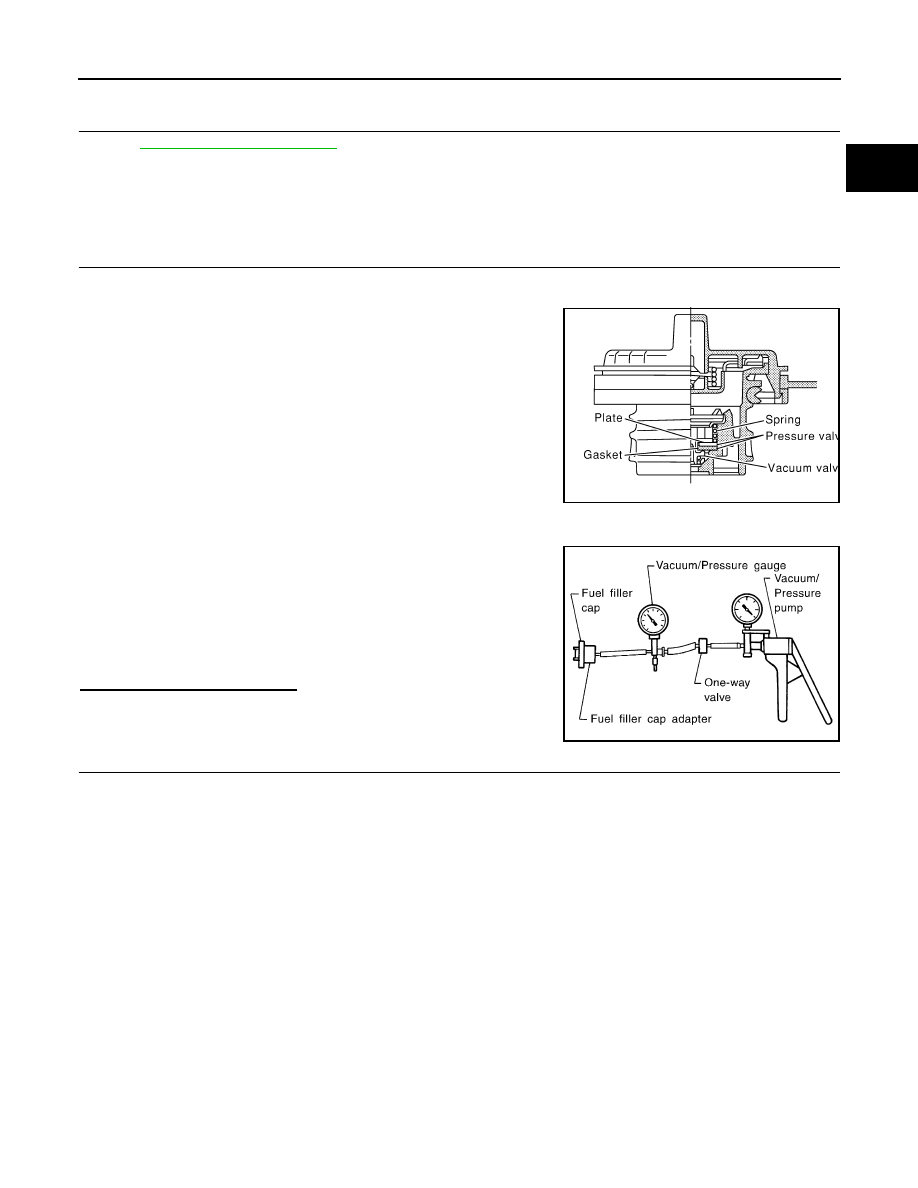

1.

CHECK FUEL FILLER CAP

1. Turn ignition switch OFF.

2. Remove fuel filler cap.

3. Wipe clean valve housing.

4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.

5. Check valve opening pressure and vacuum.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE FUEL FILLER CAP

Replace fuel filler cap.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may

illuminate.

>> INSPECTION END

SEF445Y

Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm

2

,

−0.87 to −0.48 psi)

SEF943S

EC-1316

< COMPONENT DIAGNOSIS >

[VQ35DE]

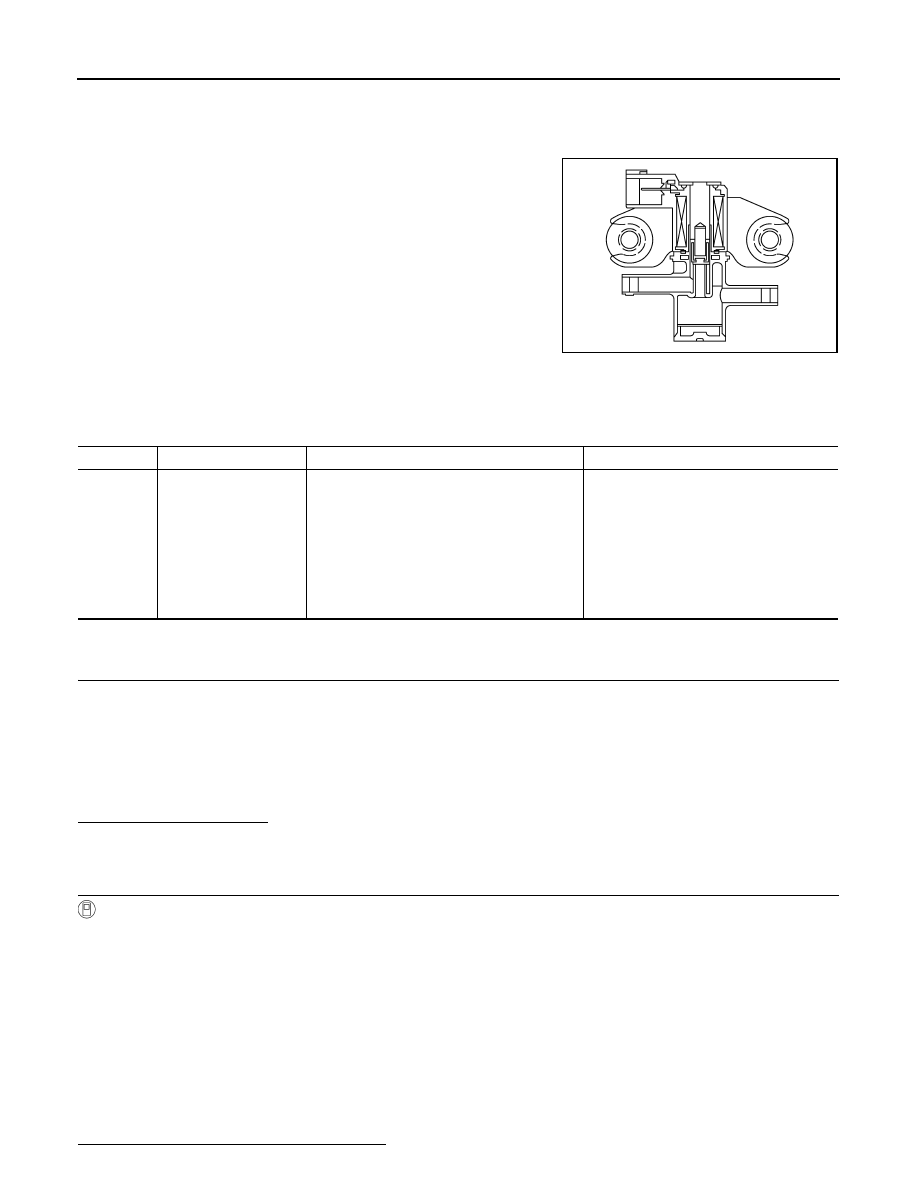

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000004362157

The EVAP canister purge volume control solenoid valve is used to

control the flow rate of fuel vapor from the EVAP canister. The EVAP

canister purge volume control solenoid valve is moved by ON/OFF

pulses from the ECM. The longer the ON pulse, the greater the

amount of fuel vapor that will flow via the valve.

DTC Logic

INFOID:0000000004362158

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Always perform test at a temperature of 5

°C (41°F) or more.

Will CONSULT-III be used?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Turn ignition switch ON.

6. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with

CONSULT-III.

7. Touch “START”.

8. Start engine and let it idle until “TESTING” on CONSULT-III changes to “COMPLETED”. (It will take

approximately 10 seconds.)

If “TESTING” is not displayed after 5 minutes, retry from step 2.

9. Touch “SELF-DIAG RESULTS”.
Which is displayed on CONSULT-III screen?

PBIB3489E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443

EVAP canister purge
volume control solenoid
valve

The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control so-

lenoid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)
